Choosing the right 12V RGB LED strip means getting the colour range, controller compatibility, and run length right the first time — otherwise you end up with mismatched colours, flickering, or strips that fade halfway along the run. This page covers every technical detail you need to make the correct buying decision for your 2026 project, whether that is a kitchen kickboard, a home cinema feature wall, or a commercial bar installation.

ATOM LED stocks 12V RGB strip in both SMD5050 and COB formats, with LED densities ranging from 30 LEDs/m up to 480 LEDs/m on COB, and maximum single-feed runs of 3–5 metres depending on wattage. Every strip ships from UK stock with free delivery and is backed by our technical team on 01952 370028.

12V RGB · SMD5050 & COB · 30–480 LEDs/m · 3–5m max single feed · Non-dimmable driver + RGB controller required · Free UK delivery · UK stock · 01952 370028

Quick decision summary

• If you need colour changing accent lighting for runs under 5 metres: 12V RGB strip with an RF or Wi-Fi RGB controller is the most cost-effective choice in 2026.
• If you need colour changing AND clean true white from the same strip: You need RGBW COB strip instead — RGB cannot produce clean white light.

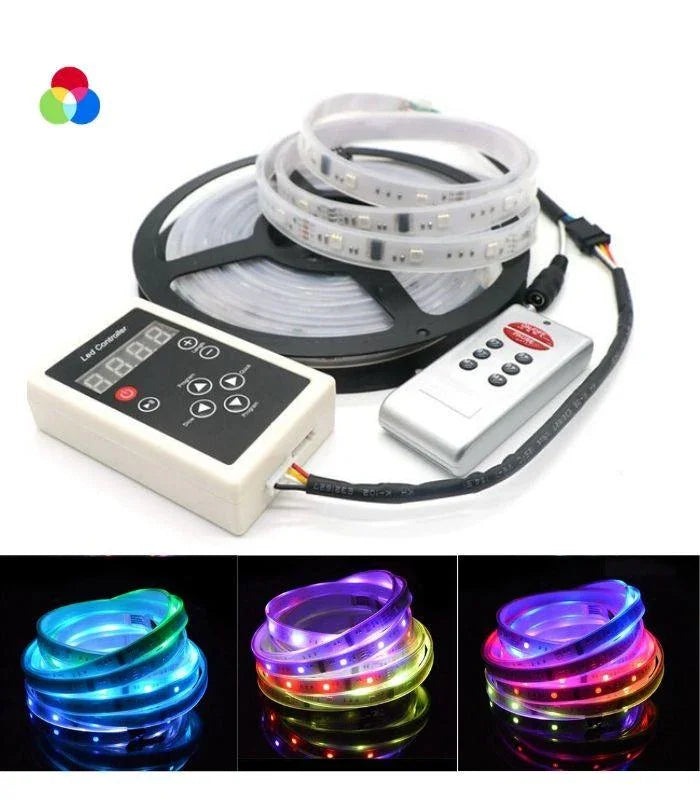

• If you need individually addressable pixel effects or running-water patterns: You need addressable digital RGB strip, which uses SPI control rather than standard RGB.
• If your run exceeds 5 metres: Consider 24V RGB for longer single-feed capability, or wire multiple 12V runs in parallel from separate driver outputs.

Who is this page for?

• Homeowners and DIY installers fitting accent colour lighting in kitchens, bedrooms, gaming setups, or home cinemas.
• Electricians and contractors specifying 12V RGB strip for commercial hospitality installations under 5-metre runs.
• Interior designers looking for controllable colour-wash effects in retail, restaurant, or residential fit-outs.

Who is this page NOT for?

• Anyone needing true white light from the same strip: RGB produces a cold, violet-tinged white — not usable as task or general lighting. Choose RGBW strip with a dedicated white channel instead.
• Anyone needing pixel-by-pixel effects or music sync: Standard RGB controls all LEDs as one zone. You need addressable digital RGB for individual LED control.
• Anyone running strips longer than 5 metres on a single feed: 12V experiences significant voltage drop beyond approximately 5 metres at typical RGB wattages. Use 24V or wire in parallel.

Common buying mistakes to avoid

• Using a dimmable driver with RGB strip: RGB strip requires a non-dimmable constant voltage driver. Dimmable drivers cause flicker, colour shift, and premature driver failure. Dimming and colour control are handled entirely by the RGB controller.
• Expecting white light from RGB: RGB LEDs mix red, green, and blue to approximate white, but the result is a cold, violet-tinged wash that looks nothing like dedicated white LEDs.
• Connecting a standard wall dimmer instead of an RGB controller: Standard trailing-edge or leading-edge dimmers cannot control colour channels. You must use a dedicated RGB controller.
• Running a single 12V strip beyond 5 metres: Voltage drop at 12V is significant. Colours at the far end shift and dim noticeably. Use parallel wiring or step up to 24V for longer installations.

On this page:

1. What are RGB LED strip lights 12V and how do they work?
2. Why does 12V RGB strip have a maximum run length of 3–5 metres?
3. What driver do you need for 12V RGB LED strip?
4. Which RGB controller should you use with 12V strip?
5. How does SMD5050 compare to COB for 12V RGB strip?
6. Why can RGB strip not produce clean white light?
7. How do you wire 12V RGB LED strip correctly?
8. What IP rating do you need for RGB strip in bathrooms and outdoors?
9. How do you install 12V RGB LED strip step by step?
10. What are the most common 12V RGB installation problems and fixes?
11. Why choose ATOM LED for RGB LED strip lights 12V?
12. Frequently asked questions — RGB LED strip lights 12V

What are RGB LED strip lights 12V and how do they work?

RGB LED strip lights 12V contain red, green, and blue LED chips on a single flexible circuit board powered by a 12V DC constant voltage driver. A dedicated RGB controller mixes these three colour channels to produce a spectrum of approximately 16 million colours. The strip itself has four conductors — one common anode and three cathode lines, one per colour channel.

Each RGB LED is a single package containing three semiconductor dies. When all three channels run at full power, the output appears as an approximate white — but this is not clean white. It carries a noticeable violet or blue-purple tinge because the phosphor conversion used in dedicated white LEDs is absent. This is a fundamental limitation of RGB technology in 2026, not a quality issue with any particular strip.

The 12V operating voltage makes these strips compatible with a wide range of compact drivers and battery packs, which is why they remain popular for short accent runs, portable installations, and retrofit projects where a larger 24V or 48V system would be over-engineered.

• Four-wire construction: Common anode (+12V) plus three cathode lines for red, green, and blue channels, each controlled independently by the RGB controller.
• PWM colour mixing: The controller uses pulse-width modulation to adjust the brightness of each channel independently, creating the full colour spectrum from three primary colours.
• Cut points: 12V RGB strip typically has cut points every 100mm (3-LED groups on SMD5050), allowing you to trim to length without wasting material.
• Adhesive backing: 3M VHB or equivalent adhesive tape on the reverse. For best results in 2026, mount on a clean, dry surface or inside an aluminium profile for improved heat dissipation and a professional finish.

Why does 12V RGB strip have a maximum run length of 3–5 metres?

At 12V, the operating voltage is low enough that resistance across the copper traces causes measurable voltage drop over distance. On a typical 14.4W/m RGB strip, voltage at the far end of a 5-metre run can fall below 11V, causing visible colour shift, reduced brightness, and uneven colour mixing across the three channels — particularly noticeable on pastel and white settings.

Voltage drop affects each RGB channel slightly differently because the forward voltage of red LEDs (approximately 2.0V) differs from green and blue (approximately 3.0–3.2V). Over a long single-feed run, the red channel maintains output better than green and blue, which is why distant sections often appear warmer or pink-shifted. This is a physics limitation of 12V systems, not a defect.

For runs exceeding 5 metres, wire in parallel from multiple driver outputs rather than extending a single run. Each parallel run should be no longer than 5 metres, fed independently from the driver. This maintains even voltage and consistent colour across the entire installation. See our LED power supply range for units with multiple output terminals suited to parallel wiring.

What driver do you need for 12V RGB LED strip?

12V RGB LED strip requires a non-dimmable 12V DC constant voltage driver. Never use a dimmable driver — dimmable output interferes with the PWM signals from the RGB controller, causing flicker, incorrect colour rendering, and in many cases premature failure of the driver or controller. All dimming and colour control must be handled by the RGB controller, not the driver.

This is one of the most common mistakes in 2026 RGB installations. Many buyers assume that because their single-colour strip uses a dimmable driver, the same applies to RGB. It does not. The RGB controller sits between the driver and the strip, actively modulating the current on each colour channel. A dimmable driver introduces a second layer of modulation that conflicts with the controller output.

How to calculate driver wattage for RGB strip

1. Multiply strip wattage per metre by total strip length. Example: 14.4W/m x 4m = 57.6W total load.
2. Add a 20% headroom buffer. 57.6W x 1.2 = 69.1W minimum driver capacity.
3. Round up to the next available driver size. In this example, a 75W or 100W non-dimmable 12V driver.
4. Never run a driver above 80% of rated capacity. Sustained operation at full load shortens driver lifespan and increases heat output.

Browse our complete range of LED transformers and drivers to find the correct unit for your installation. For outdoor or bathroom RGB installations requiring IP67 protection, check our waterproof LED power supply options.

Which RGB controller should you use with 12V strip?

Every 12V RGB installation requires a dedicated RGB controller — standard wall dimmers, trailing-edge dimmers, and leading-edge dimmers cannot control RGB strip. The controller handles colour mixing, brightness, modes, and timing by independently modulating each of the three colour channels using PWM signals. In 2026, the most reliable controller options are RF remote, Wi-Fi app-controlled, and DMX512 for commercial projects.

The controller is the brain of your RGB system. It sits between the non-dimmable driver and the strip, receiving 12V DC in and sending modulated 12V to each of the red, green, and blue channels. Controller choice determines your colour range, dimming smoothness, zone control capability, and smart-home integration options.

ATOM LED stocks controllers from three of the most respected manufacturers in the UK LED market:

• MiBoxer controllers: Excellent value for residential and light commercial RGB installations, with reliable 2.4GHz RF and Wi-Fi options that integrate with Tuya smart home platforms.
• Skydance LED controllers: Mid-range to professional grade, offering DMX512, 0-10V, and DALI compatibility for commercial fit-outs and multi-zone architectural projects.
• LTech LED controllers: Professional specification units used widely in commercial and architectural lighting, with high PWM frequencies that eliminate visible flicker even on camera.

How does SMD5050 compare to COB for 12V RGB strip?

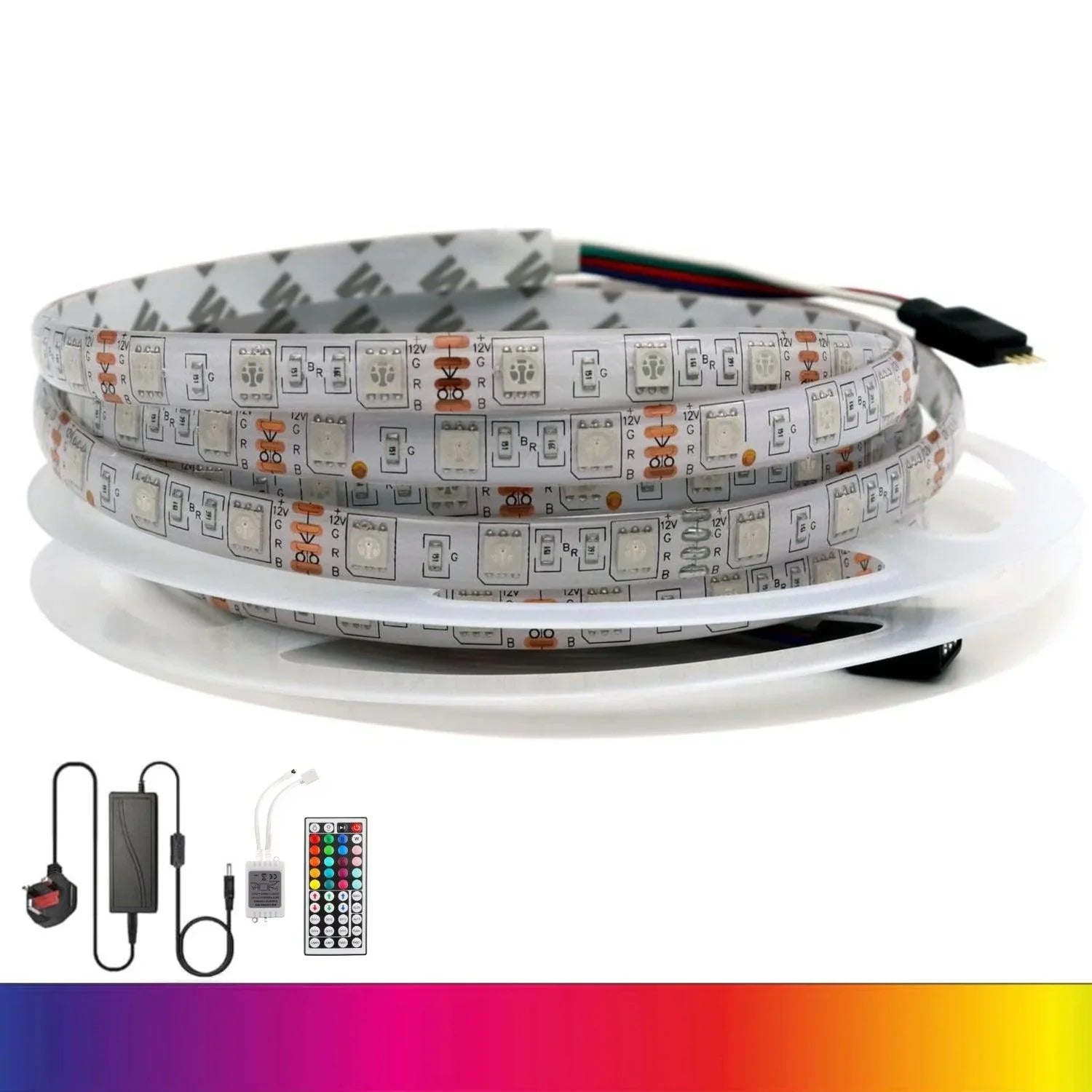

SMD5050 is the established standard for 12V RGB strip — each 5mm x 5mm package contains three dies (red, green, blue) and produces visible individual dots at close range. COB (chip-on-board) RGB uses much smaller dies bonded directly to the circuit board beneath a phosphor or epoxy layer, producing a continuous line of light with no visible dot pattern. COB RGB at 12V is a more recent development in the UK market as of 2026.

For most accent lighting applications viewed from a distance of 500mm or more, SMD5050 performs perfectly well. The individual LED dots are only noticeable on close inspection or when the strip is mounted behind a very thin diffuser. COB RGB eliminates this dot visibility entirely, which matters for installations where the strip is visible at close range — for example, glass shelf edges, floating mirror borders, or open-profile cove lighting.

• SMD5050 at 30 LEDs/m: Budget-friendly option for concealed accent lighting where dot visibility is not a concern. Lower wattage per metre, approximately 7.2W/m.
• SMD5050 at 60 LEDs/m: The most popular density for general RGB accent use in 2026. Provides a good balance between brightness and power consumption at approximately 14.4W/m.

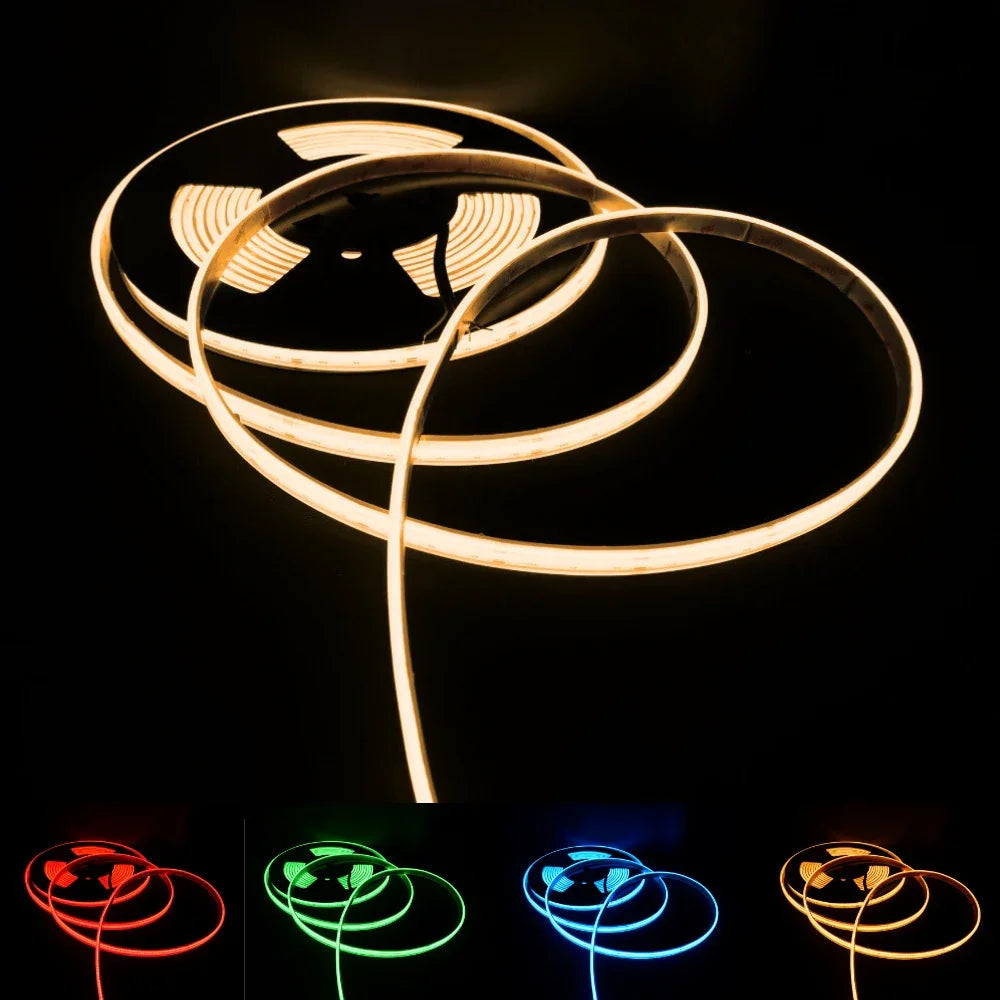

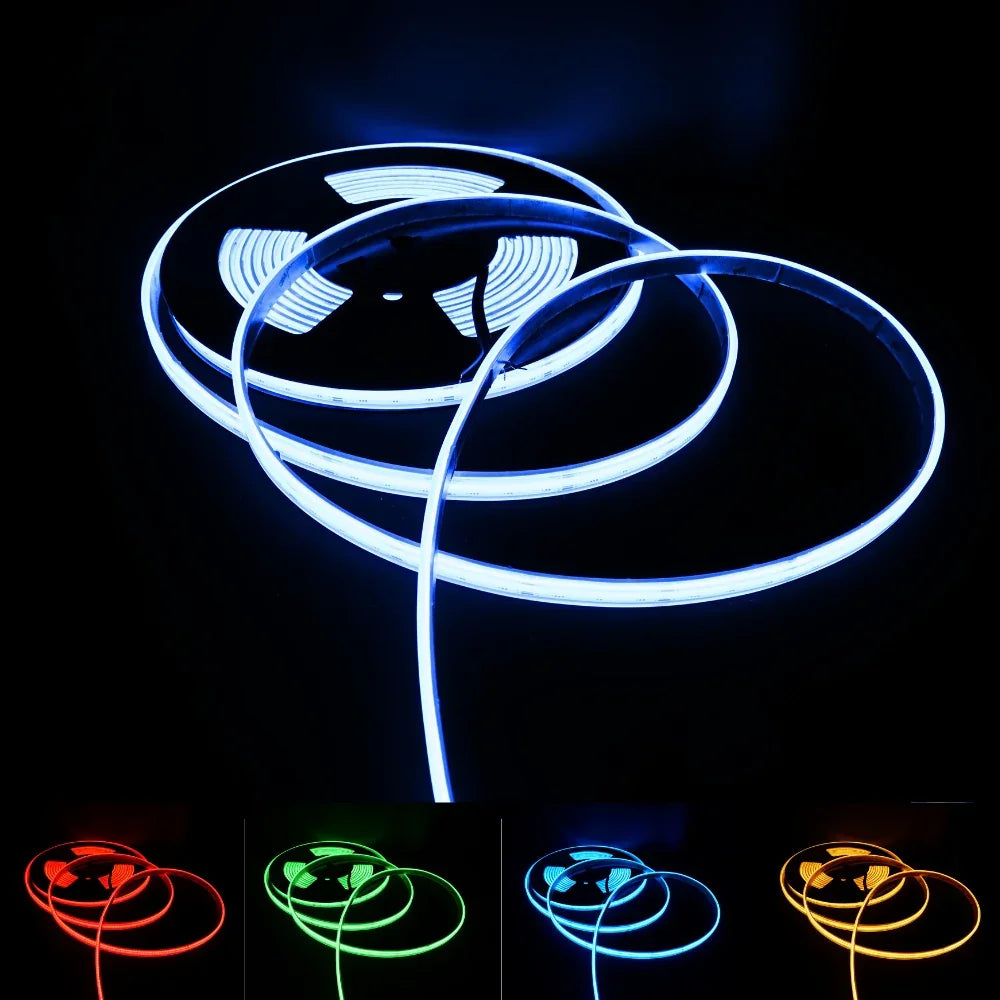

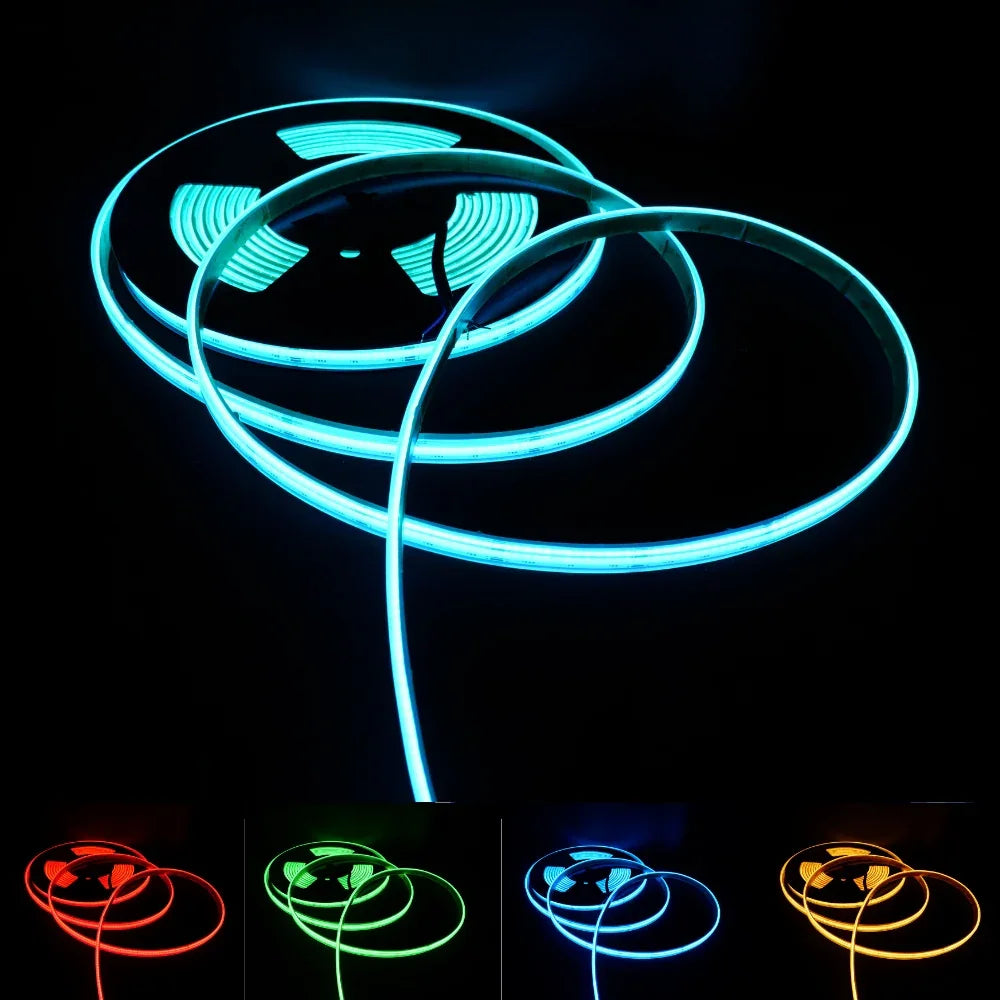

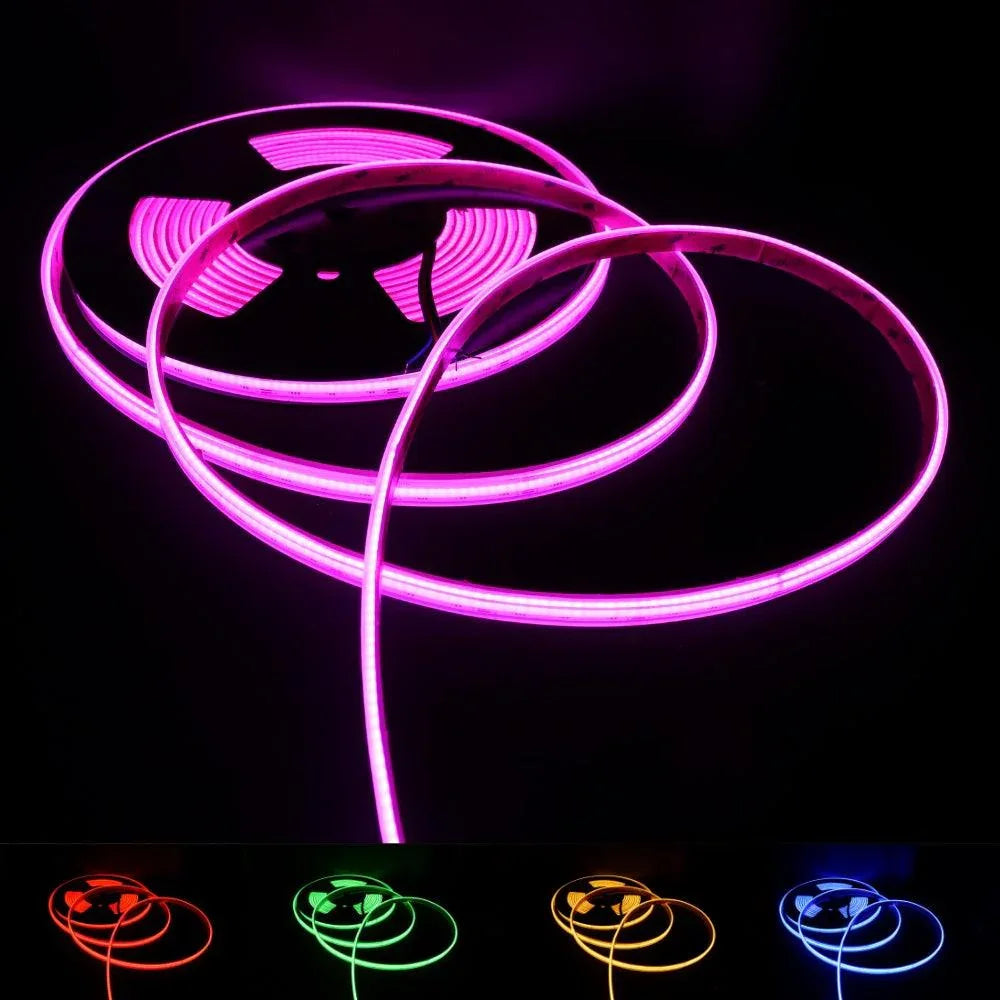

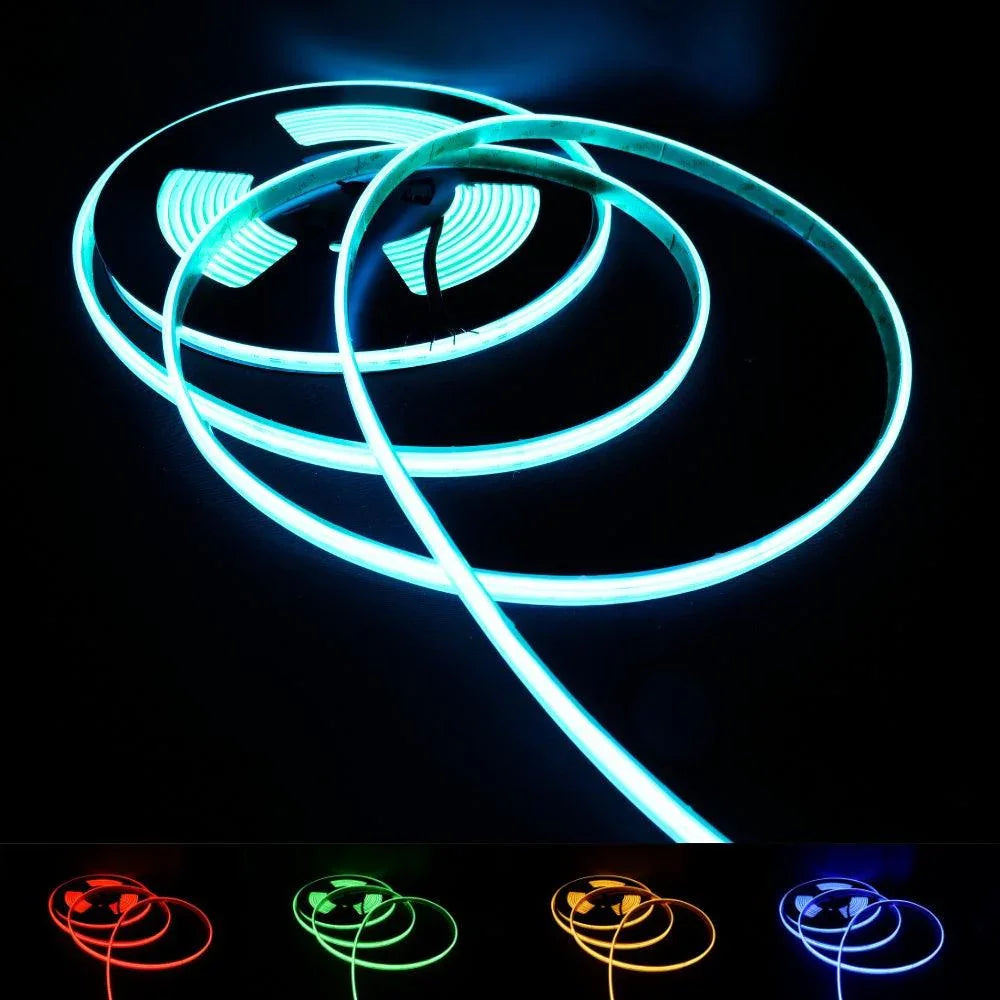

• COB RGB at 480 LEDs/m: Produces a smooth, dot-free light line. Higher wattage per metre, typically 12–15W/m, and more limited maximum run length due to higher current draw at 12V.

If you are fitting RGB strip inside an aluminium profile with a diffuser cover, SMD5050 at 60 LEDs/m is typically sufficient — the diffuser blends the dots effectively. If the strip will be visible without a diffuser, or through clear glass, COB RGB provides a noticeably cleaner result. Browse our LED strip profiles for surface-mount and recessed options that pair well with RGB strip.

Why can RGB strip not produce clean white light?

RGB LEDs create an approximation of white by running all three colour channels — red, green, and blue — at maximum power simultaneously. The result is a cold, violet-tinged wash that lacks the smooth spectral output of a dedicated white LED. This is because white LEDs use a blue die with a yellow phosphor coating to produce broad-spectrum white, whereas RGB simply mixes three narrow spectral peaks. No amount of controller tuning can fix this fundamental limitation.

This is the single most important technical fact about RGB strip, and the most common source of buyer disappointment. If your project needs white light for task illumination, reading, cooking, or any application where white quality matters, RGB on its own is not suitable. The white produced by RGB mixing typically has a CRI equivalent well below 50 — compared to CRI90+ on dedicated ATOM LED white COB strip.

The solution is RGBW strip, which adds a fourth channel containing a dedicated white LED die. This white channel produces the same quality output as a standard single-colour white strip, while the RGB channels handle colour effects independently. ATOM LED offers RGBW COB strip in 24V with CRI90+ white output and dot-free colour mixing.

• RGB white: Cold violet-tinged wash, narrow spectral peaks, CRI equivalent below 50, not suitable for task or general room lighting.
• RGBW white: Clean phosphor-converted white from a dedicated channel, CRI90+ achievable, suitable for combined colour effects and functional white lighting in the same installation.
• Single-colour white COB strip: The highest white quality available, CRI90+ as standard on ATOM LED COB products, available in 24V and 48V.

How do you wire 12V RGB LED strip correctly?

12V RGB strip must be wired in parallel, not in series, with each run fed independently from the RGB controller output. Series wiring — connecting the end of one strip to the start of the next — multiplies voltage drop across the combined length, causing severe colour shift and brightness loss. Parallel wiring maintains consistent 12V across every run, ensuring even colour and brightness throughout the installation.

The wiring path for a 12V RGB installation runs: mains supply → non-dimmable 12V DC driver → RGB controller → strip. The controller has four output terminals (V+, R, G, B) that connect to the matching four conductors on the strip. For multi-run installations, each strip run connects back to the controller in parallel rather than daisy-chaining end-to-end.

Parallel wiring layout for multiple RGB runs

1. Position the driver and controller centrally to minimise cable distances to each strip run.
2. Run a four-core cable from the controller to each strip start point. Use 0.75mm² cable for runs up to 3 metres at 14.4W/m, or 1.0mm² for runs up to 5 metres.
3. Connect each cable independently to the controller output terminals. V+ to V+, R to R, G to G, B to B — colour coding prevents cross-wiring.
4. Keep each strip run to a maximum of 5 metres. If you need 10 metres of continuous illumination, use two 5-metre runs fed in parallel from the same controller.
5. Check total amperage does not exceed the controller rating. A typical 12V RGB controller handles 12–15A total (4–5A per channel). At 14.4W/m, a 5-metre strip draws 6A — two runs draw 12A.

If your installation requires more total wattage than the controller can handle, use an RGB signal amplifier. The amplifier receives the PWM signal from the primary controller and drives additional strip runs independently, maintaining colour synchronisation across all zones.

• Never strip more than 8mm of insulation when connecting to screw terminals — exposed copper risks short circuits, particularly inside tight enclosures.
• Never mount 12V RGB strip directly on bare metal surfaces without electrical insulation beneath the strip. The exposed copper traces on the underside can short-circuit against conductive surfaces, damaging the strip and potentially the controller.
• Never power RGB strip while still coiled on the reel. The overlapping layers trap heat, which degrades the adhesive backing and can damage the LEDs within minutes.

What IP rating do you need for RGB strip in bathrooms and outdoors?

For UK bathroom installations, you need a minimum of IP67-rated RGB strip in Zone 1 and Zone 2 areas under BS7671 wiring regulations. IP65 is rated for surface splash only and is not suitable for UK bathrooms or outdoor use where sustained moisture, condensation, or rain exposure occurs. For outdoor garden and patio installations exposed to UK weather, IP67 is the minimum recommendation in 2026.

IP ratings on LED strip refer to the encapsulation applied over the LED side of the strip. IP20 (no coating) is suitable for dry interior locations only — bedrooms, living rooms, ceiling coves. IP65 adds a surface coating that resists light splashing but does not withstand sustained water contact, condensation cycling, or the humidity levels found in UK bathrooms. Many competitors list IP65 as suitable for bathrooms — this does not align with BS7671 requirements for electrical equipment in bathroom zones.

• IP20 (no coating): Dry interior only — bedrooms, living rooms, home cinemas, media walls, under-cabinet kitchen lighting away from sinks.

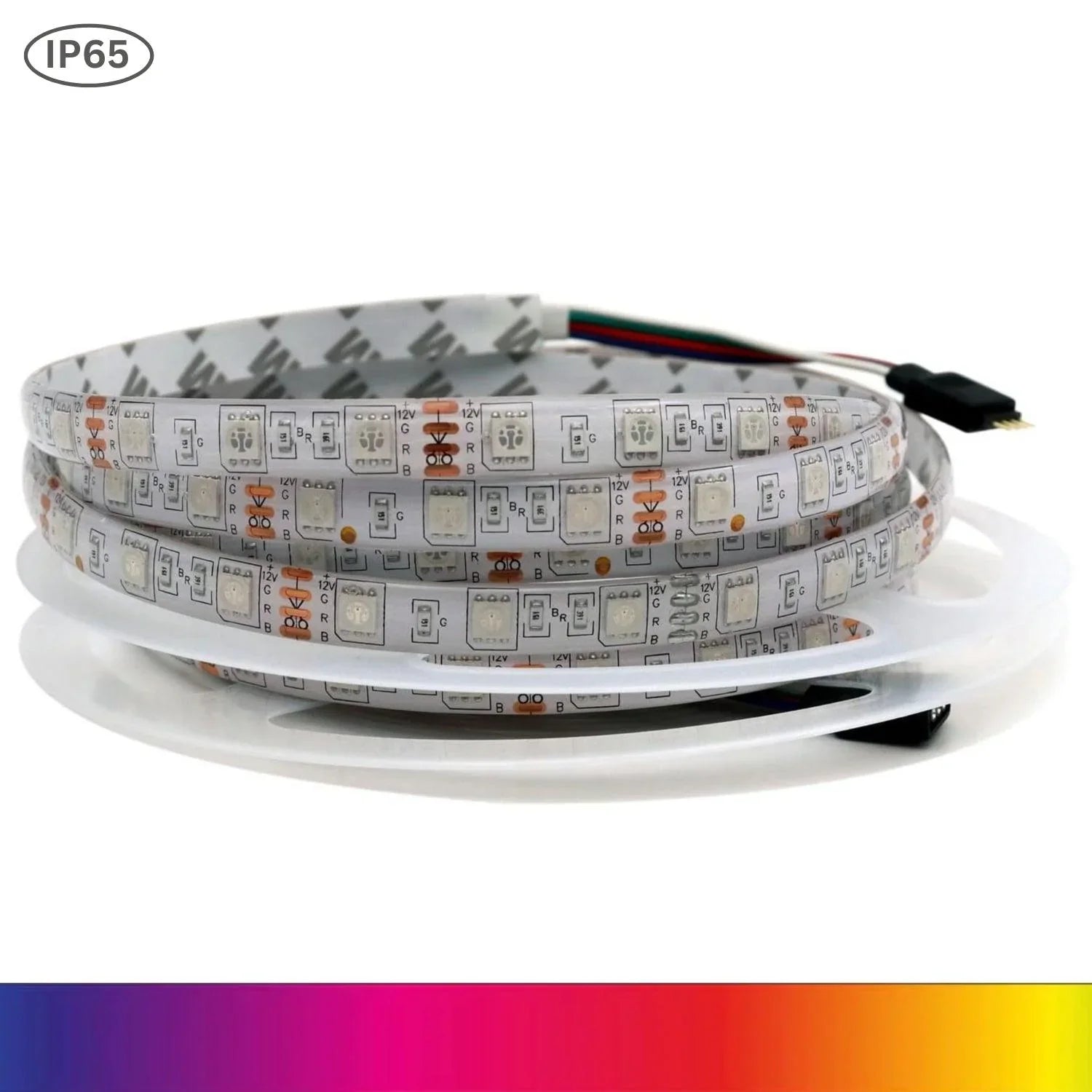

• IP65 (surface splash): Dry interior or well-ventilated covered areas. Not recommended for UK bathrooms or outdoor use despite some suppliers marketing it as waterproof.

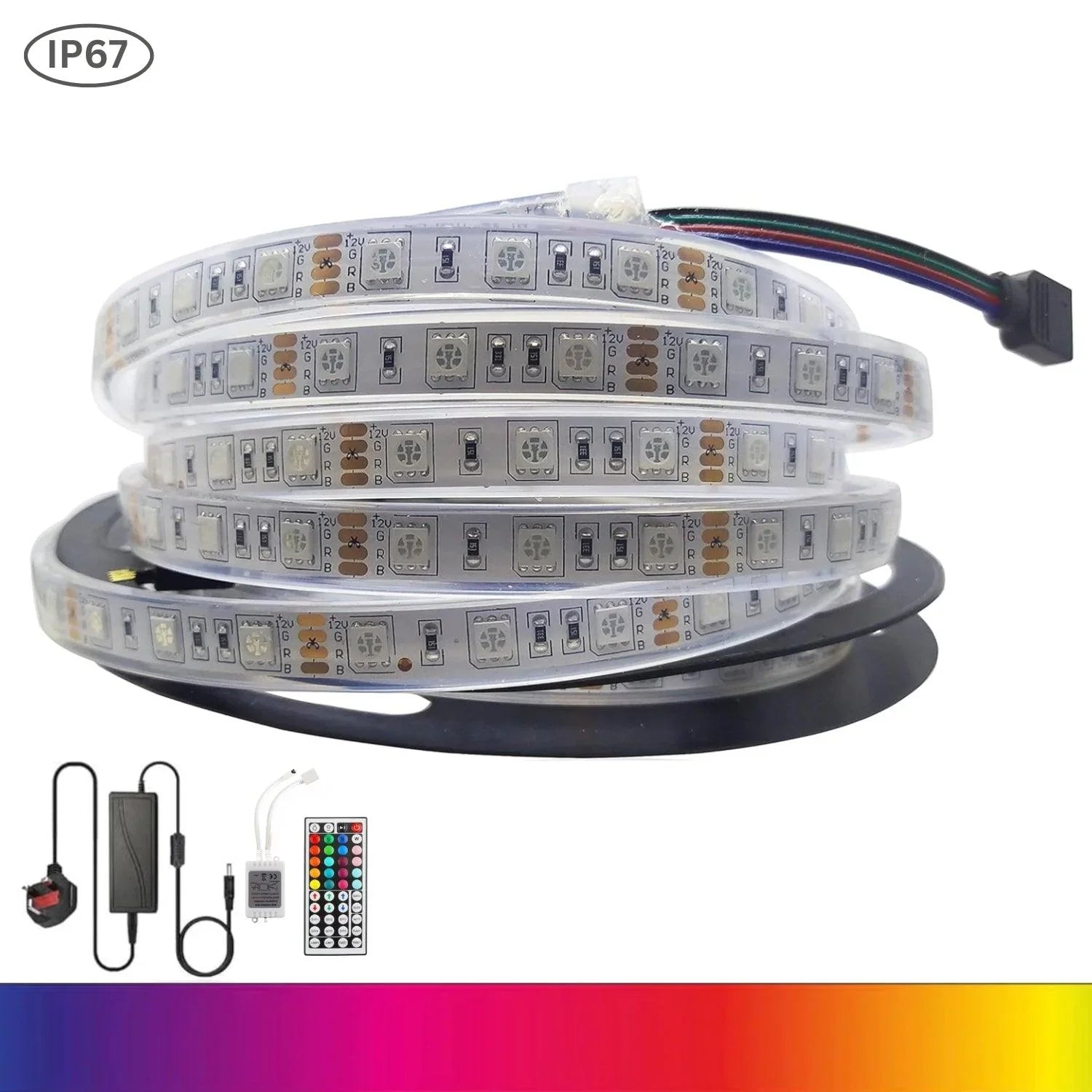

• IP67 (temporary immersion): Suitable for UK bathrooms (Zones 1 and 2), outdoor gardens, covered patios, and installations exposed to condensation or occasional rain. Browse our outdoor LED strip range for IP67 options.

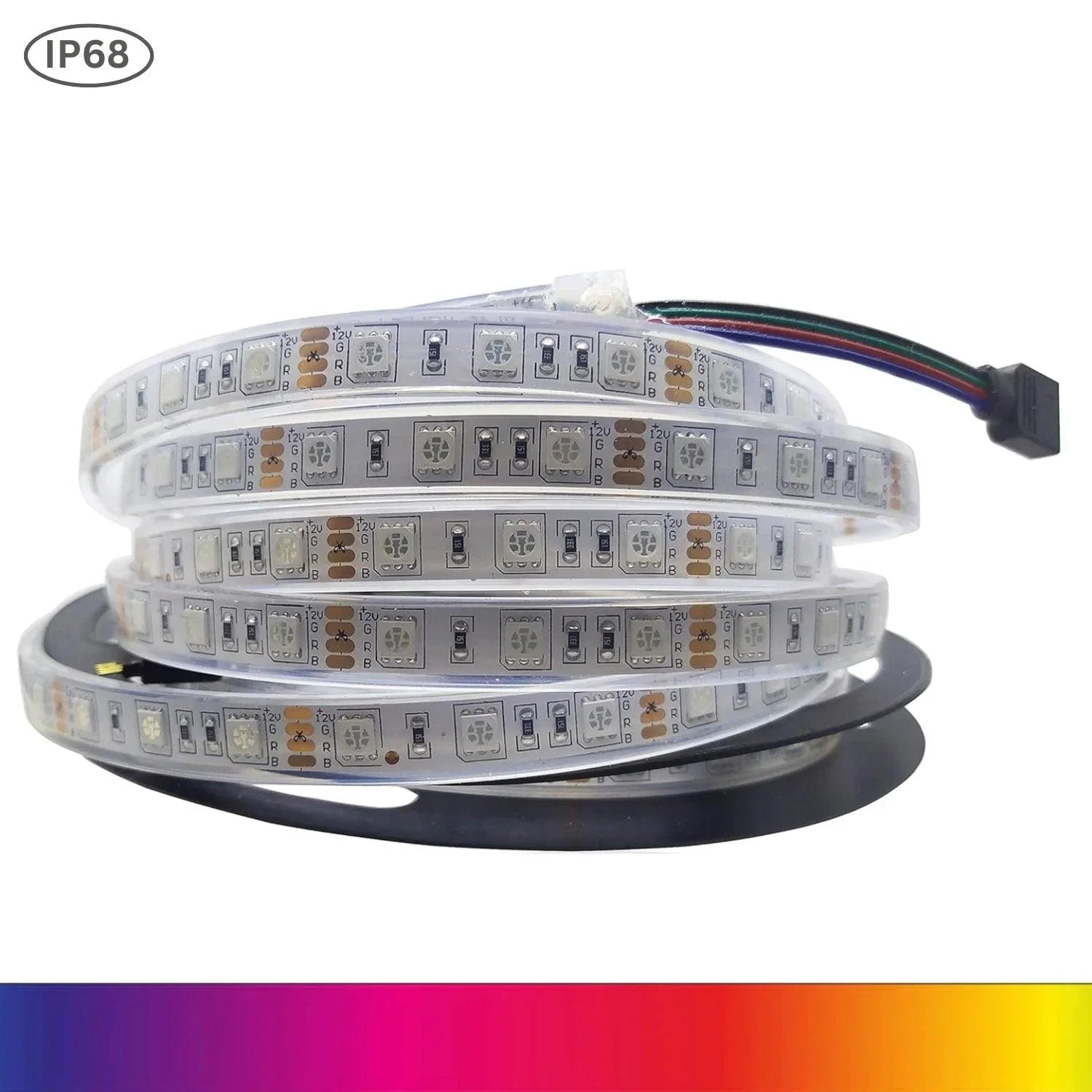

• IP68 (continuous submersion): Required for ponds, water features, fountains, and fully exposed outdoor locations with standing water.

How do you install 12V RGB LED strip step by step?

Installing 12V RGB LED strip requires a non-dimmable 12V DC driver, a dedicated RGB controller, the strip itself, and appropriate mounting hardware. The process takes approximately 1–2 hours for a typical single-room accent installation in 2026. Follow these steps in order to avoid the most common installation errors — particularly around driver selection, maximum run length, and controller wiring.

1. Step 1 — Plan your layout and measure precisely. Measure the total strip length required. Identify cut points (every 100mm on most 12V RGB SMD5050 strip) and mark where each run will start and end. Note the location of the nearest mains socket or fused spur for the driver.
2. Step 2 — Calculate driver wattage and select a non-dimmable 12V unit. Multiply the strip wattage per metre by total length, then add 20% headroom. A 4-metre run of 14.4W/m strip needs a minimum 69W driver — round up to 75W or 100W. Never use a dimmable driver for RGB installations.
3. Step 3 — Select and mount the RGB controller. Position the controller between the driver output and the strip input. Ensure the controller is rated for the total amperage of all connected strip runs combined. Mount the controller in a ventilated, accessible location — you may need to access it for resets or firmware updates on Wi-Fi models.
4. Step 4 — Prepare the mounting surface. Clean the surface thoroughly with isopropyl alcohol. For the best thermal management and a professional finish, mount the strip inside an aluminium LED profile. If mounting directly to a surface, ensure it is not bare uninsulated metal — use an insulating layer to prevent short circuits on the exposed strip traces.
5. Step 5 — Uncoil and cut the strip to length. Uncoil the strip completely from the reel before powering — never test or run strip while coiled. Cut only at the marked cut points using sharp scissors or a craft knife. Cutting between marks will disable that section of LEDs.
6. Step 6 — Connect strip to controller. Match the four wires or connector pins: V+ (common anode), R (red), G (green), B (blue). Use soldered connections for permanent installations or solderless clip connectors for temporary or adjustable setups. Ensure each joint is mechanically secure and electrically insulated.
7. Step 7 — Connect driver to controller, then connect driver to mains supply. Wire the 12V DC output of the driver to the controller input terminals. Connect the mains input side of the driver to a switched fused spur or plug. If the driver is being hardwired, this must be completed by a qualified electrician.
8. Step 8 — Test before final mounting. Power on and cycle through all colours using the controller or app. Check for even brightness along the full length, correct colour reproduction, and smooth dimming transitions. If colours appear shifted or uneven, check wiring polarity and run length.

For connectors, extension cables, and soldering accessories, browse our accessories range. Contact our technical team on 01952 370028 or email operations@atomled.co.uk if you need help planning your RGB layout.

What are the most common 12V RGB installation problems and fixes?

The five most frequent 12V RGB problems in 2026 are: uneven colour along the strip (voltage drop), flickering (wrong driver type), one colour channel not working (wiring fault or dead channel), white looking purple or violet (inherent RGB limitation), and strip falling off the mounting surface (heat or surface prep failure). Most of these are avoidable with correct component selection and installation practice.

• Uneven colour or brightness along the run: Caused by voltage drop on runs exceeding 3–5 metres. Fix by shortening the run, adding power injection at the far end, or rewiring in parallel with a separate feed from the controller for each run.
• Flickering or strobing: Almost always caused by using a dimmable driver instead of a non-dimmable constant voltage driver. Replace the driver with a non-dimmable unit rated for the correct voltage and wattage. RGB dimming must be handled by the controller, not the driver.
• One colour channel not illuminating: Check the wiring connection at the controller output and at each strip junction. A loose or reversed wire on the R, G, or B terminal will disable that channel entirely. If wiring is correct, the controller channel or that section of strip may be faulty.
• White mode looks purple or violet: This is not a fault — it is how RGB technology works. All three channels at maximum produce an approximate white with a visible violet tinge. The only fix is to switch to RGBW strip with a dedicated white channel.
• Strip detaching from the surface: Usually caused by mounting on a dusty, oily, or textured surface, or by heat build-up from running the strip at high brightness on an unventilated surface. Clean with isopropyl alcohol before mounting, and use aluminium profiles for heat dissipation on high-brightness installations.
• Controller not pairing with remote: Most RF controllers require a pairing sequence — typically power off, power on, then press and hold a specific button within 3–5 seconds. Consult the controller manual for the exact procedure. Wi-Fi controllers require a 2.4GHz network, not 5GHz.

Why choose ATOM LED for RGB LED strip lights 12V?

ATOM LED supplies 12V RGB strip from UK stock in Telford, Shropshire — not dropshipped from overseas warehouses. Every order ships with free UK delivery, and our technical team is available Monday to Friday, 9am–5pm on 01952 370028 to help you specify the correct strip, driver, and controller combination before you buy. We would rather you order the right product once than return the wrong one twice.

• UK stock, dispatched from Telford: Your order ships from our Shropshire warehouse, typically arriving within 1–3 working days. No overseas lead times or customs delays.
• Free UK delivery: Every order, every product, no minimum spend.
• Technical team support: Call 01952 370028 or email operations@atomled.co.uk for help with driver sizing, controller selection, wiring layouts, and IP rating guidance before you order.
• Controller ecosystem: We stock RGB controllers from MiBoxer, Skydance, and LTech — covering everything from basic RF remotes for a bedroom accent to DMX512 multi-zone systems for commercial hospitality fit-outs.
• Complete system supply: Strip, drivers, controllers, profiles, connectors, and accessories from a single supplier. No chasing parts from multiple vendors with mismatched specifications.
• FreeCut technology: Cut at any point without voiding warranty on applicable strip products, giving you precise length control with zero waste.

Ready to order or need help specifying your 12V RGB system?

• Call: 01952 370028 (Mon–Fri, 9am–5pm)
• Email: operations@atomled.co.uk
• Browse 12V RGB strip: View the full LED strip lights range
• Browse RGB controllers: View all LED controllers

Frequently asked questions — RGB LED strip lights 12V

1. Can I use a dimmable driver with 12V RGB LED strip?

• No. RGB strip requires a non-dimmable constant voltage 12V DC driver. Dimmable drivers interfere with the PWM signals from the RGB controller, causing flicker, colour distortion, and premature component failure. All brightness and colour control is handled by the dedicated RGB controller.

2. What is the maximum run length for 12V RGB strip on a single feed?

• Approximately 3–5 metres depending on wattage per metre. Beyond 5 metres, voltage drop causes visible colour shift and dimming at the far end. For longer installations, wire multiple runs in parallel from the controller rather than extending a single run.

3. Can RGB LED strip produce white light?

• RGB produces an approximate white by mixing red, green, and blue at full power, but the result is a cold, violet-tinged wash — not clean white. For true white light from a colour-changing strip, you need RGBW strip with a dedicated white LED channel.

4. Do I need a special controller for RGB strip, or can I use a standard dimmer?

• You need a dedicated RGB controller. Standard trailing-edge or leading-edge wall dimmers cannot control the three independent colour channels. The RGB controller handles all colour mixing, brightness adjustment, and effect modes via PWM.

5. What is the difference between RGB and RGBW LED strip?

• RGB contains three colour channels (red, green, blue) and relies on mixing to approximate white. RGBW adds a fourth dedicated white LED channel that produces clean, phosphor-converted white light. If you need both colour effects and functional white lighting, RGBW is the correct choice.

6. Is 12V RGB strip safe for bathroom use?

• Only with the correct IP rating. You need a minimum of IP67-rated strip for bathroom Zones 1 and 2 under BS7671 wiring regulations. IP65 is splash-rated only and is not suitable for sustained moisture exposure in UK bathrooms. The driver must also be IP-rated or located outside the bathroom zones.

7. Can I connect 12V RGB strip to a 24V driver?

• Absolutely not. Connecting 12V strip to a 24V driver will immediately over-drive the LEDs, causing permanent damage, excessive heat, adhesive failure, and potential fire risk. Always match the strip voltage to the driver output voltage exactly.

8. How many colours can 12V RGB LED strip produce?

• Approximately 16 million colours through PWM mixing of the red, green, and blue channels. In practice, the number of visually distinct colours is lower — most controllers offer 256 brightness levels per channel (256 x 256 x 256 = 16,777,216 theoretical combinations).

9. Why does my RGB strip flicker when I change colours?

• Flickering during colour changes is typically caused by a dimmable driver, a low-quality controller with a low PWM frequency, or loose wiring connections. Replace any dimmable driver with a non-dimmable unit. If using a budget controller, upgrade to a unit with a PWM frequency above 1kHz — LTech and Skydance controllers offer frequencies above 2kHz as standard in 2026.

10. Can I cut 12V RGB strip to any length?

• You can cut at the marked cut points only — typically every 100mm (every 3 LEDs) on SMD5050 strip. Cutting between marks will disable the LEDs in that section. ATOM LED strips with FreeCut technology on applicable products allow cutting at any point without voiding warranty.

11. What cable size should I use for 12V RGB wiring?

• Use 4-core cable rated for the total current draw. For runs up to 3 metres at 14.4W/m (1.2A per channel), 0.75mm² is sufficient. For runs up to 5 metres or higher-wattage strip, use 1.0mm² or 1.5mm² four-core cable to minimise voltage drop in the feed cables themselves.

12. Can I use 12V RGB strip outdoors in the UK?

• Yes, provided you use IP67-rated strip and an IP67-rated driver. IP65 is not sufficient for sustained UK outdoor exposure — rain, frost cycles, and condensation will eventually breach the coating. IP68 is recommended for ground-level or water-feature installations. See our outdoor LED strip range.

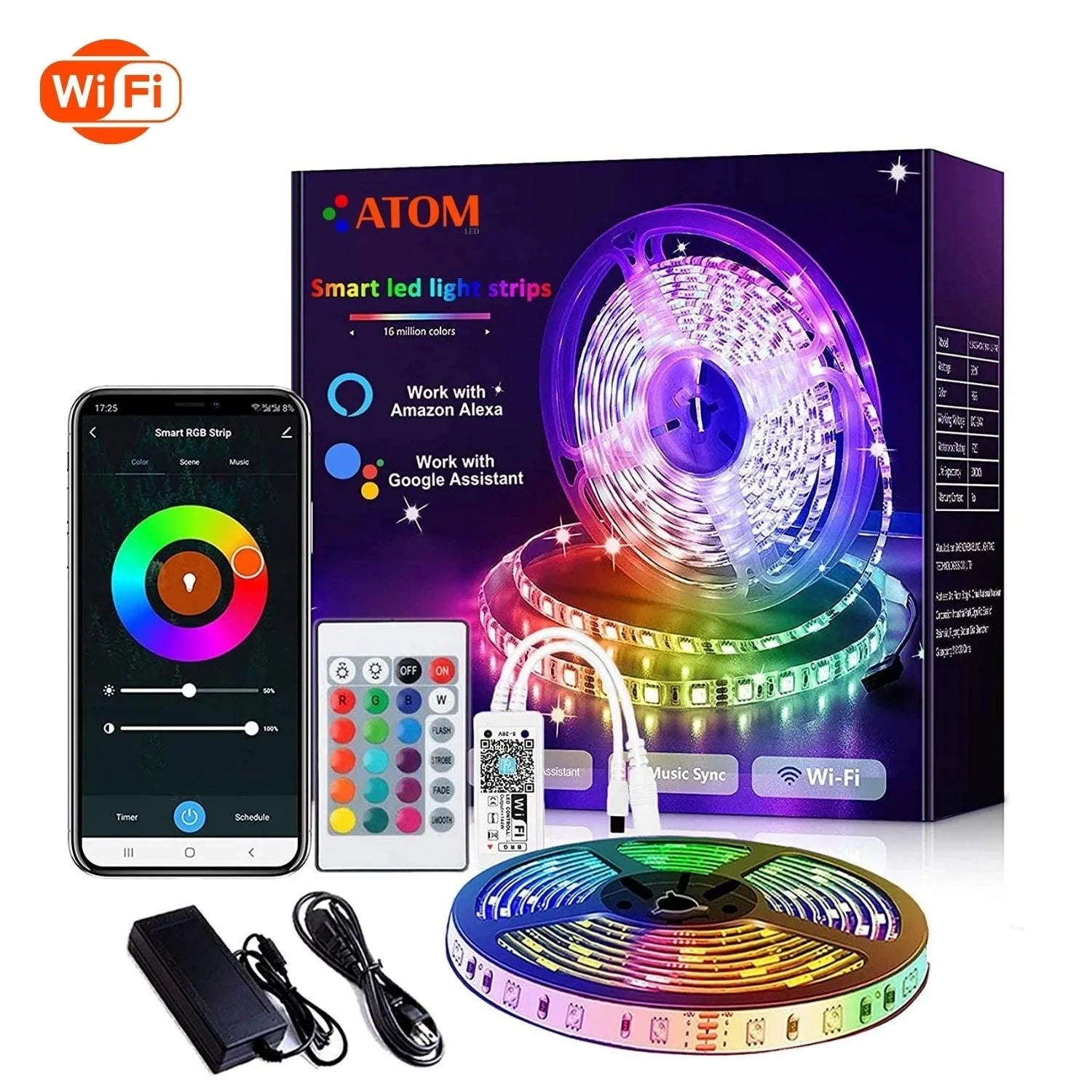

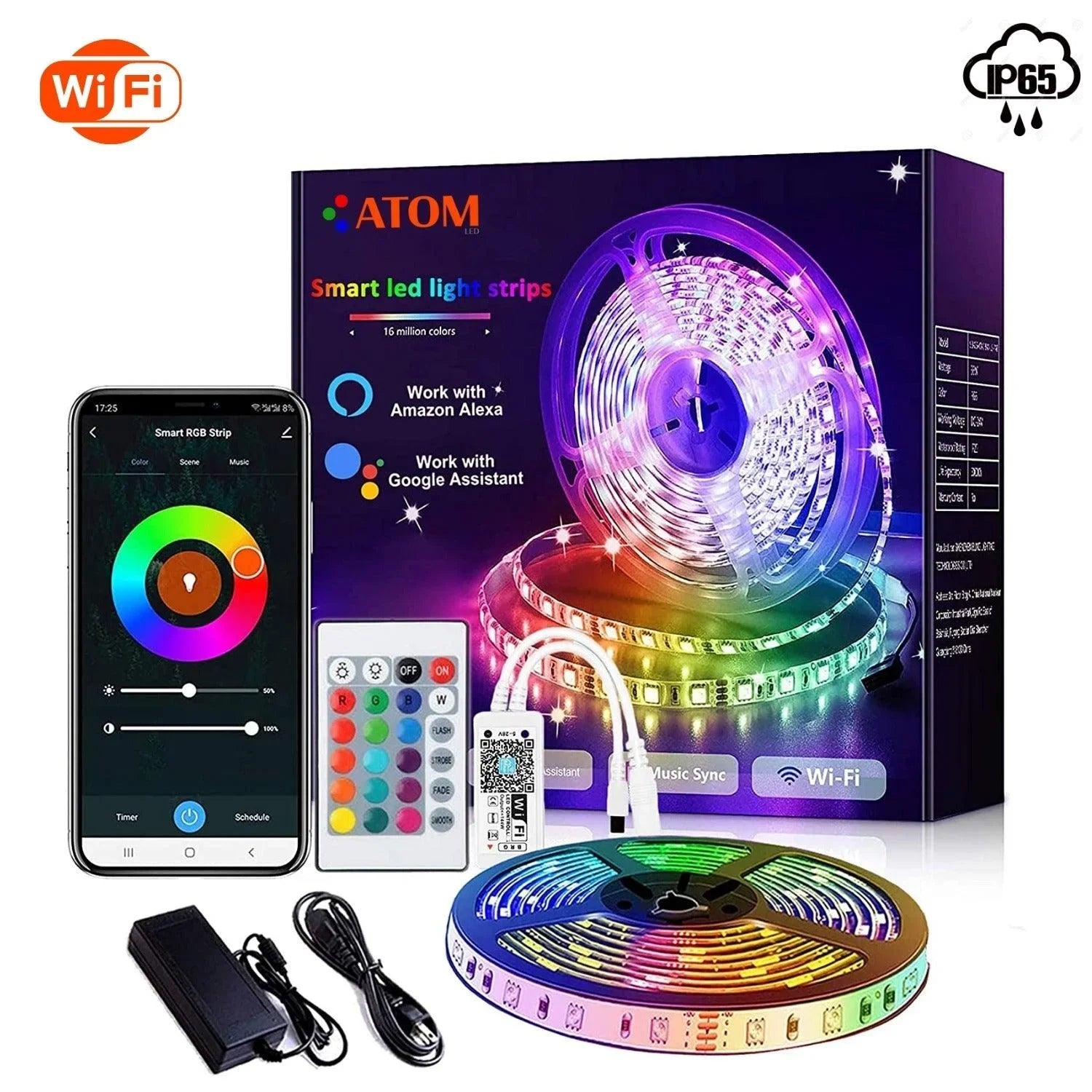

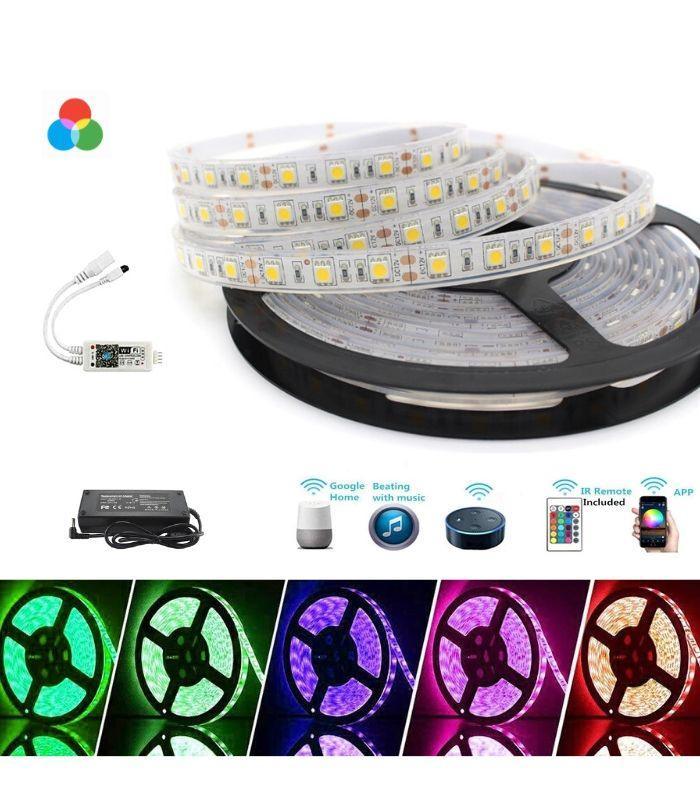

13. Does 12V RGB strip work with Alexa or Google Home?

• Yes, when paired with a Wi-Fi-compatible RGB controller. Controllers using the Tuya platform (available from MiBoxer and others) integrate with Alexa, Google Home, and Apple Home via the manufacturer app. Basic RF remote controllers do not support voice assistant integration.

14. How do I get consistent colour across multiple RGB strip runs?

• Use strip from the same production batch and wire all runs in parallel from a single RGB controller. Different batches may have slight LED binning variations. Parallel wiring ensures identical voltage at each strip start point. For very large installations, use an RGB signal amplifier to maintain synchronised colour across all zones.

15. Is SMD5050 or COB better for 12V RGB strip?

• SMD5050 at 60 LEDs/m is the most popular and cost-effective option for concealed accent lighting. COB RGB produces a dot-free continuous light line, which is better for installations where the strip is visible at close range — such as glass shelves, open profiles, or floating mirror edges. COB costs more per metre and draws more power.

16. Can I power 12V RGB strip from a battery pack?

• Yes, for portable or temporary installations. Use a 12V lithium battery pack with sufficient amp-hour capacity for your strip wattage and desired run time. A 5Ah 12V pack will run approximately 3 metres of 14.4W/m strip at full brightness for roughly 80–90 minutes. Connect the battery output to the RGB controller input, not directly to the strip.

Last reviewed: March 2026 — ATOM LED technical team, Telford, Shropshire. Specifications current as of 2026.
