Accessories

Solderless connectors for COB, SMD, RGB, and RGBW strip · mounting clips and brackets · extension cables in 2-pin, 4-pin, and 5-pin configurations · aluminium profile mounting accessories · UK stock with 5-year warranty on DC voltage components.

Connectors · Clips · Extension cables · End caps · Wire · Soldering supplies · 2-pin to 5-pin · COB compatible · Free UK delivery

Jump to section:

1. What LED strip accessories do you need for a complete installation?
2. Which connector type fits your LED strip?
3. How do you choose between solderless connectors and soldering?
4. What extension cables and wiring do you need?
5. How do you mount LED strip without damaging it?
6. What accessories do outdoor and IP-rated installations need?
7. What mistakes should you avoid when buying LED strip accessories?
8. Frequently asked questions about LED strip accessories
9. Why choose ATOM LED for strip accessories?

Quick decision summary: If you are installing single-colour strip, you need 2-pin connectors and extension cables. For RGB strip, you need 4-pin. For RGBW, you need 5-pin. Always match the connector width to the strip PCB width — 8mm, 10mm, or 12mm. If you are working with COB LED strip, confirm the connectors are COB-compatible, as the denser chip layout requires slightly different contact pad positioning.

Who this is for: Electricians, interior designers, and DIY installers completing LED strip projects in 2026 who need reliable connectors, cables, and mounting hardware that are confirmed compatible with their strip.

Who this is NOT for: If you are looking for LED drivers and transformers, browse the LED drivers collection instead. For controllers, visit the controllers section. This page covers physical accessories — connectors, clips, cables, and mounting hardware.

---

What LED strip accessories do you need for a complete installation?

A complete LED strip installation in 2026 typically requires strip-to-strip connectors, strip-to-wire connectors, extension cable, mounting clips or aluminium profile, and appropriate end caps or covers. The exact list depends on your strip type (single-colour, RGB, RGBW, or addressable), the run length, and whether the installation is indoor or outdoor rated.

The most common issue ATOM LED's technical team sees on support calls is missing or mismatched accessories. A customer orders 10 metres of strip and a driver, then discovers they need connectors to bridge a gap around a corner, extension cable to reach the driver location, and clips to hold the strip where the adhesive alone is not sufficient. Planning the full accessories list before ordering saves a second delivery and delays to the project timeline.

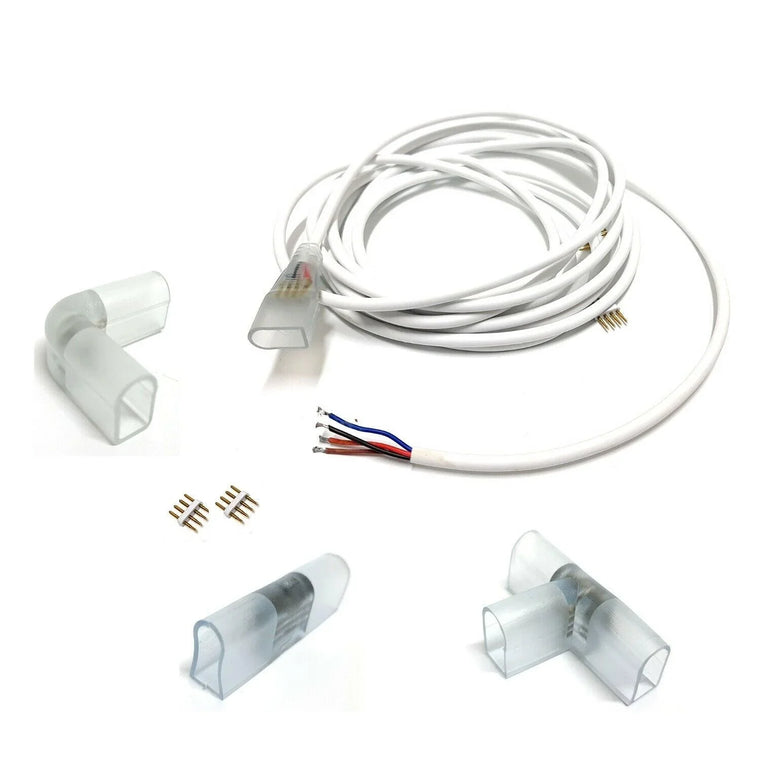

• Strip-to-strip connectors: Join two cut ends of strip together without soldering. Available in straight, L-shape, and T-shape configurations for corners and junctions.
• Strip-to-wire connectors: Connect the strip to extension cable for longer cable runs back to the driver or controller location.

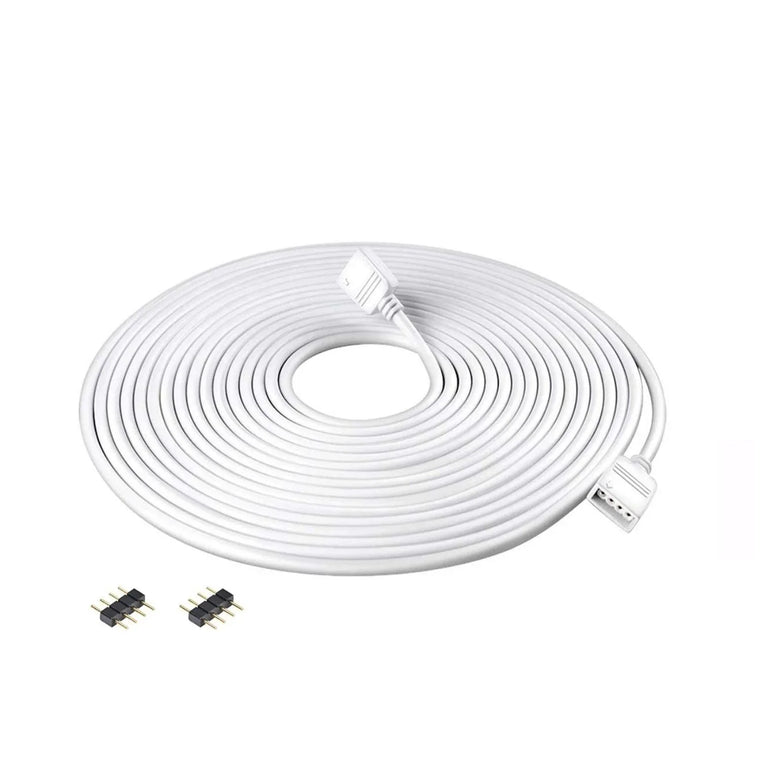

• Extension cable: Runs between the strip and the driver or controller. Available in 2-core (single colour), 4-core (RGB), and 5-core (RGBW) with appropriate gauge for the current load.
• Mounting clips: Secure the strip or profile to the mounting surface. Essential where the 3M adhesive backing alone does not provide sufficient hold — vertical surfaces, overhead installations, or surfaces with texture.
• Aluminium profiles: Provide heat dissipation for strips running above 10W/m, plus a clean finish with clip-on diffuser covers. Browse the full LED strip profile range.

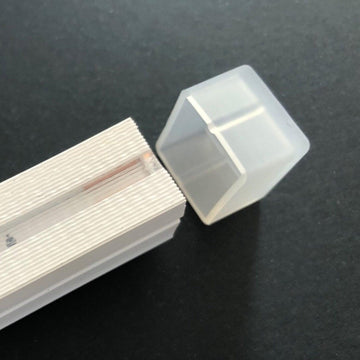

• End caps: Seal the open ends of aluminium profiles for a finished appearance and to prevent dust ingress.

---

Which connector type fits your LED strip?

The connector must match three specifications: the strip PCB width (8mm, 10mm, or 12mm), the number of pins (2-pin for single colour, 4-pin for RGB, 5-pin for RGBW), and the strip format (SMD or COB). Using a connector that does not match all three specifications results in poor contact, flickering, intermittent colour channels, or no connection at all.

Strip Type	Pin Count	Typical PCB Width	Connector Format
Single colour (SMD or COB)	2-pin	8mm or 10mm	Standard or COB-specific
Tunable white (CCT)	3-pin	10mm or 12mm	CCT-specific
RGB	4-pin	10mm or 12mm	Standard RGB
RGBW	5-pin	12mm	RGBW-specific
Addressable (SPI)	3-pin	10mm or 12mm	SPI-compatible with data direction

For COB strip accessories specifically, always confirm the connector is rated for COB-format strip. COB strip uses a denser chip layout with contact pads that are positioned differently from standard SMD strip. A standard SMD connector may physically clip on to COB strip but fail to make reliable electrical contact.

Connector Style	Use Case	Advantages	Limitations
Straight clip (strip-to-strip)	Joining two strip ends in line	No soldering, fast, reusable	Adds 5–10mm gap at the joint

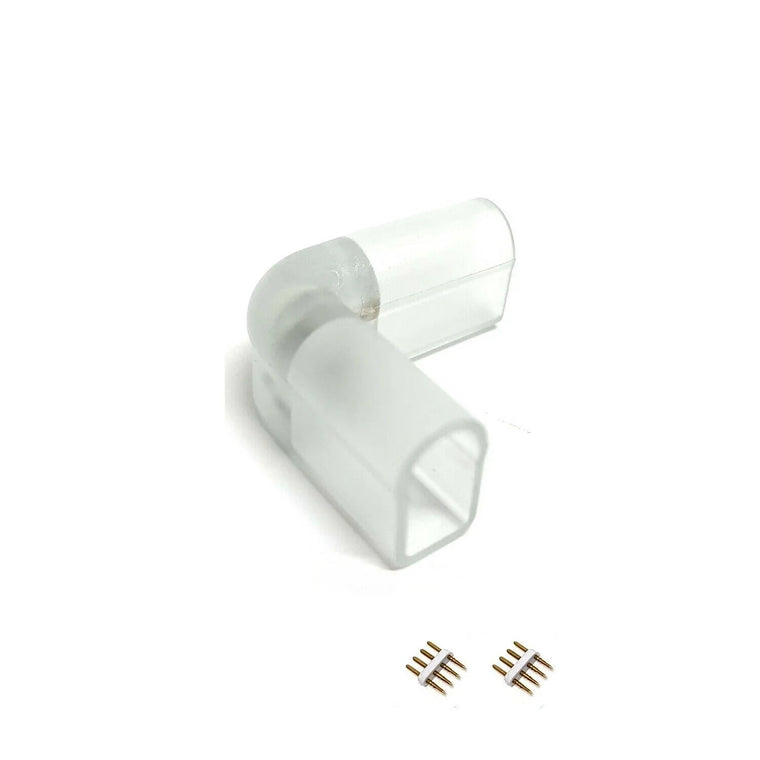

L-shape clip	90-degree corners	Clean corner transition	Fixed angle — no adjustment
T-shape clip	Splitting one run into two directions	Neat junction point	Requires sufficient cable slack
Strip-to-wire pigtail	Connecting strip to extension cable	Flexible cable routing	One-directional — strip end only
Soldered joint	Permanent, lowest-resistance connection	No contact resistance, no gap	Requires soldering skill and equipment

---

How do you choose between solderless connectors and soldering?

Solderless clip connectors suit most residential and light-commercial installations where speed, convenience, and accessibility for future maintenance matter. Soldered joints provide the lowest resistance connection with zero voltage drop at the joint, making them the better choice for high-wattage commercial runs, IP67/IP68 outdoor installations, and any project where the joint will be permanently sealed and inaccessible.

• Solderless connectors — use when: You need a fast installation, the strip may need to be removed or repositioned later, the total current per joint is under 5A, and the installation is indoor IP20.
• Soldering — use when: The installation is permanent, current per joint exceeds 5A, you need zero gap between strip sections, or the joint will be sealed inside an IP67/IP68 Waterproof housing.
• Common failure point: Solderless connectors can develop contact resistance over time if the strip is subject to vibration, thermal cycling, or if the connector clamp pressure relaxes. In 2025 and 2026 installations where reliability over 5+ years is critical, solder remains the professional preference.
• Hybrid approach: Many professional installers in the UK use solderless connectors during the layout and testing phase, then replace them with soldered joints for the final permanent installation.

---

What extension cables and wiring do you need?

Extension cable connects your LED strip to the driver and controller when they cannot be located directly adjacent to the strip. The cable must match the pin count of your strip (2-core, 4-core, or 5-core) and be a sufficient gauge to carry the current without excessive voltage drop over the cable run. For runs longer than 5 metres between driver and strip, increase the cable cross-section.

• 2-core cable: Single-colour strip. Red and black or positive and negative. Standard for all 24V single-colour COB strip and 48V single-colour COB strip installations.
• 4-core cable: RGB strip. One wire per colour channel plus common positive. Required for all RGB installations.
• 5-core cable: RGBW strip. One wire per colour channel, one for the dedicated white channel, plus common positive.
• Cable gauge rule: For cable runs up to 5m at typical residential wattages, 0.5mm² is usually adequate. For runs of 5–10m or higher wattages, step up to 0.75mm² or 1.0mm². For commercial runs over 10m, calculate the voltage drop and specify accordingly.
• Parallel wiring: For long strip installations, run separate cables from the driver/controller to each strip section rather than extending one strip to the next in series. This maintains even voltage across all sections and prevents colour shift on RGB/RGBW strip.

---

How do you mount LED strip without damaging it?

LED strip should be mounted on a clean, dry, smooth surface for the adhesive to bond properly. For runs above 10W/m, mount inside an aluminium profile for heat dissipation. Never mount strip directly on bare metal without an insulating layer — exposed PCB tracks on the underside of the strip will short against conductive surfaces, damaging the strip and potentially the driver.

1. Step 1 — Clean the surface: Wipe the mounting surface with isopropyl alcohol and allow it to dry fully. Dust, grease, and moisture all reduce adhesive bond strength.
2. Step 2 — Test-fit before peeling: Lay the strip along the intended path without removing the adhesive backing to confirm the layout, corner positions, and cable routing.
3. Step 3 — Peel and press progressively: Remove 200–300mm of adhesive backing at a time, pressing the strip firmly into place as you go. Do not peel the entire backing in one go — the strip becomes difficult to handle and tangles.
4. Step 4 — Use clips for reinforcement: On vertical surfaces, overhead installations, or textured surfaces, add mounting clips every 200–300mm to supplement the adhesive. The clips prevent the strip from peeling away as the adhesive ages.
5. Step 5 — Install profile for high-wattage strip: For any strip running above 10W/m, fit an aluminium strip profile first, then mount the strip inside the channel. The profile acts as a heatsink, extending LED lifespan and maintaining adhesive bond temperature.

A critical safety note: never mount strip directly onto bare metal such as an unfinished steel shelf bracket, copper pipe, or aluminium sheet without an insulating barrier between the strip PCB and the metal surface. The solder pads and copper traces on the underside of the PCB can contact the metal, creating short circuits. Use the profile's anodised channel, kapton tape, or a purpose-made insulating strip.

---

What accessories do outdoor and IP-rated installations need?

Outdoor and wet-area LED strip installations in the UK require IP67 or IP68-rated strip, Waterproof connectors that maintain the same IP rating at every joint, sealed end caps, UV-resistant cable ties or mounting clips, and a driver and controller housed in a weatherproof enclosure rated to at least IP65. Every unsealed joint in an outdoor installation downgrades the effective IP rating of the entire run.

• Waterproof connectors: Standard clip-on connectors are IP20. Outdoor installations need sealed connectors with silicone gaskets or heat-shrink waterproofing over the joint.
• Heat-shrink tubing: Adhesive-lined heat-shrink provides a Waterproof seal over soldered joints. Use a heat gun — not a naked flame — to avoid damaging the strip silicone coating.
• Sealed end caps: Both ends of an IP67 or IP68 strip run must be sealed. An open end allows moisture to wick along the inside of the silicone sleeve by capillary action.
• Driver enclosure: The driver must be housed in a ventilated but weatherproof enclosure, located where it will not be submerged. IP65 minimum for the enclosure itself.
• UV-resistant fixings: Standard nylon cable ties degrade in UV exposure within 12–18 months. Use UV-stabilised ties or stainless steel clips for outdoor strip and cable runs that will last through multiple UK seasons.

---

What mistakes should you avoid when buying LED strip accessories?

The most common LED strip accessory mistakes in 2026 are: buying connectors that do not match the strip width or pin count, using standard indoor connectors on outdoor IP67 installations, underspecifying extension cable gauge for long runs, and forgetting to order end caps and mounting clips. Each of these causes installation delays or early failure.

• Wrong connector width: An 8mm connector on a 10mm strip will not clip on properly. A 12mm connector on an 8mm strip will clip on but make poor electrical contact because the pads do not align. Always confirm the PCB width before ordering.
• Wrong pin count: A 2-pin connector on a 4-pin RGB strip physically fits but only connects the power rail — no colour control. Always match pin count to strip type.
• Indoor connectors outdoors: Standard solderless connectors are not sealed. Water ingress at the joint causes corrosion, intermittent connection, and eventual strip failure within weeks of outdoor exposure.
• Thin cable on long runs: A 5-metre extension cable at 0.5mm² carrying 3A drops approximately 0.6V on a 24V circuit — about 2.5%. Over 10 metres, that doubles to 5%, which is noticeable as reduced brightness. Use thicker cable or position the driver closer to the strip.
• Missing end caps: Open-ended aluminium profiles collect dust, insects, and moisture. End caps cost very little but make a noticeable difference to the finished appearance and longevity of the installation.

---

Frequently asked questions about LED strip accessories

Answers to the most common questions UK buyers and installers ask about LED strip connectors, cables, clips, and mounting accessories in 2026. For project-specific advice, contact ATOM LED on 01952 370028 or email operations@atomled.co.uk.

Do solderless connectors work with COB LED strip?

• Yes, but only COB-specific connectors. Standard SMD connectors may clip on physically but fail to make reliable electrical contact due to different pad spacing on COB strip.
• Check the listing: ATOM LED labels all COB-compatible connectors clearly in the product title and description.
• For critical installations: Solder joints remain the most reliable connection method for COB strip in 2026.

How many connectors can you use on a single strip run?

• Each connector adds a small amount of contact resistance. For most residential installations, 3–4 connectors per run is acceptable without noticeable voltage drop.
• Above 4 connectors: Consider whether a longer uncut strip section, soldered joints, or a different layout would reduce the number of connection points.
• Commercial installations: Minimise connectors. Each joint is a potential failure point over a 5–10 year service life.

What cable gauge do you need for LED strip extension cable?

• Up to 5m at typical residential loads: 0.5mm² is usually sufficient.
• 5–10m runs: Step up to 0.75mm² or 1.0mm² depending on the current draw.
• Over 10m: Calculate the voltage drop for your specific current and cable length, then specify accordingly. ATOM LED's technical team can help — call 01952 370028.

Do you need mounting clips if the strip has adhesive backing?

• On smooth, clean, horizontal surfaces: The 3M adhesive backing is usually sufficient on its own for indoor IP20 strip.
• On vertical, overhead, or textured surfaces: Add mounting clips every 200–300mm. Gravity and surface texture reduce adhesive bond strength over time.
• In warm environments: Heat softens adhesive. Near cookers, radiators, or in south-facing conservatories, clips are essential reinforcement.

Are ATOM LED accessories compatible with other brands of strip?

• Most connectors follow standard PCB widths (8mm, 10mm, 12mm) and standard pin spacing, so they will physically fit most strips of the same width and pin count.
• However: ATOM LED tests and guarantees compatibility only with ATOM LED strip. Third-party strip may have slightly different pad positions or PCB thicknesses.
• Recommendation: For guaranteed compatibility and warranty coverage, source strip and accessories from the same supplier.

Can you reuse solderless connectors?

• Yes, most clip-on connectors can be opened, removed, and reattached to a different strip section or a freshly cut end.
• Check the contacts: After repeated use, the spring contacts inside the connector may lose tension. Replace connectors that do not clip firmly or where the strip can be pulled free with light pressure.
• Limit reuse to 3–4 times for reliable contact pressure.

What accessories do you need for LED neon flex?

• Neon flex uses different accessories from flat strip. Browse neon flex profiles and channels for mounting, and the main neon flex range for compatible end caps and connectors.

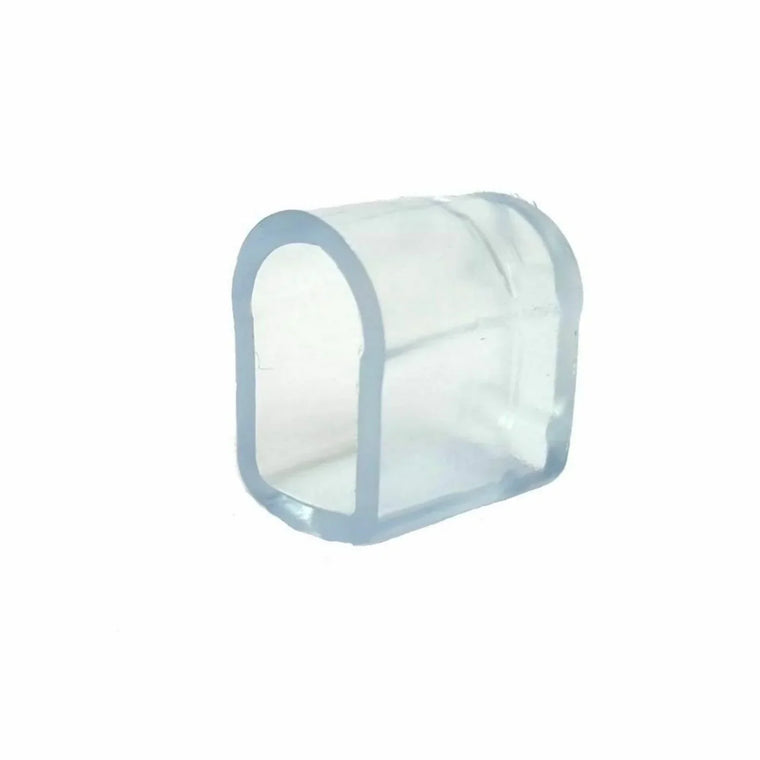

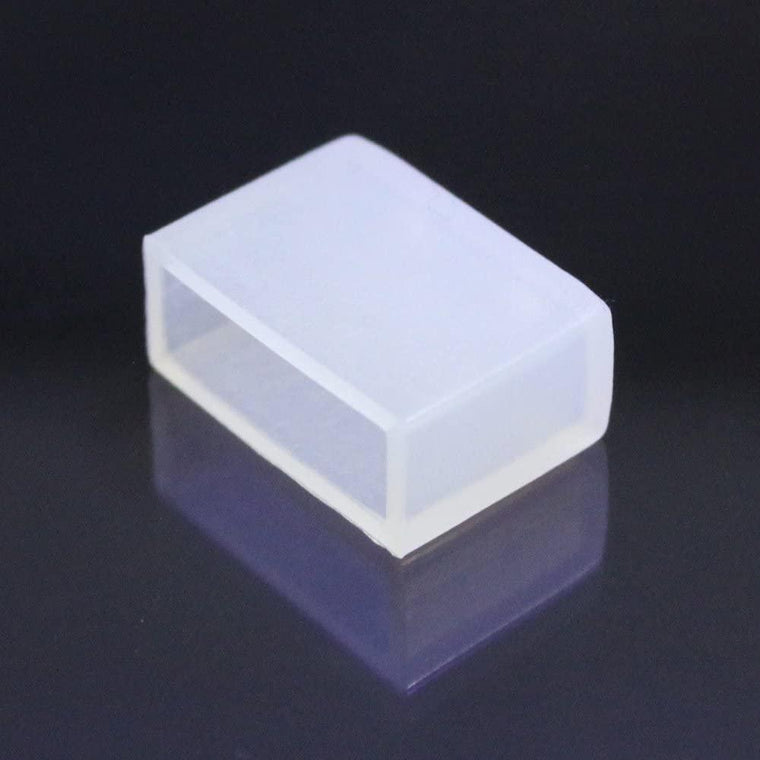

• End caps are critical: Neon flex has open ends that must be sealed to prevent moisture ingress, especially on outdoor installations.

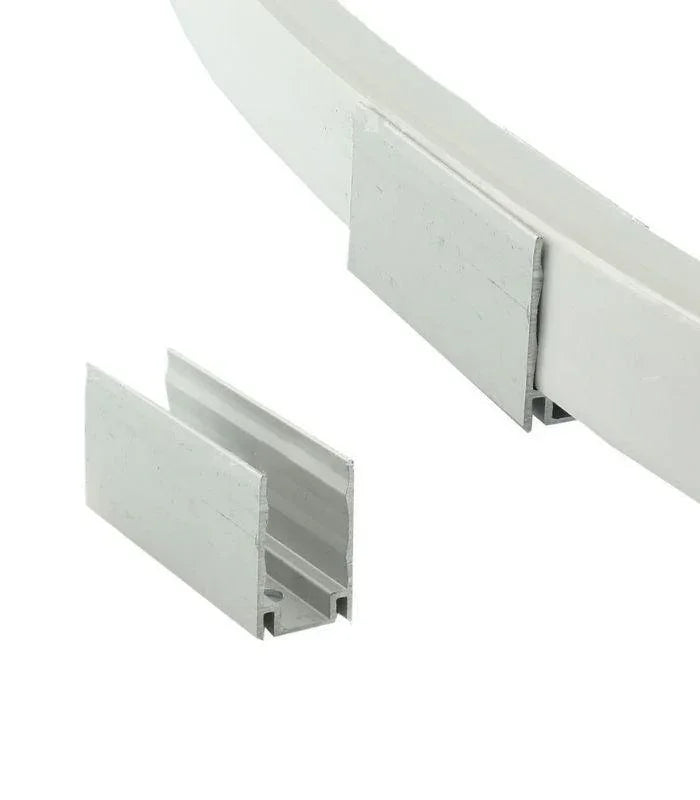

• Mounting clips: Neon flex-specific clips hold the tubular profile securely without crushing the silicone body.

How do you Waterproof a connector joint for outdoor use?

• Option 1 — Adhesive-lined heat-shrink: Slide heat-shrink over the joint before connecting, then shrink with a heat gun after the connection is made. The adhesive lining creates a sealed barrier.
• Option 2 — Waterproof junction box: House the connection inside a sealed IP65+ junction box filled with silicone gel for complete Waterproof protection.
• Option 3 — Sealed Waterproof connectors: Purpose-made IP67-rated connectors with gaskets. Available for 2-pin through to 5-pin configurations.

Where can you buy LED strip accessories in the UK?

• ATOM LED stocks the full range of connectors, clips, cables, and mounting accessories at atomled.co.uk, with free UK delivery on 97% of products.
• All accessories ship from UK stock in Telford, Shropshire — not dropshipped from overseas warehouses.
• For advice on which accessories you need: Email operations@atomled.co.uk or call 01952 370028, Monday to Friday, 9am–5pm.

---

Why choose ATOM LED for strip accessories?

ATOM LED stocks every connector, clip, cable, and mounting accessory needed to complete an LED strip installation, all matched to the strip formats we sell. Everything ships from UK stock in Telford with free delivery. Our technical team tests every accessory for compatibility with ATOM LED strip before it goes on sale — no guesswork, no returns for mismatched parts.

• Confirmed compatibility: Every accessory is tested with ATOM LED strip formats before listing. No guesswork on whether a connector fits your strip.
• UK stock: Accessories are held in our Telford warehouse, not dropshipped. Same-day dispatch on orders placed before 2pm on working days.
• Free UK delivery: No minimum order required for free delivery in 2026.
• Technical support: Call 01952 370028 or email operations@atomled.co.uk for help selecting the right connectors, cables, and mounting hardware for your specific strip and installation.
• Complete ecosystem: Strip, drivers, controllers, profiles, and accessories all from one supplier — reducing compatibility risk and simplifying ordering for 2025 and 2026 projects.

Ready to order? Browse the full LED strip accessories collection, or call 01952 370028 for help building your complete accessories list. Free UK delivery on 97% of products.

---

---
