Front Cap & End Cap

Available for all ATOM LED neon flex profiles · front caps with integrated wire feed · sealed end caps for IP67 and IP68 installations · colour-matched to standard neon flex body colours · UK stock, free delivery.

Front caps · End caps · IP67 sealed · IP68 sealed · Wire-feed front caps · Mini neon flex caps · Silicone neon flex caps · Colour matched · Free UK delivery

Jump to section:

1. What is the difference between a front cap and an end cap?
2. Why do neon flex installations need end caps?
3. Which end cap fits your neon flex profile?
4. How do you install front caps and end caps on neon flex?
5. What IP rating do your end caps need?
6. What mistakes should you avoid with neon flex end caps?
7. Frequently asked questions about LED neon flex end caps
8. Why choose ATOM LED for neon flex end caps?

Quick decision summary: Every neon flex run needs two caps — a front cap (wire-feed end where the cable enters) and an end cap (sealed termination at the opposite end). If your installation is outdoor or in a wet area, both caps must be sealed to maintain IP67 or IP68 rating. If you are unsure which cap fits your specific neon flex product, call ATOM LED on 01952 370028 with the product code.

Who this is for: Signage fabricators, electricians, and interior designers fitting neon flex for indoor or outdoor projects in 2026 who need the correct end caps to complete and seal their installation.

Who this is NOT for: If you are looking for end caps for flat LED strip aluminium profiles, browse the LED strip profile accessories instead. This page covers end caps and front caps specifically for neon flex tubing.

---

What is the difference between a front cap and an end cap?

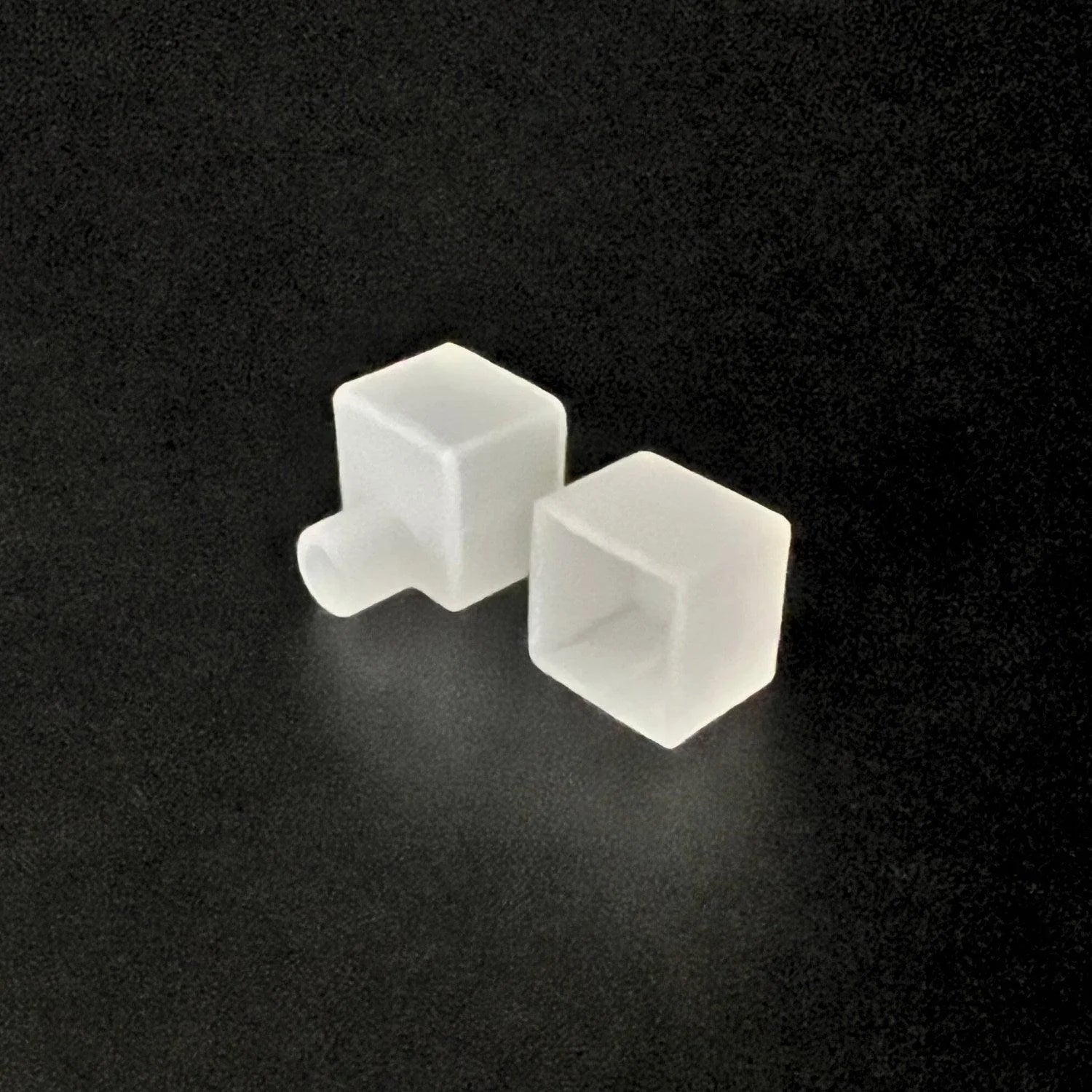

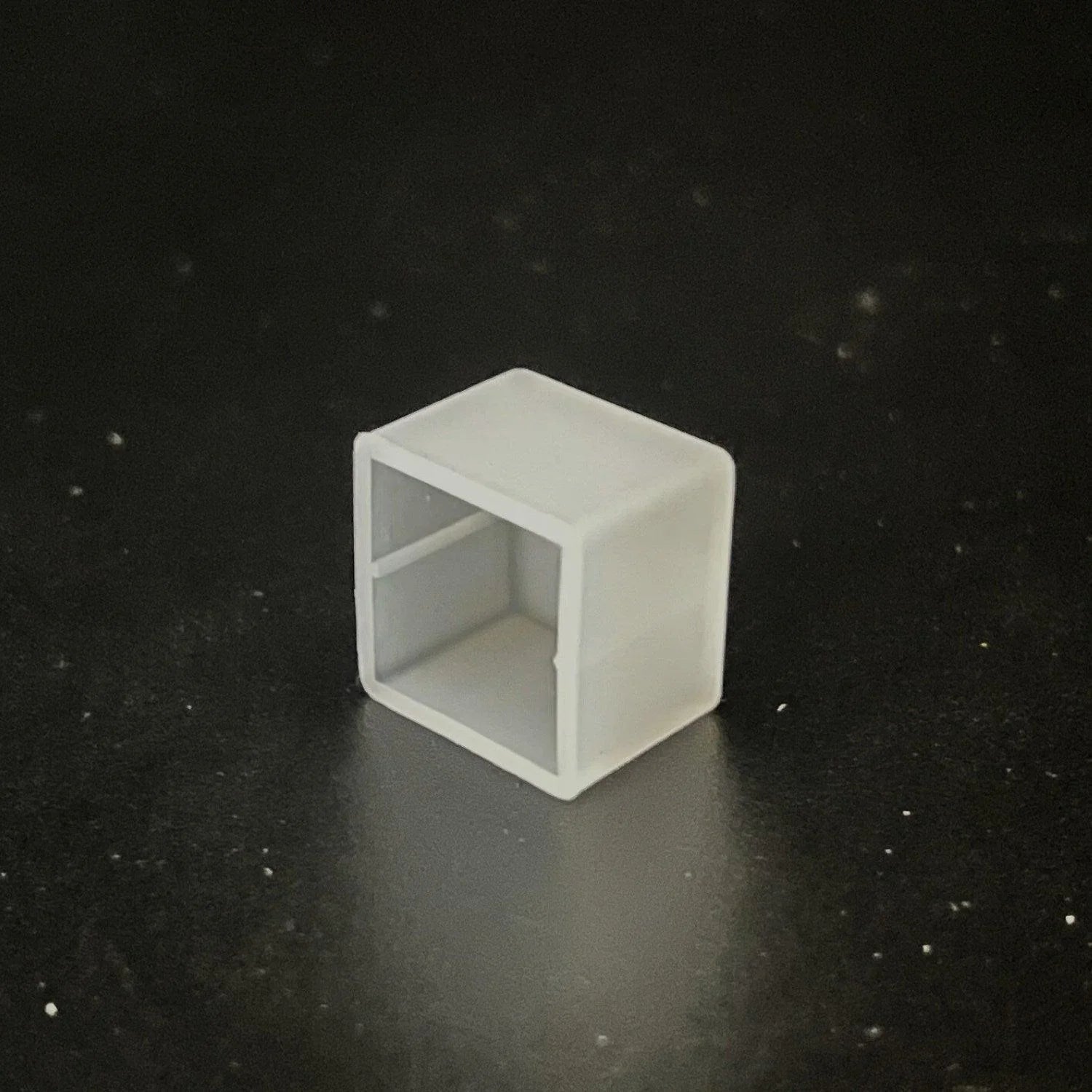

A front cap sits at the power-feed end of a neon flex run, with an opening or grommet for the power cable to pass through while maintaining a weather seal. An end cap seals the opposite end of the run completely — no cable pass-through, just a solid closure to prevent moisture, dust, and debris entering the silicone tube. Every neon flex run requires one of each.

• Front cap (wire-feed cap): Typically has a moulded channel, grommet, or drilled opening sized for the power cable. On IP67 and IP68 installations, the cable pass-through must be sealed with silicone adhesive or a compression grommet to maintain the Waterproof rating.
• End cap (termination cap): A solid closure with no opening. On outdoor neon flex, this cap is the last line of defence against moisture wicking up the inside of the silicone tube by capillary action.
• Material: ATOM LED end caps are colour-matched to the neon flex body, typically made from the same UV-stable silicone or PVC as the neon flex housing to maintain a consistent appearance.
• Attachment method: Most end caps push-fit into the neon flex channel and are secured with a small amount of clear silicone adhesive. Some profiles use a screw-fit or snap-fit design.

---

Why do neon flex installations need end caps?

Without end caps, the open ends of neon flex allow moisture, condensation, dust, and insects to enter the silicone tube. In UK outdoor conditions, moisture ingress causes LED corrosion, short circuits on the PCB, and visible discolouration of the silicone diffuser within weeks. An uncapped IP67 neon flex tube effectively drops to IP20 at the exposed end — your entire Waterproof rating is compromised.

This is not a cosmetic issue. ATOM LED's technical team sees failed neon flex returns where the only fault is missing or improperly sealed end caps. The UK climate in 2025 and 2026 — frequent rain, high humidity, and frost cycles — is particularly harsh on any unsealed electrical product. Condensation forms inside the tube overnight as temperatures drop, and that trapped moisture corrodes the LED connections over repeated cycles.

• Moisture ingress: Even on indoor installations, kitchens and bathrooms generate enough humidity to cause condensation inside uncapped neon flex over a 6–12 month period.
• Insect ingress: Small insects are attracted to the warmth of the LEDs. They enter through open ends and their bodies degrade the light output and create dark spots visible through the diffuser.
• Dust accumulation: Dust drawn inside the tube by thermal convection (warm air rising through the tube) builds up on the LED surface and reduces brightness over time.
• IP rating compliance: Neon flex rated at IP67 or IP68 only maintains that rating when both ends are correctly sealed with the appropriate caps and adhesive.

---

Which end cap fits your neon flex profile?

End caps are profile-specific — each neon flex product has a unique cross-section shape and dimension that requires its matching cap. A cap from a 10x20mm top-bend neon flex will not fit a 6x12mm mini neon flex or a 15x26mm side-bend profile. Always order the end cap that matches your specific neon flex product code, or contact ATOM LED on 01952 370028 for confirmation before ordering.

Neon Flex Type	Typical Cross-Section	End Cap Style	IP Rating Available

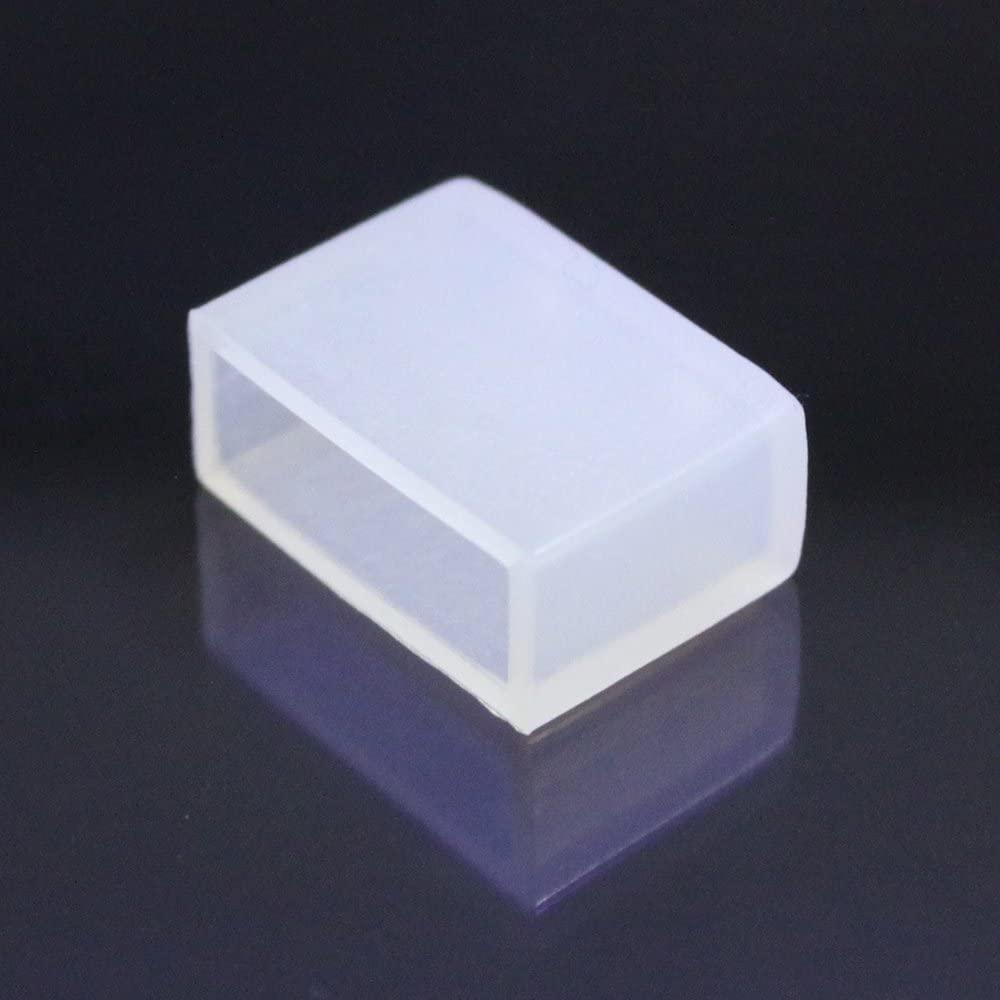

Mini neon flex	6x12mm or 8x16mm	Push-fit silicone	IP67, IP68
Standard top-bend	10x20mm or 10x23mm	Push-fit with adhesive seal	IP67, IP68

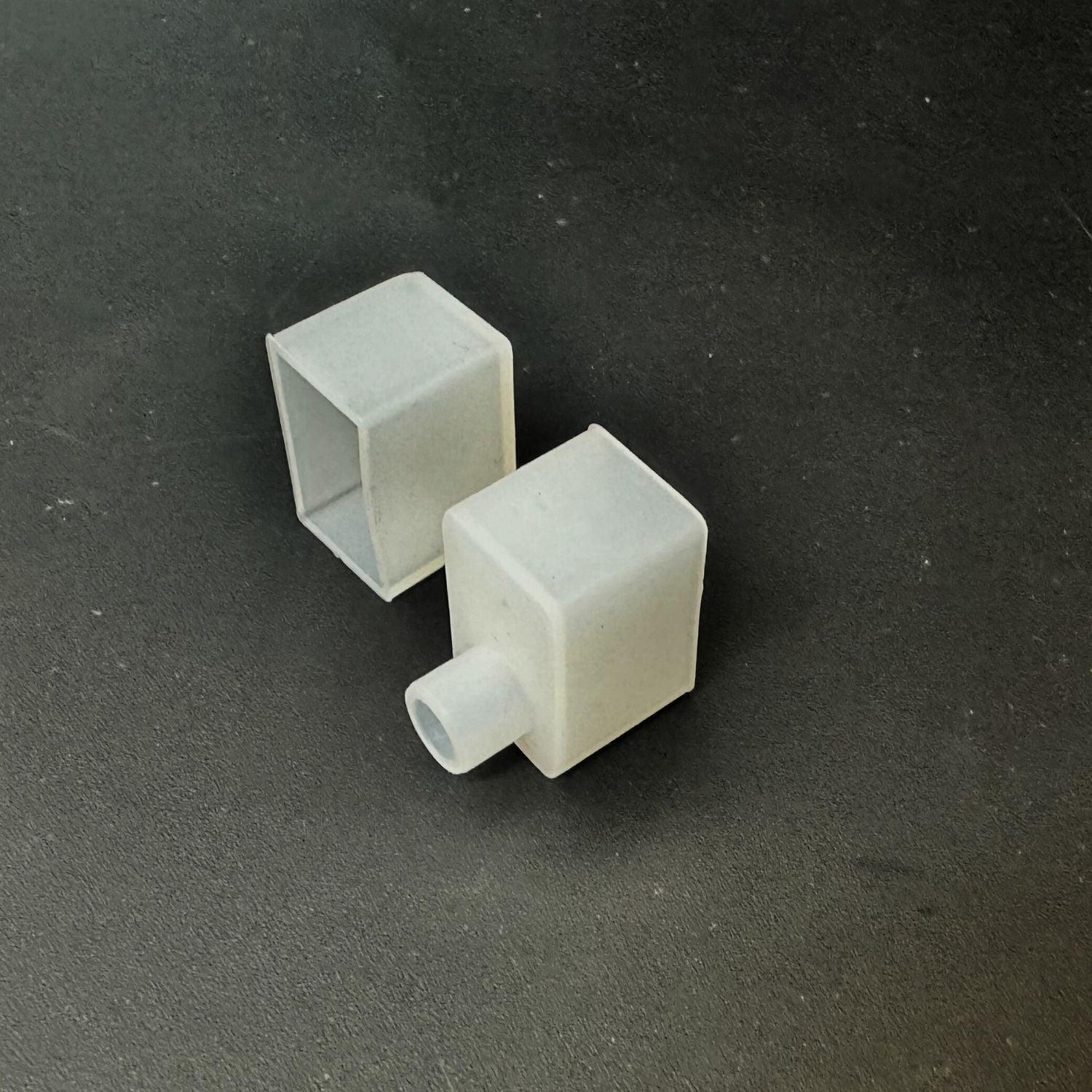

Standard side-bend	8x16mm or 12x20mm	Push-fit with adhesive seal	IP67, IP68
Architectural silicone	15x26mm or larger	Moulded silicone press-fit	IP67, IP68
Decking neon flex	Varies by track profile	Profile-specific	IP67 minimum

If you are using mini LED neon flex, note that the smaller cross-section means tighter tolerances on end cap fit. A cap that is even 1mm oversized will not seal properly, while an undersized cap will not push in far enough to stay in place. Always order caps at the same time as the neon flex to ensure you receive the matched set.

For silicone body neon flex, the end caps are typically made from the same UV-stable silicone compound as the tube body. This ensures the cap does not yellow or become brittle at a different rate from the main body, maintaining a consistent appearance over the life of the installation.

---

How do you install front caps and end caps on neon flex?

Installation requires the correct matched cap, a tube of clear silicone adhesive (not standard bathroom sealant), and clean, dry neon flex ends. Apply a thin bead of adhesive inside the cap, push it firmly onto the neon flex end, wipe away any excess, and allow 24 hours for the adhesive to cure before powering on or exposing to weather. On the front cap, seal around the power cable with additional adhesive.

1. Step 1 — Cut the neon flex cleanly: Use sharp scissors or a craft knife to make a clean, square cut at the end of the neon flex. A ragged or angled cut prevents the cap from seating flush and creates a gap in the seal.
2. Step 2 — Dry-fit the cap: Push the end cap onto the neon flex without adhesive to confirm the fit. It should slide on with moderate resistance and sit flush against the cut end. If it is too loose, you may have the wrong profile cap.
3. Step 3 — Apply silicone adhesive: Run a thin bead of clear silicone adhesive around the inside rim of the cap. Do not use standard bathroom sealant — it contains acetic acid that can corrode LED connections. Use a neutral-cure silicone rated for electrical applications.
4. Step 4 — Seat the cap: Push the cap firmly onto the neon flex end. Apply steady pressure for 10–15 seconds. Wipe away any adhesive that squeezes out around the edges with a damp cloth before it cures.
5. Step 5 — Seal the front cap cable entry: On the front cap (wire-feed end), apply additional silicone adhesive around the cable where it passes through the cap opening. Build up a generous fillet of adhesive to create a complete seal. This is the most common failure point for moisture ingress on outdoor installations.
6. Step 6 — Allow curing time: Leave the caps undisturbed for 24 hours before powering on the neon flex or exposing it to weather. The silicone needs a full cure to achieve its rated adhesion and waterproofing.

---

What IP rating do your end caps need?

The end cap IP rating must match or exceed the neon flex IP rating. An IP67 neon flex tube with an IP20 end cap is only as Waterproof as its weakest point — effectively IP20 at that end. For outdoor installations in the UK, specify IP67 end caps at minimum. For ground-level, submerged, or fully exposed applications, specify IP68 end caps and apply sealed adhesive at every joint.

Installation Location	Minimum Neon Flex IP	Minimum End Cap IP	Additional Sealing
Indoor dry areas	IP20	IP20 (cosmetic only)	Optional
Kitchen splashback	IP65	IP65	Silicone adhesive recommended
Bathroom zones 1–2	IP67	IP67	Silicone adhesive required
Outdoor wall-mounted	IP67	IP67	Silicone adhesive required
Outdoor ground-level	IP67–IP68	IP68	Full seal with neutral-cure silicone
Submerged / water features	IP68	IP68	Full seal mandatory

Note that IP65 is surface-splash only and is not suitable for typical UK outdoor conditions or bathroom wet zones under BS7671. If your neon flex is rated IP65, it is designed for indoor use with incidental splash exposure — not rain, ground moisture, or continuous humidity. For UK outdoor outdoor neon flex installations, start at IP67 minimum.

---

What mistakes should you avoid with neon flex end caps?

The most common end cap mistakes in 2026 are: using acetic-cure bathroom sealant instead of neutral-cure silicone, not sealing the cable entry on the front cap, ordering generic caps that do not match the neon flex profile, skipping caps entirely on indoor installations, and powering on before the adhesive has fully cured. Each of these reduces the lifespan and reliability of your installation.

• Wrong sealant: Standard bathroom silicone (vinegar-smell type) releases acetic acid during curing. This acid corrodes copper traces on the LED PCB over time. Always use neutral-cure silicone for any adhesive contact near LED strip or neon flex.
• Unsealed cable entry: The front cap cable pass-through is the most common moisture ingress point. Even a small gap around the cable allows condensation to enter. Apply a generous fillet of adhesive around the cable and allow 24 hours to cure.
• Generic caps: End caps from a different neon flex brand or profile do not fit properly. Even 0.5mm difference in cross-section dimensions creates a gap that moisture will find. Always order matched caps from ATOM LED for your specific neon flex product.
• Skipping caps on indoor installations: Even indoors, dust and insects enter uncapped neon flex over 6–12 months. The cosmetic degradation is noticeable — dark spots and discolouration inside the diffuser tube.
• Powering on too early: Turning on the neon flex before the sealant has cured generates heat at the LED surface, which can prevent proper adhesion of the silicone. Wait the full 24-hour cure time.

---

Frequently asked questions about LED neon flex end caps

Answers to the questions UK installers and signage fabricators ask most about neon flex end caps and front caps in 2026. For product-specific advice, contact ATOM LED on 01952 370028 or email operations@atomled.co.uk.

Are end caps included with ATOM LED neon flex?

• Check the product listing: Some ATOM LED neon flex products include a pair of caps in the box, while others sell caps as a separate accessory.
• Always confirm before ordering: Review the product description or contact 01952 370028 to confirm whether your neon flex includes caps.
• Order spares: For projects with multiple cut sections, order additional caps to match the number of exposed ends.

Can you cut neon flex and reuse the end cap?

• End caps that were dry-fitted (no adhesive) can be removed and reused if they have not been deformed during removal.
• Caps sealed with silicone adhesive: These are effectively permanent. Removing a sealed cap typically damages it. Order a fresh cap for the new cut end.
• After cutting: The new cut end needs a fresh end cap. Never leave a cut end of neon flex unsealed, even temporarily during installation.

What adhesive should you use with neon flex end caps?

• Neutral-cure clear silicone only. Avoid acetic-cure (vinegar-smell) sealant — the acid corrodes LED connections over time.
• Brands to look for: Dow 732 RTV, Sika SikaFlex, or any neutral-cure silicone labelled for electrical or electronic applications.
• Avoid hot glue: Hot melt glue does not provide a Waterproof seal and becomes brittle in cold UK temperatures, losing adhesion during frost cycles.

Do you need end caps for indoor neon flex?

• Yes. While the waterproofing function is less critical indoors, end caps prevent dust, debris, and insects from entering the neon flex tube.
• Cosmetic benefit: End caps give a clean, finished appearance. An open neon flex end reveals the internal LED strip and wiring, which looks unfinished.
• For indoor use: Adhesive sealing is optional but recommended for kitchens and bathrooms where humidity is present.

Can you drill a hole in an end cap for a cable feed?

• Yes, but order a dedicated front cap instead. Front caps have a pre-formed or pre-drilled cable channel sized for the correct cable diameter.
• If you must drill: Use a drill bit 0.5mm smaller than the cable diameter to create a tight fit, then seal around the cable with silicone adhesive.
• Risk: A drilled hole that is too large will not seal properly, even with adhesive. A hole that is too small may crack the cap material.

How many end caps do you need per neon flex run?

• Two per unbroken run: One front cap (wire-feed end) and one end cap (sealed termination).
• If you cut the neon flex into sections: Each section needs its own front cap and end cap — two additional caps per cut.
• For neon sign fabrication: Complex shapes with multiple cut sections may require 6–10 caps per sign. Order generously to avoid project delays.

Do end caps affect the light output of neon flex?

• Sealed end caps block the very last 2–3mm of light at each end. This is typically invisible in installed neon flex because the cap sits flush with the mounting channel or profile.
• Translucent caps: Some ATOM LED neon flex end caps are translucent, allowing a small amount of light to glow through the cap for a softer termination effect.
• Opaque caps: Standard solid caps create a clean, sharp end to the light line. Choose based on the visual effect your project requires.

Can you use end caps from one neon flex brand on another?

• Not recommended. Neon flex cross-sections vary by manufacturer — even products with the same nominal dimensions (e.g., 10x20mm) differ by 0.5–1mm between brands.
• Result of mismatched caps: Gaps in the seal, poor push-fit retention, and moisture ingress on outdoor installations.
• Best practice: Always order caps matched to your specific neon flex product from the same supplier.

---

Why choose ATOM LED for neon flex end caps?

ATOM LED stocks front caps and end caps matched to every neon flex profile we sell. All caps are held in UK stock in Telford, Shropshire, and ship with free delivery. Our technical team confirms cap compatibility for your specific neon flex product code before dispatch — no guesswork, no returns for mismatched parts.

• Profile-matched caps: Every cap is tested for fit and seal integrity with its corresponding ATOM LED neon flex product.
• IP67 and IP68 options: Sealed caps available for all outdoor-rated neon flex profiles, including IP67 neon flex and IP68 neon flex.
• UK stock: All end caps ship from Telford — not dropshipped from overseas.
• Free UK delivery: No minimum order value for free delivery in 2026.
• Technical support: Not sure which cap fits your neon flex? Call 01952 370028 or email operations@atomled.co.uk with the product code and we will confirm the correct cap.

Ready to order? Browse the full neon flex end caps and front caps collection, or call 01952 370028 for product-specific advice. Free UK delivery on 97% of products.

---

---
