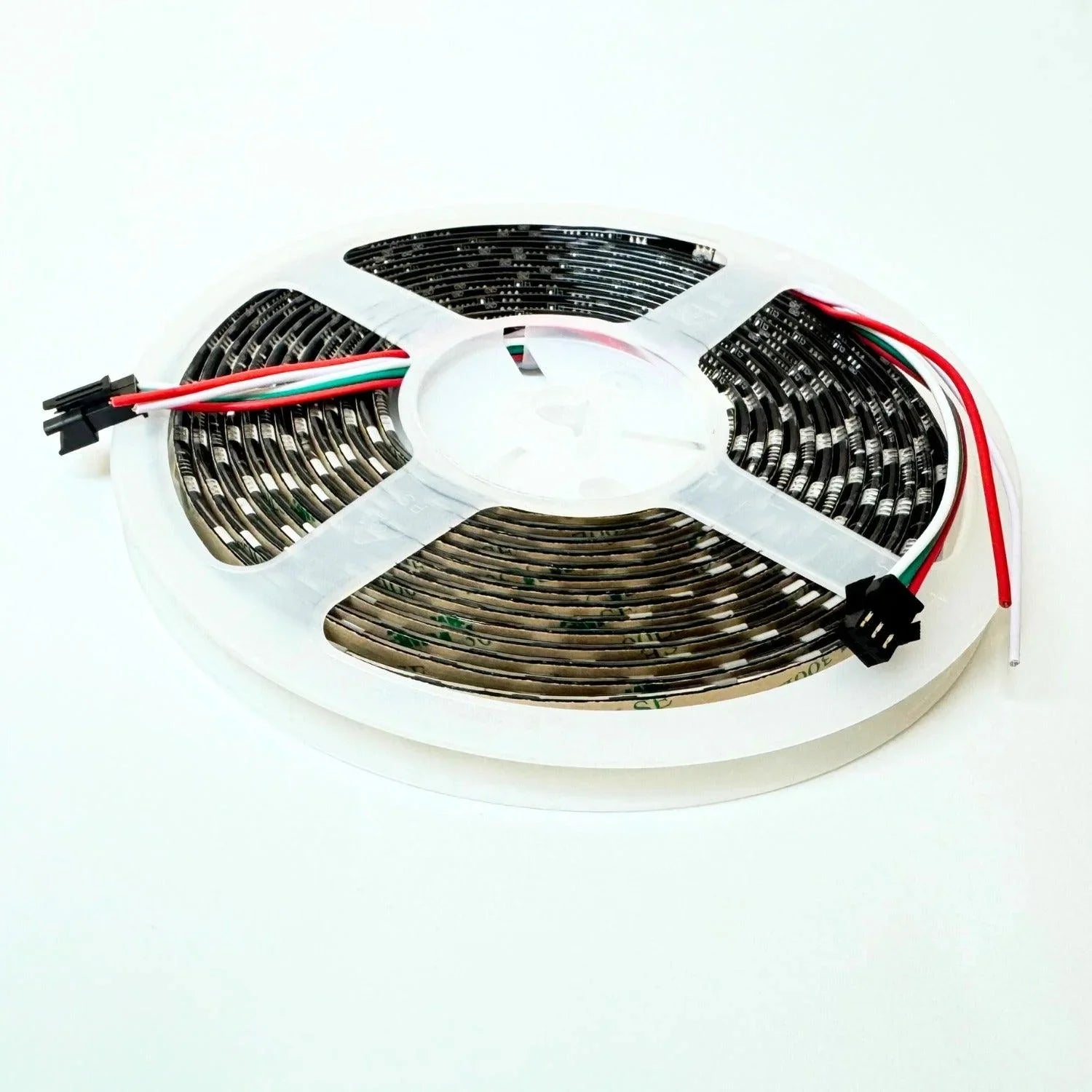

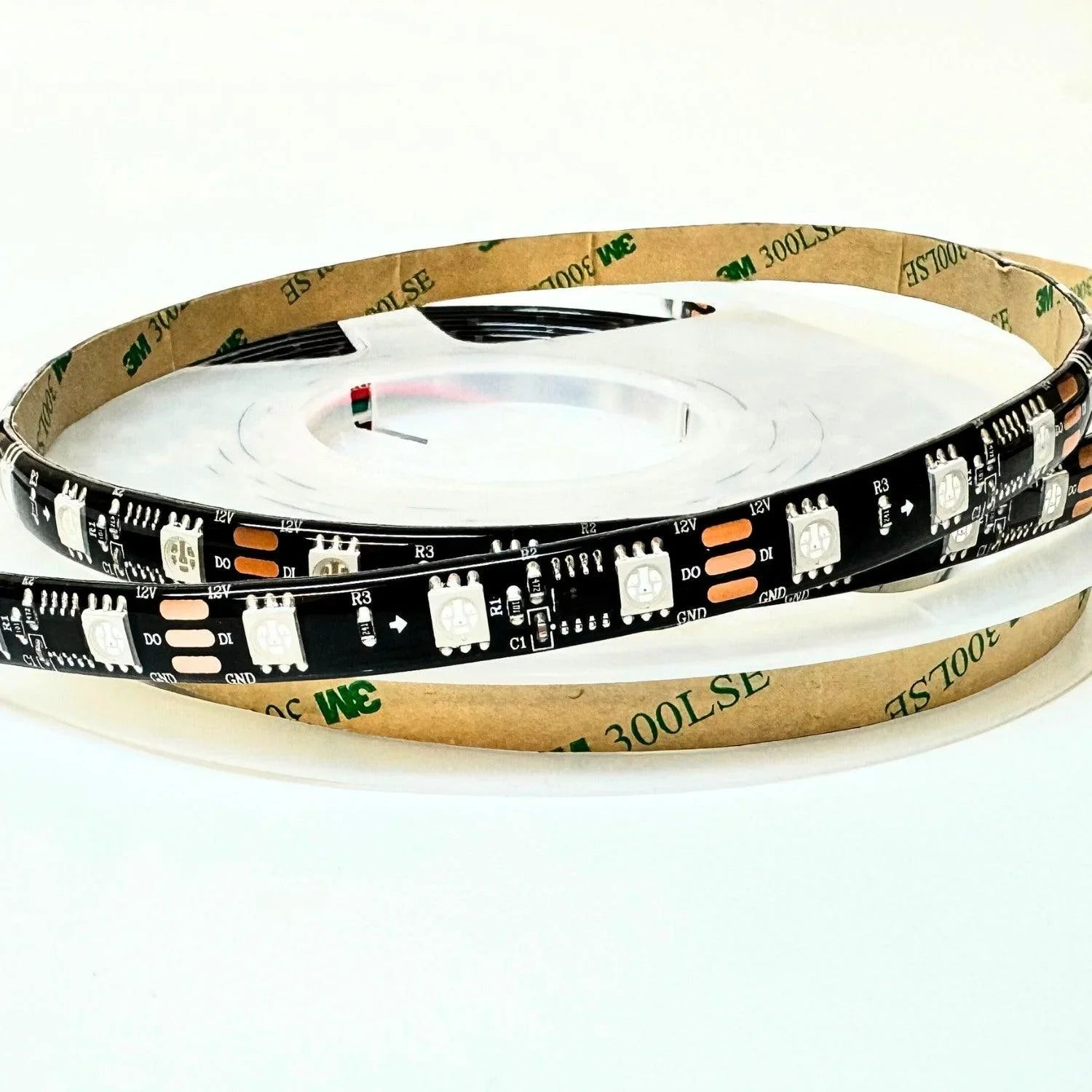

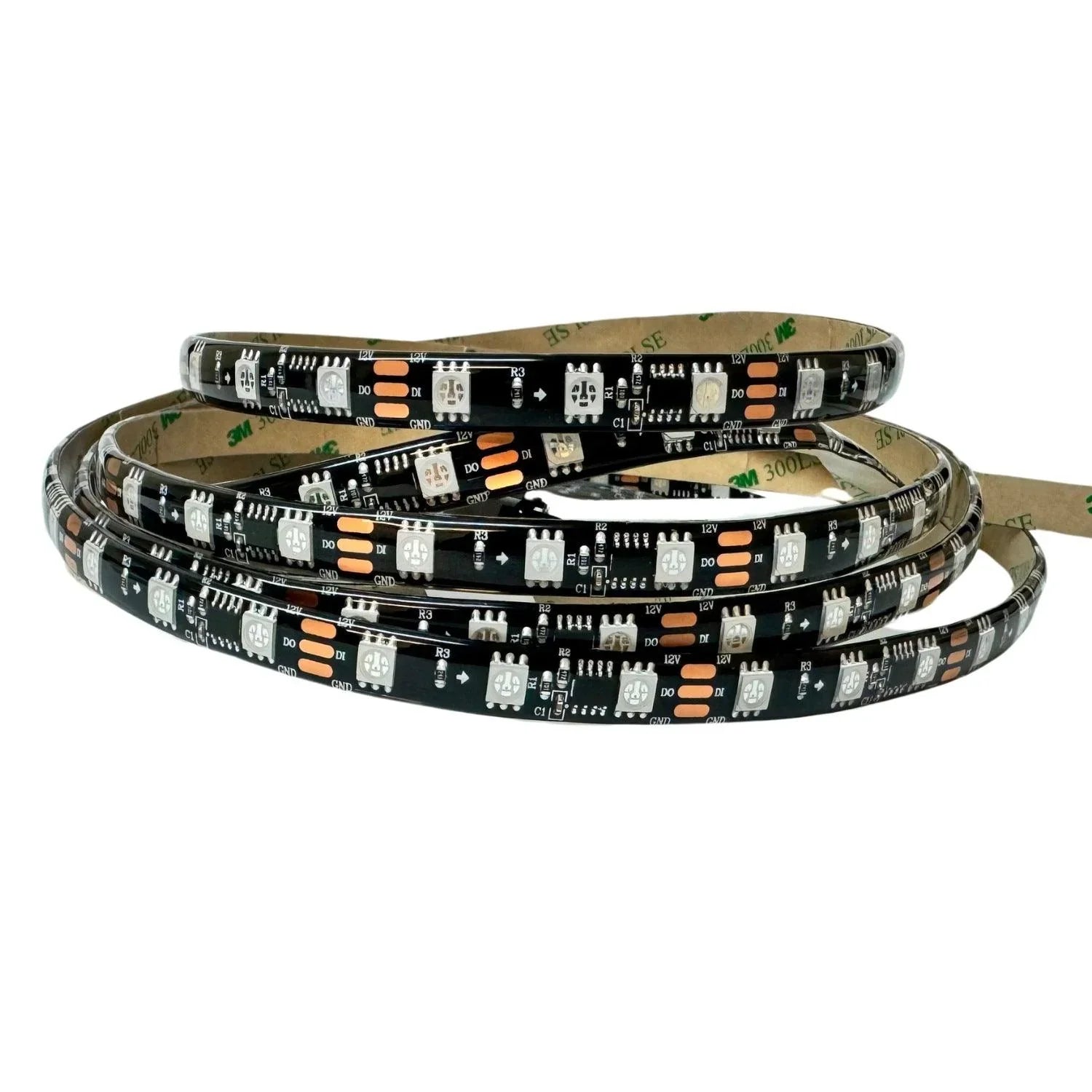

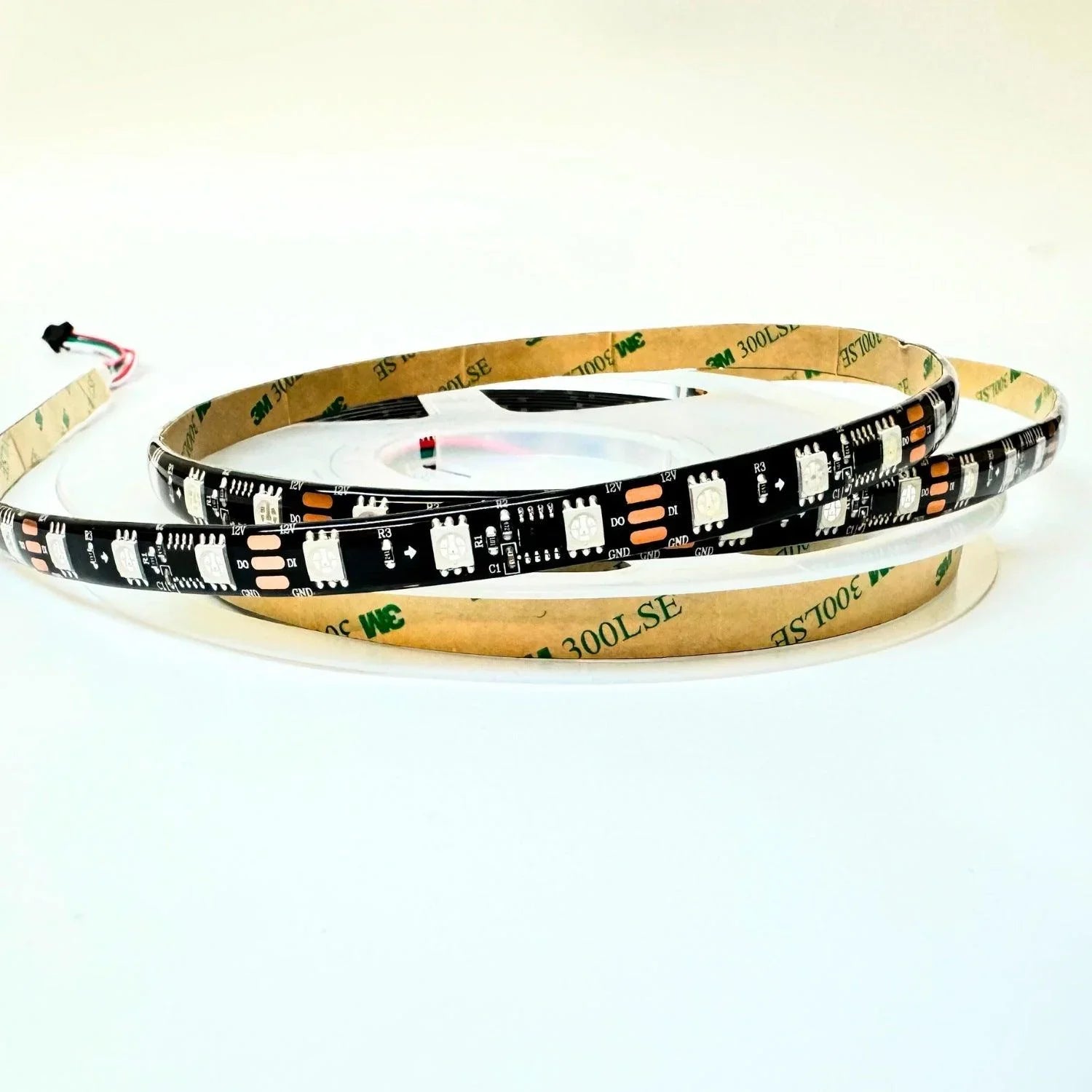

Digital Pixel RGB LED Strip 12V WS2811 60LED/m IP20 Non-Waterproof 5 Metre
SKU: ARGB12VIP205M
-
IP20 Indoor
-
12V DC
-
Free Delivery
-
5m Run
Encrypted & secure checkout
Description

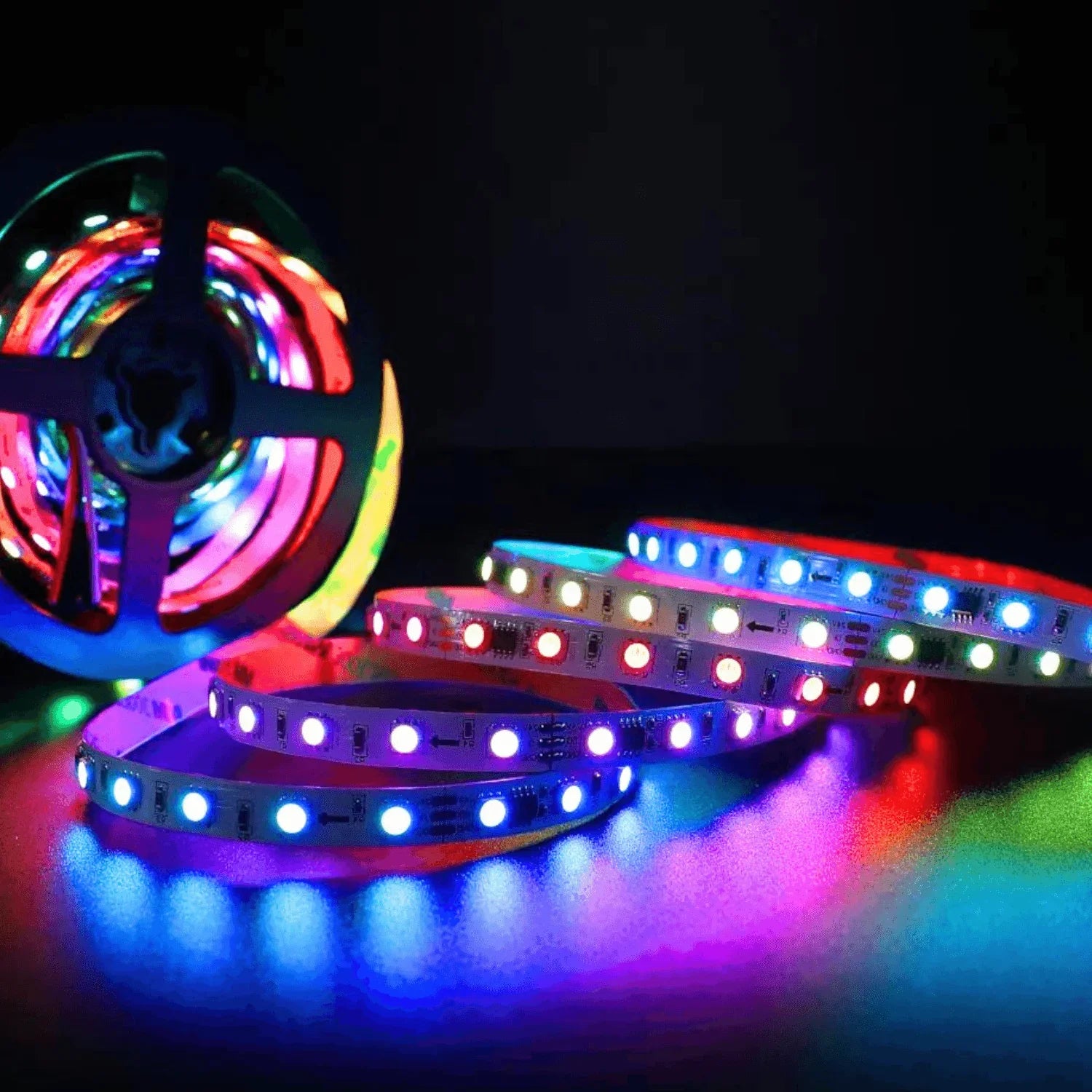

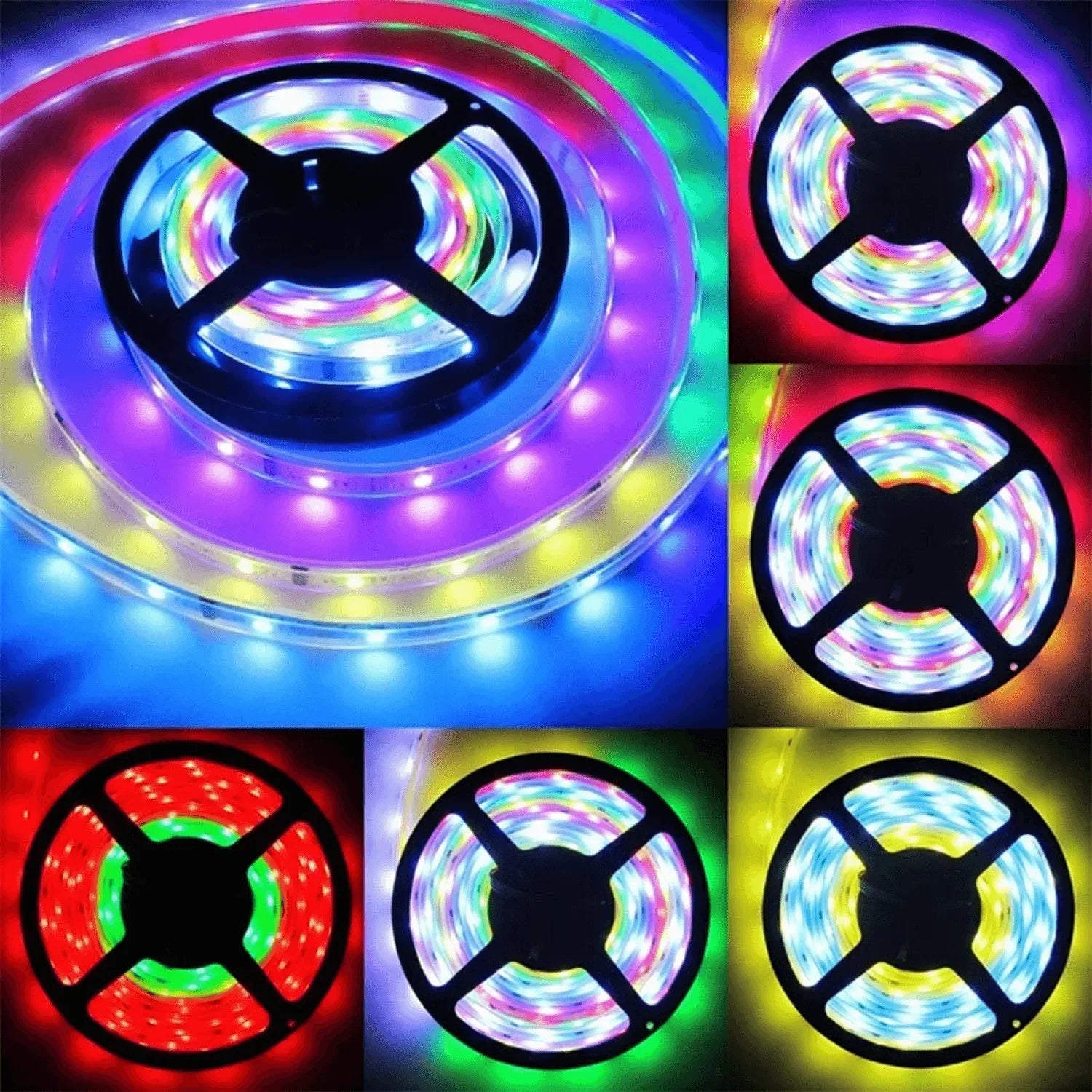

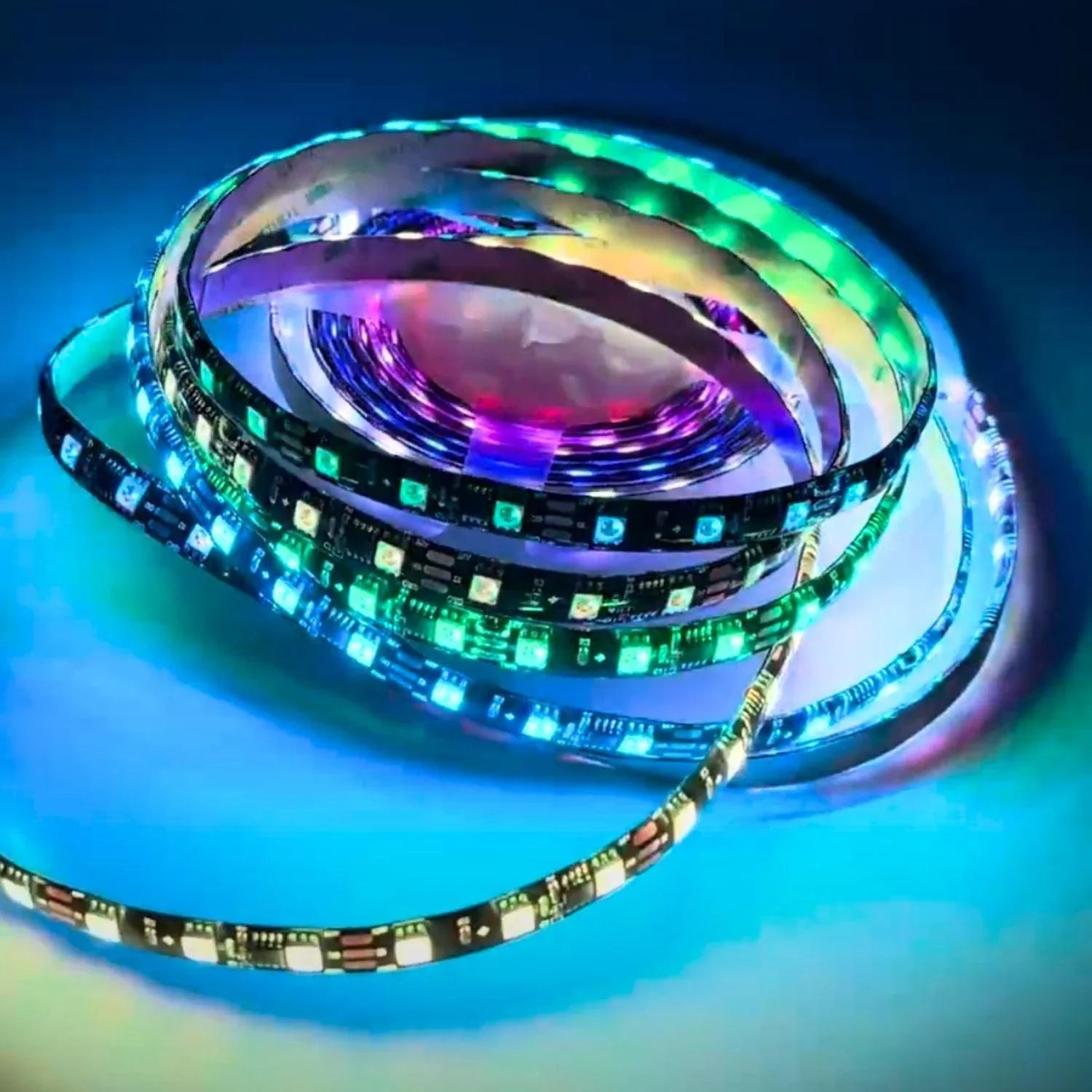

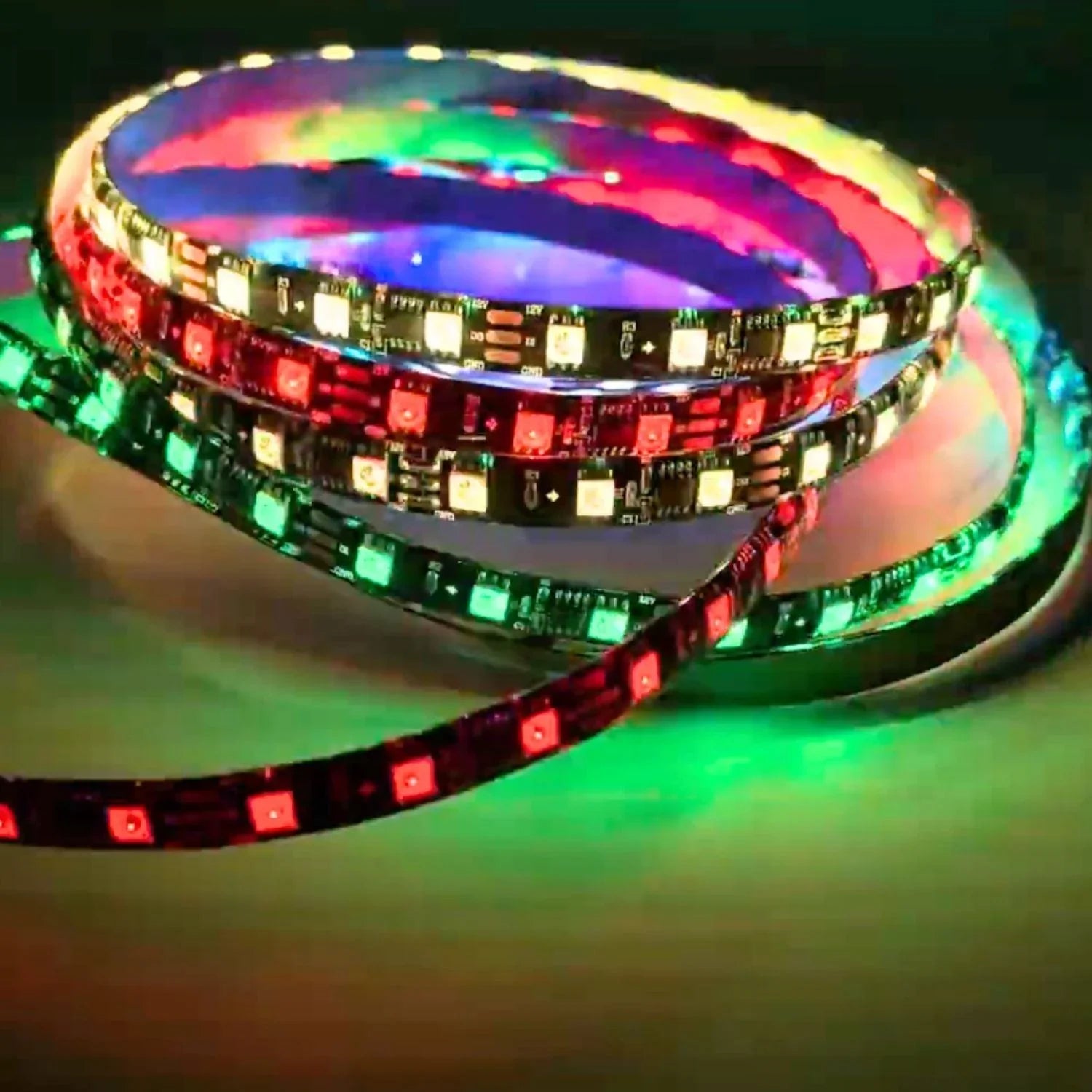

This 12V digital RGB LED strip is designed for chasing colours in indoor displays and entertainment spaces. Addressable groups can display different colours along the strip, allowing animated patterns rather than one shared colour throughout. RGB creates white by mixing its colour channels; choose a strip with a dedicated white channel if white lighting is your priority.
What is included?
This listing supplies one 5m digital RGB strip. The controller and power supply are selected separately. Choose accessories for the actual strip and the complete installation.
Which controller and power supply?

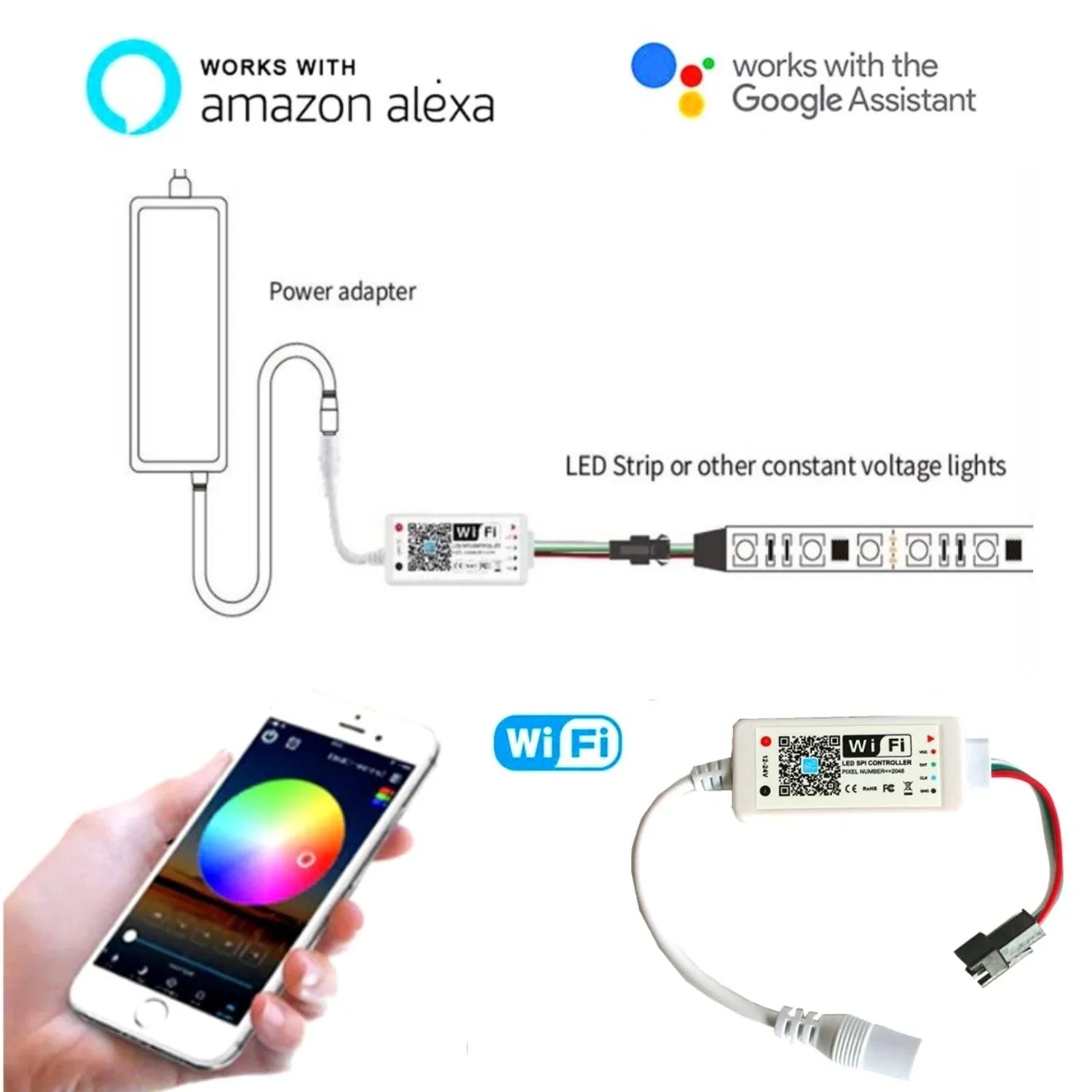

Use a compatible WS2811 digital controller and a 12V DC supply. Follow the signal direction and terminal markings. An ordinary analogue RGB controller cannot generate the required pixel data. Check colour order during a short test before fixing the strip.
Will the LEDs show?
SMD LEDs can appear as separate points, especially at close range or in reflections. For a softer appearance, consider a compatible silicone diffuser that fits the complete strip. Test the pairing: diffuser depth, LED spacing and viewing distance affect the result.
Where can it be used?

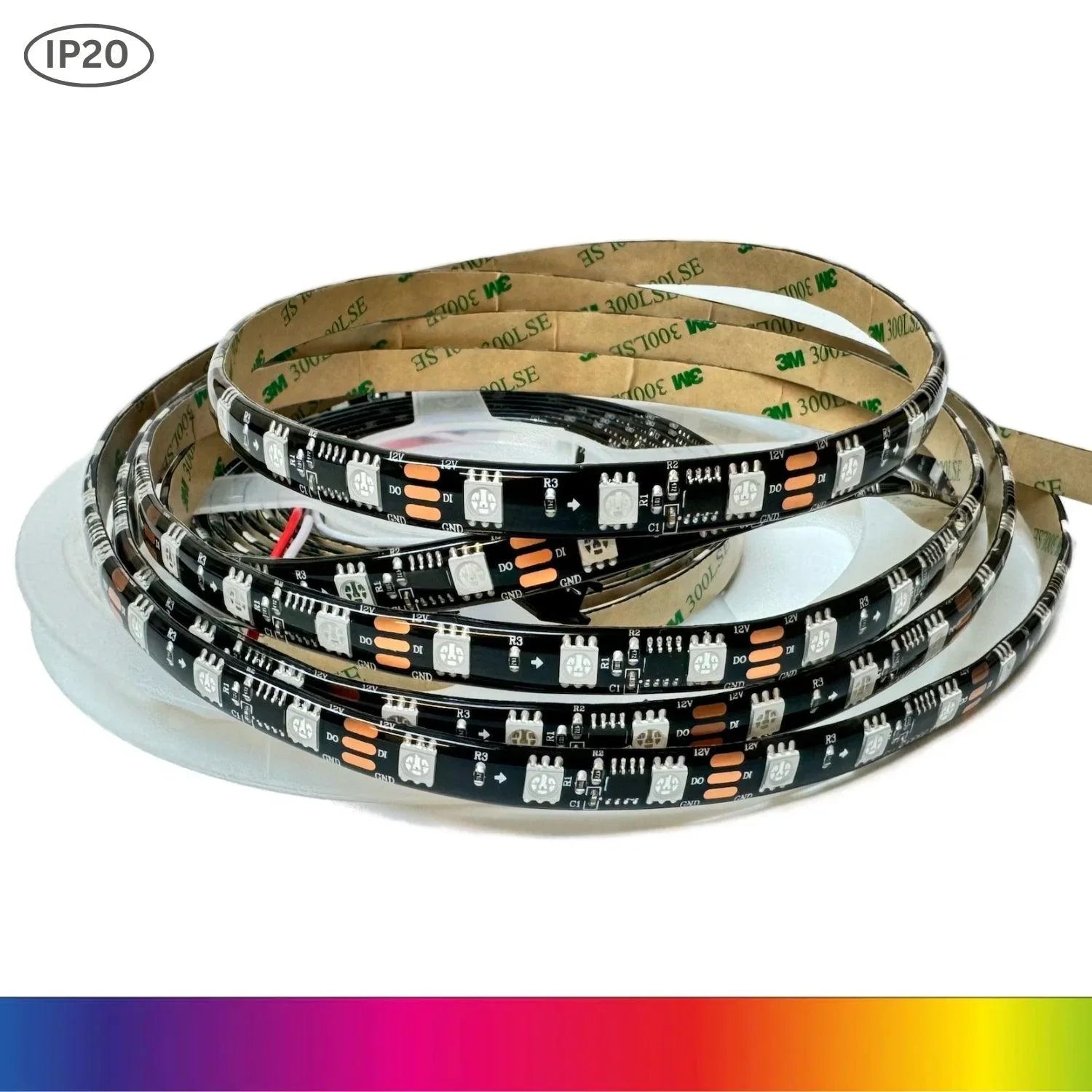

IP20 is for dry interiors. Keep the strip away from splashes, condensation and exposed outdoor locations. Position the controller, power supply and connections in suitable protected locations; their protection must be checked separately.
How should I cut and fit it?
Isolate power before cutting or connecting. Cut only at the marked 5cm intervals. Measure first, support the strip without sharp folds and test it before final fixing. Keep powered runs within the stated 5m continuous-run limit. Check the Specifications section for the remaining product details before choosing accessories. Ask ATOM LED to check your planned layout if you need help matching components. Allow access to the controller and connections for future maintenance. Position power equipment where heat can dissipate.
- Product Type
- LED Strip Light
- Colour
- RGB Multicolour
- IP Rating
- IP20 Non-Waterproof
- Voltage
- 12V
- Watts Per Metre
- 14 Watts
- LEDs Per Metre
- 60
- Max Run Length
- 5m
- CRI
- <80
- Dimensions
- 10mm wide x 3mm Depth
- Warranty
- 3 Years
Specifications
- Product Type
- LED Strip Light
- Colour
- RGB Multicolour
- IP Rating
- IP20 Non-Waterproof
- LEDs Per Metre
- 60
- Continuous Run
- 5m
- Voltage
- 12V
- Watts Per Metre
- 14 Watts
- Metres
- 5 Metre
- Dimensions
- 10mm wide x 3mm Depth
- Width
- 10mm
- Depth
- 1.5mm
- Bending Angle
- Vertical Bend
- Lumens Per Metre
- 650 lumens
- Cut Points
- 5cm
- Operating Temperature
- -25°C to 40°C
- LED Type
- 5050 IC WS2811
- Average LED Life Hours
- 50,000
- Continuous Operating Hours
- 15 hours
- Certification
- UKCA, CE, RoHS
- Attachment
- Self-Adhesive
- Beam Angle
- 180
- CRI
- <80
- Warranty
- 3 years
- Brand
- ATOM LED
- Cable Length
- 20cm cable length
- Dimming
- Yes
- Ic Type
- WS2811
- Pixels Per Metre
- 10 per metre
