Collection: LED Neon Flex Profiles

Matching the right mounting channel to your neon flex is the difference between a clean professional finish and a bodged install that shifts on the wall within six months. ATOM LED stocks aluminium profiles, bendable aluminium channels, PVC plastic tracks, and individual mounting clips for every neon flex size from 6x12mm through to 16x16mm — all held as UK stock in Telford with free delivery on every order.

The 2026 range includes rigid aluminium channels from £6.50 per metre, bendable profiles from £8.73 per metre in continuous lengths up to 25 metres, and lightweight PVC channels from £5.20 per metre for budget-conscious projects. Every profile is sized to match a specific neon flex dimension — getting the size wrong by even 1mm causes binding, silicone damage, or a loose rattle that ruins the finished line.

Aluminium & PVC · Rigid & Bendable · 6x12mm to 16x16mm · From £5.20/m · Clips from £6.95 · Free UK Delivery · UK Stock, Telford

1. Which neon flex profile size do you need?
2. What is the difference between aluminium and PVC neon flex channels?
3. When should you choose a bendable profile over a rigid one?
4. How do you install LED neon flex profiles step by step?
5. What are the most common neon flex profile mistakes?
6. How do mounting clips compare to full channel profiles?
7. Can you use neon flex profiles outdoors?
8. Why buy neon flex profiles from ATOM LED?
9. Frequently asked questions

Quick decision summary: If you know your neon flex size and need a straight surface-mount run, choose the matching rigid aluminium channel. If your installation includes curves, arches, or radius features, use the bendable aluminium profile. If budget matters more than heat dissipation and the run is indoors on a low-wattage neon flex, PVC is a practical alternative. Not sure which size? Call 01952 370028 — the ATOM LED technical team will match it for you.

Who this is for: Electricians, lighting designers, sign makers, shop fitters, and DIY installers mounting neon flex to walls, ceilings, facades, or custom structures who need a secure, professional-grade channel system.

Who this is NOT for: If you are looking for aluminium profiles for LED strip lights or silicone diffuser profiles for COB strip, those are separate categories with different internal dimensions. Neon flex profiles are shaped specifically for the rounded or rectangular cross-section of neon flex — they will not hold flat LED strip correctly.

Which neon flex profile size do you need?

Every neon flex profile is manufactured to match a specific neon flex cross-section dimension. Ordering a 10x18mm channel for 10x20mm neon flex means the flex physically will not slide in without force, which damages the silicone jacket. Always measure your neon flex width and height with a calliper before ordering, and choose the profile that matches those exact dimensions.

ATOM LED stocks profiles for the following neon flex sizes in 2026:

• Measure first, order second: Use a digital calliper across the widest point of your neon flex — do not rely on the product name alone, as manufacturing tolerances vary by approximately 0.3–0.5mm between batches.
• Internal clearance matters: The profile internal channel should be 1–2mm wider than the neon flex body for smooth insertion without binding — too tight and you risk scoring the silicone, too loose and the flex rattles in the channel.
• D-shape vs standard 16x16mm: The D-shape profile has a curved top that follows the dome profile of D-shape neon flex — it will not accept standard square 16x16mm neon flex properly.

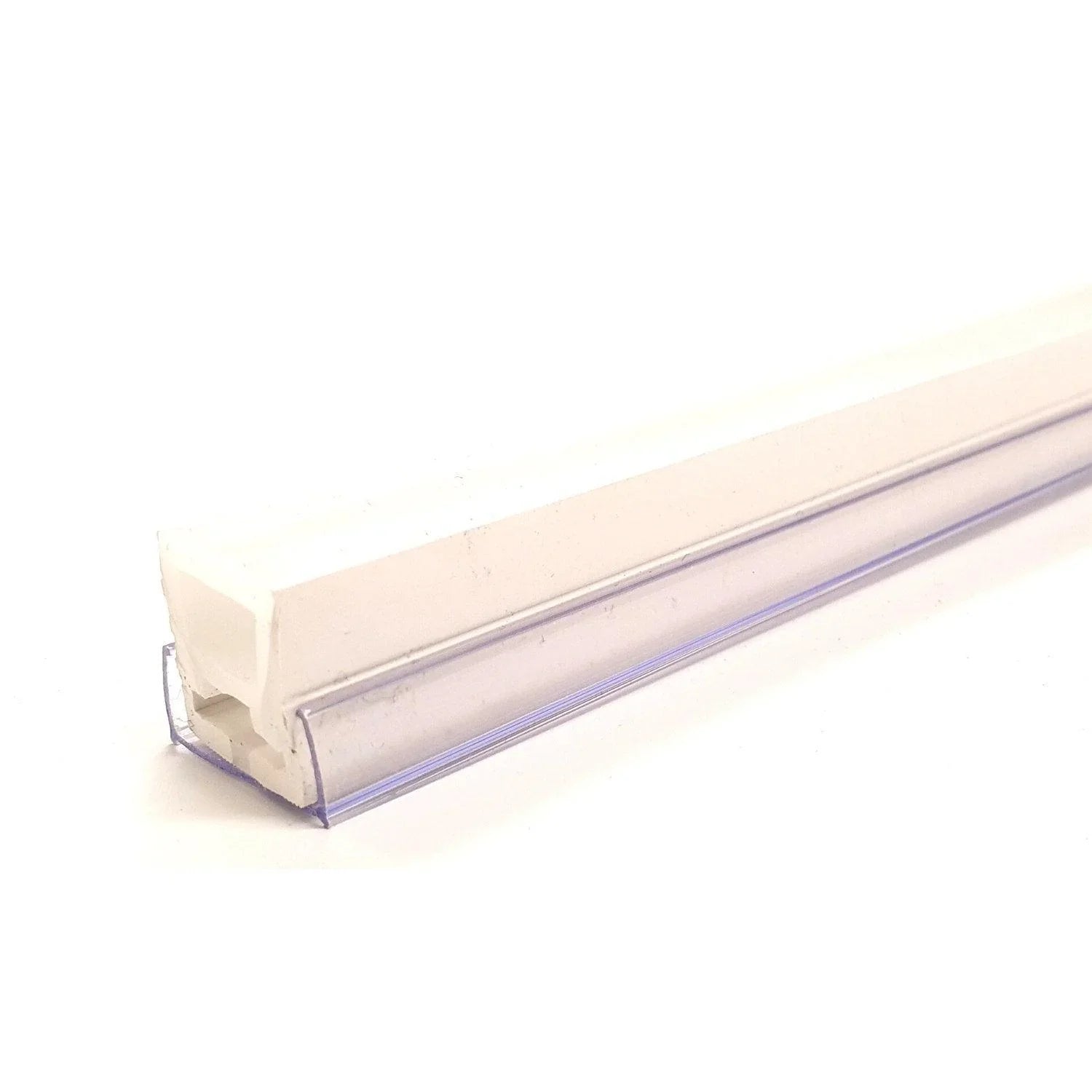

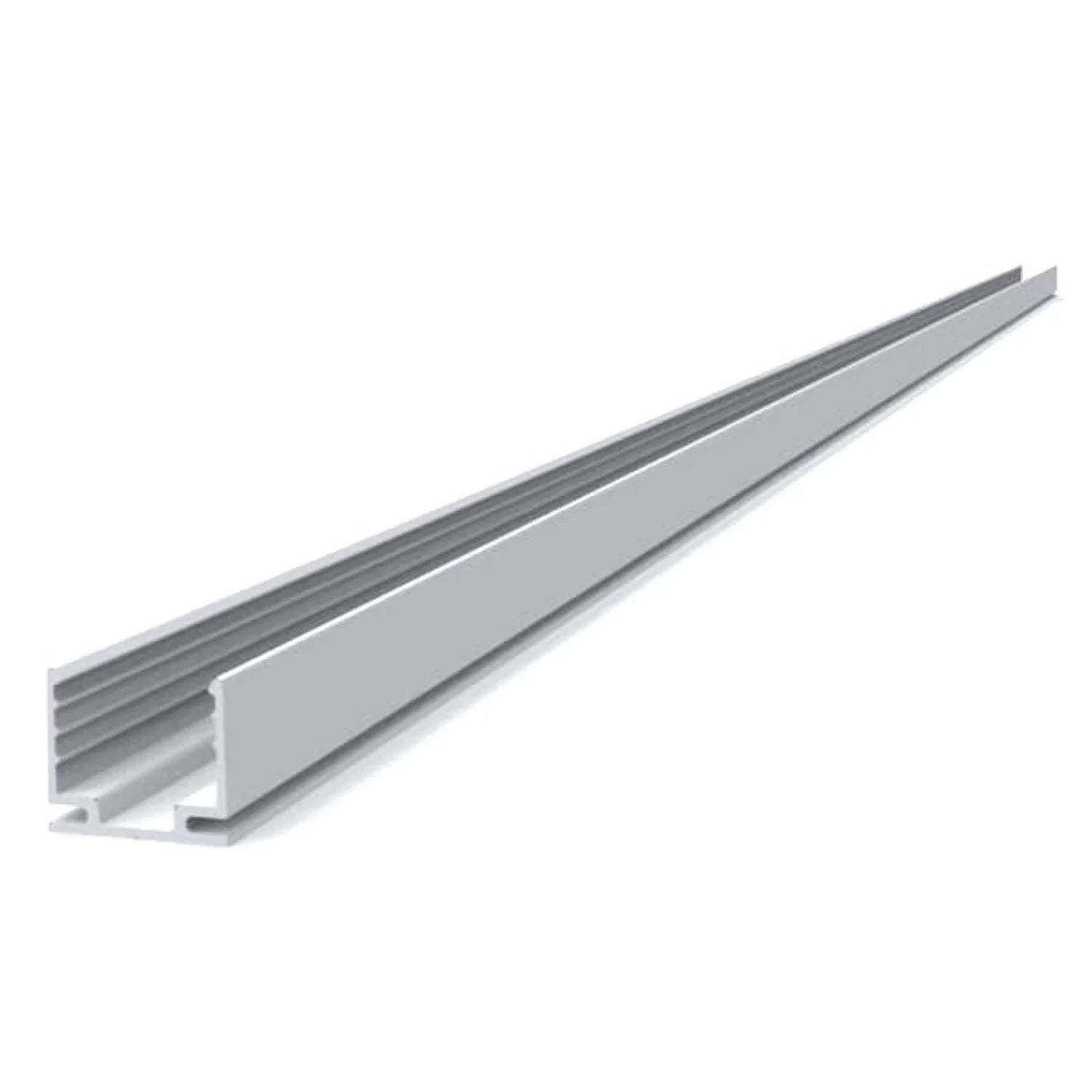

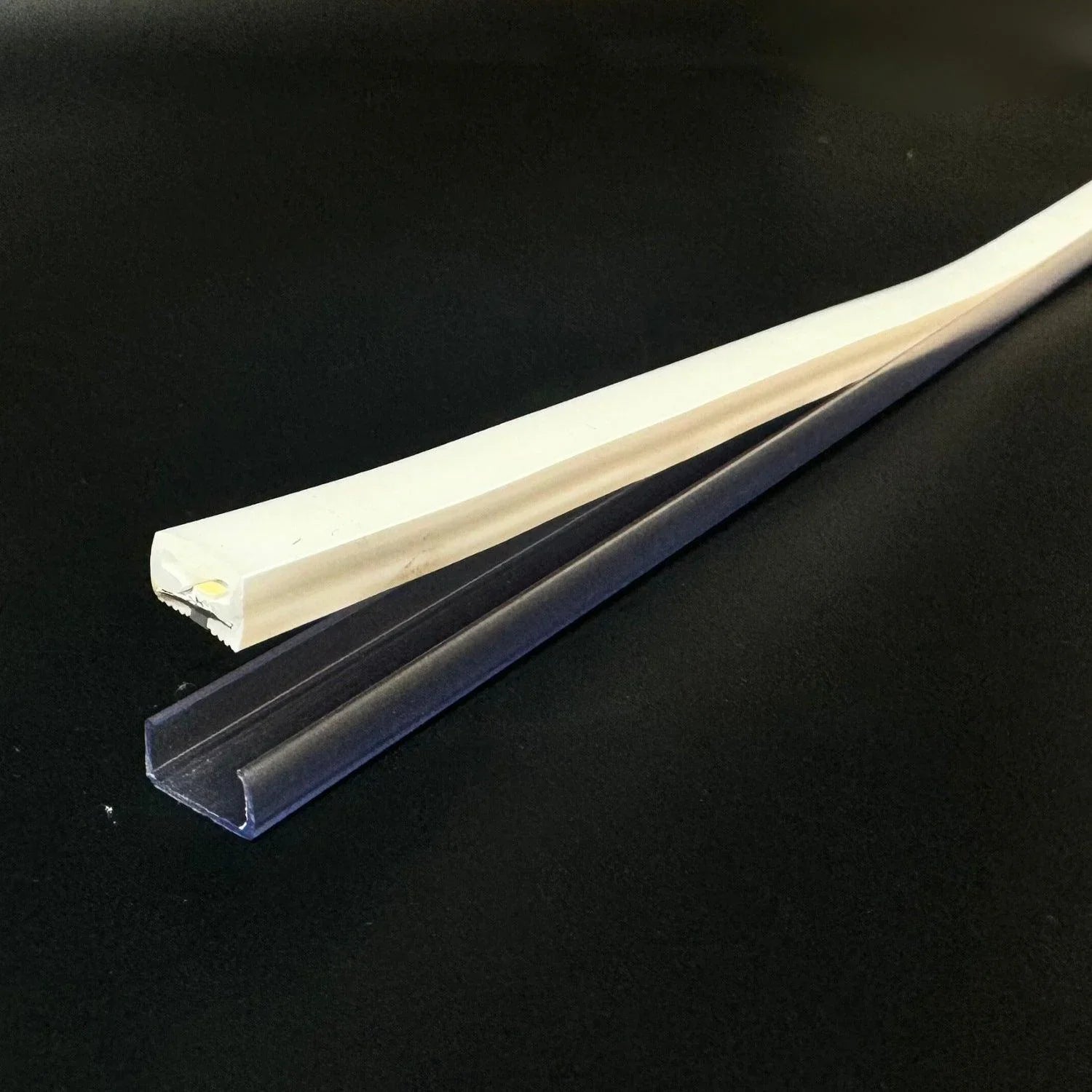

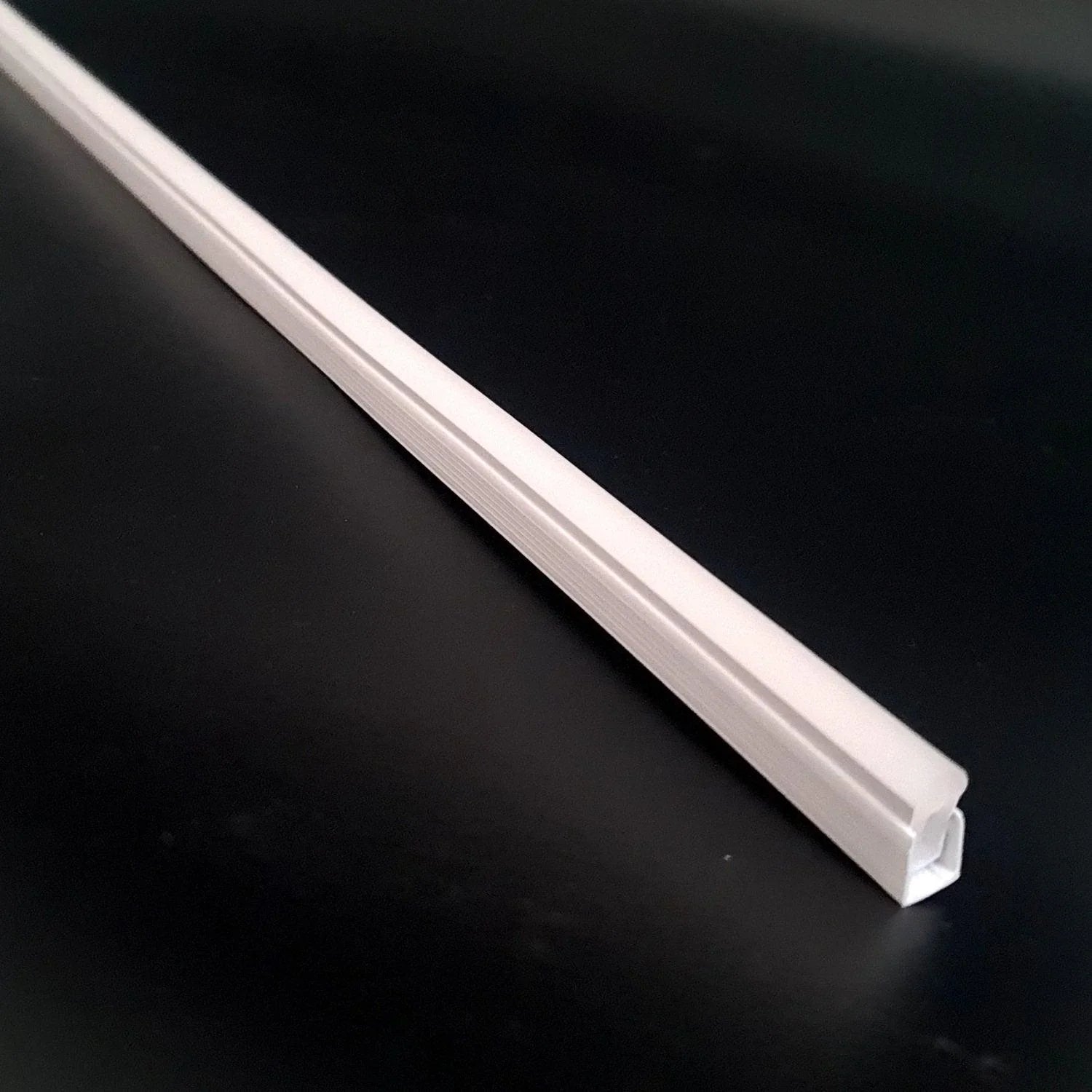

What is the difference between aluminium and PVC neon flex channels?

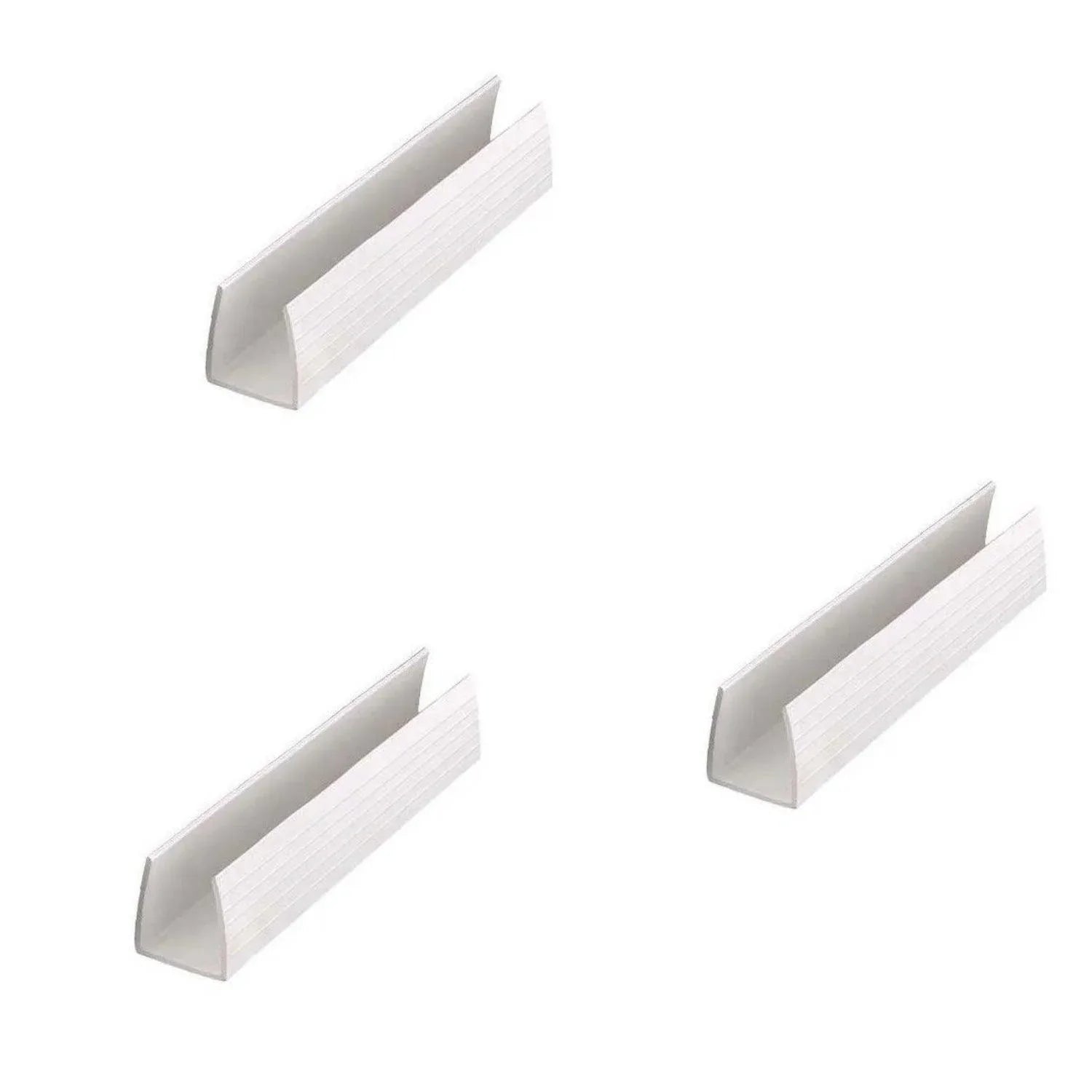

Aluminium profiles provide superior heat dissipation, structural rigidity, and long-term durability for professional installations. PVC channels are lighter, cheaper, and easier to cut, making them practical for indoor residential projects where heat load is low and the neon flex runs at modest wattages. For outdoor or commercial work in 2026, aluminium remains the professional standard.

One detail most suppliers skip: if you cut aluminium profiles with a hacksaw on site, the cut edge leaves sharp internal burrs. Those burrs score the silicone jacket of the neon flex as you slide it through. A 30-second pass with a fine half-round file or deburring tool after every cut prevents visible scuff marks on the finished installation.

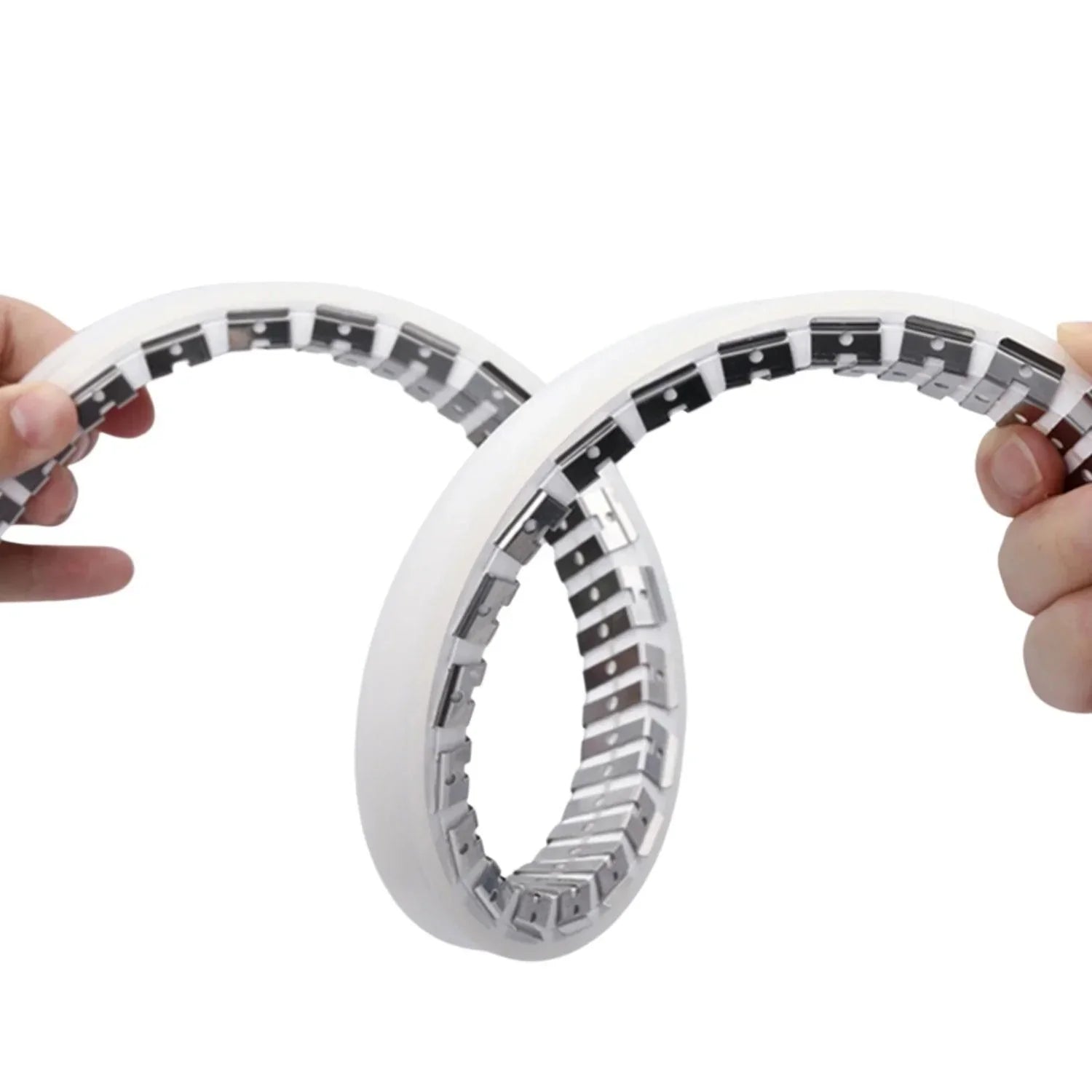

When should you choose a bendable profile over a rigid one?

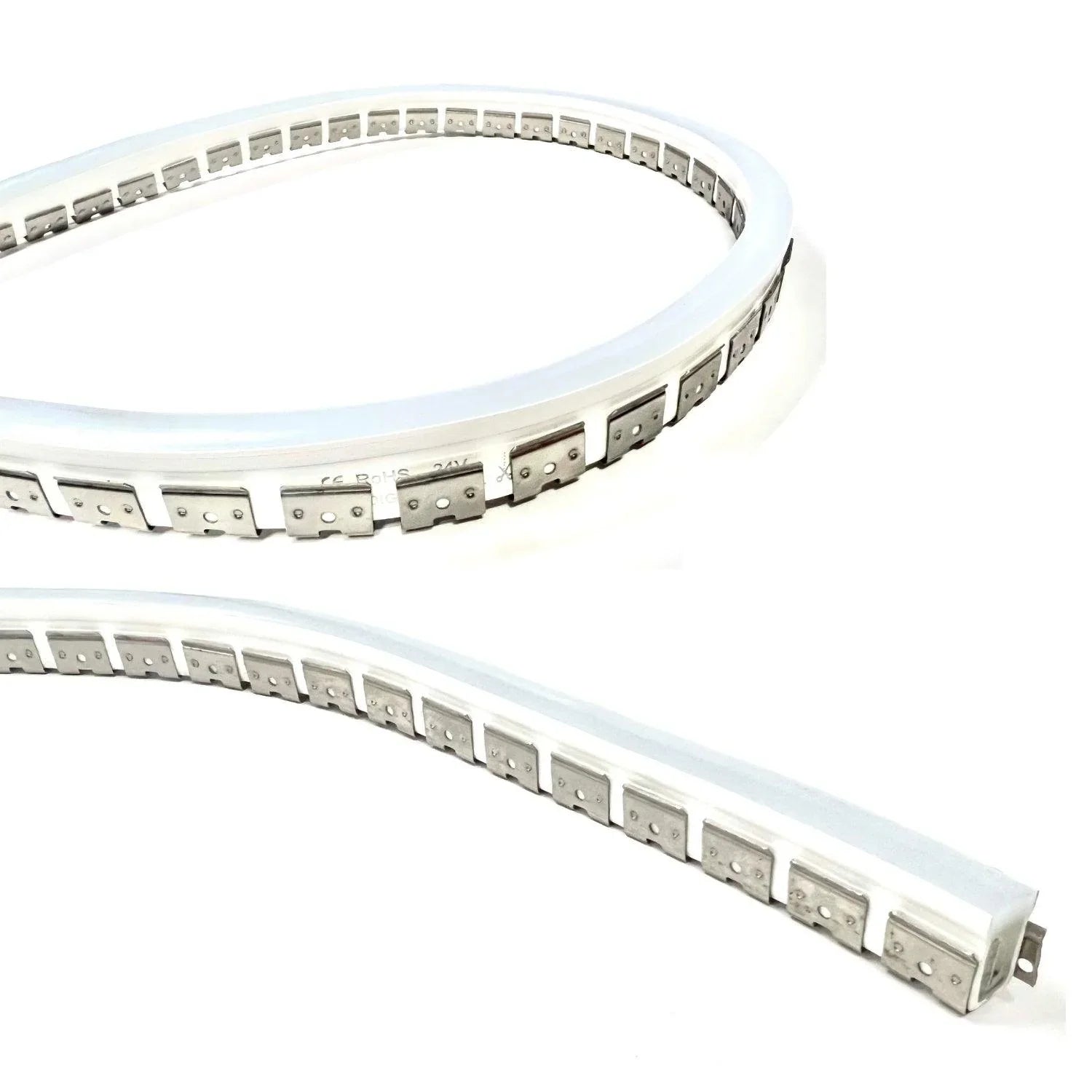

Bendable aluminium neon flex profiles are designed for installations that follow curves, arches, or radius features where rigid channels cannot physically conform to the shape. Available in continuous lengths up to 25 metres, they eliminate the need for multiple short sections joined at angles — giving you one smooth unbroken curve instead of a faceted approximation.

• Curved ceilings and coves: Bendable profiles follow the radius of a curved plasterboard bulkhead without kinking, provided the bend radius stays above approximately 300mm for most neon flex sizes.
• Signage and lettering: Neon flex sign making often requires tight compound curves — the bendable channel holds the flex in position while you shape letters and logos.
• Continuous runs up to 25m: ATOM LED supplies bendable profiles in 1-metre increments up to 25 metres in a single continuous piece, which avoids visible joints every metre.
• Fatigue limit: Bendable aluminium can typically be re-bent 2–3 times at the same point before fatigue cracking appears — plan your curve before bending and avoid trial-and-error adjustments on the same section.

For straight runs along walls, under shelves, or across ceiling lines, rigid profiles are stronger, cheaper, and simpler to install. Use bendable only where the geometry demands it.

How do you install LED neon flex profiles step by step?

Installing neon flex profiles requires accurate measurement, clean cuts, proper deburring, and secure fixing at regular intervals. The full process takes approximately 15–30 minutes per metre for a first-time installer. Professional fitters working on commercial projects in 2026 typically allow 5–10 minutes per metre including wiring time.

1. Step 1 — Measure and mark the mounting line: Use a spirit level and chalk line to mark the exact mounting position. For runs longer than 2 metres, snap a chalk line to prevent drift. Account for a 1–2mm expansion gap at each profile joint for outdoor installations where thermal expansion applies.
2. Step 2 — Cut profiles to length: Mark the cut point with a fine-tip marker. Cut aluminium profiles with a mitre saw fitted with a non-ferrous blade, or a fine-tooth hacksaw. PVC profiles cut cleanly with a Stanley knife or fine-tooth saw. Never use an angle grinder — the heat melts PVC and warps thin aluminium.
3. Step 3 — Deburr the cut edges: Run a half-round file or deburring tool along every cut edge, inside and outside. Internal burrs will score the silicone coating of the neon flex during insertion. This step takes 30 seconds per cut and prevents visible damage to the finished install.
4. Step 4 — Pre-drill and fix the profile: Use the pre-formed screw slots in the profile base. Fix with appropriate screws for your substrate — wood screws for timber, wall plugs and screws for masonry, self-tappers for sheet metal. Space fixings at approximately 300mm intervals for straight runs, and every 150mm on curves where the profile is under bending stress.
5. Step 5 — Slide the neon flex into the channel: Start from one end and push the neon flex through the channel in a steady motion. Do not force it — if it binds, check the profile size matches your neon flex dimensions. A light dusting of talcum powder on the silicone jacket reduces friction on longer runs and makes insertion significantly easier.
6. Step 6 — Connect power and test: Wire the neon flex to a compatible LED driver before permanently sealing any end caps. Test the full run for even illumination and check for any dark spots at connection points. For outdoor installations, seal cable entry points with neutral-cure, UV-resistant silicone.

What are the most common neon flex profile mistakes?

The three most frequent mistakes are ordering the wrong profile size for the neon flex, skipping the deburring step after cutting aluminium channels, and spacing fixings too far apart on vertical or overhead runs. Each of these causes visible defects or premature failure that could have been avoided with five minutes of preparation before installation.

• Wrong size profile: If the internal channel is even 1mm too narrow, the neon flex binds on insertion and you cannot slide it in without physically compressing and potentially tearing the silicone jacket. If it is 3mm too wide, the flex moves inside the channel and produces an uneven light line.
• No deburring after cutting: Raw aluminium cut edges have microscopic burrs that act like a cheese grater on silicone — the damage only becomes visible once the neon flex is powered and you see scuff marks through the illuminated silicone body.
• Fixings too far apart: Profiles fixed at 500mm+ intervals on ceilings sag under the combined weight of the channel and neon flex. Use 300mm spacing on horizontal surfaces and 200–250mm spacing on ceilings and vertical drops.
• Ignoring thermal expansion outdoors: Over a 5-metre outdoor aluminium run, thermal expansion between a 5 degree C winter night and a 35 degree C summer afternoon is approximately 1.2mm. Without a 1–2mm gap at each profile joint, the channels push against each other and buckle away from the wall.
• Using PVC outdoors in direct sun: PVC profiles degrade under prolonged UV exposure, becoming brittle and discoloured within approximately 2–3 years. For any outdoor installation exposed to sunlight, aluminium is the correct choice.

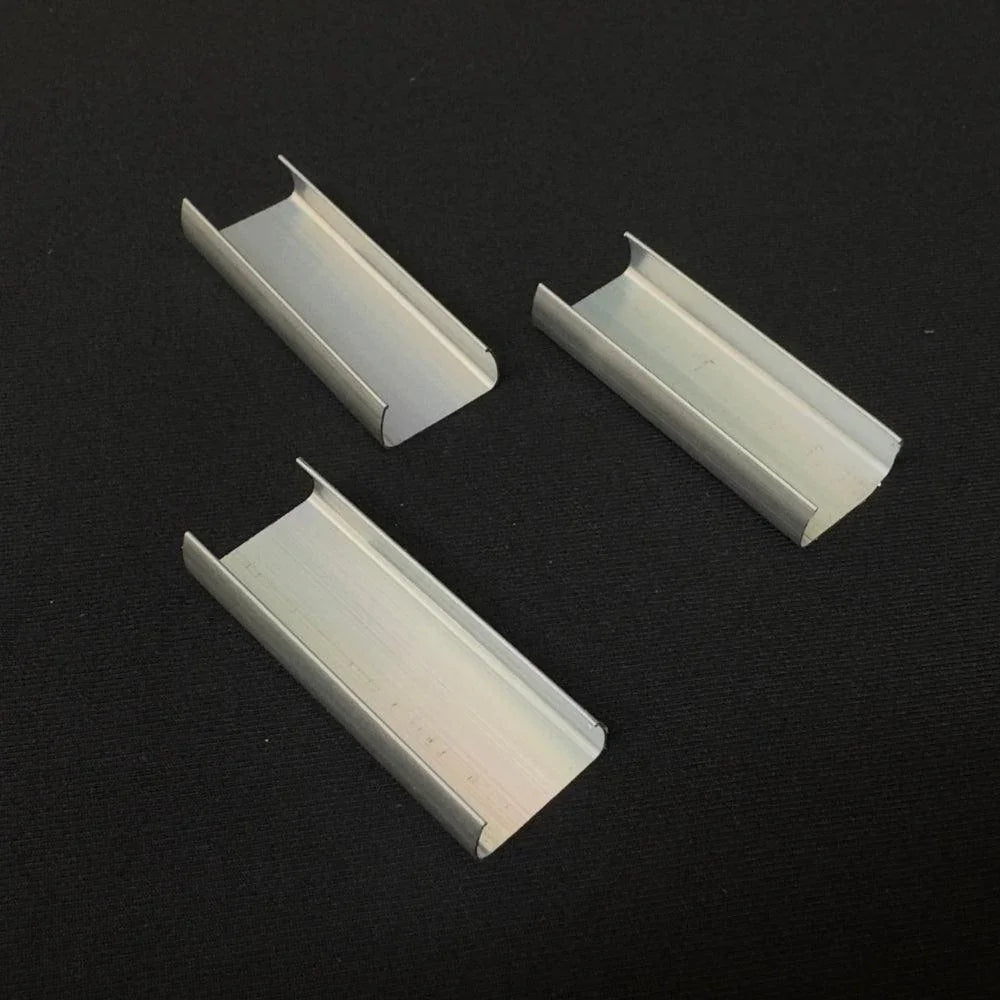

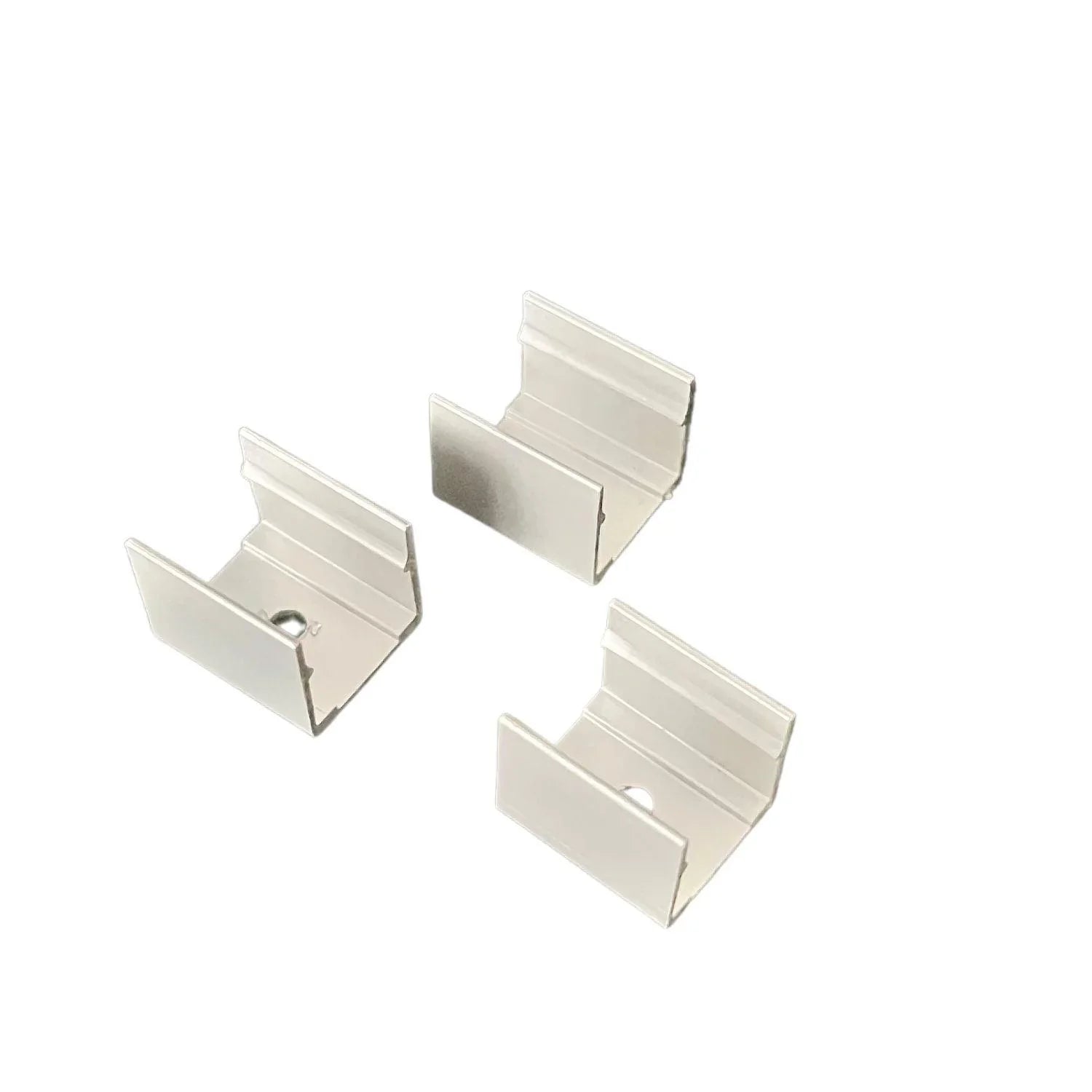

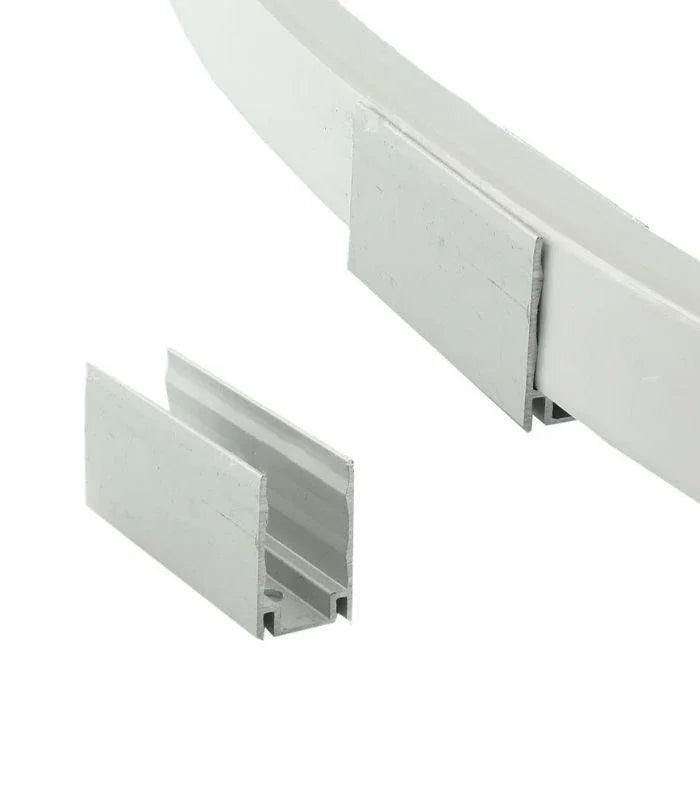

How do mounting clips compare to full channel profiles?

Aluminium mounting clips secure the neon flex at individual points along the run, while full channel profiles enclose the entire length continuously. Clips are faster to install and cost less per metre, but channels provide superior protection, cleaner sight lines, and better heat management — making channels the preferred choice for visible commercial installations in 2026.

• Clips — best for: Concealed runs behind coves or pelmets where the mounting hardware is not visible, temporary installations, and budget-sensitive residential projects.
• Channels — best for: Exposed architectural features, outdoor runs, decking installations, signage, and any application where the neon flex is directly visible to the end user.
• Clip spacing: Mount clips at 250–300mm intervals for secure positioning. On vertical surfaces, reduce to 200mm to prevent the neon flex sliding down over time.
• Clip sizes available: ATOM LED stocks aluminium clips for 6x12mm, 8x16mm, 10x20mm, 12x20mm, 14x25mm, and 16x16mm neon flex in packs of 5, 10, 15, or 20 units — plus PVC plastic clips for 8x16mm at £8.95 per 10-pack.

Can you use neon flex profiles outdoors?

Aluminium neon flex profiles are suitable for outdoor use in all UK weather conditions. They resist corrosion, tolerate UV exposure, and handle temperature cycling without degradation. PVC profiles should be limited to sheltered outdoor locations or indoor use only, as prolonged direct UV exposure causes yellowing and embrittlement within approximately 2–3 years.

• Aluminium outdoors: Pair with IP67-rated neon flex for garden, facade, and architectural applications, or IP68-rated neon flex for fully exposed locations near water features.
• Seal all joints: Apply neutral-cure UV-resistant silicone sealant at every profile joint and cable entry point. Acid-cure silicone releases acetic acid during curing, which can corrode aluminium contacts over time.
• Stainless steel fixings: Use A2 or A4 grade stainless steel screws for outdoor aluminium profiles. Standard zinc-plated screws develop galvanic corrosion against aluminium in wet conditions, causing white powder deposits and weakened fixings within 12–18 months.
• Drainage: On horizontal outdoor runs, angle the profile by approximately 1–2 degrees or drill 3mm drainage holes at 500mm intervals to prevent standing water pooling inside the channel.

Why buy neon flex profiles from ATOM LED?

ATOM LED holds the full range of neon flex profiles as UK stock at our Telford warehouse — aluminium rigid, aluminium bendable, PVC, clear PVC, and clips in every standard neon flex size. Orders ship the same working day with free UK delivery, and the technical team is available Monday to Friday, 9am–5pm on 01952 370028 to match the right profile to your project.

• Matched sizing: Every profile in the ATOM LED range is tested against the corresponding neon flex product to confirm fit tolerance — no guesswork on internal clearances.
• Bendable profiles up to 25m: Continuous bendable aluminium channels in 1-metre increments up to 25 metres, eliminating visible joints on long curved runs.
• Free UK delivery: No minimum order. One metre or fifty — delivery is free to mainland UK addresses.
• Technical support: Not sure which profile fits your neon flex? Email operations@atomled.co.uk with your neon flex dimensions and install photos — the team will recommend the correct channel, clip count, and fixing method for your specific application.
• UK stock, not dropshipped: All profiles ship from ATOM LED's warehouse in Telford, Shropshire. No waiting for overseas shipments.

Ready to order? Browse the full range below, or call 01952 370028 for sizing advice. Email operations@atomled.co.uk for project quotes. Browse silicone neon flex body covers and COB strip accessories for related mounting hardware.

Frequently asked questions

The questions below cover the most common sizing, installation, and compatibility queries the ATOM LED technical team receives about neon flex profiles and mounting channels in 2026. If your question is not answered here, call 01952 370028 or email operations@atomled.co.uk.

What size neon flex profile do I need?

• Measure your neon flex cross-section: Use a digital calliper to measure the width and height of your neon flex at the widest point, then select the profile that matches those dimensions exactly.
• Allow 1–2mm internal clearance: The profile internal channel should be slightly wider than the neon flex body for smooth insertion without binding.
• Check shape compatibility: D-shape neon flex requires D-shape profiles — standard square profiles will not grip D-shape flex correctly.

Can I cut neon flex profiles to custom lengths?

• Aluminium profiles: Cut with a mitre saw (non-ferrous blade) or fine-tooth hacksaw, then deburr all cut edges with a file before inserting neon flex.
• PVC profiles: Cut with a sharp Stanley knife or fine-tooth saw for clean edges without melting.
• Never use an angle grinder: The heat generated warps thin aluminium and melts PVC, ruining the channel dimensions.

How many metres of profile do I need per metre of neon flex?

• 1:1 ratio for full channel profiles: Order the same length of profile as your neon flex run, plus approximately 5% extra to account for cuts and waste.
• Clips as an alternative: If using clips instead of channels, allow one clip every 250–300mm — approximately 3–4 clips per metre of neon flex.

Do neon flex profiles come with end caps?

• Profiles are sold as open channels: End caps are not included and are not required for most installations where the neon flex extends beyond the profile end.
• For terminated ends: Seal the exposed profile end with a small bead of neutral-cure silicone if the installation is outdoors or in a damp location.

Will aluminium profiles cause a short circuit on my neon flex?

• No risk on standard neon flex: The silicone or PVC jacket on neon flex provides full electrical insulation between the LED circuit and the aluminium channel.
• Inspect before powering: If the silicone jacket is nicked or torn during installation, repair the damage with silicone sealant before connecting power to prevent moisture ingress rather than short-circuit risk.

Are bendable profiles reusable if I reposition the installation?

• Limited re-bending: Bendable aluminium channels can typically be re-bent 2–3 times at the same point before fatigue cracking appears in the aluminium.
• Plan curves carefully: Shape the profile to your final curve before fixing it to the surface — avoid repeated trial-and-error bending on the same section of channel.

What screws should I use with aluminium neon flex profiles?

• Indoor: Standard zinc-plated wood screws or wall plugs and screws are suitable for all indoor substrate types.
• Outdoor: Use A2 or A4 stainless steel screws to prevent galvanic corrosion between the steel and aluminium in wet UK conditions.
• Spacing: Fix at 300mm intervals on horizontal runs and 200mm intervals on vertical or ceiling-mounted runs.

How do I prevent neon flex from sliding out of clips on vertical surfaces?

• Reduce clip spacing: On vertical runs, space clips at 200mm intervals instead of the standard 250–300mm to prevent the neon flex gradually sliding down under its own weight.
• Use a channel instead: For fully vertical drops over 2 metres, a full aluminium channel provides continuous support and eliminates any risk of the neon flex migrating downward over time.

Can I paint aluminium neon flex profiles to match my wall colour?

• Yes, with preparation: Lightly sand the aluminium surface with 240-grit paper, apply an aluminium-specific primer, then use a spray paint formulated for metal surfaces.
• Avoid painting the internal channel: Paint build-up inside the channel reduces the internal clearance and can prevent the neon flex from sliding in correctly.

Does ATOM LED offer bulk pricing on neon flex profiles?

• Project quotes available: For orders over 25 metres or multi-size requirements, email operations@atomled.co.uk with quantities and sizes for a project quote.
• Bendable profiles already volume-priced: Bendable channels are priced per metre with volume built in — a 25-metre continuous length costs £207.58, which works out to approximately £8.30 per metre.

Last reviewed: March 2026 — ATOM LED technical team, Telford, Shropshire. Specifications current as of 2026.
