- Warranty
- 7 Years
- Fits
- 8×16mm IP67
- Material
- Aluminium
- Flexibility
- Straight

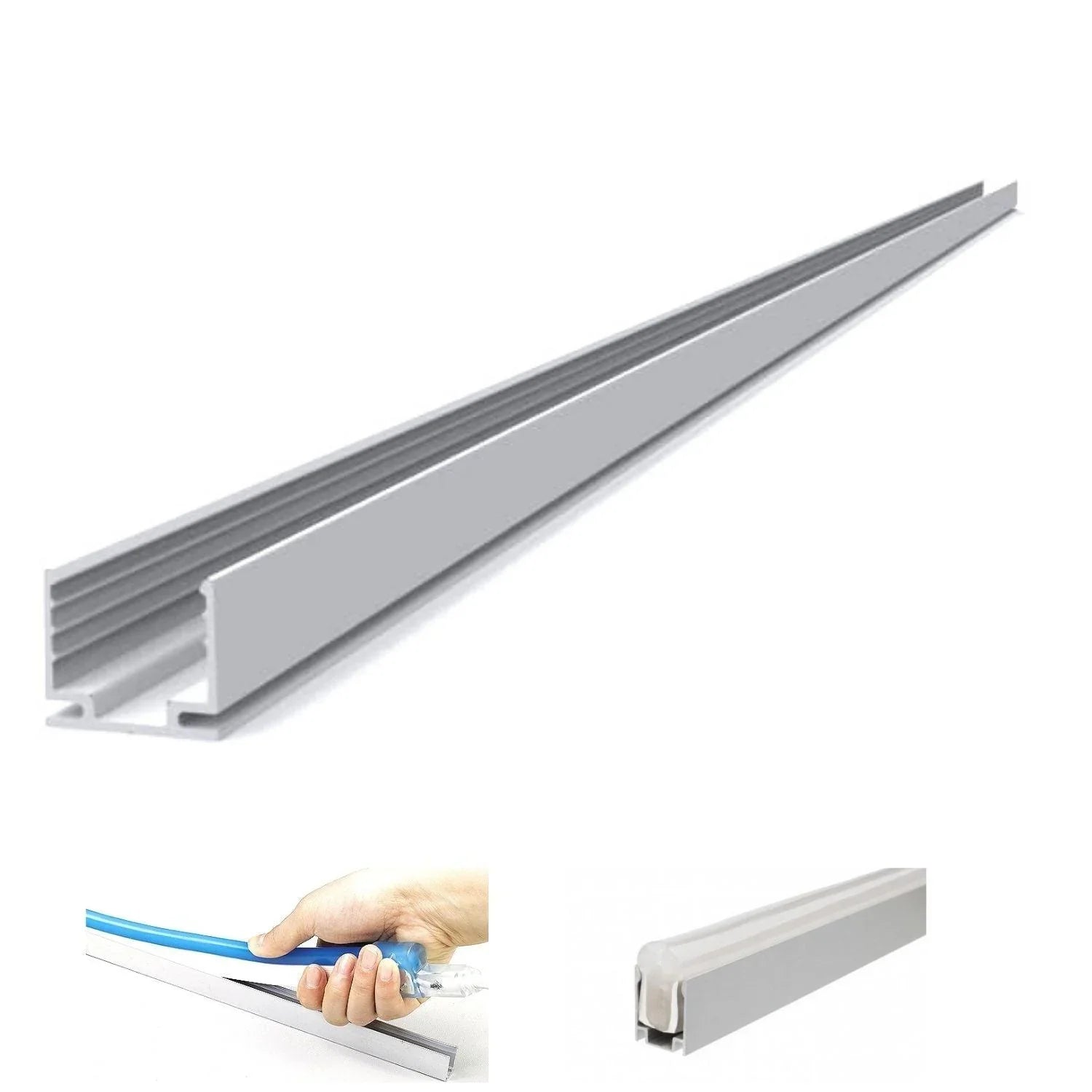

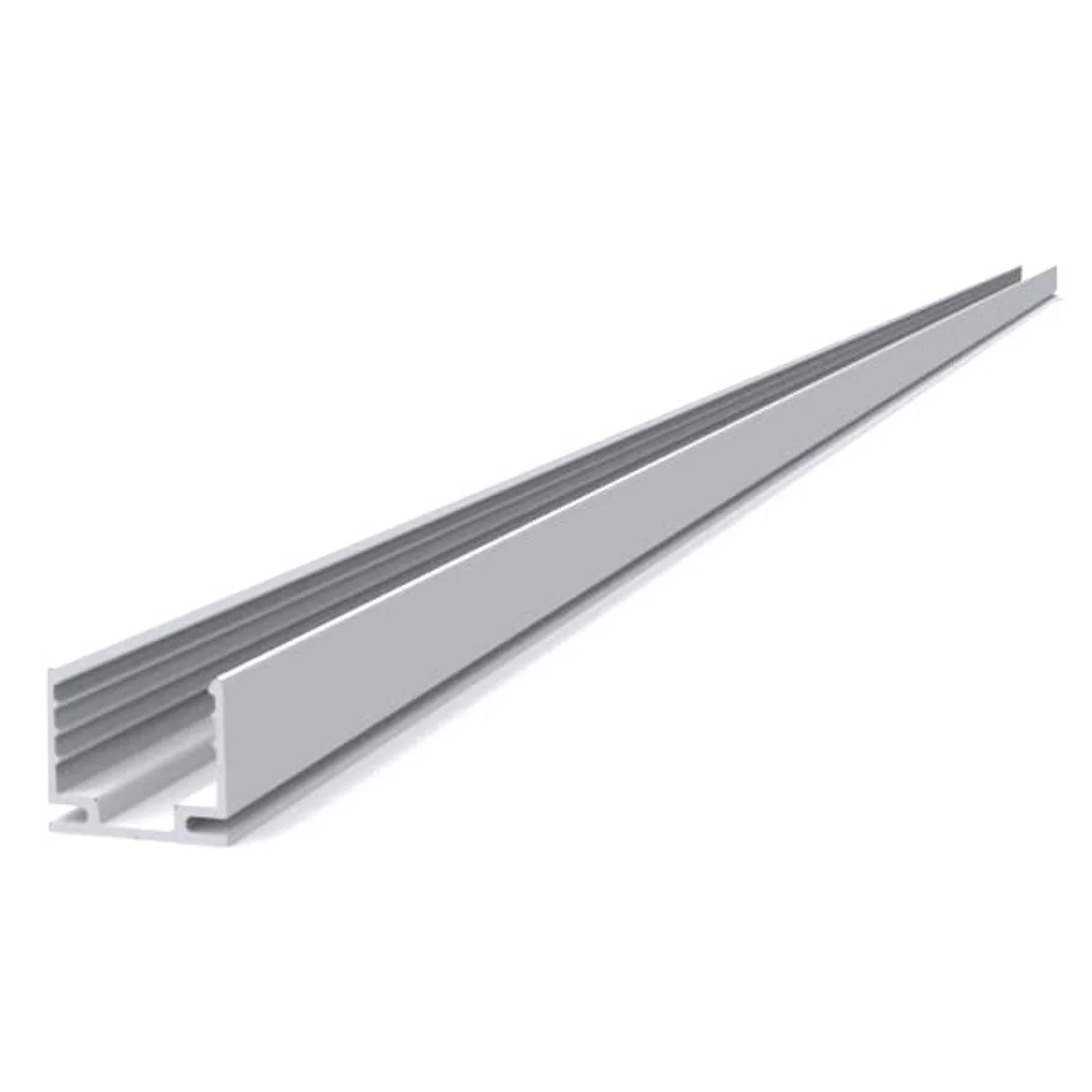

Aluminium Profile for 8x16mm IP67 Neon Flex – 1 Metre & 2 Metres
SKU: NFPROFILE-816-1M
-
Straight Profile
-
Aluminium
-
Fits 8 × 16 mm IP67 Neon Flex
Encrypted & secure checkout
Description
Available as one continuous 1-metre or 2-metre length
3 screw slots per 1-metre channel
Profile cross-section: W9.8 ±0.2mm × H16.3 ±0.2mm. Channel width: 8 ±0.2mm; retaining-shoulder opening: 7.6mm. IP67 refers to the compatible neon flex, not the bare aluminium profile.
Part of the full aluminium LED profile range — every size and mounting style in UK stock.
Included: The 1-metre profile includes 2 screws and 2 wall plugs; the 2-metre profile includes 4 screws and 4 wall plugs. Neon Flex, power supplies and controls are sold separately.
Delivery charges
1 Metre: Mainland UK delivery is £6.95 below £90, with free Next Day Delivery from £90 when the basket contains no profile charged at the £19.85 or £34.85 long-profile rate. 2 Metre: Mainland UK delivery is £19.85 at every order value, including mixed baskets. If the basket also contains a profile charged at £34.85, the higher rate applies. Other destinations are calculated at checkout.
- Product Type
- Aluminium Profile
- Colour
- Silver
- Dimensions
- 9.8 ± 0.2mm wide × 16.3 ± 0.2mm high
- Warranty
- 7 Years
Specifications
- Product Type
- Aluminium Profile
- Colour
- Silver
- Metres
- 1 Metre / 2 Metres
- Dimensions
- 9.8 ± 0.2mm wide × 16.3 ± 0.2mm high
- Width
- 9.8 ± 0.2mm
- Depth
- 16.3 ± 0.2mm
- Shape
- Straight U-channel
- Material
- Aluminium
- Attachment
- Surface mount
- Warranty
- 7 Years
- Brand
- ATOM LED
- Channel Opening
- 8 ± 0.2mm; 7.6mm at the retaining shoulders
- Compatible Ip Rating
- IP67 Neon Flex
- Included Items
- 1m: profile + 2 screws + 2 wall plugs; 2m: profile + 4 screws + 4 wall plugs
- Internal Depth
- 14.5mm
- Neon Flex Size
- 8 × 16mm
Shipping & Returns
£6.95 under £90 — Mainland UK.
£19.85 — excluded from free delivery.
30-day returns window — free returns on faulty products
01952 370028 · Mon–Fri 9am–5pm
Shipping
Profile delivery is charged by length. Mainland UK rates are shown below.
1m profiles: £6.95 for orders below £90 (DPD, 1–2 working days). Qualifying orders of £90 or more receive free next day delivery only when the order contains no 2m profiles.
2m profiles: £19.85 per order via Parcelforce 48 (1–2 working days), including orders of £90 or more. These lengths are not eligible for free delivery, next day, timed or Saturday delivery.
If the order includes any 2m profile, the £19.85 long-length rate applies to the whole order. Final charges depend on the delivery address and are confirmed at checkout.
For in-stock profiles, order before 1pm UK time, Monday–Friday for same-working-day dispatch from Telford. Orders placed after 1pm are dispatched the next working day. Bank holidays are excluded.
Large orders and pallet shipments: call 01952 370028 for a quote.
For more information see our detailed Shipping Page.
International Shipping
Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.
Returns & Refunds
The 30-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:
- Standard LED strip lights supplied as 5-metre rolls
- Straight aluminium profiles
- Power supplies and drivers
- Accessories (connectors, controllers, dimmers, end caps)
Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.
Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.
Refunds are processed within 5–10 working days of receiving the returned item.
For more details see our Returns & Refunds page.
Reviews
Great quality excellent

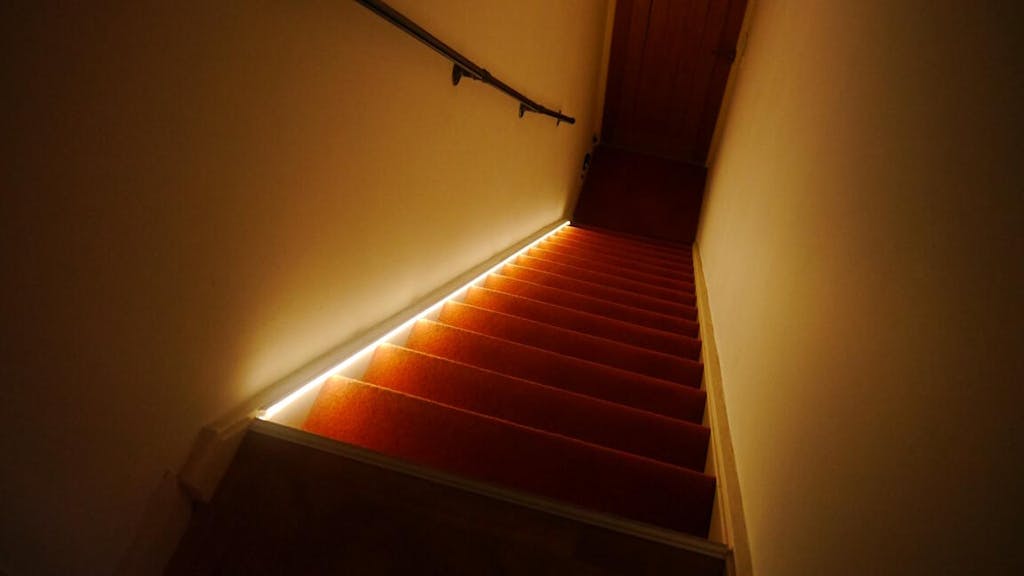

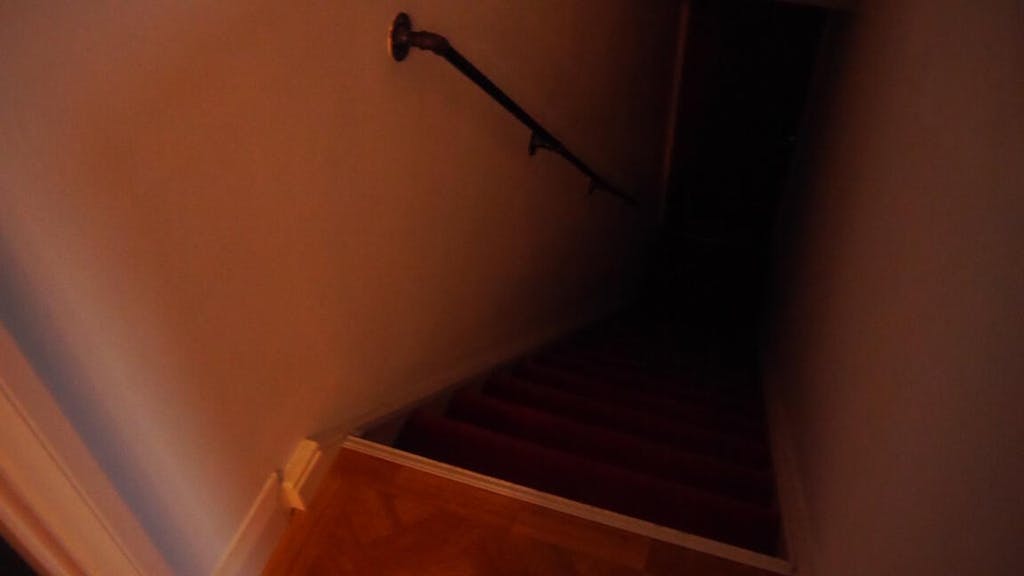

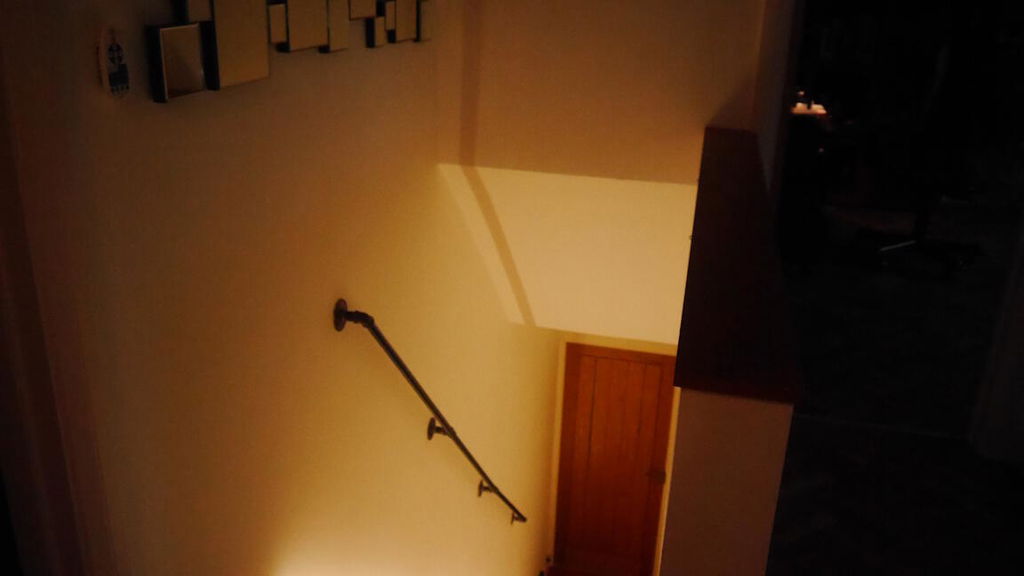

I ran remote controlled led neon flexible lighting down my stairwell and it worked a treat. A remote velcroed to the top and bottom of the stairs acts as a switch with no need for an electrician as the system just plugs in.
Really good effect on the lighting couldn't ask for more of it
Looks really good well
Impressed
They came bent so had to use the ones that wer not damaged not good
LED Neon Flex Aluminium Channel Mounting Track for 8x16mm Neon Flex 1 Metre
Good service
Great product
I like the concept, I haven’t installed the lights yet so can’t comment on the functionality.
Delivery box came broken in half and channel bent. LED neon thankfully works but channel is of no use.
LED Neon Flex Aluminium Channel Mounting Track for 8x16mm Neon Flex 1 Metre
Having bought two lots ( one x 17 metres ) the strip is robust and very high quality , fitting into the channel is very easy and effective..... yes very nice piece of kit
I bought some outdoor strip lights to light up some steps and a long retaining wall as part of a larger lighting scheme and was very impressed by the quality of the product. The strip lights have a wonderful warm light which offers a sophisticated feel to the garden. The service I received was also very good, as was prompt delivery of the products. I highly recommend ATOM LED and will purchase from them again
this stuff is good, but it bends really easily. cut with care!
Goid

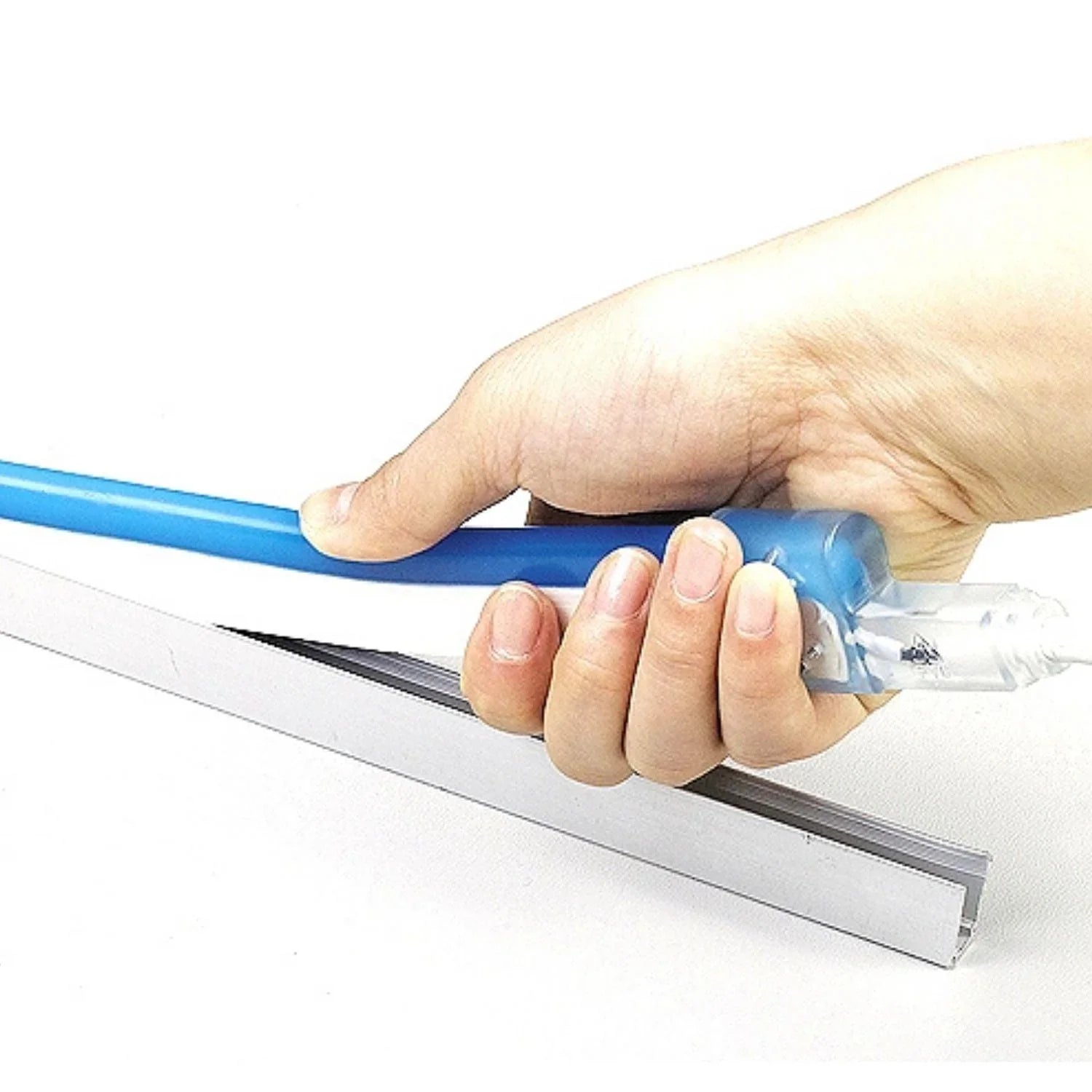

Great purchase. We fitted our neon lighting using the channel mounting tracks and it has ensured the installation of the neon flex remains straight and very pleasing to the eye. Brilliant!
Frequently Asked Questions
What is the difference between IP65, IP67, and IP68?
IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.
Can I cut this product to a custom length?
Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.
What size driver do I need?
Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.
Should I choose 12V, 24V, or 48V?
Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
What is your warranty?
This profile has a 7 Years warranty. The warranty covers manufacturing defects. Call 01952 370028 for warranty claims.
Do you offer free delivery?
Yes. Free UK delivery on 97% of products via Royal Mail 48-hour tracked. Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
ATOM LED
Light. Precision. Confidence.
From garden borders to commercial facades, ATOM LED neon flex delivers consistent, dot-free illumination that lasts. UK stock, UK support, this profile includes a 7-year warranty.
