Collection: Digital Pixel SPI Controllers

Running addressable pixel effects on WS2812B, WS2811, SK6812, or WS2818 strip without the right SPI controller is the single fastest way to get dead LEDs, corrupted colours, and zero animation. Digital pixel SPI controllers are the only hardware that can individually address each LED or IC cluster on your strip — standard RGB controllers cannot do this, and pairing the wrong unit wastes both your strip and your budget.

ATOM LED supplies SPI pixel controllers for 5V, 12V, and 24V addressable strip, shipping from our Telford warehouse with free UK delivery. Need help matching a controller to your IC protocol? Call our technical team on 01952 370028, Monday to Friday, 9am–5pm.

WS2812B · WS2811 · WS2818 · SK6812 · UCS1903 · Art-Net · sACN · DMX512-to-SPI · Pixel mapping · Signal amplifiers · 5V / 12V / 24V · SD card · WiFi · Ethernet

1. What is a digital pixel SPI controller and how does it work?
2. Which IC chip protocols do SPI controllers support in 2026?
3. How do you choose the right SPI pixel controller for your project?
4. What is the difference between SPI, DMX512, Art-Net, and sACN?
5. How do you wire an SPI pixel controller to addressable LED strip?
6. What are data line distance limits and when do you need a signal amplifier?
7. Which pixel mapping software works with SPI LED controllers?
8. Can you convert DMX512 to SPI for architectural pixel projects?
9. What mistakes do buyers make when choosing SPI pixel controllers?
10. How do 5V, 12V, and 24V pixel strips differ for controller selection?
11. What power supply does an SPI pixel controller need?
12. Why buy digital pixel SPI controllers from ATOM LED?
13. Frequently asked questions about digital pixel SPI controllers

Quick decision summary — match your project to the right SPI controller type:

• Small residential pixel projects (up to 300 LEDs): Use a standalone SD card SPI controller with pre-loaded effects — no software or network required, simply load patterns via SD card and power on.
• Medium installations with app control (300–1,000 LEDs): Use a WiFi-enabled SPI controller with a smartphone app for real-time colour selection, effect speed adjustment, and music sync without a laptop.
• Large commercial and architectural projects (1,000–16,000+ pixels): Use an Art-Net or sACN-to-SPI decoder paired with pixel mapping software such as Madrix, Jinx!, or LED Edit for full per-pixel control across multiple universes.
• DMX512 integration for stage, events, and venues: Use a DMX512-to-SPI decoder to convert standard DMX lighting desk output into SPI data that addressable strips can read.
• Long data runs over 5 metres: Add an SPI signal amplifier (also called a repeater) at intervals to prevent data corruption from voltage drop on the data line.

Who this page is for: AV integrators, lighting designers, electrical contractors, signage fabricators, set designers, homeowners building feature walls or gaming rooms, and anyone specifying addressable LED pixel effects in the UK in 2026.

Who this page is NOT for: If you need standard RGB or RGBW controllers (not pixel-addressable), see the main LED controllers page. If you need the addressable strip itself, browse addressable digital RGB COB strip. For power supplies, see LED power supplies.

Common buying mistakes to avoid:

• Using a standard 3-channel RGB controller on addressable strip: Standard RGB controllers send one signal to the entire strip — they cannot address individual LEDs, so you get a single colour across every pixel with zero animation capability.
• Mismatching the IC protocol: A controller set to WS2812B output will not correctly drive WS2811 strip — the data timing, bit order, and colour sequence differ between IC chips, producing garbled colours or no response at all.
• Using a dimmable driver with pixel strip: Addressable strip requires a non-dimmable constant voltage driver feeding the controller — the SPI controller manages all brightness and effects through data, not by varying supply voltage.
• Exceeding data line length without amplification: SPI data signals degrade over distance, typically becoming unreliable beyond approximately 5 metres of unshielded cable in a typical 2026 installation — always add signal amplifiers on longer runs.

What is a digital pixel SPI controller and how does it work?

A digital pixel SPI controller sends individually addressed data signals to each LED or IC cluster on an addressable strip using the SPI (Serial Peripheral Interface) protocol. Unlike standard PWM controllers that treat the entire strip as one zone, an SPI controller tells each pixel its exact colour and brightness independently, enabling chasing effects, flowing animations, and per-pixel colour mapping across the full strip length.

The SPI communication uses a data line (and in some IC types a separate clock line) running alongside the 5V, 12V, or 24V power feed. The controller outputs a serial data stream where each packet contains the colour values for one pixel — typically 24-bit (8 bits each for red, green, blue) or 32-bit for RGBW ICs like the SK6812. The first IC chip on the strip reads its colour data, strips it from the stream, and passes the remaining data to the next IC. This cascading process repeats across every pixel, with refresh rates typically between 30 and 60 frames per second in 2026 controllers.

• Data direction: SPI is a one-way protocol on most consumer ICs — the controller pushes data to the strip, and the strip cannot send data back, which is why correct wiring direction matters (data flows from controller DIN to strip DIN, following the directional arrows printed on the PCB).
• Clock vs clockless ICs: WS2812B and WS2811 are clockless — timing is embedded in the data signal itself. APA102 and SK9822 use a separate clock line, which improves signal integrity over longer distances and allows higher refresh rates above 1,000 fps.
• IC grouping: On 12V and 24V strips, each IC typically controls 3–6 LEDs as a single addressable segment, while 5V strips like WS2812B address each LED individually. This distinction affects your pixel resolution and the total addressable count per metre.
• Refresh and flicker: Quality SPI controllers maintain a minimum 30 fps refresh to avoid visible flicker on camera — particularly relevant for broadcast, film, and social media content creation where lower refresh rates produce banding on rolling-shutter cameras.

The practical effect is that SPI pixel control opens up effects that are physically impossible with standard multi-channel controllers: running water flows, rainbow chases, music-reactive pulses, fire simulations, and individually mapped pixel art. Every effect that treats LEDs as independent light sources rather than one uniform zone requires SPI control.

Which IC chip protocols do SPI controllers support in 2026?

Most SPI pixel controllers in 2026 support multiple IC protocols selectable via software or DIP switches, including WS2812B, WS2811, WS2818, SK6812, UCS1903, and APA102. Before purchasing any controller, confirm it lists your specific IC type in its compatibility table — not all controllers support all protocols, and running the wrong protocol produces corrupted colour output or completely unresponsive strip.

Each IC chip uses a specific data timing, colour bit depth, and channel order. The differences between common protocols are not cosmetic — they determine how the controller encodes each pixel's data and directly affect colour accuracy, signal integrity, and maximum addressable pixel count.

Two protocols deserve particular attention for UK projects in 2026:

• WS2818 with redundant data line: The WS2818 IC includes a backup data input — if one IC fails, the data signal bypasses it via the secondary line and continues to the remaining pixels. This redundancy makes WS2818 the preferred choice for outdoor signage and commercial installations where a single dead pixel would otherwise break the entire downstream chain.
• SK6812 RGBW for white-critical applications: Standard RGB pixel ICs like WS2812B cannot produce clean white light — mixing red, green, and blue at full power creates a cold, violet-tinged white. The SK6812 adds a dedicated white LED channel, producing warm or neutral white alongside full-colour pixel effects. This matters for hospitality, retail, and residential feature lighting where white quality is non-negotiable.
• APA102/SK9822 for high-performance applications: The separate clock line allows refresh rates exceeding 1,000 fps and eliminates the timing sensitivity that makes clockless ICs vulnerable to signal interference on longer data runs. These ICs are standard in persistence-of-vision displays, broadcast studio lighting, and any application where flicker-free performance under camera is essential.

How do you choose the right SPI pixel controller for your project?

Choosing the right SPI pixel controller requires matching four factors: your strip's IC protocol, the total pixel count, the control interface you need (standalone, app, or software), and whether your project requires Art-Net, sACN, or DMX512 integration. A controller that excels for a 150-pixel gaming desk will be completely inadequate for a 4,000-pixel commercial facade, and the reverse is equally true.

Start with your IC chip — the controller must explicitly support it. Then count your total pixels and check the controller's maximum output capacity. Finally, decide how you want to trigger effects: pre-loaded SD card patterns for simple installations, smartphone app control for residential projects, or full pixel mapping software for architectural and commercial work.

• Standalone SD card controllers: Load effect files from a micro SD card — no network, no app, no computer required during operation. Best for permanent accent installations where the same effects run continuously. Most SD controllers support approximately 2,048 pixels across a single output port.
• WiFi app-controlled units: Connect to the controller via a smartphone app over WiFi or Bluetooth for real-time effect selection, colour adjustment, speed control, and music sync through the phone's microphone. Suitable for residential feature lighting and small commercial zones.
• Art-Net and sACN decoders: These convert Ethernet-based lighting protocols into SPI data output. One Art-Net universe carries 512 channels (170 RGB pixels or 128 RGBW pixels), so large-scale projects require multi-universe controllers with 4, 8, or 16 output ports. Essential for professional pixel mapping with Madrix, Resolume, or Jinx! software.
• DMX512-to-SPI decoders: Accept standard DMX512 input from a lighting desk or architectural controller and convert it to SPI for addressable strip. Limited to 512 channels per universe (170 RGB pixels), so best for smaller zones or as part of a wider DMX infrastructure.

If you are unsure which controller matches your project, call ATOM LED on 01952 370028 — our technical team matches controllers to IC protocols, pixel counts, and control requirements daily.

What is the difference between SPI, DMX512, Art-Net, and sACN?

SPI is the low-level serial data protocol that addressable LED strip physically reads. DMX512, Art-Net, and sACN are higher-level lighting control protocols that cannot directly drive SPI strip — they require a decoder or converter to translate their signals into SPI data. In practice, most professional pixel installations in 2026 use Art-Net or sACN from the control software, converted to SPI at the controller for the strip.

Understanding this hierarchy prevents the most common specification error in pixel projects: buying a DMX512 controller expecting it to directly drive WS2812B strip. DMX512 outputs a different electrical signal on different wiring — it cannot connect to an SPI data input without conversion hardware.

• SPI direct control: Simplest path — the controller generates the SPI data stream and sends it directly to the strip. No network, no universes, no latency. Best for standalone and app-controlled installations under approximately 2,048 pixels.

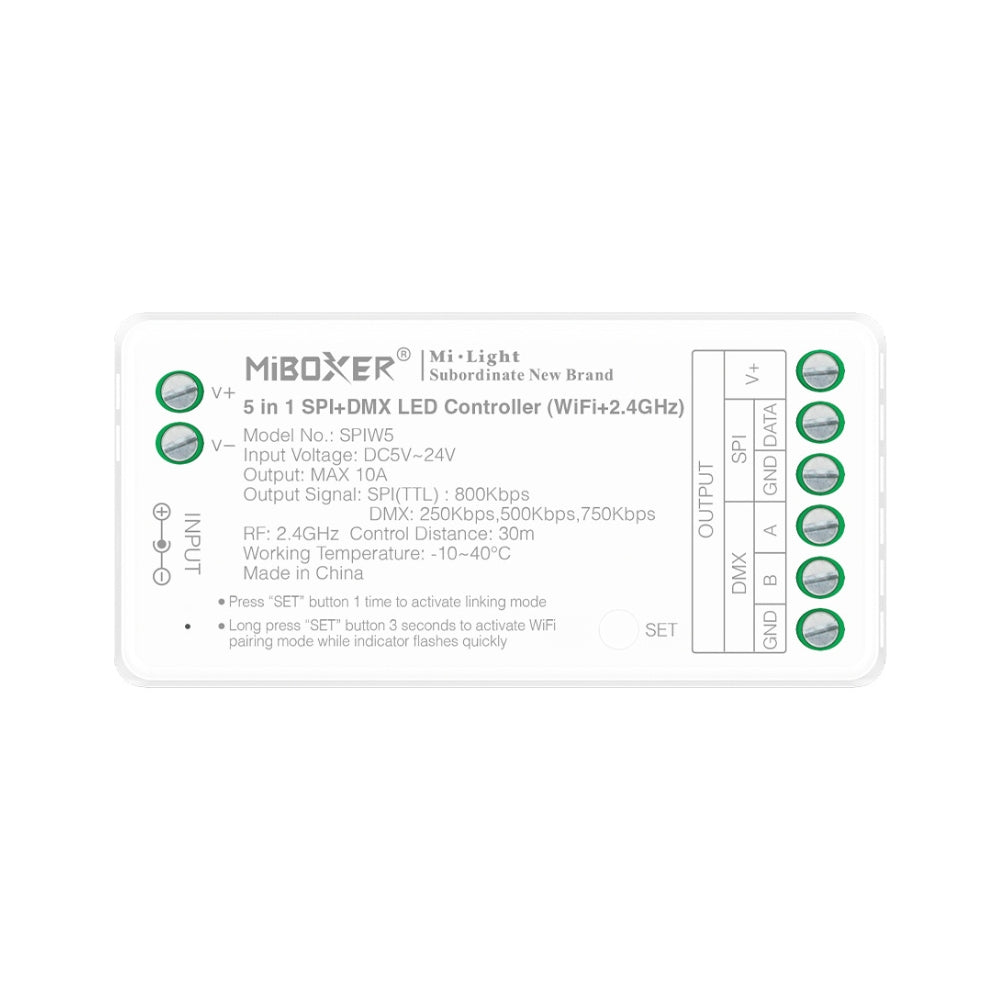

• DMX512 conversion: A DMX-to-SPI decoder receives DMX data from a standard lighting desk and converts each DMX channel into the corresponding pixel colour value. Limited to 170 RGB pixels per universe, but integrates pixel strip into existing DMX infrastructure common in theatres, churches, and event venues across the UK.
• Art-Net over Ethernet: Carries multiple DMX universes over a single Ethernet cable. Art-Net supports up to 32,768 universes in theory, making it the standard for large-scale pixel mapping. The Art-Net-to-SPI decoder at the strip end converts the Ethernet data into SPI output across multiple ports.
• sACN (E1.31): Functionally similar to Art-Net but uses multicast networking, which some installers prefer for reliability on larger networks. Most professional pixel controllers in 2026 support both Art-Net and sACN simultaneously, so the choice typically comes down to your existing infrastructure.

For most UK residential pixel projects, a direct SPI controller with SD card or WiFi app is sufficient. Art-Net and sACN become necessary when the project exceeds approximately 2,000 pixels, requires integration with professional lighting desks, or needs to synchronise pixel effects with other stage or architectural lighting fixtures.

How do you wire an SPI pixel controller to addressable LED strip?

Wiring an SPI pixel controller requires three connections: a DC power feed from a non-dimmable constant voltage driver to the controller's power input, a data output from the controller's SPI port to the strip's data-in (DIN) pad, and a common ground shared between the controller, driver, and strip. Skipping the common ground is the most frequent cause of erratic pixel behaviour, random colour flicker, and complete data failure in 2026 installations.

The wiring sequence matters. Always connect in this order to avoid powering the controller or strip before the data line and ground are established:

1. Connect the ground wire first: Run a ground (GND/negative) wire from the power supply to both the controller ground terminal and the strip ground pad. This shared ground reference is essential — without it, the SPI data signal has no voltage reference and the controller cannot communicate with the strip.
2. Connect the DC power feed: Wire the positive output from your non-dimmable constant voltage driver to the controller's V+ input terminal. Verify the voltage matches your strip — 5V strip to 5V supply, 12V to 12V, 24V to 24V. Never use a dimmable driver for pixel strip.
3. Connect the SPI data line: Run a wire from the controller's data output (typically labelled DAT, DO, or SPI OUT) to the strip's data input pad (labelled DIN or DAT IN). Follow the directional arrows printed on the strip PCB — SPI data flows in one direction only.
4. Connect the clock line (if applicable): APA102 and SK9822 strips require a separate clock wire from the controller's CLK output to the strip's CLK input. Clockless ICs like WS2812B and WS2811 do not need this connection.
5. Add power injection points: For strips longer than approximately 2 metres at 5V (or approximately 5 metres at 12V/24V), inject additional DC power directly to the strip at intervals to prevent voltage drop causing colour shift and dimming at the far end. Power injection runs from the driver to the strip — not through the controller.
6. Test before mounting: Power up and run a test pattern before fixing the strip in position. Confirm all pixels respond, colours are correct (not swapped red-green-blue), and no flickering occurs at full brightness. Never power strip while still coiled on the reel — heat builds up rapidly and destroys the adhesive backing.

A critical wiring rule for all SPI pixel installations: the strip must be powered by a non-dimmable constant voltage driver. Using a dimmable or TRIAC driver introduces voltage fluctuations that corrupt the SPI data signal, causing random colour glitches, incomplete pixel updates, and in some cases permanent IC damage. The SPI controller itself handles all dimming and effects through data — the power supply simply provides clean, stable DC voltage.

• Wire gauge guidance: Use minimum 0.5mm2 cable for data and clock lines on runs under 5 metres. For DC power feeds exceeding 5 metres, increase to 1.0mm2 or 1.5mm2 to manage voltage drop — calculate based on total strip wattage and run length.
• Data line polarity: Reversing the data connection (wiring DIN to DOUT) will result in zero pixel response — always check directional arrows on both the controller and strip PCB.
• Shielded cable for long data runs: On data cable runs exceeding approximately 3 metres, use shielded cable or twisted pair to reduce electromagnetic interference from nearby mains cables, motors, and dimmer circuits that can corrupt the SPI signal.

What are data line distance limits and when do you need a signal amplifier?

SPI data signals degrade over distance because they are low-voltage digital pulses susceptible to capacitance, resistance, and electromagnetic interference on the cable. In most 2026 installations, unshielded SPI data becomes unreliable beyond approximately 5 metres between the controller and the first pixel. Signal amplifiers (also called SPI repeaters) regenerate the data signal at intervals, extending reliable communication to 50 metres or more across multiple amplifier stages.

The 5-metre guideline is not arbitrary — it reflects the typical signal attenuation of 3.3V or 5V logic-level data running on standard unshielded hookup wire in environments with typical electrical noise from mains wiring, HVAC systems, and LED drivers. Shielded cable extends this, but for any professional installation, amplifiers are the reliable solution.

• Under 5 metres (controller to first pixel): Standard unshielded data wire is typically sufficient for clean signal transmission. Keep data cable away from mains wiring and driver output cables to minimise interference.
• 5–10 metres: Use shielded cable or add one SPI signal amplifier at the midpoint. Test thoroughly before committing to a permanent installation — signal integrity at this distance is environment-dependent.
• 10–30 metres: Install SPI signal amplifiers every 5–8 metres along the data run. Each amplifier regenerates the signal to full logic-level voltage, effectively resetting the distance counter.
• Over 30 metres: Consider using an Art-Net or sACN Ethernet backbone to carry data over Cat5/6 cable (reliable to 100 metres per Ethernet segment), with Art-Net-to-SPI decoders at each strip location converting back to SPI locally. This is the standard architecture for building facades and large-scale architectural pixel installations in the UK.

Signal amplifiers are passive from a control perspective — they regenerate the SPI data without altering it. Wire the amplifier in line: controller data out to amplifier data in, amplifier data out to the next strip segment's data in. The amplifier needs its own DC power feed (matching the strip voltage) and must share the common ground with the rest of the circuit.

One factor often overlooked in 2026 installations: voltage drop on the DC power lines affects pixel colour accuracy independently of data signal quality. Even with perfect SPI data, a pixel running at 4.2V instead of 5V will display noticeably different colours from one running at the full 5V. This is why correct power supply sizing and power injection points are as important as data signal integrity for consistent pixel output across long runs.

Which pixel mapping software works with SPI LED controllers?

Pixel mapping software sends individually addressed colour data to each pixel via Art-Net or sACN, which an SPI decoder then converts to the strip's native SPI protocol. In 2026, the most widely used pixel mapping platforms for UK installations are Madrix (professional), Resolume Arena (creative and AV), Jinx! (free), LED Edit (manufacturer-supplied), and xLights (open-source, particularly popular for seasonal displays).

Pixel mapping works by treating each LED as a single pixel on a virtual canvas. You import or create visual content — video, animations, generative effects, live camera feeds — and the software maps each pixel in the video frame to a physical LED position. The software then outputs the colour data for every pixel as Art-Net or sACN packets, which travel over Ethernet to your Art-Net-to-SPI decoder and from there to the strip.

• Madrix: The professional standard for architectural and commercial pixel control in the UK. Supports up to 1,048,576 pixels across multiple Art-Net and sACN universes. Includes built-in effects, video playback, sound-to-light, and timeline scheduling. Used extensively in bars, restaurants, retail, and building facades across the UK in 2026. Requires a hardware licence key.
• Resolume Arena: Primarily a VJ and media server platform that includes pixel mapping output via Art-Net and sACN. Popular with AV integrators who need to combine video projection and LED pixel effects in the same show. Strong real-time generative content engine.
• Jinx! (free): A free Windows-based LED matrix control application with Art-Net output. Suitable for hobbyist and small commercial projects. Supports custom pixel layouts, multiple effects layers, and FFT music reactivity. Limited compared to Madrix for large-scale work, but capable for installations under approximately 4,000 pixels.
• LED Edit: Software bundled with many SPI controllers, particularly SD card-based units. Allows you to create effect sequences on a PC and export them to an SD card for offline playback. User interface quality varies significantly between manufacturers.
• xLights (free, open-source): Originally designed for Christmas light displays, xLights has matured into a capable pixel mapping tool for up to approximately 100,000 pixels. Outputs via Art-Net, sACN, and direct serial. Strong community support and UK user base.

For any software-controlled installation, you need a controller or decoder with Art-Net or sACN input. Standalone SD card controllers and WiFi app controllers do not accept Art-Net/sACN — they generate their own effects internally. If you plan to use pixel mapping software, specify an Art-Net or sACN-compatible SPI decoder from the outset.

Can you convert DMX512 to SPI for architectural pixel projects?

Yes — DMX512-to-SPI decoders accept standard DMX512 input from any lighting desk, architectural controller, or building management system and convert each DMX channel into SPI pixel data. This allows addressable LED strip to integrate into existing DMX infrastructure used in theatres, houses of worship, conference centres, and commercial buildings across the UK. Each DMX universe controls up to 170 RGB pixels or 128 RGBW pixels.

The conversion is handled by a dedicated decoder unit that sits between the DMX source and the SPI strip. The decoder maps DMX channels to pixel addresses — channel 1/2/3 control pixel 1's red/green/blue, channels 4/5/6 control pixel 2, and so on through the 512-channel universe limit. This linear mapping means one universe of DMX controls a maximum of 170 RGB pixels (170 x 3 = 510 channels, using 510 of the 512 available).

• Single-universe projects (under 170 pixels): One DMX-to-SPI decoder is sufficient. Wire the DMX output from your desk to the decoder's DMX input (typically 3-pin or 5-pin XLR, or RJ45), and connect the decoder's SPI output to your strip's data input.
• Multi-universe projects (170+ pixels): Use multiple decoders, each assigned to a different DMX universe. Professional decoders allow universe selection via DIP switches or software configuration. For larger projects, consider switching to Art-Net over Ethernet, which carries multiple universes on a single cable and simplifies wiring significantly.
• DMX address configuration: Set the decoder's starting DMX address to match your lighting desk's patch. Most decoders support DMX address selection via DIP switches (binary encoding) or an onboard LCD menu.
• Latency considerations: DMX512 refreshes at approximately 44 frames per second maximum, which is adequate for most architectural effects but may appear slightly less fluid than direct SPI control for fast-moving chase patterns on camera.

DMX-to-SPI conversion is the right approach when your venue already has DMX infrastructure and your lighting operator needs to control pixel strip from the same desk managing conventional fixtures. For new installations without existing DMX, Art-Net or sACN over Ethernet is typically more cost-effective and scalable, particularly for pixel counts exceeding 500 in 2026 UK projects.

What mistakes do buyers make when choosing SPI pixel controllers?

The most expensive mistake is buying a standard RGB controller instead of an SPI pixel controller — the two are fundamentally different devices. A standard RGB controller sends one colour command to the entire strip. An SPI controller sends individual commands to each pixel. Other common errors include mismatching IC protocols, undersizing the power supply, skipping signal amplifiers on long runs, and using dimmable drivers that corrupt the SPI data stream.

Every one of these mistakes results in either a non-functional installation or one that works poorly enough to require replacement parts and rewiring. Here are the specific errors ATOM LED's technical team encounters most frequently on support calls:

1. Standard RGB controller on addressable strip: A 3-channel or 4-channel PWM controller treats the strip as a single zone — it physically cannot generate SPI data. The result is either all pixels locked to one colour (if the strip happens to interpret the PWM signal as constant-on) or no response at all. This is not a settings issue — the hardware is fundamentally incompatible.
2. Wrong IC protocol selected: Controllers that support multiple IC types require you to select the correct protocol via DIP switches, software, or app settings. WS2812B uses GRB colour order at specific timing. WS2811 uses RGB order at different timing. Selecting the wrong IC produces swapped colours (red shows as green, green shows as red) or completely garbled output.
3. Dimmable driver used instead of non-dimmable: SPI pixel strip must be powered by a non-dimmable constant voltage driver. A dimmable driver or TRIAC driver introduces voltage ripple and phase-cut artefacts that corrupt the SPI data signal. The symptoms are random colour flickering, pixels that fail to update, and in severe cases permanent IC damage from voltage spikes. This applies to all addressable strip — 5V, 12V, and 24V.
4. No signal amplifier on runs over 5 metres: The SPI data signal attenuates with distance. Without amplification, pixels beyond approximately 5 metres of data cable start displaying incorrect colours, lagging behind the animation, or dropping out entirely. Adding a signal amplifier every 5–8 metres resolves this completely at minimal cost.
5. Insufficient power supply capacity: Each pixel draws current at full white (all channels at 100%). A 5V WS2812B LED draws approximately 60mA at full white — a strip of 300 LEDs requires approximately 18A at 5V (90W). Undersizing the LED driver causes voltage drop, dimming, colour shift, and potential driver overheating.
6. No power injection on long 5V runs: 5V strip is particularly susceptible to voltage drop over distance. Without injection points every 1–2 metres, pixels at the far end of a run appear dimmer and shift colour towards red (as blue and green LEDs drop out first due to their higher forward voltage requirements).

If any of these scenarios sound familiar, call ATOM LED on 01952 370028 or email operations@atomled.co.uk — we troubleshoot SPI pixel installations daily and can identify the issue from your symptoms.

How do 5V, 12V, and 24V pixel strips differ for controller selection?

The strip voltage determines which power supply you need, how far you can run strip before voltage drop becomes visible, and how many LEDs each IC addresses. 5V strips offer per-LED control but require frequent power injection. 12V strips group 3 LEDs per IC for longer runs. 24V strips group 6 LEDs per IC for the longest voltage drop tolerance. The SPI controller itself is typically voltage-independent — it outputs the same data signal regardless of strip voltage.

The controller's SPI data output operates at logic level (typically 3.3V or 5V) regardless of the strip's power voltage. A controller outputting WS2811 data at 5V logic will drive both 12V and 24V WS2811 strip identically — the data signal is separate from the power feed. The key difference is what happens on the power side and how that affects your installation design.

• 5V for maximum pixel density: If your project requires individual LED control at 60 or 144 pixels per metre — such as pixel art panels, detailed text displays, or close-viewing accent lighting — 5V strip with WS2812B or SK6812 ICs provides the highest resolution. Budget for power injection every 1–2 metres and a suitably rated 5V power supply.
• 12V for balanced projects: 12V strips using WS2811 ICs group 3 LEDs per addressable segment, reducing pixel resolution but significantly extending run length before voltage drop becomes visible. This is the most common voltage for commercial signage, bar fit-outs, and architectural outlines in UK projects in 2026.
• 24V for long architectural runs: 24V strips extend run lengths further and reduce current draw per metre for the same light output. Voltage drop occurs at half the rate of 12V at the same wattage over the same distance, making 24V the preferred choice for building facades, long cove lighting runs, and installations where power injection points are difficult to access. Pair with a 24V LED driver for reliable performance.

What power supply does an SPI pixel controller need?

An SPI pixel controller requires a non-dimmable constant voltage driver matching your strip's voltage (5V, 12V, or 24V) with sufficient wattage capacity for the total strip load plus a 20% headroom margin. The controller draws minimal power itself — typically under 5W — but passes through or distributes power to the strip, so the driver must be sized for the full pixel load. Never use a dimmable or TRIAC driver with SPI pixel strip.

Sizing the power supply correctly prevents the three most visible problems in pixel installations: voltage drop causing colour shift, driver overheating causing thermal shutdown, and insufficient current causing entire strip sections to dim or fail.

• Calculate total strip wattage: Multiply the strip's wattage per metre by the total length. A typical 5V WS2812B strip at 60 LEDs/m draws approximately 18W/m at full white. A 5-metre run would need 90W of supply capacity before headroom.
• Add 20% headroom: Running a driver at 100% continuous load reduces its lifespan and increases heat output. For the 90W example above, specify a minimum 108W (90W x 1.2) driver — rounding up to the nearest available unit, typically 120W or 150W.
• Match voltage exactly: 5V strip requires a 5V output driver. 12V strip requires 12V. 24V strip requires 24V. Voltage mismatch will either under-drive the strip (dim, incorrect colours) or over-drive it (overheating, LED failure, fire risk).
• Use non-dimmable constant voltage only: The SPI controller manages all brightness and colour through digital data — the power supply must provide clean, stable DC voltage without any dimming modulation. Dimmable drivers introduce ripple that corrupts SPI communication.
• Consider multiple supplies for large installations: For projects exceeding approximately 300W total load, use multiple smaller drivers distributed along the strip run rather than one large central unit. This reduces cable losses, simplifies power injection wiring, and provides redundancy if one driver fails.

ATOM LED stocks LED transformers and drivers in all common wattage ratings for pixel installations. If you need help calculating the correct driver size for your pixel project, call 01952 370028 and our team will specify the right unit based on your strip length, LED density, and voltage.

Why buy digital pixel SPI controllers from ATOM LED?

ATOM LED supplies SPI pixel controllers from UK stock in Telford, Shropshire — not dropshipped from overseas warehouses. Every order ships with free UK delivery, and our technical team provides pre-sale specification advice and post-sale installation support on 01952 370028, Monday to Friday, 9am–5pm. We match controllers to your specific IC protocol, pixel count, and control requirements before you buy.

• UK stock, free UK delivery: Controllers ship from our Telford warehouse — no waiting for international shipping or customs delays. Most UK orders arrive within 1–3 working days in 2026.
• Technical matching service: Tell us your IC chip, pixel count, run lengths, and desired control method, and our team will specify the exact controller, signal amplifiers, and power supply you need. This prevents the costly mismatch errors covered earlier on this page.
• Compatible ecosystem: ATOM LED's addressable digital RGB COB strip is tested with every SPI controller we sell. When you buy the strip and controller from the same supplier, compatibility is confirmed before dispatch — not discovered on site.
• Complete project supply: Controllers, power supplies, signal amplifiers, connectors and accessories, and aluminium profiles — all from one order, one delivery, one point of contact for technical support.
• 5-year warranty on COB DC voltage products: ATOM LED backs its DC voltage COB strip and compatible accessories with a 5-year warranty, with a 7-year premium warranty line in development for 2026.

Browse the full digital pixel SPI controller range, or call 01952 370028 to speak with our technical team. Email enquiries to operations@atomled.co.uk for specification sheets and project support.

Frequently asked questions about digital pixel SPI controllers

1. Can I use a standard RGB controller with WS2812B addressable strip?

• No — a standard RGB controller sends one signal to all LEDs simultaneously and cannot generate SPI data.
• You need a dedicated SPI pixel controller that outputs the WS2812B data protocol to individually address each LED.
• Connecting a standard RGB controller to WS2812B strip will either produce a single static colour or no response at all.

2. What is the maximum number of pixels one SPI controller can drive?

• Standalone SD card and WiFi controllers typically support 1,024 to 2,048 pixels per output port.
• Art-Net and sACN multi-port decoders can drive 4,096 to 16,384+ pixels across multiple output ports.
• The practical limit depends on the controller's processing speed, output port count, and the refresh rate needed for your effects.

3. Do I need a signal amplifier for my pixel strip?

• If the cable distance from the controller's data output to the first pixel exceeds approximately 5 metres, add a signal amplifier.
• For strip runs exceeding 5–8 metres of continuous data line, insert amplifiers at intervals along the strip to regenerate the SPI signal.
• Signal amplifiers are inexpensive and prevent the most common cause of pixel data corruption in longer installations.

4. Why does my pixel strip show wrong colours after connecting the controller?

• The most common cause is an IC protocol mismatch — the controller is set to a different IC type than your strip uses.
• WS2812B uses GRB colour order, while WS2811 uses RGB — selecting the wrong protocol swaps red and green channels.
• Check your controller's IC selection setting (DIP switches, app menu, or software configuration) and match it exactly to the IC printed on your strip's PCB.

5. Can I control SPI pixel strip from my phone?

• Yes — WiFi and Bluetooth-enabled SPI controllers connect to smartphone apps for real-time effect control, colour selection, and music sync.
• App-controlled units are best suited for residential and small commercial projects with up to approximately 1,000–2,048 pixels.
• For larger pixel counts or professional control, use Art-Net/sACN decoders with pixel mapping software on a laptop or dedicated controller.

6. What is Art-Net and do I need it for my pixel project?

• Art-Net is an Ethernet-based protocol that carries DMX lighting data over standard network cables, enabling large-scale pixel control from mapping software.
• You need Art-Net if your project exceeds approximately 2,000 pixels, requires pixel mapping software (Madrix, Resolume, xLights), or must integrate with professional lighting infrastructure.
• For projects under 2,000 pixels, a standalone SPI controller with SD card or WiFi app is typically simpler and more cost-effective.

7. How do I load custom effects onto an SD card SPI controller?

• Use the manufacturer's LED editing software (typically LED Edit or a proprietary tool) to design effects on your PC, then export the pattern file to a micro SD card.
• Insert the SD card into the controller, and effects play back in sequence or are selectable via remote control.
• SD card controllers do not require a permanent computer connection — they run autonomously once the card is loaded.

8. Can I daisy-chain multiple SPI controllers together?

• Most standalone SPI controllers operate independently and cannot be daisy-chained for synchronised effects across multiple units.
• For synchronised multi-controller installations, use Art-Net or sACN decoders driven by the same pixel mapping software — the software synchronises all outputs centrally.
• Some manufacturer-specific ecosystems support master-slave linking between identical controller models, but this varies by brand and model.

9. Is SPI pixel strip suitable for outdoor use in the UK?

• Yes, provided you use IP67 or IP68 rated addressable strip for outdoor installations — IP65 is surface-splash only and is not suitable for UK outdoor conditions under BS7671.
• The SPI controller itself should be housed in a weatherproof IP65+ enclosure if mounted outdoors, with cable glands on all entry points.
• Use outdoor-rated LED strip and ensure all connections are waterproofed with heat-shrink or IP-rated connectors.

10. What refresh rate do I need to avoid flicker on camera?

• A minimum of 400 fps (frames per second) is recommended for flicker-free appearance under rolling-shutter cameras used in broadcast and social media content in 2026.
• Most standard SPI controllers operate at 30–60 fps for visual effects, which is adequate for the human eye but can produce visible banding on camera.
• For broadcast and film applications, specify APA102 or SK9822 ICs with clocked SPI controllers capable of 1,000+ fps refresh rates.

11. Do SPI pixel controllers work with 48V LED strip?

• Addressable SPI pixel strip is not typically manufactured in 48V — most pixel ICs (WS2812B, WS2811, SK6812) operate at 5V, 12V, or 24V.
• If your project uses 48V single-colour COB strip, that strip uses standard dimming (not SPI addressing) and needs a dimmer controller or TRIAC dimmable driver, not an SPI controller.
• Contact ATOM LED on 01952 370028 if you need to combine 48V single-colour zones with pixel effect zones — we can specify a mixed-voltage system design.

12. What is the difference between a pixel controller and a pixel decoder?

• A pixel controller generates its own effects internally (from SD card, app, or built-in patterns) and outputs SPI data directly. A pixel decoder receives Art-Net, sACN, or DMX512 input from external software and converts it to SPI output.
• Controllers are self-contained — they do not need a computer or network to operate.
• Decoders require an external control source (pixel mapping software, lighting desk) and serve as protocol translators between network-based lighting systems and SPI strip.

13. Can I mix different IC types on the same SPI controller?

• No — each SPI output port sends data in one protocol format. You cannot connect WS2812B strip and WS2811 strip to the same controller output.
• Multi-port controllers may allow different IC selections per port on some models, but each individual output runs one protocol.
• If your project requires multiple IC types, specify a multi-port controller and assign each IC type to a separate output, or use separate controllers.

14. How do I prevent data corruption on long SPI pixel runs?

• Use shielded data cable, keep data wires separated from mains and power cables, add signal amplifiers every 5–8 metres, and ensure a solid common ground between all components.
• Route data cables at least 150mm away from mains wiring and LED driver output cables to minimise electromagnetic interference.
• For runs exceeding 10 metres, use an Ethernet backbone (Art-Net/sACN) with local SPI decoders at each strip location rather than extending the SPI data cable itself.

15. Do ATOM LED SPI controllers come with a warranty?

• Yes — all ATOM LED SPI controllers ship with a manufacturer warranty, and ATOM LED provides UK-based technical support for the lifetime of the product.
• Warranty terms vary by manufacturer and model — check the product listing or call 01952 370028 for specific warranty details on your chosen controller.
• ATOM LED's 5-year warranty applies to COB DC voltage strip products, with a 7-year premium warranty line in development.

16. Where should I mount my SPI pixel controller?

• Mount the controller in a ventilated, accessible location within 5 metres of the first pixel on the strip, away from heat sources and direct sunlight.
• Ensure the controller is accessible for future maintenance, SD card changes, or firmware updates — do not bury it behind permanent fixtures.
• For outdoor installations, house the controller in an IP65+ rated enclosure with cable glands, mounted vertically to prevent water pooling on connectors.

Last reviewed: March 2026 — ATOM LED technical team, Telford, Shropshire. Specifications current as of 2026.

🏭 UK LED specialist, Telford, Shropshire  ·  ☎️ 01952 370028  ·  🚚 Free UK delivery
