SP530E RGB CCT Wall Panel Controller DC5-24V LED Strip Controller RC4
SKU: WALLP-RC4
-
Non-Waterproof
-
LED Strip
-
Reduced Glare
-
CRI 90
Encrypted & secure checkout
Description

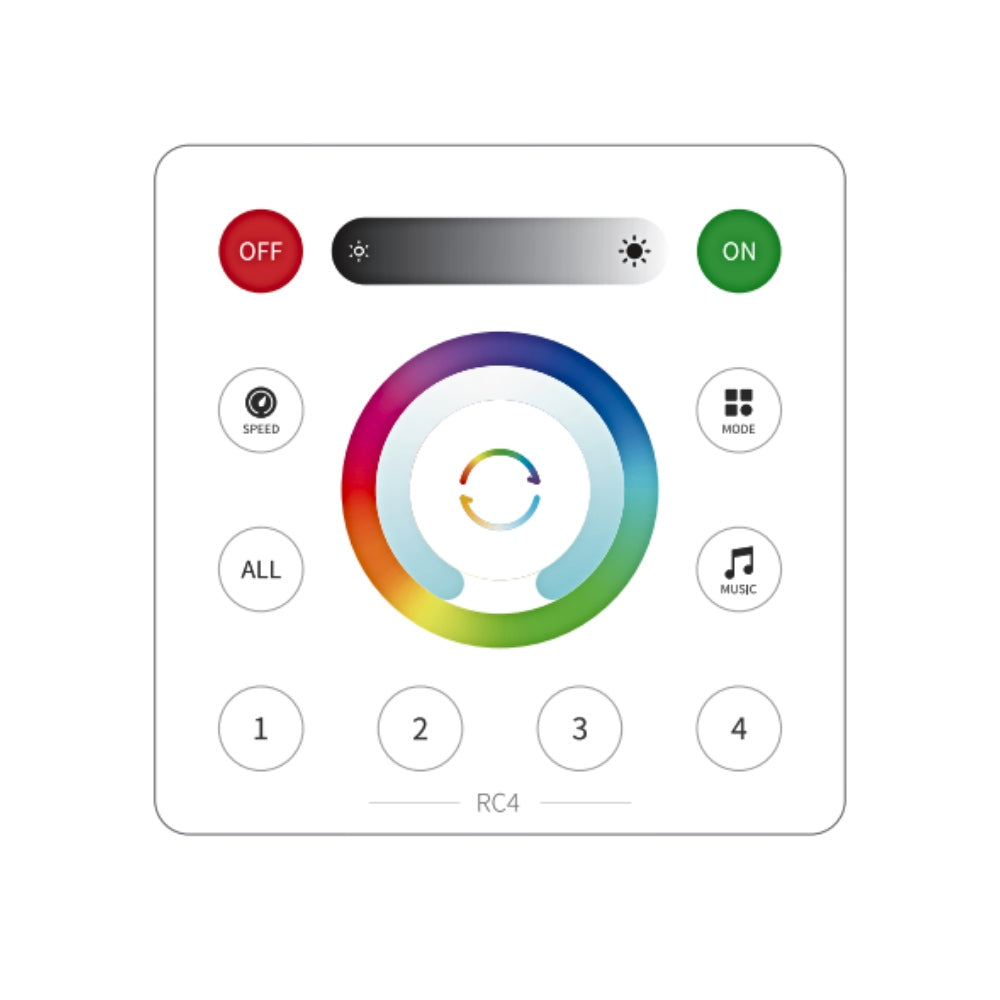

The RC4 RGB-CCT Wall Plate is the perfect companion for RGB and CCT LED strips when paired with the SP530E All-in-One LED Controller. Offering music and dynamic modes, speed adjustment, and a dimming range from 1% to 100%, it gives you smooth, versatile control over both colour and tunable white lighting.
Powered by 2.4GHz RF wireless technology, the RC4 delivers a reliable control distance of up to 30 metres. It supports up to 4 independent zones and can be configured for one-to-one or unified control. A single wall plate can manage multiple controllers, while each controller can be paired with up to four remotes. Short pressing the “ALL” button selects every zone simultaneously, while a long press unlocks all partition settings for quick reconfiguration.
Designed with a sensitive capacitive touch brightness ring, the RC4 allows precise adjustment of light levels, while dedicated buttons offer instant brightness selection at 25%, 50%, 75%, and 100%. Compact, low voltage, and powered by a 3V CR2032 battery, it combines elegant design with powerful functionality, making it a sleek and convenient solution for professional RGB and CCT LED strip installations.
Specification:
Dimensions - 86mm x 86mm x 12mm
Control distance - 30m
Frequency - 2.4GHz
Input Voltage - 3v (CR2032- included)
Dimming option - Yes
3m double sided adhesive included
Includes:
1 x RC4 Wall Panel
- IP Rating
- IP20 Non-Waterproof
- Dimensions
- 86mm x 86mm x 12mm
- Warranty
- 5 Years
Specifications
- IP Rating
- IP20 Non-Waterproof
- Dimensions
- 86mm x 86mm x 12mm
- Warranty
- 5 years
- Brand
- ATOM LED
Delivery & Returns
On 97% of products — Royal Mail 48-hour tracked
Mainland UK orders over £90 — order by 1pm, Mon–Fri
30-day returns window — free returns on faulty products
01952 370028 · Mon–Fri 9am–5pm
Shipping
Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.
Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.
Saturday Delivery is available as a paid option at checkout.
Large orders and pallet shipments: call 01952 370028 for a quote.
For more information see our detailed Shipping Page.
International Shipping
Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.
Returns & Refunds
The 30-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:
- Standard LED strip lights supplied as 5-metre rolls
- Straight aluminium profiles
- Power supplies and drivers
- Accessories (connectors, controllers, dimmers, end caps)
Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.
Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.
Refunds are processed within 5–10 working days of receiving the returned item.
For more details see our Returns & Refunds page.
Reviews
Frequently Asked Questions
What is the difference between IP65, IP67, and IP68?
IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.
Can I cut this product to a custom length?
Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.
What size driver do I need?
Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.
Should I choose 12V, 24V, or 48V?
Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
What is your warranty?
ATOM LED offers product-specific warranties: up to 7 years on single-colour COB strip, 5 years on RGB and RGBW COB strip, and 4 years on LED neon flex. The warranty covers manufacturing defects. Call 01952 370028 for warranty claims.
