220V/240V Single Colour Neon Flex

Maximum continuous run on 220V/240V AC neon flex reaches 50–100 metres depending on the profile — distances that no DC voltage can match without multiple feed points. Prices start from £13.95 per metre for single-colour profiles. Every product ships with a UK plug, integrated rectifier, and end cap, ready to use out of the box. Free UK delivery on 97% of products in 2–3 working days from ATOM LED in Telford.

220V/240V AC mains · Plug-and-play · IP65 / IP67 · No driver needed · 50–100m max continuous run · UK 3-pin plug included · Free UK delivery

Jump to:

1. What is 220V/240V AC LED neon flex?
2. Where is AC mains neon flex the right choice?
3. Can you hardwire 220V/240V AC neon flex permanently?
4. Does AC neon flex flicker — and does it matter?
5. What happens when AC neon flex fails — how does it break?
6. How far can you run AC neon flex on a single connection?
7. Which IP rating should you choose for outdoor AC neon flex?
8. How do you install AC mains neon flex safely?
9. Can AC neon flex be dimmed or colour-controlled?
10. What is the difference between AC and DC neon flex?
11. What are the most common questions about 220V/240V AC neon flex?
12. Why choose ATOM LED for AC mains neon flex?

Quick decision summary: If you need neon flex that plugs into a socket and works immediately — no driver, no transformer, no wiring — AC mains neon flex is the right product. It excels at temporary event lighting, seasonal garden decorations, long commercial signage runs, and any project where speed of deployment outweighs the need for smooth dimming or flicker-free video performance. If you need dimmable neon flex for a permanent residential installation, use 24V DC neon flex. If you need 12V battery compatibility, use 12V neon flex. If you need long commercial runs with DALI dimming, use 48V neon flex.

Who AC mains neon flex is for:

• Event and festival organisers deploying temporary lighting that plugs into a 13A socket and is removed the next day — no electrician, no permanent wiring.
• Garden and patio owners running seasonal lighting around pergolas, fences, and garden borders from a weatherproof outdoor socket — plug in for summer, unplug for winter.
• Commercial signage installers fitting shop window borders, building-mounted brand outlines, and channel letters where runs exceed 50 metres and no DC driver can cover the distance economically.
• Hospitality venues adding temporary or semi-permanent accent lighting to beer gardens, terraces, and outdoor dining areas where speed of installation matters more than dimming control.
• Market stall and exhibition stand operators needing portable accent lighting that runs from a standard 13A outlet.

Who AC mains neon flex is NOT for:

• Permanent hardwired residential installations. 220V/240V AC mains neon flex must not be hardwired permanently in most residential applications under BS7671. For permanent residential installations, use DC neon flex (12V, 24V, or 48V) with a mains-powered DC driver installed by a qualified electrician.
• Video production environments. AC neon flex operates on 50Hz mains frequency and produces a subtle flicker that is invisible to the human eye but can appear as banding or pulsing on slow-motion cameras (120fps+) and some DSLR video sensors. DC neon flex produces zero flicker.
• Installations requiring smooth dimming. AC neon flex has limited dimming capability — most products are either on or off. Some RGB models offer brightness control via Bluetooth app, but the dimming curve is not as smooth as DC neon flex with a trailing-edge dimmer or PWM controller.
• Bathrooms or indoor wet zones. AC mains voltage in wet environments presents a genuine shock hazard. DC SELV voltages (12V, 24V, 48V) provide significantly reduced risk and are the correct specification for bathroom installations under BS7671.

---

What is 220V/240V AC LED neon flex?

220V/240V AC LED neon flex is a flexible silicone-encased LED strip that operates directly on UK mains electricity via an integrated rectifier plug. The rectifier converts AC mains to pulsed DC within the plug unit, which then powers the LED strip through the full length of the neon flex. Unlike DC neon flex, it requires no external driver or transformer — every ATOM LED AC neon flex product ships with a UK 3-pin plug, rectifier, and end cap ready for immediate use.

• How it works: The rectifier in the plug converts 240V AC to approximately 170V DC (the peak voltage of a 240V AC sine wave). This high-voltage DC powers groups of LEDs wired in series along the strip. Each LED group contains enough LEDs in series to operate at the rectified voltage — typically 60–80 LEDs per group, compared to 3–6 LEDs per group on 12V or 24V DC strips.
• Cutting intervals: Because of the series-wired LED groups, AC neon flex cuts at longer intervals than DC — typically every 500mm or 1000mm, compared to 25–50mm on DC products. This means less precision when adjusting length, which matters for sign-making and tight-fit applications.
• Why runs are so long: At 240V, the current draw per metre is extremely low (a 10W/m strip draws only 0.042A per metre, compared to 0.42A at 24V). The low current means negligible voltage drop even over 50–100 metre runs. This is why AC neon flex covers distances that would require multiple feed points and parallel wiring at DC voltages.

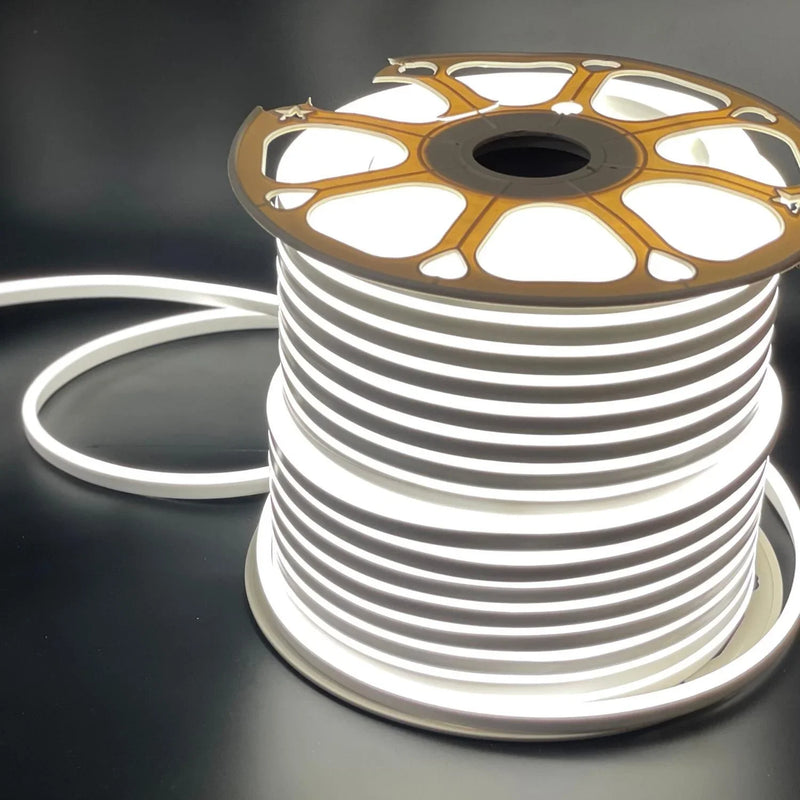

• Colour options: Warm white (3000K), natural white (4000K), cool white (6000K), single colours (red, blue, green, amber, pink, purple), RGB colour-changing, and Bluetooth-controlled RGB. The ATOM LED AC range starts from £13.95 per metre.

---

Where is AC mains neon flex the right choice?

AC mains neon flex is the right choice wherever plug-and-play deployment speed is the priority, where runs exceed 50 metres, where no dimming is needed, and where the installation is either temporary or uses a plugged (not hardwired) mains connection. In the UK in 2026, the three highest-volume applications are seasonal garden lighting, commercial signage, and event/festival temporary installations.

• Seasonal garden lighting: A 20-metre garden perimeter run using AC neon flex plugs into a weatherproof RCD-protected outdoor socket and is ready in under 30 minutes — no driver, no wiring, no electrician. At £13.95/m, a 20m warm white garden border costs approximately £280 in product. Unplug and store over winter, plug back in next spring. IP67-rated products handle UK rainfall without issue.
• Commercial signage and shopfronts: Large illuminated building outlines, channel letter borders, and shopfront window perimeters over 20 metres. A 60m building outline at AC is a single product run with one plug connection. At 24V DC, the same 60m outline would require 4–5 parallel feed points, 4–5 separate cable runs, and a 720W driver. AC eliminates all that complexity.
• Events, festivals, and temporary installations: Plug into a 13A socket on the event power distribution board. Run up to 50m from a single connection. Strike the installation in minutes. No driver to dismount, no cable terminations to make safe, no waste. AC neon flex is the standard for UK event lighting contractors working under time pressure.
• Hospitality beer gardens and terraces: Semi-permanent outdoor lighting that plugs into a weatherproof socket, runs through a standard timer switch for automated on/off, and provides ambient accent lighting without requiring a permanent mains connection or electrician visit. A 15m terrace run costs under £250 and installs in under 45 minutes.
• Christmas and seasonal commercial displays: Retail window borders, building outlines, and car park perimeters for the November–January trading period. AC neon flex deploys faster than string lights, produces a cleaner visual line, and removes in minutes for storage until next year.

---

Can you hardwire 220V/240V AC neon flex permanently?

220V/240V AC mains neon flex must not be hardwired permanently in most residential applications. Under BS7671 and the Building Regulations (Part P in England and Wales), permanent connection of a 240V AC luminaire to fixed wiring requires the work to be carried out by a qualified electrician and notified to Building Control. The standard and safest deployment method for AC neon flex is plug-and-play via the supplied UK 3-pin plug into an RCD-protected socket outlet.

• Why plugged is safer: A plugged connection can be disconnected by any person without tools — critical for emergency isolation, maintenance access, and seasonal removal. A hardwired connection requires an electrician to isolate safely. The plug also incorporates the rectifier unit, which cannot be easily replicated in a hardwired junction box.
• Commercial exceptions: In commercial environments, permanent installation of 240V AC lighting by a qualified electrician is standard practice. However, the AC neon flex must be connected through appropriate RCD protection (30mA for accessible locations, per BS7671 Regulation 411.3.3), and the installation must be certified on an Electrical Installation Certificate (EIC).
• For permanent residential lighting, use DC: If you need neon flex permanently wired into your home's fixed electrical system, use 24V neon flex or 48V neon flex with a mains-powered DC driver. The driver is the permanently wired component (installed by a qualified electrician), and the neon flex connects to the driver's SELV DC output — a much safer configuration for permanent residential use.
• Garden installations: Garden AC neon flex should plug into a weatherproof RCD-protected outdoor socket (IP66 minimum rated enclosure) via the supplied plug. The outdoor socket should be on a dedicated circuit with 30mA RCD protection. This is the most common configuration for UK garden neon flex in 2026 — no hardwiring of the neon flex itself.

---

Does AC neon flex flicker — and does it matter?

Yes — all 220V/240V AC neon flex produces a 100Hz flicker (the rectified frequency of 50Hz UK mains). This flicker is imperceptible to the human eye under normal conditions and has no practical impact for general ambient and decorative lighting. However, it becomes visible on slow-motion camera footage (120fps and above) and can produce banding artefacts on some DSLR and mirrorless video sensors. If flicker-free performance is required, use DC neon flex.

• Why 100Hz, not 50Hz: The rectifier in the AC plug converts 50Hz AC to pulsed DC. Full-wave rectification doubles the frequency, so the LEDs pulse at 100Hz. At 100Hz, the human visual system cannot detect the on-off cycling — it appears as continuous light. The flicker threshold for most people is approximately 70–80Hz; at 100Hz, AC neon flex is above this threshold.
• When flicker matters — video production: Camera sensors with electronic rolling shutters capture images line by line. If the LED is at a different brightness level when the sensor reads the top versus the bottom of the frame, the result is horizontal banding or pulsing in the recorded video. This is most visible at high frame rates (120fps, 240fps) and under certain shutter speed/frame rate combinations. For video production environments in 2026, DC neon flex (24V or 48V) produces zero flicker and is the correct specification.
• When flicker matters — health: A very small percentage of people with photosensitive conditions (including some forms of epilepsy and migraine) may be sensitive to 100Hz flicker in peripheral vision, particularly in enclosed spaces with large areas of AC-powered LED lighting. If the installation is in a healthcare, education, or public building subject to SLL (Society of Light and Lighting) guidelines, specify DC neon flex with a constant-voltage driver rated for less than 5% output ripple.
• When flicker does NOT matter: General decorative lighting, garden accent lighting, commercial signage viewed from a distance, event lighting, seasonal displays, and any application where the neon flex is viewed directly by the human eye without camera intermediaries. This covers the vast majority of AC neon flex installations in the UK.

---

What happens when AC neon flex fails — how does it break?

AC neon flex typically fails in sections rather than as a complete strip. Because the LEDs are wired in series groups of 60–80 LEDs per segment, a failure in one group kills only that segment — the rest of the strip continues to operate. This is the opposite of DC neon flex failure mode, where a conductor break kills everything downstream of the break. Understanding AC failure modes helps with both specification and maintenance planning.

• Segment-by-segment failure: The most common failure mode is a dark segment of approximately 500mm–1000mm (corresponding to one LED group) while the rest of the strip continues to illuminate. This is caused by a single LED within the group going open-circuit, which breaks the series chain for that group only. Adjacent groups are unaffected because each group is wired in parallel with the others across the high-voltage DC bus.
• Rectifier failure: The rectifier plug is the second most common failure point. Symptoms include complete strip failure (no light at all), intermittent operation, or visible flicker worse than normal 100Hz. Replacement rectifier plugs are available as spare parts. On ATOM LED AC products, the rectifier is a user-replaceable component — unplug the old rectifier, plug in the new one.
• Moisture ingress: IP65-rated AC neon flex installed outdoors without adequate protection will eventually admit moisture through the silicone sheath or end seals. At 240V, moisture inside the strip creates a leakage path that typically trips the RCD before causing visible damage. This is why RCD protection is essential for all AC neon flex installations — the RCD catches moisture ingress before it becomes dangerous.
• Replacement approach: When a segment fails, the affected section (one cutting interval, 500mm–1000mm) can be cut out and replaced with a new section connected via Waterproof connectors. Alternatively, for aesthetic consistency on commercial installations, replace the full run — the cost per metre (from £13.95) typically makes full replacement more practical than surgical section repair on runs over 10 metres.

---

How far can you run AC neon flex on a single connection?

ATOM LED 220V/240V AC neon flex supports continuous runs of 50–100 metres from a single plug connection, depending on the profile and wattage. This is 2–5 times the maximum of any DC voltage neon flex. The extreme run length is possible because AC mains current draw per metre is negligible — a 10W/m strip at 240V draws only 0.042A per metre, making voltage drop over 100 metres insignificant.

Voltage	Current at 10W/m	Max single-connection run	Driver required?
12V DC	0.83A/m	~5m	Yes (12V driver or battery)
24V DC	0.42A/m	~10–15m	Yes (24V driver)
48V DC	0.21A/m	~20–50m	Yes (48V driver)
220V/240V AC	0.042A/m	50–100m	No — plug-and-play with rectifier

• Why runs are limited at all: Even at 240V, there is a cumulative current limit. A 100m run at 10W/m draws 1,000W total — 4.2A at 240V. The rectifier plug supplied with ATOM LED AC products is rated for a maximum total load (check each product datasheet for the specific limit). Exceeding the rectifier's rated current causes overheating and premature failure.
• Multi-run installations: For installations exceeding the single-run maximum, use separate rectifier plugs for each section. A 150m building perimeter can be split into two 75m sections, each with its own rectifier plug into a separate socket or distribution board outlet. This is standard practice for large commercial signage installations.
• Cable routing: AC mains neon flex does not need a separate cable run from a driver — the neon flex IS the mains circuit from plug to end cap. The only cable is the short lead from the rectifier plug to the start of the neon flex, typically 1–2 metres. This eliminates the cable routing, conduit, and trunking requirements of DC installations.

---

Which IP rating should you choose for outdoor AC neon flex?

For outdoor AC neon flex installations in the UK, specify IP67 for any location exposed to rain, frost, or standing water. IP65-rated AC products provide surface splash protection only and are suitable for sheltered locations (covered porches, under soffits) but not for fully exposed UK outdoor conditions. At mains voltage, moisture ingress is a genuine safety hazard — the RCD will trip before harm occurs, but an IP65 strip that trips its RCD every time it rains is not a functional lighting installation.

IP rating	Suitable outdoor applications	Not suitable for
IP65	Indoor dry locations, sheltered covered porches, under deep soffits (min 600mm overhang)	Exposed UK outdoor, garden, any location with direct rain, frost, or standing water
IP67	Exposed outdoor gardens, fence lines, pergolas, building facades, commercial signage, car parks	Permanent submersion, ponds, fountains (AC not recommended for submersible use at any IP rating due to mains voltage)

• RCD protection is mandatory: Every outdoor AC neon flex installation in the UK must be connected via an RCD (Residual Current Device) rated at 30mA or less. The RCD detects current leakage to earth — caused by moisture ingress, cable damage, or insulation failure — and disconnects the supply within 40 milliseconds. This is a BS7671 requirement for all outdoor mains circuits, not a recommendation.
• Weatherproof socket enclosures: The plug connection point must be housed in an IP66-rated (minimum) weatherproof socket enclosure. Standard indoor sockets are IP20 and will admit rain water to the plug connection, creating a fault path. Weatherproof outdoor socket enclosures cost £8–£15 and are available at any UK electrical wholesaler.
• No submersible AC neon flex: Unlike DC neon flex, ATOM LED does not recommend AC mains neon flex for submersible applications (ponds, fountains, water features) regardless of IP rating. The combination of mains voltage and continuous water contact exceeds acceptable risk thresholds. For submersible applications, use IP68-rated DC neon flex at 12V, 24V, or 48V — all SELV voltages with significantly reduced shock risk.

---

How do you install AC mains neon flex safely?

AC mains neon flex installs by connecting the rectifier plug to one end of the neon flex strip, sealing the opposite end with the supplied end cap, mounting the strip in position, and plugging into an RCD-protected socket. The entire process takes under 1 hour for a typical 10–20 metre garden or signage run. No electrician is required for a plugged installation — the plug goes into an existing outdoor socket.

1. Step 1 — Unpack and inspect. Remove the neon flex from the packaging and uncoil completely. Do not power the strip while it is coiled — the concentrated heat at mains wattage will damage the silicone sheath and adhesive backing and creates a fire risk. Visually inspect the full length for any shipping damage, cuts, or kinks in the silicone.
2. Step 2 — Measure and cut to length if needed. AC neon flex cuts at marked intervals — typically every 500mm or 1000mm depending on the profile. Use sharp scissors and cut precisely at the marked line. Cutting between marks will disable the LEDs in that entire segment (500mm–1000mm lost). After cutting, the exposed end must be sealed with a silicone end cap and RTV sealant to maintain the IP rating.
3. Step 3 — Attach the rectifier plug. Push the supplied rectifier plug onto the connection end of the neon flex. The pins align with the copper pads inside the strip. Most ATOM LED AC products use a push-fit rectifier connection — no soldering required. Ensure the rectifier is fully seated and the Waterproof gasket is compressed.
4. Step 4 — Seal the opposite end. Fit the supplied silicone end cap to the cut or factory-finished end. Apply a bead of clear RTV silicone sealant around the end cap junction for a watertight seal. Allow 24 hours cure time before exposing to rain if the installation is outdoor.
5. Step 5 — Test before mounting. Plug the rectifier into an indoor socket briefly to confirm the strip illuminates evenly along its full length. Check for dark segments (indicating a dead LED group) and correct colour temperature. Power off and unplug before proceeding to mounting.
6. Step 6 — Mount the neon flex. Use the supplied mounting clips at 200–300mm intervals, or press into neon flex aluminium profile for a cleaner finish. For outdoor fence and pergola runs, use stainless steel cable clips. Do not mount onto bare metal without insulation — bare metal contact can create a fault path at mains voltage.
7. Step 7 — Connect to an RCD-protected outdoor socket. Plug the rectifier into a weatherproof IP66 outdoor socket enclosure on a circuit with 30mA RCD protection. Test the RCD by pressing the test button on the RCD or consumer unit — confirm it trips and resets correctly. The RCD is your primary safety device for any mains-voltage outdoor installation.

---

Can AC neon flex be dimmed or colour-controlled?

Most single-colour 220V/240V AC neon flex cannot be dimmed — it is either on or off. RGB AC neon flex from ATOM LED is available with Bluetooth app control, which provides colour selection, brightness adjustment, and preset modes via a smartphone. However, AC dimming is not as smooth or precise as DC dimming via a trailing-edge dimmer or PWM controller. If smooth, flicker-free dimming is a project requirement, use DC neon flex.

• Single colour — no dimming: Standard AC neon flex in warm white, cool white, or natural white does not dim. The rectifier supplies a fixed voltage, and there is no dimming circuit between the mains and the LEDs. Plugging AC neon flex into a mains dimmer socket (such as a lamp dimmer adapter) is not recommended — it causes visible flicker, buzzing, and potential rectifier damage.

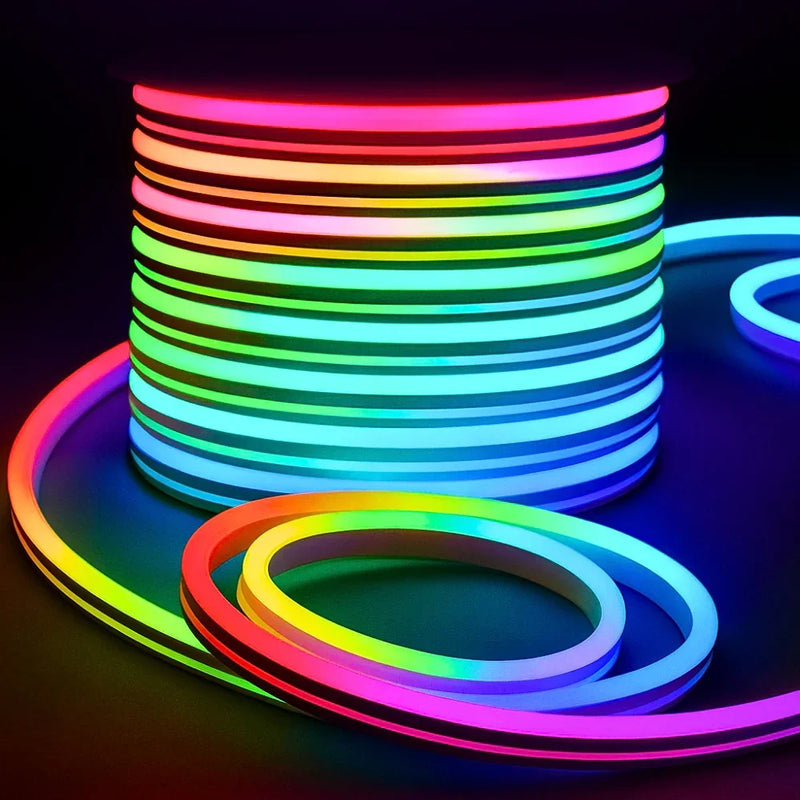

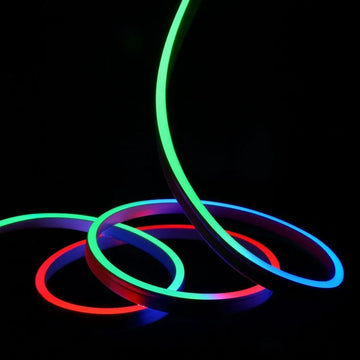

• RGB Bluetooth — app-controlled dimming: ATOM LED's Bluetooth RGB AC neon flex models include a Bluetooth controller built into the rectifier plug. The smartphone app (typically Tuya Smart Life or a manufacturer-branded app) provides colour wheel selection, brightness slider (0–100%), and preset modes (fade, strobe, pulse). Dimming range and smoothness vary by model.

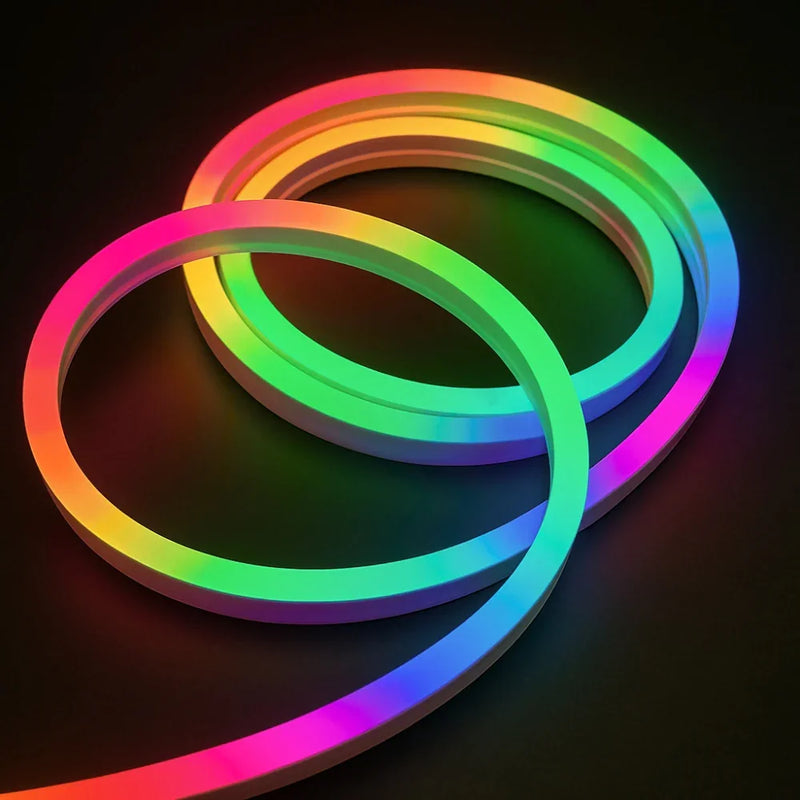

• RGB with IR remote: Some AC RGB neon flex models include an infrared remote control with preset colour buttons and brightness up/down. The IR receiver is integrated into the rectifier plug. Range is typically 3–5 metres line-of-sight to the rectifier.
• Why DC dimming is superior: DC neon flex dimmed via a trailing-edge TRIAC dimmer or PWM controller provides a continuous, flicker-free dimming range from 100% to 1% with no visible stepping. AC dimming methods achieve approximately 100% to 10% with noticeable stepping and some colour shift at low levels on RGB models. For residential living spaces, hospitality interiors, and any environment where smooth dimming sets the mood, DC is the correct specification.

---

What is the difference between AC and DC neon flex?

The core differences are: AC requires no driver (plug-and-play), runs far longer distances (50–100m vs 5–50m), but cannot be smoothly dimmed, produces 100Hz flicker visible on cameras, operates at mains voltage (shock hazard in wet conditions), and must not be hardwired permanently in most residential settings. DC requires a driver, covers shorter distances per feed, but dims smoothly, produces zero flicker, operates at SELV voltages (significantly reduced shock risk), and is safe for permanent residential hardwiring.

Factor	220V/240V AC neon flex	DC neon flex (12V/24V/48V)
Driver required?	No — plug-and-play	Yes — DC driver from mains
Max continuous run	50–100m	5m (12V) / 15m (24V) / 50m (48V)
Flicker	100Hz — invisible to eye, visible on camera	Zero — constant DC current
Dimming	Limited (on/off or Bluetooth RGB)	Smooth — trailing-edge, PWM, DALI, 0–10V
Shock risk	Mains voltage — RCD protection mandatory	SELV — significantly reduced risk (BS7671)
Permanent hardwiring	Not recommended residential (BS7671)	Yes — standard practice via DC driver
Cutting interval	500mm–1000mm	25mm–50mm
Submersible use	Not recommended at any IP rating	Yes — IP68 DC at SELV voltages
Ideal use case	Temporary, events, signage, seasonal	Permanent residential, commercial, architectural
Price range (ATOM LED)	From £13.95/m	From £9.95/m (24V) to £24.52/m (48V)

• When to choose AC: Speed of deployment, no driver budget, runs over 50m, temporary or seasonal installations, commercial signage where dimming is not required. AC is the right choice when the brief contains the word "temporary" or "plug-and-play."
• When to choose DC: Permanent residential, smooth dimming required, video or photography lighting, bathroom or wet-zone installations, submersible applications, building management integration, and any application where SELV safety classification matters.
• Cost comparison: AC neon flex costs more per metre than 24V DC (from £13.95/m vs £9.95/m), but eliminates the driver cost (£18–£110 depending on wattage). On a 20m run, the total cost including driver may be comparable. On a 50m run, AC is typically cheaper because a single 48V driver for 50m costs £85–£110 while AC needs only the included rectifier plug.

---

What are the most common questions about 220V/240V AC neon flex?

Buyers and UK electricians most frequently ask about BS7671 hardwiring restrictions, Part P notification requirements, compatibility with outdoor garden sockets, long-run performance beyond 50 metres, and how AC neon flex fails over time compared to DC alternatives. The 14 detailed answers below address the questions ATOM LED's Telford team takes most often in 2026 on 01952 370028.

1. Is AC neon flex safe to touch while powered?

• The silicone encapsulation provides insulation between the mains-voltage circuit and the user. Under normal operating conditions with intact silicone, external contact is safe.
• However, if the silicone is cut, damaged, or degraded, the exposed circuit is at mains voltage (240V AC) — a genuine shock hazard. Never use damaged AC neon flex.
• Always connect via an RCD (30mA, 40ms trip time) which will disconnect the supply before a dangerous current level is reached in the event of insulation failure.

2. Can I use AC neon flex in a bathroom?

• No — AC mains neon flex is not recommended for bathroom installations. The combination of mains voltage and moisture creates an unacceptable shock risk, even with IP67 rating.
• For bathrooms, use IP67-rated DC neon flex (24V recommended) which operates at SELV voltage with significantly reduced shock risk per BS7671.
• Bathroom zones under BS7671 require specific IP ratings and voltage limits — consult the regulations or a qualified electrician.

3. What happens if I cut AC neon flex between the marked lines?

• Cutting between the marked intervals disables the entire LED group in that section — typically 500mm to 1000mm of dead strip.
• This is a larger loss than DC neon flex (where a miscut loses 25–50mm). Plan your measurements carefully and allow for the coarser cutting intervals.
• The exposed cut end must be sealed with a silicone end cap and RTV sealant to prevent moisture ingress at mains voltage.

4. Can I use a standard mains timer with AC neon flex?

• Yes — plug the AC neon flex rectifier into a standard UK plug-in timer (mechanical or digital). The timer switches the mains supply on and off at scheduled times.
• This is the standard approach for automated garden and signage lighting — the timer provides dusk-to-midnight scheduling without any smart home infrastructure.
• For more sophisticated scheduling, use a Wi-Fi smart plug (Tuya, TP-Link, etc.) for app-based and voice-controlled on/off timing.

5. Does AC neon flex work with a generator?

• Yes — AC neon flex runs from any 230V/240V AC power source including portable generators, provided the output is stable and the generator has adequate capacity.
• A 20m run at 10W/m draws 200W — well within the capacity of even a small 1kW portable generator. AC neon flex is widely used at festivals and outdoor events powered by mobile generators.
• Use an RCD adapter between the generator output and the neon flex plug for safety protection, as portable generators may not have integrated RCD protection.

6. How do I connect multiple AC neon flex strips together?

• ATOM LED AC neon flex includes connection accessories for joining strips end-to-end. The total combined length must not exceed the maximum run rating for the product (typically 50–100m).
• Each joined section must maintain Waterproof sealing at the connection point — use the supplied Waterproof connectors and apply RTV silicone sealant.
• For runs exceeding the maximum, start a separate run from a second rectifier plug on a separate socket outlet.

7. Is AC neon flex more energy-efficient than DC?

• No — at equivalent wattage per metre, AC and DC neon flex consume the same power for the same light output. The rectifier in the AC plug adds approximately 2–5% conversion loss, making AC marginally less efficient.
• DC installations also have driver efficiency losses (typically 5–10%), so the overall system efficiency is comparable between AC and DC at approximately 85–95%.
• The choice between AC and DC should be based on installation requirements, not energy efficiency — the difference is negligible.

8. Can I use AC neon flex for permanent outdoor signage?

• Yes — IP67-rated AC neon flex is widely used for permanent outdoor commercial signage in the UK. The installation must be connected via an RCD-protected circuit.
• For permanent commercial installations, a qualified electrician should install the mains supply to the outdoor socket or connection point. The neon flex itself connects via the rectifier plug.
• Check local planning regulations for illuminated signage — some councils require planning permission for externally illuminated signs, particularly in conservation areas.

9. What is the lifespan of AC neon flex compared to DC?

• Both AC and DC neon flex are rated for approximately 50,000 hours to L70 under normal operating conditions.
• In practice, AC neon flex rectifiers may need replacement before the LED strip itself fails. Rectifier lifespan is typically 20,000–30,000 hours — approximately 7–10 years at 8 hours daily use.
• DC drivers (such as ATOM LED IP67 power supplies) are rated for 50,000+ hours, so the driver and strip often reach end-of-life at similar points.

10. Can I use AC neon flex for a caravan awning?

• Yes — provided the caravan pitch has a mains hook-up and RCD protection. Plug the AC neon flex into the caravan's mains supply via the site hook-up. A 5m awning run at 10W/m draws 50W — negligible against a typical 16A caravan supply.
• Use IP67-rated product for any outdoor caravan application. Store the neon flex when the awning is retracted to prevent mechanical damage.
• For touring caravans without reliable mains hook-up, 12V neon flex running from the caravan's 12V leisure battery is a more reliable option.

11. Why does my AC neon flex trip the RCD?

• RCD trips on AC neon flex are almost always caused by moisture ingress — water entering the strip through a cut end, damaged silicone, or a poorly sealed connection creates a leakage current to earth that exceeds the RCD's 30mA threshold.
• Check all end caps and connections for seal integrity. Dry the strip thoroughly and reseal with RTV silicone. If the strip trips immediately on connection (before moisture could be a factor), the rectifier may be faulty — replace it.
• The RCD doing its job is a safety feature, not a fault. A trip means the RCD has detected a potentially dangerous leakage current and disconnected the supply before harm could occur.

12. Can AC neon flex be used with a photocell for dusk-to-dawn operation?

• Yes — a plug-in photocell sensor (dusk-to-dawn adapter) between the mains socket and the rectifier plug provides automatic operation. The photocell switches the mains supply when ambient light drops below a set threshold.
• Photocell adapters cost £5–£10 and are available at UK electrical wholesalers. Ensure the adapter is rated for outdoor use (IP44 minimum) if mounted externally.
• This is the most common automation method for garden and signage AC neon flex — no wiring, no programming, no smart home system required.

13. What is the wattage per metre of AC neon flex compared to DC?

• ATOM LED AC neon flex ranges from approximately 8W/m to 14W/m depending on the profile and colour. DC neon flex ranges from approximately 5W/m to 20W/m.
• At equivalent wattage, both produce similar light output. The difference is not in the light produced per watt but in the system architecture — AC eliminates the driver while DC provides dimming and flicker-free operation.

14. Can I use AC neon flex for a swimming pool or hot tub surround?

• No — AC mains neon flex must not be used in or around swimming pools, hot tubs, or any application involving continuous water contact. The mains voltage presents a genuine drowning and electrocution risk if the insulation is breached.
• For pool and hot tub surrounds, use IP68-rated DC neon flex at 12V, 24V, or 48V — all SELV voltages with significantly reduced shock risk under BS7671.
• Pool lighting installations must comply with BS7671 Section 702 (Swimming Pools) and are typically restricted to SELV circuits at 12V DC.

---

Why choose ATOM LED for AC mains neon flex?

ATOM LED stocks 55 products in the 220V/240V AC neon flex range — every one held in the Telford warehouse for same-day dispatch. Each product ships with a UK 3-pin rectifier plug, end cap, and mounting clips ready for immediate use. Free UK delivery on 97% of products in 2–3 working days. Technical support is available Monday to Friday, 9am–5pm, on 01952 370028.

• Plug-and-play guarantee: Every ATOM LED AC neon flex product ships with everything needed for a plugged installation — rectifier plug, end cap, mounting clips, and connection accessories. No additional driver or transformer purchase required.
• 55 products, one voltage: The widest AC mains neon flex selection from a single UK supplier — warm white, cool white, natural white, RGB, Bluetooth RGB, and single colours in 8x16mm, 10x18mm, and 8x18mm profiles with IP65 and IP67 ratings.
• UK stock, UK dispatch: No overseas import delays. Orders placed before 2pm Monday to Friday are dispatched same day from Telford, Shropshire.
• Technical support: Call 01952 370028 for advice on run lengths, IP ratings, RCD requirements, and installation best practices. Email sales@atomled.co.uk for written specifications and trade quotations.
• 1-year warranty: 220V/240V mains-direct AC neon flex carries a 1-year warranty. Check individual product pages for full terms.
• Free UK delivery on 97% of products: Standard delivery in 2–3 working days at no charge. Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
• Designed in the UK: ATOM LED products are designed in the UK with specifications tailored for UK mains voltage (230V nominal), UK plug types, and British outdoor climate conditions.

Ready to order? Browse the full 220V/240V AC neon flex range, or call 01952 370028 for advice. For permanent residential installations, see 24V neon flex or 48V neon flex. For accessories and profiles, browse LED accessories and neon flex profiles.

---

Last reviewed: April 2026 — ATOM LED technical team, Telford, Shropshire. Specifications current as of 2026.

🏭 UK LED specialist, Telford, Shropshire  ·  ☎️ 01952 370028  ·  🚚 Free UK delivery on 97% of products (2-3 working days)
