6x12mm IP67 Neon Flex Aluminium Channel Track – 1 Metre & 2 Metres
SKU: NFPROFILE612-IP67
-
Straight Profile
-
Aluminium
-
Fits 6 × 12 mm IP67 Flat Neon Flex
Encrypted & secure checkout
Description

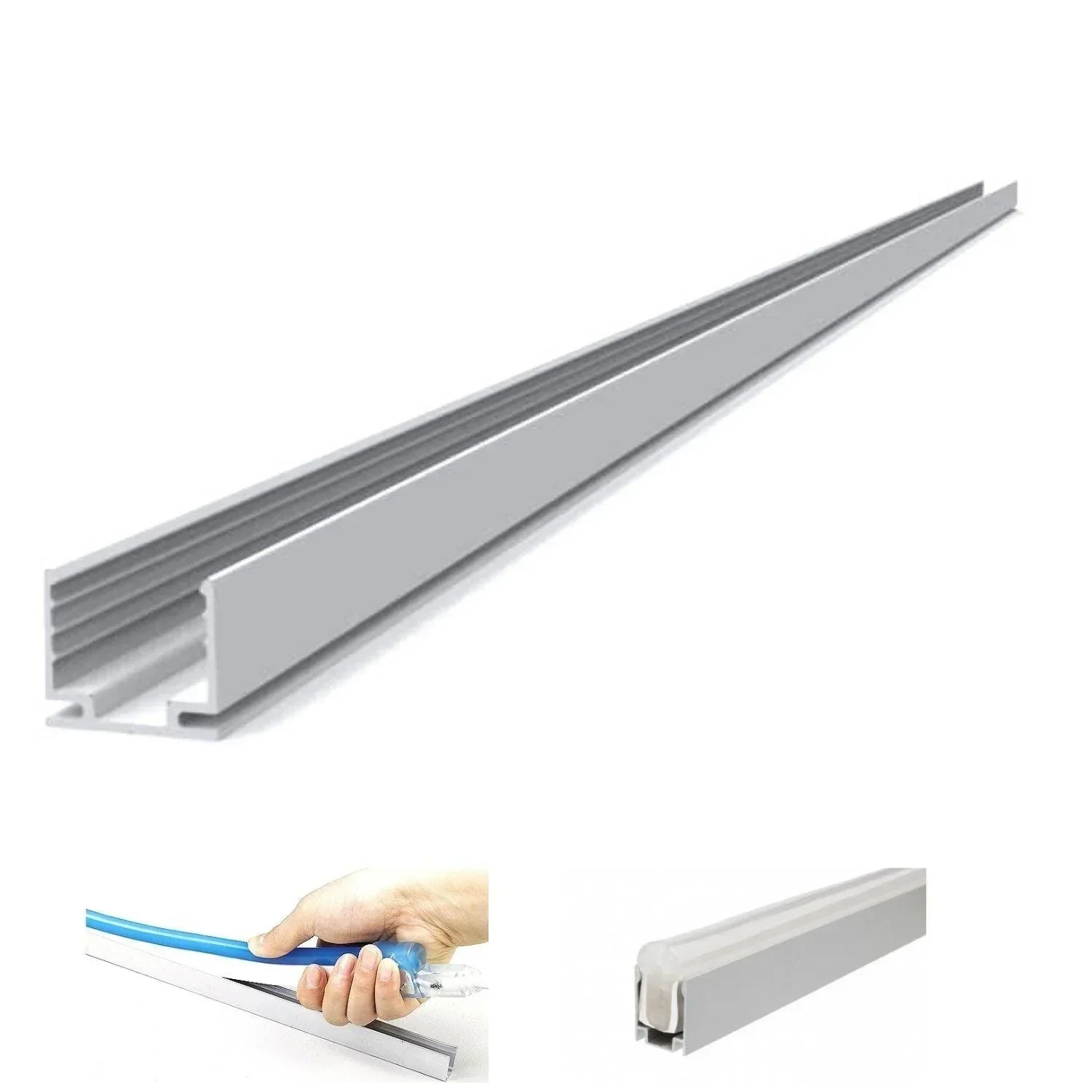

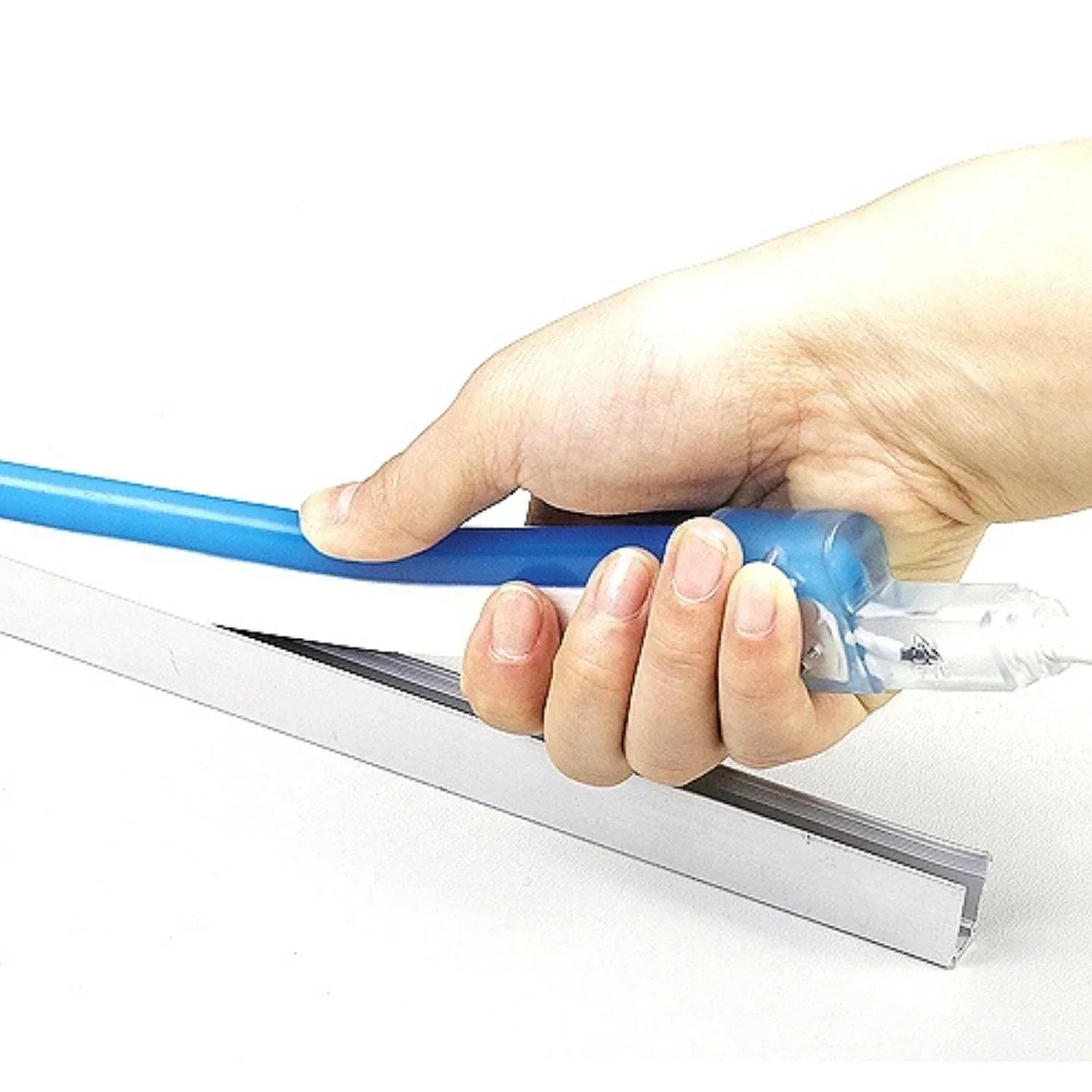

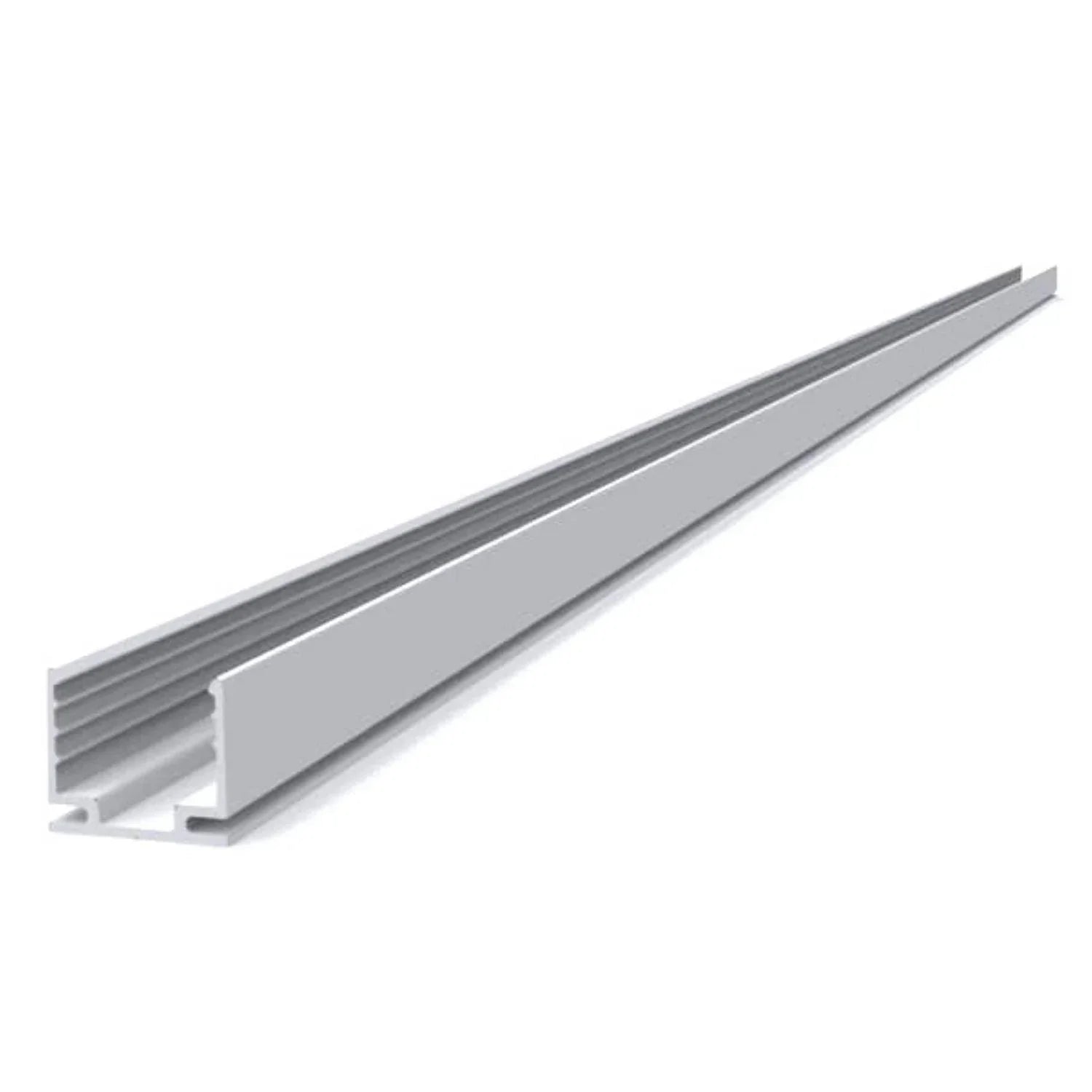

Keep straight runs of compatible 6 × 12mm IP67 LED Neon Flex neatly aligned with this rigid silver aluminium U-channel. Choose one continuous 1-metre or 2-metre length.
Fit: 6 × 12mm identifies the compatible Neon Flex, not the profile's outside size. The section drawing in the gallery shows 8.10mm wide × 13.40mm high and a channel opening of 6.50 ± 0.20mm. Compare it with your Neon Flex before fixing.
Installation: Fix the channel to a suitable substrate, remove sharp cut edges and keep fixing heads clear of the Neon Flex. IP67 describes the compatible sealed Neon Flex; the open aluminium profile does not waterproof electrical connections.
Included: One aluminium profile in the selected length. The 1-metre profile includes 2 screws and 2 wall plugs; the 2-metre profile includes 4 screws and 4 wall plugs. Neon Flex, power supplies and controls are sold separately.
Warranty: 7 years on the aluminium profile.
Browse other aluminium profiles.
Delivery charges
1 Metre: Mainland UK delivery is £6.95 below £90, with free Next Day Delivery from £90 when the basket contains no profile charged at the £19.85 or £34.65 long-profile rate. 2 Metre: Mainland UK delivery is £19.85 at every order value, including mixed baskets. If the basket also contains a profile charged at £34.65, the higher rate applies. Other destinations are calculated at checkout.
- Product Type
- Aluminium Profile
- Colour
- Silver
- Dimensions
- 8.10mm wide × 13.40mm high
- Warranty
- 7 Years
Specifications
- Product Type
- Aluminium Profile
- Colour
- Silver
- Metres
- 1 Metre / 2 Metres
- Dimensions
- 8.10mm wide × 13.40mm high
- Width
- 8.10mm
- Depth
- 13.40mm
- Shape
- Straight U-channel
- Material
- Aluminium
- Attachment
- Surface mount
- Warranty
- 7 Years
- Brand
- ATOM LED
- Channel Opening
- 6.50 ± 0.20mm
- Compatible Ip Rating
- IP67 Neon Flex
- Included Items
- 1m: profile + 2 screws + 2 wall plugs; 2m: profile + 4 screws + 4 wall plugs
- Neon Flex Size
- 6 × 12mm
Shipping & Returns
£6.95 under £90 — Mainland UK.
£19.85 — excluded from free delivery.
30-day returns window — free returns on faulty products
01952 370028 · Mon–Fri 9am–5pm
Shipping
Mainland UK profile delivery depends on length and construction. The applicable rates are shown below.
1m rigid profiles: £6.95 for orders below £90 (DPD, 1–2 working days). Eligible orders of £90 or more receive free next day delivery when the basket contains no long-delivery rigid profile.
Rigid profiles exactly 2m long: £19.85 per order to Mainland UK via DX (1–2 working days), including orders of £90 or more. If the basket also contains a rigid profile over 2m, the £34.65 rate applies instead. These rigid lengths are not eligible for free delivery, next day, timed or Saturday delivery.
Rigid profiles over 2m: £34.65 per order to Mainland UK via DX at every order value, including orders of £90 or more. Bendable plaster-in profiles and selected bendable channels use the short-profile rate; flexible silicone covers have free standard delivery. In a mixed basket, the highest applicable profile rate applies once per order. Final charges are confirmed at checkout.
For in-stock profiles, order before 1pm UK time, Monday–Friday for same-working-day dispatch from Telford. Orders placed after 1pm are dispatched the next working day. Bank holidays are excluded.
Large orders and pallet shipments: call 01952 370028 for a quote.
For more information see our detailed Shipping Page.
International Shipping
We use DPD, Royal Mail and DX for delivery. Orders to Northern Ireland or the Republic of Ireland containing a rigid profile 2m or longer cost £39.85 per order via DX, including mixed baskets and orders over £90. Other destinations and services are priced at checkout.
Returns & Refunds
The 30-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:
- Standard LED strip lights supplied as 5-metre rolls
- Straight aluminium profiles
- Power supplies and drivers
- Accessories (connectors, controllers, dimmers, end caps)
Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.
Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.
Refunds are processed within 5–10 working days of receiving the returned item.
For more details see our Returns & Refunds page.
Reviews
Delivery was very fast.
Helpful staff who were able to advise me that my items were compatible.
6x12mm IP67 Neon Flex Aluminium Channel Track – 1 Metre & 2 Metres
My order was all dealt with very carefully and professionally
All in it is very good product. I would easy recommend it. Very easy to install and the end effect is brilliant. I am very happy with these products
Frequently Asked Questions
What is the difference between IP65, IP67, and IP68?
IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.
Can I cut this product to a custom length?
Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.
What size driver do I need?
Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.
Should I choose 12V, 24V, or 48V?
Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
What is your warranty?
This profile has a 7 Years warranty. The warranty covers manufacturing defects. Call 01952 370028 for warranty claims.
Do you offer free delivery?
Yes. Free UK delivery on 97% of products via Royal Mail 48-hour tracked. Free next day delivery via DPD on eligible Mainland UK orders over £90 (order by 1pm, Mon–Fri). Rigid profiles 2m or longer have fixed DX delivery charges and do not qualify for free delivery.
