Miboxer 5 in 1 SPI+DMX LED Controller (WiFi+2.4G) SPIW5
SKU: Miboxer-SPIW5
-
Non-Waterproof
-
LED Strip
-
Reduced Glare
-
CRI 90
Encrypted & secure checkout
Description
- 5 in 1 LED controller, single color/CCT/RGB/RGBW/RGBCCT
- Color, pixel points, speed, static mode and dynamic mode dimmable
- Dynamic mode : 28 kinds of white color for selection, 80 kinds of RGB color for selection, all modes can dim color, brightness, width and speed.
- 8 kinds of music mode work with built-in microphone or smart phone microphone
- Freely switching dynamic and music mode

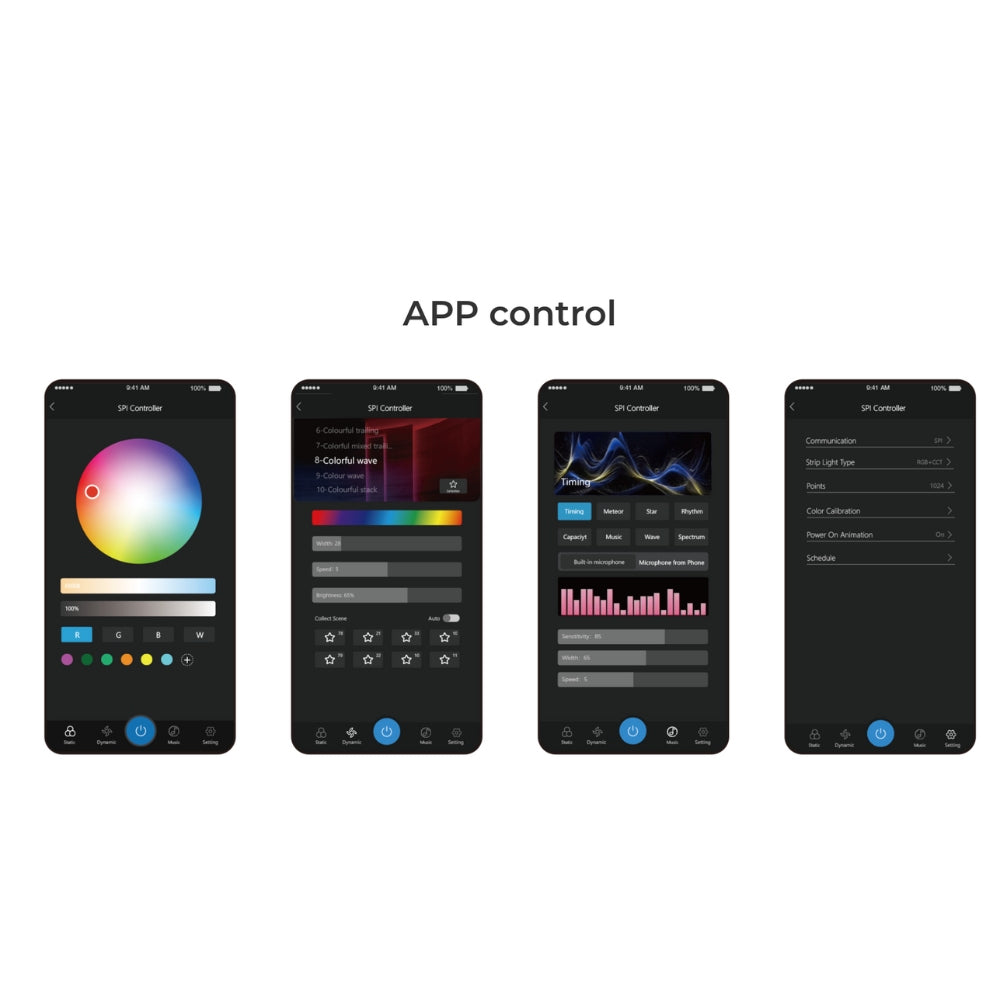

- Setting boot animation via TUYA SMART APP
- Output signal : SPK(TTL) 800Kbps, DMX: 250Kbps, 500Kbps, 750Kbps
- Have DND mode, usually used for power failure area to save power
Compatible:
TM1809, TM1804, TM1812, SK6813, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815，SK6812(RGBW), WS2813(RGBW), WS2814(RGBW)
Specification:
Product - 5 in 1 SPI+DMX LED Controller (WiFi+2.4G)
Model - SPIW5
Input Voltage - DC5V~24V
Output Current - Max 10A
Output Power - 50-240W
Output Type - Constant Voltage
Output Signal - SPI(TTL) 800Kbps (Max 1024 Pixel)
DMX: 250Kbps(Max 256 Pixel)
DMX: 500Kbps(Max 512 Pixel)
DMX: 750Kbps(Max 768 Pixel)
Protocol - WiFi + 2.4GHz RF
Control Distance - 30m
Warranty - CE, EMC, LVD, RED
Certification - CE, EMC, LVD, RED
Dimming Range - 0.1%-100%
IP Rating - IP20
Working Temperature - -10~40°C

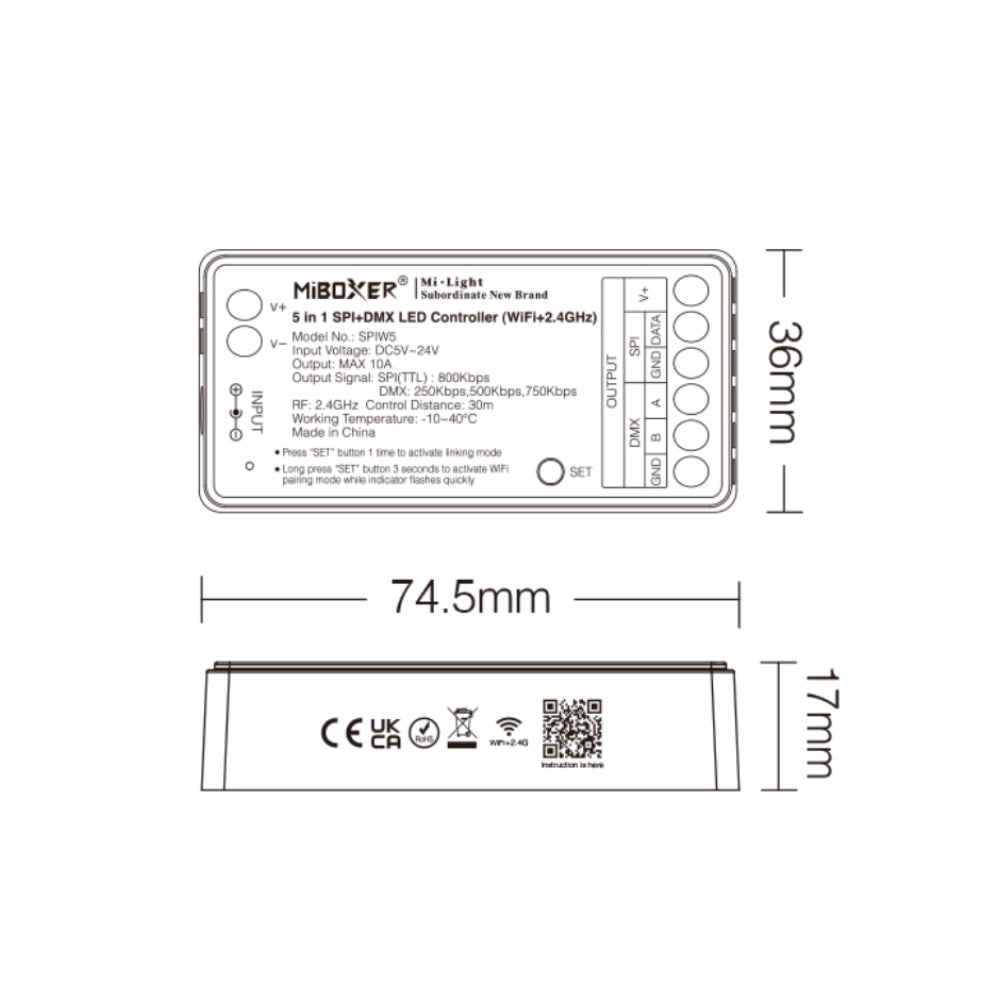

Size - 74.5mm x 36mm x 17mm
- Product Type
- SPI Controller
- Colour
- White
- IP Rating
- IP20 Non-Waterproof
- Voltage
- 5V - 24V
- Dimensions
- 74.5mm x 36mm x 17mm
- Warranty
- 5 Years
Specifications
- Product Type
- SPI Controller
- Colour
- White
- IP Rating
- IP20 Non-Waterproof
- Voltage
- 5V - 24V
- Dimensions
- 74.5mm x 36mm x 17mm
- Operating Temperature
- -10~40°C
- LED Type
- SPI
- Certification
- CE, EMC, LVD, RED
- Warranty
- 5 years
- Brand
- Miboxer
Technical Documents
