Running Water COB LED Strip — Chase-Effect SPI

The ATOM LED waterflow LED strip range uses SPI (Serial Peripheral Interface) signal control to address individual LED segments along the strip, producing smooth chasing, flowing, and cascading effects without visible dot separation. Every strip ships from our Telford warehouse with CRI90+ output, 5-year warranty, and free UK delivery — backed by a technical team on 01952 370028 who can walk you through controller pairing and wiring before you order.

SPI COB · 24V DC · CRI90+ · cut to length at marked intervals · Chasing & Waterflow Effects · Dedicated SPI Controller Required · 5-Year Warranty · Free UK Delivery

Jump to Section

1. What is a running water LED strip and how does it work?
2. Who should buy waterflow SPI COB strip — and who should not?
3. How does SPI control differ from standard RGB and DMX?
4. What effects can you create with a waterflow LED strip?
5. Which SPI controller do you need for running water effects?
6. How do you wire and install SPI COB strip correctly?
7. What voltage and driver should you use for SPI waterflow strip?
8. Running water LED strip vs standard RGB COB — which do you need?
9. Where are running water LED strips used in commercial and residential projects?
10. What mistakes do installers make with SPI chasing strip?
11. Can you cut running water SPI COB strip to length?
12. Why buy SPI waterflow COB strip from ATOM LED?
13. Frequently asked questions — running water LED strip

Quick decision summary: If you need a flowing, chasing, or cascading light effect that moves along a strip in one direction, you need SPI-controlled waterflow COB strip paired with a dedicated SPI pixel controller. If you only need static colour or simple colour-cycling without directional movement, a standard RGBW COB strip with an RGB controller will do the job at lower cost.

---

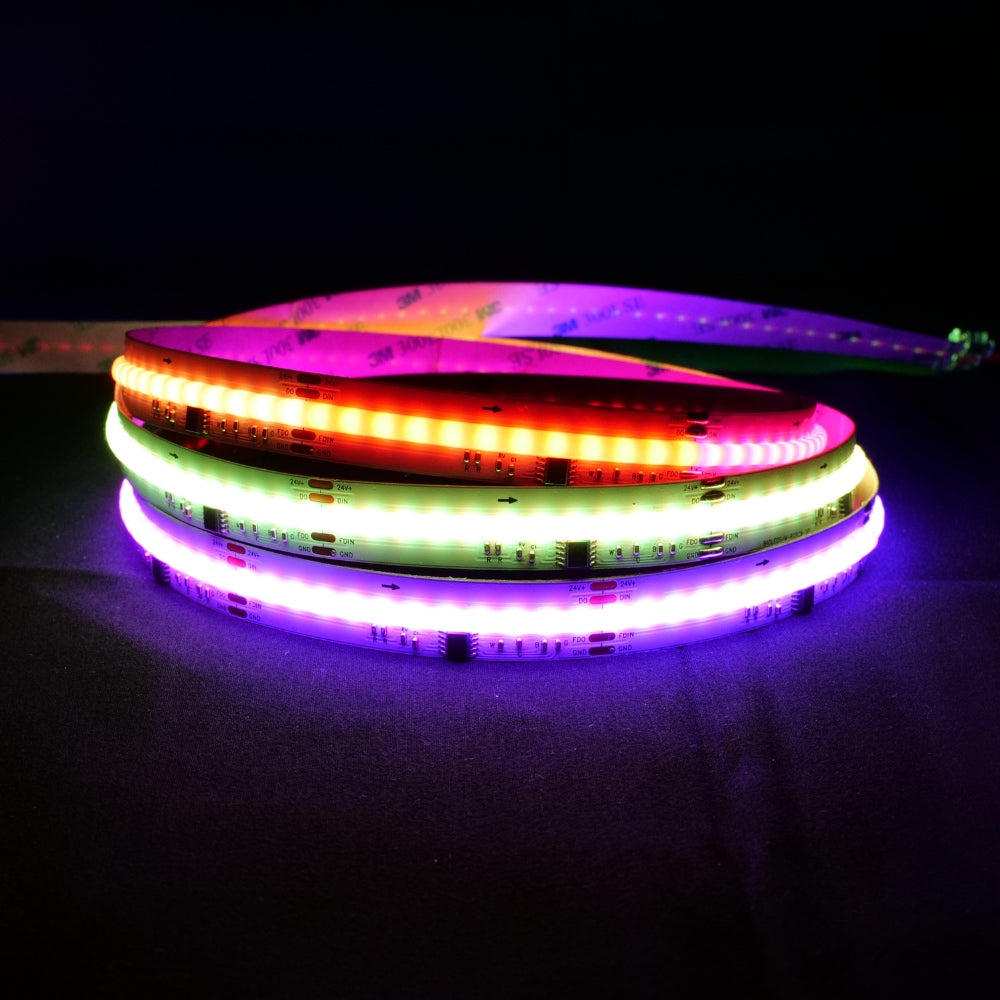

What is a running water LED strip and how does it work?

A running water LED strip is a COB strip with built-in SPI data communication that allows a controller to address individual LED segments independently. The controller sends timed colour and brightness instructions along a data line, creating the illusion of light flowing in one direction — similar to water moving through a channel. This requires a dedicated SPI pixel controller, not a standard RGB controller.

The technology behind the waterflow effect sits in the IC (integrated circuit) chips embedded at regular intervals along the strip. Each IC controls a small segment of LEDs — typically between 6 and 16 LEDs per pixel group depending on the strip density. The SPI protocol sends clock and data signals from the controller to each IC in sequence, telling it exactly what colour and brightness to output at any given moment.

Because COB (Chip-on-Board) construction places the LED chips directly onto a flexible PCB beneath a uniform phosphor layer, the light output appears as a continuous line rather than individual dots. When the SPI controller sequences colours along this continuous line, the result is a smooth, flowing motion effect that older SMD-based chasing strips cannot match. This dot-free construction is what separates COB waterflow strip from the pixelated look of traditional 5050 chasing tape in 2026 installations.

• SPI signal path: Data travels from controller to IC1, IC1 to IC2, IC2 to IC3, and so on — each IC reads its instruction, then passes remaining data downstream.
• Pixel group size matters: Fewer LEDs per pixel group means finer control and smoother-looking effects, but requires more data processing from the controller.
• Data line is separate from power: SPI strips have a minimum of 4 wires — positive, negative, data in, and clock — compared to 3 wires on basic RGB strip.
• One-directional data flow: The SPI signal travels in one direction only, so strip orientation during installation must follow the marked data-flow arrow on the PCB.

---

Who should buy waterflow SPI COB strip — and who should not?

SPI waterflow COB strip is the right choice for installers and designers who need directional motion effects — flowing water, chasing sequences, colour-wave transitions, or segment-level scene control. It is not the right choice for buyers who want simple static white light, basic colour-cycling, or who lack the willingness to wire a dedicated SPI controller into their setup.

This strip is for you if:

• You are designing a commercial feature wall, bar front, or retail display where moving light draws the eye and creates a focal point that static light cannot achieve.
• You are building a home cinema, gaming room, or media wall and want reactive lighting effects that respond to music, content, or preset scenes.
• You are an electrical contractor or lighting designer specifying architectural accent lighting for hospitality, leisure, or high-end residential projects in 2026.
• You need wayfinding or directional light — for example, guiding footfall along a corridor, highlighting a staircase, or creating flow patterns in a spa or wellness space.

This strip is NOT for you if:

• You only need static warm white under-cabinet or cove lighting — a single colour 24V COB strip is simpler and more cost-effective.
• You want basic colour-cycling without directional movement — standard RGBW COB strip paired with an RGB controller handles this without SPI wiring.
• You are not prepared to wire a data line and configure an SPI controller — waterflow effects require more setup than plug-and-play strip kits.
• Your budget does not cover a separate SPI controller — without the correct controller, SPI strip will not produce any effects and may not light up at all.

---

How does SPI control differ from standard RGB and DMX?

SPI (Serial Peripheral Interface) gives individual segment control at low cost and simple wiring compared to DMX, which uses a different protocol, addresses fixtures individually, and typically requires more expensive hardware. Standard RGB control changes the entire strip to one colour at a time with no segment-level addressing. SPI sits between these two in both capability and cost.

Understanding the differences matters because choosing the wrong control method means either overspending on hardware you do not need, or buying a system that cannot produce the effects you want. Here is how the three protocols compare for LED strip installations in the UK market as of 2026:

Feature	Standard RGB	SPI (Pixel)	DMX512
Segment control	No — whole strip one colour	Yes — per IC group (6–16 LEDs)	Yes — per fixture/channel
Wiring complexity	Low — 4 wires (R, G, B, common)	Medium — 4 wires (V+, GND, Data, Clock)	High — 3-pin/5-pin XLR + termination
Typical controller cost	£8–£25	£20–£65	£80–£400+
Maximum strip length per data run	Unlimited (same colour throughout)	Typically 5–10m per data line	32 fixtures per universe (512 channels)
Running water / chasing effects	No	Yes — primary purpose	Yes — with programming
Music sync capability	Basic (whole strip pulses)	Yes — per-segment reactive	Yes — with show controller
Best suited for	Mood lighting, colour wash	Accent features, retail, bars, home cinema	Stage, theatre, large commercial

For most residential and small-to-medium commercial projects that need flowing or chasing effects, SPI control delivers the best balance of visual impact and budget. DMX becomes worthwhile when you need to integrate strip into a larger lighting control system with other DMX fixtures — but for standalone waterflow effects, SPI is the practical choice.

• Signal integrity limit: SPI data degrades over distance, so runs beyond approximately 10 metres typically need a signal amplifier or data repeater to maintain effect accuracy.
• IC compatibility: Different SPI strips use different IC chips (WS2811, WS2812B, SK6812, UCS1903, etc.) — your controller must match the IC type on your strip.
• Clock line advantage: Strips with a separate clock line (4-wire SPI) are more resistant to data timing errors than 3-wire variants, producing cleaner effects at higher speeds.

---

What effects can you create with a waterflow LED strip?

SPI waterflow COB strip produces directional flowing light, colour chasing, rainbow waves, meteor shower trails, breathing pulses that travel along the strip, fire simulation, and segment-level static colour scenes. The specific effects available depend on your SPI controller model and its built-in programme library or app-based customisation options.

The effects fall into two broad categories: motion-based patterns where light appears to travel along the strip, and segment-based scenes where different sections display different static colours simultaneously. Most buyers purchase waterflow strip specifically for the motion effects — these are the patterns that standard RGB strip cannot replicate.

• Running water / waterflow: A smooth wave of colour moves along the strip in one direction at adjustable speed, creating the appearance of flowing liquid light — the signature effect of this product category.
• Meteor shower: A bright head travels along the strip with a fading tail behind it, simulating a shooting star or falling raindrop effect popular in retail window displays.
• Rainbow chase: A full spectrum of colours flows continuously along the strip length, commonly used in gaming rooms and entertainment spaces.
• Colour wave: A single colour pulses outward from one end or from the centre, creating a breathing wave effect suited to spa and wellness environments.
• Segment scene: Different sections of the strip hold different static colours — for example, branding colours in a retail display or zone-specific colours in a bar installation.
• Music reactive: Controllers with microphone input or audio-in sync the effects to sound, with beat detection driving the speed and colour transitions in real time.

In commercial 2026 installations, the most requested effects are running water (hospitality and spa), meteor shower (retail), and segment scene (branding and wayfinding). For residential projects, rainbow chase and music reactive dominate. The ATOM LED technical team can advise which controller model supports the specific effects you need before you purchase.

---

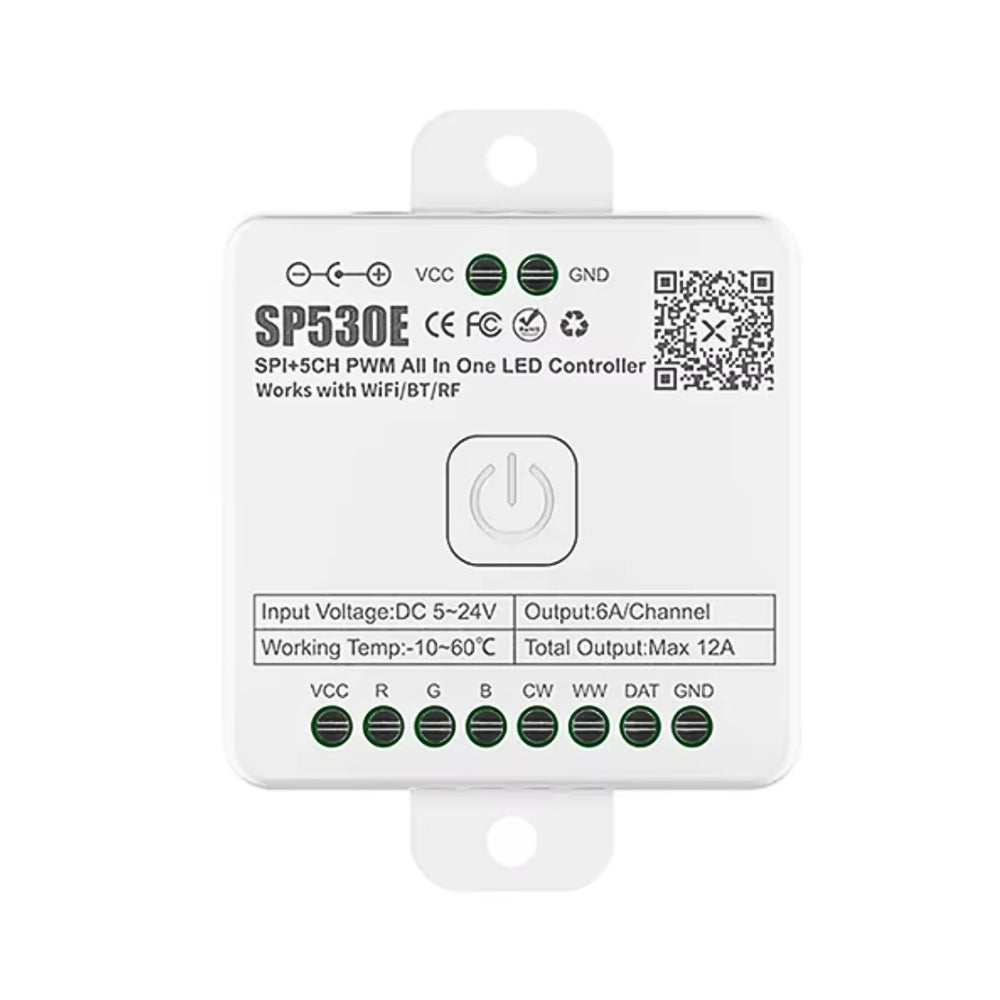

Which SPI controller do you need for running water effects?

You need a dedicated SPI pixel controller that matches the IC chip type on your strip. Standard RGB controllers, Wi-Fi colour controllers, and DALI dimmers will not work — they cannot send the timed data signals that SPI strip requires. ATOM LED stocks compatible SPI controllers from Skydance, MiBoxer, and other professional brands with UK support.

Selecting the correct controller is the single most important decision after choosing the strip itself. An incompatible controller will either produce no output at all, or create erratic flickering patterns that look nothing like the intended effect. Before ordering, confirm these three things:

1. IC chip compatibility: Check the IC type printed on your strip specification (e.g., WS2811, SK6812, UCS1903) and verify your controller supports that protocol.
2. Pixel count capacity: Count the total number of pixel groups across all your strips and ensure the controller can handle that count — most entry-level controllers support 1,024 to 2,048 pixels.
3. Control method preference: Decide whether you want RF remote, wall-mounted panel, smartphone app, or DMX-to-SPI conversion — this determines which controller model you need.

Browse the full range of compatible controllers in the SPI pixel controller collection. For larger installations requiring multiple zones, Skydance SPI controllers offer multi-output configurations, while the MiBoxer range provides cost-effective app-controlled options for smaller residential projects.

• Do not use a dimmable driver in place of a controller: SPI strip requires a non-dimmable constant voltage driver for power and a separate SPI controller for effects. A dimmable driver cannot send SPI data and will cause flicker, colour shift, and premature failure.
• Controller output voltage must match strip voltage: A 24V strip paired with a 12V controller output will produce dim, incorrect colours. Always verify voltage matching.
• Data signal amplifiers: For runs exceeding approximately 10 metres, add an SPI signal amplifier between runs to maintain clean effect patterns — the data signal weakens over distance.

---

How do you wire and install SPI COB strip correctly?

SPI COB strip installation requires a non-dimmable constant voltage driver for power and a dedicated SPI controller connected via the data and clock lines. The strip must be mounted on an aluminium profile for heat dissipation, wired in parallel for multiple runs, and oriented with the data-flow arrow pointing away from the controller. Never power the strip while it is still coiled on the reel.

Follow these steps for a reliable SPI waterflow installation. This guide covers a typical 24V single-run installation — for multi-zone or extended runs, contact the ATOM LED technical team on 01952 370028 before starting work.

1. Step 1 — Plan your layout and confirm data direction: Measure the installation length and identify the mounting location for your SPI controller. The strip has a printed arrow showing data flow direction — the controller connects to the input end. Mark the controller position, strip start point, and driver location on site. Allow space for the driver in a ventilated area away from heat sources.
2. Step 2 — Mount aluminium profile along the installation path: Fix the aluminium profile to the mounting surface using appropriate fixings for the substrate (screws for timber, adhesive for tiles, brackets for suspended ceilings). The profile provides the heat sink that COB strip requires for its 5-year rated lifespan — strip mounted directly onto bare wood or plasterboard will run hotter and degrade faster. Never mount SPI strip on bare metal surfaces without insulation between the strip and the metal, as this can cause short circuits on the exposed PCB contacts.
3. Step 3 — Uncoil the strip completely before powering: Remove the strip from the reel and lay it flat along the profile channel. Never apply power while the strip is coiled — the concentrated heat destroys the adhesive backing, damages the phosphor layer, and in extreme cases creates a fire risk. Peel the adhesive backing and press the strip firmly into the profile channel.
4. Step 4 — Connect the driver to mains and to the SPI controller: Wire the non-dimmable constant voltage driver to the mains supply (by a qualified electrician for permanent installations). Connect the driver's DC output (V+ and V-) to the power input terminals on the SPI controller. Check polarity — reversed polarity on the DC side will prevent the controller from operating and may damage the IC chips on the strip.
5. Step 5 — Connect the SPI controller data output to the strip: Run the data line (and clock line if 4-wire SPI) from the controller output to the data-in pad on the strip. Use soldered connections or compatible SPI strip connectors from the COB strip accessories range. Ensure the data wire is not run parallel to mains cable for more than 300mm — electromagnetic interference from mains cable can corrupt the SPI signal and cause flickering or erratic effects.
6. Step 6 — Connect strip power lines: Run the V+ and GND wires from the controller power output to the corresponding pads on the strip input end. For multiple runs, use parallel wiring — connect each strip run back to the controller independently rather than daisy-chaining power from one strip to the next. Series power wiring multiplies voltage drop, causing the far end of the installation to appear dimmer and shift colour.
7. Step 7 — Configure the controller and test: Power on the system and use the controller remote, panel, or app to select your IC type, set the pixel count, and choose an effect. Start with a slow-speed running water pattern to verify the entire strip responds correctly. If segments flicker or display incorrect colours, check the IC type setting on the controller, verify all data connections, and confirm polarity on every joint.

For installations longer than 10 metres, insert an SPI data signal amplifier at the junction point. The power feed should also be re-injected at the start of each new run to prevent voltage drop — this is particularly important on 24V systems where voltage drop is more pronounced than on 48V.

---

What voltage and driver should you use for SPI waterflow strip?

Most SPI waterflow COB strip operates on 24V DC and requires a non-dimmable constant voltage driver sized to the total wattage of the strip plus a 20% headroom margin. Do not use a dimmable driver — SPI strip brightness and effects are controlled entirely by the SPI controller, and dimmable drivers cause flicker, colour inaccuracy, and premature driver failure when paired with SPI systems.

Calculating driver size is a three-step process that should be completed before ordering:

1. Find the strip wattage per metre — this is listed on the product specification, typically between 10W/m and 19W/m for COB waterflow strip.
2. Multiply by total strip length — e.g., 14W/m x 8m = 112W total load.
3. Add 20% headroom — 112W x 1.2 = 134.4W minimum driver size. Select the next available driver size upward, e.g., a 150W driver.

Strip Length	Strip Wattage (14W/m example)	Total Load	20% Headroom	Minimum Driver Size
3m	14W/m	42W	50.4W	60W
5m	14W/m	70W	84W	100W
8m	14W/m	112W	134.4W	150W
10m	14W/m	140W	168W	200W

Browse 24V LED drivers or the full LED power supply range to find the correct unit for your project. If you are unsure about sizing, call ATOM LED on 01952 370028 — the technical team will calculate the driver specification for your exact layout.

• Constant voltage, not constant current: SPI COB strip requires a constant voltage (CV) output. Constant current (CC) drivers are designed for different LED configurations and will damage or fail to power SPI strip.
• Enclosed vs open-frame drivers: Use enclosed (IP-rated) drivers for installations where the driver may be exposed to dust, moisture, or accidental contact. Open-frame drivers are suitable only for ventilated, dry, accessible locations.
• Parallel wiring for multiple runs: When powering multiple strip runs from one driver, wire each run in parallel back to the driver output. This ensures consistent voltage across all runs and avoids the cumulative voltage drop caused by series wiring.

---

Running water LED strip vs standard RGB COB — which do you need?

Choose running water SPI COB strip when you need directional motion effects — flowing light, chasing sequences, meteor trails, or segment-level colour control. Choose standard RGB or RGBW COB strip when you need whole-strip colour changes, static colour wash, or simple mood lighting without any movement effect. The SPI version costs more and requires a dedicated controller, but it does things that standard RGB physically cannot.

Capability	Standard RGB/RGBW COB Strip	Running Water SPI COB Strip
Static single colour	Yes	Yes
Colour cycling (whole strip)	Yes	Yes
Running water / flow effect	No	Yes
Meteor / shooting star	No	Yes
Segment-level colour control	No — entire strip changes together	Yes — each IC group independent
Music reactive per segment	No — whole strip pulses	Yes — frequency-mapped segments
Clean white output	RGBW: yes (dedicated white channel) / RGB: no	Depends on strip variant — check spec
Controller required	Standard RGB controller (£8–£25)	SPI pixel controller (£20–£65)
Driver type	Non-dimmable constant voltage	Non-dimmable constant voltage
Wiring complexity	Low (4 wire)	Medium (4 wire + data direction)
Typical applications	Cove lighting, bedroom, kitchen	Bars, retail, cinema rooms, feature walls

If you are unsure which type suits your project, think about whether the light needs to move. If the answer is yes — even occasionally — SPI waterflow strip is the only option. If the answer is no and you simply want to change the colour of an entire room or zone, standard RGBW COB strip from the RGBW colour-changing range will meet the brief at a lower total cost.

---

Where are running water LED strips used in commercial and residential projects?

Running water LED strips are used in bars, restaurants, retail displays, hotel lobbies, home cinemas, gaming rooms, staircases, spa environments, exhibition stands, and architectural feature walls. Any application where directional moving light creates visual impact or functional wayfinding benefits from SPI waterflow strip over static alternatives.

The shift toward dynamic lighting in UK commercial fit-outs during 2025 and 2026 has made SPI waterflow strip one of the fastest-growing product categories in the LED strip market. Designers and contractors are specifying it in projects where previously only expensive DMX systems could achieve similar motion effects.

Commercial applications

• Bar fronts and counters: A flowing light effect along the base of a bar creates a visual signature that static downlighting cannot match — the movement draws attention and becomes part of the venue's identity.
• Retail window displays: Meteor and chasing effects guide the eye toward products, increasing dwell time at the window compared to static lighting. Seasonal effect changes are managed through the controller without re-wiring.
• Hotel and spa lobbies: Slow colour-wave effects in cove lighting create a calming atmosphere suited to wellness and relaxation spaces. The speed and colour palette are adjustable via the controller app.
• Exhibition and trade stands: Portable SPI strip installations running off a single driver and controller add movement to temporary displays. The strip can be reused across multiple events.
• Wayfinding corridors: Light flowing in the direction of travel helps guide pedestrians — used in hospitality, leisure centres, and accessible building design.

Residential applications

• Home cinema and media walls: Rainbow chase or music-reactive modes create immersive viewing environments. Effect speed and intensity adjust from a smartphone app without leaving the sofa.
• Gaming room setups: Segment-level colour control lets users match their lighting to game themes, team colours, or reactive audio inputs.
• Staircase lighting: A gentle running water effect along stair nosings provides both ambient feature lighting and functional step visibility during evening hours.
• Kitchen island and breakfast bar: Slow flowing effects under a kitchen island create a focal point during entertaining. Switch to static white via the controller for task lighting during food preparation.

---

What mistakes do installers make with SPI chasing strip?

The most common mistakes are using a standard RGB controller instead of an SPI pixel controller, reversing the data direction on the strip, powering strip while still coiled on the reel, using a dimmable driver, and running data lines parallel to mains cable. Each of these causes either total failure or erratic behaviour that wastes time and materials on return visits.

These are the specific errors the ATOM LED technical team encounters most frequently from installer calls during 2025 and 2026 — and how to avoid them:

• Wrong controller type: Standard RGB controllers send analogue voltage signals that SPI strip cannot interpret. The strip either stays dark or lights up white with no effect response. Always verify the controller is SPI-compatible and matches the strip IC type before installation day.
• Reversed data direction: SPI data flows one way only — input to output — marked by a printed arrow on the strip PCB. Connecting the controller to the output end results in no response from any segment. Check the arrow direction before soldering or connecting.
• Powering while coiled: This applies to all LED strip types, but SPI COB strip with its dense LED placement generates more heat per metre than basic single-colour strip. Never test or run the strip while it remains wound on the reel — uncoil completely first.
• Using a dimmable driver: SPI strip brightness is controlled digitally by the SPI controller. Adding a dimmable driver introduces voltage fluctuations that corrupt the SPI data signal, causing flickering, colour errors, and shortened driver life. Use a non-dimmable constant voltage driver only.
• Data line next to mains cable: Mains cable generates electromagnetic interference that corrupts the low-voltage SPI data signal. Maintain a minimum 300mm separation between data wires and mains cable, or use shielded data cable for runs that must cross mains routes.
• Series wiring on long runs: Connecting strip end-to-end in series for power causes progressive voltage drop — the far end dims and shifts colour. Use parallel wiring with separate power feeds for each run back to the driver.
• Bare metal mounting: Mounting SPI strip directly onto an uninsulated metal surface risks short circuits on the exposed PCB solder pads. Always use an aluminium profile with an anodised or powder-coated surface, or apply insulating tape between strip and bare metal.

If you hit any of these issues mid-installation, the ATOM LED technical team is available Monday to Friday 9am–5pm on 01952 370028 or at operations@atomled.co.uk to troubleshoot before you pull the strip off the wall.

---

Can you cut running water SPI COB strip to length?

Yes — ATOM LED running water SPI COB strip uses cut to length at marked intervals, which means you can cut at any marked point along the strip without voiding the 5-year warranty. Cut marks are positioned at each pixel group boundary. Cutting between pixel groups will disable the partial segment but will not affect the rest of the strip downstream, provided the data line remains intact.

cut to length at marked intervals is particularly valuable on SPI strip because the cutting points align with the IC pixel group boundaries. Each cut point is clearly marked on the PCB with a line and scissor icon. When you cut at a marked point, the preceding pixel groups continue to function normally, and the next strip section can be powered and data-connected separately if needed.

• Always cut with the strip powered off: Cutting live strip risks short-circuiting the exposed pads and damaging the IC at the cut boundary.
• Use sharp flush-cut snips: Clean cuts prevent copper pad damage. Crushing the PCB with dull blades can crack internal traces and cause intermittent faults.

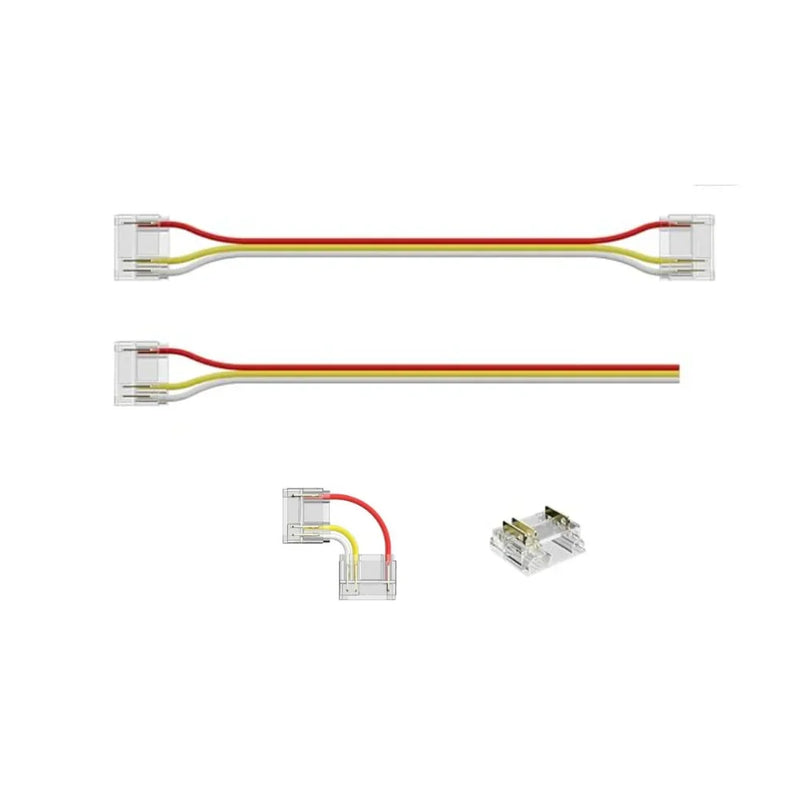

• Re-terminate after cutting: If extending or reconnecting a cut section, solder or use compatible connectors from the accessories collection. Ensure all wires — V+, GND, Data, and Clock — are reconnected in the correct order.
• Pixel count recalculation: After cutting, update the pixel count setting on your SPI controller to match the actual number of pixel groups in the installation. An incorrect pixel count causes effects to misalign or leave unaddressed dark sections at the end of the strip.

---

Why buy SPI waterflow COB strip from ATOM LED?

ATOM LED supplies SPI waterflow COB strip from UK stock in Telford, Shropshire — not dropshipped from overseas warehouses. Every strip is CRI90+ rated, backed by a 5-year warranty on DC voltage COB strip, and shipped with free UK delivery. The technical team provides pre-sale controller matching and post-sale installation support on 01952 370028, Monday to Friday 9am–5pm.

• CRI90+ on all COB strip: Colours appear natural and saturated under the strip output. Lower-CRI alternatives from budget suppliers produce washed-out, greyish tones that undermine the visual impact of motion effects — particularly noticeable on warm white segments.
• Cut technology: Cut at any marked point without voiding the warranty. Competitors that void warranty on cut strip effectively force you to order exact pre-cut lengths, adding lead time and removing site flexibility.
• Controller pairing support: The technical team will confirm IC compatibility, recommend a controller model for your project, and calculate driver sizing before you order — reducing the risk of incompatible components arriving on site.
• UK stock, fast dispatch: Orders placed before 2pm on weekdays are dispatched same day from the Telford warehouse. No 3–6 week waits for overseas shipment.
• 5-year warranty: Covers manufacturing defects, premature LED failure, and colour shift beyond specification on all DC voltage COB strip. This is one of the longest warranty periods offered by any UK LED strip supplier in 2026.
• Rated 4.64 out of 5 from 580 verified reviews: Real customer and trade feedback — not curated testimonials.

Browse the full COB LED strip range to compare waterflow SPI strip alongside single colour and RGBW options, or explore LED strip aluminium profiles for the recommended mounting solution.

Ready to order or need advice on your waterflow project? Call the ATOM LED technical team on 01952 370028 (Mon–Fri 9am–5pm), email operations@atomled.co.uk, or browse the running water SPI COB strip collection. Free UK delivery on 97% of products.

---

Frequently asked questions — running water LED strip

These are the questions the ATOM LED technical team answers most frequently about running water and waterflow SPI COB strip. If your question is not covered here, call 01952 370028 or email operations@atomled.co.uk for a direct answer from the team in Telford.

1. What is the difference between running water LED strip and standard LED strip?

• Data control: Running water strip includes SPI IC chips that allow a controller to address individual segments, creating directional motion effects that standard strip cannot produce.
• Controller requirement: Standard strip uses a basic dimmer or RGB controller, while running water strip requires a dedicated SPI pixel controller matched to the strip IC type.
• Visual result: Standard strip changes colour uniformly across its entire length, whereas running water strip can display different colours and brightness levels on different segments simultaneously.

2. Can I use a standard RGB controller with SPI running water strip?

• No: Standard RGB controllers send analogue voltage signals that SPI strip cannot interpret — the strip will either remain dark or light up in static white with no effect capability.
• Required: You need a dedicated SPI pixel controller that supports the specific IC chip type used on your strip (e.g., WS2811, SK6812).

3. What driver do I need for running water SPI COB strip?

• Type: Non-dimmable constant voltage driver — never dimmable, as this corrupts the SPI data signal.
• Sizing: Calculate total strip wattage (W/m x length) and add 20% headroom to determine minimum driver wattage.
• Voltage: Match the driver output voltage to the strip voltage — most waterflow COB strip is 24V DC.

4. How many metres of SPI strip can one controller handle?

• Data limit: The SPI data signal typically degrades after approximately 10 metres on a single data run — use a signal amplifier for longer distances.
• Pixel limit: Controllers have a maximum pixel count (commonly 1,024–2,048 pixels) — divide your total strip length by the pixel group spacing to calculate how many pixels you need.
• Power limit: The controller passes power through to the strip, so check its maximum current output against your total strip load.

5. Does cutting SPI strip void the warranty?

• No: ATOM LED SPI COB strip uses cut to length at marked intervals — cut at any marked point without voiding the 5-year warranty.
• Reconfigure after cutting: Update the pixel count on your SPI controller to match the new strip length after cutting.

6. Can running water strip be used outdoors?

• IP rating dependent: Standard indoor SPI strip is IP20 and not suitable for outdoor use. For outdoor running water installations, you need a minimum IP67-rated version.
• IP65 is not sufficient for UK outdoor use: IP65 provides surface-splash protection only and does not meet the requirements for permanent outdoor exposure under BS7671 in typical UK weather conditions.
• Check availability: Contact ATOM LED to confirm current stock of outdoor-rated SPI waterflow strip for your specific project.

7. What IC types are compatible with ATOM LED SPI controllers?

• Common IC types: WS2811, WS2812B, SK6812, UCS1903, and SM16703 are the most widely used in SPI COB strip as of 2026.
• Check before ordering: The product listing for each strip states the IC type — match this to the supported IC list on your chosen controller specification.

8. Is running water LED strip suitable for home cinema?

• Yes — it is one of the most popular residential applications: Music-reactive and rainbow chase modes create immersive viewing environments behind screens and around ceiling perimeters.
• Mounting: Install in an aluminium profile behind the screen or in a ceiling cove for diffused, indirect output that does not cause screen glare.

9. Can I sync running water strip to music?

• Yes — with the right controller: SPI controllers with built-in microphone or audio-in port detect beat, frequency, and volume to drive per-segment reactive effects in real time.
• Quality varies: Entry-level microphone-based sync responds to overall volume only, while higher-end controllers with line-in audio analyse frequency bands for more accurate visual mapping.

10. How do I prevent flickering on SPI strip?

• Use a non-dimmable constant voltage driver: Dimmable drivers introduce voltage fluctuations that corrupt SPI data, causing visible flicker.
• Separate data and mains cable: Route the SPI data wire at least 300mm away from mains cable to avoid electromagnetic interference.
• Check IC type setting: An incorrect IC type selected on the controller causes timing mismatches that appear as flickering or erratic colour changes.

11. What is the maximum brightness of running water COB strip?

• Wattage dependent: Brightness is determined by the wattage per metre of the strip — typically between 10W/m and 19W/m for waterflow COB variants.
• CRI90+ output: All ATOM LED COB strip produces CRI90+ colour rendering, which means colours appear more vivid and true-to-life than strips rated below CRI80.
• Effective brightness: Because SPI effects cycle colours and brightness across segments, the perceived brightness at any point along the strip varies with the active effect pattern.

12. Do I need an aluminium profile for SPI COB strip?

• Recommended for all installations: COB strip generates more heat per metre than traditional SMD strip due to the dense chip placement. An aluminium profile acts as a heat sink, maintaining operating temperature within specification for the full 5-year warranty period.
• Mandatory on certain surfaces: Never mount on bare metal without insulation — this causes short circuits. Never mount on insulated surfaces where heat cannot dissipate (e.g., inside sealed cavities without ventilation).

13. Can I connect multiple SPI strip runs to one controller?

• Yes — with correct wiring: Wire each strip run in parallel for power (V+ and GND back to the driver independently). Connect data lines in series — output of run 1 to input of run 2 — maintaining the data flow direction.
• Pixel count: Ensure the total pixel count across all runs does not exceed the controller maximum capacity.
• Data amplification: For total runs exceeding approximately 10 metres of data path, add an SPI signal amplifier between runs.

14. What is the lead time for ATOM LED SPI waterflow strip?

• UK stock: ATOM LED ships from stock held in the Telford, Shropshire warehouse — not dropshipped from overseas.
• Same-day dispatch: Orders placed before 2pm on weekdays are dispatched the same day.
• Free UK delivery: All orders include free delivery to UK mainland addresses, typically arriving within 1–3 working days in 2026.

15. How does waterflow strip compare to LED neon flex for feature lighting?

• Waterflow SPI strip: Produces directional moving light effects, sits flat in a profile, and offers segment-level colour control — best for dynamic, attention-grabbing features.
• LED neon flex: Produces a uniform, diffused static glow that mimics traditional glass neon — best for signage, outlines, and architectural shapes where movement is not required. Browse the LED neon flex collection for static alternatives.

16. Is ATOM LED SPI strip compatible with smart home systems?

• Controller dependent: Some SPI controllers offer Wi-Fi or Bluetooth connectivity that integrates with smartphone apps and voice assistants — check the individual controller specification for compatibility.
• Not directly compatible: SPI strip itself does not connect directly to smart home hubs — the SPI controller acts as the bridge between the strip and any smart home integration.
• For advice: Contact the ATOM LED technical team to discuss smart home integration options for your specific controller and system.

---

---

Why choose ATOM LED for your LED lighting project?

ATOM LED is a UK-based LED lighting specialist stocking every product in our Telford warehouse. We do not dropship from overseas suppliers. Free UK delivery on 97% of products, with typical delivery in 1 to 3 working days, backed by a 5-year warranty on all COB DC voltage strip lights.

• Cut technology: Cut ATOM LED strip at any point without voiding the warranty — no need to find cut marks in tight spaces.
• CRI90+ on all COB strip: Colours render naturally under ATOM LED strip, making it suitable for kitchens, retail displays, and any application where colour accuracy matters.
• Technical team available Monday to Friday, 9am to 5pm: Call 01952 370028 or email operations@atomled.co.uk for help with voltage selection, driver sizing, IP ratings, and installation planning.
• UK stock, not dropshipped: Every product ships from our Telford warehouse. No overseas lead times, no customs delays, no uncertainty on delivery dates.
• 20m single feed on 24V, 30m on 48V: Longer single-feed runs than most UK competitors, reducing the number of drivers and feed points required in large installations.

Cut to your project length at pixel boundaries: we cut at the nearest IC interval so every pixel in the chain fires correctly. A mid-IC cut kills the downstream segment — our cutting service prevents that. Free on every order. Available in IP20 for indoor installations, IP67 for outdoor and wet zones, and IP68 for submersible applications.

---

---

How do you cut running water SPI strip to a bespoke length?

Running water strip cuts at pixel IC boundaries — every 33.3mm on 30-pixel/m models. ATOM LED cuts to your specified length at the nearest IC point before dispatch from Telford, ensuring the SPI data chain terminates cleanly. A 4.2m bar-front chase effect ships as one sealed piece with the data-in wire ready for your pixel controller. No charge, no minimum, no risk of dead pixels from a mid-IC cut. Available in IP20, IP67, and IP68.

---

Related Collections

• addressable digital RGB COB strip
• SPI pixel controllers
• LED strip lights collection
• 24V non-dimmable drivers

Last reviewed: March 2026 — ATOM LED technical team, Telford, Shropshire. Specifications current as of 2026.

🏭 UK LED specialist, Telford, Shropshire  ·  ☎️ 01952 370028  ·  🚚 Free UK delivery on 97% of products
