- Voltage
- 24V
- IP Rating
- IP68
- Cut
- 7.14cm
- Max Run
- 10m
- Warranty
- 5 Year

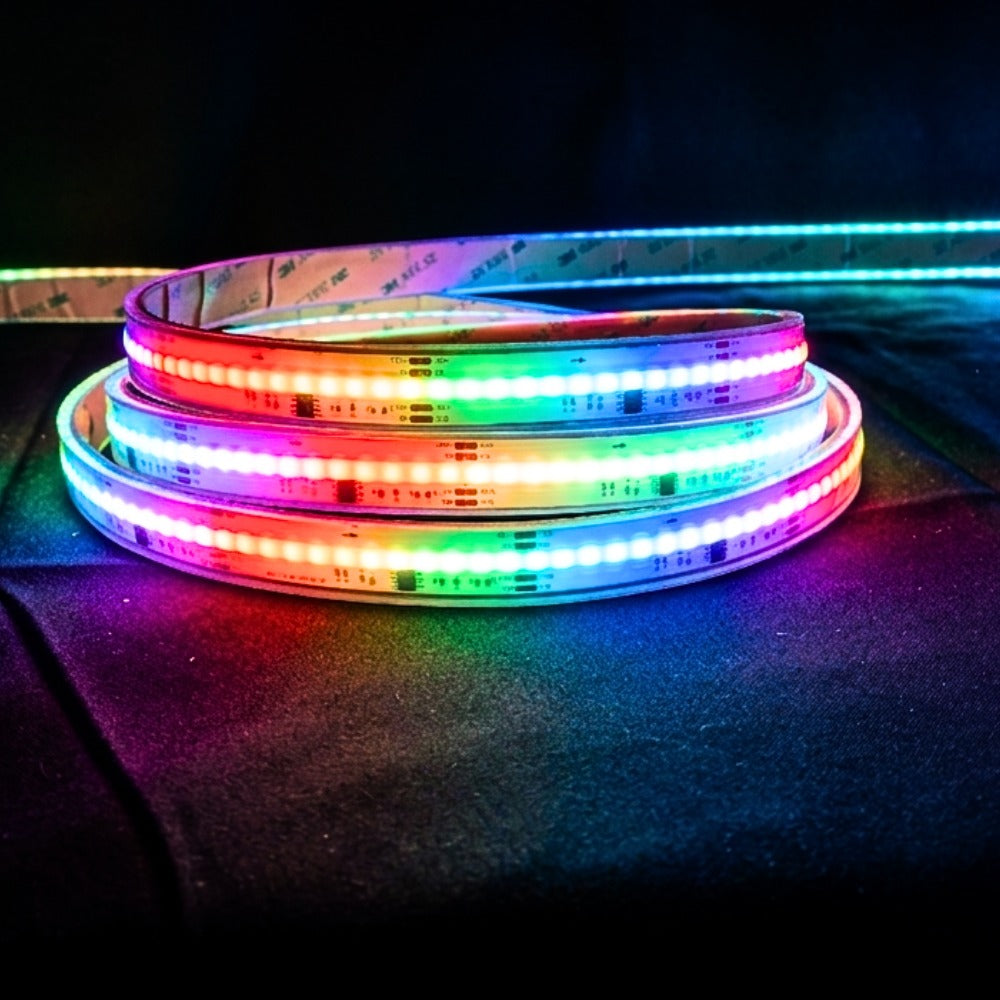

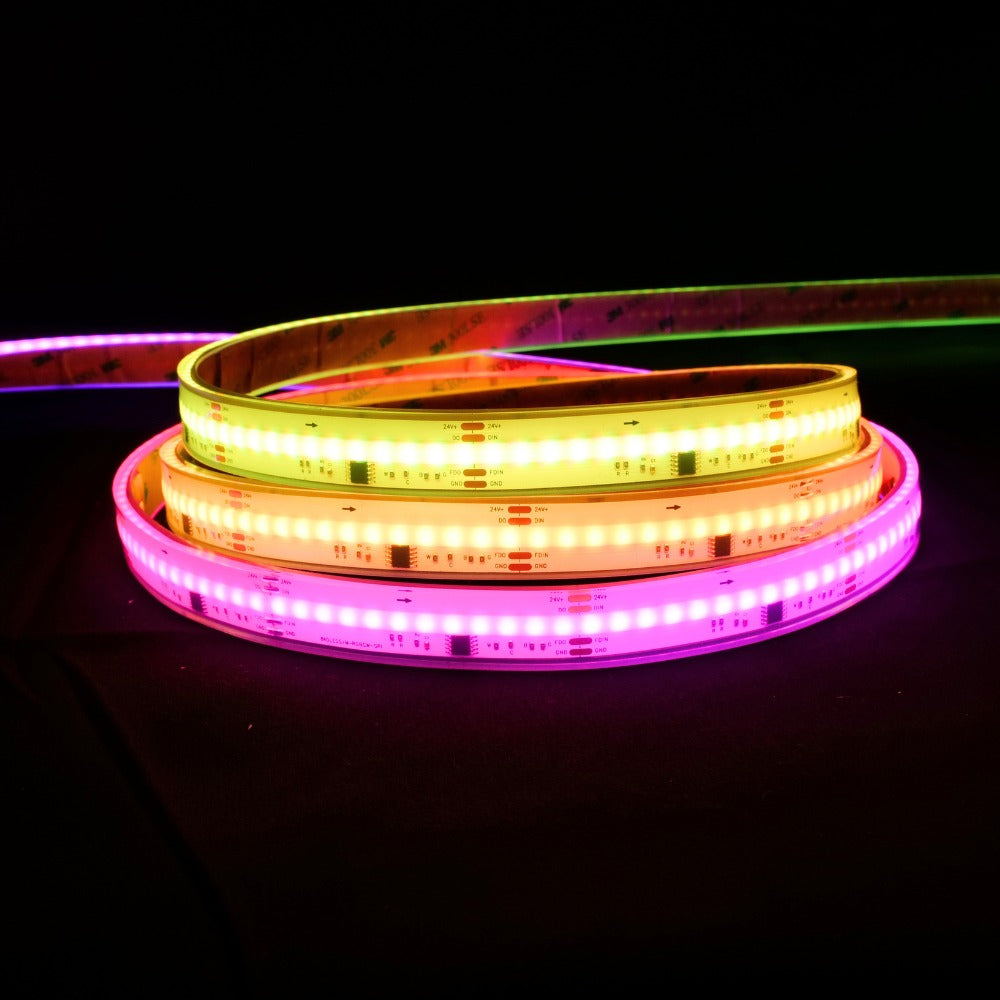

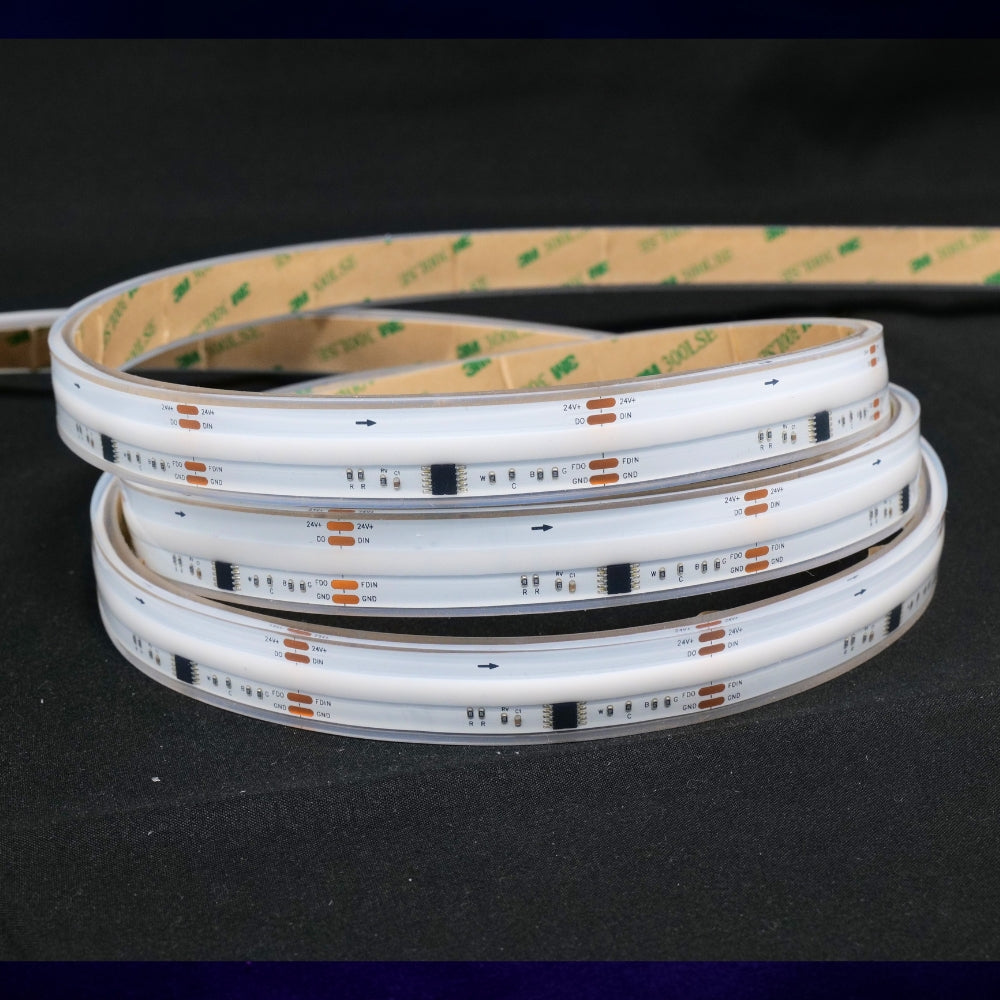

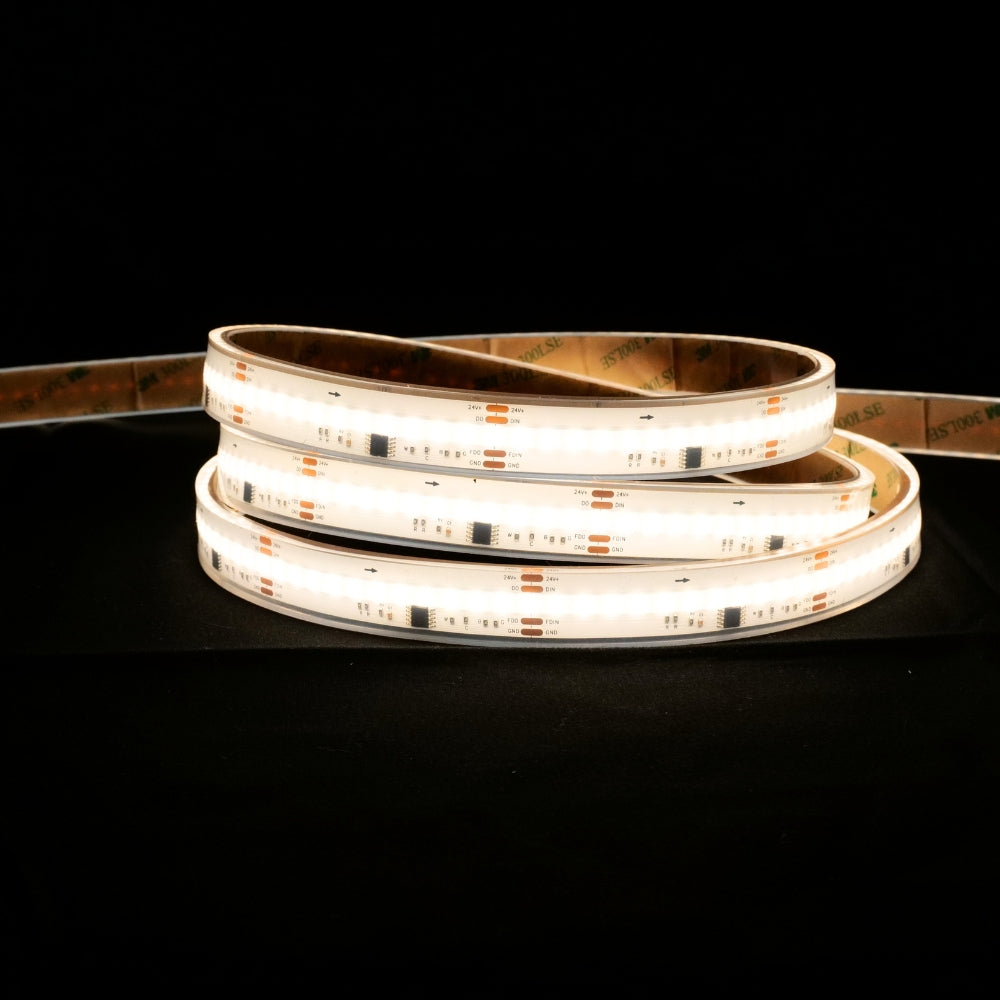

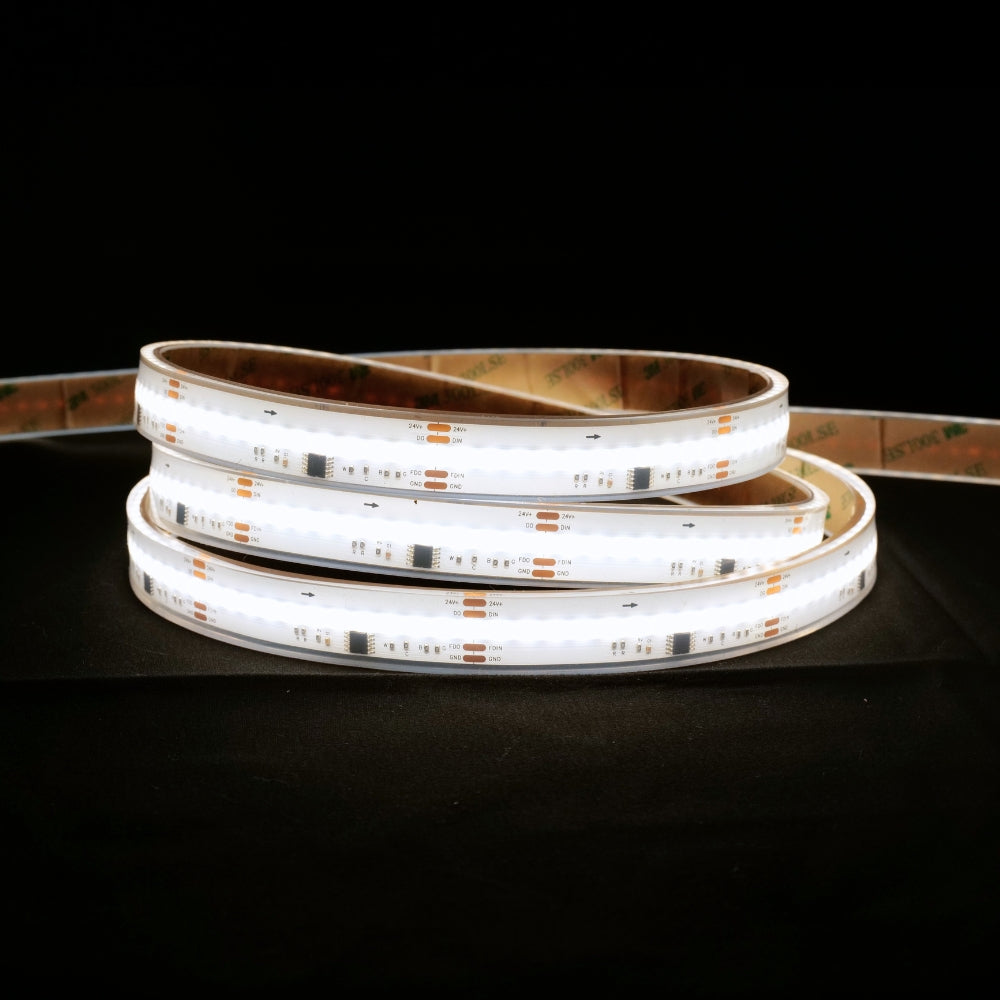

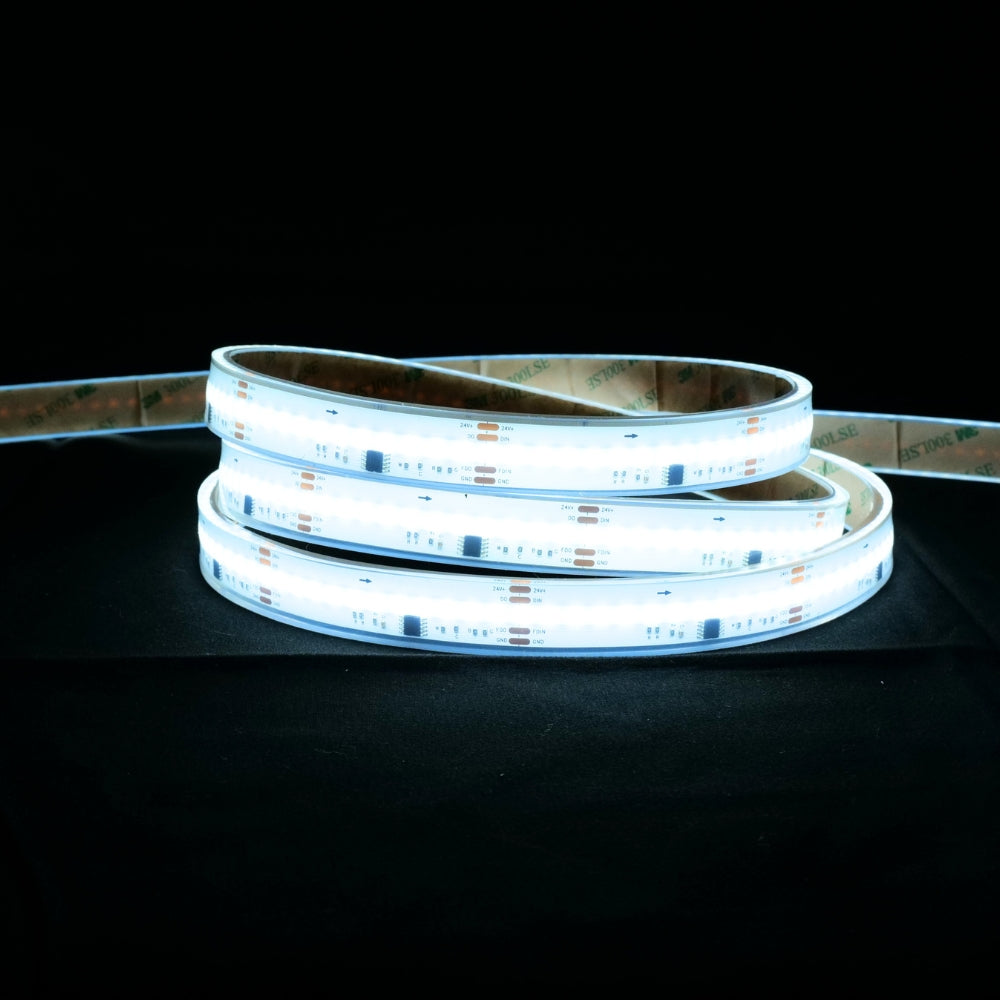

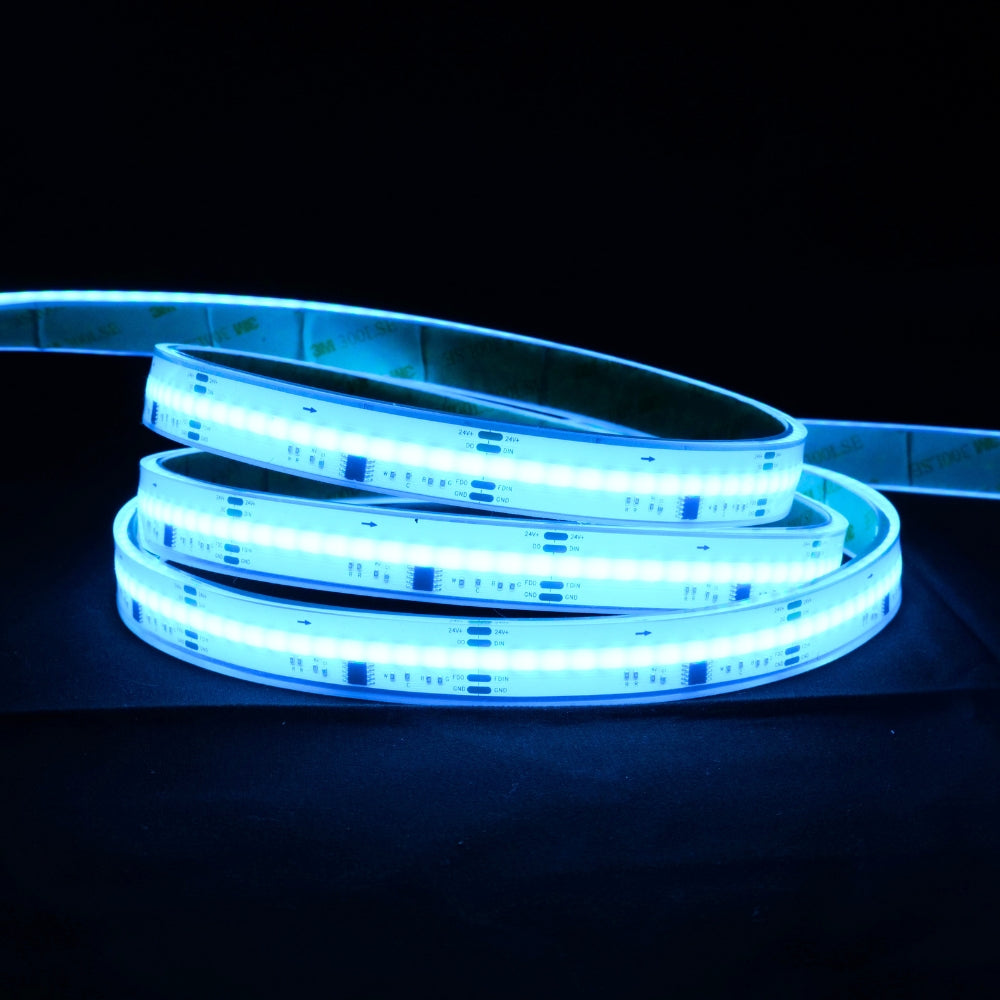

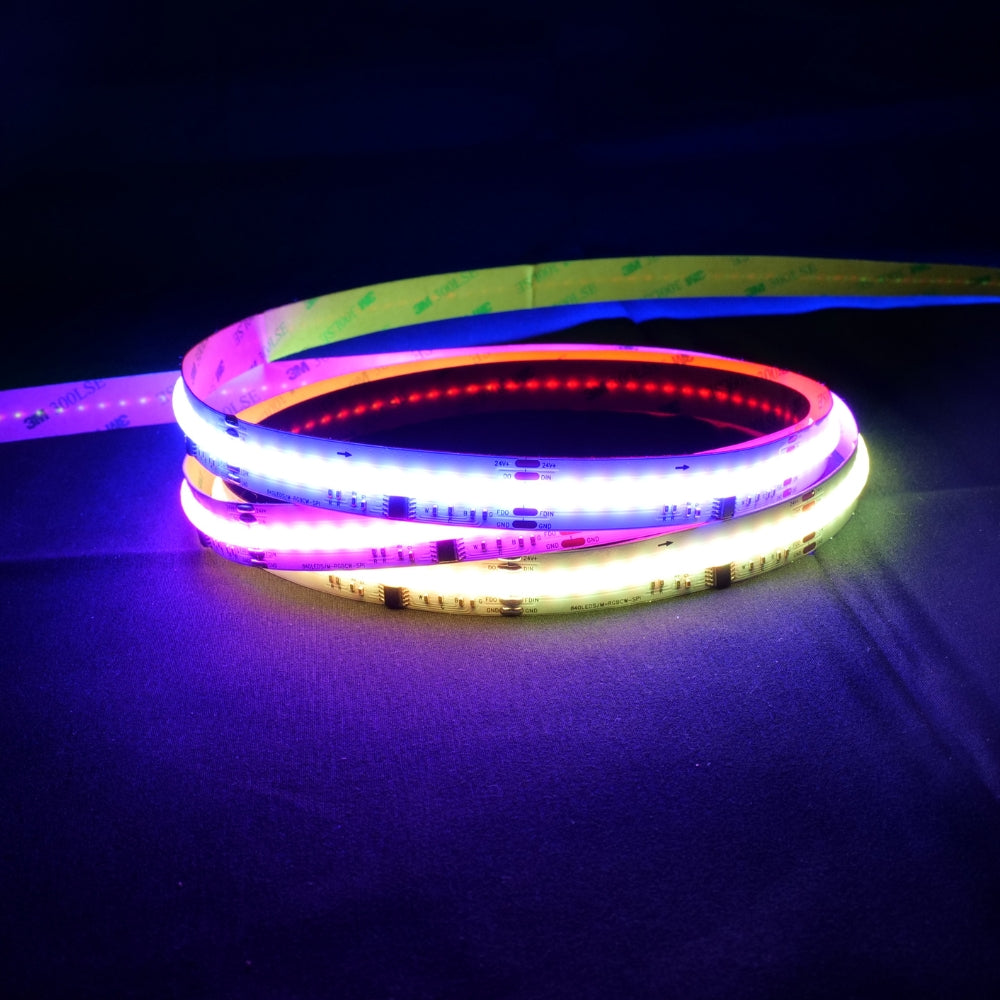

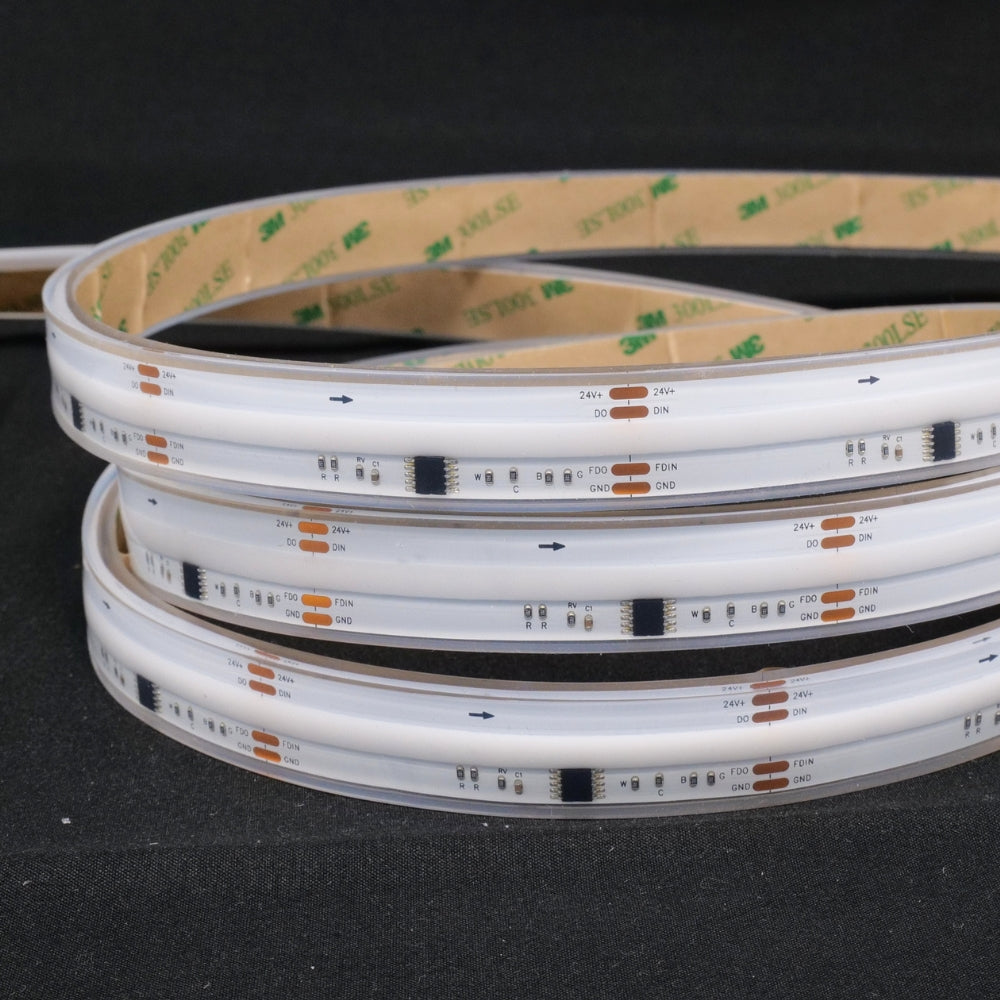

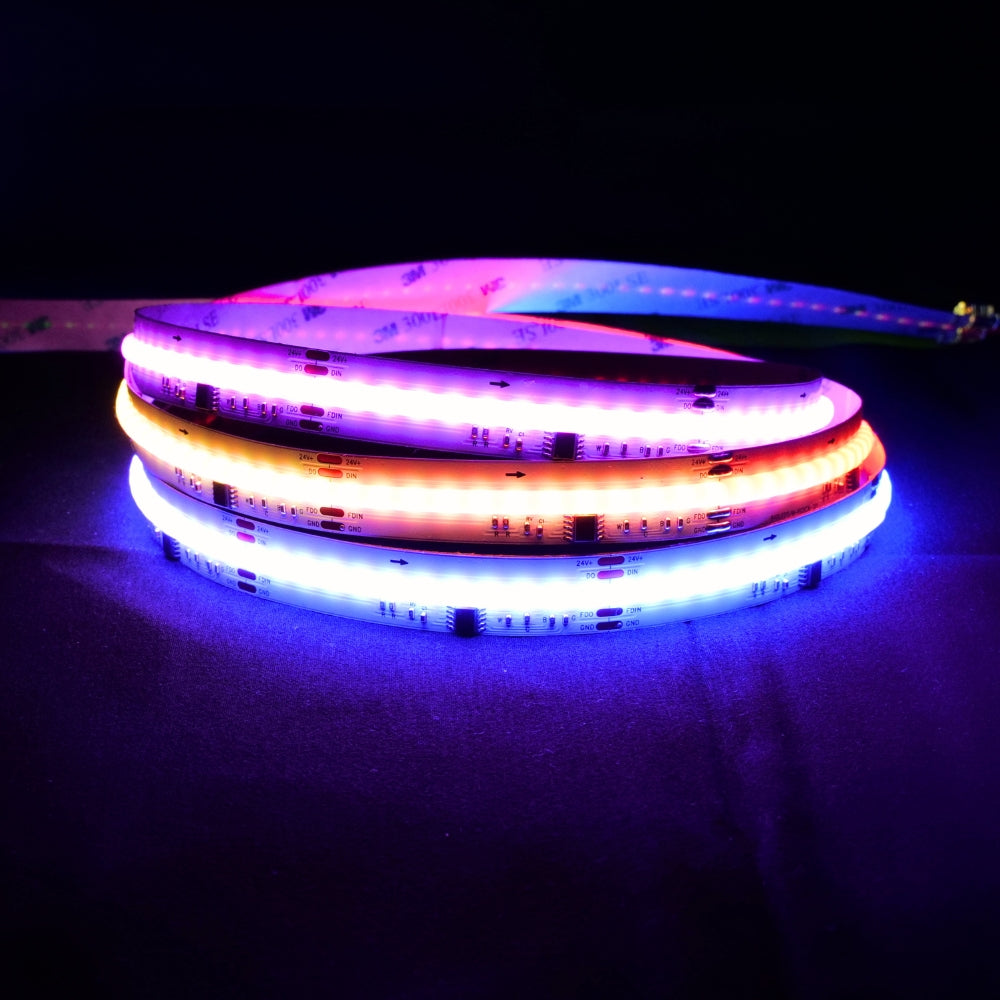

Digital Pixel RGB CCT COB Strip 24V IP68 Waterproof 840 LEDs/m WS2805
SKU: DPRGBCCTCOBIP68-18MM-5M
-
IP68 Waterproof
-
Dotless COB
-
Reduced Glare
-
CRI 90
Encrypted & secure checkout
Description
Our IP68 Digital Pixel RGB CCT (Cool White 6000K + Warm White 3000K) COB Strip brings together colour-rich RGB lighting and precise white temperature control in a single, fully Waterproof solution. Whether you are working on an outdoor architectural project, a poolside installation, or a high-end interior, this strip is built to perform in wet and dry environments alike. Pre-applied double-sided tape makes mounting straightforward, and the ability to cut the strip to your required length means it adapts to any project dimension without compromise. A 20cm cable wire comes pre-attached, providing a convenient lead for connecting directly to your power supply or controller without the need for additional wiring work.
Running on the WS2805 protocol, each pixel can be individually addressed, opening up a world of creative possibilities from flowing gradients and animated colour chases to dynamic scene-setting effects. The COB construction packs 840 LEDs into every metre, eliminating hotspots and delivering a consistently smooth, dot-free beam that elevates the finish of any installation.
With a CRI of 90 and an output of 870 lumens per metre, this strip reproduces colours with exceptional accuracy and clarity. Drawing 26 watts per metre, it balances powerful output with responsible energy consumption, making it a practical choice for retail environments, hospitality venues, creative studios, outdoor facades, and luxury residential spaces. Built to last and backed by a three-year warranty, it is a dependable long-term investment for projects where both performance and aesthetics are non-negotiable.
Specification:
- Working Voltage: 24V
- Light Colour: RGB CCT (Cool White 6000K + Warm White 3000K)
- IC Type: WS2805
- Pixels: 14 per metre
- LEDs: 840 COB LEDs/m
- Width: 15mm
- Cutting: 7.14cm (71.42mm)
- Standard Packing: 10m Continuous run
- Waterproof Rating: IP68 Waterproof
- Working Temperature: -20°C – 45°C
- Dimensions: 15mm wide x 2mm Depth
- Lumens: 870 lm/m
- Power: 26W/Metre
- Cable: 20cm cable length
- Warranty: 3 years
- Product Type
- COB LED Strip
- Colour
- RGB Multicolour
- IP Rating
- IP68 Waterproof
- Voltage
- 24V
- Watts Per Metre
- 26 Watts
- LEDs Per Metre
- 840
- Max Run Length
- 10m
- CRI
- >90
- Dimensions
- 18mm x 5mm
- Warranty
- 5 Years
Specifications
- Product Type
- COB LED Strip
- Colour
- RGB Multicolour
- IP Rating
- IP68 Waterproof
- LEDs Per Metre
- 840
- Continuous Run
- 10m
- Voltage
- 24V
- Watts Per Metre
- 26 Watts
- Metres
- 30m roll
- Dimensions
- 18mm x 5mm
- Width
- 18mm
- Bending Angle
- Vertical Bend
- Lumens Per Metre
- 870 lm
- Cut Points
- 7.14cm (71.42mm)
- Operating Temperature
- -25°C to 40°C
- LED Type
- COB
- Average LED Life Hours
- 50,000
- Continuous Operating Hours
- 15 hours
- Certification
- UKCA, CE, RoHS
- CRI
- >90
- Input
- 14 Pixels / metre
- Output
- WS2805 Protocol
- Warranty
- 5 years
- Brand
- ATOM LED
Delivery & Returns
On 97% of products — Royal Mail 48-hour tracked
Mainland UK orders over £90 — order by 1pm, Mon–Fri
30-day returns window — free returns on faulty products
01952 370028 · Mon–Fri 9am–5pm
Shipping
Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.
Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.
Saturday Delivery is available as a paid option at checkout.
Large orders and pallet shipments: call 01952 370028 for a quote.
For more information see our detailed Shipping Page.
International Shipping
Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.
Returns & Refunds
The 30-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:
- Standard LED strip lights supplied as 5-metre rolls
- Straight aluminium profiles
- Power supplies and drivers
- Accessories (connectors, controllers, dimmers, end caps)
Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.
Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.
Refunds are processed within 5–10 working days of receiving the returned item.
For more details see our Returns & Refunds page.
Reviews
Frequently Asked Questions
What is the difference between IP65, IP67, and IP68?
IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.
Can I cut this product to a custom length?
Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.
What size driver do I need?
Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.
Should I choose 12V, 24V, or 48V?
Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
What is your warranty?
ATOM LED offers product-specific warranties: up to 7 years on single-colour COB strip, 5 years on RGB and RGBW COB strip, and 4 years on LED neon flex. The warranty covers manufacturing defects. Call 01952 370028 for warranty claims.
Do you offer free delivery?
Yes. Free UK delivery on 97% of products via Royal Mail 48-hour tracked. Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
