For outdoor LED neon flex exposed to British weather, IP67 is the minimum rating you should fit. IP65 resists rain and splashes in lab tests, but it is not built for sustained wind-driven rain, winter freeze-thaw, or standing moisture. Use IP65 only in sheltered positions — covered soffits, enclosed sign housings, roofed pergola ceilings. Anywhere open to the sky needs IP67 or higher.
Outdoor LED neon flex gives a smooth, dot-free line of light along walls, fences, pergolas, and garden edges. It outlasts cheap outdoor neon when you pick the correct IP rating and seal the ends properly. The rating on the reel is only half the job. Most failures start at the cut ends and connectors, not the silicone jacket.
Get the rating wrong and the run floods within two winters. Get it right and it outlasts the brackets holding it up.
What IP rating do you need for outdoor neon flex in the UK?
Fit IP67 as the minimum for any outdoor neon flex exposed to the weather. IP67 survives temporary immersion (1 metre for 30 minutes under IEC 60529 test conditions), which covers wind-driven rain and pooling. IP65 belongs in sheltered spots only. For ponds, fountains, or anything permanently underwater, step up to IP68.
British weather is the deciding factor. Most of the UK sees over 1,200mm of rainfall a year, with horizontal rain on exposed walls, condensation cycling, and winter temperatures dropping below 0°C. Those conditions push past what IP65 was tested to handle over a full installation life, not in a single shower, but across months and seasons.
📊 In our experience fitting outdoor runs across the UK, IP65 neon flex installed in fully exposed positions typically fails at the connectors or cut ends within one to three years. IP67 in the same position routinely runs past five.
— ATOM LED field installations, Telford and UK-wide
What does IP65 actually protect against?
IP65 is dust-tight and resists low-pressure water jets from any direction. The first digit, 6, means no dust ingress. The second digit, 5, means protection against water jets — rain, splashes, and hose spray. IP65 does not protect against immersion, and it is not tested against sustained or wind-driven water over time.
The rating comes from IEC 60529, the international standard for ingress protection. The test for the 5 is a 6.3mm nozzle spraying water at the enclosure for a set time. That is a controlled, short-duration test. It tells you nothing about a fence-mounted run facing three months of Atlantic storms, which is the gap that catches people out.
Why does IP65 neon flex fail outdoors in British weather?
IP65 fails outdoors because UK weather attacks it in ways the IEC 60529 test never simulates: capillary moisture creeping into cut ends, condensation forming inside the jacket as temperatures swing, and freeze-thaw expansion splitting seals. The jacket rating stays intact while water enters through the weakest joint, almost always an end cap or connector.
Three failure modes show up again and again on exposed IP65 installs:
- Capillary action at cut ends: Water wicks into the exposed copper at a cut point. IP65 protects the body of the strip, not a freshly cut end left unsealed. Within months the first LEDs near the cut corrode and drop out.
- Condensation inside the jacket: A sealed but breathing enclosure heats in daytime and cools at night. Moist air drawn in condenses inside the silicone, sitting directly on the LEDs. This is invisible until a section dims or flickers.
- Freeze-thaw seal failure: Trapped water expands roughly 9% when it freezes below 0°C. Each frost cycle widens a micro-gap at an end cap. By the second winter the seal has opened and the run floods.
None of these are jacket failures, which is why upgrading to IP67 alone is not the full fix. But IP67's deeper potting and immersion-rated end caps give a far wider safety margin against all three.
It comes down to one thing. IP65 is not built for sustained British weather, so water works into the strip over months and the run fails. IP67 is the fix. ATOM LED IP67 neon flex is fully silicone-injected through the body, not hollow PVC, so there is no internal cavity for water to reach the LEDs. We make each run to your measurements and seal the ends professionally, which removes the exact weak point where most outdoor neon flex lets water in. That construction is why it lasts outdoors where IP65 does not.
How long does outdoor LED neon flex last?
Quality outdoor LED neon flex lasts around 50,000 hours of run time, roughly 17 years at 8 hours a day, when it is correctly rated, sealed, and driven within spec. Three things cut that short: water ingress at unsealed ends, UV breaking down a cheap PVC jacket, and a driver run at full load.
The jacket material decides outdoor longevity as much as the IP rating. UV-stable silicone resists sunlight and temperature cycling for years. Cheaper PVC-jacketed neon yellows, stiffens, and splits under UK sun and frost, often within two to three summers. When you compare outdoor neon flex, check the jacket is silicone, not PVC.
ATOM LED neon flex carries a 4-year warranty and uses UV-stable silicone built for UK conditions. Pair it with an IP67 driver sized to 20% headroom and it runs well past the warranty.
IP65 vs IP67 vs IP68: what each rating means
Each step up the IP scale adds water protection. IP65 handles jets but not immersion. IP67 handles temporary immersion to 1 metre for 30 minutes. IP68 handles continuous immersion at a depth the maker specifies. For exposed UK outdoor neon flex, IP67 is the practical floor.
| IP Rating | Water Protection (IEC 60529) | Correct Use |
|---|---|---|
| IP65 | Low-pressure water jets, not immersion | Sheltered only — covered soffits, roofed pergola ceilings, enclosed sign housings, indoor |
| IP67 | Temporary immersion, 1m for 30 minutes | All exposed UK outdoor — open walls, fence lines, decking edges, building outlines, exterior signage |
| IP68 | Continuous immersion, depth per maker spec | Ponds, fountains, water features, permanently submerged positions |
12V vs 24V outdoor neon flex: which should you choose?
Choose 24V for any run over about 5 metres and 12V only for short accents. At the same power per metre, a 24V system draws half the current of a 12V system, which halves voltage drop along the run. Lower voltage drop means even brightness end to end and fewer power injection points.
Here is the maths that decides it. A 12V strip at 14.4W per metre draws 1.2A per metre. The same 14.4W per metre at 24V draws just 0.6A per metre. Current is what causes voltage drop in the copper, so the 24V run loses brightness at half the rate over the same distance.
| Factor | 12V Neon Flex | 24V Neon Flex |
|---|---|---|
| Current at 14.4W/m | 1.2A per metre | 0.6A per metre |
| Voltage drop over distance | Higher, dims sooner | Half the rate |
| Best run length | Short accents, small signs | Long fence, pergola, building outlines |
| Power injection points | More needed | Fewer needed |
| Cable current (same power) | Higher, thicker cable | Lower, thinner cable runs |
I learned this on a long garden wall run. I picked 12V because it felt simpler. The first half looked perfect; the far end looked washed out. The same job in 24V held even brightness across the whole length with one feed. On outdoor runs, voltage choice decides the result more than any other single factor.
How do you size a driver for outdoor neon flex?
Size the driver to total strip wattage plus 20% headroom, and match the voltage exactly. A 24V strip needs a 24V constant voltage driver; a 12V strip needs a 12V driver. The 20% margin keeps the driver running cooler and extends its life.
- Find watts per metre. Check the product specification for your neon flex, for example 10W per metre.
- Multiply by length. 10W per metre × 8 metres = 80W total load.
- Add 20% headroom. 80W × 1.2 = 96W, so choose a 100W driver or above.
- Match the voltage. 12V strip to a 12V driver, 24V strip to a 24V driver. Mismatching voltage destroys the strip.
- Use an IP67 driver outdoors. The driver must match the environment. An indoor-rated driver in an exposed box fails as fast as an underrated strip.
📊 An undersized driver running at 100% load continuously runs hot and commonly fails inside six to twelve months. The same driver at 80% load runs cooler and lasts years longer.
— ATOM LED field installations
Where does each IP rating belong outdoors?
Match the rating to the exposure, not the room. A covered soffit is sheltered even though it is outside, so IP65 works there. An open fence line is fully exposed, so it needs IP67, even though both are "outdoor". Judge by whether the strip faces open sky and weather.
Sheltered positions — IP65 acceptable
- Under a coping or wall cap, mounted below the lip out of direct rain
- Roofed pergola ceilings with solid overhead cover on all sides
- Enclosed sign housings and recessed channels with a sealed face
- Covered porches and soffits with deep overhang
Exposed positions — IP67 minimum
- Open garden walls and fence lines with no overhead cover
- Open-sided pergola beams where wind drives rain horizontally

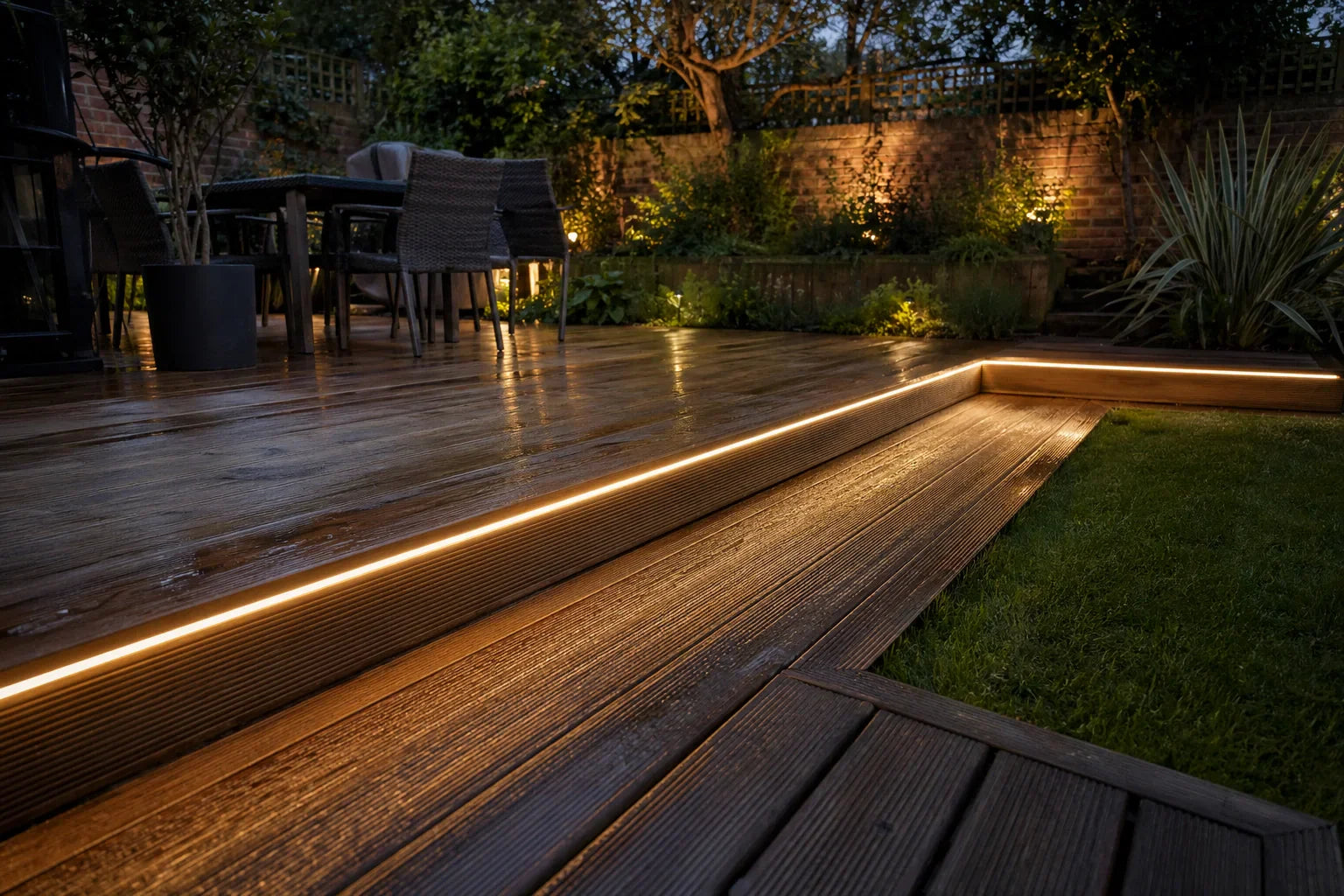

- Decking edges and step lighting at ground level where water pools
- Building fascias, eaves, and exterior signage facing the weather
Why ends and joins fail before the jacket does
The IP rating describes the jacket, not your connections. A perfect IP67 strip still floods if the end cap is unsealed or the connector sits in a puddle. On outdoor installs, the ends and joins decide whether the run lasts one winter or ten.
- Seal every cut end with the correct end cap and adhesive, never leave bare copper exposed
- Use connectors matched to the neon flex profile, not generic push-fit parts
- Place every join inside a weatherproof junction box, not exposed on the wall
- Add a drip loop before each cable entry so water drips off rather than tracking into the box
- Mount joins above low points where water collects, never at the bottom of a run
Common mistakes to avoid
- Fitting IP65 on an exposed fence or wall. The single most common outdoor failure. Use IP67 anywhere open to the sky.
- Leaving cut ends unsealed. Water wicks into the copper within weeks. Seal every cut.
- Running 12V over long distances. The far end dims. Use 24V for runs over 5 metres.
- Powering the run from one end only. Long runs need power injection at additional points to hold brightness.
- Using an indoor driver outdoors. Match the driver IP rating to the environment, IP67 minimum.
- Running the driver at 100% load. Always size to total wattage plus 20% headroom.
The strip is the cheapest part of an outdoor install. Most of the cost is labour and access. Fit IP65 to save a few pounds per metre, then replace the flooded run two winters later, and you pay the labour bill twice.
Why choose ATOM LED for outdoor neon flex?
ATOM LED makes IP67 and IP68 neon flex to order for UK outdoor projects, cut to your length and sealed at the factory so the ends never become the failure point. Every run pairs with a matched 24V driver and weatherproof connectors, and the neon flex carries a 4-year warranty.
For an exposed installation, give us the length and we build it to measure, sealed and ready to fit. Browse the outdoor LED neon flex range and IP67 neon flex, or call our technical team on 01952 370028, Monday to Friday, 9am–5pm.
Frequently asked questions
What IP rating is best for outdoor LED neon flex in the UK?
IP67 is the minimum for exposed outdoor use in the UK. It survives temporary immersion to 1 metre for 30 minutes under IEC 60529, which covers wind-driven rain and pooling water. IP65 suits sheltered positions only. Step up to IP68 for ponds, fountains, or permanently submerged installations.
Is IP65 neon flex waterproof enough for outdoor use?
IP65 is not ideal for exposed outdoor use in British weather. It resists rain and splashes in a short lab test, but sustained wind-driven rain, condensation, and winter freeze-thaw exceed what it handles over years. Use IP65 only in sheltered spots with overhead cover, and choose IP67 for anything open to the weather.
Should I choose 12V or 24V outdoor neon flex?
Choose 24V for runs over about 5 metres and 12V for short accents. At the same power per metre, 24V draws half the current of 12V, which halves voltage drop and keeps brightness even across long runs. 24V also needs fewer power injection points and thinner cable.
Why does outdoor LED neon flex fail before its rated lifespan?
Most outdoor neon flex fails at the ends and joins, not the jacket. Water wicks into unsealed cut ends, condensation forms inside the silicone, and freeze-thaw cycles split seals at end caps. Seal every cut, use matched connectors, and place joins inside weatherproof enclosures to prevent it.
What size driver do I need for outdoor neon flex?
Size the driver to total strip wattage plus 20% headroom. An 8-metre run at 10W per metre draws 80W, so choose a 100W driver or above. Match the voltage exactly, 24V strip to a 24V driver, and use an IP67-rated driver in any exposed outdoor position.
Last reviewed: May 2026 — ATOM LED technical team, Telford, Shropshire. Specifications current as of 2026.
