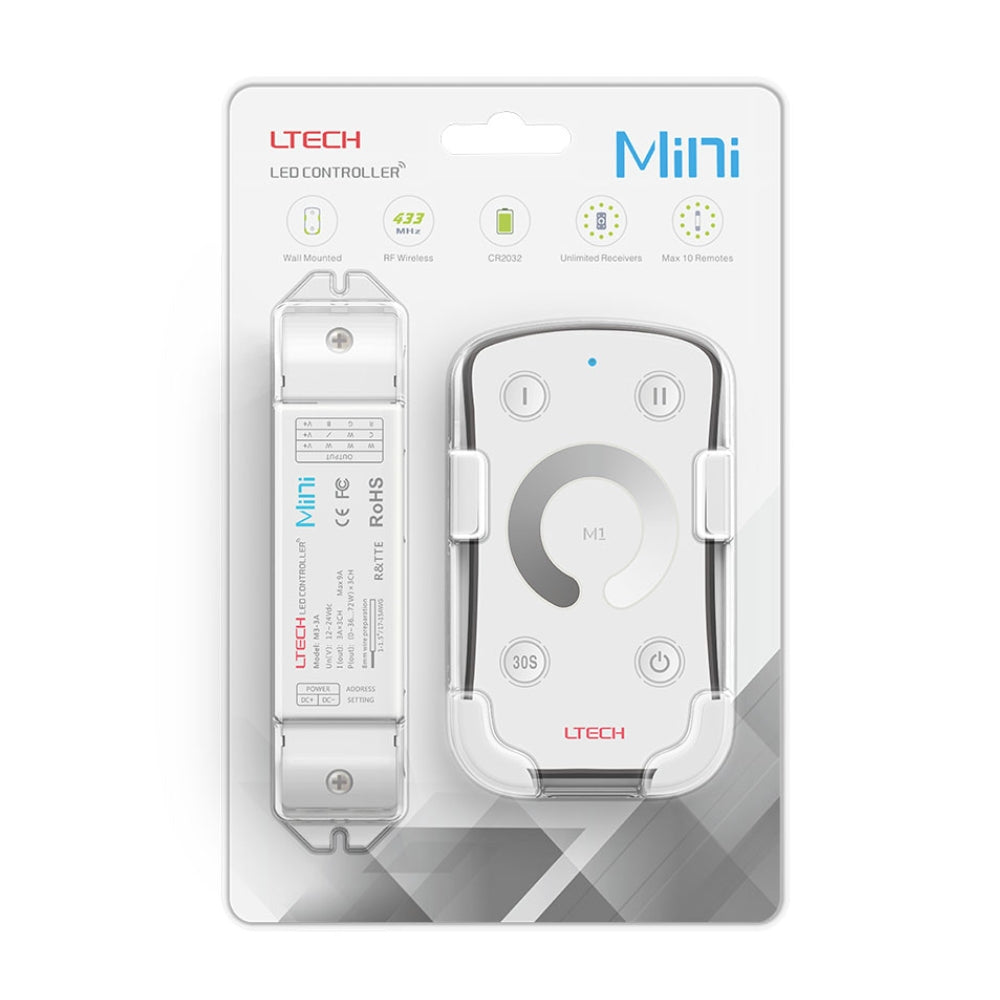

LTECH M1+M3-3A Remote Control Dimmer With RF Receiver 9A
SKU: M1+M3-3A
-
Non-Waterproof
-
LED Strip
-
Reduced Glare
-
CRI 90
Encrypted & secure checkout
Description
Mini RF LED Dimmer Controller with 433.92 MHz Remote – 12–24V DC
The LTECH Mini Series LED controller combines compact design with powerful performance, delivering reliable RF remote controlled dimming for low voltage LED lighting systems. With over 10 years of LED control development behind it, this controller is only one third the size of conventional units while still offering smooth dimming, RGB and colour temperature control options depending on configuration.
The included RF remote operates on 433.92 MHz with a wireless range of up to 50 metres, providing stable control without requiring line of sight. It features a touch sensitive dimming wheel for precise brightness adjustment, an on and off button, two programmable scene memory buttons for saving preferred light levels, and a convenient 30 second delay off function.
Designed for 12–24V DC LED circuits, the M3-3A receiver delivers PWM output for smooth and flicker free dimming. It supports a current load of 3A per channel with a maximum 9A total load, making it suitable for single colour LED strips and compatible RGB or colour temperature LED installations. The receiver can be paired with up to 10 remotes and includes a simple ID learning function for quick setup.
With compact dimensions, easy installation and a 5 year warranty, this mini RF LED dimmer controller is ideal for residential, commercial and architectural LED lighting projects where reliable wireless dimming is required.
Specifications
Remote Control – Model M1
Working Voltage: 3V (CR2032 battery)
Working Frequency: 433.92 MHz
Working Temperature: -30°C to +55°C
Dimensions: 104 × 58 × 9 mm
Net Weight: 42 g
Receiver – Model M3-3A
Power Input: 12–24V DC
Current Load: 3A × 3 Channels (Max. 9A total)
Output Power: 0–36W to 72W per channel (depending on input voltage)
Working Temperature: -30°C to +55°C
Dimensions: 135 × 30 × 20 mm
Net Weight: 47 g
System Information
Control Method: RF Wireless
Max Remote Pairing: Up to 10 remotes per receiver
Warranty: 5 Years
Total Gross Weight: 135 g
- Colour
- White
- IP Rating
- IP20 Non-Waterproof
- Voltage
- Power Input: 12–24V DC
- Dimensions
- 135 × 30 × 20 mm
- Warranty
- 5 Years
Specifications
- Colour
- White
- IP Rating
- IP20 Non-Waterproof
- Voltage
- Power Input: 12–24V DC
- Dimensions
- 135 × 30 × 20 mm
- Operating Temperature
- 20 to +45 °C
- Certification
- CE, RoHS
- Warranty
- 5 years
- Brand
- LTECH
Technical Documents
Delivery & Returns
On 97% of products — Royal Mail 48-hour tracked
Mainland UK orders over £90 — order by 1pm, Mon–Fri
30-day returns window — free returns on faulty products
01952 370028 · Mon–Fri 9am–5pm
Shipping
Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.
Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.
Saturday Delivery is available as a paid option at checkout.
Large orders and pallet shipments: call 01952 370028 for a quote.
For more information see our detailed Shipping Page.
International Shipping
Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.
Returns & Refunds
The 30-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:
- Standard LED strip lights supplied as 5-metre rolls
- Straight aluminium profiles
- Power supplies and drivers
- Accessories (connectors, controllers, dimmers, end caps)
Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.
Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.
Refunds are processed within 5–10 working days of receiving the returned item.
For more details see our Returns & Refunds page.
Reviews
Frequently Asked Questions
What is the difference between IP65, IP67, and IP68?
IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.
Can I cut this product to a custom length?
Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.
What size driver do I need?
Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.
Should I choose 12V, 24V, or 48V?
Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
