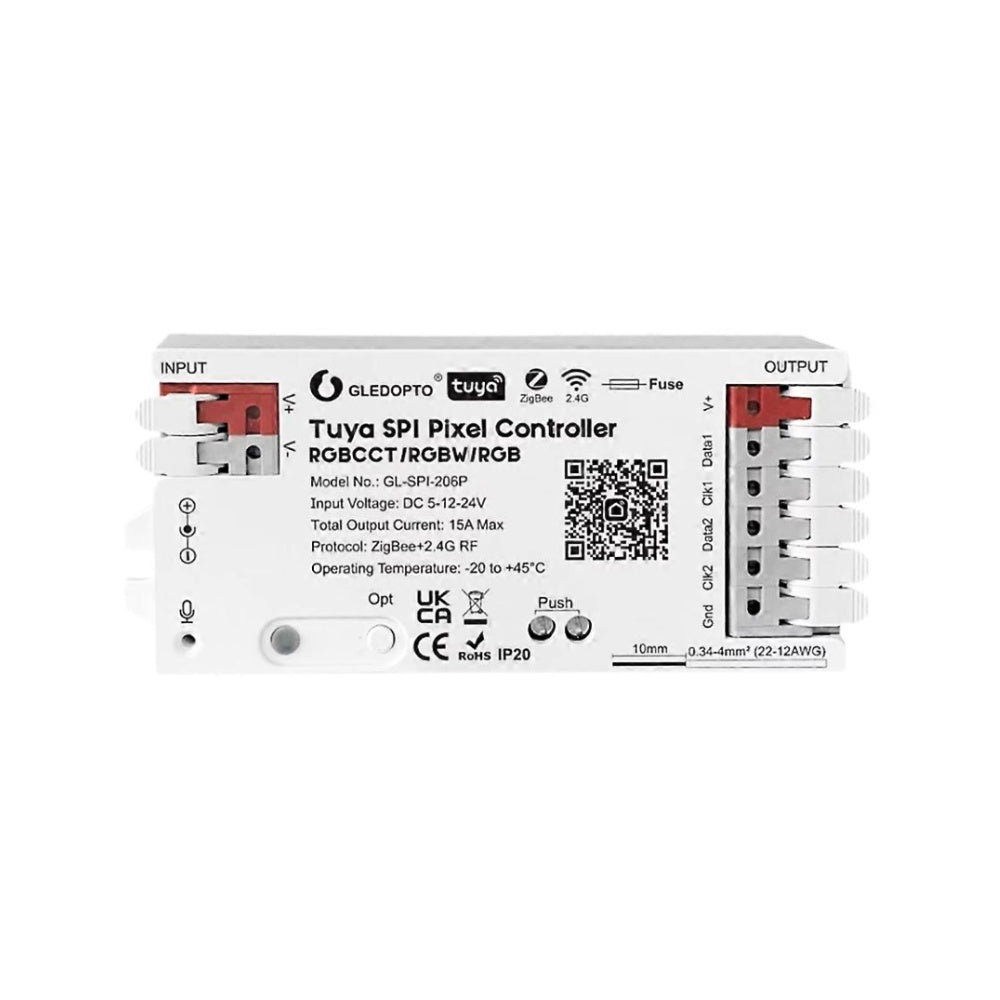

GLEDOPTO Tuya SPI Pixel Controller RGBCCT RGBW RGB WiFi LED Controller Music Sync Work with Smart Life Google Alexa Yandex GL-SPI-206W
SKU: GL-SPI-206W
-
Non-Waterproof
-
LED Strip
-
Reduced Glare
-
CRI 90
Encrypted & secure checkout
Description
The Tuya SPI Pixel LED Controller WiFi (GL-SPI-206W) is designed for easy and flexible control of digital Pixel LED strips in modern smart lighting setups. It connects directly to the Tuya or Smart Life app over 2.4 GHz WiFi, removing the need for any additional gateway and making installation quick and straightforward.
The controller supports DC input voltages of 5 V, 12 V, or 24 V with a maximum load of up to 15 A. It features two SPI (TTL) outputs with data speeds up to 800 Kbps, allowing control of up to 1,000 LEDs across 20 segments. It is compatible with a wide range of popular pixel chipsets, including WS2811, WS2812, WS2813, WS2815, SK6812 (RGBW), SK9822, WS2805 (RGBCCT), and more.

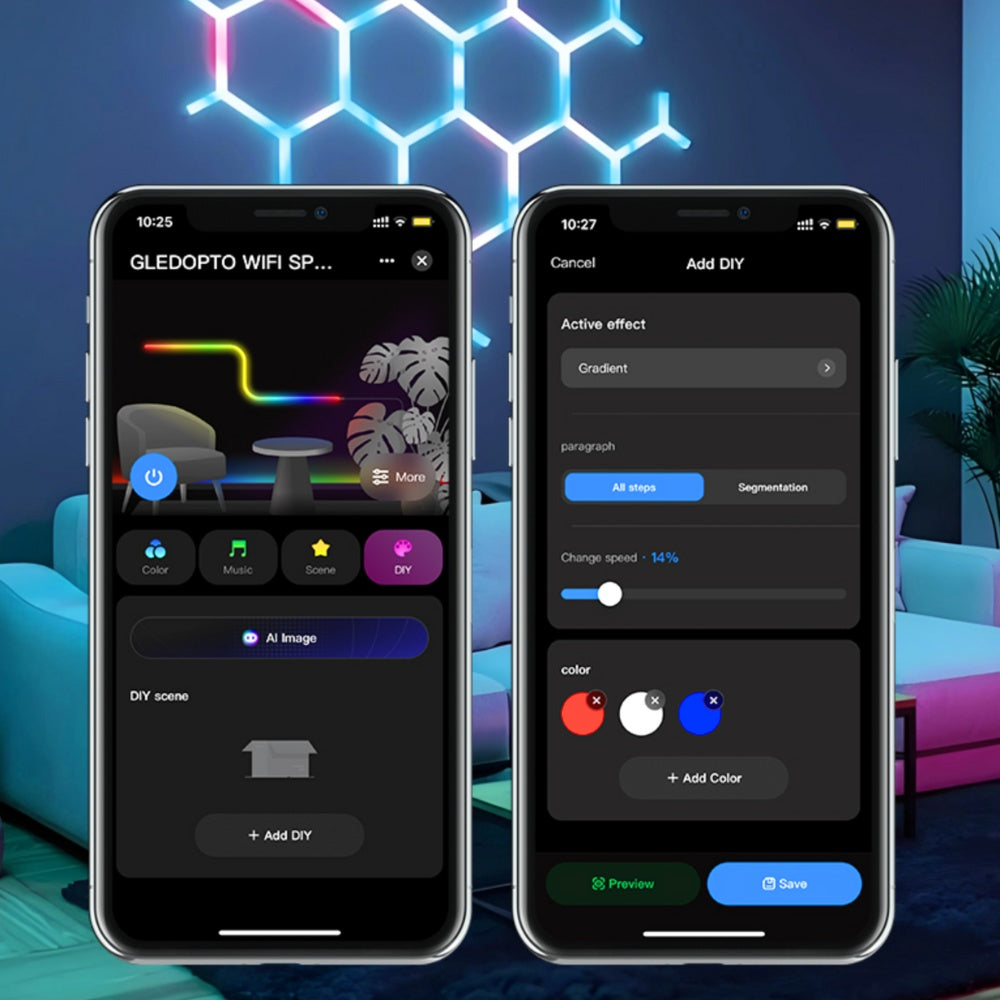

Through the Tuya or Smart Life app, users can access over 40 preset scenes, create up to 16 custom DIY effects, and use timers, music modes, and group control for synchronised lighting across multiple zones.
The WiFi version is ideal for users who want fast, direct integration without the complexity of a ZigBee gateway. It is well suited for small to medium installations, gaming rooms, feature lighting, and ambient Pixel LED applications.
- WiFi (GL-SPI-206W)
- Input voltage: DC 5–12–24 V | Max. current: 15 A

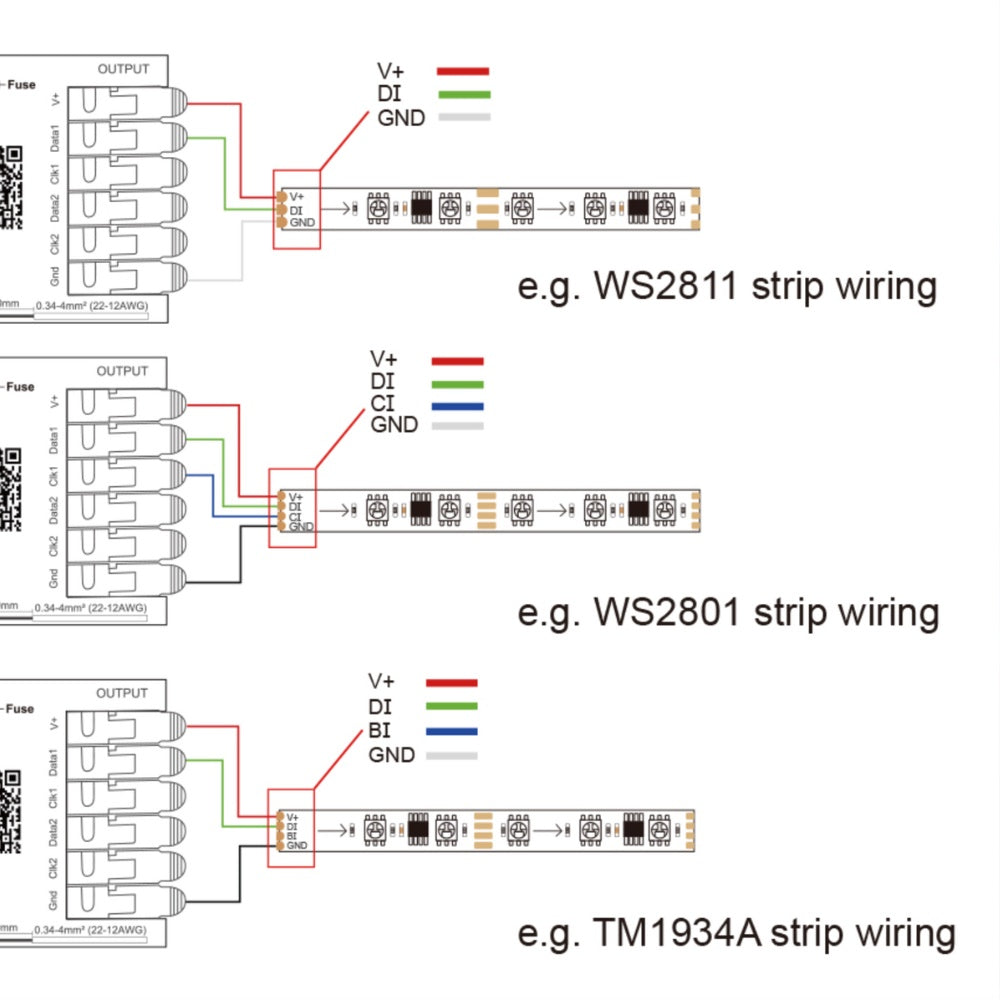

- Outputs: 2× SPI (TTL) up to 800 Kbps

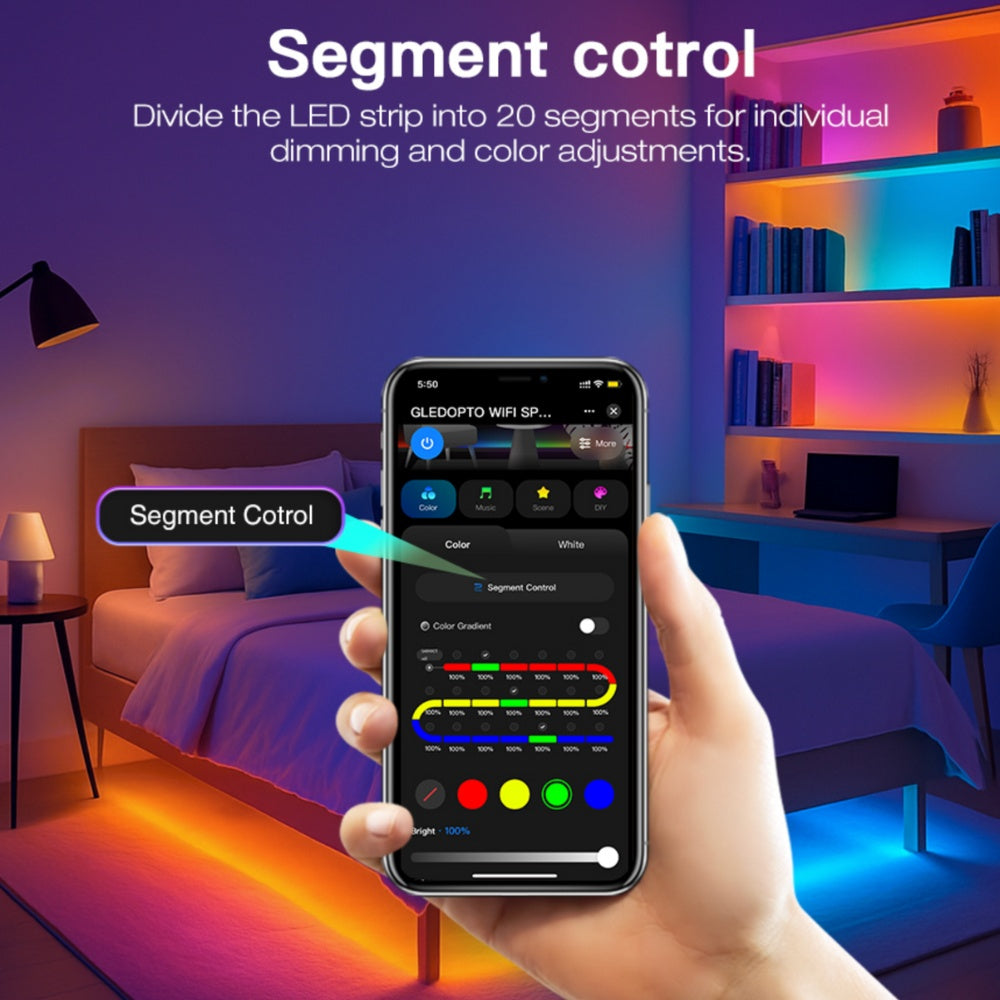

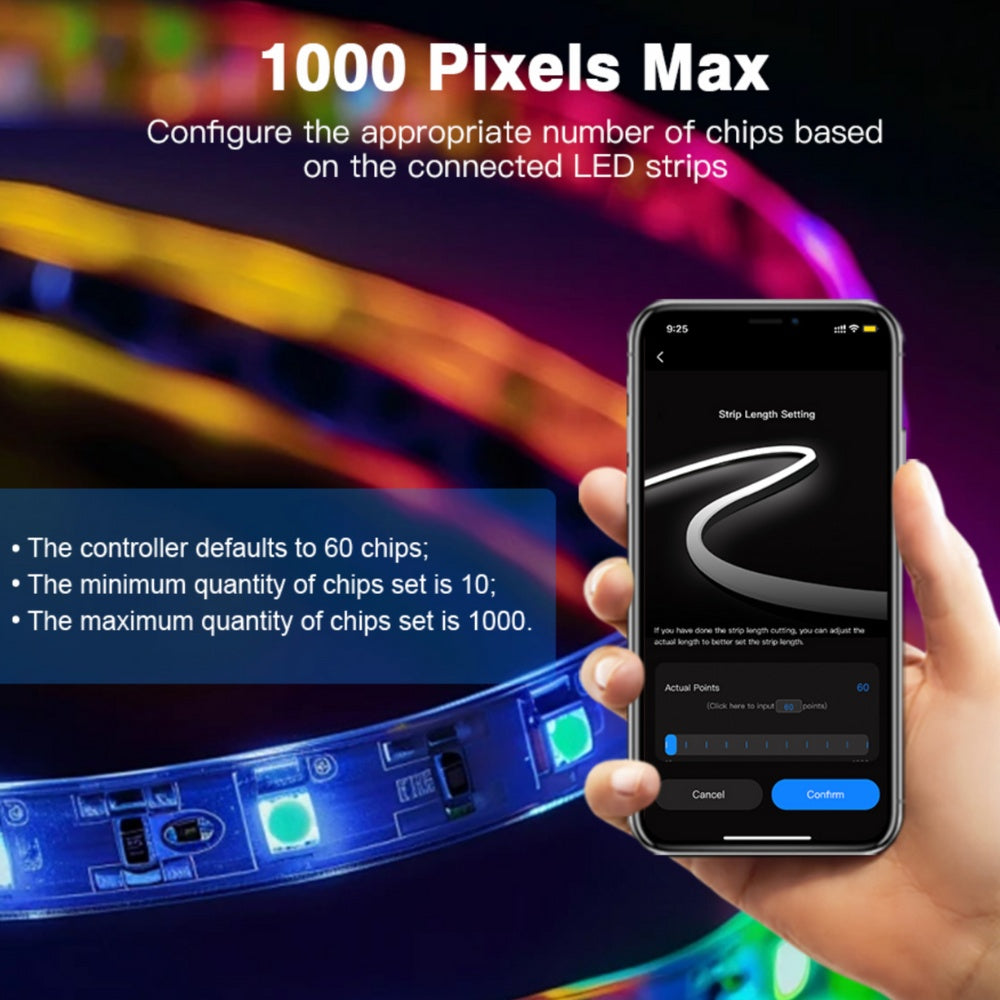

- Pixel count: up to 1000 LEDs, 20-segment control

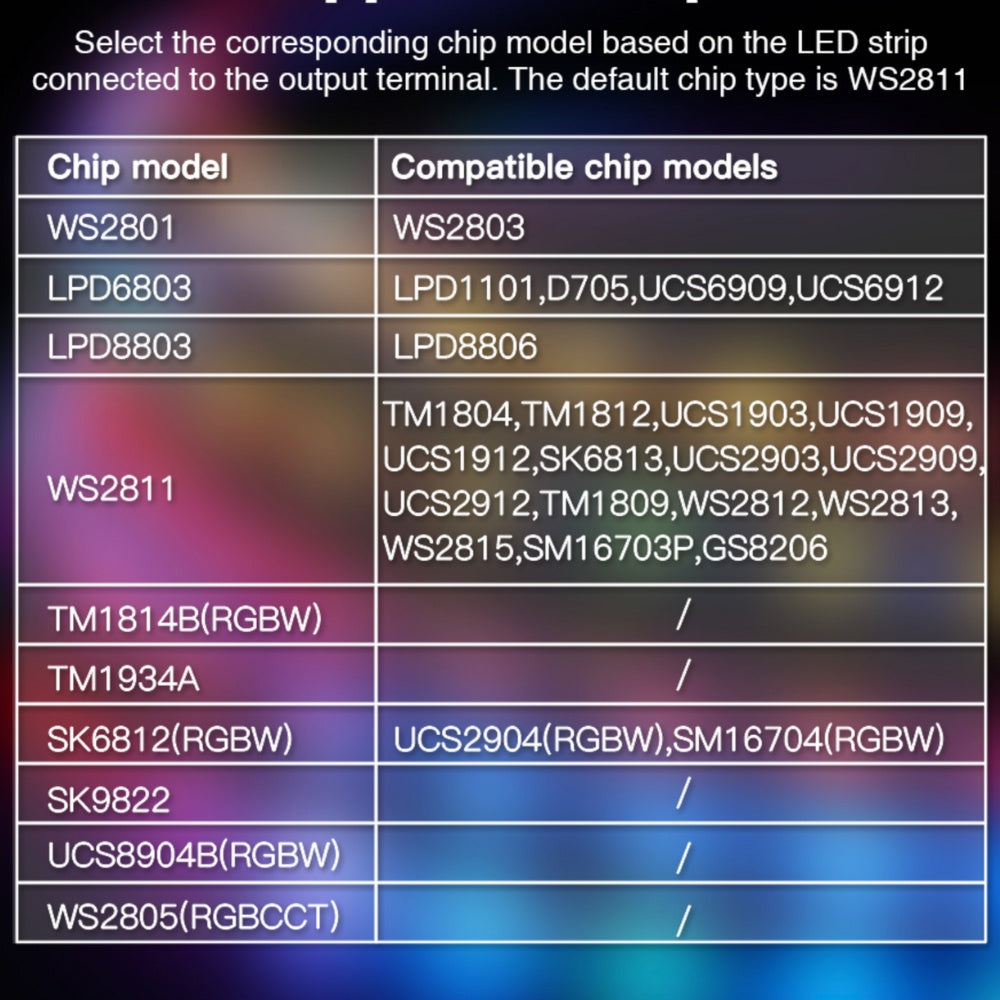

- Supported chips: WS2811/12/13/15, SK6812 (RGBW), SK9822, WS2805 (RGBCCT) and more

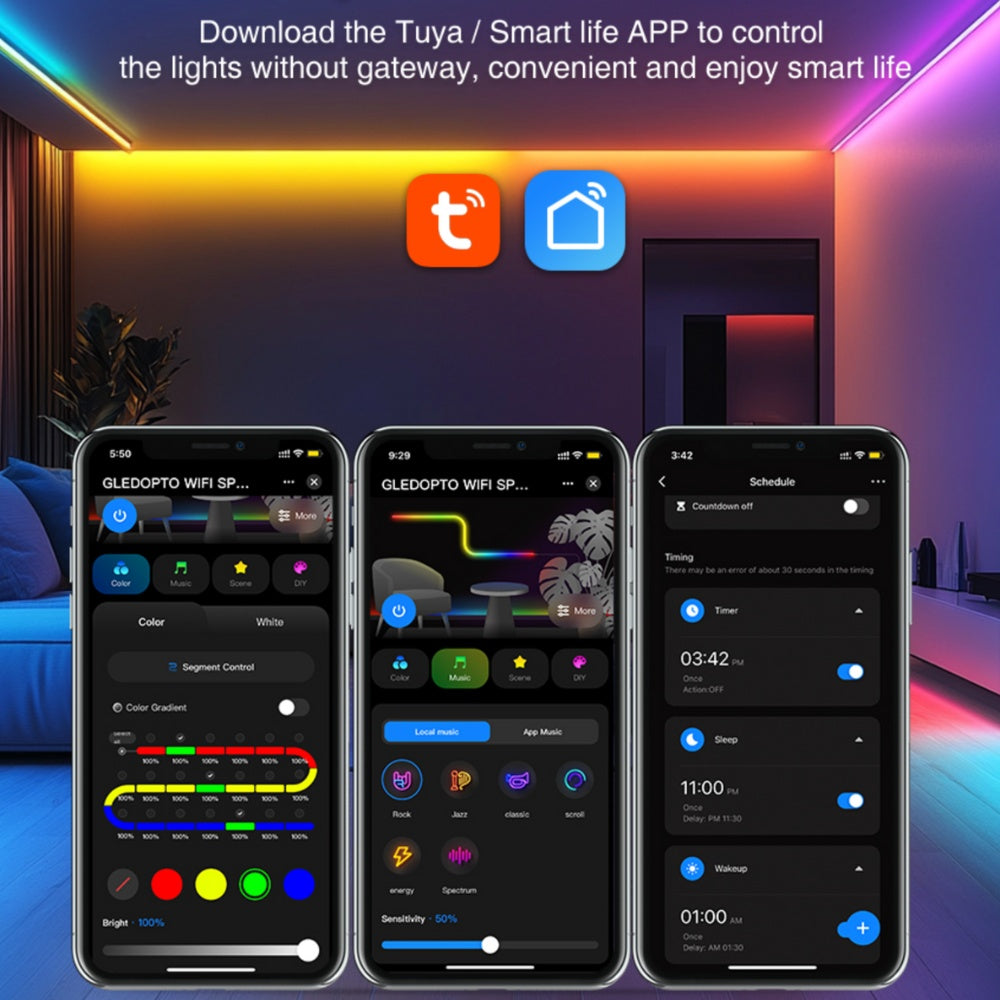

- App control via Tuya/Smart Life

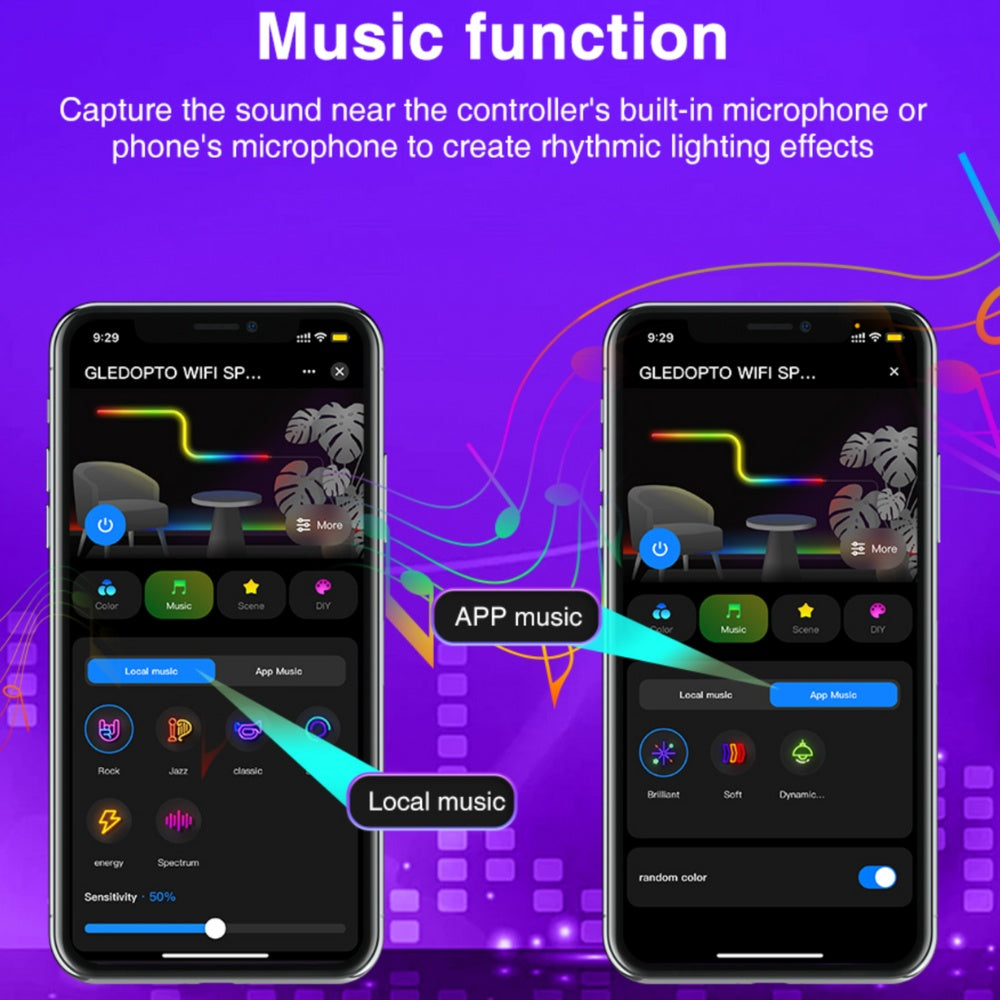

- Music modes: device microphone & smartphone microphone

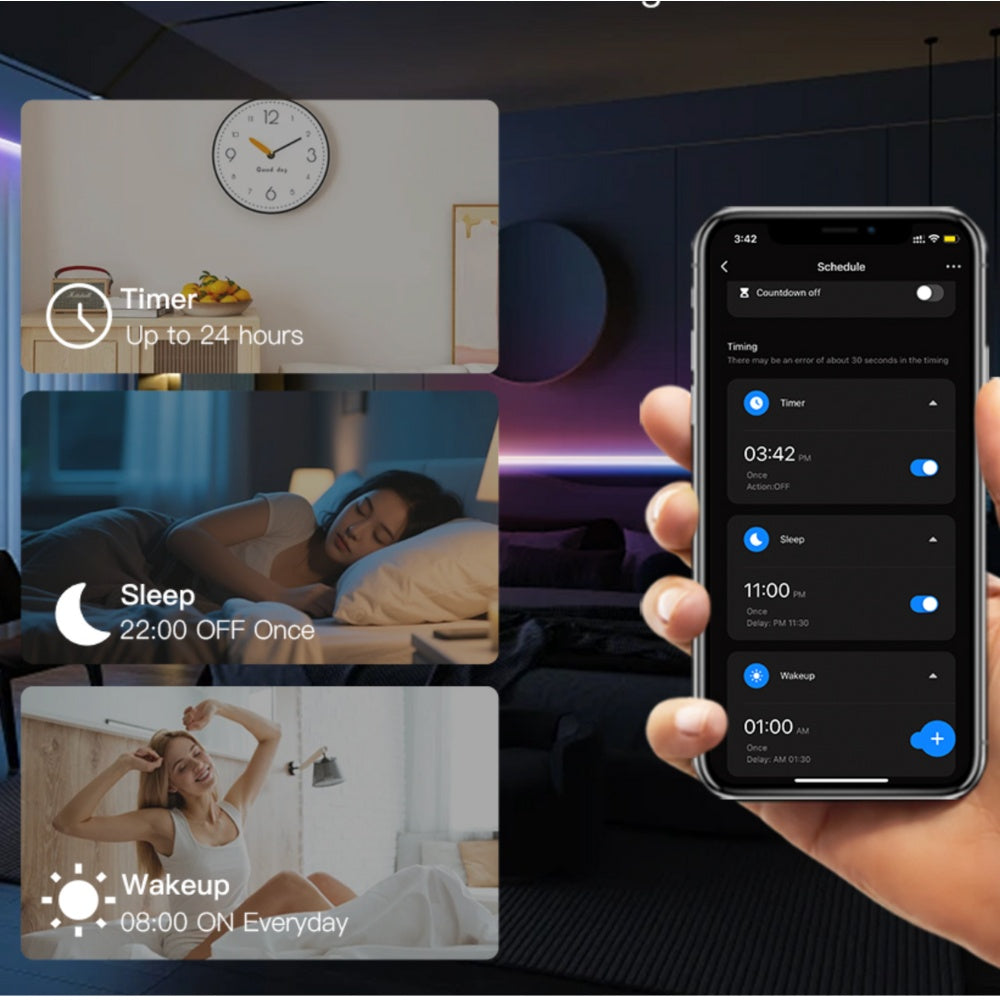

- 40+ scenes, 16 DIY effects, timer, do-not-disturb
- Colour
- White
- IP Rating
- IP20 Non-Waterproof
- Voltage
- DC 5V-12V-24V

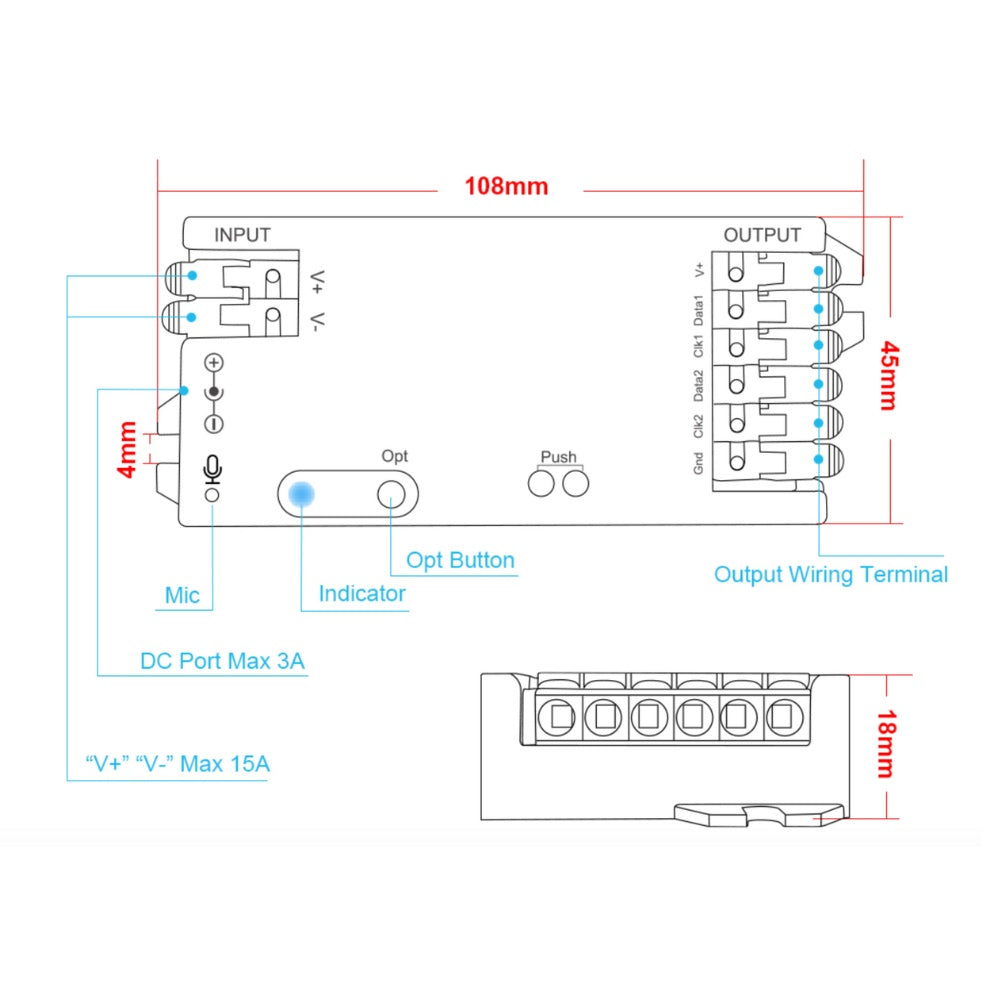

- Dimensions
- 108x45x18mm
- Warranty
- 5 Years
Specifications
- Colour
- White
- IP Rating
- IP20 Non-Waterproof
- Voltage
- DC 5V-12V-24V
- Dimensions
- 108x45x18mm
- Operating Temperature
- -10~40°C
- Certification
- CE, RoHS
- Input
- DC 5V – 12V – 24V
- Output
- Max Output Current 15A Max
- Warranty
- 5 years
- Brand
- GLEDOPTO
