Commercial · Retail · London · 2025Rolex, London — 45-metre COB strip cove, luxury retail specification

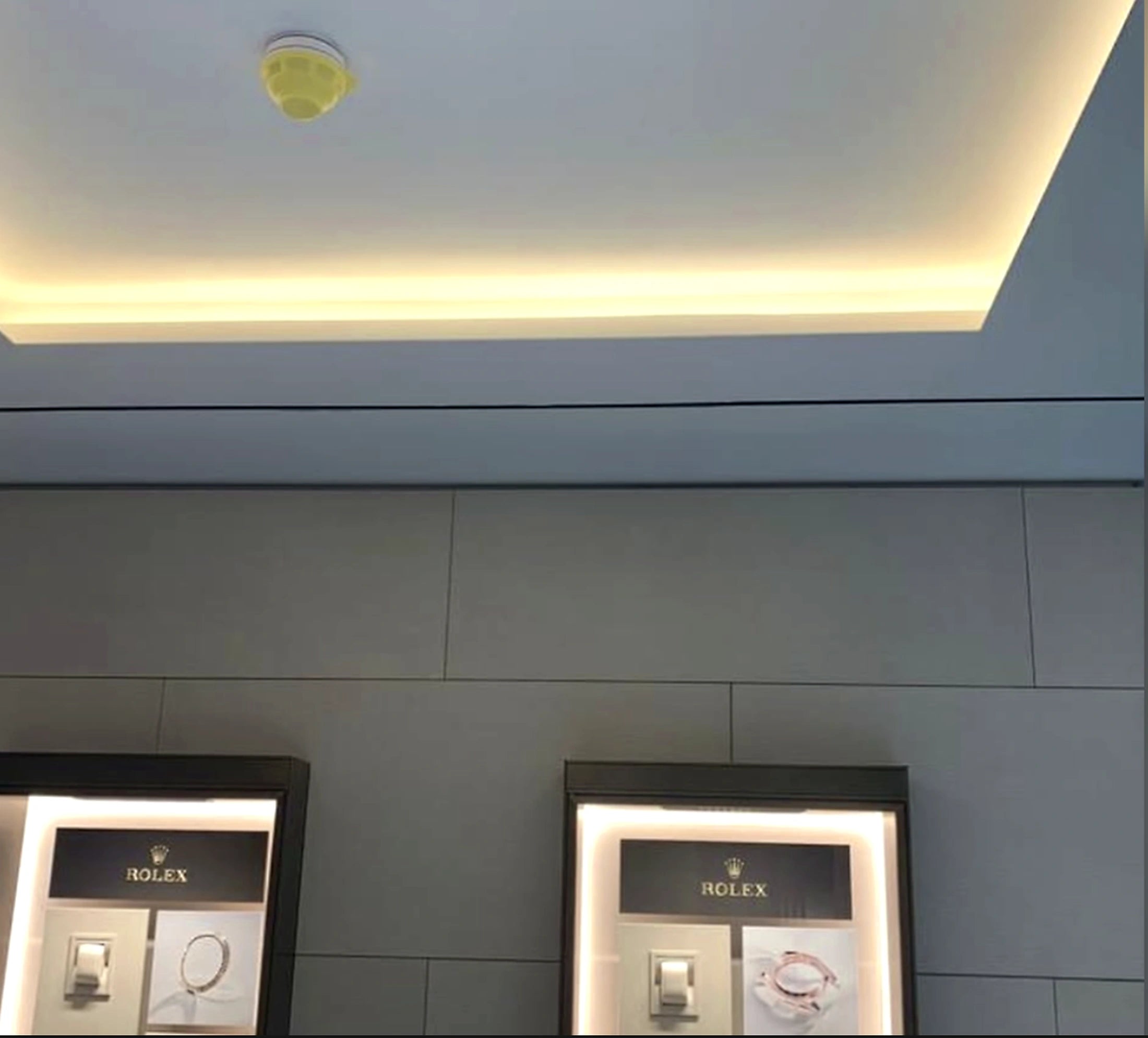

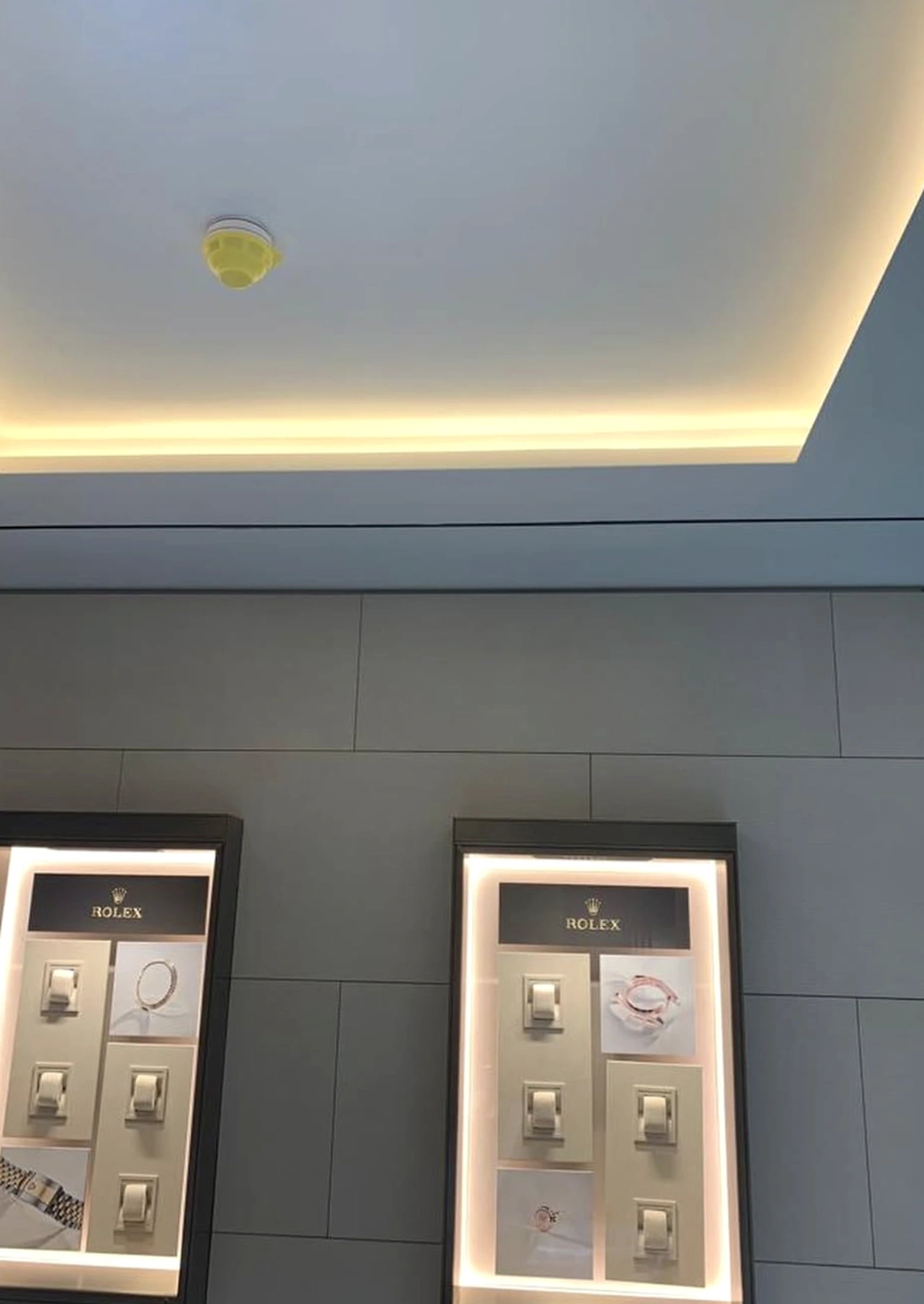

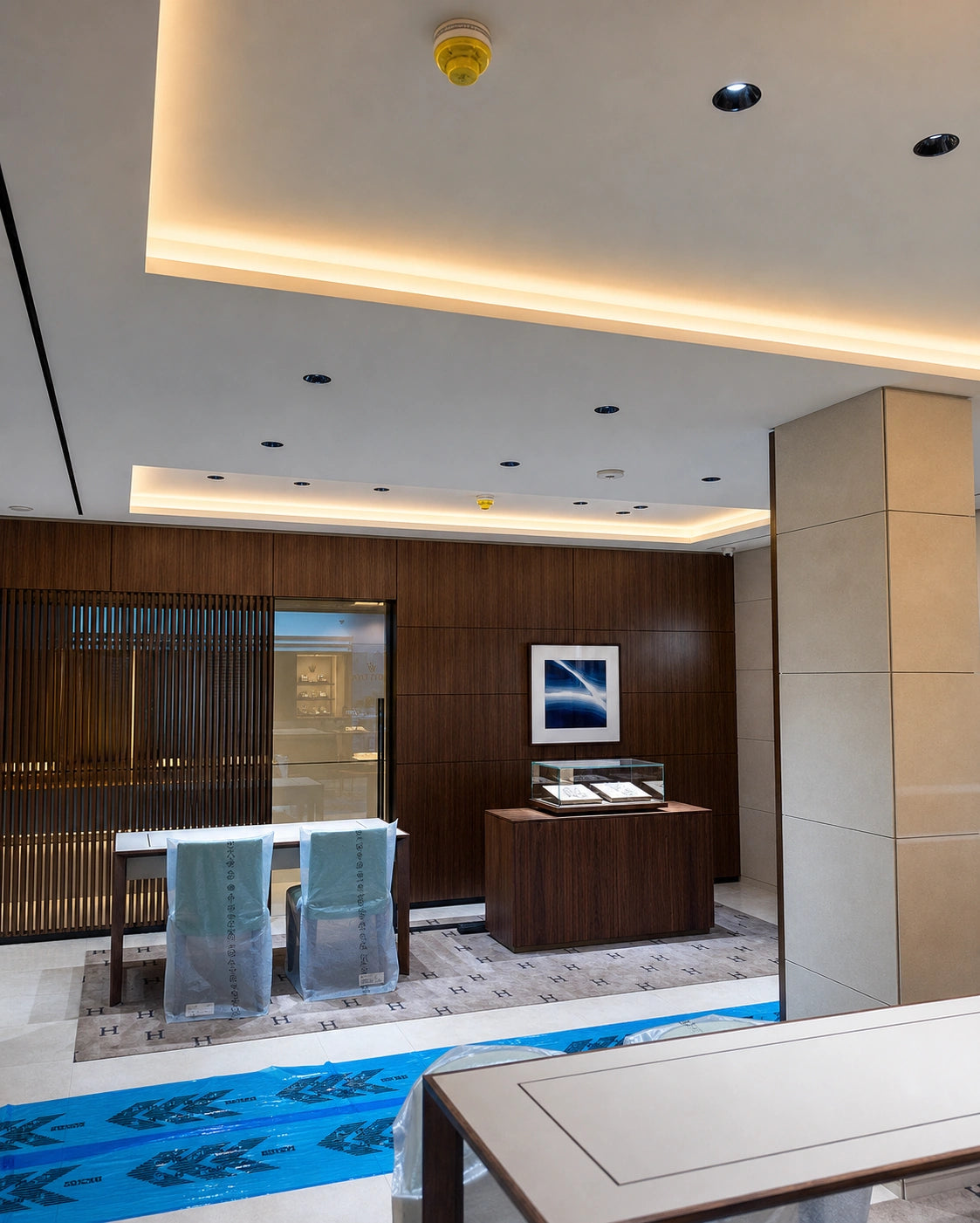

45 metres of IP20 COB LED strip installed across the full ceiling tray of a London Rolex showroom. Single-colour warm white at 24V, fed from non-dimmable drivers — continuous dot-free light across every panel of the ceiling cove.
The brief
A prestigious London Rolex showroom required clean, continuous cove lighting across the full ceiling tray — running the complete perimeter of the space and returning across each panel section. The brief was specific: no visible LED dots, consistent warm white colour temperature throughout, and a non-dimmable specification to match the fixed-output display case lighting already installed in the cabinets.
Total run length was approximately 45 metres across multiple ceiling segments. Each section required individual cut lengths matched precisely to the tray dimensions.
The solution — COB strip IP20 at 24V
We supplied COB LED Strip in single-colour warm white at 24V, IP20 rated for the interior ceiling tray. Three things drove the specification:
- Dot-free COB technology — the continuous phosphor coating produces a single unbroken line of light. No hot spots, no visible chip positions at any viewing angle from the showroom floor below.
- 24V for the run lengths — at 45 metres split across sections, 24V keeps voltage drop inside tolerance on each individual feed without requiring mid-run injection. Clean lux levels at every point.
- Non-dimmable constant voltage driver — matched to the fixed-output display case lighting. Both sources hold the same colour temperature under load, keeping the full room visually coherent.
The result
The ceiling cove runs clean across every panel. The warm white holds consistent from the entrance through to the back of the showroom — no cold patches, no dim ends, no variation between sections. The COB strip sits inside the tray and produces a single wash of light that reads as architectural rather than fitted. Display case colour temperature and ceiling cove colour temperature match, which is what luxury retail lighting demands.
Technical breakdown
What’s installed on this project
- Total run
~45 metres across the full ceiling tray. Multiple individual lengths cut to the exact perimeter segments of each ceiling panel and return.
- Power supply
Non-dimmable 24V constant-voltage driver — specified because the ceiling installation does not require variable output and a fixed-output driver delivers the cleanest, most stable light at this wattage.
- Voltage
24V DC — at 45 metres in sections, 24V keeps voltage drop within tolerance across each individual run without mid-run injection points.
- IP rating
IP20 — interior ceiling tray, no moisture exposure. IP20 gives the thinnest possible profile and maximum lumen output for an enclosed ceiling recess.
- Colour temperature
Warm white — designed to match the display case lighting inside the cabinets. Consistent colour temperature across the full ceiling cove keeps the showroom interior visually unified.
