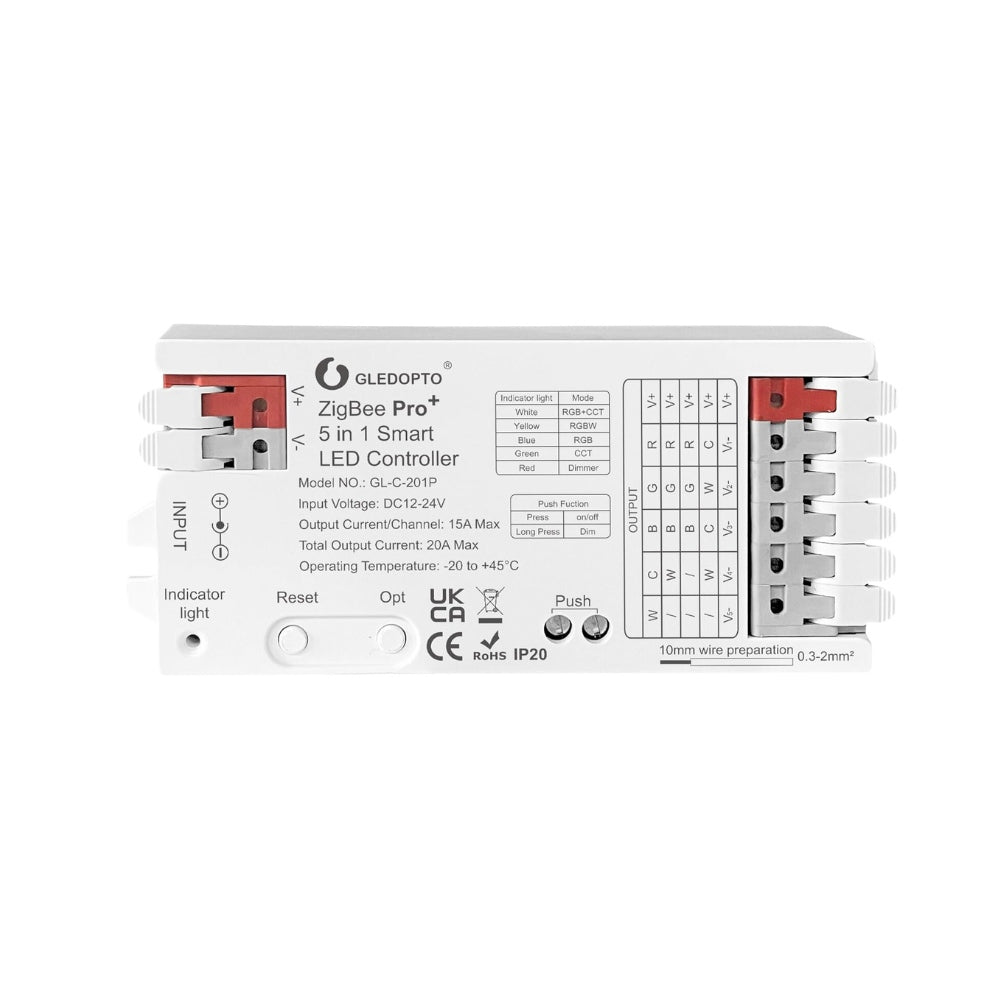

GLEDOPTO ZigBee Pro Plus 5 in 1 Series Controllers for LED Light Strips Smart Home GL-C-201P
Voltage
Total Output Current: 20A Max
IP Rating
IP20 Non-
Warranty
5 Year
Speak to an expert 01952 370028

GLEDOPTO ZigBee Pro Plus 5 in 1 Series Controllers for LED Light Strips Smart Home GL-C-201P

SKU: GL-C-201P

  • Non-Waterproof
  • LED Strip
  • Reduced Glare
  • CRI 90
£29.85 Inc. VAT
25 units available
1

Encrypted & secure checkout

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Visa
  • Clearpay
Speak to an expert 01952 370028
Description

  • Zigbee Controllers for Efficient Installations with 12-24VDC and up to 20A Output Power

    Innovative technology for your smart home – Discover our Zigbee controllers with lever terminals, specially designed for effortless installation and offering 12 - 20A output power at 12-24VDC depending on the variant.

    Easy Installation with Lever Terminals:
    Our Zigbee controller features a thoughtful design with lever terminals, making installation easier than ever. The robust lever terminals allow for quick and secure connections without tedious screwing or pressing. Save time and energy when installing your smart controllers.

    Versatile Application Possibilities:
    With an output power of up to 20A at 12-24VDC, our Zigbee controllers offer versatile application possibilities – this device delivers reliable performance for various scenarios.

    Reliable Zigbee Connectivity:
    The controller is equipped with the latest ZigBee 3.0 technology, ensuring a reliable wireless connection. Control your smart home conveniently via your smartphone or other Zigbee-compatible devices and experience seamless integration into your intelligent home.

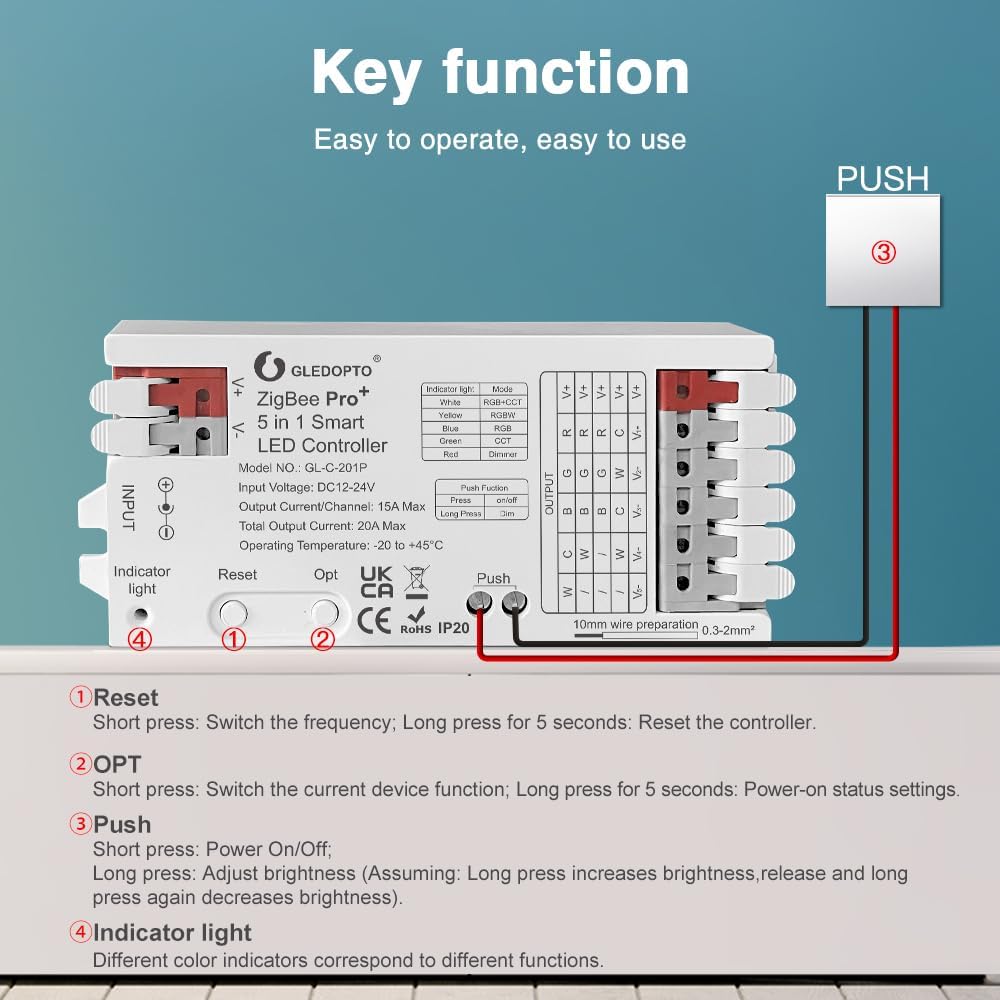

    Additional Features: These controllers can be operated with remote controls (RGBCCT) that are compatible with MiLight/MiBoxer.
    Additionally, the frequency of the ZigBee controllers can be adjusted should there be any interference on the line or noise or flickering caused by the power supply.
    You can also set the power-on behavior directly after power supply with a desired fixed setting or the last used setting.

    Variants:
    2in1 - for single-color and CCT (white tones) lighting, suitable for 2 or 3 pole CCT light strips
    3in1 - for color-changing LED light strips and similar lighting such as RGB / RGBW and RGBCCT
    5in1 - for all common multi-pole LED lighting as dimmer / CCT / RGB / RGBW and RGBCCT

    Model：GL-C-201P
    Input Voltage：DC 5-12-24V

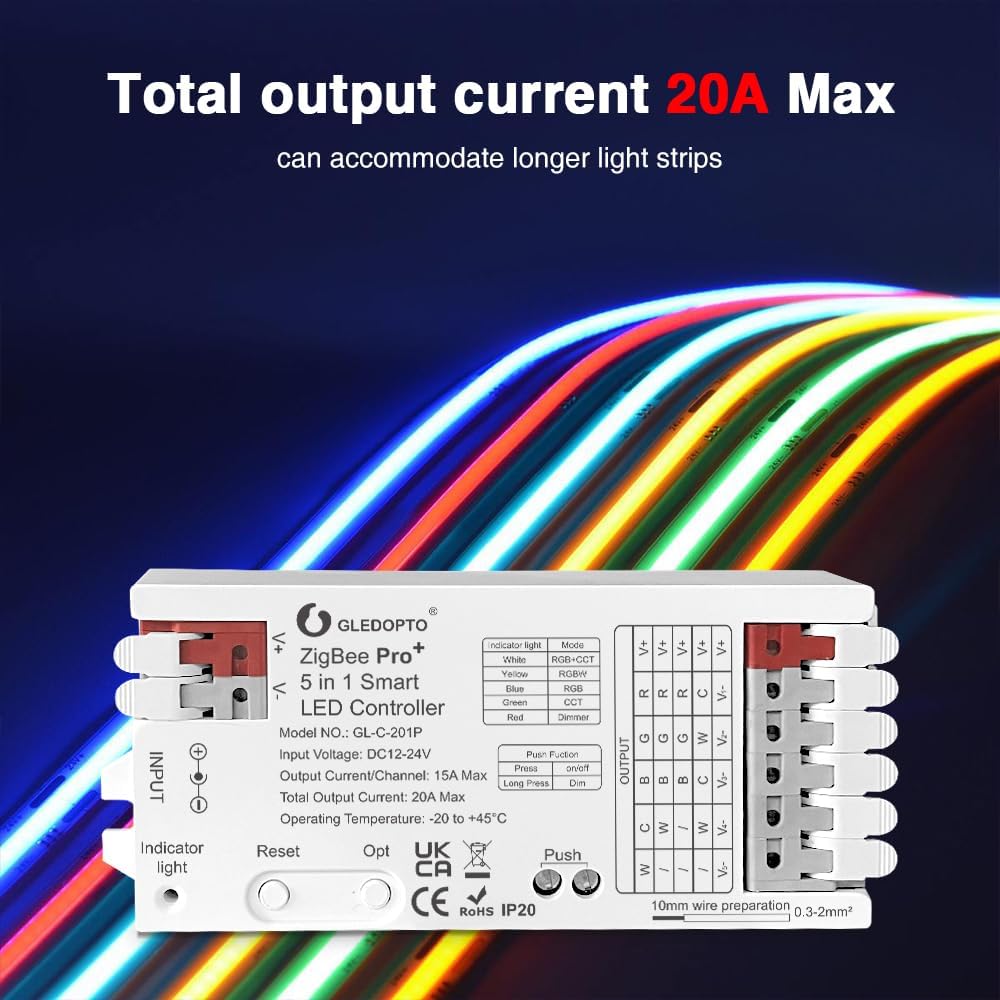

    Total Output Current：20A Max
    Output Current/Channel：15A Max
    Color：white
    Protocol：Zigbee
    Material：Flame Retardant PC
    IP Rate：IP20
    Size：108x45x18mm
Colour
White
IP Rating
IP20 Non-Waterproof
Voltage
Total Output Current: 20A Max
Dimensions
108x45x18mm
Warranty
5 Years
Specifications
Colour
White
IP Rating
IP20 Non-Waterproof
Voltage
Total Output Current: 20A Max
Dimensions
108x45x18mm
Operating Temperature
20 to +45 °C
Certification
CE, RoHS
Warranty
5 years
Brand
GLEDOPTO
Technical Documents
