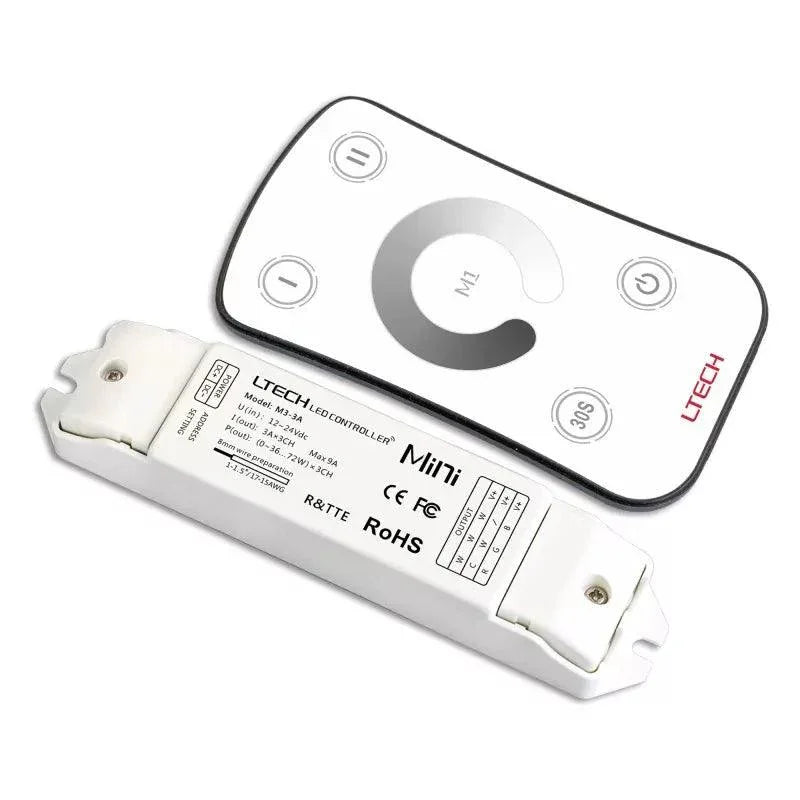

L Tech LED Mini RF DIM - M1/M3-3A Touch Remote Controller Dimmer Receiver for Single Colour LED Lighting Strip 12V 24V

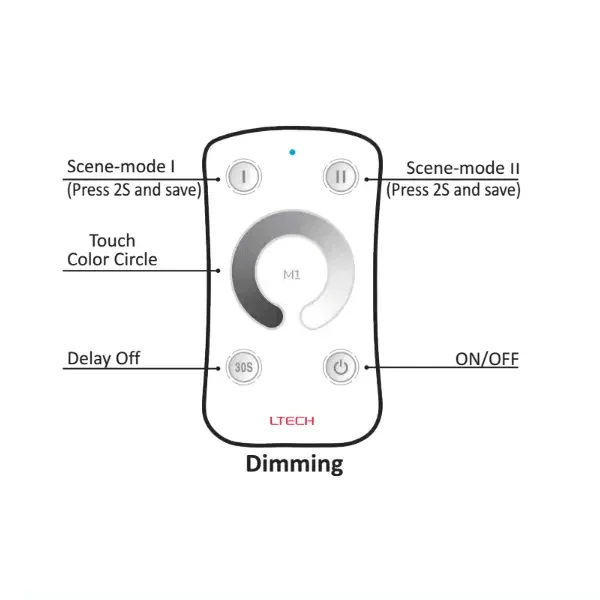

  • M1 RF remote, easy for dimming monochrome LED lights in one touch

  • Outstanding 4096/road greyscale with gentler lights and richer dynamic changing modes (most in the market is only 256)

  • The versatile receiver can be paired and worked with up to 10 same or different Remotes ( for example M1, M2, M3, M5, M6, or M7)

  • Automatic sleep mode (the remote automatically enter standby mode when untouched in 30 seconds)

  • The remote has been paired to the Receiver in the package, easy to use


General Product Type Constant Voltage Driver

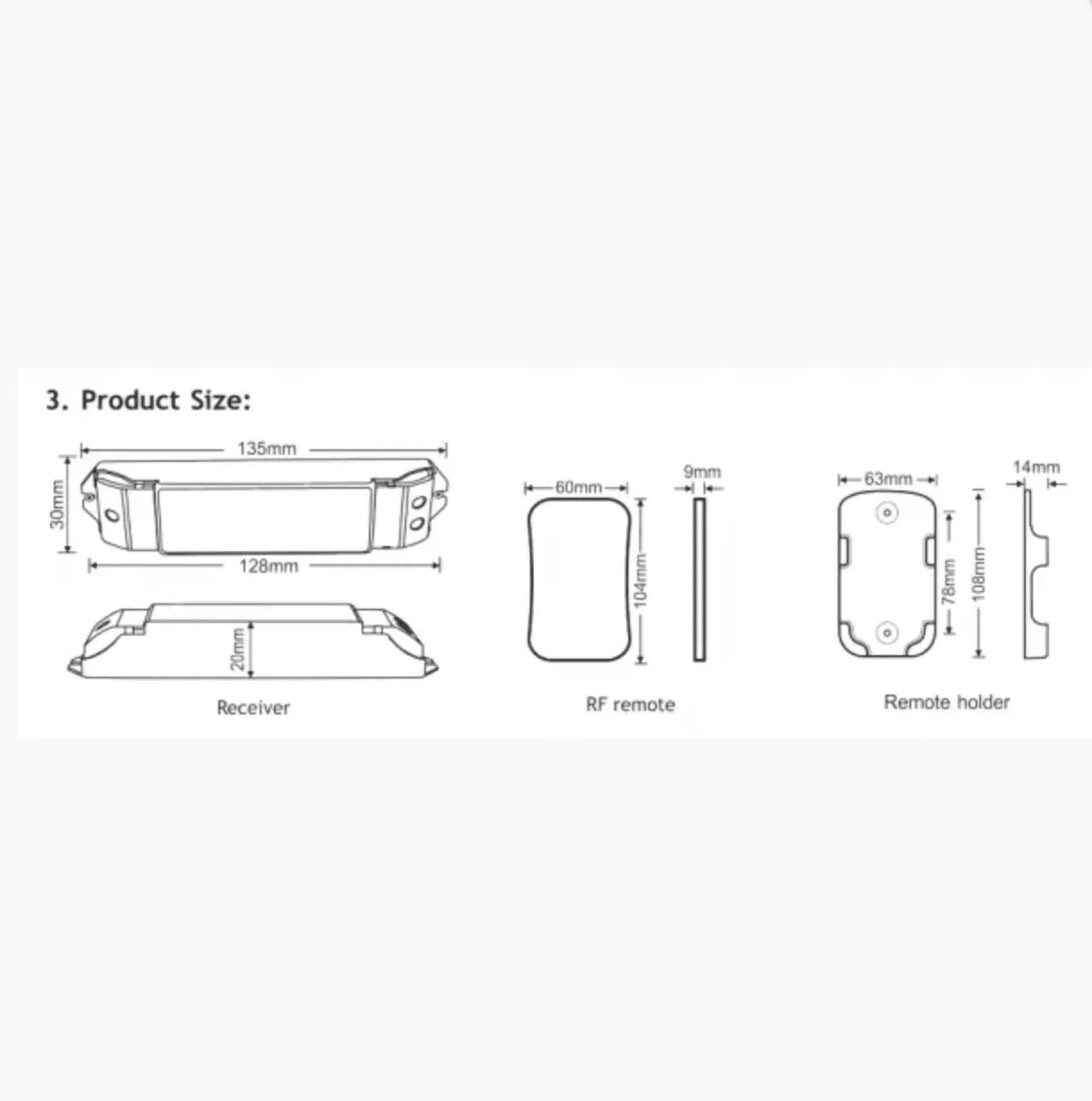

  Length (mm) 104
  Width (mm) 58
  Height (mm) 9
  Housing Color White
  Housing Material Plastic
  Mounting Surface mounted
  Weight (g) 42
  Wire Strip Length 5mm
  Wire Type 2.5mm2
Electronics Input Domain DC
  Input Voltage 12 ~ 24V DC
  Output Voltage 12 ~ 24 V DC
  Output Current (mA) max/output 3000
  Output Current Max. (A) 9
  Output Power (W) 108W @ 12V, 216W @ 24V
  Power Supply N/A
  LED Outputs 3
Lighting Color Range Single Color
Control Output Signal RF, PWM-CV
  Control Manual
  Remote Distance 40m
  Zones 1
  Number of Channels 1
  Functions programmable
Protection Reverse Polarity Yes
  LED Output Short Yes
  Overload Yes
  Restart after Protection Yes
Environmental Operating Temperature -20 ~ +55 °C
  Ingress Protection IP20
  Environment Indoor
Other Country of Origin People's Republic of China
Approvals CE
  FCC FCC Part 15:2009
Warranty Warranty 5 Year
Weight & Dimensions W x H x D (cm) 6.00 x 1.00 x 10.40
  Weight (kg) 0.04
