- Warranty
- 7 Years
- Fits
- 10x20mm IP67
- Material
- Aluminium
- Flexibility
- Straight

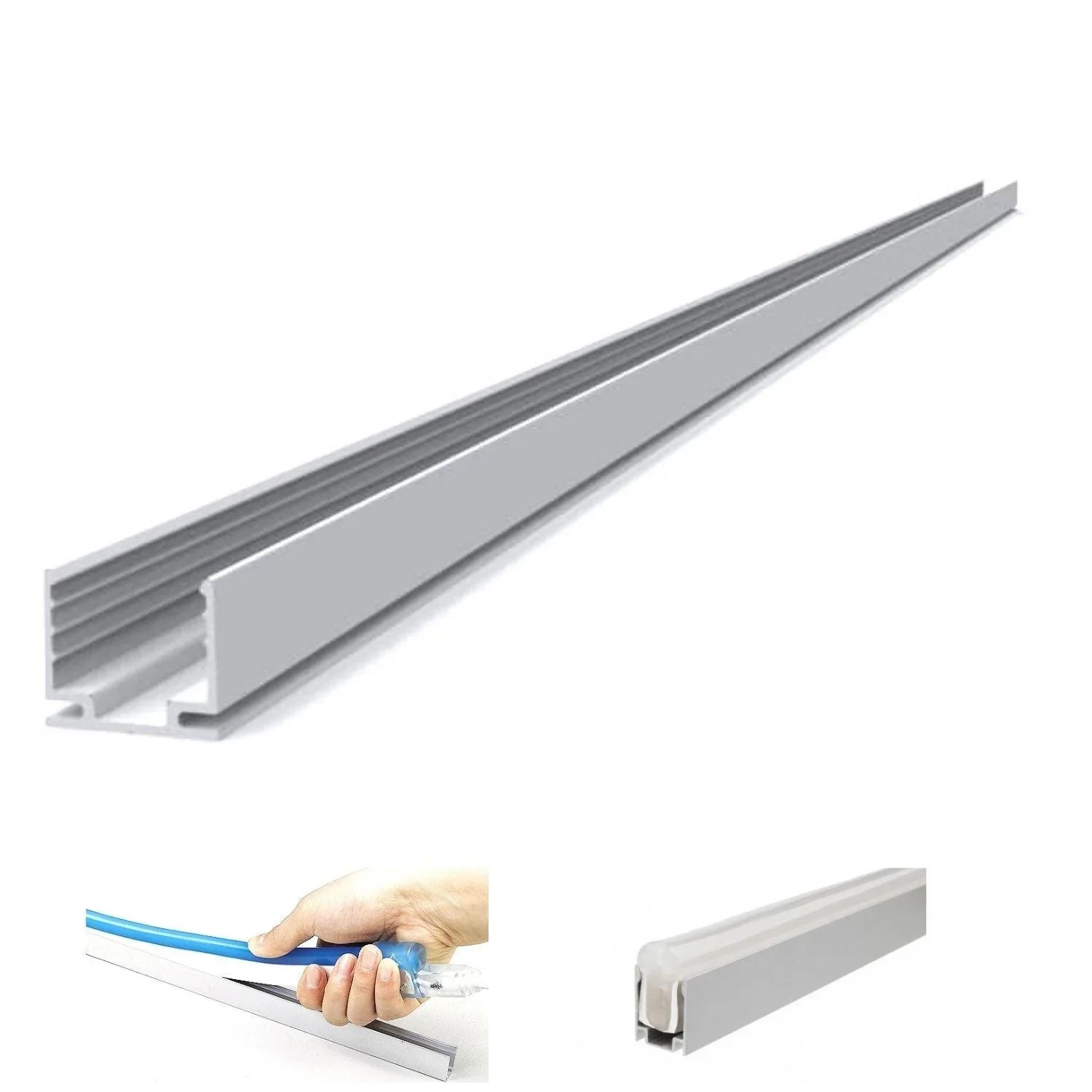

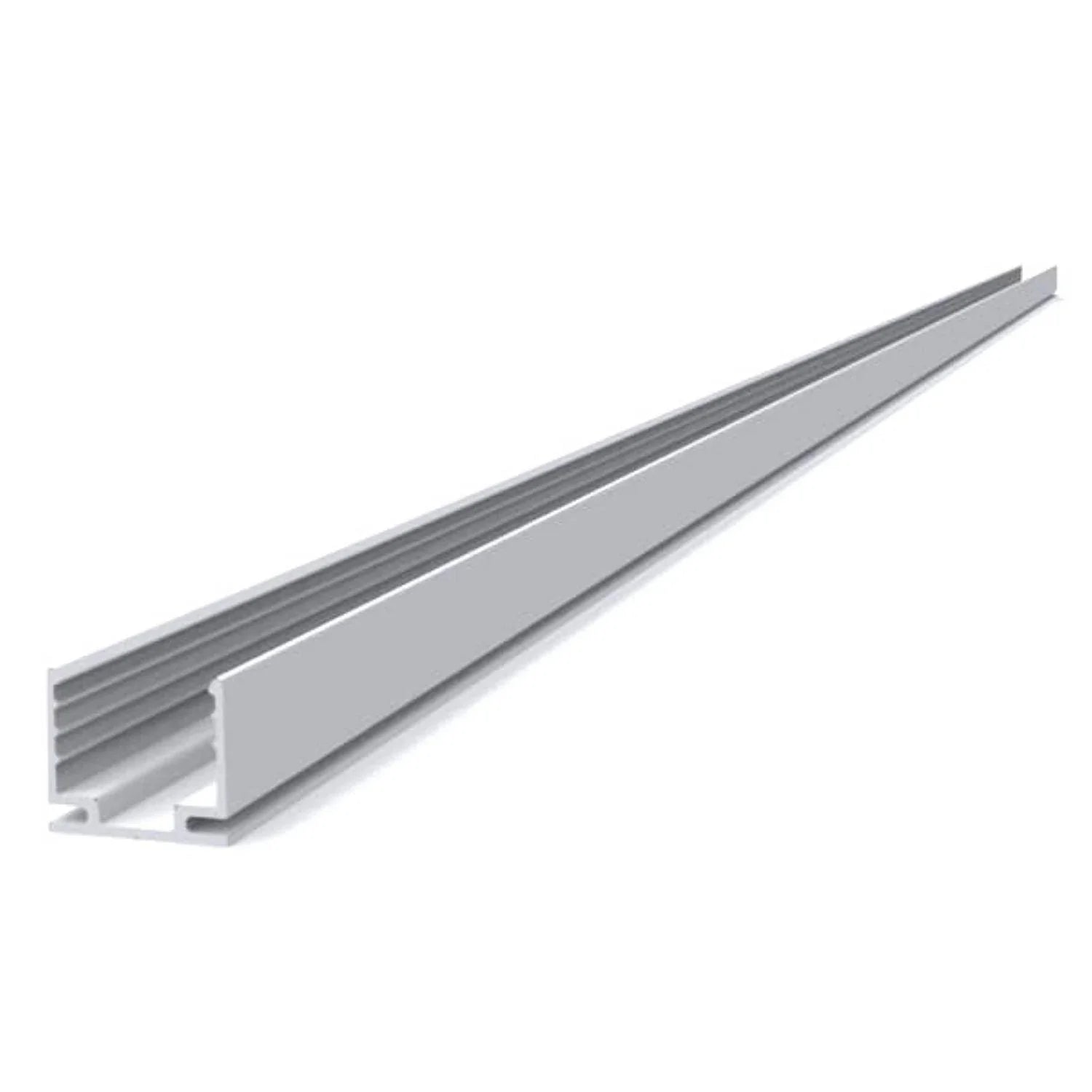

Aluminium Profile for 10x20mm IP67 Neon Flex – 1 Metre & 2 Metres
SKU: NFPROFILE-1020
-
Straight Profile
-
Aluminium
-
Fits 10x20mm IP67 Neon Flex
Encrypted & secure checkout
Description

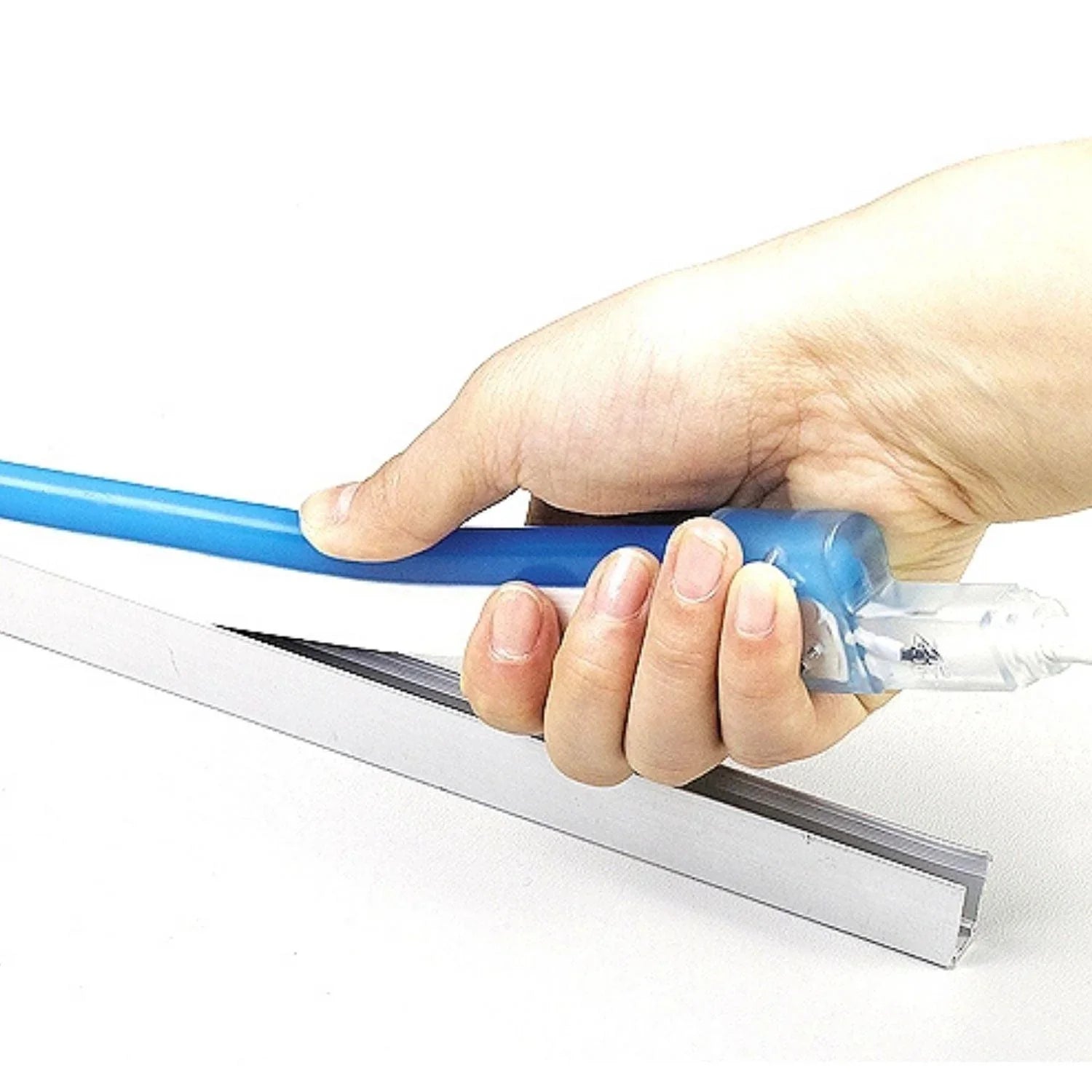

Keep compatible 10x20mm IP67 LED Neon Flex aligned along straight runs with this rigid aluminium mounting channel. Choose a continuous 1 metre or 2 metre length to suit your installation.
The channel supports the Neon Flex body along its length. Check the cross-section drawing against your chosen Neon Flex before fitting, and allow space for end caps, cable exits and connections beyond the channel. IP67 describes the compatible Neon Flex, not the aluminium profile. Follow the light’s own installation and sealing requirements.
What is included?
One aluminium profile in your selected length. The 1 metre profile includes 1 screw set (2 screws and 2 wall plugs); the 2 metre profile includes 2 screw sets (4 screws and 4 wall plugs). Choose fixings suitable for your mounting surface. LED Neon Flex is sold separately.
Dimensions
Cross-section dimensions in mm. Not to scale; verify fit before installation.
Browse the Neon Flex profile range for other sizes and mounting styles.
Delivery charges
1 Metre: Mainland UK delivery is £6.95 below £90, with free Next Day Delivery from £90 when the basket contains no profile charged at the £19.85 or £34.85 long-profile rate. 2 Metre: Mainland UK delivery is £19.85 at every order value, including mixed baskets. If the basket also contains a profile charged at £34.85, the higher rate applies. Other destinations are calculated at checkout.
- Product Type
- Aluminium Profile
- Dimensions
- 12.5mm wide x 19.9mm high
- Warranty
- 7 Years
Specifications
- Product Type
- Aluminium Profile
- Metres
- 1 Metre / 2 Metres
- Dimensions
- 12.5mm wide x 19.9mm high
- Width
- 12.5mm
- Depth
- 19.9mm
- Shape
- Plain straight rigid channel
- Material
- Aluminium
- Attachment
- Surface-mounted channel; screw fixing
- Warranty
- 7 Years
- Base Thickness
- 1.2mm central base
- Below Shoulder Depth
- 11.8mm
- Brand
- ATOM LED
- Cavity Width
- 10.1mm
- Channel Opening
- 9mm retention opening
- Compatible Ip Rating
- IP67 Neon Flex
- Edge Base Height
- 2.1mm
- Included Items
- One selected profile length. 1m: 2 screws + 2 wall plugs; 2m: 4 screws + 4 wall plugs. LED Neon Flex sold separately.
- Neon Flex Size
- 10x20mm
- Wall Thickness
- 1.2mm
Technical Documents
