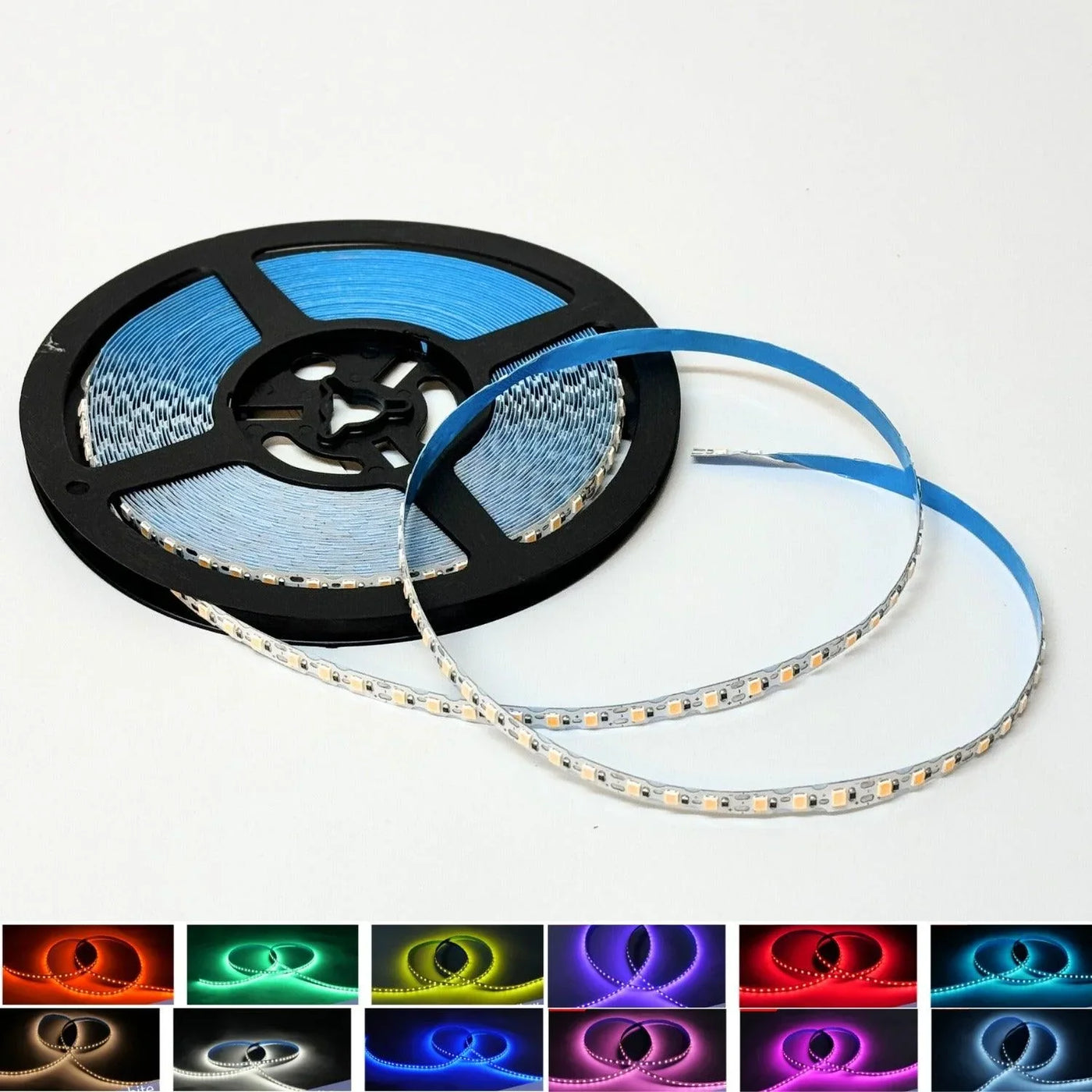

S-Shape Bendable LED Strip 12V 120 LEDs/m 6mm IP20 1cm Cut – 5 Metre
SKU: SS6MM-12V-WW
-
Non-Waterproof
-
LED Strip
-
Reduced Glare
-
CRI 80
Encrypted & secure checkout
Description
Create lettering, curved outlines and detailed sign layouts with this 12V S-shape LED strip. The zig-zag circuit can follow sideways curves that a conventional straight strip cannot easily form. Its narrow construction suits compact display features, logos and halo lighting in dry interiors.
Which power supply does it need?
Use a regulated 12V DC constant-voltage power supply selected for the connected length and listed power consumption. A suitable driver is ordered separately. Match polarity and connection ratings, and keep the power equipment accessible for inspection. Ask our team to check the power layout before extending an installation.
How should the run be planned?
The product is supplied on a 5m roll. Roll length does not establish the maximum powered run. Ask our team to confirm the feed arrangement for your route, especially where the driver is remote or the installation uses several separate sections.
Where does it cut and how does it fit?
Cut only at the marked 10mm positions and check the finished length before cutting. Allow for the 6mm strip width and the connection space. No soldered connection cable is included; a suitable lead must be soldered before use. Follow the PCB shape without creasing, folding or pulling the circuit.
Mounting and the finished appearance
Use a mounting arrangement suited to the strip and its operating conditions. Keep IP20 tape in dry interiors, away from water and splashes. Check the light pattern and heat management in the intended position before finishing the installation. Isolate power before making any connection or adjustment. Allow practical access to the soldered connections so the completed lighting can be inspected later.
Bespoke LED lighting for UK projects
ATOM LED supplies bespoke lighting for UK homes, trade and commercial projects. Send us your measurements for help planning a suitable strip, power supply and installation.
- Product Type
- LED Strip Light
- IP Rating
- IP20 Non-Waterproof
- Voltage
- 12V
- Watts Per Metre
- 9
- LEDs Per Metre
- 120
- CRI
- >80
- Dimensions
- 6mm × 2mm
- Warranty
- 2 Years
Specifications
- Product Type
- LED Strip Light
- IP Rating
- IP20 Non-Waterproof
- LEDs Per Metre
- 120
- Voltage
- 12V
- Watts Per Metre
- 9
- Metres
- 5 Metre
- Dimensions
- 6mm × 2mm
- Width
- 6mm
- Depth
- 2mm
- Cut Points
- 1cm (10mm)
- LED Type
- SMD 2835
- Shape
- S-shape / zig-zag bendable strip
- CRI
- >80
- Input
- 12V DC
- Warranty
- 2 years
- Brand
- ATOM LED
- Included Items
- LED strip only; soldered connection cable not included
Technical Documents
Shipping & Returns
On 97% of products — Royal Mail 48-hour tracked
Mainland UK orders over £90 — order by 1pm, Mon–Fri
30-day returns window — free returns on faulty products
01952 370028 · Mon–Fri 9am–5pm
Shipping
Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.
Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.
Saturday Delivery is available as a paid option at checkout.
Adding profiles? Mainland UK delivery for rigid 1m profiles is £6.95 below £90, with free next day delivery on eligible £90+ orders. Standard rigid 2m profiles cost £19.85 to deliver; specified rigid 2.45m profiles cost £34.85. The highest applicable profile rate applies to a mixed basket. Order before 1pm, Monday–Friday, for same-working-day dispatch of in-stock profiles.
Large orders and pallet shipments: call 01952 370028 for a quote.
For more information see our detailed Shipping Page.
International Shipping
Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.
Returns & Refunds
The 30-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:
- Standard LED strip lights supplied as 5-metre rolls
- Straight aluminium profiles
- Power supplies and drivers
- Accessories (connectors, controllers, dimmers, end caps)
Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.
Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.
Refunds are processed within 5–10 working days of receiving the returned item.
For more details see our Returns & Refunds page.
Reviews
Frequently Asked Questions
What is the difference between IP65, IP67, and IP68?
IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.
Can I cut this product to a custom length?
Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.
What size driver do I need?
Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.
Should I choose 12V, 24V, or 48V?
Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
What is your warranty?
ATOM LED offers product-specific warranties: 7 years on single-colour COB strip, 5 years on RGB and RGBW COB strip, and 4 years on LED neon flex. The warranty covers manufacturing defects. Call 01952 370028 for warranty claims.
