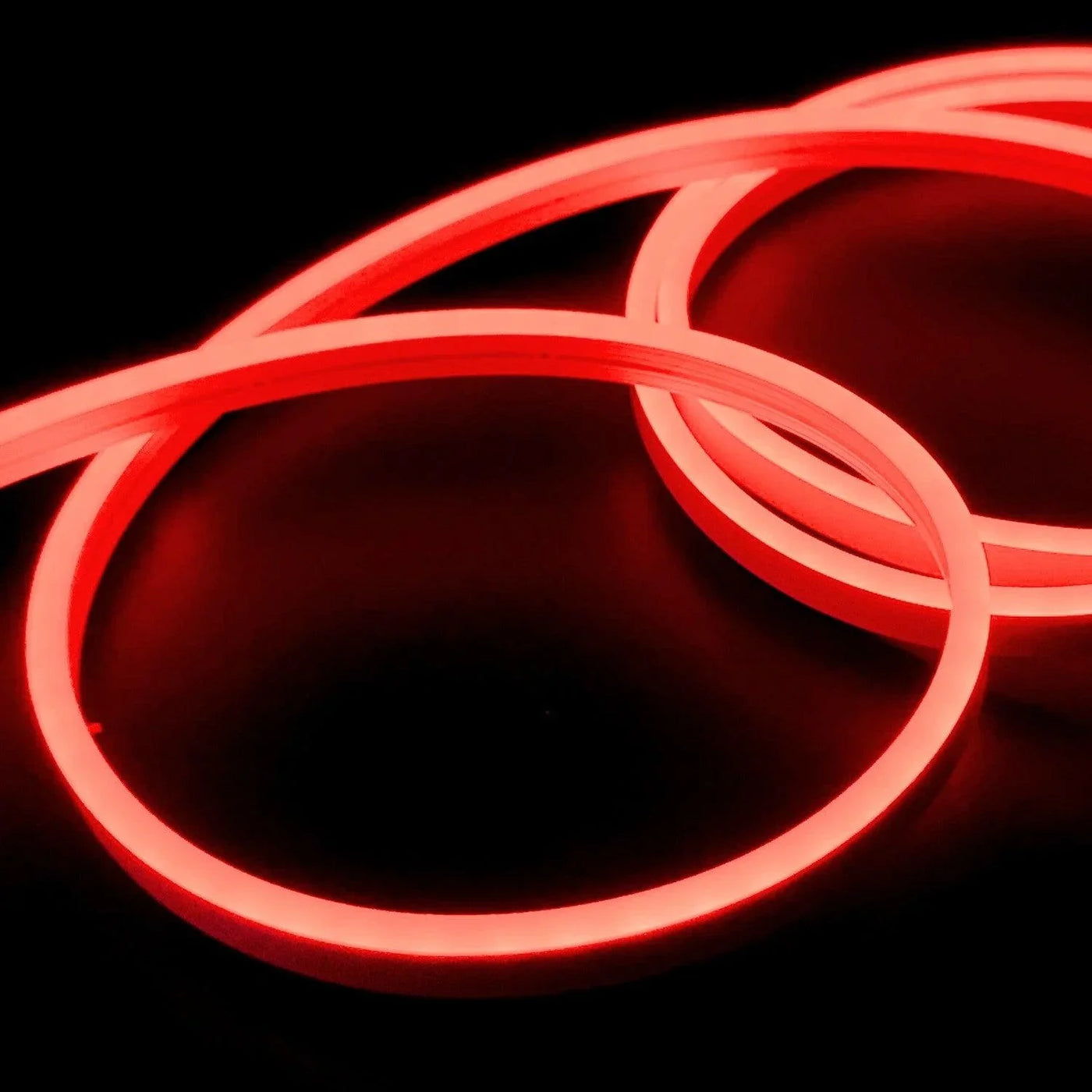

Mini Red LED Neon Flex 12V 6x12mm 120LED/m IP65 Waterproof 1cm Cut
SKU: NFRED12V612-1CM
-
12V DC
-
Corner Bend
-
Dimmable
-
Side Bend
Encrypted & secure checkout
Description
Our mini LED Neon Flex 6x12mm offers a non-spotting, fully diffused light output. The splashproof silicon coating is fully flexible with a bend radius of up to 20mm, making it ideal for use in signage and display installations both indoors and outdoors. It is cuttable every 1cm, super bright with 120LEDs per metre.
6x12mm Neon Fles is horizontal bending
We’ve designed this Neon Flex Light in a way that the LEDs give you the maximum brightness, efficency and consistency of light by using ultra-bright 2835 LED chips.
This Neon Flex is fitted with 120 LEDs per metre, giving an almost perfect line of light, with no sign of dots or dark shades. It’s also Waterproof to IP65 rating; LEDs are encapsulated in a robust and flexible silicone housing.
Neon Flex is a durable fully diffused linear light perfect for furniture installations thanks to it’s ultra slimline micro profile. This neon can be cut easily to your desired lengths at the allocated cut points. Maximum length at any time is 5 metres before visible voltage drops occur. You can get 10m continuous length, however, you need to power the led neon flex from both ends.
Whether you're looking to light up a kitchen counter, accent a bookshelf, or brighten up a bathroom mirror, the 6x12mm Mini Neon Flex is the perfect choice for all your furniture lighting needs.
Our 6x12mm Mini Neon Flex comes with a 2-year guarantee as standard on indoor installations.
Our 6x12mm Mini Neon Flex comes with a 2 year guarantee as standard on indoor installations and 1 year for outdoor use (light splashes of water).
Note: Should not be fully exposed to outdoor weather, for full outdoor use please make sure to use silicone glue at the end cap and front end of the neon to avoid water ingress.
Includes LED Neon Flex only. No clips and adapters include
Driver Requirements:
1 metre > 8
2 metre > 16w
3 metre > 24w
4 metre > 32w
5 metre > 40w
Do not use the power supply to its full capacity.
Product Specification:
| Product Type | LED Neon Flex |
| Colour | Red |
| IP Rating | IP65 Waterproof |
| LED | 120 LEDs/m |
| Metres | 5 Metre |
| Guarantee Period | 2 Years |
| Material | Silicone |
| Bending | Horizontal |
| Voltage: | DC 12V |
| Brightness | High Brightness |
| LED Chip | SMD 2835 |
| Dimensions | 6mm x 12mm |
| Shape | Dome |
| Input | DC 12V |
| Beam Angle: | 180 degree |
| Cut Intervals: | 1cm (10mm) |
| LM | >310lm/m |
| CRI | >80 |
| Dimmable: | Yes |
| LED QTY | 120/m |
| Continuous run | 5m |
| Average LED life Hrs: | 30,000 |
| CE and RoHS: | Yes |
The lights are custom cut as per your specific requirements.
- Warranty
- 2 Years
Specifications
- Warranty
- 2 years
Delivery & Returns
On 97% of products — Royal Mail 48-hour tracked
Mainland UK orders over £90 — order by 1pm, Mon–Fri
15-day returns window — free returns on faulty products
01952 370028 · Mon–Fri 9am–5pm
Shipping
Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.
Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.
Saturday Delivery is available as a paid option at checkout.
Large orders and pallet shipments: call 01952 370028 for a quote.
For more information see our detailed Shipping Page.
International Shipping
Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.
Returns & Refunds
The 15-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:
- Standard LED strip lights supplied as 5-metre rolls
- Straight aluminium profiles
- Power supplies and drivers
- Accessories (connectors, controllers, dimmers, end caps)
Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.
Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.
Refunds are processed within 5–10 working days of receiving the returned item.
For more details see our Returns & Refunds page.
Reviews
Frequently Asked Questions
What is the difference between IP65, IP67, and IP68?
IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.
Can I cut this product to a custom length?
Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.
What size driver do I need?
Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.
Should I choose 12V, 24V, or 48V?
Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
What is your warranty?
ATOM LED offers product-specific warranties: up to 7 years on single-colour COB strip, 5 years on RGB and RGBW COB strip, and 4 years on LED neon flex. The warranty covers manufacturing defects. Call 01952 370028 for warranty claims.
Do you offer free delivery?
Yes. Free UK delivery on 97% of products via Royal Mail 48-hour tracked. Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
