- Voltage
- 24V
- IP Rating
- 65
- Cut
- 2.5cm or 25mm
- Max Run
- 5m
- Warranty
- 2 Year

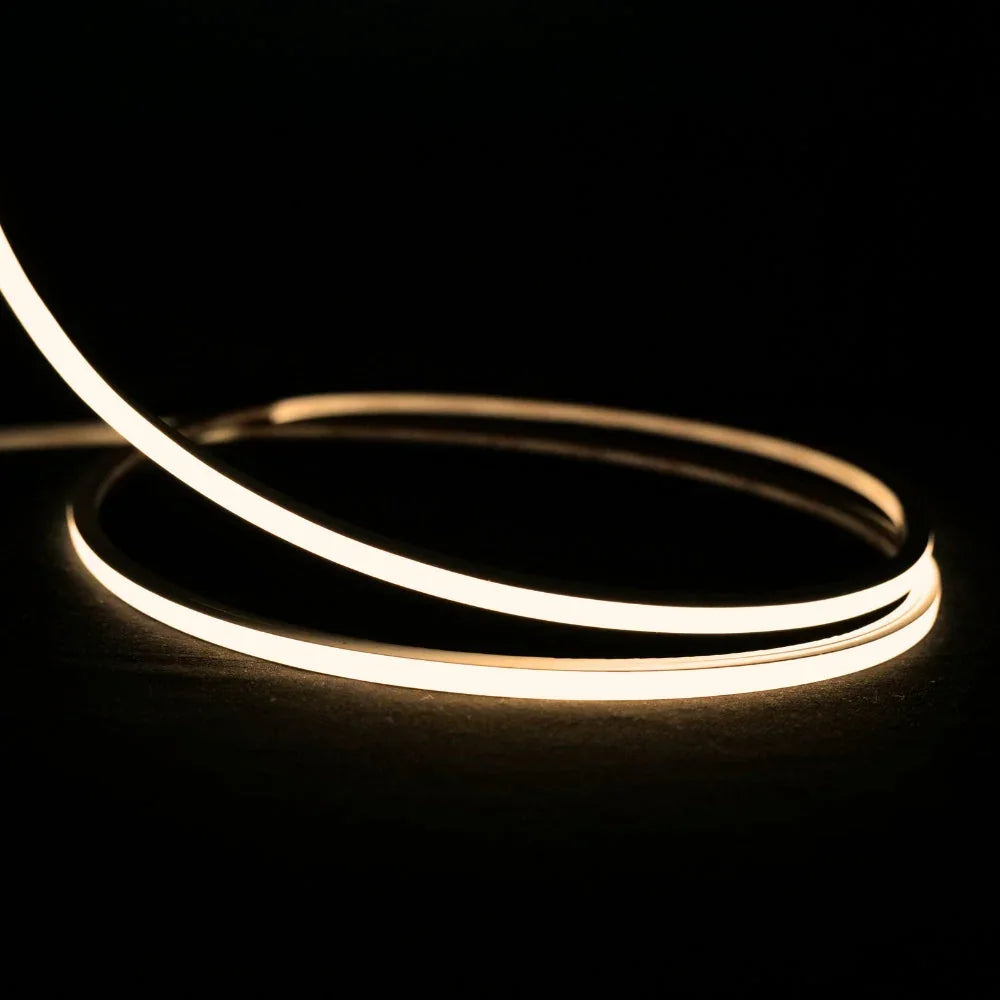

Mini Warm White Neon Flex 3000K 24V Top Bend 4.5x4.5mm IP65 Waterproof 240LEDs/m
SKU: NFNW24V-0404
-
Waterproof
-
Top Bend
-
Corner Bend
-
Flexible
Encrypted & secure checkout
Description

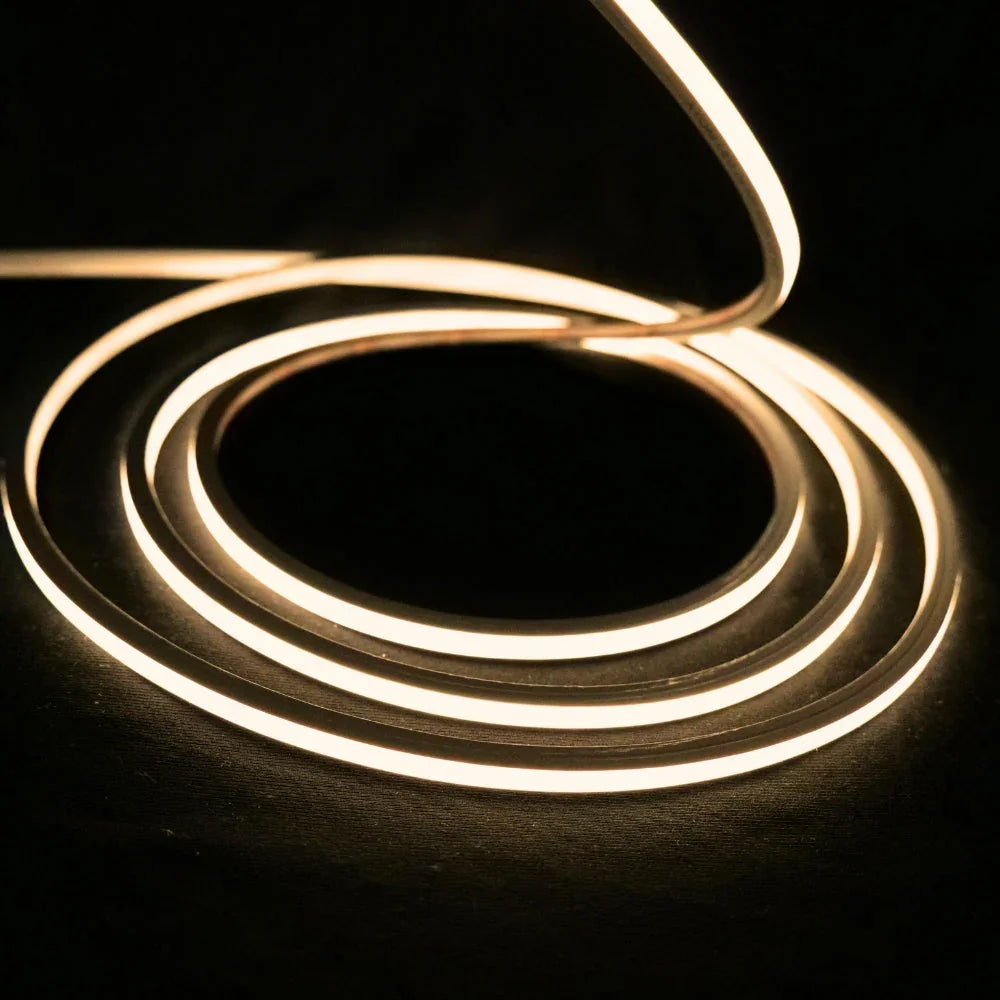

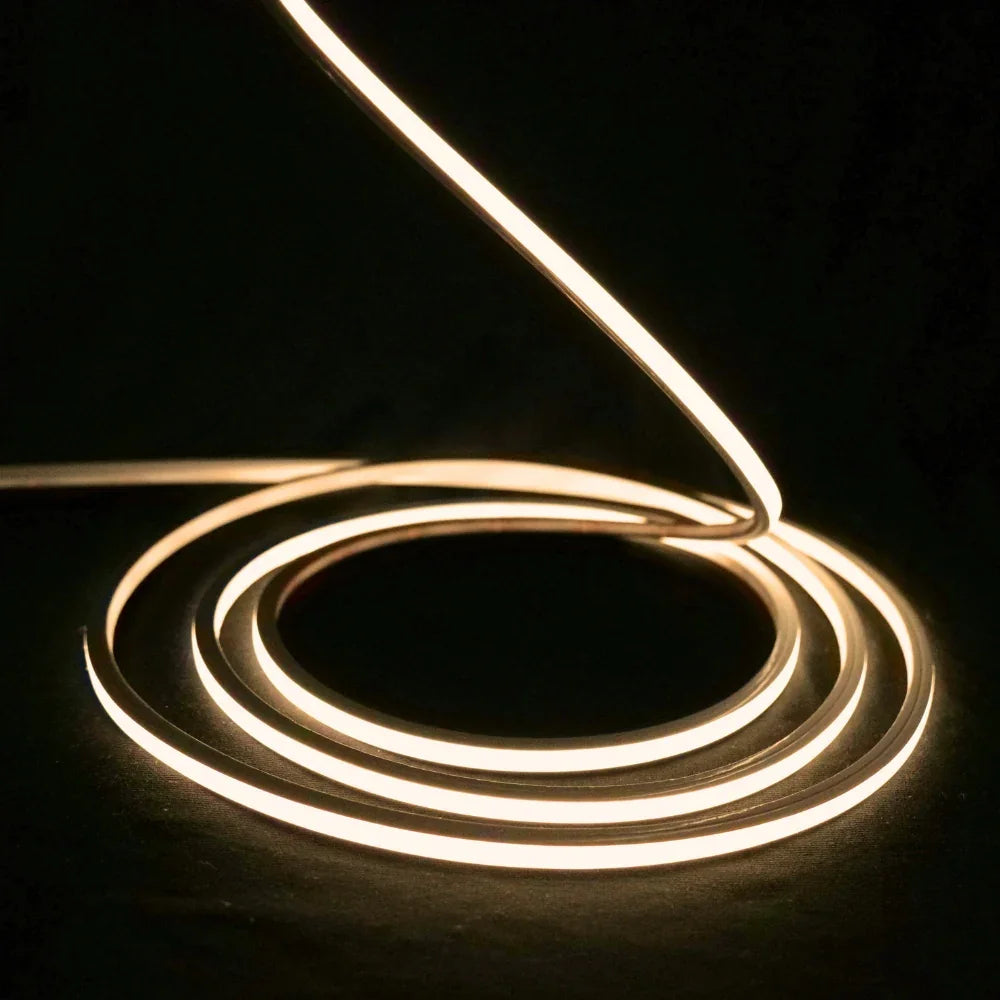

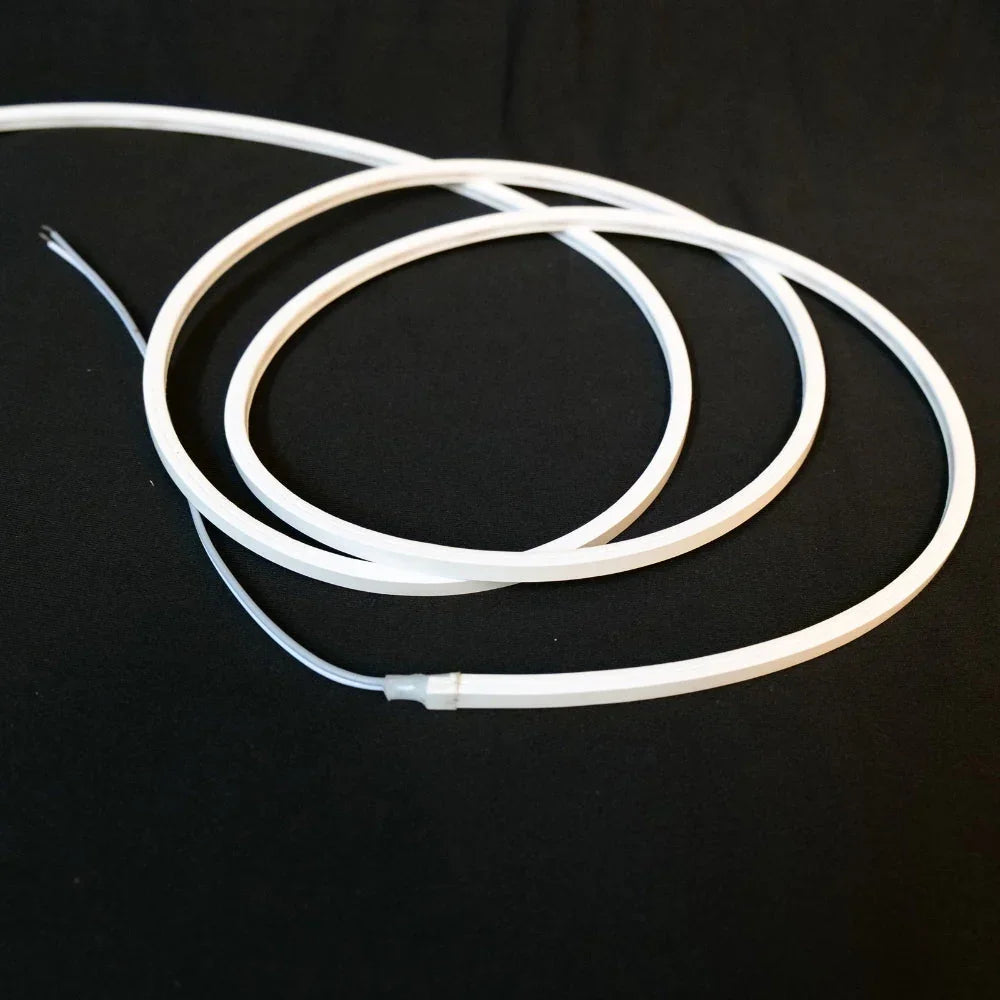

Our Warm White LED Neon Flex 3000K 4.5x4.5mm offers a non-spotting, fully diffused light output. The splashproof silicon coating is fully flexible with a bend radius of up to 30mm. It is cuttable every 2.5cm (25mm), super bright with 240LEDs per metre.

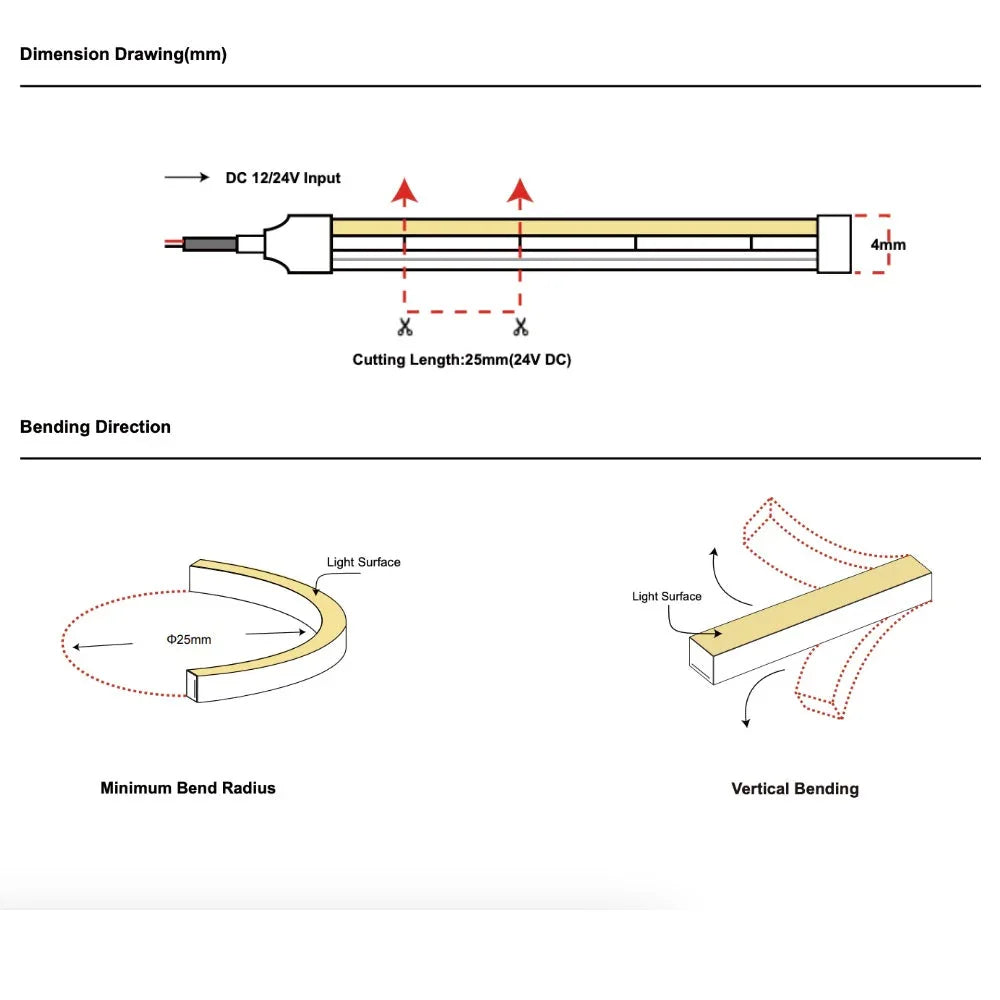

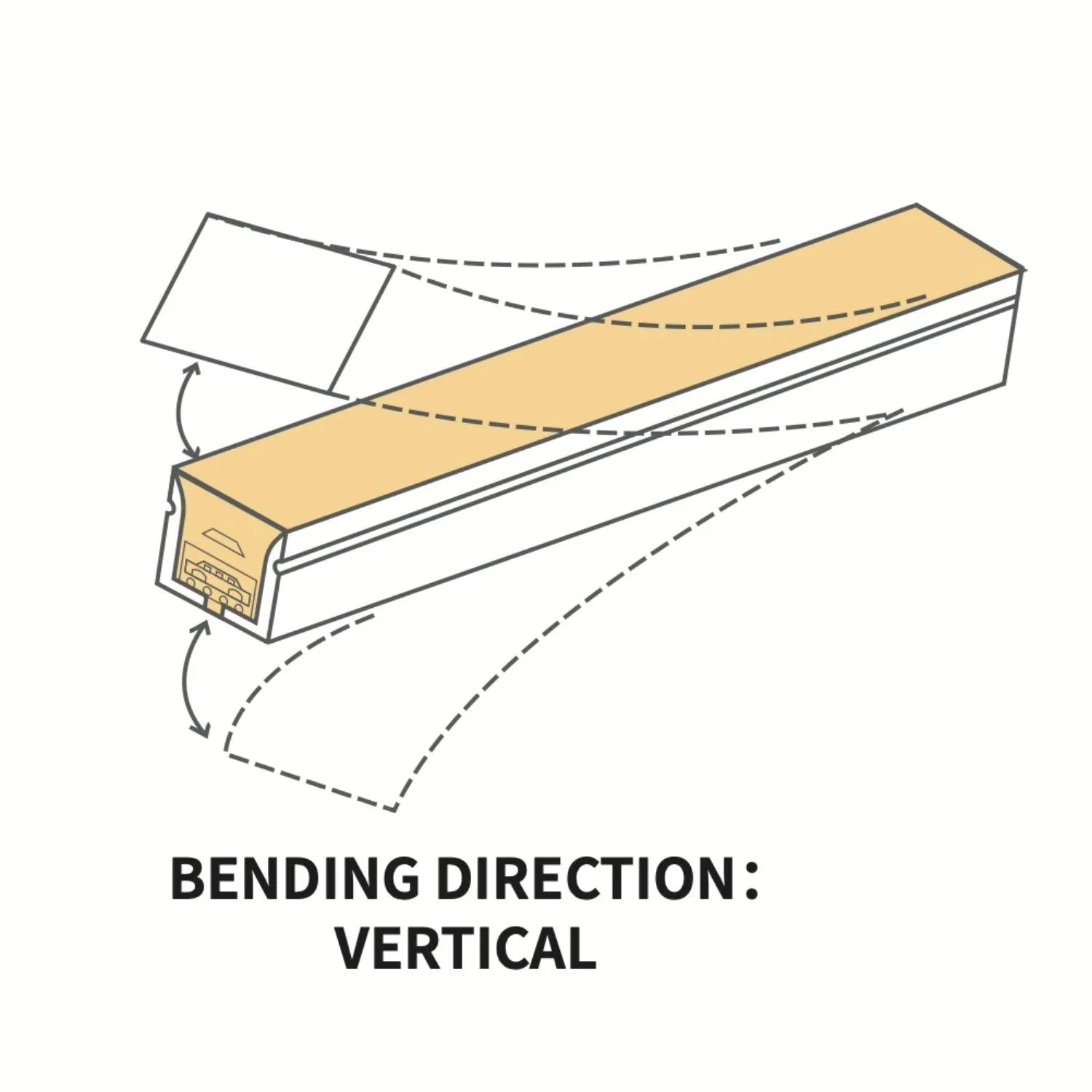

4.5x4.5mm Neon Fles is Top Bending or Vertical Bending

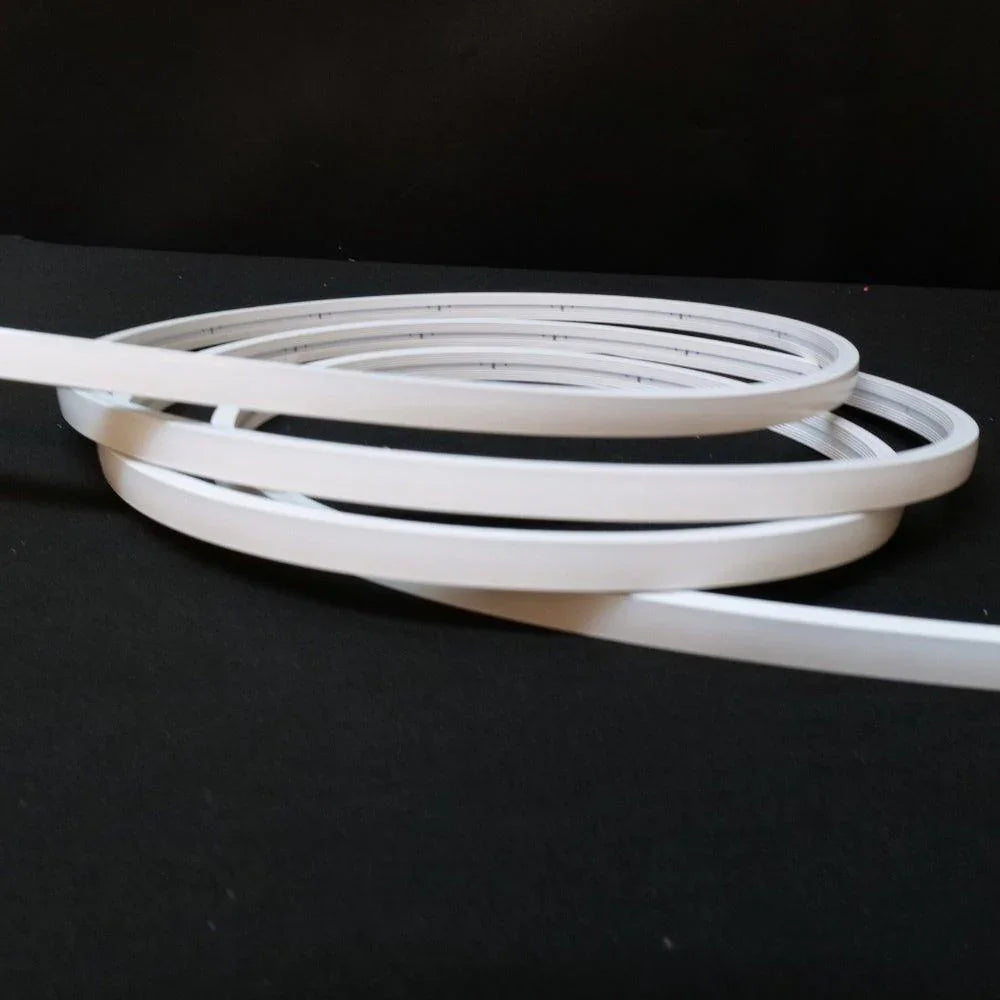

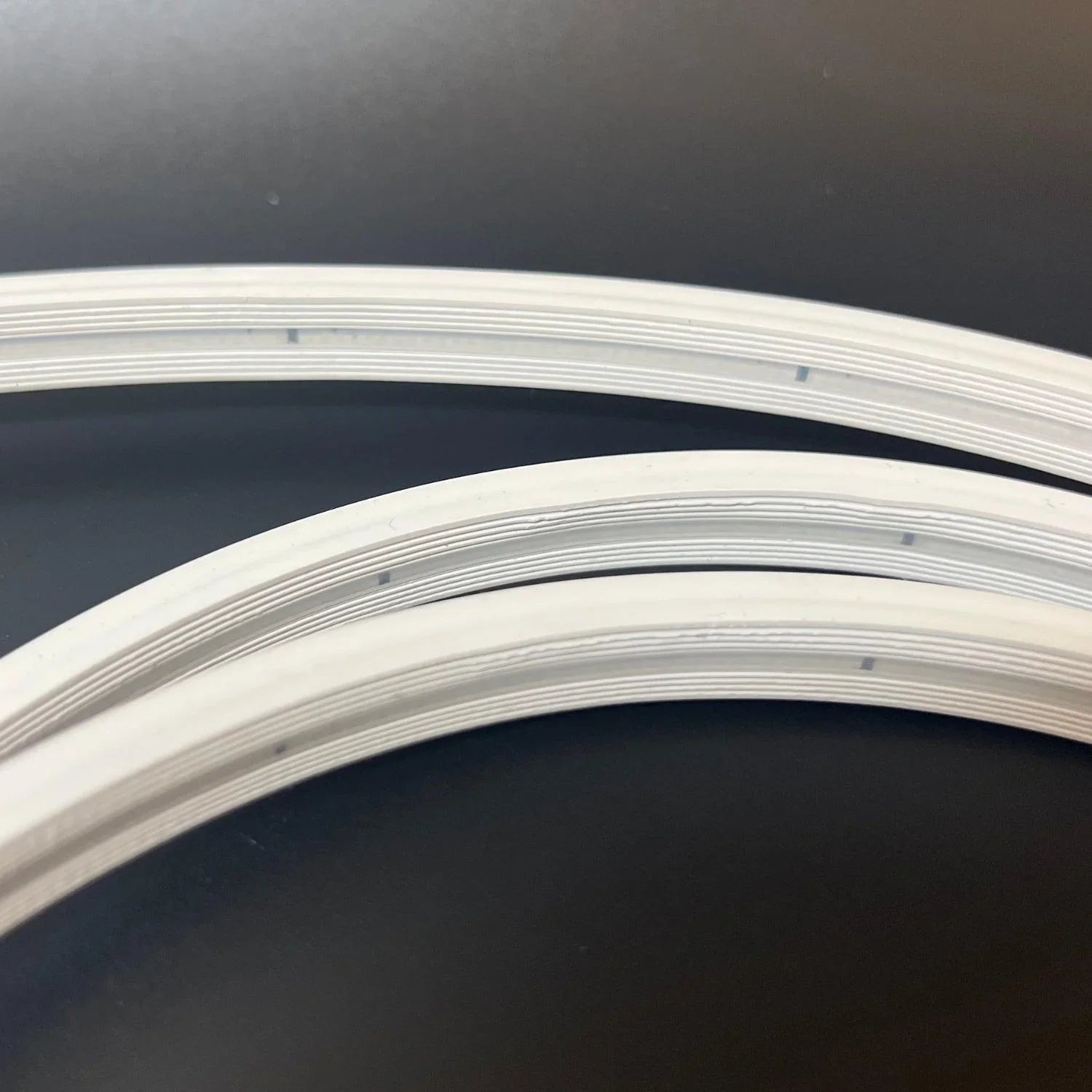

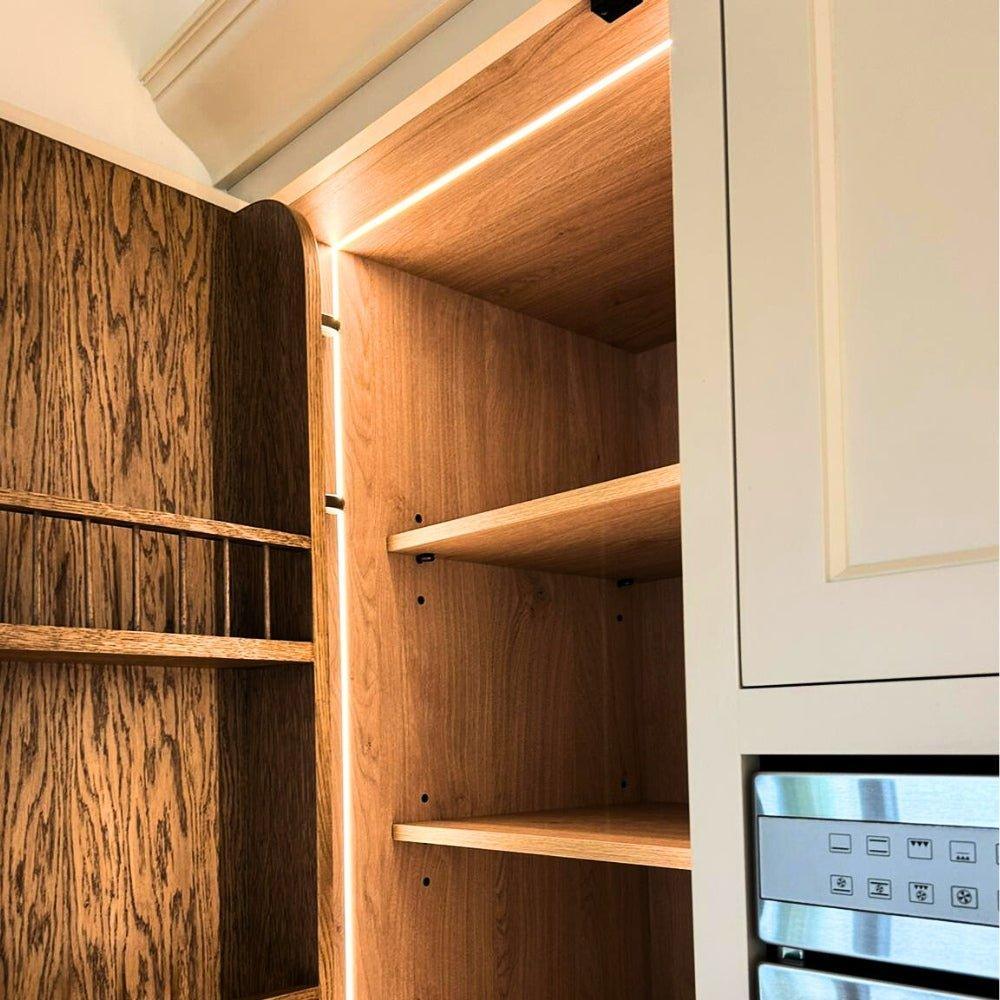

4.5x4.5mm Neon Flex is a high-quality lighting solution designed primarily for furniture lighting. It has a silicone outer casing which means it is both durable and flexible and allows it to easily fit into a correctly sized routed groove, making for a flush, seamless finish to your installation.
Neon Flex is a durable fully diffused linear light perfect for furniture installations thanks to it’s ultra slimline micro profile. This neon can be cut easily to your desired lengths at the allocated cut points. Maximum length is 5 metres before visible voltage drops occur. You can get 10m continuous length, however, you need to power the led neon flex from both ends.

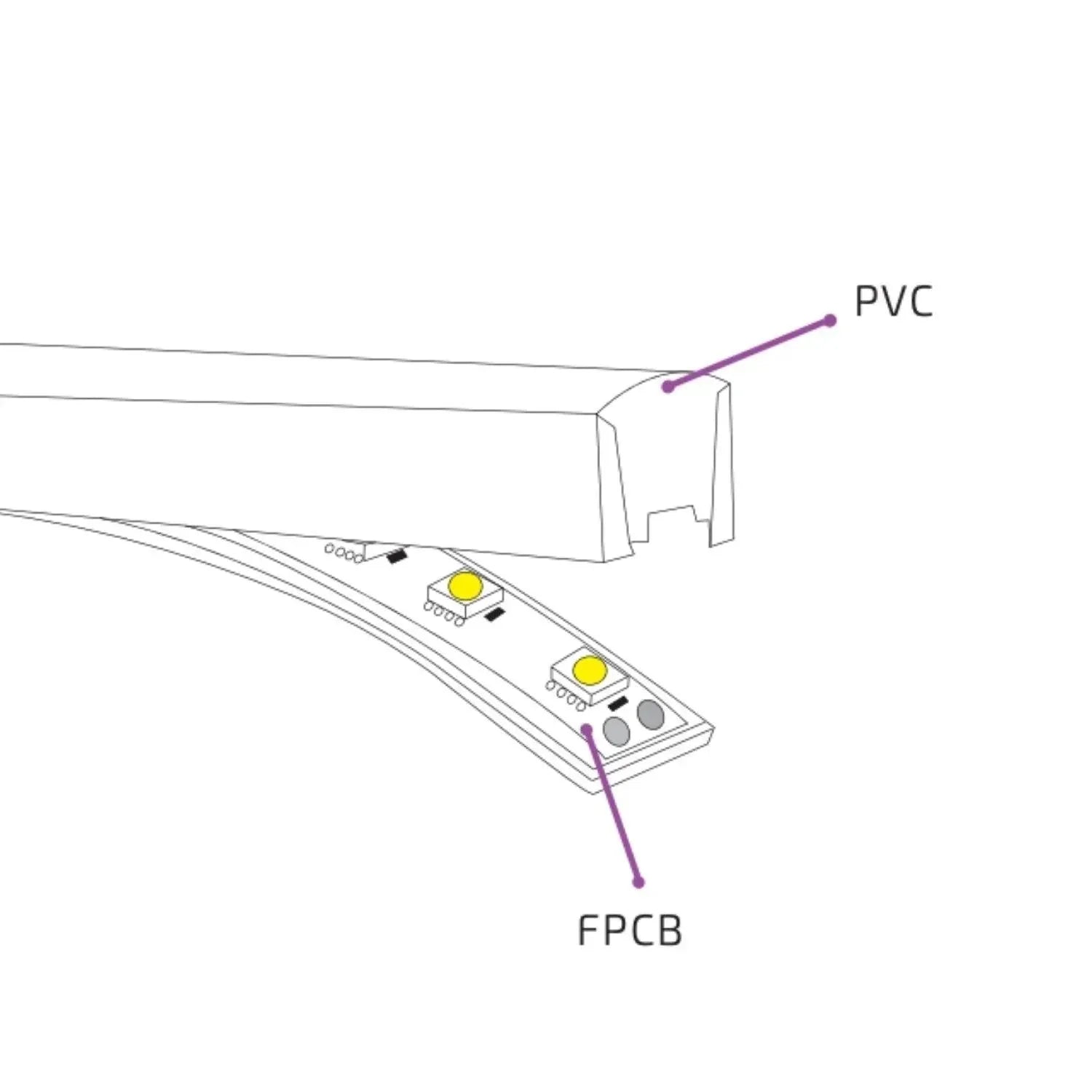

Silicone cover has a high-quality finish that offers a longer life than standard PVC covers. You can rest assured that the Silicone cover will last longer and not discolour like PVC covers.

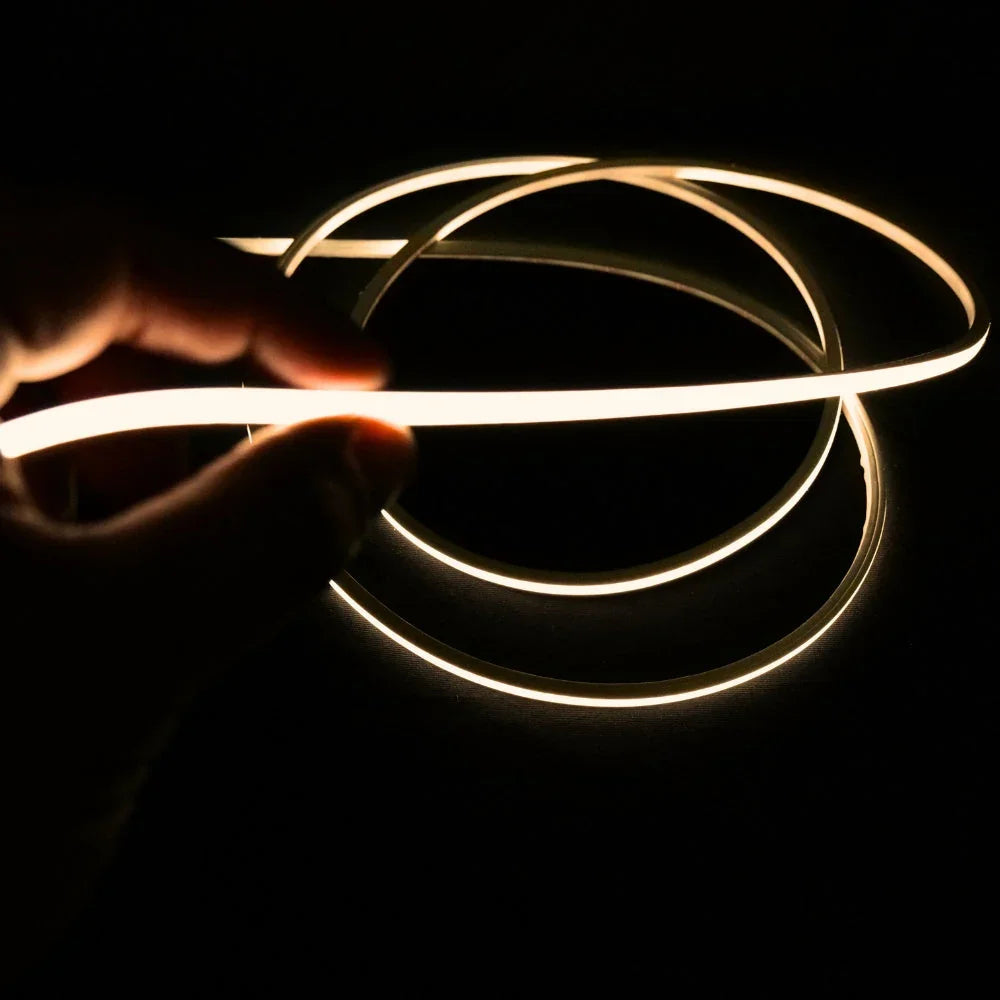

This LED light with its neon effect and flexible composition has a visually attractive and innovative design that’s perfect for any Home, Office or setting. They have a high level of versatility that allows you to bend and shape the light into almost any shape or form.
Our 4.5x4.5mm Micro Neon Flex comes with a 3-year guarantee as standard on indoor installations. The lights are cut and prepared from a 50m roll as per your specific custom requirement.
Includes LED Neon Flex only. No clips and adapters include
Specification:
- Working Voltage: DC 24V
- Light Colour: Warm White 3000K
- LEDs: 2216 SMD
- Cutting: 2.5cm (25mm)
- Continuous run: 5 Metre
- Strip Backing: White
- Waterproof Rating: IP65 Waterproof
- Working Temperature: -30°C to 50°C

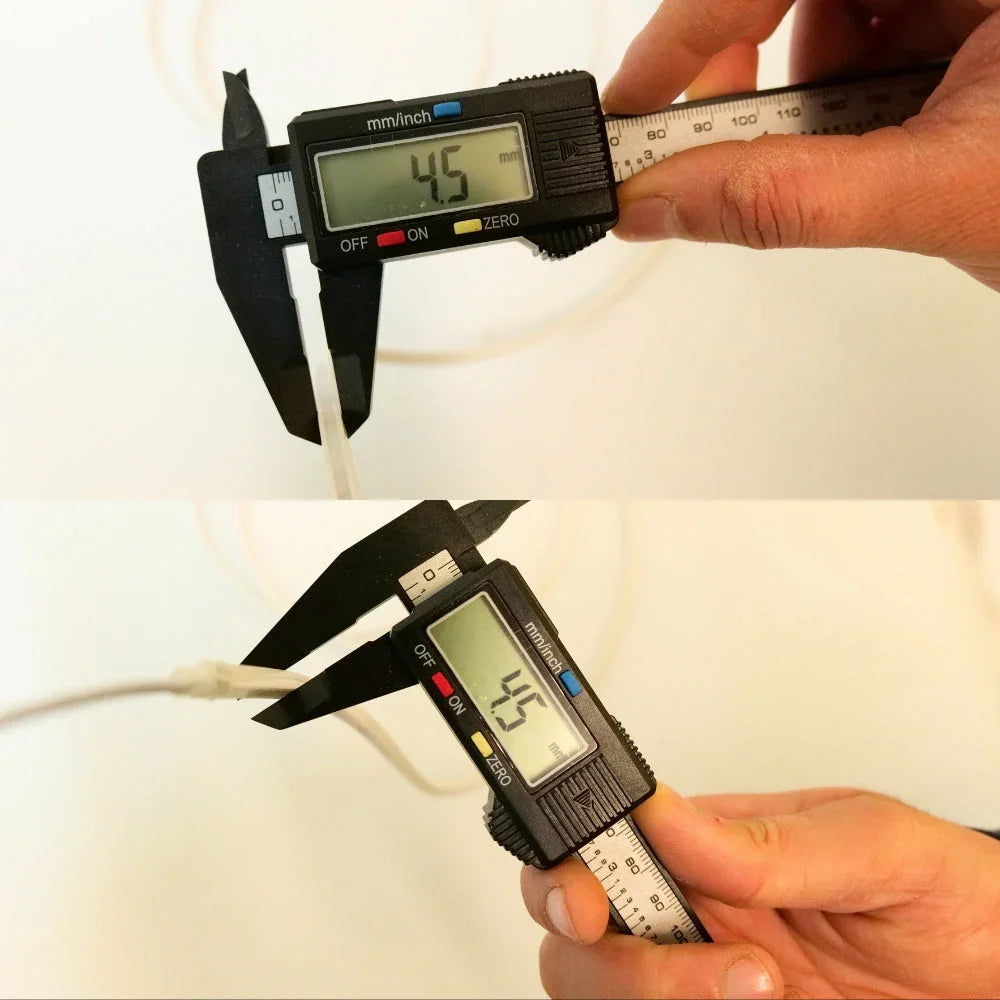

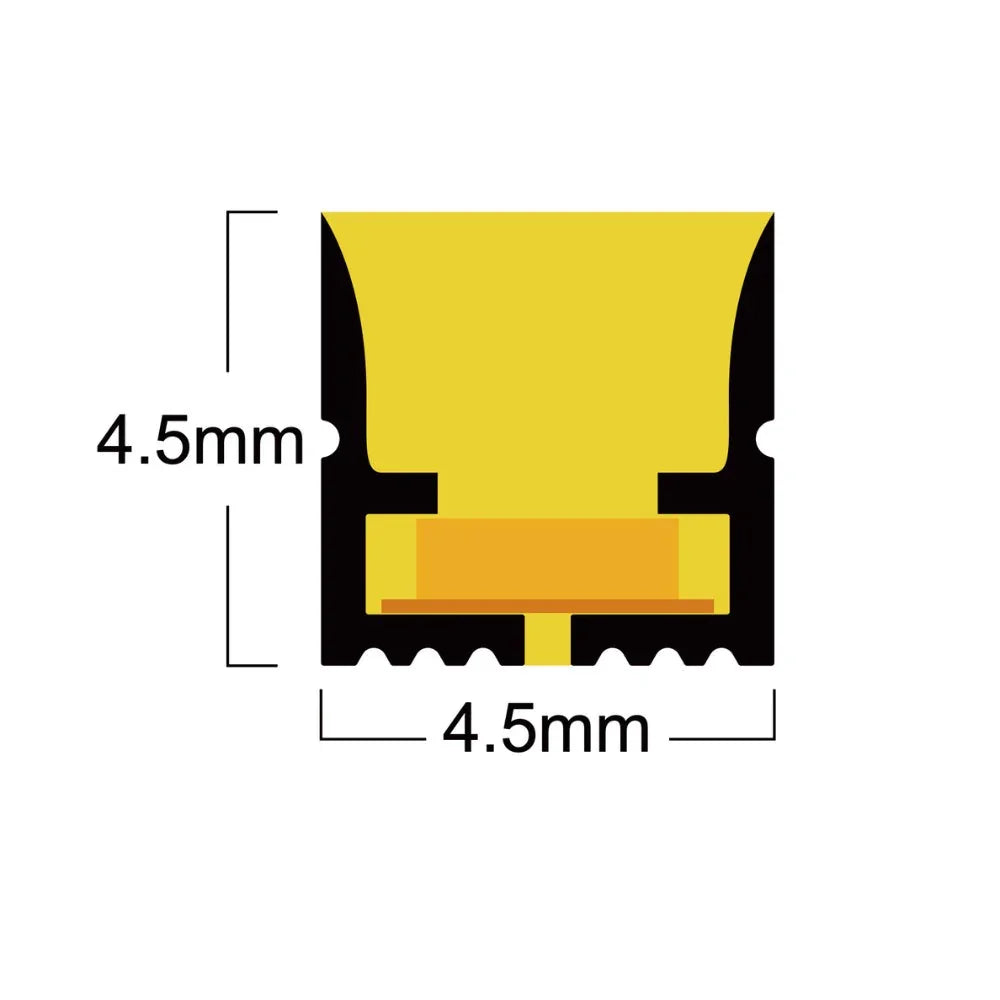

- LED Neon Flex Dimension: 4.5x4.5mm
- Power: 11 W/Meter
- Extension Lead: 20cm Extension Lead
Driver Requirements:
1 metre > 11
2 metre > 22w
3 metre > 33w
4 metre > 44w
5 metre > 55w
6 metre > 66w
7 metre > 77w
8 metre > 88w
9 metre > 99w
10 metre > 110w
Please do not use the power supply to the full capacity always at least 15% capacity.
*For outdoor use, Heat Shrink and silicone gel must be applied at the Front and End Cap to protect the Strip against water damage. Ingress Protection and incorrect use of a Transformer will void the warranty.
The lights are custom cut as per your specific requirements.
- Product Type
- LED Neon Flex
- Colour
- Warm White 3000K
- IP Rating
- 65
- Voltage
- 24V
- Watts Per Metre
- 11W
- LEDs Per Metre
- 240
- Max Run Length
- 5m
- CRI
- >90
- Dimensions
- 4.5x4.5mm
- Warranty
- 2 Years
Specifications
- Product Type
- LED Neon Flex
- Colour
- Warm White 3000K
- IP Rating
- 65
- LEDs Per Metre
- 240
- Continuous Run
- 5m
- Voltage
- 24V
- Watts Per Metre
- 11W
- Metres
- 50m
- Dimensions
- 4.5x4.5mm
- Width
- 4.5mm
- Depth
- 4.5mm
- Bending Angle
- Vertical bend or top bend
- Lumens Per Metre
- 690
- Cut Points
- 2.5cm or 25mm
- Operating Temperature
- -30°C to 50°C
- LED Type
- 2216
- Average LED Life Hours
- 50,000
- Continuous Operating Hours
- 12 hours
- Max Bending
- 3cm
- Shape
- Flat
- Certification
- CE, RoHS, UKCA
- Material
- Silicone
- Beam Angle
- 120
- CRI
- >90
- Warranty
- 2 years
- Brand
- ATOM LED
Delivery & Returns
On 97% of products — Royal Mail 48-hour tracked
Mainland UK orders over £90 — order by 1pm, Mon–Fri
30-day returns window — free returns on faulty products
01952 370028 · Mon–Fri 9am–5pm
Shipping
Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.
Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.
Saturday Delivery is available as a paid option at checkout.
Large orders and pallet shipments: call 01952 370028 for a quote.
For more information see our detailed Shipping Page.
International Shipping
Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.
Returns & Refunds
The 30-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:
- Standard LED strip lights supplied as 5-metre rolls
- Straight aluminium profiles
- Power supplies and drivers
- Accessories (connectors, controllers, dimmers, end caps)
Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.
Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.
Refunds are processed within 5–10 working days of receiving the returned item.
For more details see our Returns & Refunds page.
Reviews
Frequently Asked Questions
What is the difference between IP65, IP67, and IP68?
IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.
Can I cut this product to a custom length?
Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.
What size driver do I need?
Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.
Should I choose 12V, 24V, or 48V?
Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
What is your warranty?
ATOM LED offers product-specific warranties: up to 7 years on single-colour COB strip, 5 years on RGB and RGBW COB strip, and 4 years on LED neon flex. The warranty covers manufacturing defects. Call 01952 370028 for warranty claims.
