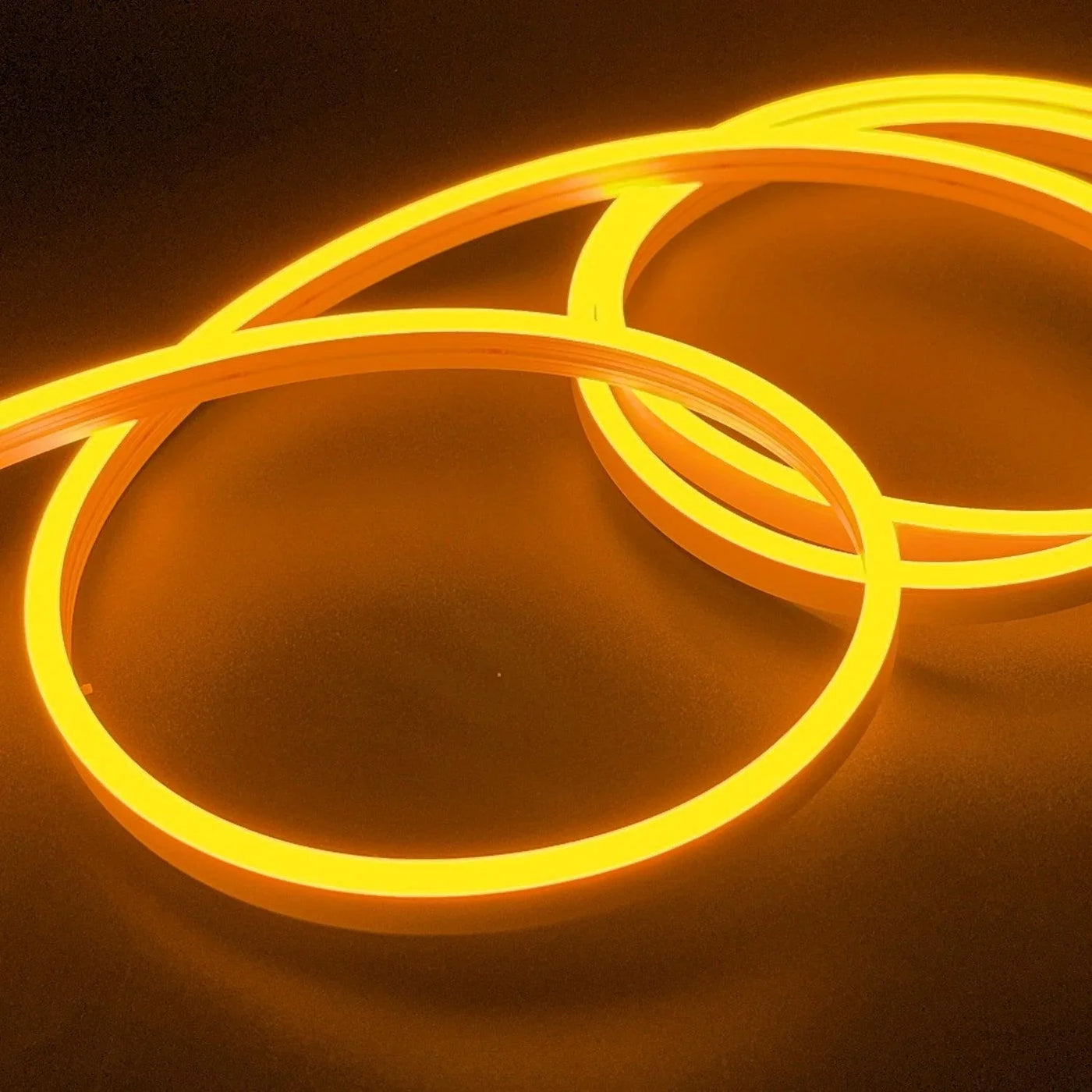

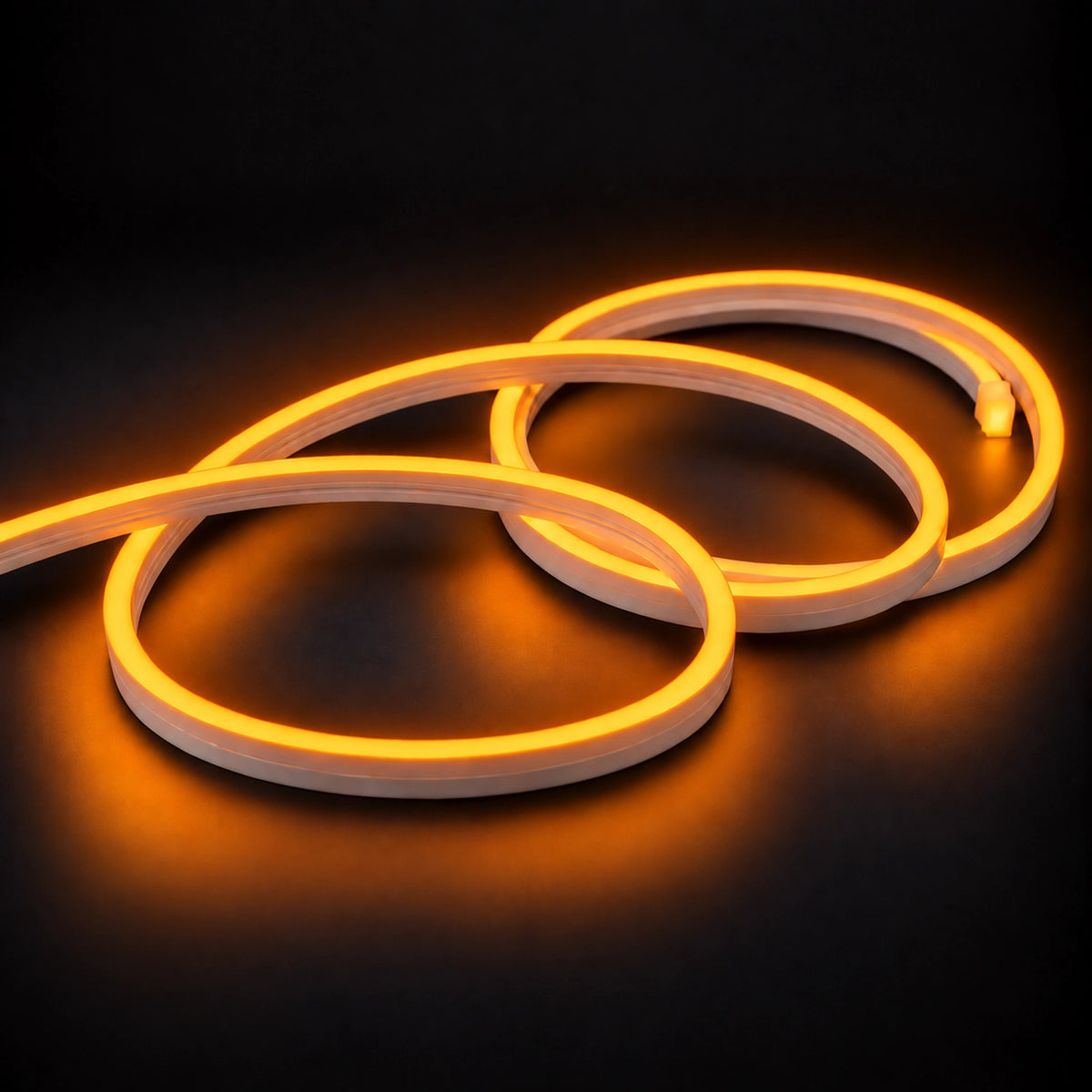

Our mini LED Neon Flex 6x12mm offers a non-spotting, fully diffused light output. The splashproof silicon coating is fully flexible with a bend radius of up to 20mm, making it ideal for use in signage and display installations both indoors and outdoors. It is cuttable every 1cm, super bright with 120LEDs per metre.
6x12mm Neon Fles is horizontal bending
We’ve designed this Neon Flex Light in a way that the LEDs give you the maximum brightness, efficency and consistency of light by using ultra-bright 2835 LED chips.
This Neon Flex is fitted with 120 LEDs per metre, giving an almost perfect line of light, with no sign of dots or dark shades. It’s also waterproof to IP65 rating; LEDs are encapsulated in a robust and flexible silicone housing.
Neon Flex is a durable fully diffused linear light perfect for furniture installations thanks to it’s ultra slimline micro profile. This neon can be cut easily to your desired lengths at the allocated cut points. Maximum length at any time is 5 metres before visible voltage drops occur. You can get 10m continuous length, however, you need to power the led neon flex from both ends.
Whether you're looking to light up a kitchen counter, accent a bookshelf, or brighten up a bathroom mirror, the 6x12mm Mini Neon Flex is the perfect choice for all your furniture lighting needs.
Our 6x12mm Mini Neon Flex comes with a 2-year guarantee as standard on indoor installations.
Our 6x12mm Mini Neon Flex comes with a 2 year guarantee as standard on indoor installations and 1 year for outdoor use (light splashes of water).
Note: Should not be fully exposed to outdoor weather, for full outdoor use please make sure to use silicone glue at the end cap and front end of the neon to avoid water ingress.
Includes LED Neon Flex only. No clips and adapters include
Driver Requirements:
1 metre > 7
2 metre > 14w
3 metre > 21w
4 metre > 28w
5 metre > 35w
Do not use the power supply to its full capacity.
Product Specification:
Product Type |
LED Neon Flex |
Colour |
Yellow |
IP Rating |
IP65 Waterproof |
LED |
120 LEDs/m |
Metres |
5 Metre |
Guarantee Period |
2 Years |
Material |
Silicone |
Bending |
Horizontal |
Voltage: |
DC 12V |
Brightness |
High Brightness |
LED Chip |
SMD 2835 |
Dimensions |
6mm x 12mm |
Shape |
Dome |
Input |
DC 12V |
Beam Angle: |
180 degree |
Cut Intervals: |
1cm (10mm) |
LM |
>310lm/m |
CRI |
>80 |
Dimmable: |
Yes |
LED QTY |
120/m |
Continuous run |
5m |
Average LED life Hrs: |
30,000 |
CE and RoHS: |
Yes |
