Recessed ground-line wash, perimeter to roofline

A private residence wrapped in 130 metres of natural-white IP68 neon flex — recessed into the ground at the perimeter and tracking the eaves at the roofline. 48V system, 50m continuous runs, no visible joins.

Sector: Residential · Exterior
Scope: Perimeter ground-line + roofline
Run length: 130m · 50m runs
Finish: Recessed aluminium profile

Recessed ground-line wash, perimeter to roofline

The brief

The owner wanted a continuous line of architectural light at two heights — flush into the ground at the perimeter, and along the eaves at the roofline. Visible only as light, never as a fitting. It had to read as one uninterrupted line, handle UK weather, and last a decade with no maintenance.

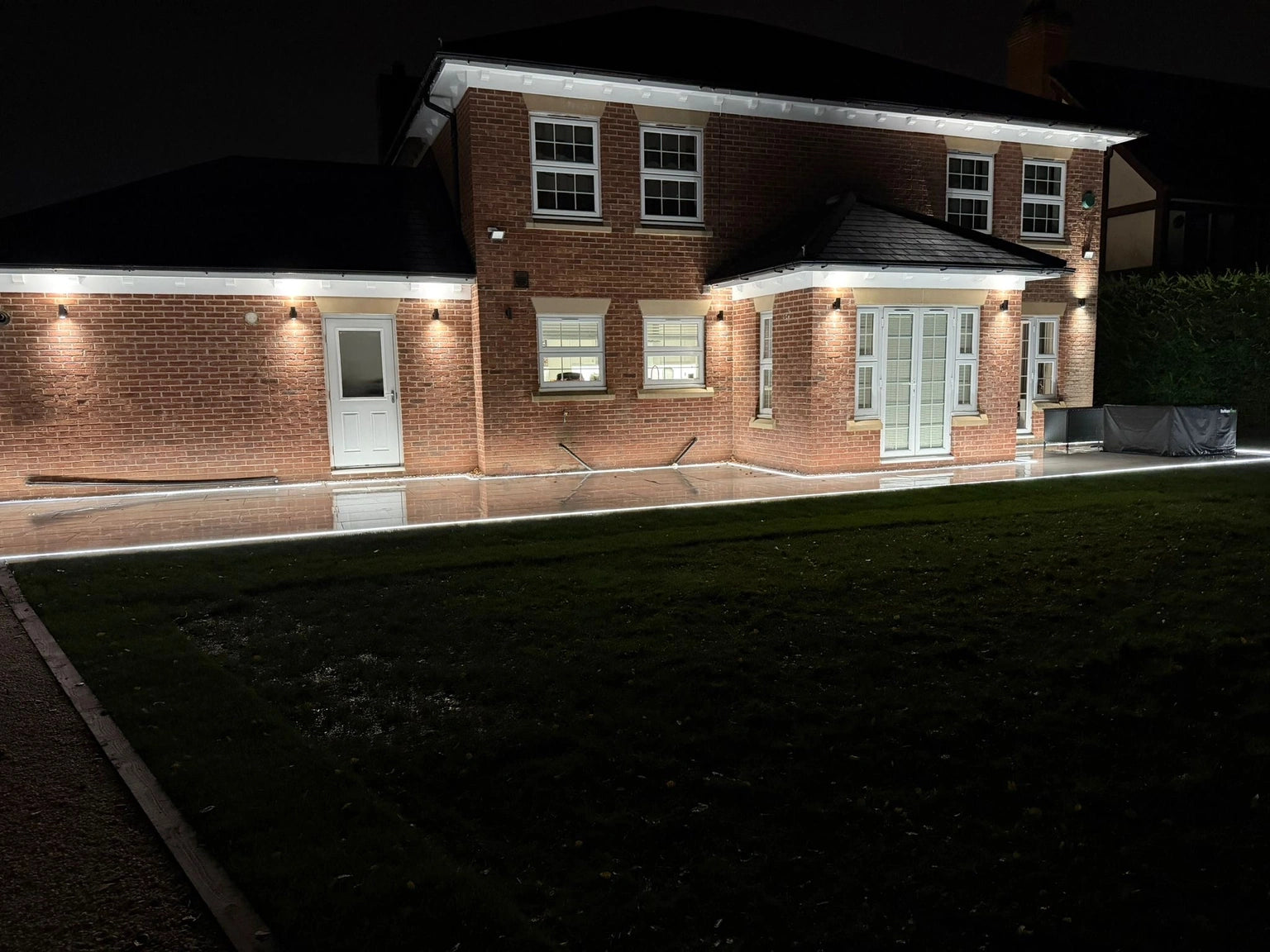

Wider patio view at night with eaves lighting and ground-line strip both visible

The solution — 48V at 10×20mm

We specified our 10×20mm IP68 4000K Natural White at 48V. Three reasons drove the choice:

48V over 24V — runs 50m continuously from one end with no voltage drop. That single-end capability is what lets the line track unbroken across 130m with minimal feed points and zero visible joins.
10×20mm body — 20mm depth sits flush in a ground profile; 10mm width tucks neatly under the soffit.
IP68, not IP67 — rated for continuous submersion. Standing water at the ground line won't perish it.

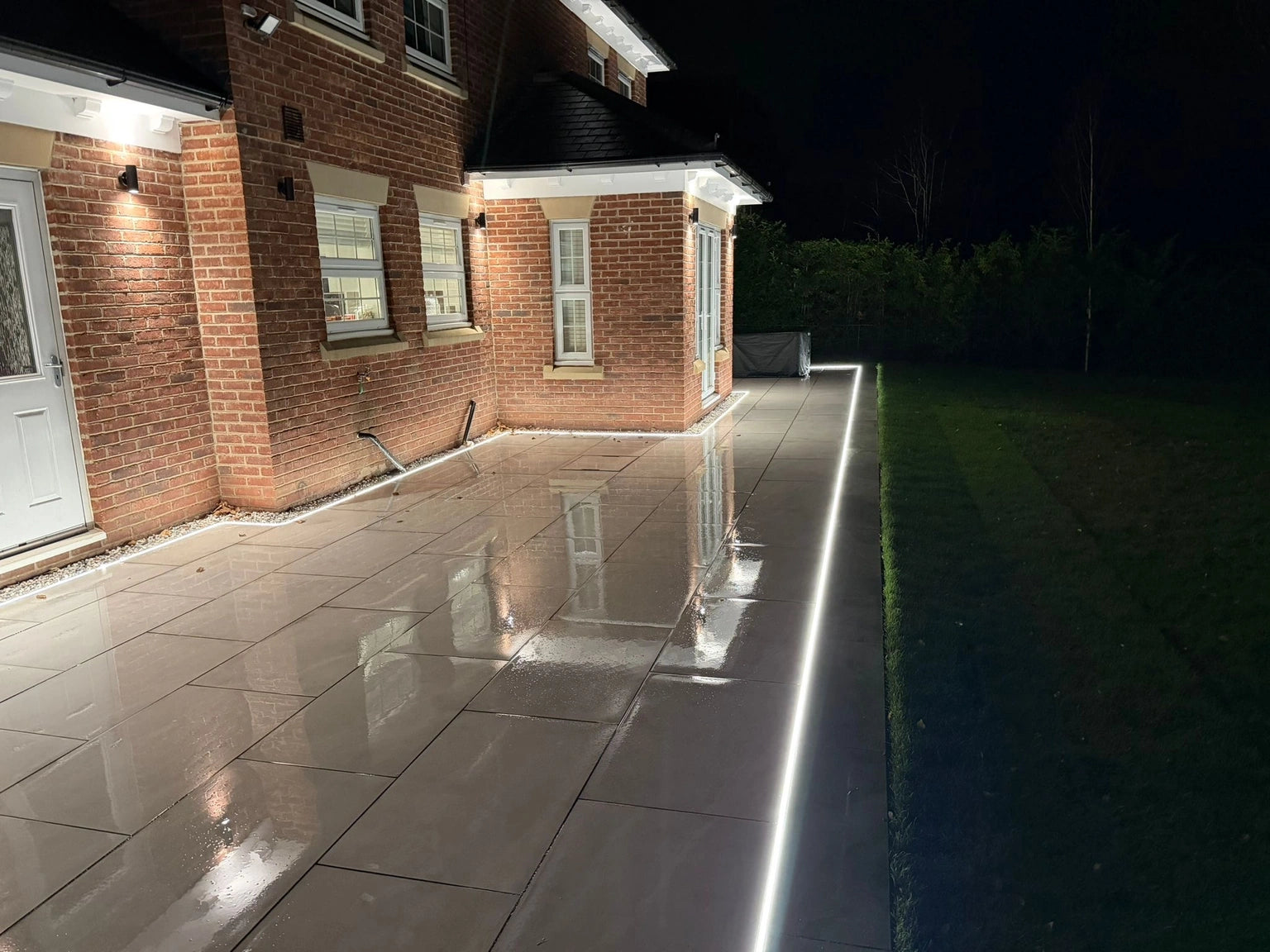

Recessed neon flex tracking down the patio at the property edge, wet paving reflecting the light

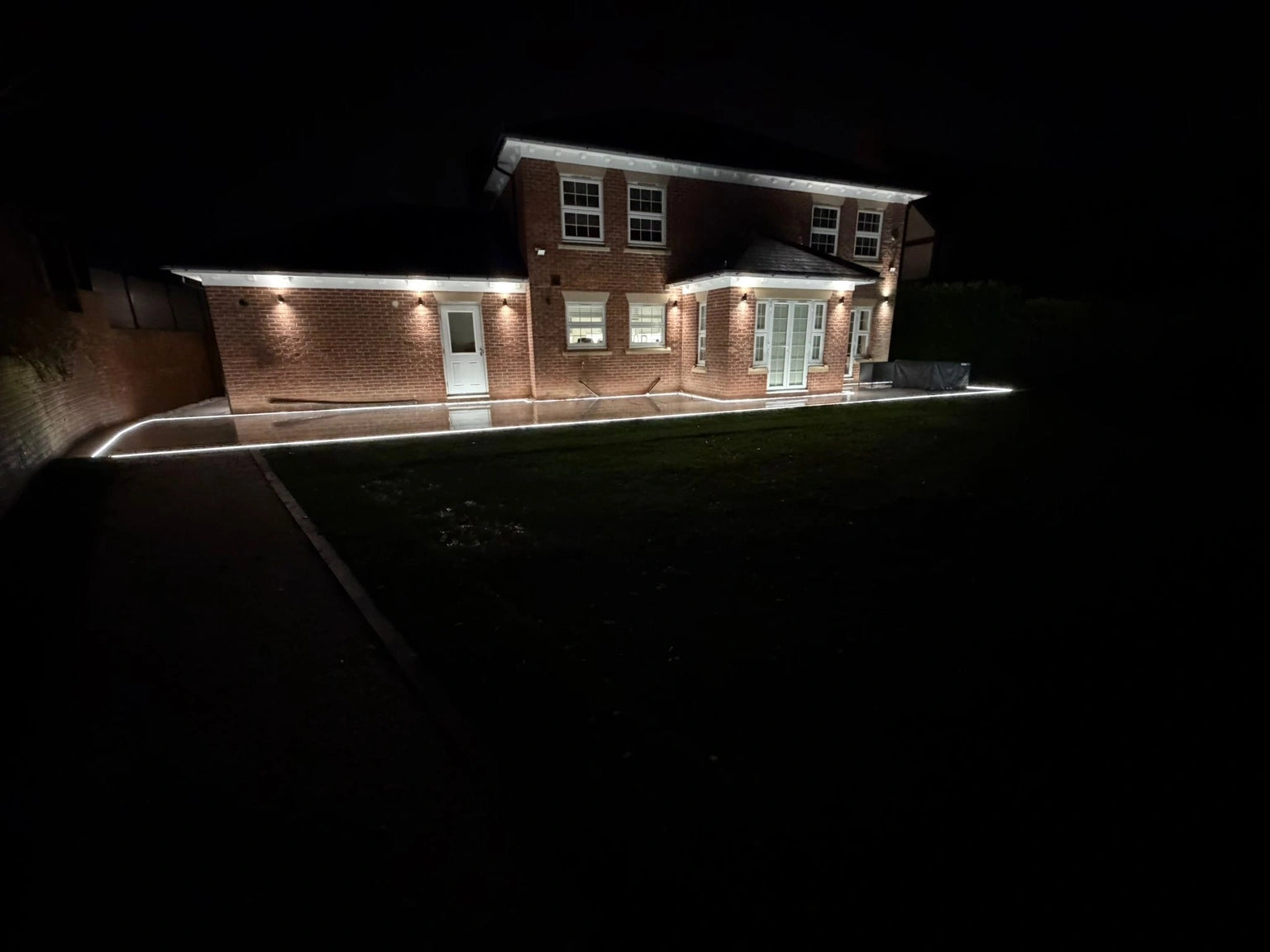

Wider distant view of the property at night with the perimeter ground-line strip and roofline lighting

The result

One continuous line of natural white at the ground, mirrored cleanly at the eaves. From a few metres back the fitting disappears — the property reads as a structure outlined in light. Single feed, zero visible joins, four-year warranty.

Technical breakdown

What's installed on this project

Product: Natural White 48V IP68 Waterproof 10×20mm Neon Flex
Voltage: 48V DC — supports a 50m continuous run from a single-end feed without voltage drop. Half the drop rate of 24V at the same wattage.
IP rating: IP68 — fully sealed silicone body, rated for continuous submersion. Suitable for ground-recess and direct UK weather exposure.
Colour temperature: Natural White (4000K) — clean architectural light, neutral against brick and stone.
Profile: Recessed aluminium ground profile set flush with the paving at the property's perimeter, plus eaves-line profile at the roofline.
Run length: 130 metres total · 48V system, 50m continuous per single-end feed · zero visible joins · custom-cut to length on site.
