Tile-In Aluminium Profile 10×20mm IP67 Neon Flex 1 metre & 2 Metre
SKU: NFPROFILE-T1020-1M
-
Straight Profile
-
Tile-In Mounting
-
Fits 10 × 20 mm IP67 Neon Flex
Encrypted & secure checkout
Description

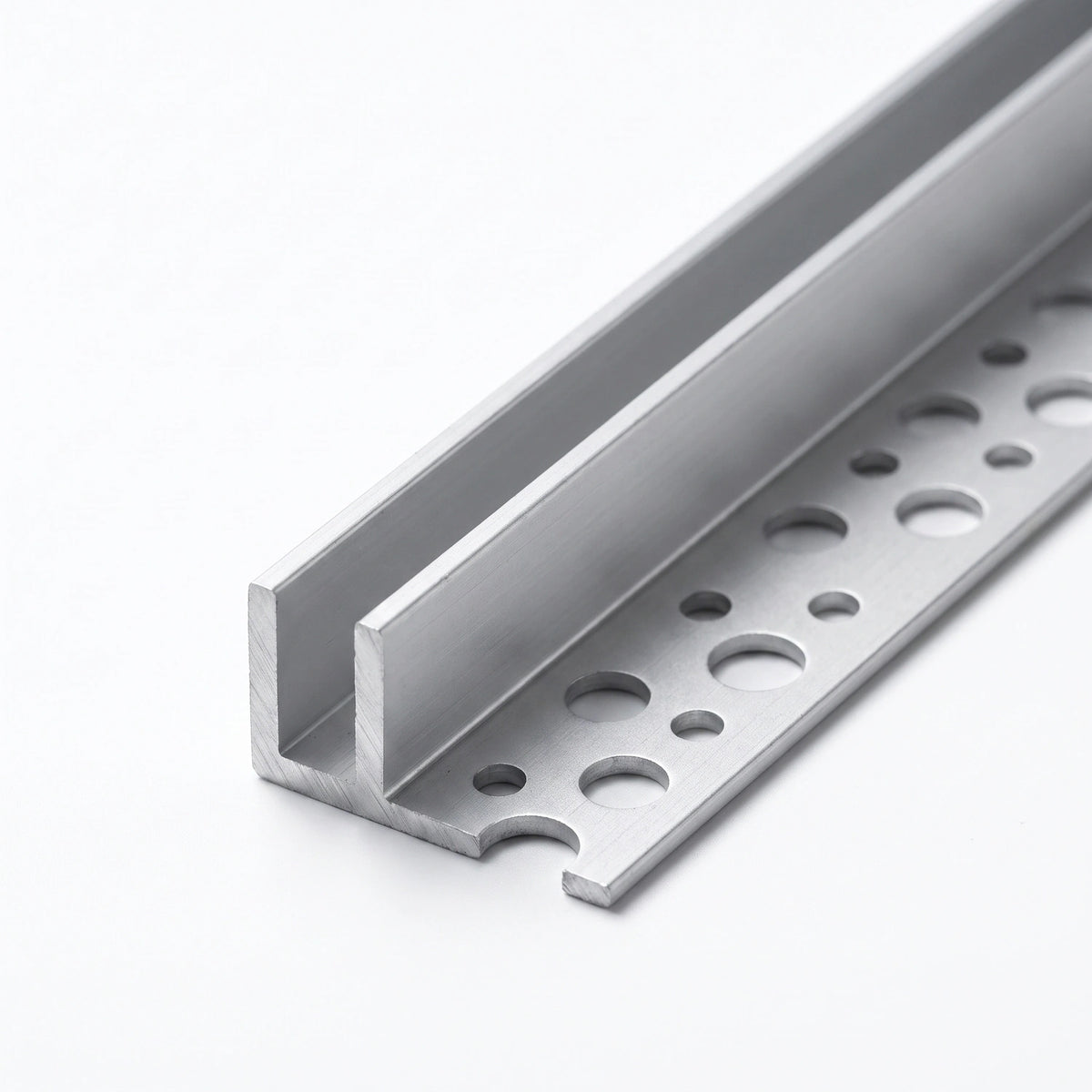

Create a clean, flush line of light in tiled floors or walls with this straight aluminium mounting profile. Its single asymmetric perforated flange sits beneath the tile or slab, helping the surrounding installation material key around the profile while the channel remains aligned with the finished surface.
Designed for matching ATOM LED 10 × 20 mm IP67 Neon Flex in 24V and 48V. Choose a 1 Metre or 2 Metre length.
Key features
- For matching 10 × 20 mm IP67 Neon Flex
- Straight, rigid aluminium profile with one perforated tile-in flange
- Available in 1 Metre and 2 Metre lengths
Compatible Neon Flex
- 24V white: Warm White 2800K, Natural White 4000K and Cool White 6000K
- 48V white: Warm White 2800K, Natural White 4000K and Cool White 6000K
- RGB: 24V RGB and 48V RGB
- Addressable: 24V WS2811 Digital Pixel RGB
Profile only: Neon Flex, fixings and accessories are not included.
Before ordering
This profile is matched to the linked ATOM LED ranges. If using another product, check compatibility before ordering because nominal 10 × 20 mm sizes can vary. This profile is straight and is not bendable.
IP67 refers to compatible Neon Flex, not the bare aluminium profile or completed installation. Select appropriate sealing, fixings, drainage and installation methods for the substrate and environment.
Delivery charges
For the 1 Metre option, standard delivery is £6.95 on Mainland UK orders under £90; the usual free Next Day threshold applies at £90 or more where no 2 Metre profile is in the basket. The 2 Metre option has a £19.85 delivery charge and is excluded from free delivery.
- Product Type
- Aluminium Profile
- Warranty
- To be confirmed
Specifications
- Product Type
- Aluminium Profile
- Metres
- 1 Metre / 2 Metres
- Shape
- Straight asymmetric tile-in channel
- Material
- Aluminium
- Attachment
- Tile-in / recessed beneath tiled finish
- Warranty
- To be confirmed
- Brand
- ATOM LED
- Compatible Ip Rating
- IP67 Neon Flex
- Compatible Voltage
- 24V and 48V Neon Flex
- Included Items
- Aluminium profile only
- Neon Flex Size
- 10 × 20 mm
Delivery & Returns
On 97% of products — Royal Mail 48-hour tracked
Mainland UK orders over £90 — order by 1pm, Mon–Fri
30-day returns window — free returns on faulty products
01952 370028 · Mon–Fri 9am–5pm
Shipping
Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.
Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.
Saturday Delivery is available as a paid option at checkout.
Large orders and pallet shipments: call 01952 370028 for a quote.
For more information see our detailed Shipping Page.
International Shipping
Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.
Returns & Refunds
The 30-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:
- Standard LED strip lights supplied as 5-metre rolls
- Straight aluminium profiles
- Power supplies and drivers
- Accessories (connectors, controllers, dimmers, end caps)
Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.
Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.
Refunds are processed within 5–10 working days of receiving the returned item.
For more details see our Returns & Refunds page.
Reviews
Frequently Asked Questions
What is the difference between IP65, IP67, and IP68?
IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.
Can I cut this product to a custom length?
Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.
What size driver do I need?
Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.
Should I choose 12V, 24V, or 48V?
Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
What is your warranty?
ATOM LED offers product-specific warranties: up to 7 years on single-colour COB strip, 5 years on RGB and RGBW COB strip, and 4 years on LED neon flex. The warranty covers manufacturing defects. Call 01952 370028 for warranty claims.
Do you offer free delivery?
Yes. Free UK delivery on 97% of products via Royal Mail 48-hour tracked. Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
