RGB Neon Flex 24V 10x20mm IP67 Waterproof 20 Metre

SKU: NFRGB24VIP67-1020

  • 24V DC
  • Corner Bend
  • 20m Run
  • Side Bend
  • IP67 Waterproof
£33.95 Inc. VAT
19 units available
Size
Cut to nearest cut point.
1

Encrypted & secure checkout

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Visa
  • Clearpay
Speak to an expert 01952 370028

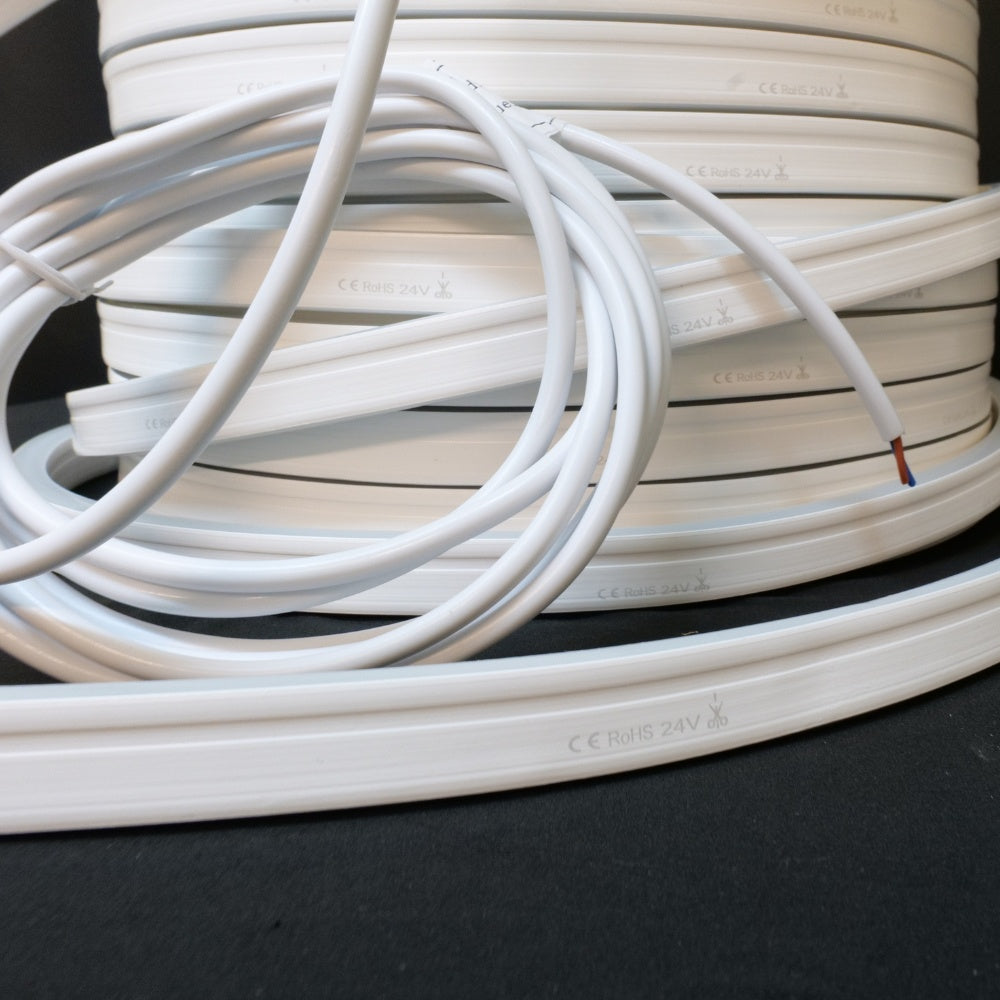

Description

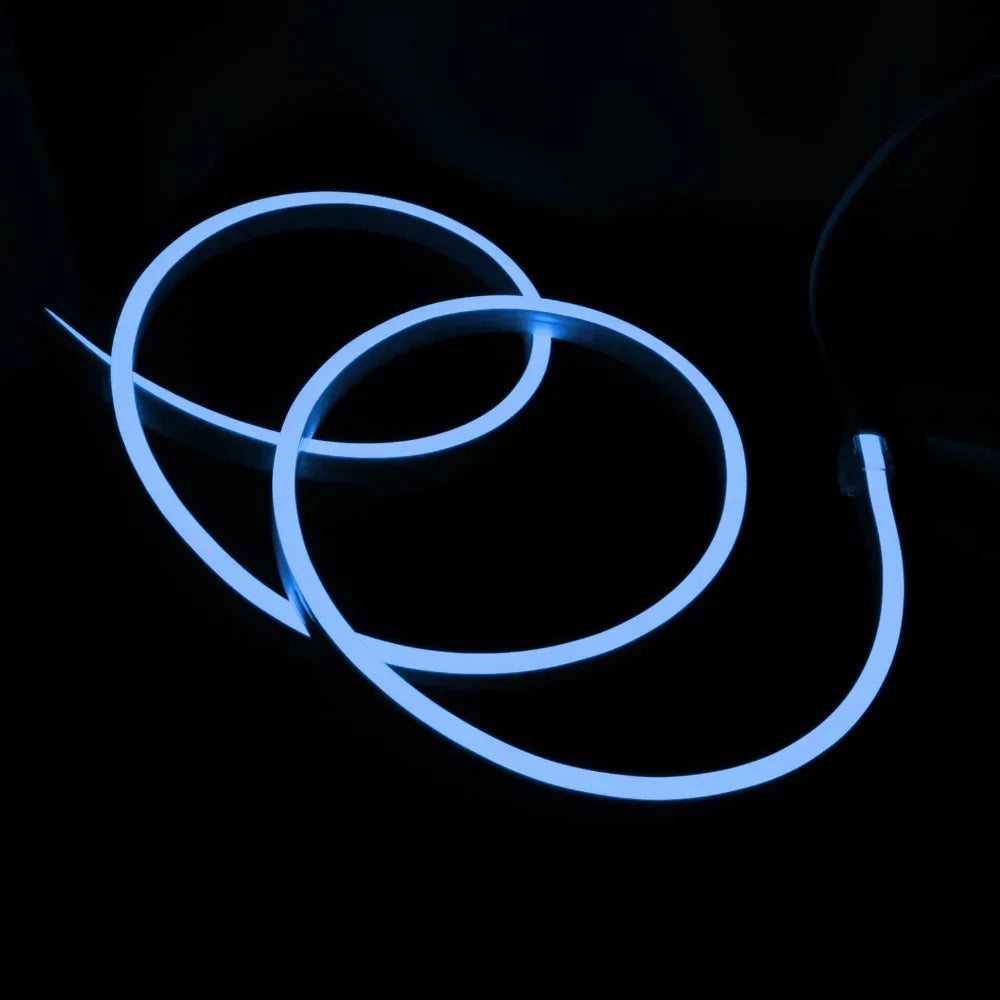

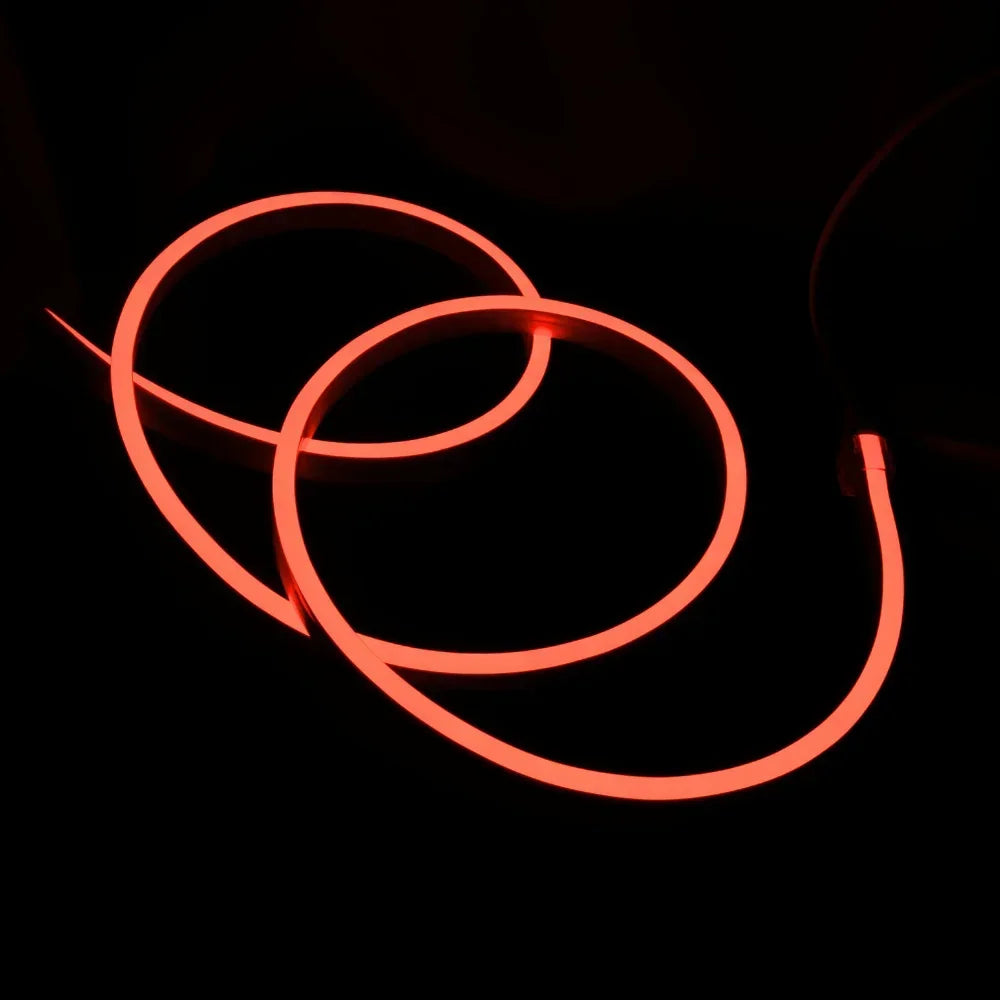

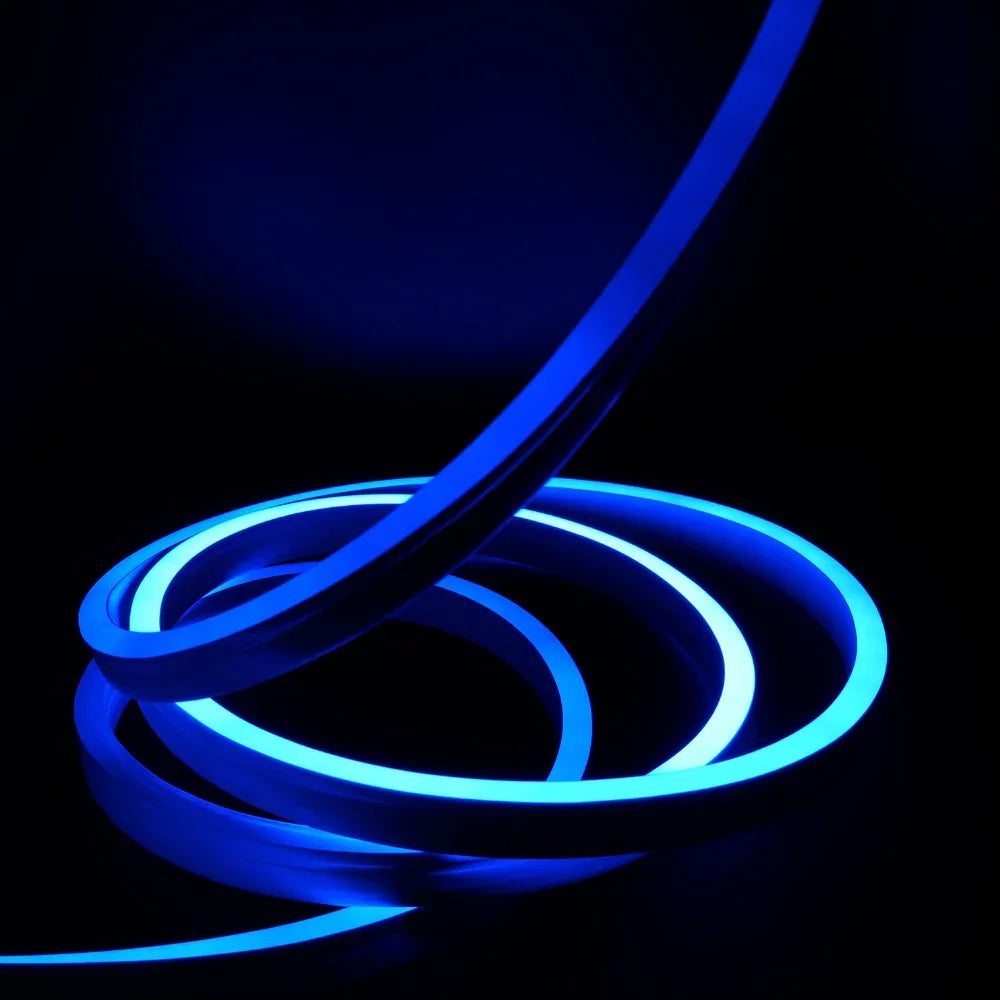

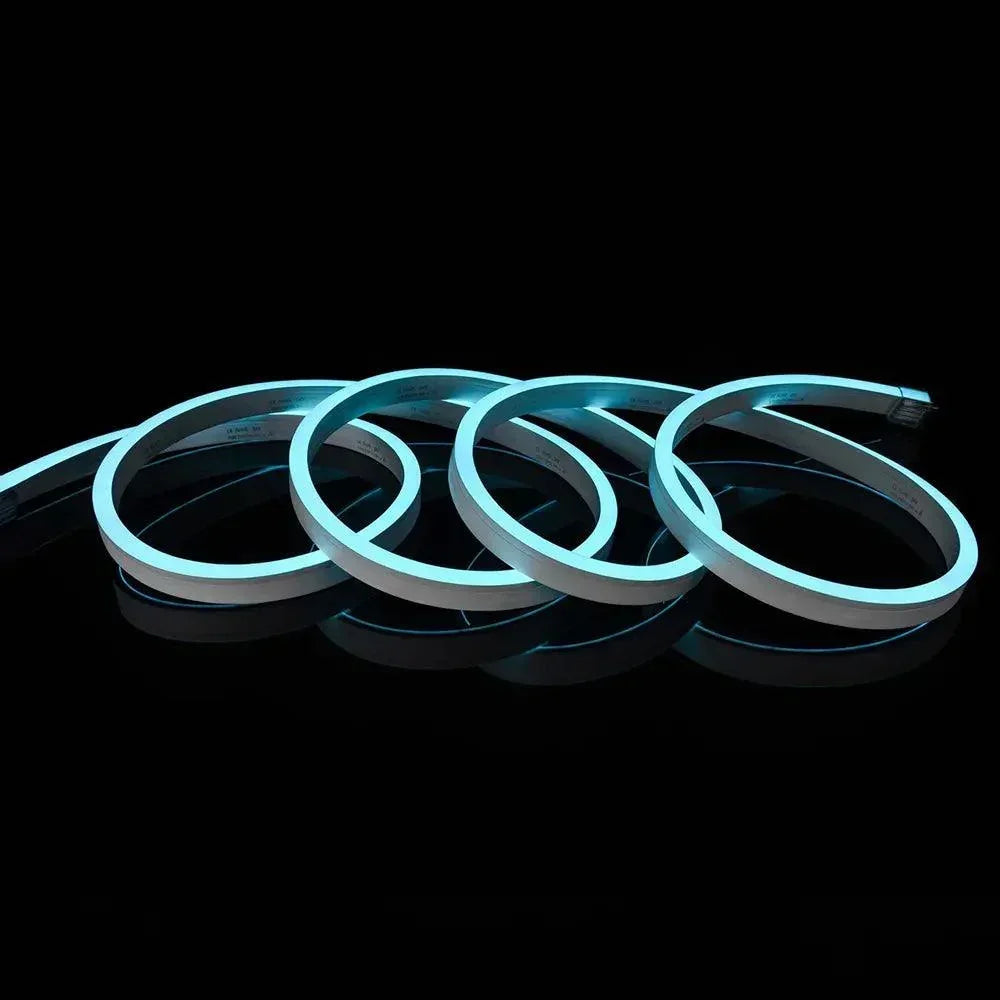

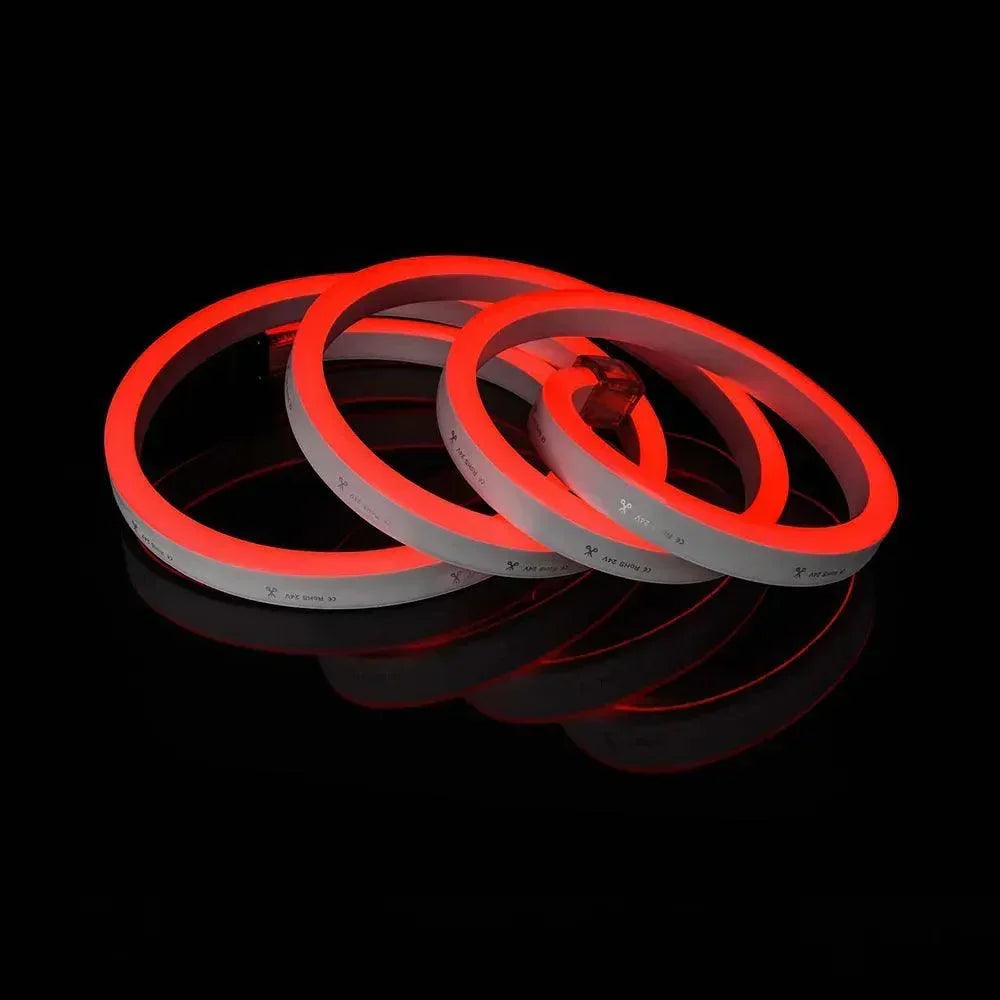

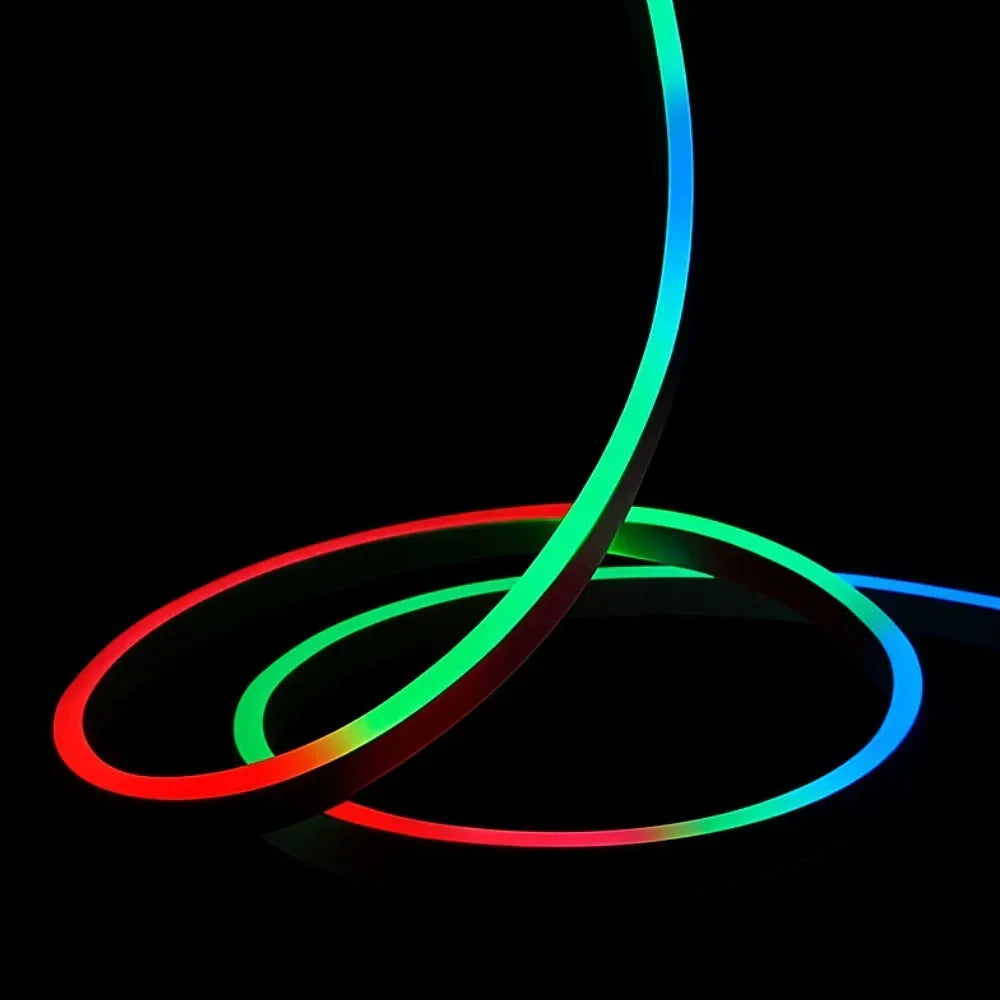

LED Neon flex is a flexible light tube designed to produce an ambient linear lighting effect and is perfect for single use display lighting. PVC totally diffused, ‘no shadow’ no spots and flexible.

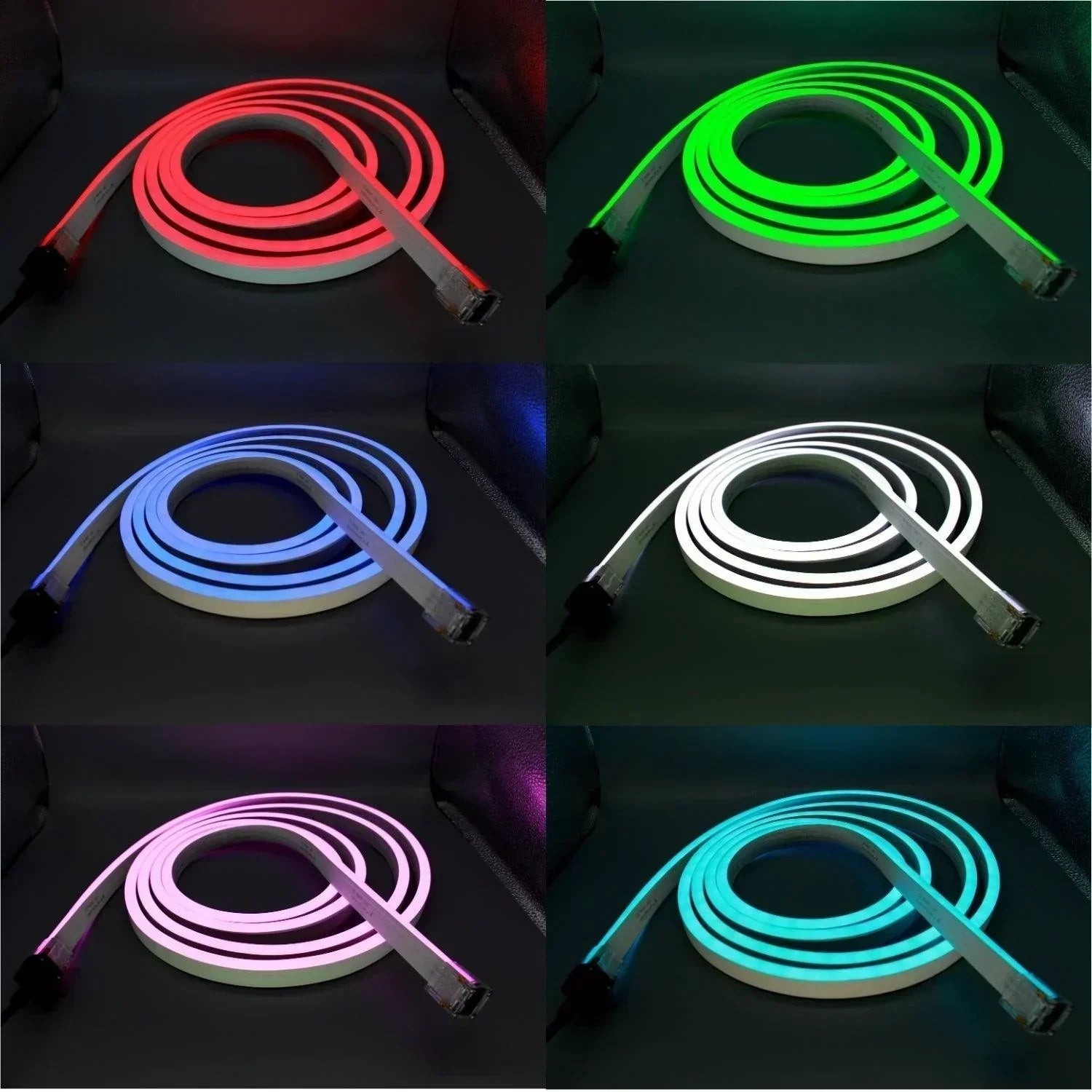

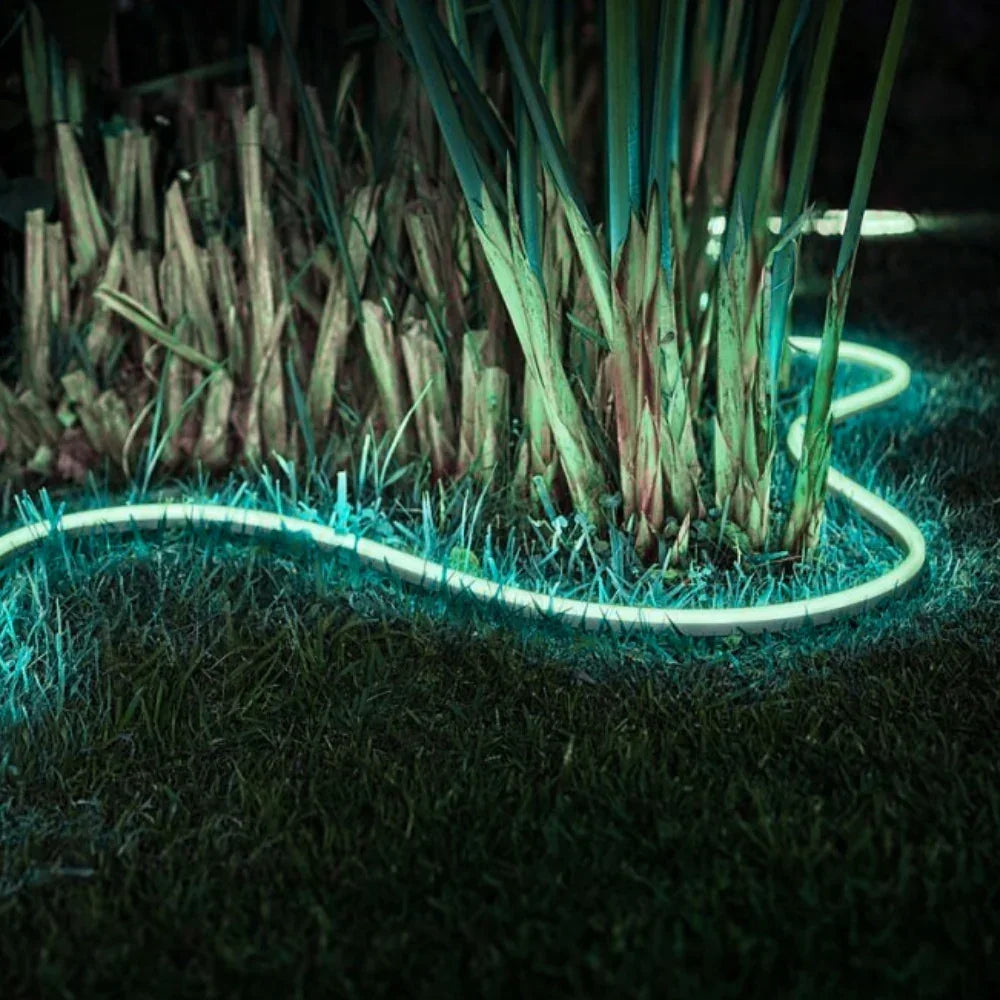

It’s durable body allows for installations both in and outdoors where light water exposure may occur.  Pair with one of our RGB controllers for colour changing effects.

Our range of professional-grade neon flex is built and tested to the highest standards. CE & RoHS compliant and tested to rigorous mechanical and photometric standardsIt comes with a 5 year Indoor Warranty & 3 year Outdoor Warranty.

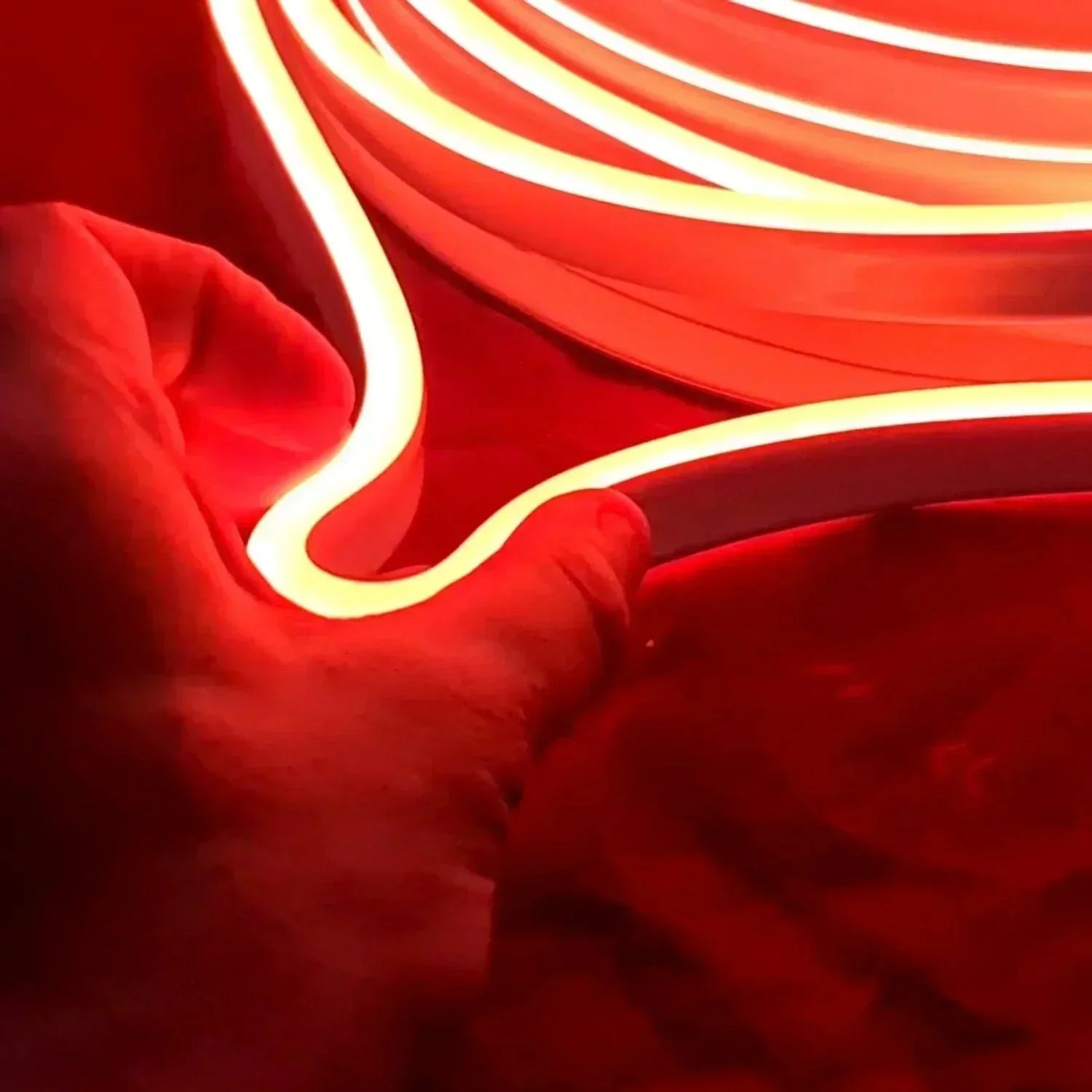

Horizontal bending with 3cm bending radius.

Neon Flex looks better than glass neon – and it opens all the environments where fragile Glass Neon cannot be used. As the name suggests, it is highly flexible. LED Neon Flex can be bent to a minimum radius of 3 cm, and can be cut easily to your desired lengths. One side power with maximum continuous length at any time is 20 metres & 40m continuous run with two side power.

Please Note: We are not able to offer refunds on cut lengths of Neon Flex, only for full 50m reels. If you order more than a 1 Metre length of Neon Flex you will receive a continuous run as it is taken from a 50m roll.

For a working Neon Flex installation you will need:

• Neon Flex LED

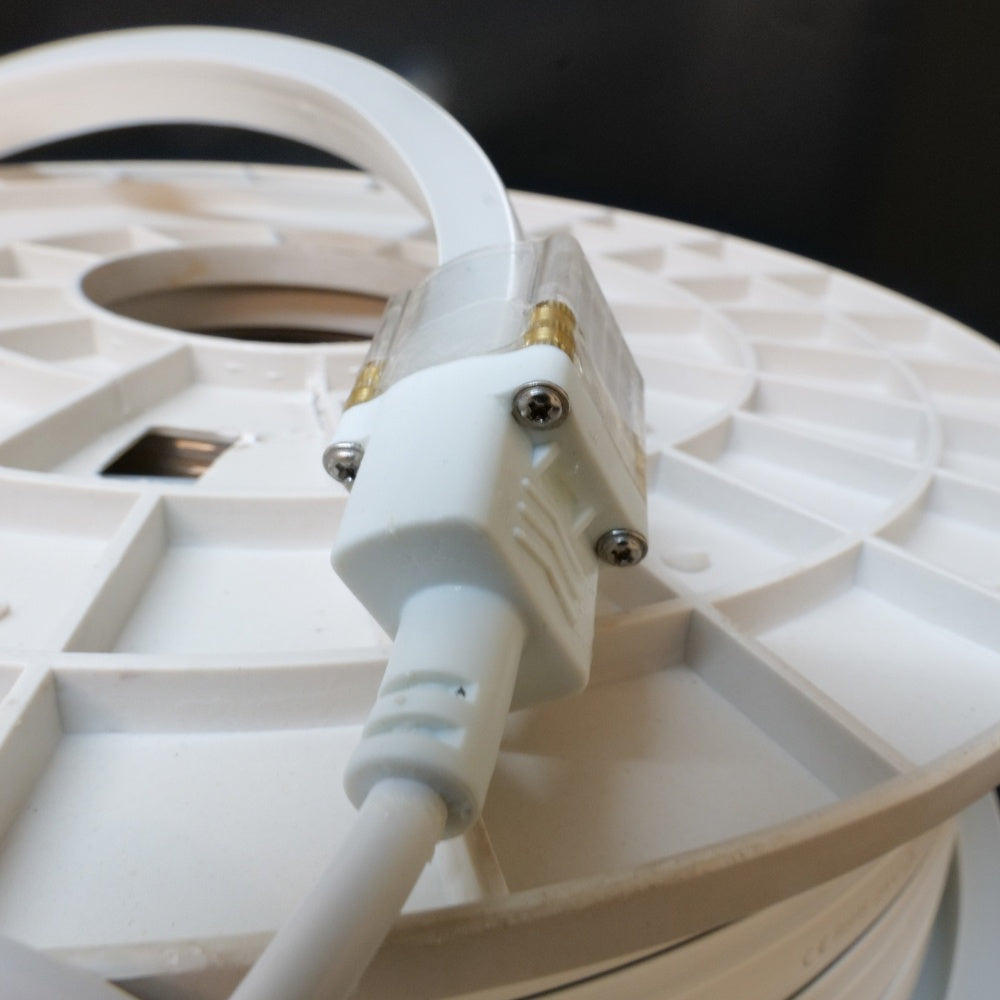

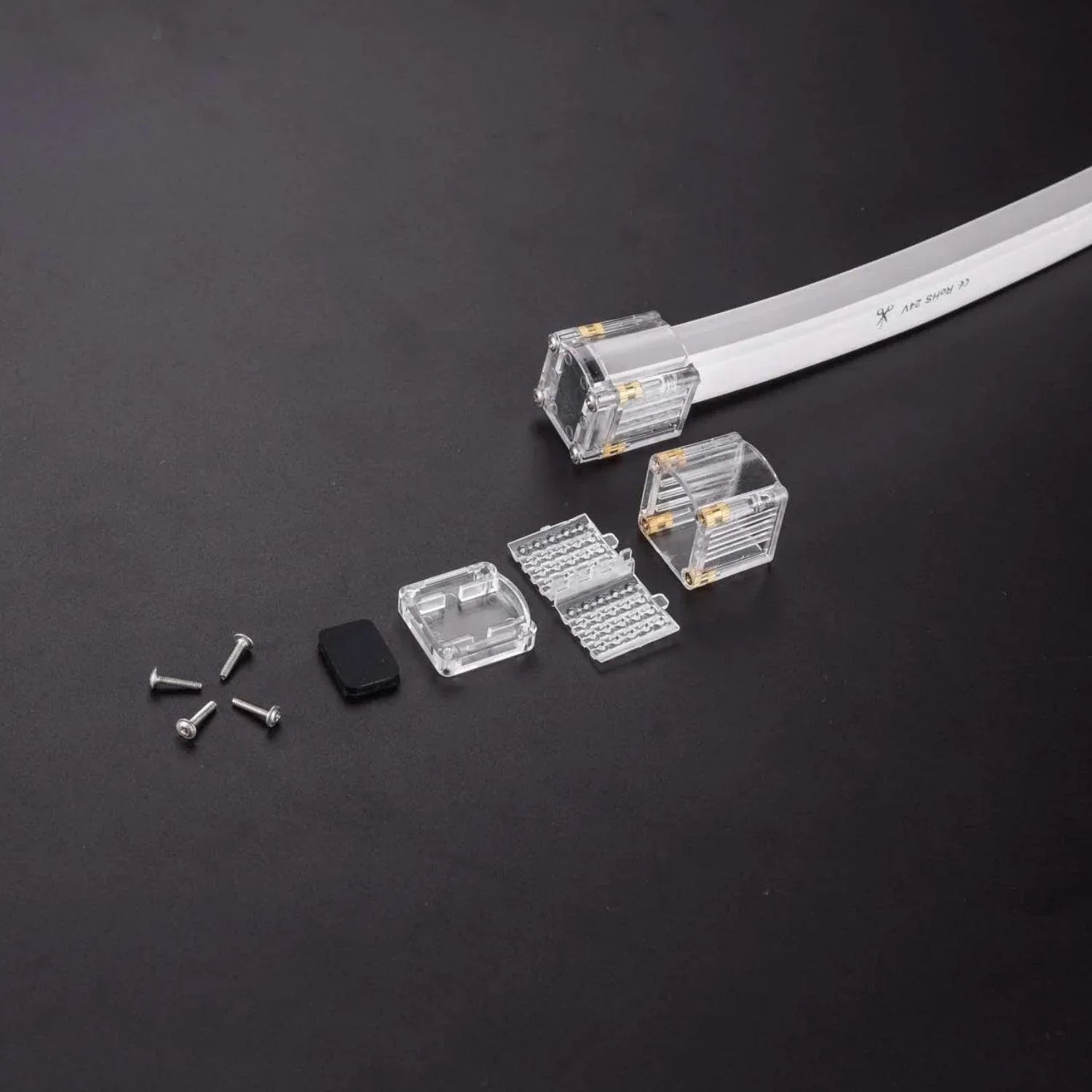

• 1 x Neon Flex Front Cap with 1 Metre Cable Length Included
• 1 x Neon Flex Front & End Cap attached

Please note this is RGB Neon Flex, not the Addressable/Digital RGB Neon Flex WS2811.

Installation Guide:

The lights are custom cut as per your specific requirements.

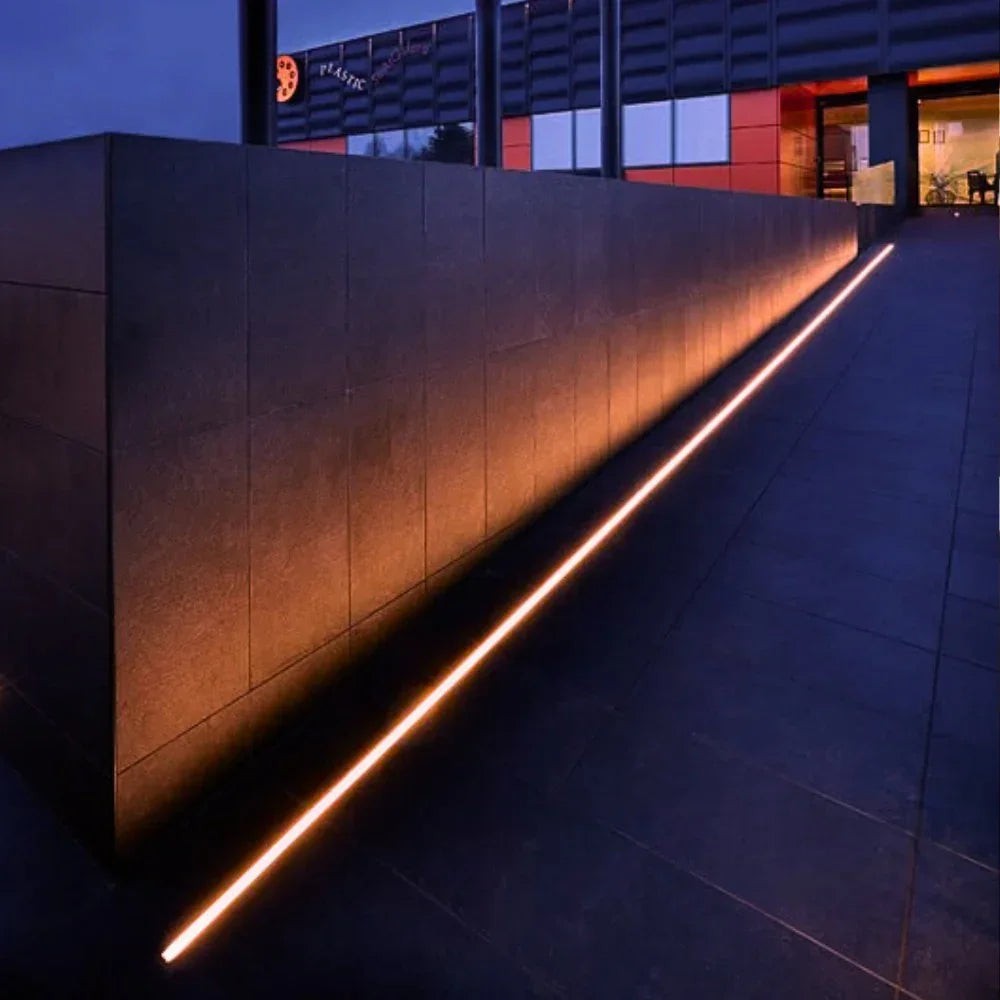

Compatible tile-in profile: For straight recessed tiled installations, use our Tile-In Aluminium Profile for 10 × 20 mm IP67 Neon Flex. The aluminium profile provides mounting and alignment; it does not supply the IP67 rating.

Product Type
LED Neon Flex
Colour
RGB Multicolour
IP Rating
IP67
Voltage
24V
Watts Per Metre
14 Watts
LEDs Per Metre
72
Max Run Length
20m
CRI
>80

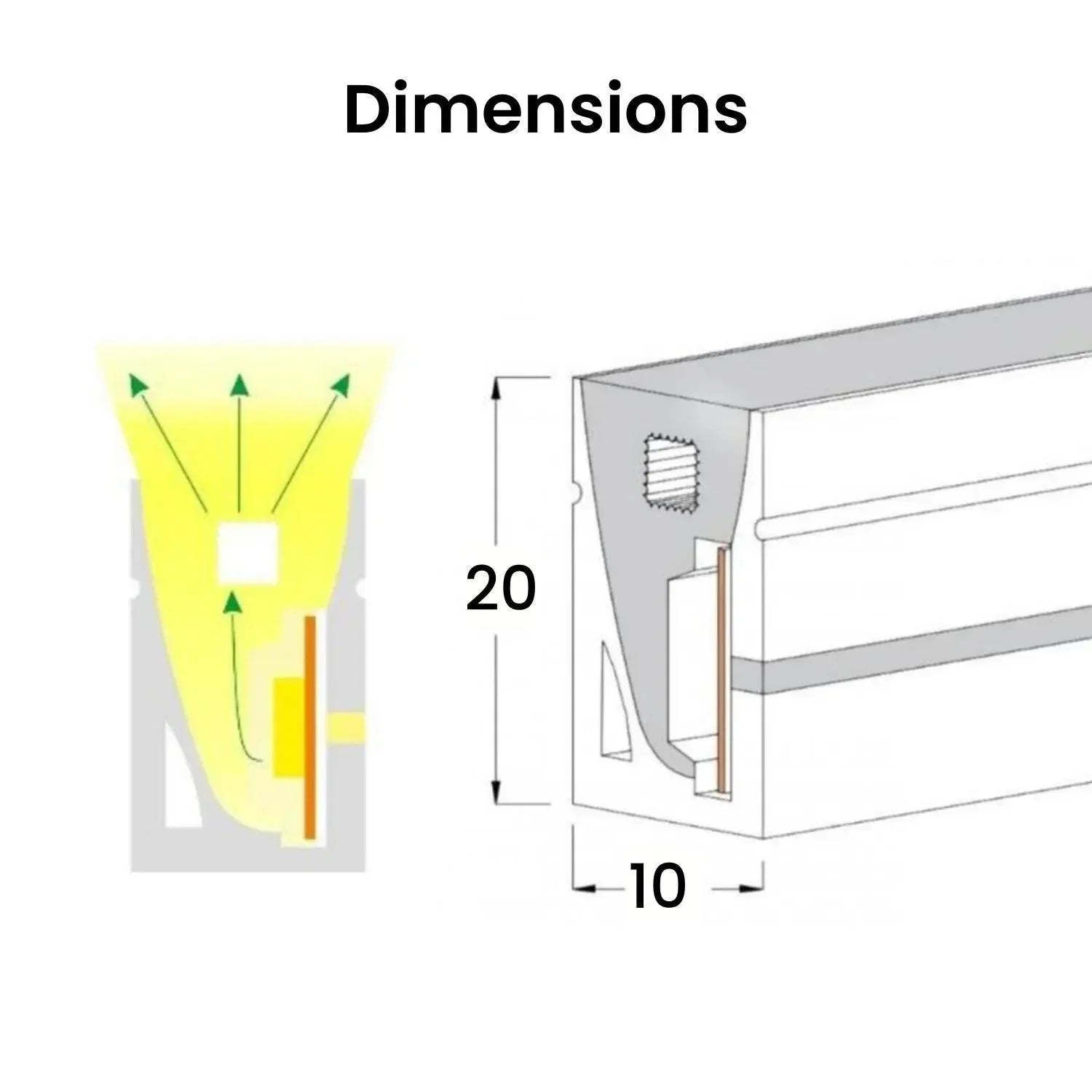

Dimensions
10x20mm
Warranty
4 Years
Specifications
Product Type
LED Neon Flex
Colour
RGB Multicolour
IP Rating
IP67
LEDs Per Metre
72
Continuous Run
20m
Voltage
24V
Watts Per Metre
14 Watts
Metres
50m roll
Dimensions
10x20mm
Width
10mm
Depth
20mm
Bending Angle
Horizontal Bend
Lumens Per Metre
770 lm
Cut Points
8.33cm (83.3mm)
Operating Temperature
-40°C to 60°C
LED Type
5050
Average LED Life Hours
50,000
Continuous Operating Hours
15 hours
Max Bending
3cm
Shape
Flat Shape
Certification
UKCA, CE, RoHS, ETL
Material
PVC
Beam Angle
120 Degree
CRI
>80
Warranty
4 years
Brand
ATOM LED
Led Spacing
7.5mm
Led Strip Capacity
20 Metre
Shipping & Returns
Free UK Delivery

On 97% of products — Royal Mail 48-hour tracked

Free Next Day £90+

Mainland UK orders over £90 — order by 1pm, Mon–Fri

Standard stock returns

Request a return within 30 days of delivery. Bespoke exclusions apply.

Talk to Us

01952 370028 · Mon–Fri 9am–5pm

Shipping

Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.

Free next day delivery on eligible Mainland UK orders over £90 via DPD (order by 1pm, Mon–Fri).

Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.

Saturday Delivery is available as a paid option at checkout.

Adding profiles? Mainland UK delivery for rigid 1m profiles is £6.95 below £90, with free next day delivery on eligible £90+ orders. Rigid profiles exactly 2m long cost £19.85 per order via DX; rigid profiles over 2m cost £34.65 per order via DX. The highest applicable profile rate applies once to a mixed basket, including orders of £90 or more. Order before 1pm, Monday–Friday, for same-working-day dispatch of in-stock profiles.

Large orders and pallet shipments: call 01952 370028 for a quote.

International Shipping

We use DPD, Royal Mail and DX for delivery. Orders to Northern Ireland or the Republic of Ireland containing a rigid profile 2m or longer cost £39.85 per order via DX, including mixed baskets and orders over £90. Other destinations and services are priced at checkout.

Returns & Refunds

Standard stock items. Contact us within 30 days of delivery to request a change-of-mind return. You then have 30 days from notifying us to send the item back. This applies to standard stock accessories and standard full, uncut rolls.

Bespoke items. Goods cut, made or personalised to your specification are excluded from change-of-mind returns. This includes a full roll made to your specification.

Faulty goods. Your statutory rights apply to all goods, including bespoke items, if they are faulty, misdescribed or unfit for their purpose. We cover reasonable return postage for faulty goods.

Reviews
  • 5 stars: 8 (80%)
  • 4 stars: 1 (10%)
  • 3 stars: 0 (0%)
  • 2 stars: 1 (10%)
  • 1 star: 0 (0%)
Some of the reviews shown are from related products the merchant grouped with this one.
D
David Kerr
16 Metre
LEDs look very smart

I was fitting porcelain slabs to the side of my house and wanted to brighten the area a bit in keeping with the rest of the garden. I use mainly Hue but they don’t make a lightstrip to specific lengths so I chose Atom. The lightstrip sits in the aluminium channel supplied and is connected to a smart switch controlled by the Hue app. All works seamlessly so very pleased with the colour and brightness.

T
Tomasz Zaleski
7 Metre
24v led neon

24V garden LED set with a transformer, I am very pleased with how perfectly it fits into my garden – thank you!

G
G Coromelcea
6 Metre
both led ends had a poor low quality seal which was not fitting in the U shape channel.

while the led is fine the ends where it's sealed with a transparent plastic it's really poor. I've ordered 6 meters but can only fit 5.85 meters inside the aluminium channel which I ordered together with the led. I was expecting that al least one end to be clean so I can fit inside the channel. Disappointed as there was not a single photo on the website or mentioned that the ends are not usable

P
Paul Kennedy
4 Metre
Neon flex

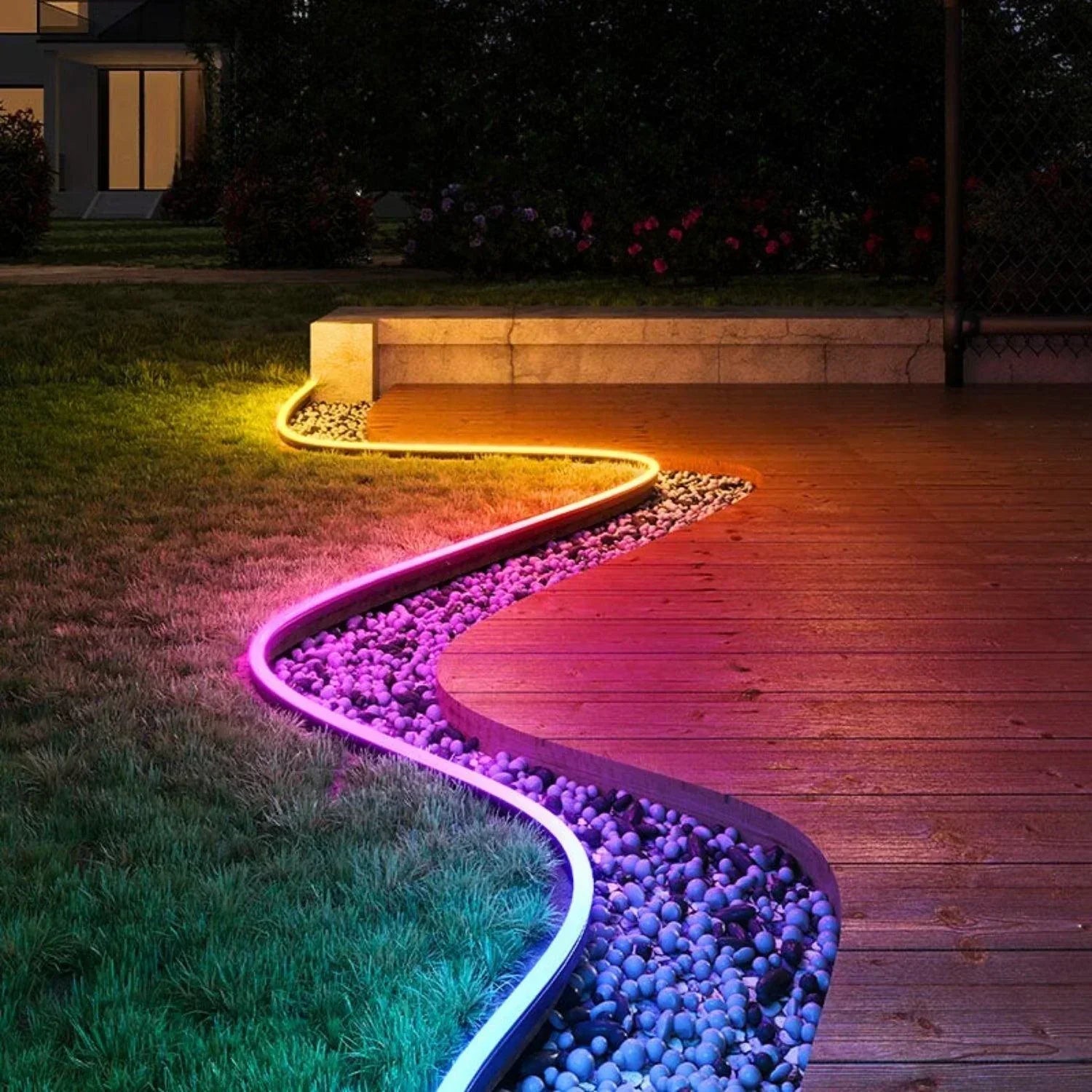

Looks great used as an edge lighting both sides of gravel pathway and an uplight to new wall for split level patio and garden. Really good effect at night.

S
Sergio A.

Really bright and comes with UK plug, so just plug in and go! Highly recommended!

A
Angela Schr

Schöne zusätzliche Beleuchtung fürs Bad. Mir gefällt der Schalter, da so das nervige Steckerziehen entfällt. Wenn man es beim Baden gemütlicher haben will, finde ich diesen wasserdichten Led Schlauch praktisch. Mir gefällt es als indirekte Beleuchtung sehr gut. Schnell und unkompliziert angebracht.

S
Sarah M

Ideal for our shed. Good light. Easy to install.

m
mr jb page

good light.

C
Cs

Will look great once installed but kit didn't come with any mounting clips and adhesive pads, had to purchase mountings in order to mount to surface

g
garreth williams

The item was better than I expected really bright only down side the remote didn't arrive with any batteries

Frequently Asked Questions

What is the difference between IP65, IP67, and IP68?

IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.

Can I cut this product to a custom length?

Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.

What size driver do I need?

Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.

Should I choose 12V, 24V, or 48V?

Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
