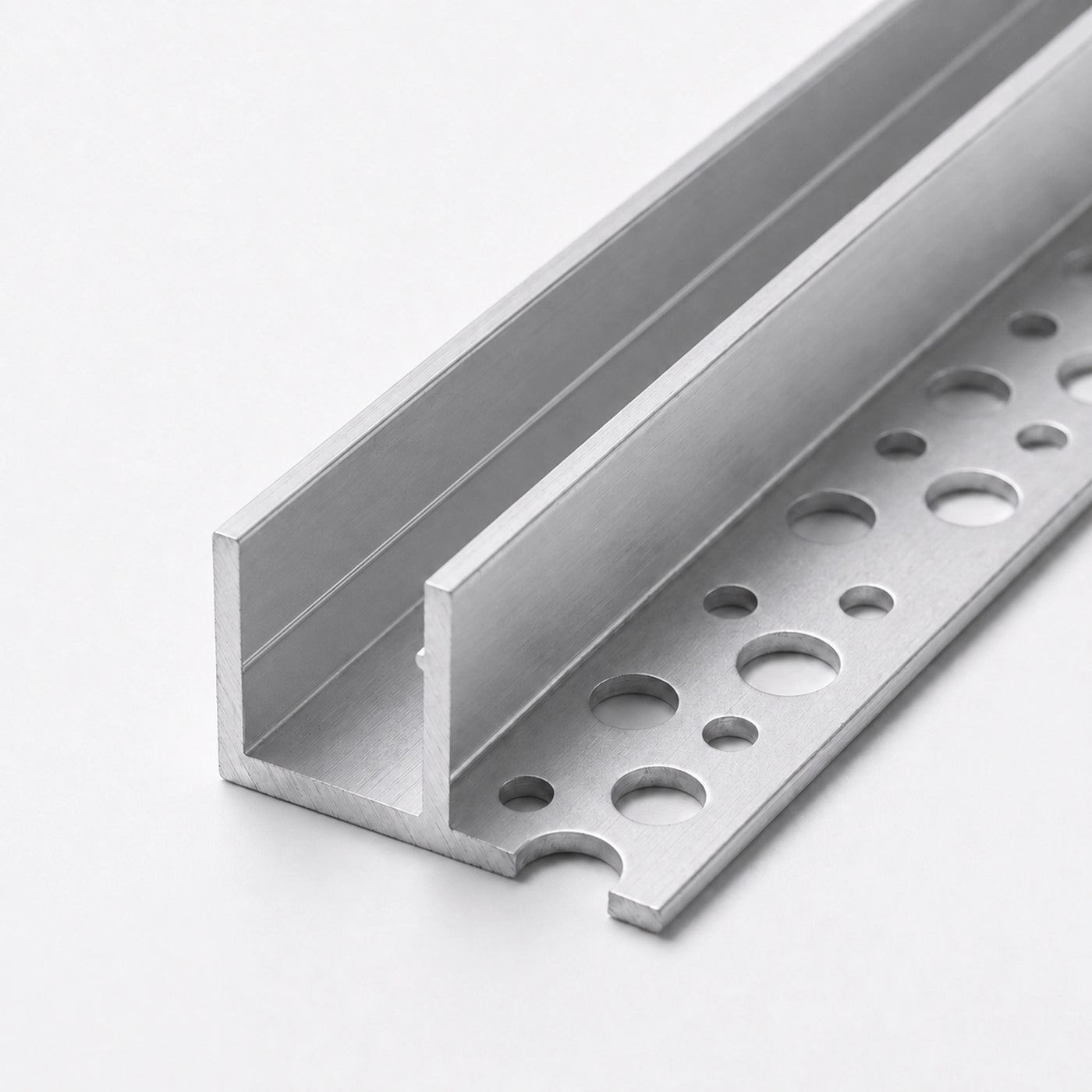

Illustration of the straight 15x15mm LED Neon Flex tile-in aluminium profile with a wider open channel
Warranty
7 Years
Fits
15x15mm IP67
Material
Aluminium
Flexibility
Straight
Speak to an expert 01952 370028

Straight Tile-In Aluminium Profile for 15x15mm IP67 Neon Flex

SKU: NFPROFILE-T1515-1M

  • Straight Profile
  • Tile-In Mounting
  • Fits 15x15mm IP67 Neon Flex
£11.95 Inc. VAT
200 units available
Length
1

Encrypted & secure checkout

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Visa
  • Clearpay
Speak to an expert 01952 370028
Description

Create a straight recessed lighting line with this aluminium tile-in profile for 15x15mm IP67 Neon Flex. The single perforated flange sits beneath the tiled finish while the open channel supports the light.

Choose a 1 metre or 2 metre length. The profile has a 7-year warranty. Use this rigid profile for straight runs; choose the bendable version for curves.

Compatible lighting: 15x15mm IP67 24V Neon Flex and 15x15mm IP67 48V Neon Flex. Check the dimension drawing and test the fit before completing the tiled finish.

Keep adhesive and grout out of the channel, and select fixings, sealing and substrate preparation for the installation location. No walk-over load rating is specified.

Profile only: Neon Flex, opal covers, fixings, power supplies and controls are not included. IP67 and voltage refer to the compatible Neon Flex, not the bare aluminium profile or completed installation.

See the bendable 15x15mm tile-in profile or browse LED Neon Flex profiles.

Delivery charges

1 Metre: Mainland UK delivery is £6.95 below £90, with free Next Day Delivery from £90 when the basket contains no profile charged at the £19.85 or £34.65 long-profile rate. 2 Metre: Mainland UK delivery is £19.85 at every order value, including mixed baskets. If the basket also contains a profile charged at £34.65, the higher rate applies. Other destinations are calculated at checkout.

Product Type
Aluminium Profile
Dimensions
39.2 ± 0.2mm overall width x 16.7 ± 0.2mm overall height
Warranty
7 Years
Specifications
Product Type
Aluminium Profile
Metres
1 Metre / 2 Metres
Dimensions
39.2 ± 0.2mm overall width x 16.7 ± 0.2mm overall height
Width
39.2 ± 0.2mm
Depth
16.7 ± 0.2mm
Shape
Straight and rigid tile-in channel
Material
Aluminium
Attachment
Tile-in / recessed beneath tiled finish
Warranty
7 Years
Base Thickness
2mm
Brand
ATOM LED
Channel Opening
15.4 ± 0.2mm opening; 15mm retention clearance
Compatible Ip Rating
IP67 Neon Flex
Compatible Voltage
24V and 48V Neon Flex
Flange Thickness
1.5mm
Included Items
One selected aluminium profile length; Neon Flex and accessories sold separately
Neon Flex Size
15x15mm
Wall Thickness
2mm
Technical Documents
