- Warranty
- 5 Years
- Fits
- 6 × 12 mm IP67
- Material
- Aluminium
- Flexibility
- Straight
Tile-In Aluminium Profile 6×12mm IP67 Neon Flex 1 metre & 2 Metre
SKU: NFPROFILE-T0612-1M
Encrypted & secure checkout
Description

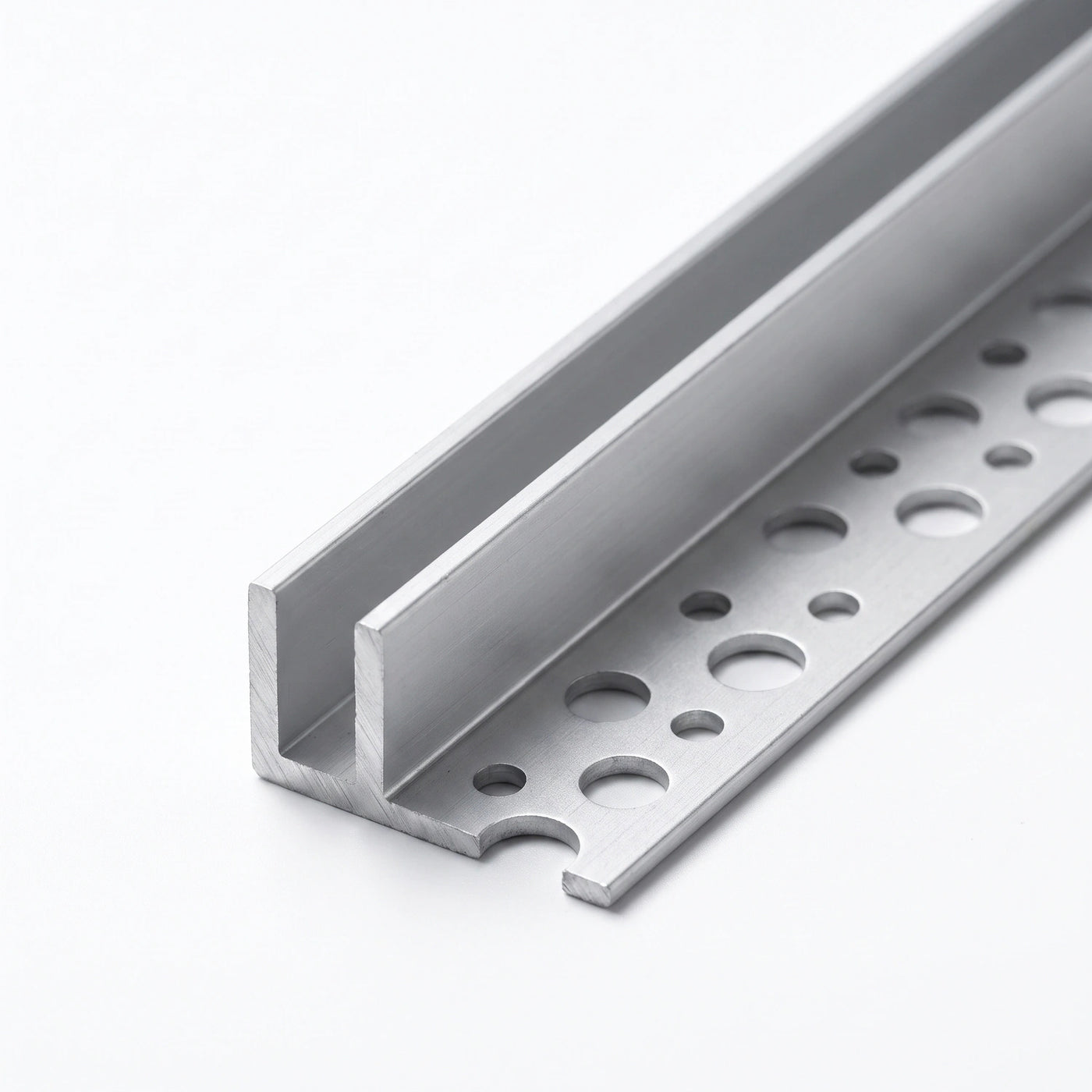

Create a clean, flush line of light in tiled floors or walls with this straight aluminium mounting profile. Its single asymmetric perforated flange sits beneath the tile or slab, allowing the surrounding installation material to key around the profile while leaving the channel neatly aligned with the finished surface.
It is designed for ATOM LED 6 × 12 mm IP67 Neon Flex in both 24V and 48V. Choose a 1 Metre or 2 Metre length to suit your installation.
Key features
- Designed for ATOM LED 6 × 12 mm IP67 Neon Flex in 24V and 48V
- Straight, rigid profile with one perforated tile-in flange
- Available in 1 Metre and 2 Metre lengths
Applications
Suitable for recessed linear-lighting details in tiled floors and walls where the complete lighting system, substrate and installation method are appropriate for the location.
Compatible Neon Flex
- 24V 6 × 12 mm IP67 Neon Flex — 1 cm cut, up to 15 m run
- 24V 6 × 12 mm IP67 Neon Flex — 5 cm cut, up to 20 m run
- 48V 6 × 12 mm IP67 Neon Flex — 10 cm cut, up to 40 m run
Profile only: Neon Flex is not included.
Before ordering
This profile is matched to the linked ATOM LED ranges above. If using another product, check compatibility against the product specifications before ordering. Products described as 6 × 12 mm can vary between manufacturers. This is a straight profile and is not bendable.
IP67 refers to compatible Neon Flex, not the bare aluminium profile or the completed installation. Appropriate sealing, fixings, drainage and installation methods must be selected for the substrate and environment.
Delivery charges
For the 1 Metre option, standard delivery is £6.95 on Mainland UK orders under £90; the usual free Next Day threshold applies at £90 or more where no 2 Metre profile is in the basket. The 2 Metre option has a £19.85 delivery charge and is excluded from free delivery.
- Product Type
- Aluminium Profile
- Dimensions
- 30.70 mm wide × 13.20 mm high
- Warranty
- 5 Years
Specifications
- Product Type
- Aluminium Profile
- Metres
- 1 Metre / 2 Metres
- Dimensions
- 30.70 mm wide × 13.20 mm high
- Width
- 30.70 mm
- Depth
- 13.20 mm
- Shape
- Straight asymmetric tile-in channel
- Material
- Aluminium
- Attachment
- Tile-in / recessed beneath tiled finish
- Warranty
- 5 years
- Base Thickness
- 2.00 mm
- Brand
- ATOM LED
- Channel Opening
- 6.70 mm
- Compatible Ip Rating
- IP67 Neon Flex
- Compatible Voltage
- 24V and 48V Neon Flex
- Flange Projection
- 20.00 mm
- Flange Thickness
- 1.50 mm
- Included Items
- Aluminium profile only
- Internal Depth
- 11.20 mm
- Neon Flex Size
- 6 × 12 mm
- Wall Thickness
- 2.00 mm
Technical Documents
