RGB LED Strip

Full RGB colour mixing across 16 million colours · available in IP20, IP65, IP67, and IP68 ratings · compatible with dedicated RGB controllers from MiBoxer, Skydance, and L-Tech · 5-year warranty on DC voltage strip.

RGB 12V · RGB 24V · RGB 48V · SMD5050 · COB RGB · IP20 to IP68 · RF / Wi-Fi / DMX control · Non-dimmable constant voltage drivers required · Free UK delivery

Jump to section:

1. What are RGB LED strip lights and how do they work?
2. Which voltage should you choose for RGB strip?
3. What is the difference between SMD and COB RGB strip?
4. Why can't RGB strip produce clean white light?
5. What controller do you need for RGB LED strip?
6. How do you install RGB LED strip lights?
7. Which IP rating works for your RGB project?
8. What mistakes should you avoid when buying RGB strip?
9. Frequently asked questions about RGB LED strip lights
10. Why choose ATOM LED for RGB strip lights?

Quick decision summary: If you need colour-changing effects for cove lighting, hospitality, or signage, RGB strip is the right choice. If you need colour-changing plus a clean, dedicated warm or cool white channel, choose RGBW COB strip instead. If you only need a single fixed colour temperature, single-colour COB strip will give you a smoother light line at lower cost.

Who this is for: Interior designers specifying mood lighting, hospitality venues needing scene-setting colour washes, signage fabricators, home cinema builders, and retail display specialists who need full RGB colour mixing in 2025 and 2026 projects.

Who this is NOT for: Anyone needing a clean, warm white output for task lighting or general room illumination. RGB strip cannot produce a pure white — it creates a cold, violet-tinged white when all three channels run together. For white-dominant projects with occasional colour accents, RGBW is the correct specification.

---

What are RGB LED strip lights and how do they work?

RGB LED strip lights contain red, green, and blue LED chips on a flexible PCB. A dedicated RGB controller mixes these three channels at varying intensities to produce approximately 16 million colour combinations. Each colour channel runs independently, which is why RGB strip requires a specific controller rather than a standard dimmer switch.

The three colour channels on an RGB strip are driven by pulse-width modulation (PWM) through the controller. The controller rapidly switches each channel on and off at frequencies typically between 1kHz and 20kHz, and the ratio of on-time to off-time determines the perceived brightness of each colour. When the red channel runs at 100% and the green at approximately 50% with blue off, for example, you get a warm orange. This is fundamentally different from single-colour strip, which only needs a driver and optional dimmer.

• Three independent channels: Red, green, and blue each operate on their own circuit, requiring a 4-wire connection (R, G, B, and common positive or negative depending on the strip type).
• Controller-dependent: Without an RGB controller, the strip runs all three channels at full power, producing that characteristic cold violet-white rather than any useful colour.
• Non-dimmable driver required: RGB strip must be paired with a non-dimmable constant voltage driver, as dimmable drivers cause flicker, colour shift, and can lead to premature failure of the controller or strip.
• Voltage options: ATOM LED supplies RGB strip in 12V, 24V, and 48V configurations, each suited to different run lengths and installation requirements.

---

Which voltage should you choose for RGB strip?

For most RGB installations in 2026, 24V offers the best balance of run length, component availability, and controller compatibility. 12V suits short runs under 3 metres. 48V is the right choice for long commercial runs where voltage drop would degrade colour accuracy over distance, provided your controller supports the voltage.

Voltage drop affects RGB strip differently from single-colour strip because each colour channel can drop at a different rate depending on its current draw. If your red channel drops more than green or blue over a long run, you will see a visible colour shift at the far end — the strip looks different from one end to the other. This is why voltage selection matters more for RGB than for single-colour work.

Specification	12V RGB Strip	24V RGB Strip	48V RGB Strip
Typical max single-feed run	3–5m	7–10m	15–20m
Voltage drop rate (relative)	Highest	Moderate	Lowest
Controller availability (2026)	Wide	Widest	Growing
Colour accuracy over distance	Degrades quickly	Good for medium runs	Best for long runs
Cut-point frequency	Every 3 LEDs (approx. 50mm)	Every 6 LEDs (approx. 100mm)	Every 12 LEDs (approx. 200mm)
Typical applications	Short accent pieces, furniture	Cove lighting, rooms, signage	Commercial runs, long corridors

If you are running parallel feeds to avoid voltage drop on longer RGB installations, use a suitably rated LED power supply with sufficient wattage headroom — typically 20% above the total strip wattage to account for inrush current and thermal derating.

---

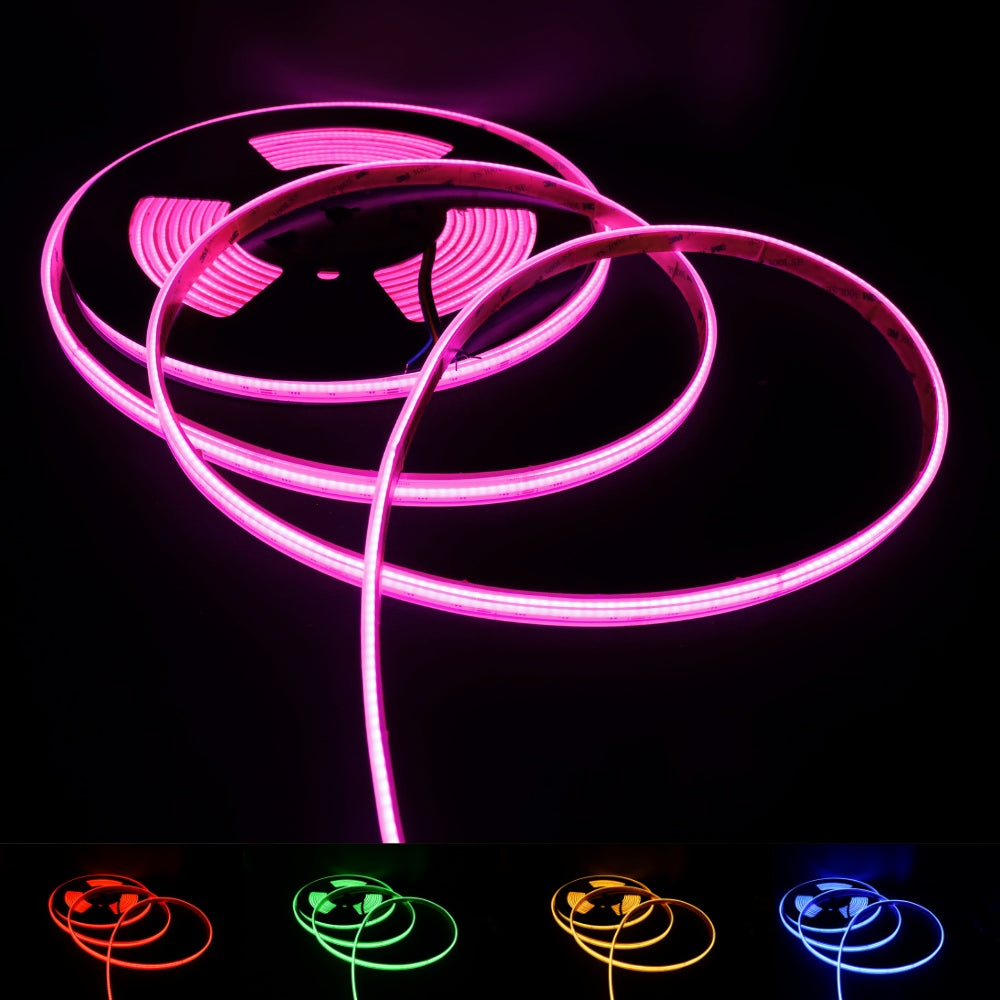

What is the difference between SMD and COB RGB strip?

SMD RGB strip uses individual surface-mount diodes (typically 5050 chips) spaced at regular intervals, creating visible dot separation. COB RGB strip embeds the chips under a phosphor layer for a smoother, more continuous colour wash without visible hotspots. COB RGB costs more per metre but produces a noticeably more uniform light output.

For most decorative and hospitality installations in 2026, COB RGB is becoming the preferred format because it eliminates the dot-and-gap pattern that SMD strip shows when reflected off glossy surfaces, glass, or polished countertops. However, SMD 5050 RGB strip remains the better value option where the strip is concealed in a coving channel or behind a diffuser that already softens the light distribution.

Feature	SMD 5050 RGB	COB RGB
Light uniformity	Visible individual dots	Continuous colour line
Typical LED density	30–60 LEDs/m	320–480 chips/m
Heat output per metre	Lower	Moderate — profile recommended
Price per metre (approx. 2026)	Lower	Higher
Best used with	Diffused profiles, concealed coves	Open-view applications, glass shelving
Flexibility	Good — bends around 15mm radius	Excellent — bends around 10mm radius

Whichever format you choose, always mount RGB strip on an aluminium profile when running above 10W/m. The profile acts as a heatsink, extending the lifespan of the LEDs and maintaining colour consistency across all three channels. Never mount strip directly on bare metal without insulation between the PCB and the surface — this causes short circuits that can damage the strip and the controller.

---

Why can't RGB strip produce clean white light?

RGB strip mixes red, green, and blue to approximate white, but the result is a cold, violet-tinged white with poor colour rendering. This happens because the three narrow-band colour channels leave gaps in the visible spectrum that a dedicated white phosphor LED covers naturally. For any project where white light quality matters, RGBW strip with its dedicated white channel is the correct specification.

This is one of the most common buying mistakes in 2025 and 2026. Customers specify RGB strip expecting to get full colour changing plus usable white light, then discover the white output looks unnatural under real-world conditions. The CRI (colour rendering index) of RGB-mixed white typically sits below 40, compared with CRI90+ on dedicated white strip from ATOM LED. Skin tones, food, fabrics, and wood finishes all look washed out under RGB white.

• RGB white CRI: Typically below 40 — unsuitable for any space where colour appearance matters.
• RGBW white CRI: Depends on the dedicated white chip, but typically CRI80–CRI90+ when using the white channel.
• Practical rule: If you will use white light more than 30% of the time, specify RGBW COB strip from the start — retrofitting later means rewiring the controller and driver.
• Colour mixing quality: RGB excels at saturated colours — deep reds, vivid blues, bright greens — where the narrow-band output is actually an advantage. Pastels and whites are its weakness.

---

What controller do you need for RGB LED strip?

RGB LED strip requires a dedicated RGB controller — not a standard dimmer. The controller must match the strip voltage (12V, 24V, or 48V), handle the total wattage of the connected strip, and support your preferred control method: RF remote, Wi-Fi app, DMX, or DALI. ATOM LED stocks controllers from MiBoxer, Skydance, and L-Tech to cover residential through to commercial specifications.

Choosing the wrong controller is the second most common RGB installation mistake after selecting the wrong driver type. A standard trailing-edge or leading-edge dimmer will not work with RGB strip — it has no way to address the three individual colour channels. Connecting RGB strip to a single-channel dimmer typically results in the strip stuck on white (all channels at same level) with no colour control.

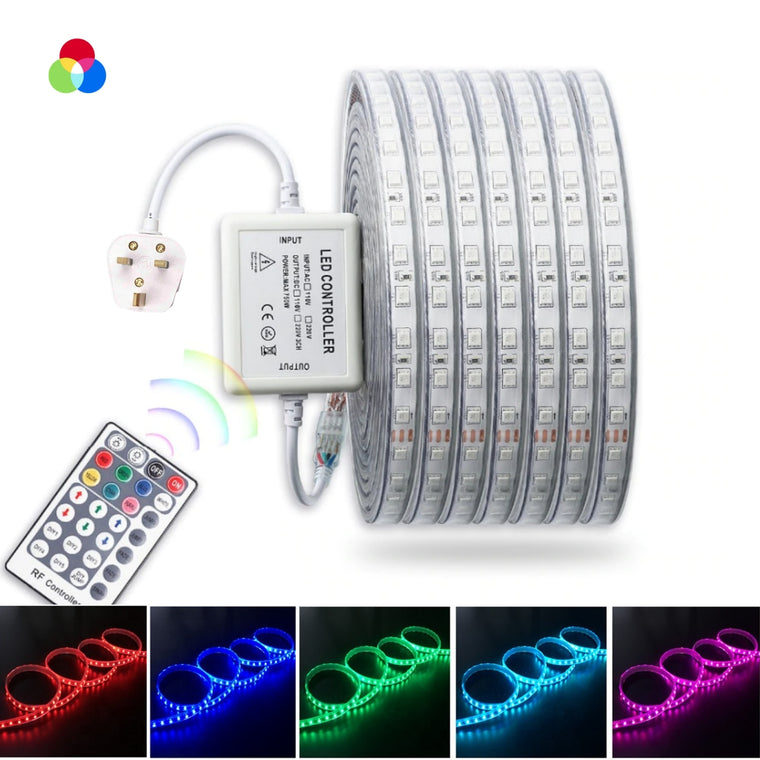

• RF remote controllers: Reliable, no Wi-Fi dependency, range typically 15–30m through walls. Good for residential projects. Browse MiBoxer RF controllers for a cost-effective option.

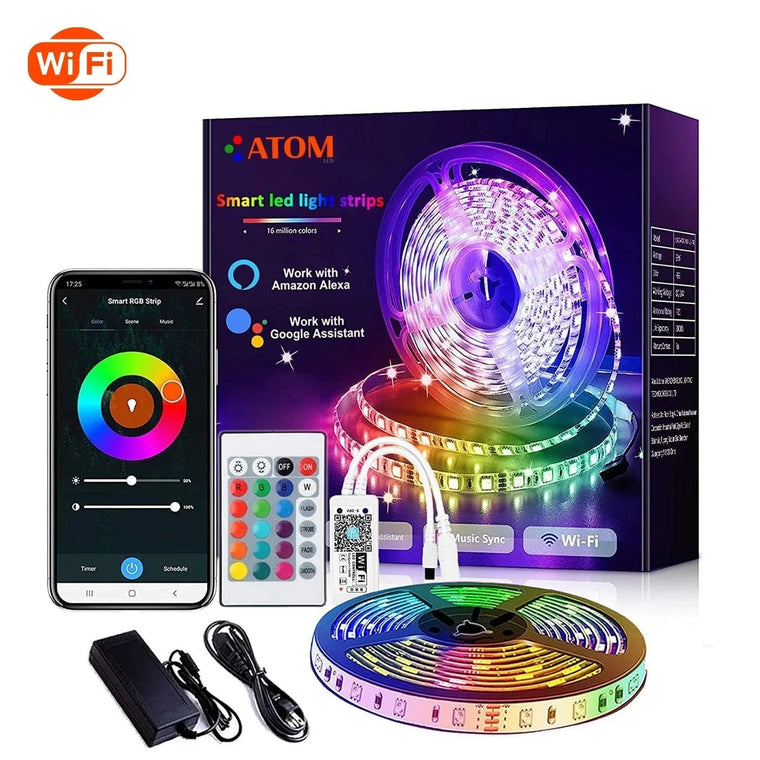

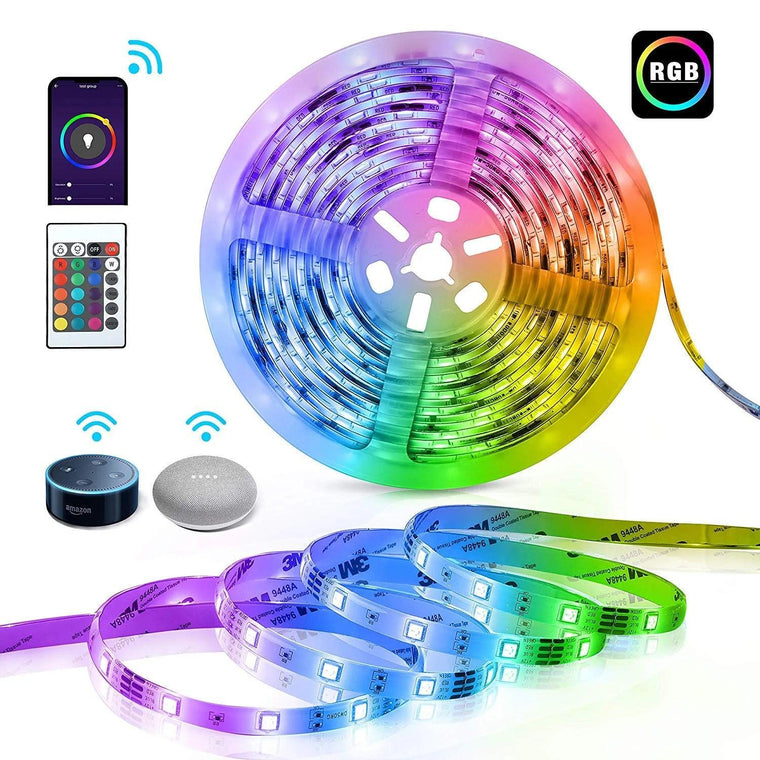

• Wi-Fi and app-controlled: Integration with smart home systems, scheduling, and scene presets. Requires stable Wi-Fi signal at the controller location.
• DMX512: Professional-grade protocol for synchronised multi-zone colour control. Standard in hospitality, theatre, and architectural lighting. Skydance DMX controllers offer DMX-to-PWM decoding for LED strip.
• DALI: Building management system integration for commercial projects. L-Tech DALI controllers provide addressable control per zone.
• Wattage headroom: Always specify a controller rated at least 20% above the total connected strip wattage. A controller running at its maximum rated load will overheat and shorten its lifespan.

Remember: the driver powering the strip must be a non-dimmable constant voltage type. The controller sits between the driver and the strip, handling all dimming and colour mixing via PWM. Using a dimmable driver with an RGB controller causes flicker, colour shift, and premature component failure.

---

How do you install RGB LED strip lights?

RGB strip installation follows the same basic steps as single-colour strip, with the addition of a dedicated RGB controller wired between the power supply and the strip. The critical difference is the 4-wire connection (R, G, B, and common) and the requirement for a non-dimmable constant voltage driver. Plan your wiring layout before cutting any strip.

1. Step 1 — Plan the layout: Measure the total run length and confirm the strip voltage, wattage per metre, and IP rating required. Mark cut points and plan where the driver and controller will be located. Keep the controller accessible for future maintenance.
2. Step 2 — Select and mount the profile: For runs above 10W/m, fix an aluminium profile along the mounting surface. This provides heat dissipation and protects the strip. Clean the mounting surface with isopropyl alcohol before applying the strip.
3. Step 3 — Connect the driver: Wire a non-dimmable constant voltage driver to the mains supply (by a qualified electrician for hardwired installations). Confirm the driver output voltage matches the strip — 12V, 24V, or 48V.
4. Step 4 — Wire the RGB controller: Connect the driver output to the controller input. Then connect the controller output to the strip using the 4-wire connection: R, G, B, and V+. Use appropriate RGB connectors or solder joints for reliable connections.
5. Step 5 — Test before final fixing: Power on and test all colours, transitions, and dimming levels before permanently fixing the strip into the profile. Check for even colour output along the entire run. Never power the strip while it is still coiled on the reel — heat builds up rapidly and can damage the adhesive and the LEDs.
6. Step 6 — Secure and seal: Press the strip firmly into the profile channel, fit the diffuser cover, and secure all cable connections. For IP67 or IP68 outdoor installations, ensure all joints are sealed with appropriate Waterproof connectors.

For installations longer than the maximum single-feed run for your voltage, wire multiple strips in parallel back to the controller rather than daisy-chaining in series. Series wiring multiplies voltage drop and causes visible colour shift at the far end of the run. Call ATOM LED on 01952 370028 if you need help calculating driver sizing or controller wattage for your project.

---

Which IP rating works for your RGB project?

IP20 suits dry interior installations like cove lighting, shelving, and home cinema. IP67 is the minimum rating for UK outdoor gardens and most bathroom zones under BS7671. IP68 is required for ponds, fountains, or any continuously submerged application. IP65 is surface-splash only and is not suitable for typical UK outdoor weather conditions.

• IP20 (no coating): Indoor-only use. Living rooms, bedrooms, commercial interiors, under-cabinet, and display lighting. The most flexible for cutting and connecting.

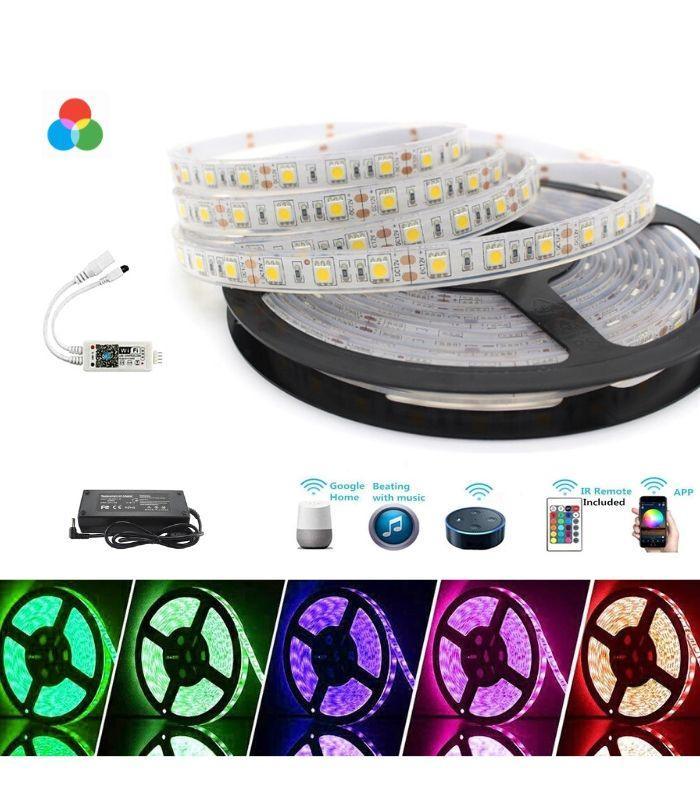

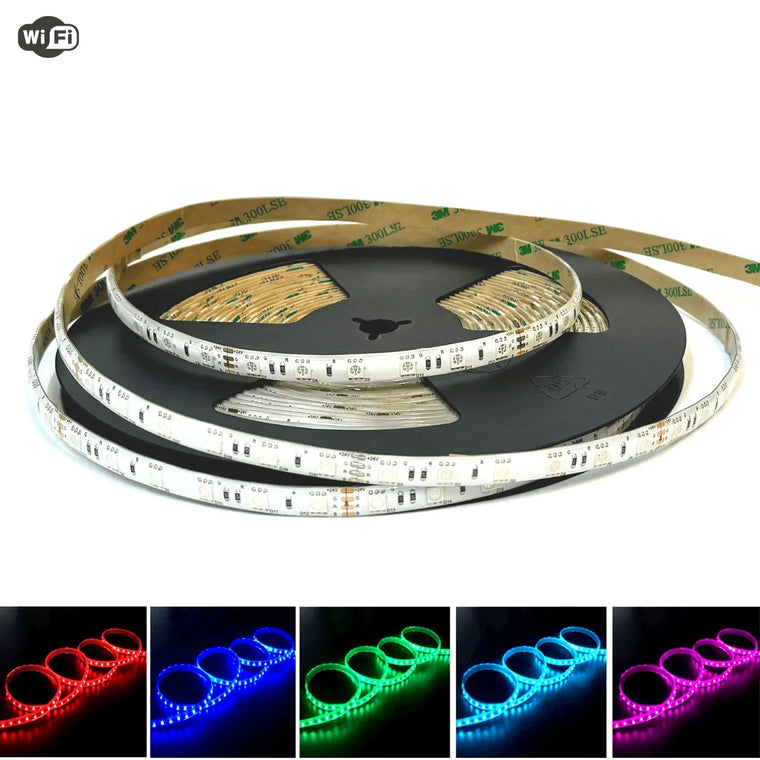

• IP65 (silicone-coated top surface): Protects against direct splashes from above only. Not suitable for UK outdoor conditions or bathroom wet zones under BS7671. Often specified incorrectly for garden use — do not make this mistake.
• IP67 (full silicone sleeve): Rated for temporary immersion. Suitable for outdoor garden lighting, most bathroom zones, and covered exterior locations exposed to UK weather.

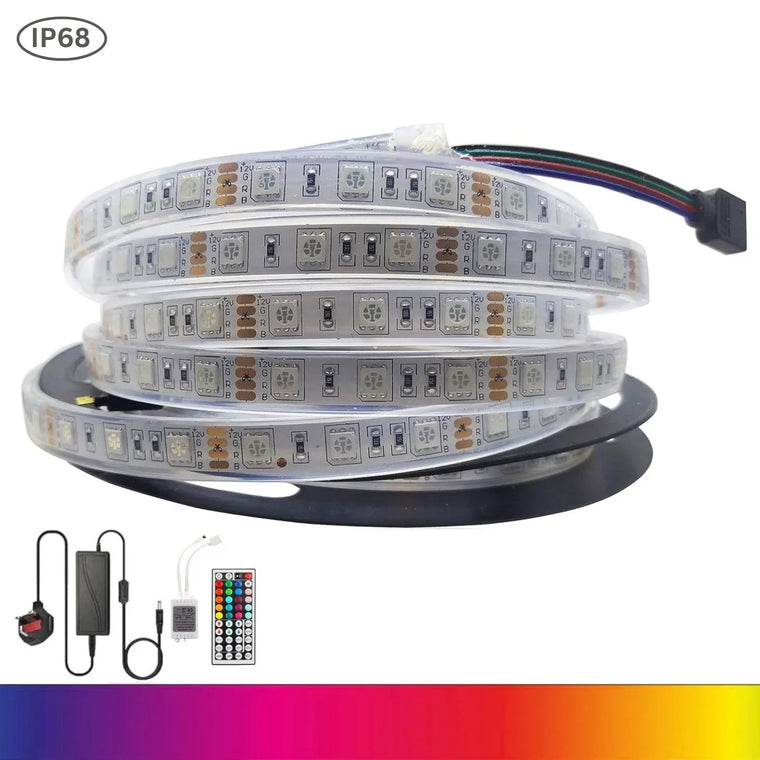

• IP68 (sealed extrusion): Continuous submersion. Required for ponds, water features, fountains, and fully exposed outdoor positions with standing water risk. Browse outdoor-rated LED strip from ATOM LED for the full IP67 and IP68 range.

When selecting IP-rated RGB strip for outdoor use, remember that the silicone coating or sleeve adds a small amount of thermal insulation. This means outdoor-rated RGB strip benefits even more from aluminium profile mounting for heat management. Also confirm that your RGB connectors and joints maintain the same IP rating as the strip itself — a single unsealed joint downgrades the entire installation.

---

What mistakes should you avoid when buying RGB strip?

The five most common RGB strip mistakes in 2026 are: using a dimmable driver instead of non-dimmable, expecting clean white output from RGB-only strip, using a standard dimmer instead of a dedicated controller, underspecifying the driver wattage, and selecting IP65 for outdoor installations in the UK. Each of these leads to poor performance or premature failure.

• Dimmable driver with RGB controller: This causes flicker, colour banding, and shortened controller life. RGB strip always requires a non-dimmable constant voltage driver. The controller handles all dimming via PWM.
• Expecting white from RGB: RGB strip produces a cold, violet-tinged white with CRI below 40. If you need both colour and white, specify RGBW strip from the outset.
• Standard dimmer instead of RGB controller: A trailing-edge or leading-edge dimmer cannot address individual R, G, and B channels. You get stuck on a single colour at variable brightness — no colour mixing.
• Underspecified driver: A driver running at or near its maximum wattage overheats and fails early. Size the driver at 120% of total strip wattage as a minimum. For 2026 installations, ATOM LED recommends checking the LED drivers and transformers range for correctly rated options.
• IP65 for outdoor use: IP65 is surface-splash protection only. UK rain, frost cycles, and condensation require IP67 at minimum. IP68 for any ground-level or water-adjacent installation.
• Powering strip while coiled: Never test or run strip while still wound on the reel. Heat accumulates in the coil, damages the 3M adhesive backing, and creates a fire risk.
• Bare metal mounting: Never mount strip directly on bare metal without an insulating barrier. The exposed PCB tracks on the underside of the strip can short against a conductive surface, damaging the strip and potentially the driver.

---

Frequently asked questions about RGB LED strip lights

Answers to the questions UK buyers and installers ask most about RGB LED strip lights in 2026. Covers colour mixing, driver selection, run lengths, IP ratings, controllers, and RGBW differences. Contact ATOM LED on 01952 370028 or email operations@atomled.co.uk for project-specific advice.

Can RGB LED strip produce white light?

• Short answer: Technically yes, but the white produced by mixing R, G, and B is cold, violet-tinged, and has a CRI typically below 40.
• Practical recommendation: For any project where white light quality matters, choose RGBW strip with a dedicated white channel instead.
• Why it happens: The three narrow-band RGB channels leave gaps in the visible spectrum that a phosphor-based white LED naturally fills.

Do RGB strip lights need a special driver?

• Yes — non-dimmable constant voltage only. Dimmable drivers interfere with the PWM signal from the RGB controller, causing flicker, colour shift, and premature failure.
• Size the driver: At minimum 120% of total strip wattage for thermal headroom.
• Match the voltage: The driver output must exactly match the strip voltage — 12V, 24V, or 48V.

How long can you run RGB strip in a single feed?

• 12V RGB: Typically 3–5 metres before visible colour shift from voltage drop.
• 24V RGB: Typically 7–10 metres depending on wattage per metre.
• 48V RGB: Up to 15–20 metres in a single feed, as voltage drop occurs at half the rate of 24V.
• Beyond these limits: Use parallel wiring back to the controller, not series extension.

What is the difference between RGB and RGBW strip?

• RGB: Three channels (red, green, blue). Produces saturated colours well but poor-quality white.
• RGBW: Four channels (red, green, blue, dedicated white). Produces full colour range plus a clean, high-CRI white from the fourth channel.
• Cost difference: RGBW strip costs approximately 15–25% more than RGB but eliminates the need for a separate white strip run.

Can you cut RGB LED strip to any length?

• Cut at marked points only: RGB strip has designated cut lines, typically every 50mm (12V), 100mm (24V), or 200mm (48V).
• ATOM LED cut to length at marked intervals: Available on selected ranges, allowing cuts at any point without voiding the warranty.
• After cutting: Use soldering or clip-on connectors to reconnect. Ensure all four wires (R, G, B, V+) are connected.

Is RGB strip suitable for bathrooms?

• Yes, with the correct IP rating. IP67 minimum for bathroom zones 1 and 2 under BS7671 (2026 regulations).
• IP65 is not sufficient for bathroom wet zones — it only resists surface splashes from above.
• Driver placement: The driver and controller must be located outside the bathroom zones, typically in an adjacent cupboard or loft space.

Can you connect RGB strip to a standard dimmer switch?

• No. A standard dimmer (trailing-edge or leading-edge) cannot control individual R, G, and B channels.
• What happens: The strip operates on a single brightness level with all channels at the same intensity — no colour mixing, no colour selection.
• Correct setup: Use a dedicated RGB controller between the non-dimmable driver and the strip. Browse the full controller range at ATOM LED.

How do you wire RGB strip lights in parallel?

• Parallel wiring runs separate cables from the controller output to the start of each strip section, rather than connecting one strip end-to-end to another.
• Why parallel: Series wiring multiplies voltage drop, causing colour shift at the far end. Parallel wiring ensures each section receives full voltage.
• Cable sizing: Use adequate gauge cable for the current each run draws. For runs over 5 metres of cable between controller and strip, increase the cable cross-section to reduce losses.

What wattage driver do you need for RGB strip?

• Calculate total strip wattage: Multiply the wattage per metre by the total number of metres connected.
• Add 20% headroom: A 60W total strip load needs at minimum a 72W driver. For 2025–2026 projects, ATOM LED recommends the 24V driver range for most domestic RGB installations.
• Never run at 100% capacity: Drivers running at maximum load overheat, shorten their lifespan, and may trigger thermal shutdown.

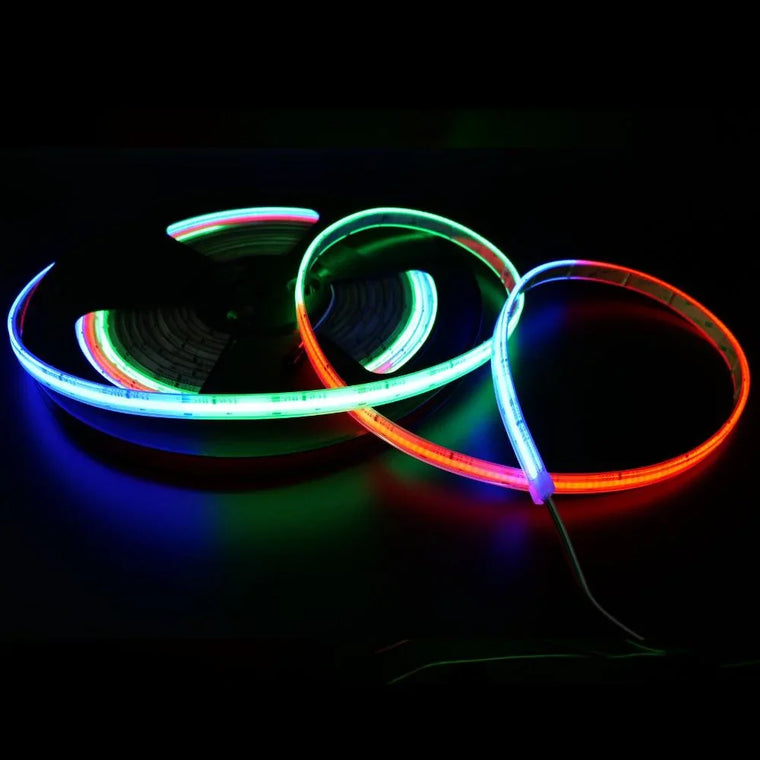

Does RGB strip work with addressable pixel controllers?

• Standard RGB strip is not addressable. It changes colour uniformly across the entire strip length — every LED shows the same colour at the same time.

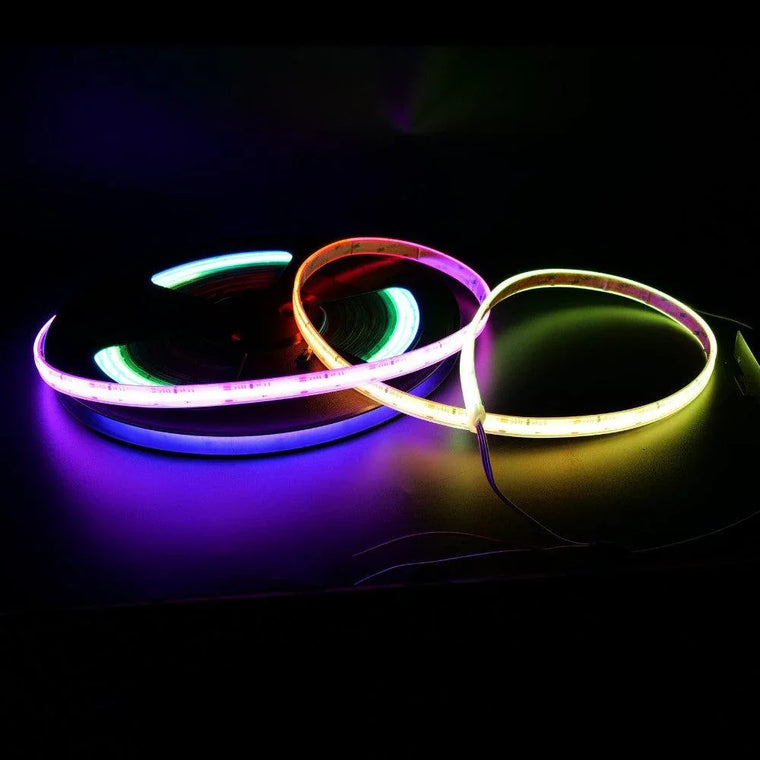

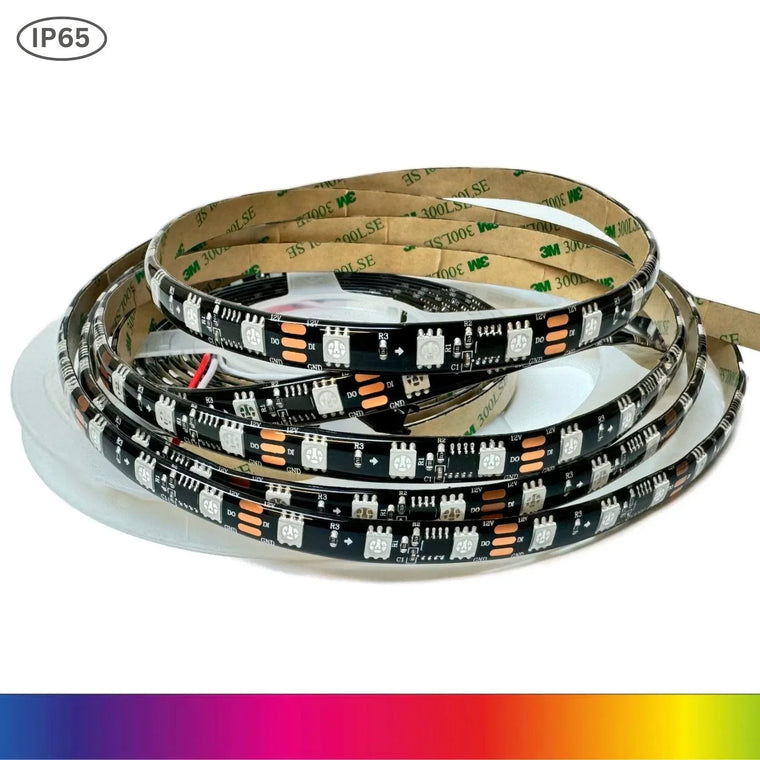

• For individual pixel control: You need addressable digital RGB strip with SPI protocol and a compatible SPI pixel controller.
• Standard RGB controllers are not interchangeable with addressable pixel controllers — the wiring and protocol are completely different.

---

Why choose ATOM LED for RGB strip lights?

ATOM LED is a specialist UK LED supplier based in Telford, Shropshire. All RGB strip is held in UK stock — not dropshipped from overseas. Orders include free UK delivery, a 5-year warranty on DC voltage strip, and access to a technical team who can help you specify the correct strip, controller, and driver combination for your project.

• UK stock, same-day dispatch: Orders placed before 2pm on working days typically ship the same day, arriving within 1–3 business days across the UK.
• Free UK delivery: No minimum order for free delivery in 2026.
• 5-year warranty: All DC voltage strip is covered by a 5-year manufacturer warranty.
• Full RGB ecosystem: Strip, controllers, drivers, connectors, profiles, and accessories all available from one supplier — no compatibility guesswork.
• Technical team: Call 01952 370028 or email operations@atomled.co.uk Monday to Friday, 9am–5pm. The team can help with wattage calculations, controller selection, and wiring diagrams.

Ready to order? Browse the full RGB LED strip lights collection or call 01952 370028 for project advice. Free UK delivery on 97% of products.

---

---
