12V IP67 Power Supply Driver Constant Voltage 500W
SKU: PS12VIP67-500W
-
12V DC
-
IP67 Waterproof
-
5 Years
-
Non-Dimmable
Encrypted & secure checkout
Description
Universal AC input/full range(175-277VAC)
Built in active PFC function
Efficiency up to 93%, super thin and small size.
Protections:short circuit/over load/over voltage/over temperature
1P67 design for indoor or outdoor installation
It can be used in dry, wet and rainy environment
Cooling by free air, high reliability
Up to 50000-hour life time
Suitable for internal lights application for I /I/I.
Widely used in LED lighting and IT equipment
Do not use it to full capacity, leave about 10% to 15%
Technical information:
Input Voltage: AC 170V - 230V
Output Voltage: DC 12V
Watts: 500W
constant Voltage
IP rating: IP 67 Waterproof
Warranty: 5 years

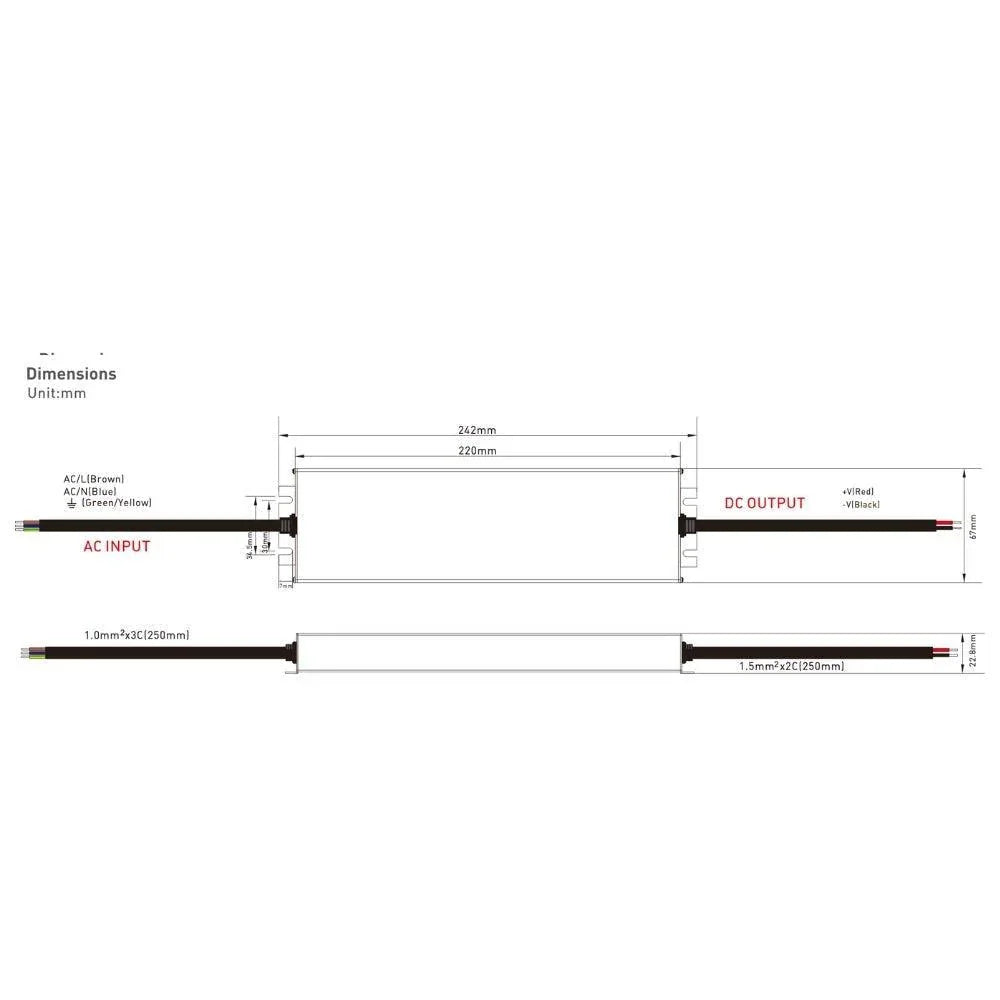

Dimensions:
500W - 272x92x38mm(LxWxH)
- Product Type
- Non dimmable power supply
- IP Rating
- IP67
- Voltage
- Constant Voltage
- Dimensions
- 272x92x38mm(LxWxH)
- Warranty
- 5 Years
Specifications
- Product Type
- Non dimmable power supply
- IP Rating
- IP67
- Voltage
- Constant Voltage
- Dimensions
- 272x92x38mm(LxWxH)
- Operating Temperature
- -40°C to 50°C
- Average LED Life Hours
- 50,000
- Certification
- CE, RoHS, UL
- Material
- Aluminium
- Input
- AC 170V/230V
- Output
- DC 12V
- Warranty
- 5 years
- Brand
- ATOM LED
- Connector Type
- Lead wires (250mm)
- Cooling
- Free convection
- Efficiency
- ≥89%
- Output Current
- 41.7A
- Power Factor
- ≥0.96 at 230Vac
- Protection
- Short circuit, overload, over-voltage, over-temperature
- Wattage
- 500W
- Weight
- 2180g
Technical Documents
Delivery & Returns
On 97% of products — Royal Mail 48-hour tracked
Mainland UK orders over £90 — order by 1pm, Mon–Fri
15-day returns window — free returns on faulty products
01952 370028 · Mon–Fri 9am–5pm
Shipping
Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.
Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.
Saturday Delivery is available as a paid option at checkout.
Large orders and pallet shipments: call 01952 370028 for a quote.
For more information see our detailed Shipping Page.
International Shipping
Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.
Returns & Refunds
The 15-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:
- Standard LED strip lights supplied as 5-metre rolls
- Straight aluminium profiles
- Power supplies and drivers
- Accessories (connectors, controllers, dimmers, end caps)
Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.
Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.
Refunds are processed within 5–10 working days of receiving the returned item.
For more details see our Returns & Refunds page.
Reviews
Frequently Asked Questions
What is the difference between IP65, IP67, and IP68?
IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.
Can I cut this product to a custom length?
Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.
What size driver do I need?
Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.
Should I choose 12V, 24V, or 48V?
Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
What is your warranty?
ATOM LED offers product-specific warranties: up to 7 years on single-colour COB strip, 5 years on RGB and RGBW COB strip, and 4 years on LED neon flex. The warranty covers manufacturing defects. Call 01952 370028 for warranty claims.
