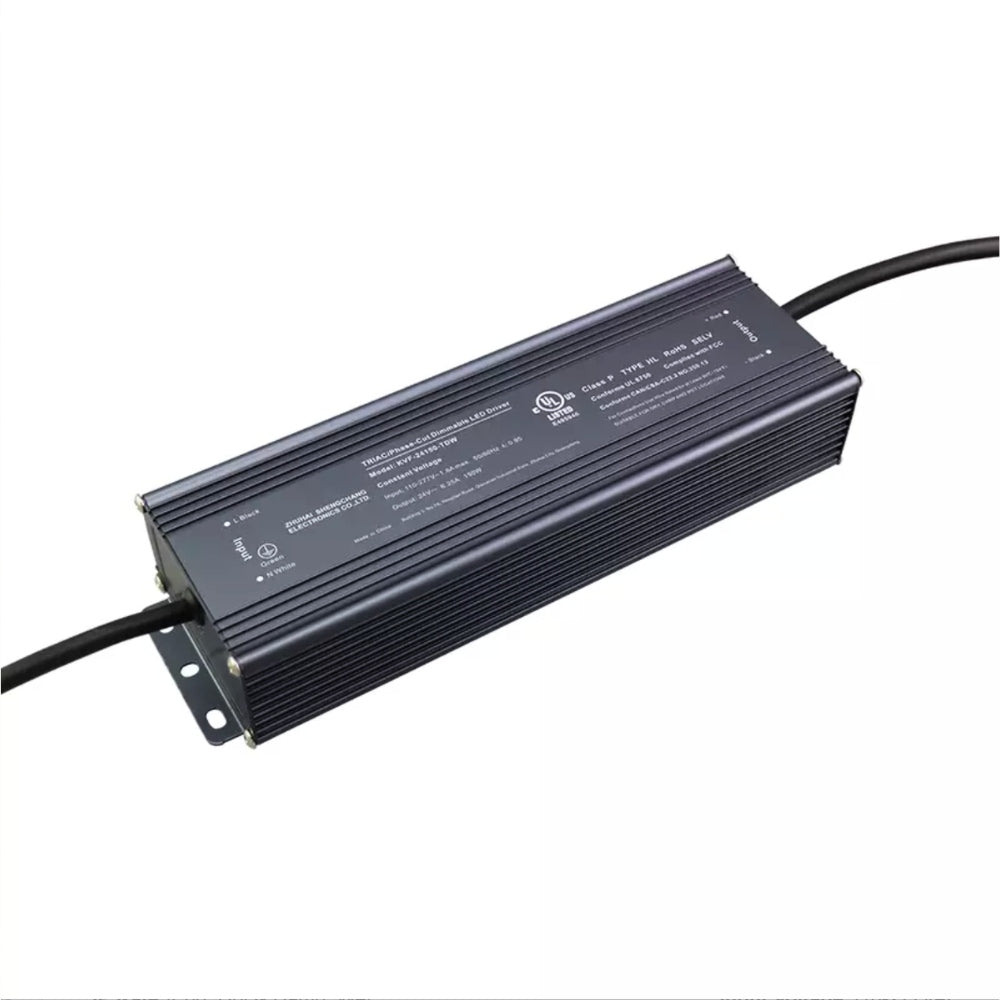

24V IP67 Triac Dimmable Power Supply Driver Constant Voltage 100W
Voltage
48V Constant Voltage
IP Rating
IP66
Warranty
5 warranty Year
Speak to an expert 01952 370028

48V IP66 Triac Dimmable Power Supply Driver Constant Voltage 80W

SKU: TRIAC-48VIP66-80W

  • IP67
  • 48V DC
  • 5 warranty Years
  • Dimmable
£124.75 Inc. VAT
10 units available
1

Encrypted & secure checkout

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Visa
  • Clearpay
Speak to an expert 01952 370028
Description

80W 48V 5 in 1 Triac Dimmable LED Power Supply – IP66 Constant Voltage

This 80W 48V Triac dimmable LED power supply is designed for small to medium LED installations that require smooth dimming and dependable performance. Featuring advanced 5 in 1 dimming technology, it supports Triac leading and trailing edge, 0 to 10V, 1 to 10V, potentiometer and 10V PWM control within one compact and versatile unit.

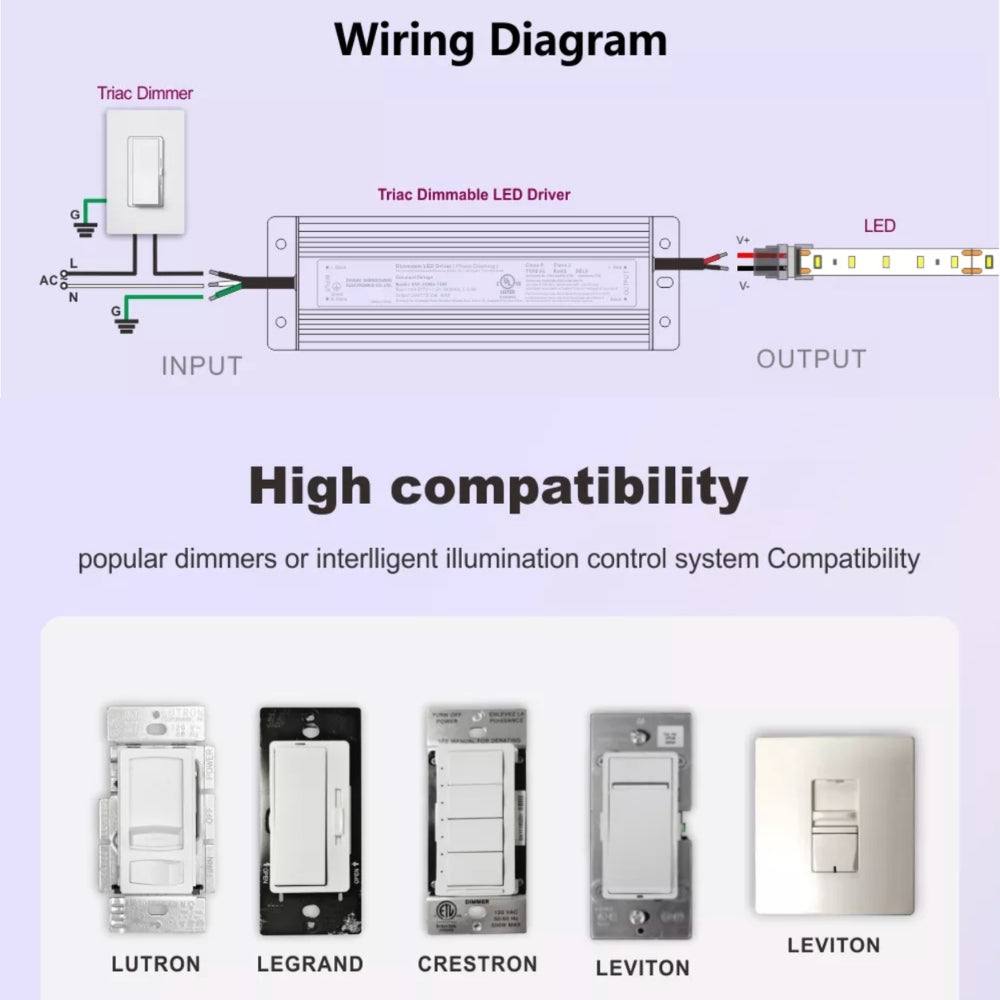

Built for wide compatibility, the driver integrates seamlessly with major dimmer brands and lighting control systems including Lutron, Legrand, Crestron and Leviton. It delivers smooth 0 to 100 percent flicker free dimming, making it ideal for residential, commercial and architectural LED strip lighting projects.

The unit operates on a universal AC 200V to 240V input range and provides a constant 48V DC output at 80W with a maximum output current of 1.67A. Its isolated design enhances electrical safety and long term durability. The IP66 rated housing allows installation in dry, damp and wet locations, making it suitable for both indoor and outdoor lighting applications.

With efficiency up to 93.5 percent and a power factor of 0.98 or higher, this driver improves power quality, reduces harmonic distortion and supports energy efficient LED systems.

Specifications

Model: Triac Dimmable LED Power Supply
Output Power: 80W
Output Voltage: 48V DC
Output Current: 1.67A
Output Type: Constant Voltage
Dimming Type: Triac Leading and Trailing Edge Compatible
Input Voltage: AC 200V to 240V
Isolation: Isolated Design
IP Rating: IP66 suitable for dry, damp and wet locations
Certifications: UL and cUL, FCC, Class 2, CE, RoHS, REACH
Size: 230 x 70 x 43mm L x W x H

This 80W 48V constant voltage Triac LED driver is a reliable solution for 48V LED strip installations that require stable dimming performance and durable outdoor-rated protection.

Product Type
Dimmable Power Supply
IP Rating
IP66 Waterproof
Voltage
48V Constant Voltage
Dimensions
230x70x43mm(LxWxH)
Warranty
5 warranty Years
Specifications
Product Type
Dimmable Power Supply
IP Rating
IP66 Waterproof
Voltage
48V Constant Voltage
Dimensions
230x70x43mm(LxWxH)
Operating Temperature
-40°C to 50°C
Average LED Life Hours
50,000
Certification
CE, RoHS, UL
Material
Aluminium
Input
AC 200V–240V
Output
DC 48V
Warranty
5 warranty years
Brand
ATOM LED
Technical Documents
Delivery & Returns
Free UK Delivery

On 97% of products — Royal Mail 48-hour tracked

Free Next Day £90+

Mainland UK orders over £90 — order by 1pm, Mon–Fri

15-Day Returns

15-day returns window — free returns on faulty products

Talk to Us

01952 370028 · Mon–Fri 9am–5pm

Shipping

Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.

Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).

Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.

Saturday Delivery is available as a paid option at checkout.

Large orders and pallet shipments: call 01952 370028 for a quote.

For more information see our detailed Shipping Page.

International Shipping

Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.

Returns & Refunds

The 15-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:

  • Standard LED strip lights supplied as 5-metre rolls
  • Straight aluminium profiles
  • Power supplies and drivers
  • Accessories (connectors, controllers, dimmers, end caps)

Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.

Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.

Refunds are processed within 5–10 working days of receiving the returned item.

For more details see our Returns & Refunds page.

Reviews

Frequently Asked Questions

What is the difference between IP65, IP67, and IP68?

IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.

Can I cut this product to a custom length?

Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.

What size driver do I need?

Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.

Should I choose 12V, 24V, or 48V?

Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.

What is your warranty?

ATOM LED offers product-specific warranties: up to 7 years on single-colour COB strip, 5 years on RGB and RGBW COB strip, and 4 years on LED neon flex. The warranty covers manufacturing defects. Call 01952 370028 for warranty claims.
