AC Triac Glass Touch Panel Dimmer S1-T
AC Triac Glass Touch Panel Dimmer S1-T
Available in stock (27)
The AC Triac Touch Panel Dimmer Model No.: S1-T is a wireless dimmer that can be used to control the brightness of dimmable LED lamps, Triac dimmable LED drivers, incandescent lighting, and HV halogen lamps. The dimmer can be controlled wirelessly using an RF remote control with a control distance of up to 10m in barrier-free space. It has 256 dimming
levels and a dimming range of 0-100%. The dimmer is compatible with loads up to 400W at 220V and 200W at 110V for incandescent lighting and HV halogen lamps, and up to 200W at 220V and 100W at 110V for dimmable LED lamps and Triac dimmable LED drivers.
Features
- Touch glass panel AC phase-cut dimmer, 1 channel output.
- To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.

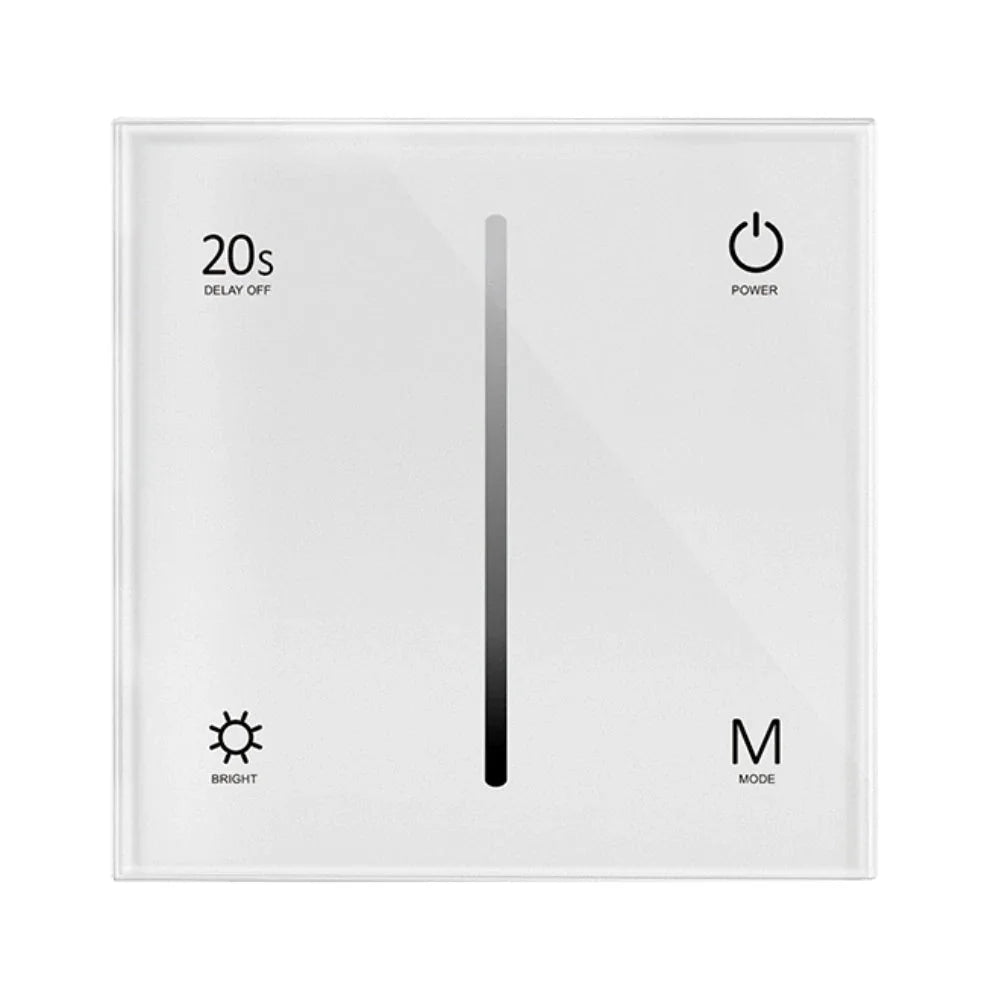

- Ultra sensitive high strength glass touch panel with touch slide in the middle.
- 256 levels 0-100% dimming smoothly without any flash.
- Leading edge dimming or trailing edge dimming set by dip switch.
- Light on/off fade time 3s selectable.
- Compatibility with RF 2.4G single zone or multiple zone dimming remote control.
- Over-heat / Over-load protection, recover automatically.
- White & Black glass panel available.
Specifications:
Input Voltage: AC100-240V
Output Voltage: AC100-240V
Output current: Max 1.5A
Output power: 150-360W
Operation temperature: -30 OC ~ +55 OC
Case temperature (Max.): +85OC
IP rating: IP20
Weight: Net weight 0.181kg, Gross weight 0.234kg
Installation:

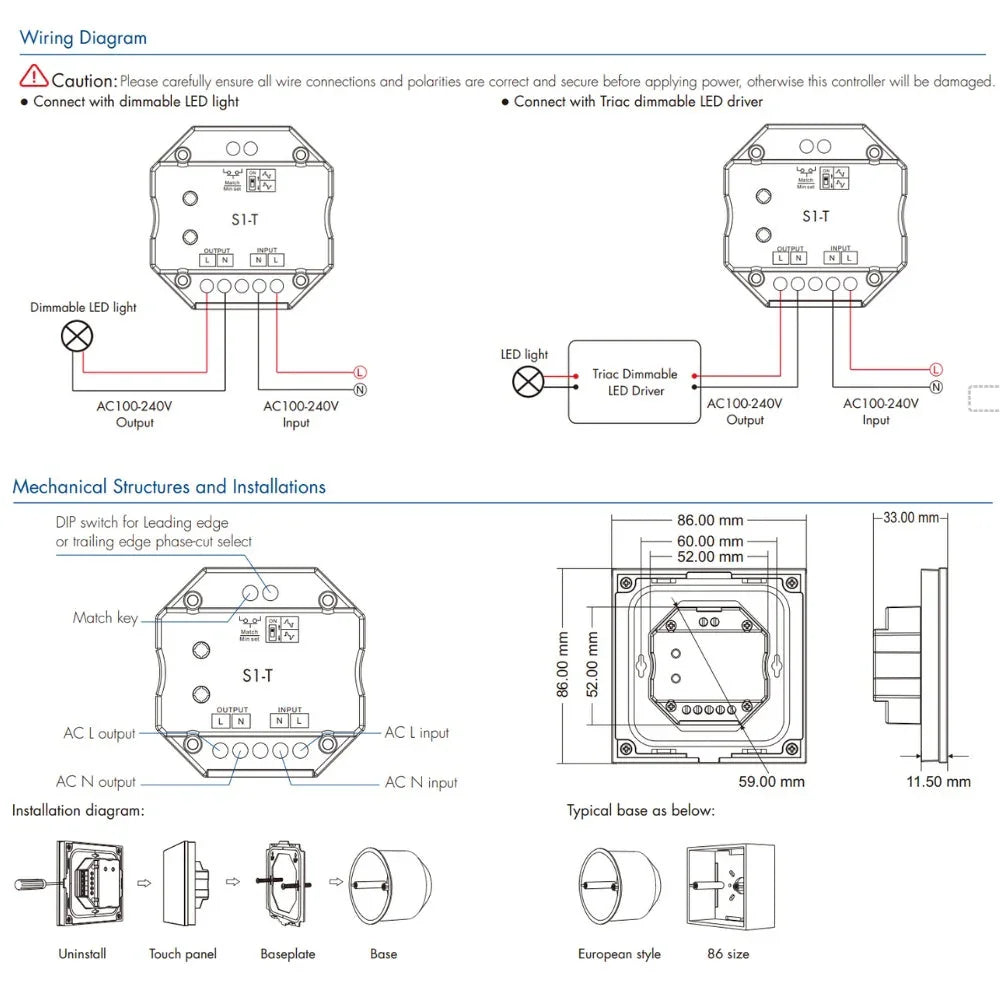

Before installation, carefully ensure all wire connections and polarities are correct and secure before applying power to prevent damage to the dimmer. Follow the wiring diagram provided in the user manual to connect the dimmer to the load type you intend to use it with. The dimmer can be connected to dimmable LED lights or Triac dimmable LED drivers using the AC100-240V input and output connections. Make sure the surge current of the load type does not exceed 2 times 65A to prevent overloading and damaging the product.
Usage
To turn on or off the light, push the knob. After turning on the light, rotate the knob to adjust brightness. The knob can be rotated up to 2.5 turns with 50 levels of brightness adjustment. To make continuous brightness adjustments, long push (1-6s) the knob.Rotary dimming/Glass panel/Leading edge or trailing edge/Wireless remote control
The dimmer can be controlled wirelessly using the RF remote control provided with a control distance of up to 10m in barrier-free space.
Datasheet:
Specifications
Specifications
Brand | |
---|---|
Product Type | |
IP Rating | |
Guarantee | 5 years |
Input | AC 100-240V |
Output | AC 100-240V |
