- Voltage
- 12V
- IP Rating
- IP20 Non-
- Cut
- 7.5cm
- Max Run
- 5m
- Warranty
- 3 Year

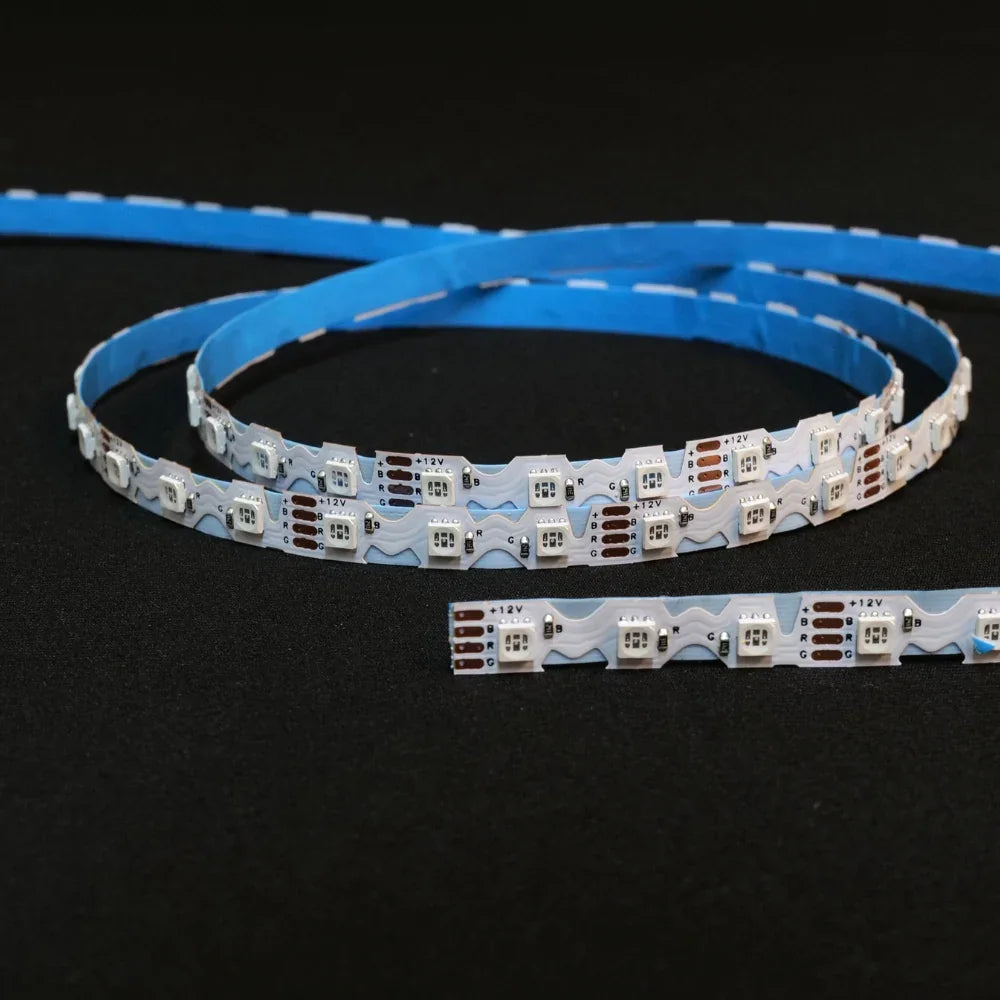

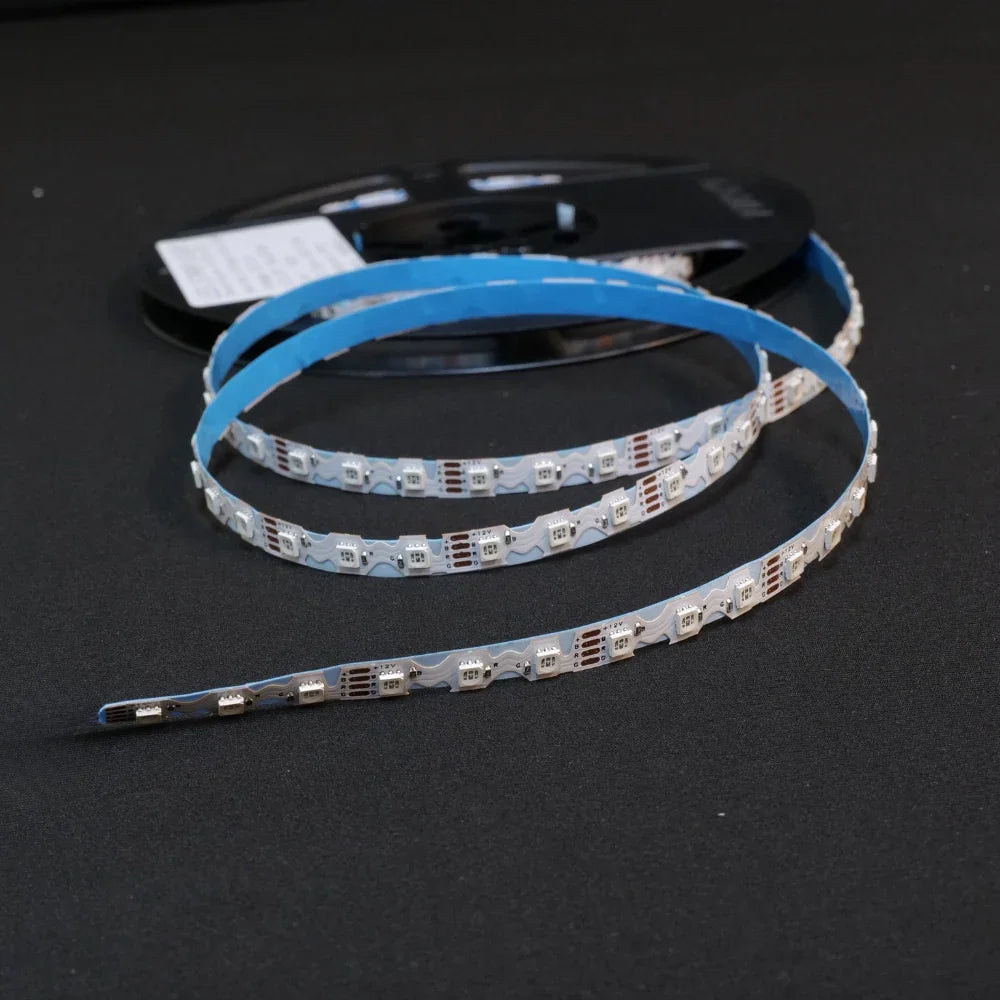

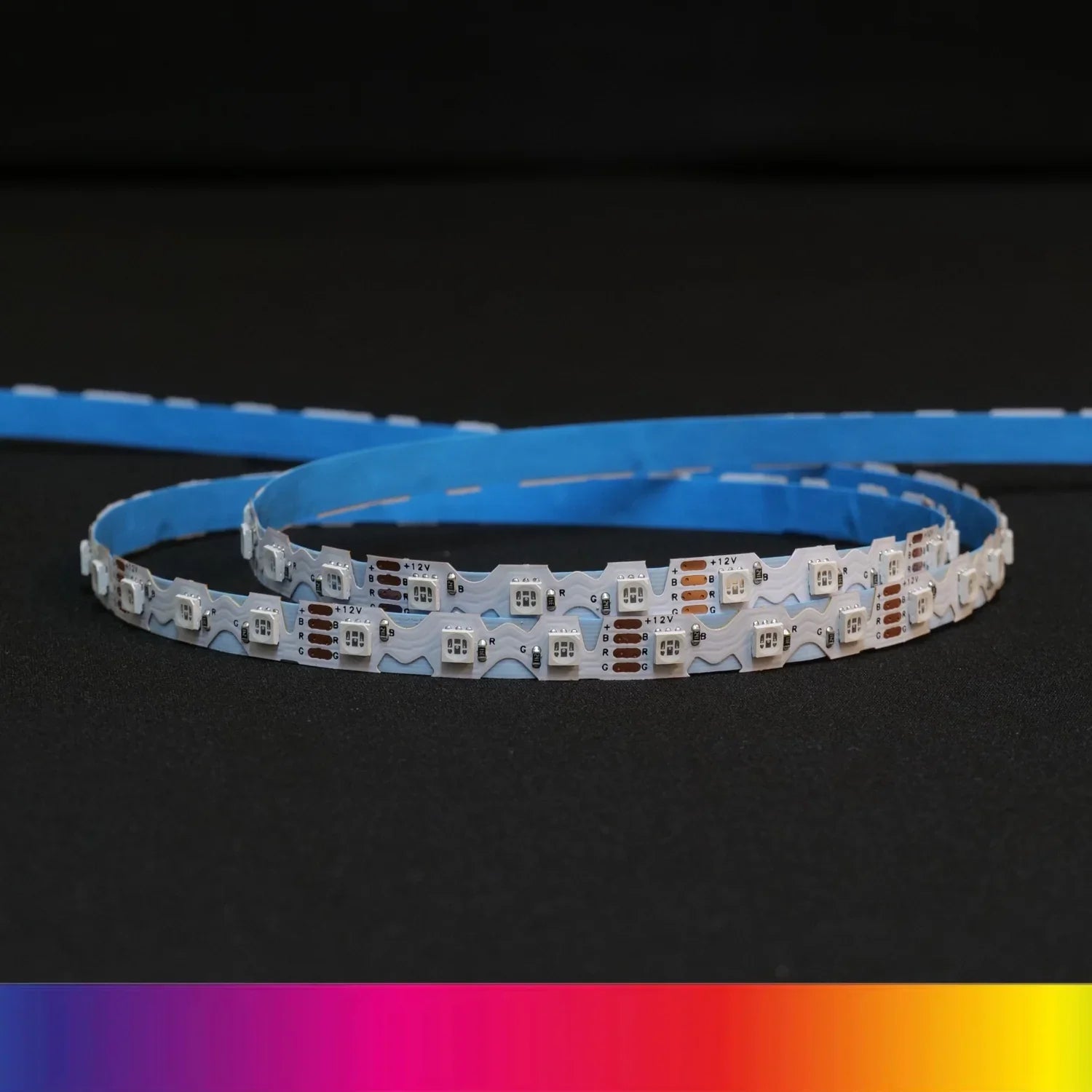

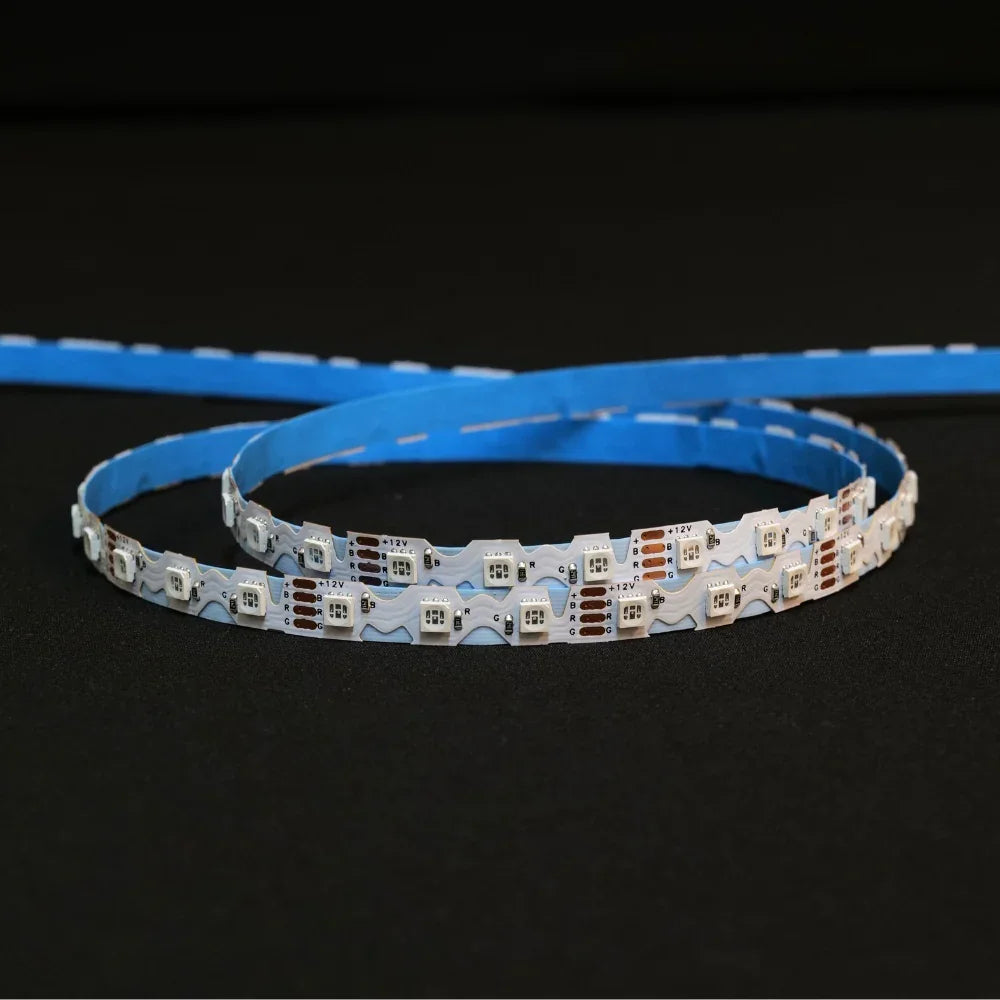

Bendable S-Shape RGB LED Strip 3835 Zig Zag IP20 Non-Waterproof 12V 90 LEDs/m 8mm
SKU: S-RGB12V-B-8MM
-
IP20 Indoor
-
12V DC
-
Free Delivery
-
5m Run
Encrypted & secure checkout
Description
This 12V RGB strip uses an S-shaped flexible circuit for curved lettering, signs and creative indoor displays. It follows layouts that are awkward for a conventional straight strip, while a compatible controller adjusts colour and brightness. RGB creates white by mixing its colour channels; choose a strip with a dedicated white channel if white lighting is your priority.
What is included?
This listing supplies one 5m S-shape RGB strip. The controller and power supply are selected separately. Choose accessories for the actual strip and the complete installation.
Which controller and power supply?
Use an analogue RGB controller with a 12V DC constant-voltage power supply. The connected strip changes colour together. Size the controller, supply and cables for the connected load; do not connect the strip directly to mains electricity.
Will the LEDs show?
The separate LEDs create visible light points at close range. Test the finished appearance before fixing the strip. Any covering or mounting arrangement must accommodate the circuit shape and intended curves without crushing or stressing it.
Where can it be used?
IP20 is for dry interiors. Keep the strip away from splashes, condensation and exposed outdoor locations. Position the controller, power supply and connections in suitable protected locations; their protection must be checked separately.
How should I cut and fit it?
Isolate power before cutting or connecting. Cut only at the marked 7.5cm intervals. Measure first, support the strip without sharp folds and test it before final fixing. Keep powered runs within the stated 5m continuous-run limit. Check the Specifications section for the remaining product details before choosing accessories. Ask ATOM LED to check your planned layout if you need help matching components. Allow access to the controller and connections for future maintenance. Measure the complete route before ordering. Keep cables supported without straining the strip connections.
- Product Type
- LED Strip Light
- Colour
- RGB Multicolour
- IP Rating
- IP20 Non-Waterproof
- Voltage
- 12V
- Watts Per Metre
- 16 Watts
- LEDs Per Metre
- 90
- Max Run Length
- 5m
- Warranty
- 3 Years
Specifications
- Product Type
- LED Strip Light
- Colour
- RGB Multicolour
- IP Rating
- IP20 Non-Waterproof
- LEDs Per Metre
- 90
- Continuous Run
- 5m
- Voltage
- 12V
- Watts Per Metre
- 16 Watts
- Metres
- 5 Metre
- Width
- 8mm
- Lumens Per Metre
- 590 lm
- Cut Points
- 7.5cm
- Operating Temperature
- -20°C to 40°C
- LED Type
- 3535
- Average LED Life Hours
- 50,000
- Shape
- Zig Zag, S Shape
- Certification
- UKCA, CE, RoHS
- Beam Angle
- 180
- Warranty
- 3 years
- Brand
- ATOM LED
Shipping & Returns
On 97% of products — Royal Mail 48-hour tracked
Mainland UK orders over £90 — order by 1pm, Mon–Fri
30-day returns window — free returns on faulty products
01952 370028 · Mon–Fri 9am–5pm
Shipping
Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.
Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.
Saturday Delivery is available as a paid option at checkout.
Adding profiles? Mainland UK delivery for rigid 1m profiles is £6.95 below £90, with free next day delivery on eligible £90+ orders. Standard rigid 2m profiles cost £19.85 to deliver; specified rigid 2.45m profiles cost £34.85. The highest applicable profile rate applies to a mixed basket. Order before 1pm, Monday–Friday, for same-working-day dispatch of in-stock profiles.
Large orders and pallet shipments: call 01952 370028 for a quote.
For more information see our detailed Shipping Page.
International Shipping
Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.
Returns & Refunds
The 30-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:
- Standard LED strip lights supplied as 5-metre rolls
- Straight aluminium profiles
- Power supplies and drivers
- Accessories (connectors, controllers, dimmers, end caps)
Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.
Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.
Refunds are processed within 5–10 working days of receiving the returned item.
For more details see our Returns & Refunds page.
Reviews
Frequently Asked Questions
What is the difference between IP65, IP67, and IP68?
IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.
Can I cut this product to a custom length?
Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.
What size driver do I need?
Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.
Should I choose 12V, 24V, or 48V?
Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
What is your warranty?
ATOM LED offers product-specific warranties: 7 years on single-colour COB strip, 5 years on RGB and RGBW COB strip, and 4 years on LED neon flex. The warranty covers manufacturing defects. Call 01952 370028 for warranty claims.
