- Warranty
- 7 Years
- Fits
- 8×16mm IP67
- Material
- Aluminium
- Flexibility
- Bendable
Bendable Tile-In Aluminium Profile 8×16mm IP67 Neon Flex 1 metre & 2 Metre
SKU: NFPROFILE-BT0816-1M
-
Bendable Profile
-
Tile-In Mounting
-
Fits 8 × 16 mm IP67 Neon Flex
Encrypted & secure checkout
Description
Bendable tile-in profile for 8 × 16 mm IP67 Neon Flex

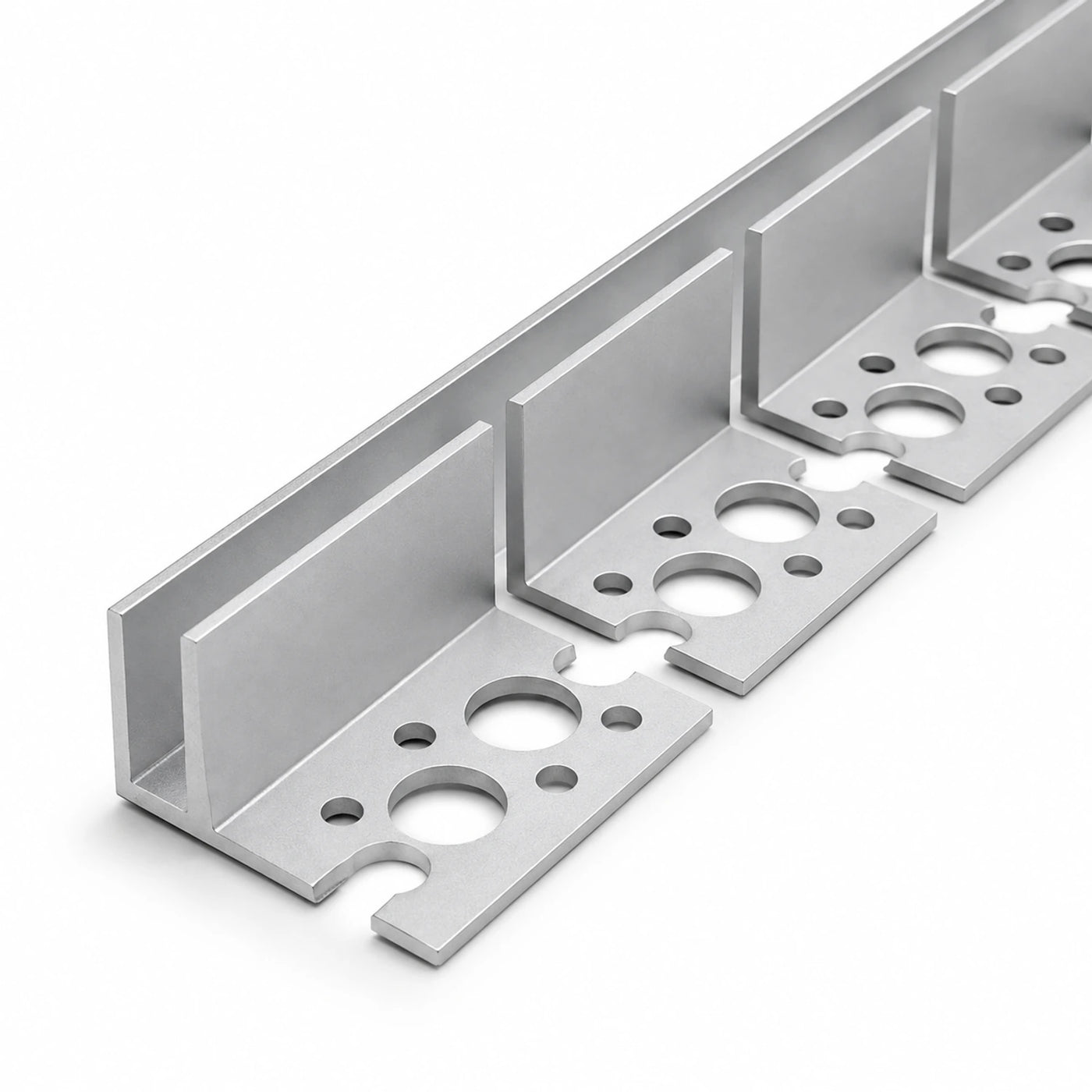

Create curved or shaped recessed lighting details with this bendable aluminium mounting profile. Relief cuts divide the perforated side flange into segments, helping the profile follow a planned curve while the flange sits beneath the tiled finish.
Designed for matching ATOM LED 8 × 16 mm IP67 Neon Flex in 24V and 48V. Choose a 1 Metre or 2 Metre length for your installation.
Compatible Neon Flex
These three ranges cover the complete ATOM LED 8 × 16 mm IP67 Neon Flex selection in 24V and 48V: 24V 1 cm-cut, 24V 5 cm-cut and 48V 10 cm-cut systems.
- 24V 8 × 16 mm IP67 Neon Flex — 1 cm cut, up to 15 m run
- 24V 8 × 16 mm IP67 Neon Flex — 5 cm cut, up to 20 m run
- 48V 8 × 16 mm IP67 Neon Flex — 10 cm cut, up to 40 m run
Before installation
Check a sample fit, the cross-section dimensions and the selected Neon Flex bending direction before installation. Shape the profile gently without kinking or forcing it, and follow the Neon Flex bend limits. Plan joints, drainage and access before tiling.
Profile only: Neon Flex, power supply, controls and fixings are sold separately. There is no opal diffuser cover. IP67 refers to compatible Neon Flex, not the bare aluminium profile or completed installation. The profile does not establish a walk-over rating; select suitable sealing and installation methods for the location.
Delivery charges
Mainland UK: 1 Metre — £6.95 below £90; free Next Day delivery from £90 when no long profile is in the basket. 2 Metre — £19.85 at any order value and excluded from free delivery. Mixed-length baskets containing a 2 Metre profile use the £19.85 long-profile charge. Other destinations are calculated at checkout.
- Product Type
- Aluminium Profile
- Dimensions
- 32 ± 0.2 mm wide; 14.5 ± 0.2 mm internal depth
- Warranty
- 7 Years
Specifications
- Product Type
- Aluminium Profile
- Metres
- 1 Metre / 2 Metres
- Dimensions
- 32 ± 0.2 mm wide; 14.5 ± 0.2 mm internal depth
- Width
- 32 ± 0.2 mm
- Shape
- Bendable asymmetric tile-in channel
- Material
- Aluminium
- Attachment
- Tile-in / recessed beneath tiled finish
- Warranty
- 7 Years
- Base Thickness
- 2 mm
- Brand
- ATOM LED
- Channel Opening
- 8 ± 0.2 mm nominal cavity; 7.6 mm clear mouth
- Compatible Ip Rating
- IP67 Neon Flex
- Compatible Voltage
- 24V and 48V Neon Flex
- Flange Projection
- 20 mm
- Flange Thickness
- 1.5 mm
- Included Items
- Aluminium profile only
- Internal Depth
- 14.5 ± 0.2 mm from wall top; 11.4 mm below retaining shoulders
- Neon Flex Size
- 8 × 16 mm
- Wall Thickness
- 2 mm
Technical Documents
Delivery & Returns
On 97% of products — Royal Mail 48-hour tracked
Mainland UK orders over £90 — order by 1pm, Mon–Fri
30-day returns window — free returns on faulty products
01952 370028 · Mon–Fri 9am–5pm
Shipping
Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.
Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.
Saturday Delivery is available as a paid option at checkout.
Large orders and pallet shipments: call 01952 370028 for a quote.
For more information see our detailed Shipping Page.
International Shipping
Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.
Returns & Refunds
The 30-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:
- Standard LED strip lights supplied as 5-metre rolls
- Straight aluminium profiles
- Power supplies and drivers
- Accessories (connectors, controllers, dimmers, end caps)
Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.
Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.
Refunds are processed within 5–10 working days of receiving the returned item.
For more details see our Returns & Refunds page.
Reviews
Frequently Asked Questions
What is the difference between IP65, IP67, and IP68?
IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.
Can I cut this product to a custom length?
Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.
What size driver do I need?
Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.
Should I choose 12V, 24V, or 48V?
Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
