Blue Flex 24V 8x16mm 120LEDs/m IP65 Waterproof 5cm Cut
SKU: NFBLU816IP65-24V
-
Waterproof
-
Neon Flex
-
Corner Bend
-
Flexible
Encrypted & secure checkout
Description
Our 8x16mm Neon Flex is a high-quality lighting solution with a silicone outer casing which means it is both durable and flexible and allows it to easily fit into a correctly sized routed groove, making for a flush, seamless finish to your installation.
Neon Flex is a durable fully diffused linear light perfect for indoor installations. This neon can be cut easily to your desired lengths at the allocated cut points every 5cm (50mm). Maximum length at any time is 15 metres without any voltage drop and one side power, which can be extended to 30 metre if powered from both ends.
With its vibrant neon glow, this micro flex adds a touch of personality and style to any furniture piece. It is low voltage and energy-efficient, making it both safe and cost-effective to use.
Whether you're looking to light up a kitchen counter, coving, accent a bookshelf, or brighten up a bathroom mirror, the 8x16mm Neon Flex is the perfect choice for all your indoor lighting needs.
A 24V Driver is required to power LED Neon Flex. Each metre of Neon Flex requires 9 watts, so choose a driver powerful enough to supply the total wattage required. Please do not use the power supply to its full capacity, always leave at least 10% capacity.
Neon Flex can be dimmed via mains dimming, DALI, DMX, RF controllers.
Our 8x16 Micro Neon Flex comes with a 3 year guarantee as standard on indoor installations and 6 months on outdoor installations.
For outdoor use silicone sealant with end cap and heat shrink is used on the tail end of the LED Neon Flex. Incorrect Ingress Protection will void the warranty.
Power Consumption: 9 W/ Metre
Upto 5 Metre Length : DC 24V 60W
Upto 8 Metre Length: DC 24V 100W
Upto 10 Metre Length: DC 24V 120W
Upto 15 Metre Length: DC 24V 200W
Specification:
- Voltage: 24V
- Colour: Blue

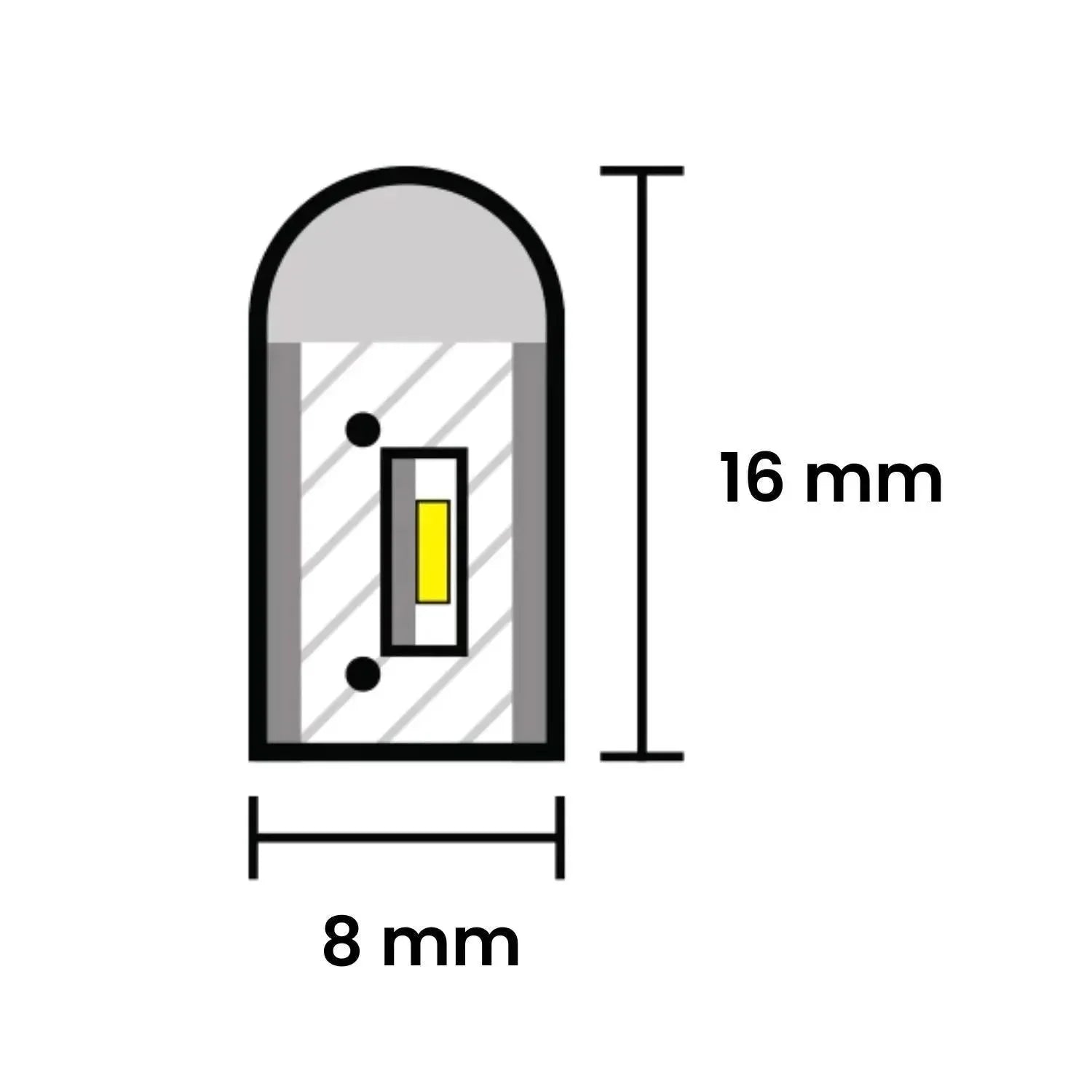

- Dimensions - 8mm x 16mm
- LED Type - 2835
- Unit/Cut Length – 5cm (50mm)
- Max Load - 15m
- Power – 9W Per Metre
- Lumens - 470 Per Metre
- CRI - >80
- IP Rating - IP65 subject to correct installation.
- Max Bend Radius – 3cm (30mm)
- Warranty - 3 years
- Warranty
- 5 Years
Specifications
- Warranty
- 5 years
Delivery & Returns
On 97% of products — Royal Mail 48-hour tracked
Mainland UK orders over £90 — order by 1pm, Mon–Fri
15-day returns window — free returns on faulty products
01952 370028 · Mon–Fri 9am–5pm
Shipping
Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.
Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.
Saturday Delivery is available as a paid option at checkout.
Large orders and pallet shipments: call 01952 370028 for a quote.
For more information see our detailed Shipping Page.
International Shipping
Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.
Returns & Refunds
The 15-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:
- Standard LED strip lights supplied as 5-metre rolls
- Straight aluminium profiles
- Power supplies and drivers
- Accessories (connectors, controllers, dimmers, end caps)
Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.
Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.
Refunds are processed within 5–10 working days of receiving the returned item.
For more details see our Returns & Refunds page.
Reviews
Frequently Asked Questions
What is the difference between IP65, IP67, and IP68?
IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.
Can I cut this product to a custom length?
Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.
What size driver do I need?
Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.
Should I choose 12V, 24V, or 48V?
Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
What is your warranty?
ATOM LED offers product-specific warranties: up to 7 years on single-colour COB strip, 5 years on RGB and RGBW COB strip, and 4 years on LED neon flex. The warranty covers manufacturing defects. Call 01952 370028 for warranty claims.
