- Voltage
- 24V
- IP Rating
- IP20 Non-
- Cut
- Cut Anywhere
- Max Run
- 10m
- Warranty
- 7 Year

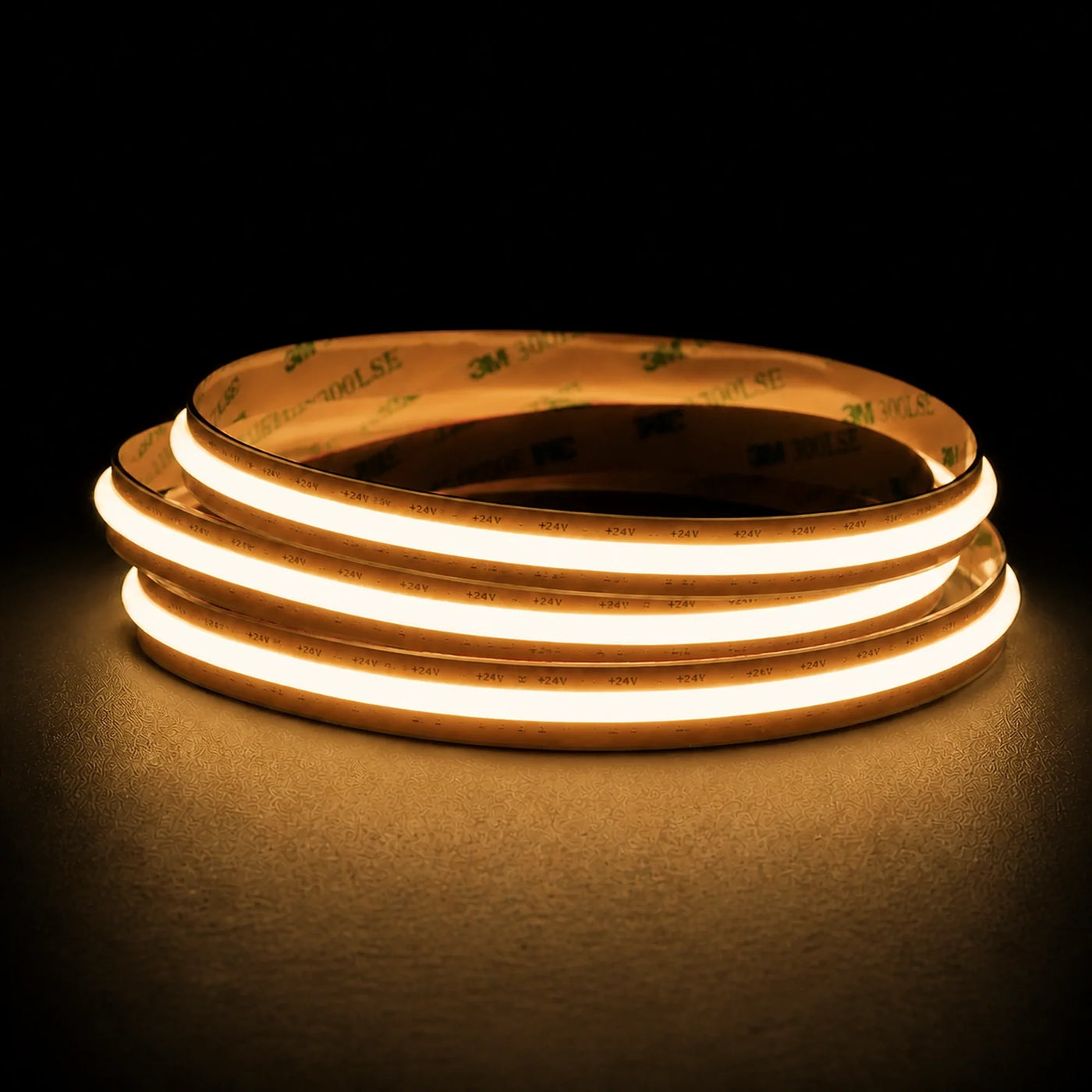

Custom-Fit Under Cabinet COB LED Strip 24V 10mm – FreeCut
SKU: COB24V-FC-27K-01M-UC
-
IP20 Indoor
-
Dotless COB
-
10m Run
-
CRI >90
Encrypted & secure checkout
Description
Custom-Fit Under Cabinet COB LED Strip gives kitchens, shelving and fitted furniture a clean continuous line of light without visible LED dots. Its FreeCut construction can be trimmed between conventional solder pads, making it especially useful around uneven cabinet runs and detailed joinery.

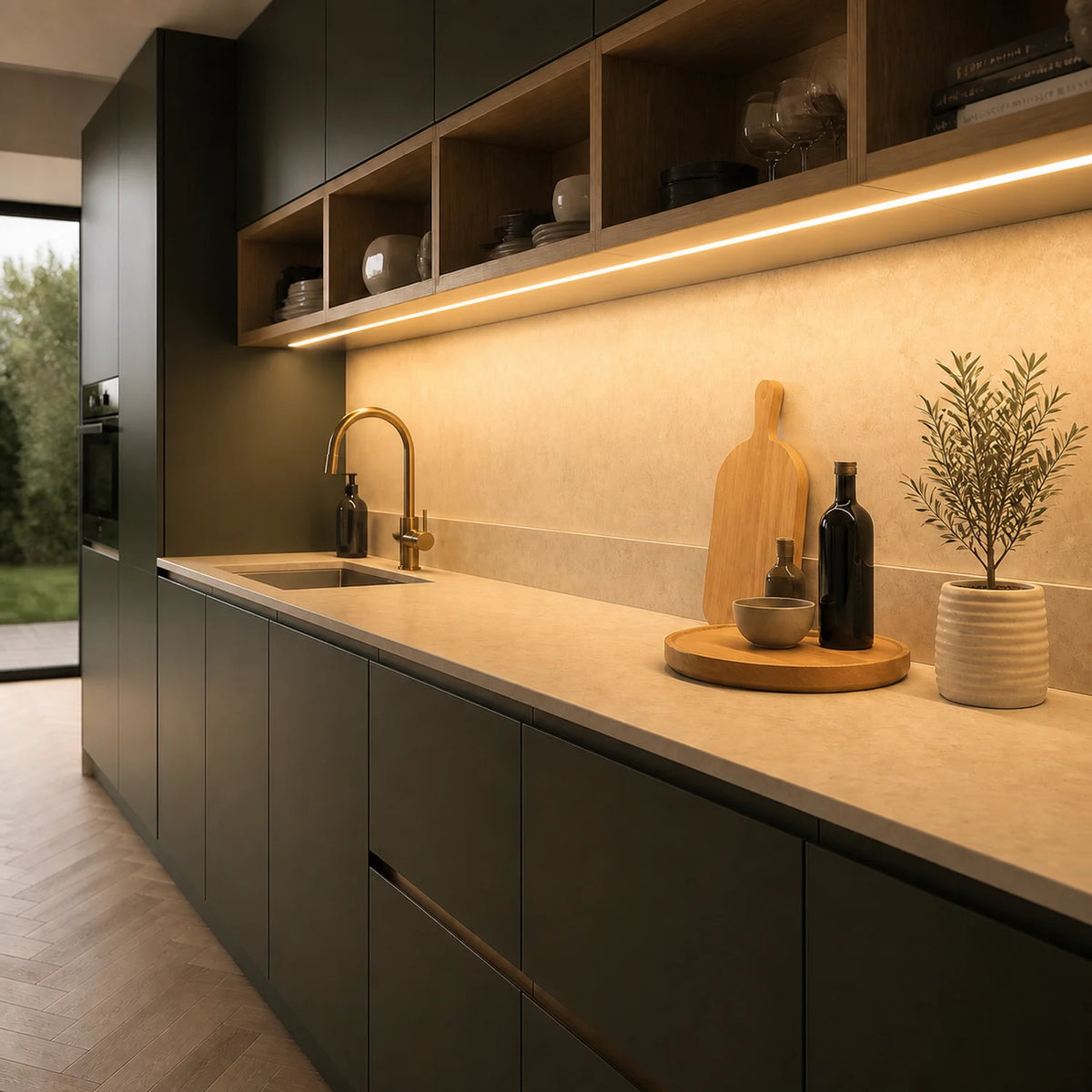

Why it works under cabinets
The 10mm, 24V strip uses 340 LEDs per metre at 9W/m. Select 2700K, 3000K, 4000K, 5000K or 6500K and order 1m–10m. The self-adhesive backing holds the strip during installation; an aluminium profile provides the finished mounting surface and thermal management.
Plan the installation
Which colour temperature should I choose? 2700K and 3000K feel warm and relaxed; 4000K gives balanced preparation light; 5000K and 6500K create a cooler, high-clarity appearance.
What else is needed? Use a compatible 24V constant-voltage power supply and a 10mm aluminium profile. A controller is optional for dimming. Power supplies, profiles and controls are sold separately.
Where can it be installed? IP20 is for dry indoor locations. Keep the strip away from sinks, steam and splash zones, and have mains-side work completed by a competent installer.
Can it run as one piece? The maximum continuous run is 10m. Size the power supply from the total connected wattage and include the manufacturer’s recommended capacity margin.
Made for your cabinetry: choose the required metre length, or use our Made to Measure service for a bespoke, custom-cut lighting specification.
- Product Type
- COB LED Strip
- Colour
- 2700K–6500K Options
- IP Rating
- IP20 Non-Waterproof
- Voltage
- 24V
- Watts Per Metre
- 9 W/m
- LEDs Per Metre
- 340
- Max Run Length
- 10m
- CRI
- >90
- Dimensions
- 10mm
- Warranty
- 7 Years
Specifications
- Product Type
- COB LED Strip
- Colour
- 2700K–6500K Options
- IP Rating
- IP20 Non-Waterproof
- LEDs Per Metre
- 340
- Continuous Run
- 10m
- Voltage
- 24V
- Watts Per Metre
- 9 W/m
- Metres
- 1m–10m
- Dimensions
- 10mm
- Width
- 10mm
- Cut Points
- Cut Anywhere
- LED Type
- COB LED Strip
- Attachment
- 3M Tape
- CRI
- >90
- Warranty
- Up to 7 years
- Brand
- ATOM LED
Delivery & Returns
On 97% of products — Royal Mail 48-hour tracked
Mainland UK orders over £90 — order by 1pm, Mon–Fri
30-day returns window — free returns on faulty products
01952 370028 · Mon–Fri 9am–5pm
Shipping
Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.
Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.
Saturday Delivery is available as a paid option at checkout.
Large orders and pallet shipments: call 01952 370028 for a quote.
For more information see our detailed Shipping Page.
International Shipping
Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.
Returns & Refunds
The 30-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:
- Standard LED strip lights supplied as 5-metre rolls
- Straight aluminium profiles
- Power supplies and drivers
- Accessories (connectors, controllers, dimmers, end caps)
Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.
Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.
Refunds are processed within 5–10 working days of receiving the returned item.
For more details see our Returns & Refunds page.
Reviews
Frequently Asked Questions
What is the difference between IP65, IP67, and IP68?
IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.
Can I cut this product to a custom length?
Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.
What size driver do I need?
Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.
Should I choose 12V, 24V, or 48V?
Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
What is your warranty?
ATOM LED offers product-specific warranties: up to 7 years on single-colour COB strip, 5 years on RGB and RGBW COB strip, and 4 years on LED neon flex. The warranty covers manufacturing defects. Call 01952 370028 for warranty claims.
