- Voltage
- 24V
- IP Rating
- IP67
- Cut
- 8.5cm
- Max Run
- 10m
- Warranty
- 4 Year

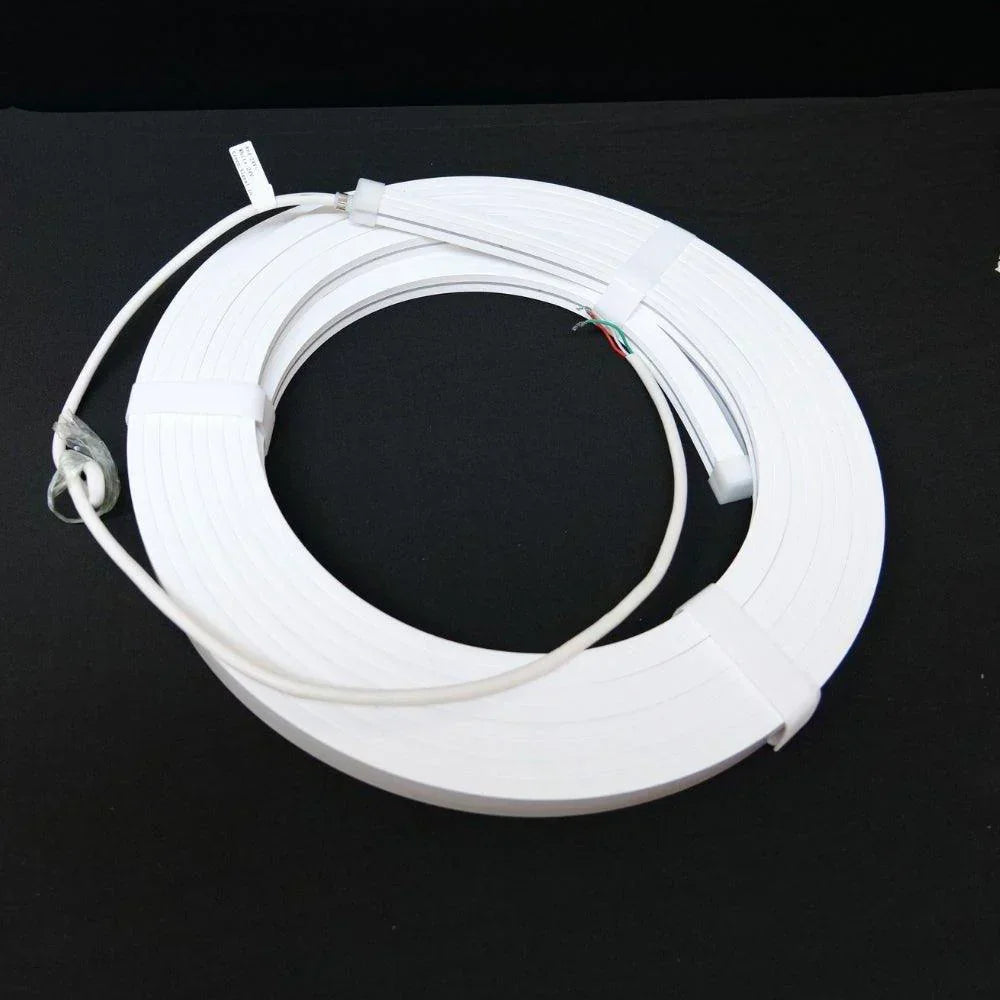

Addressable Digital Pixel RGB Neon Flex 24V 12x20mm IP67 Waterproof WS2811 8.5cm Cut
SKU: ALNFDRGB24V1220
-
IP67 Waterproof
-
Side Bend
-
Corner Bend
-
Flexible
Encrypted & secure checkout
Description
Introducing our spotless illumination and stunning patterns, this LED neon flex is the ideal choice for those seeking to enhance their decor.

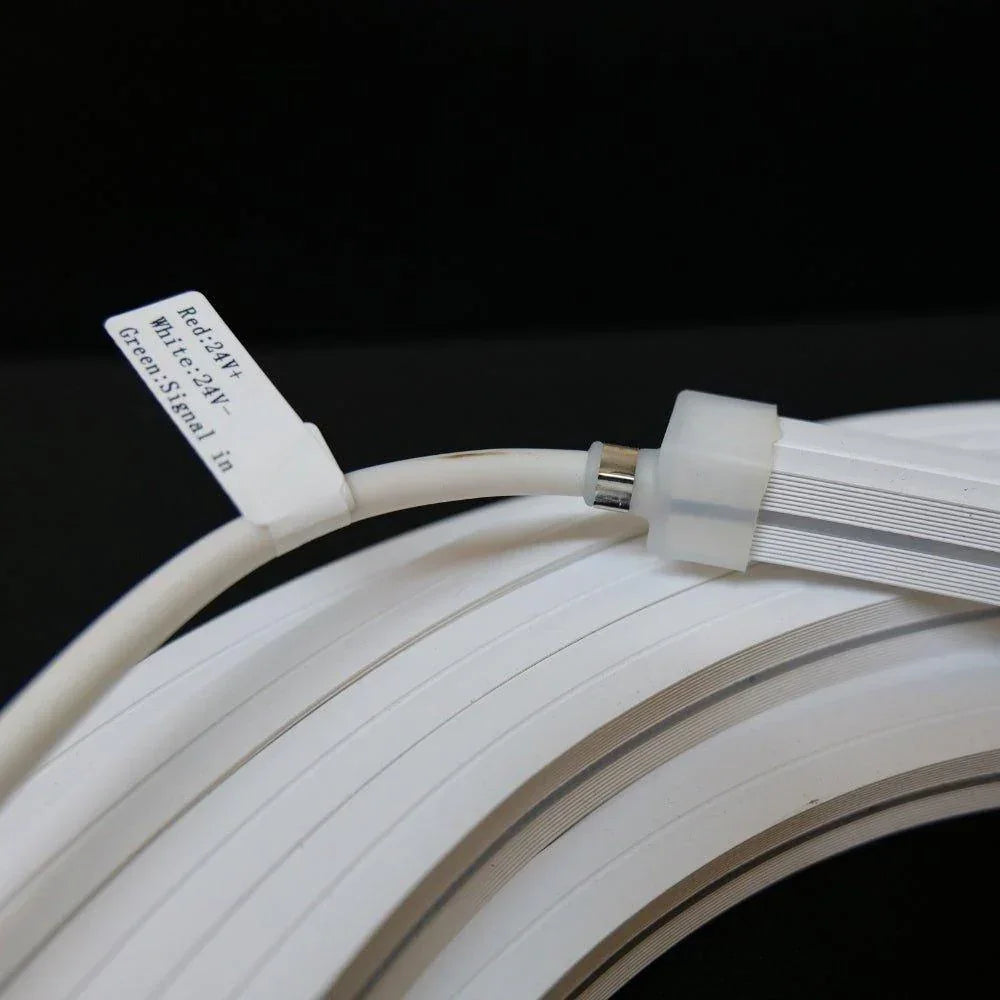

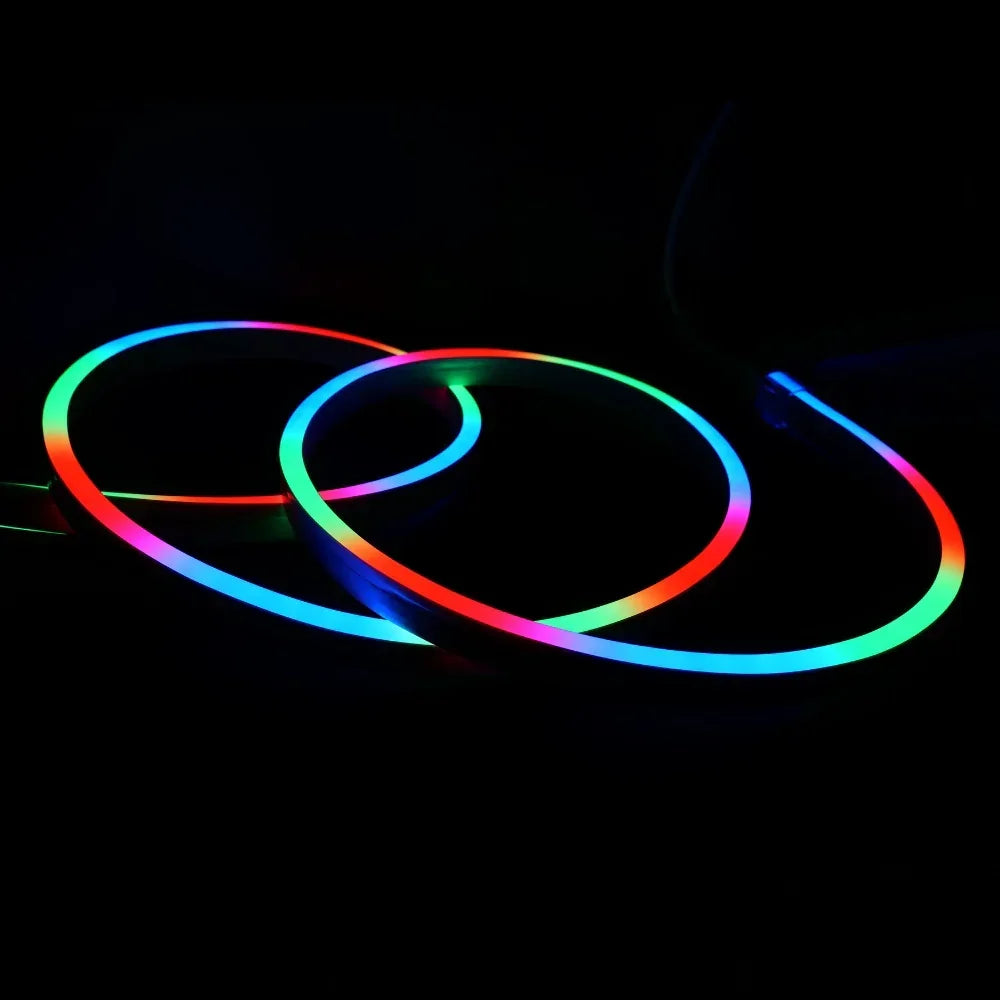

Featuring 10 pixels per metre and utilizing WS2811 IC technology, the neon flex allows individual control of each segment. It requires an LED pixel controller to create dynamic effects like colour chasing, flashing, and fading. With cut points every 8.5cm and 1-metre cable length, it offers easy customization while maintaining a spotless appearance when lit.
Rated IP65, it is suitable for indoor and short-term outdoor use where light water exposure may occur. However, once cut, the IP65 rating is no longer guaranteed. Encased in durable silicone, this flexible neon flex can bend around curves, objects, or intricate designs, making installation effortless.

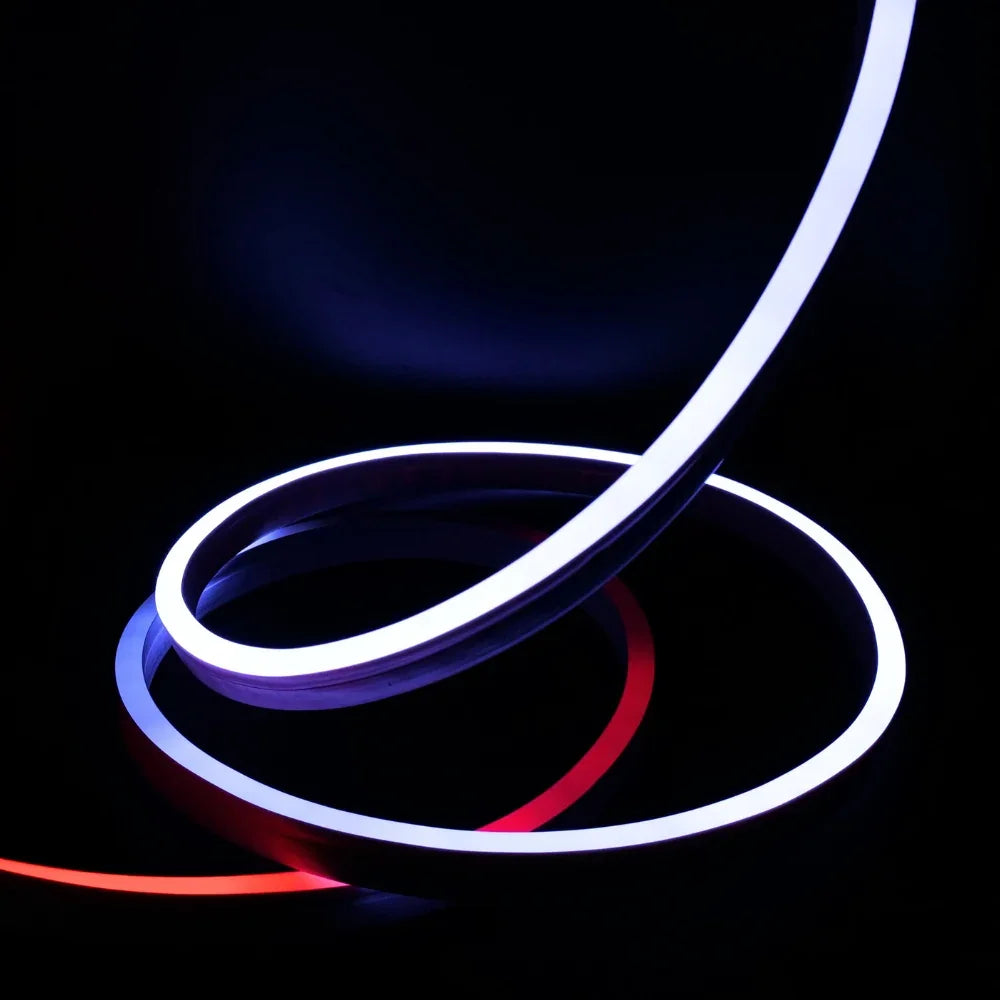

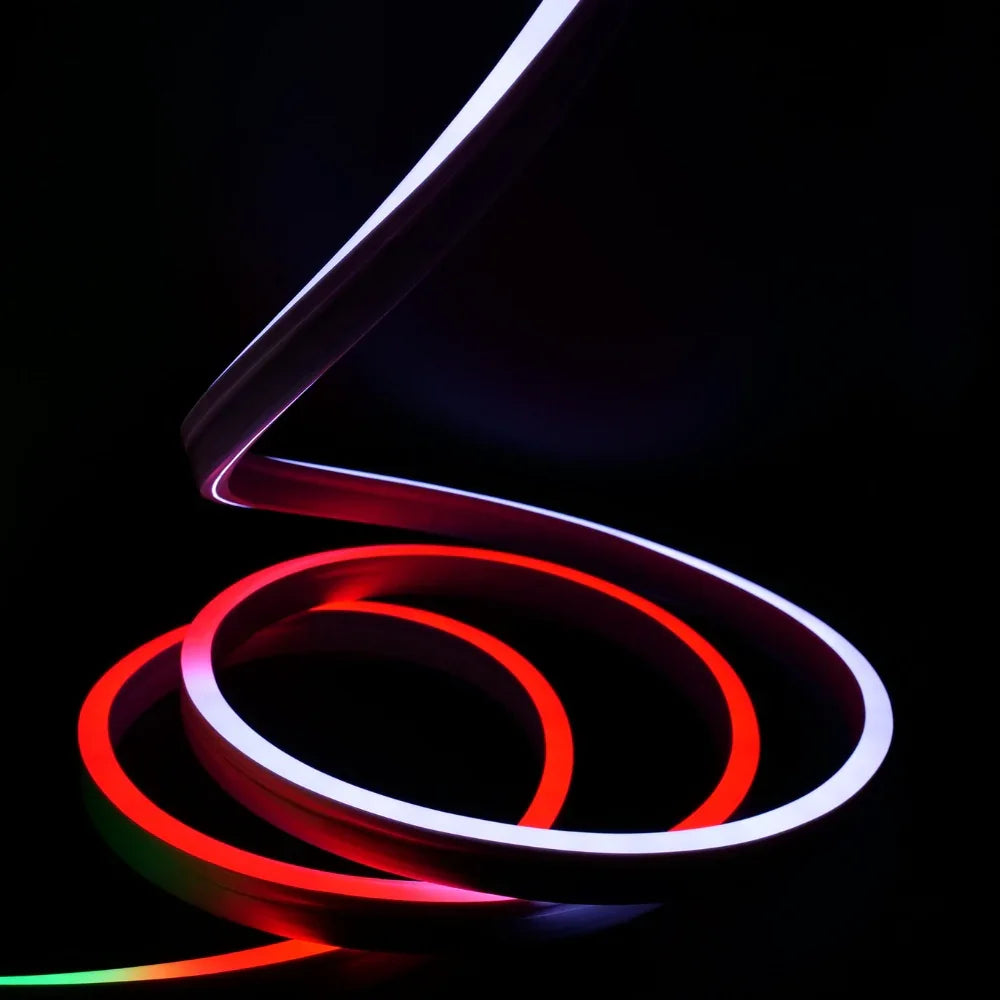

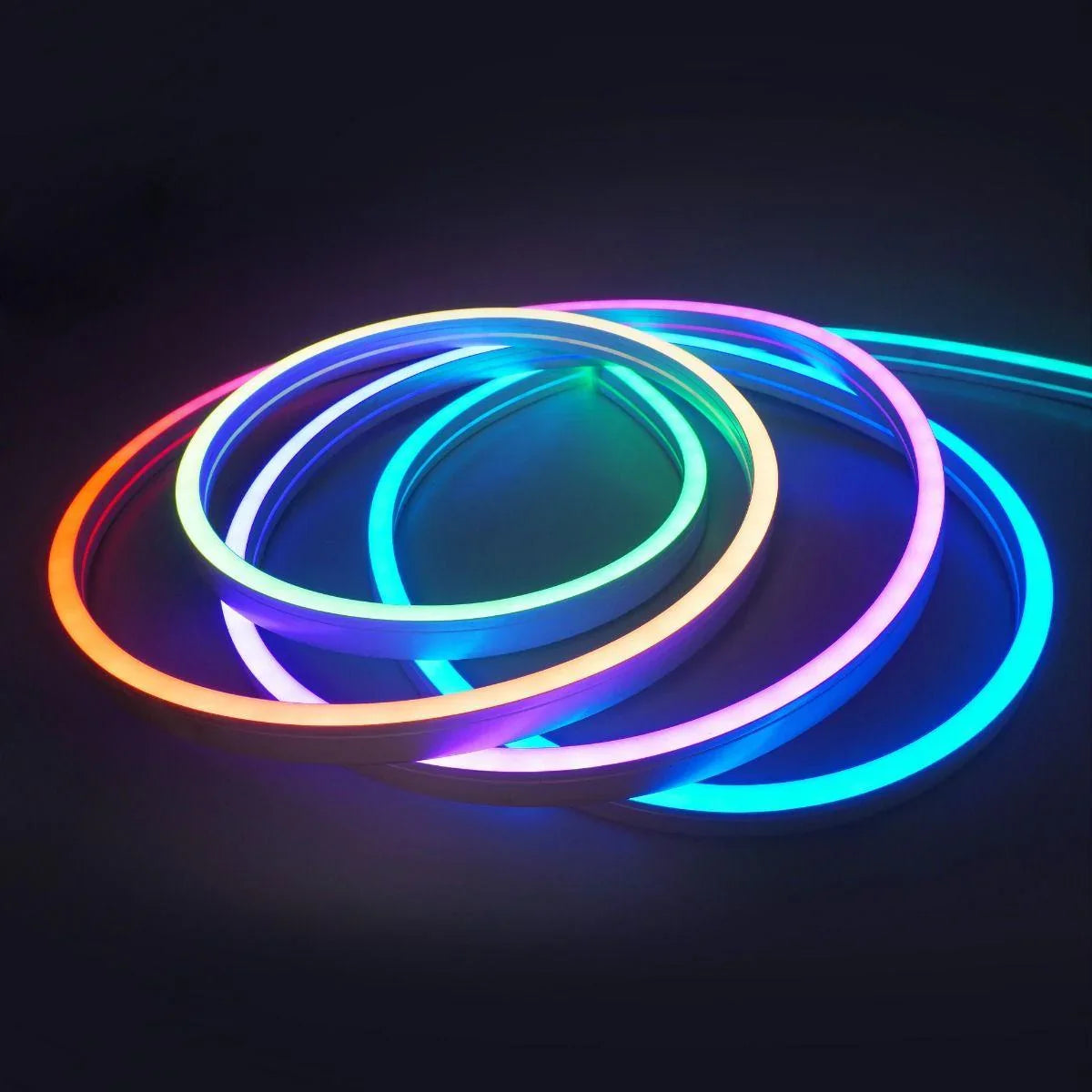

The digital pixel chasing technology distinguishes this neon flex from traditional lighting by offering individually addressable LEDs. This allows for synchronized lighting effects that transform any space into a dynamic, captivating light show, tailored to any ambiance or theme.
Our Digital pixel RGB LED neon flex combines flexibility, durability, and advanced lighting control, making it the perfect solution for creative lighting projects.
Specification:
- Working Voltage: DC 24V
- Type: Chasing & Waterpflow Pattern
- LEDs: 5050 WS2811 (80 Leds/Meter)
- Standard Packing: 10m
- Strip Backing: White
- Waterproof Rating: IP67
- Working Temperature: -20-60 degree

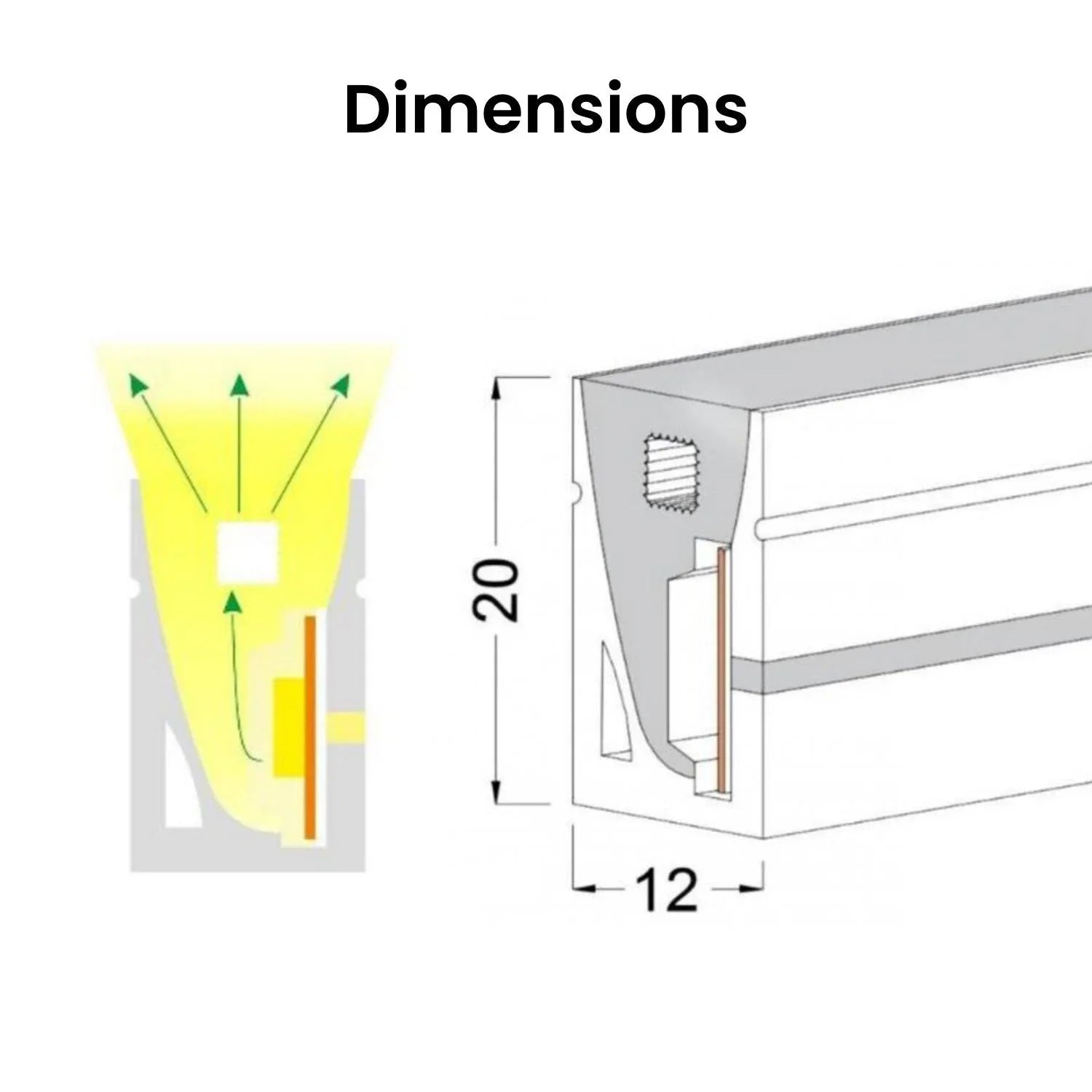

- LED Neon Flex Dimension: 12 x 20mm
- Power: 14 W/Meter
- Cuttable: Every 8.5cm
- Pixels: 10 per metre
Package Contents:
- 1 x Digital Pixel RGB Neon Flex 24V
- Product Type
- LED Neon Flex
- Colour
- RGB Multicolour
- IP Rating
- IP67 Waterproof
- Voltage
- 24V
- Watts Per Metre
- 14 Watts
- LEDs Per Metre
- 80
- Max Run Length
- 10m
- CRI
- >90
- Dimensions
- 12x20mm
- Warranty
- 4 Years
Specifications
- Product Type
- LED Neon Flex
- Colour
- RGB Multicolour
- IP Rating
- IP67 Waterproof
- LEDs Per Metre
- 80
- Continuous Run
- 10m
- Voltage
- 24V
- Watts Per Metre
- 14 Watts
- Metres
- 50m roll
- Dimensions
- 12x20mm
- Width
- 12mm
- Depth
- 20mm
- Bending Angle
- Horizontal Bend
- Lumens Per Metre
- 770 lm
- Cut Points
- 8.5cm
- Operating Temperature
- -20 to 50 degree
- LED Type
- 5050 IC WS2811
- Average LED Life Hours
- 50,000
- Continuous Operating Hours
- 12 hours
- Max Bending
- 3cm
- Shape
- Flat
- Certification
- UKCA, CE, RoHS
- Material
- Silicone

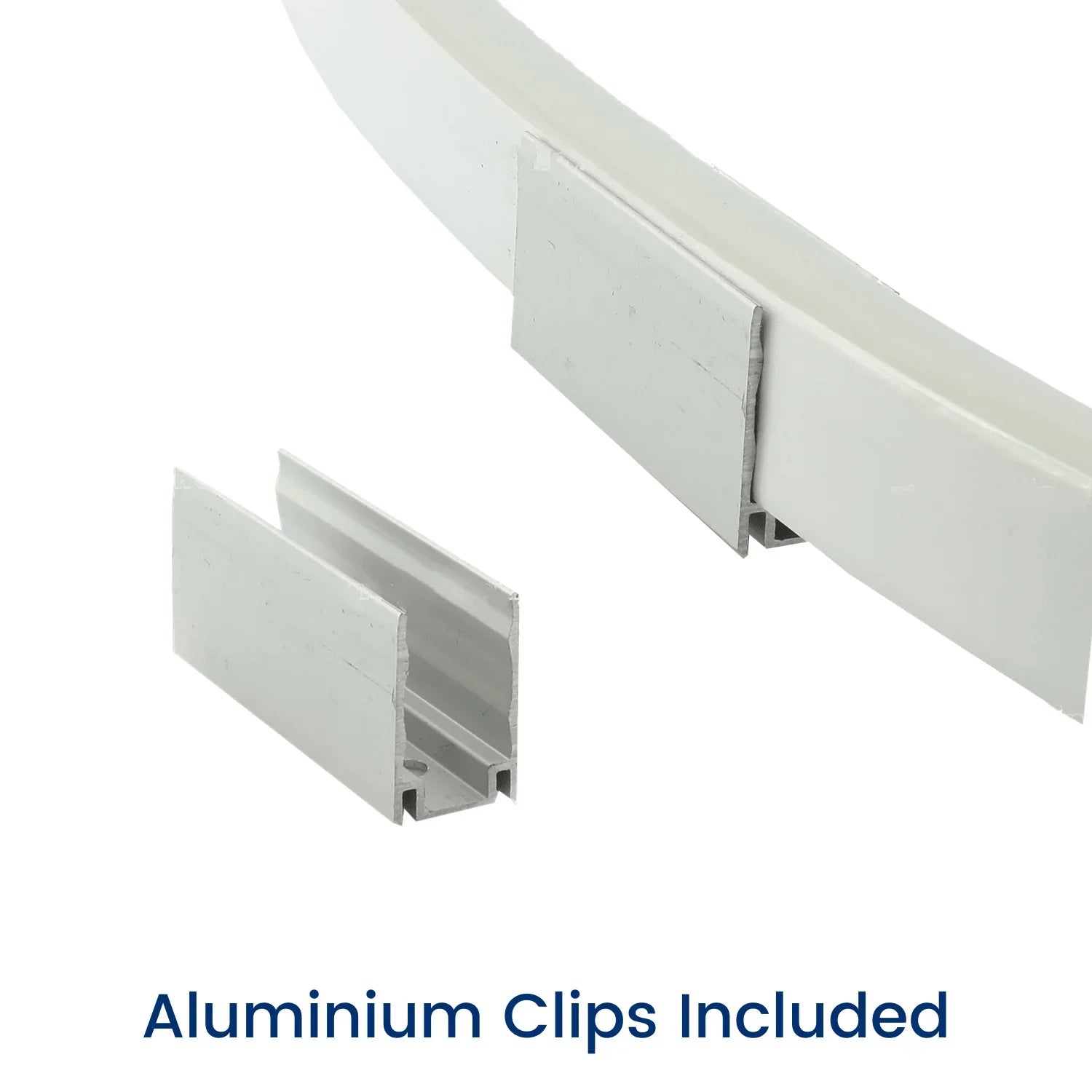

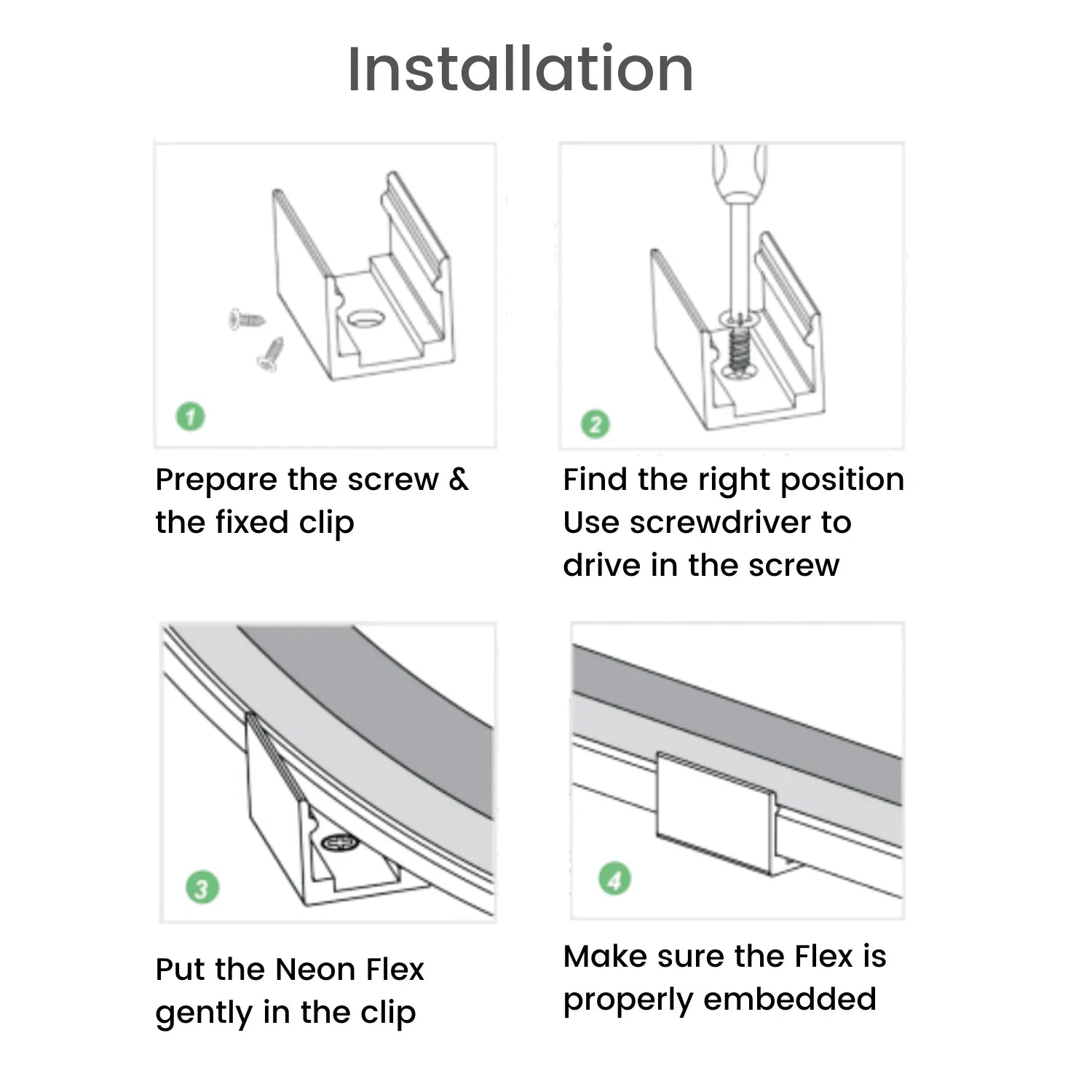

- Attachment
- Clips & Profile
- CRI
- >90
- Warranty
- 4 years
- Brand
- ATOM LED
Delivery & Returns
On 97% of products — Royal Mail 48-hour tracked
Mainland UK orders over £90 — order by 1pm, Mon–Fri
15-day returns window — free returns on faulty products
01952 370028 · Mon–Fri 9am–5pm
Shipping
Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.
Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.
Saturday Delivery is available as a paid option at checkout.
Large orders and pallet shipments: call 01952 370028 for a quote.
For more information see our detailed Shipping Page.
International Shipping
Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.
Returns & Refunds
The 15-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:
- Standard LED strip lights supplied as 5-metre rolls
- Straight aluminium profiles
- Power supplies and drivers
- Accessories (connectors, controllers, dimmers, end caps)
Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.
Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.
Refunds are processed within 5–10 working days of receiving the returned item.
For more details see our Returns & Refunds page.
Reviews
Frequently Asked Questions
What is the difference between IP65, IP67, and IP68?
IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.
Can I cut this product to a custom length?
Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.
What size driver do I need?
Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.
Should I choose 12V, 24V, or 48V?
Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
What is your warranty?
ATOM LED offers product-specific warranties: up to 7 years on single-colour COB strip, 5 years on RGB and RGBW COB strip, and 4 years on LED neon flex. The warranty covers manufacturing defects. Call 01952 370028 for warranty claims.
