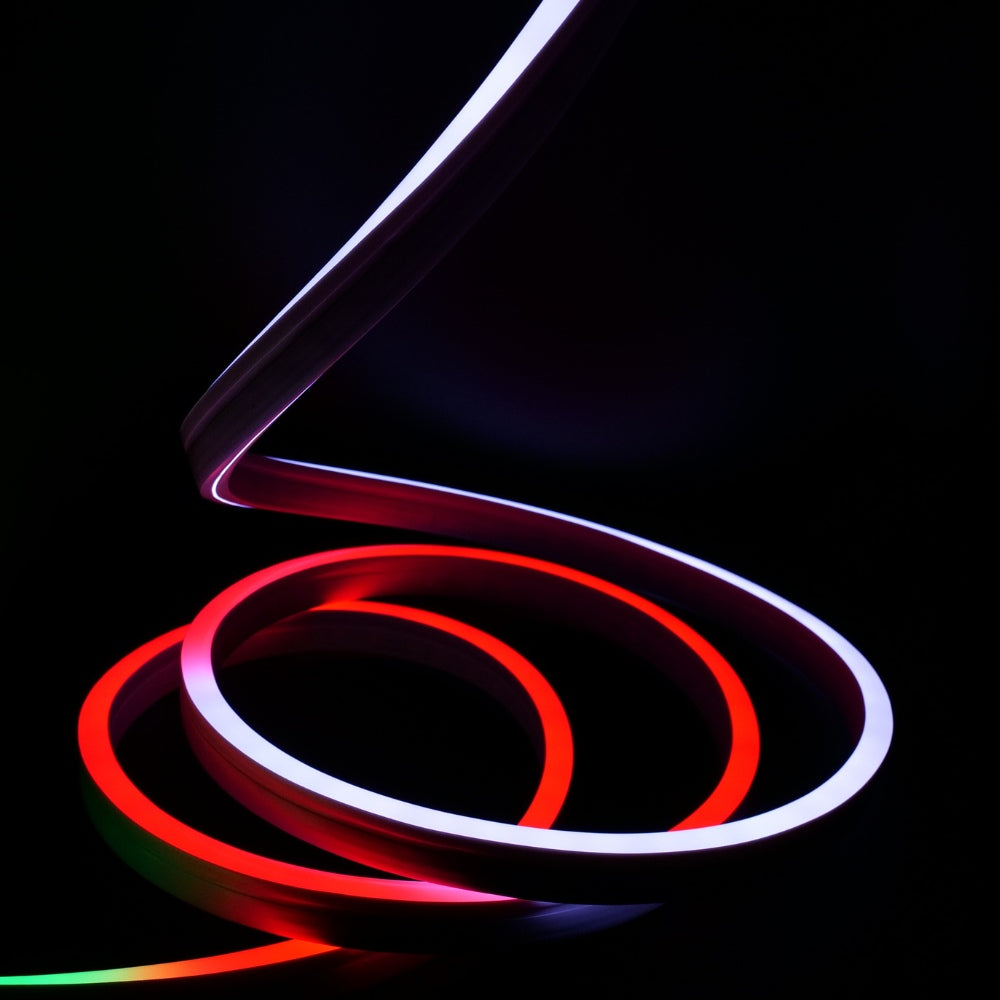

Digital Pixel RGB Neon Flex 24V 12x20 WS2811 IP67 Waterproof
SKU: NFDPRGB24V1220
-
IP67 Waterproof
-

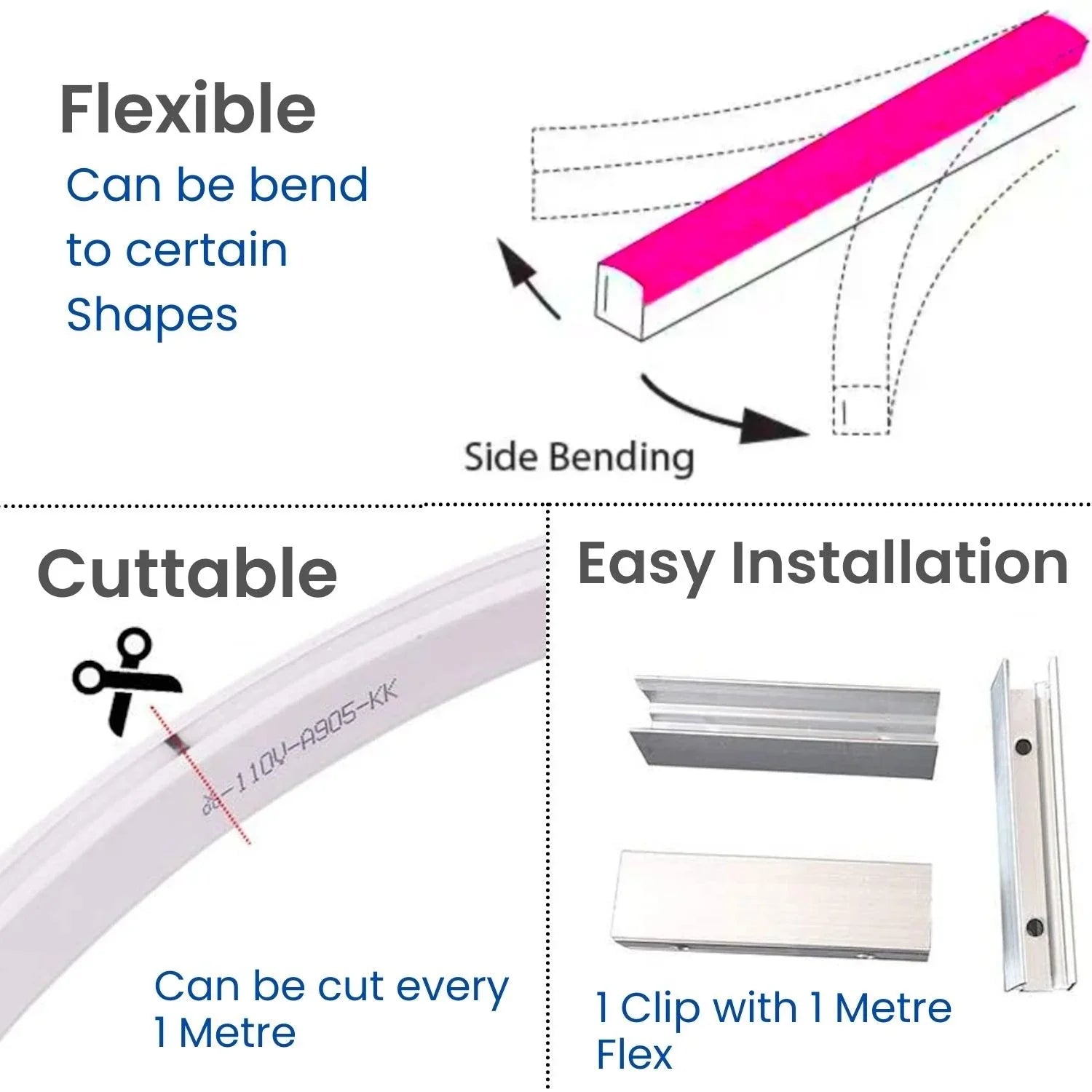

Side Bend
-
Corner Bend
-
Flexible
Encrypted & secure checkout
Description

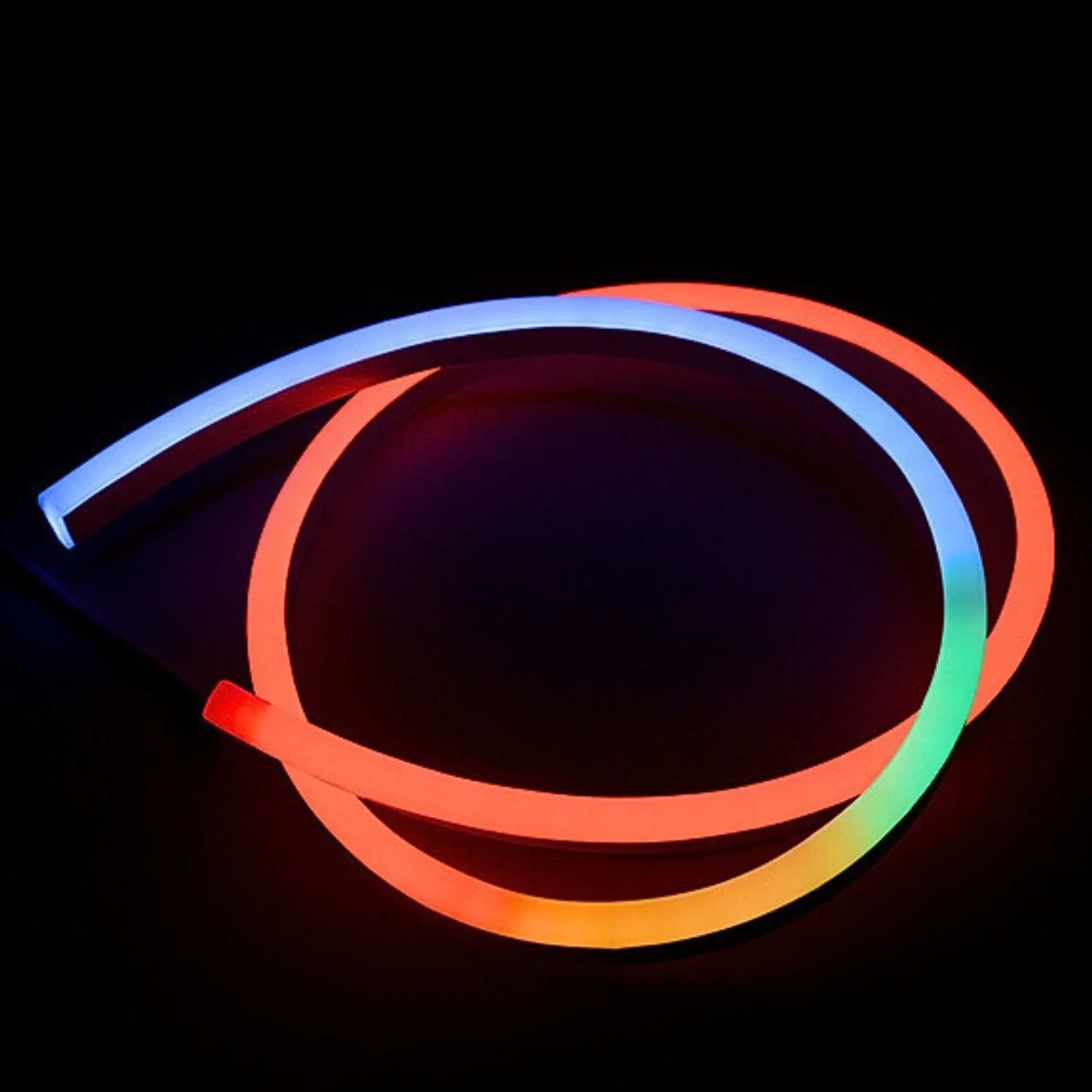

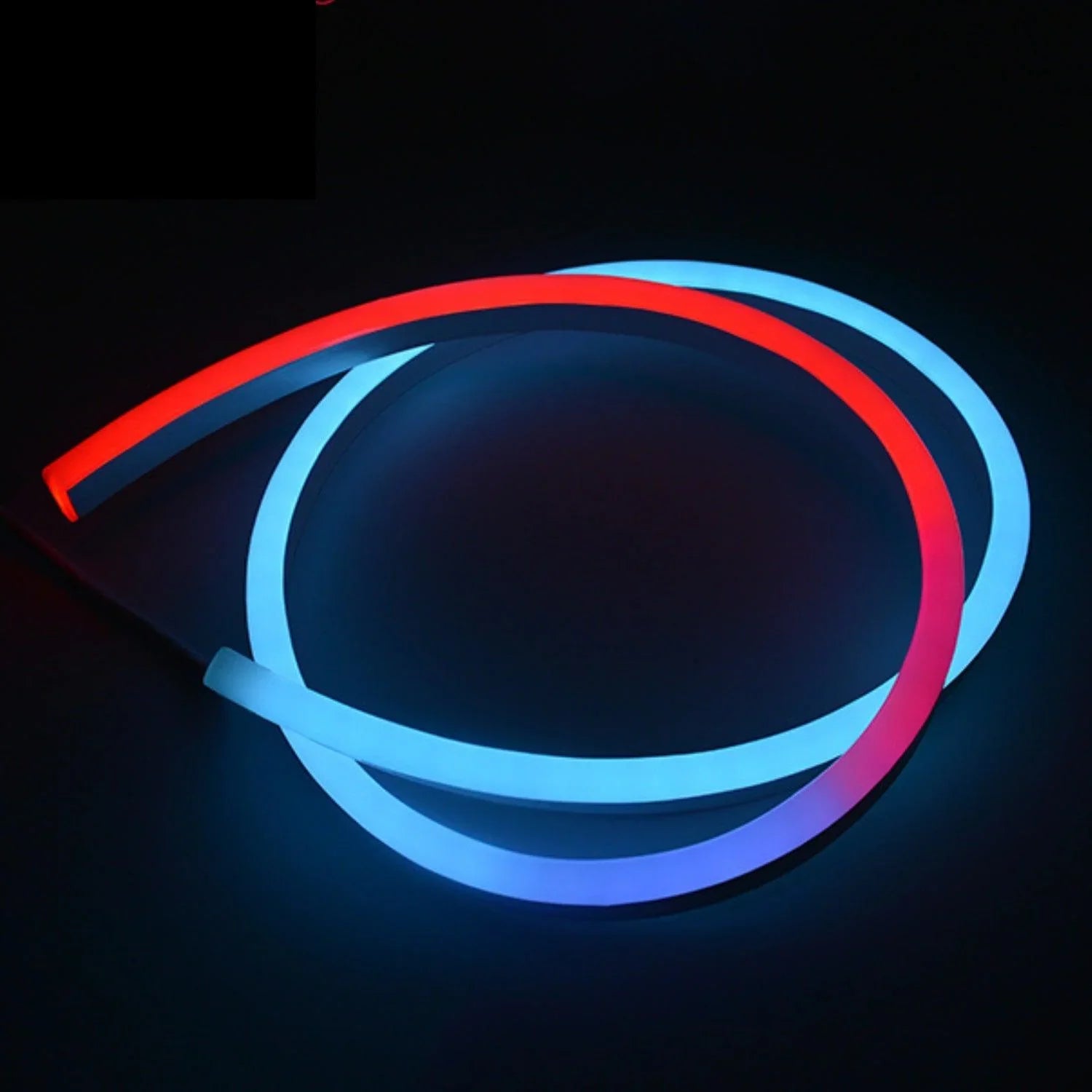

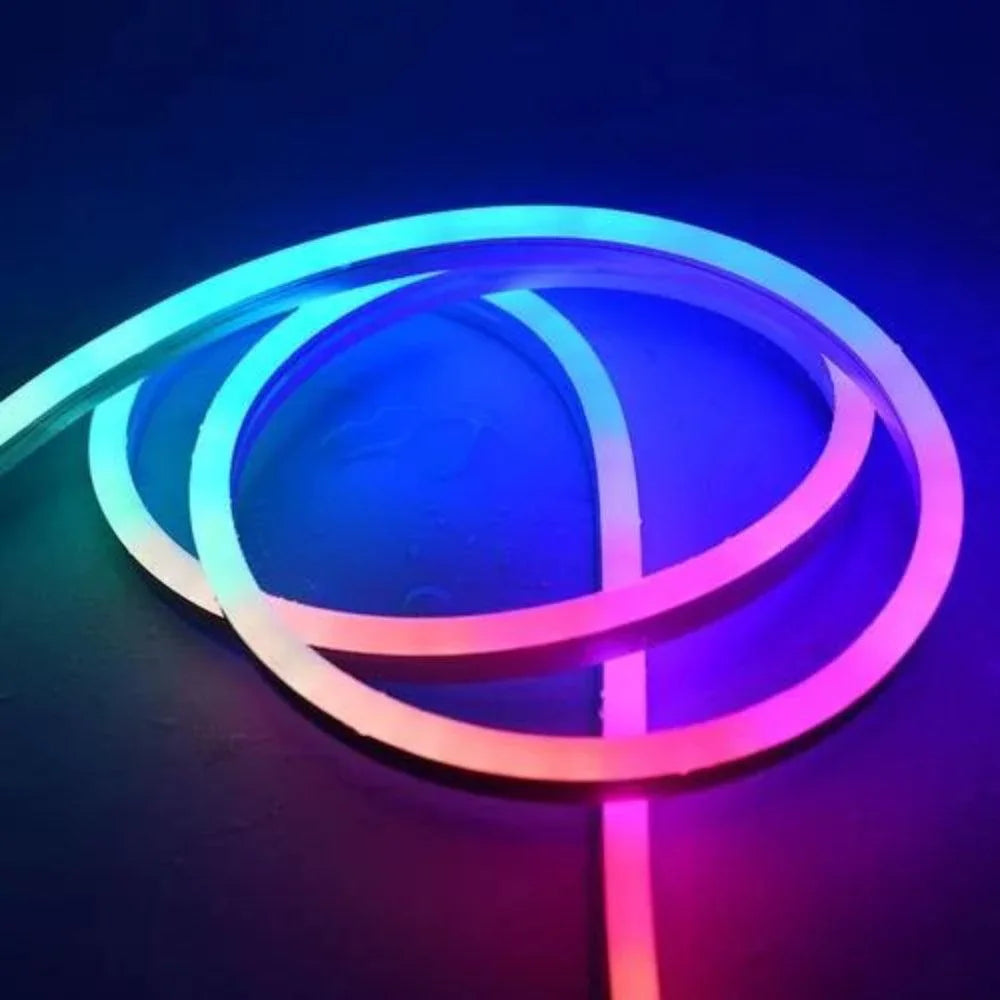

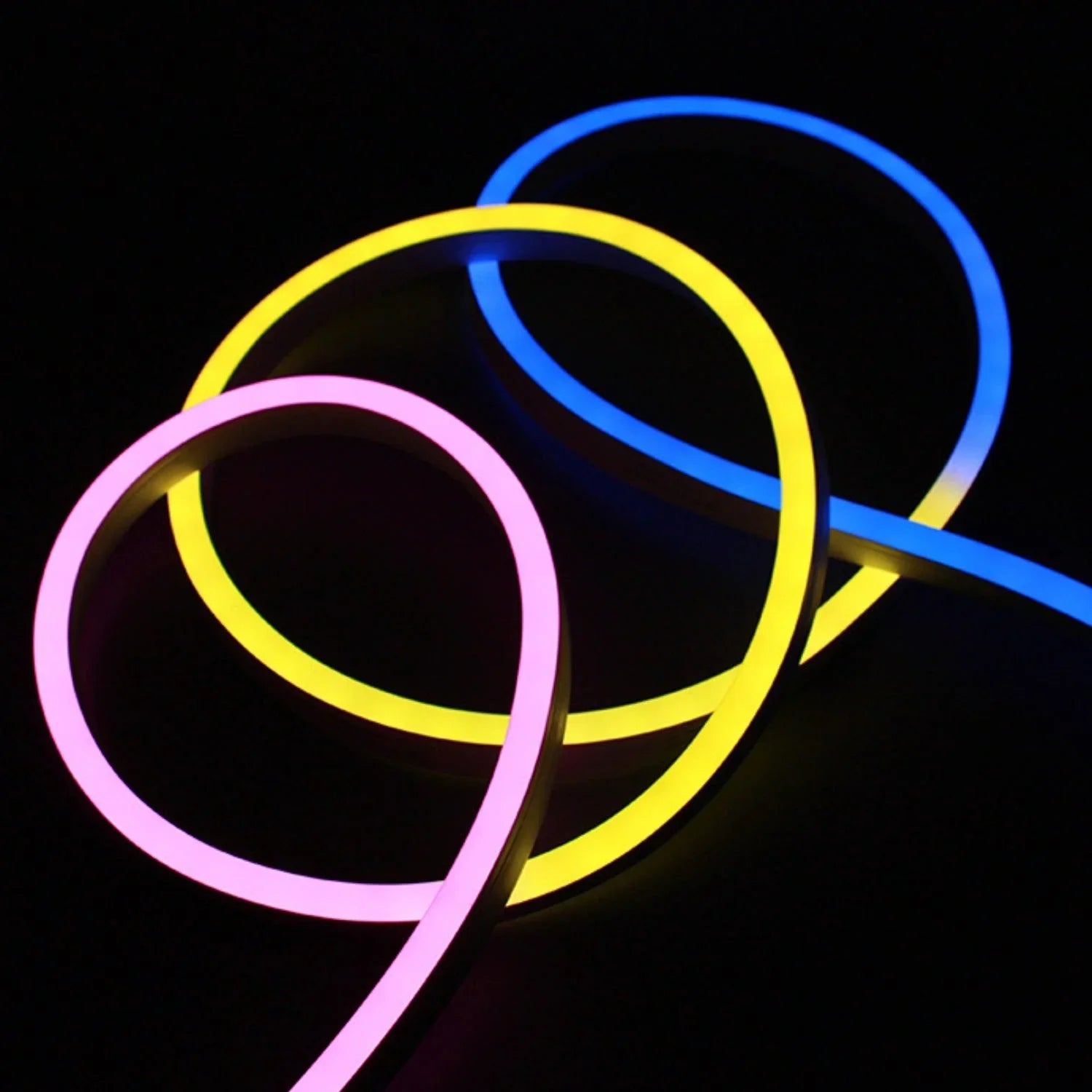

Digitally Addressable RGB Pixel Neon Flex 12x20mm – Horizontal Bend
Our Digitally Addressable Pixel Colour Chasing Neon Flex offers vibrant, dynamic lighting effects with full control over each pixel. Designed in a flexible 12mm x 20mm horizontal bending profile, it uses the WS2811 protocol for smooth, programmable colour transitions and custom effects.
Built to professional standards, this RGB Neon Flex is CE and RoHS compliant and has been tested to meet strict mechanical and photometric requirements. It delivers reliability, consistency, and brilliant illumination for both commercial and decorative applications.

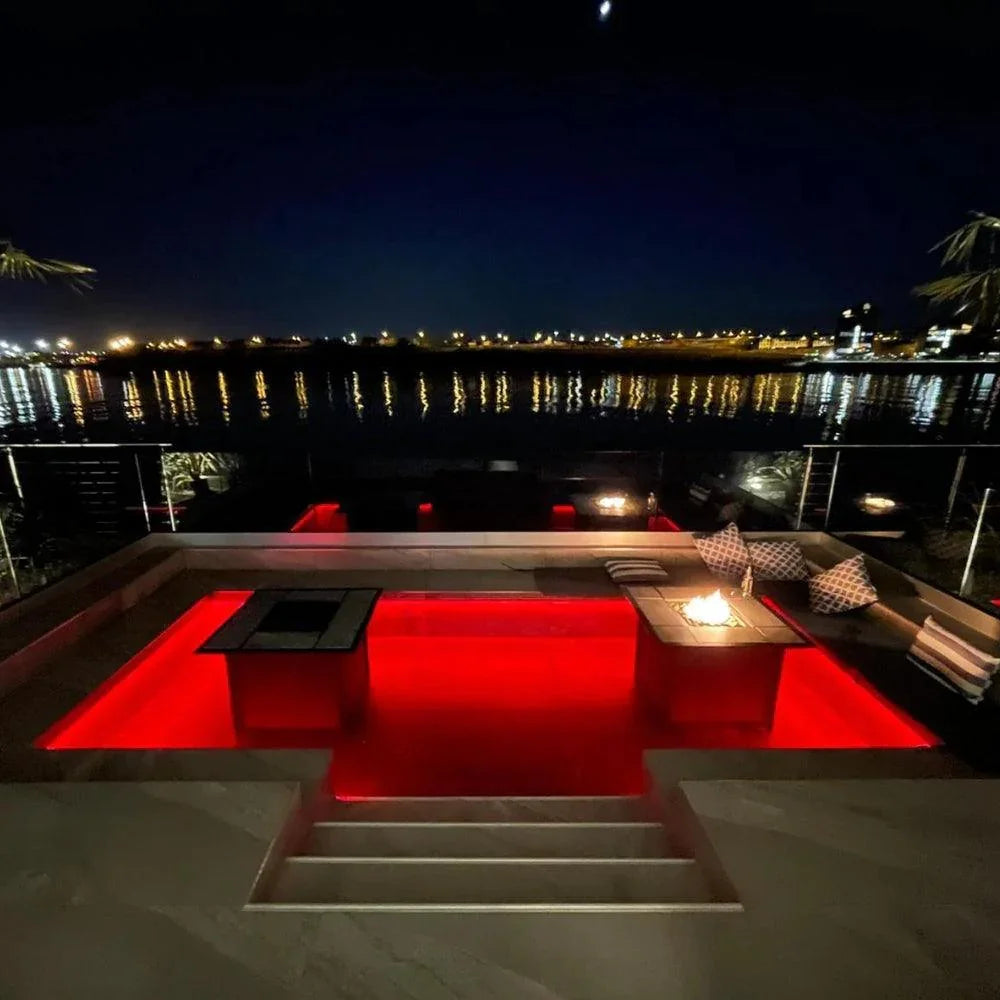

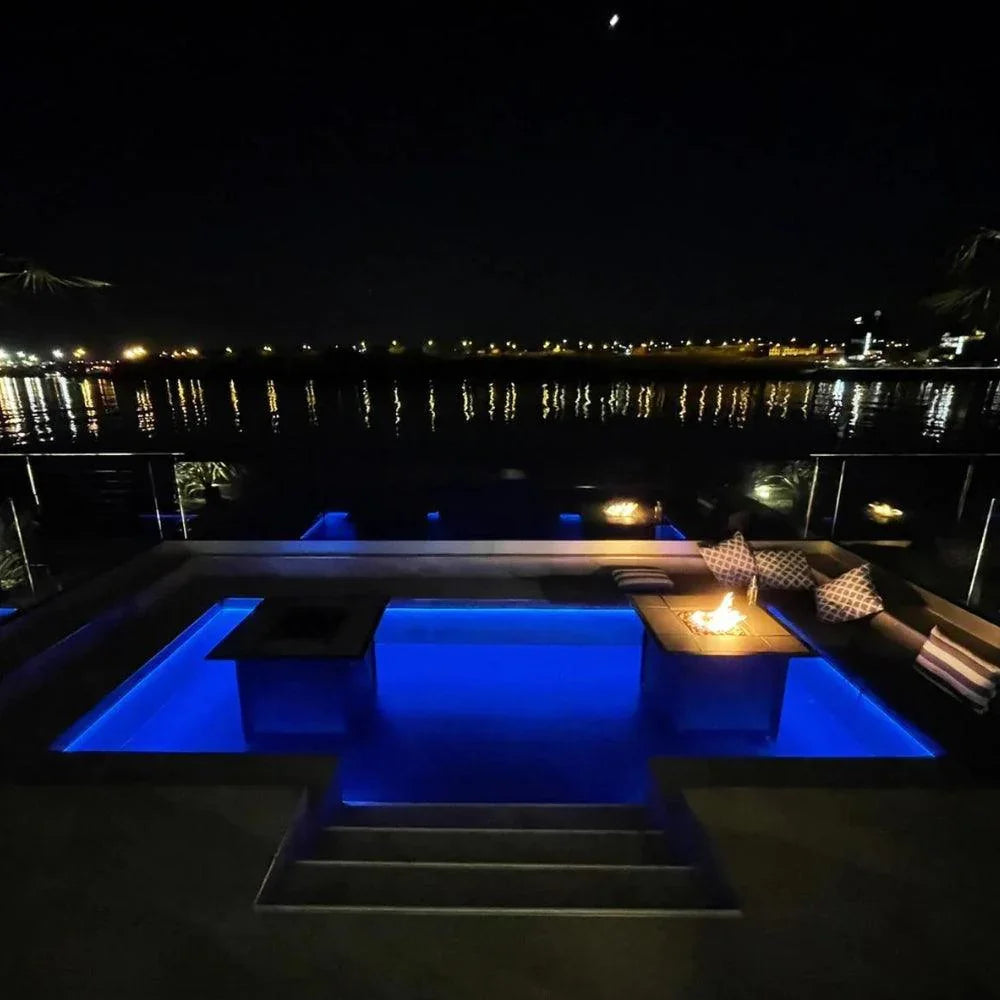

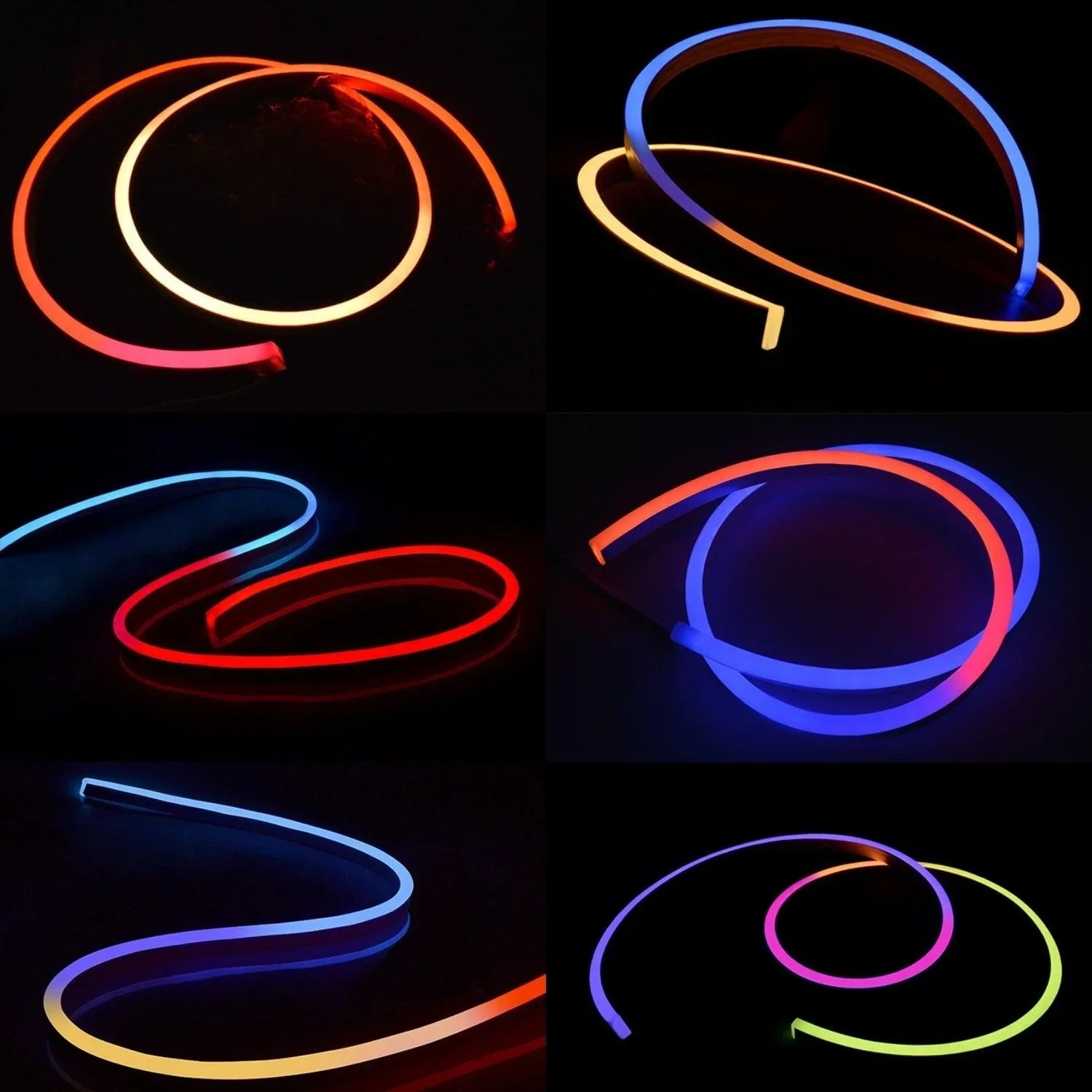

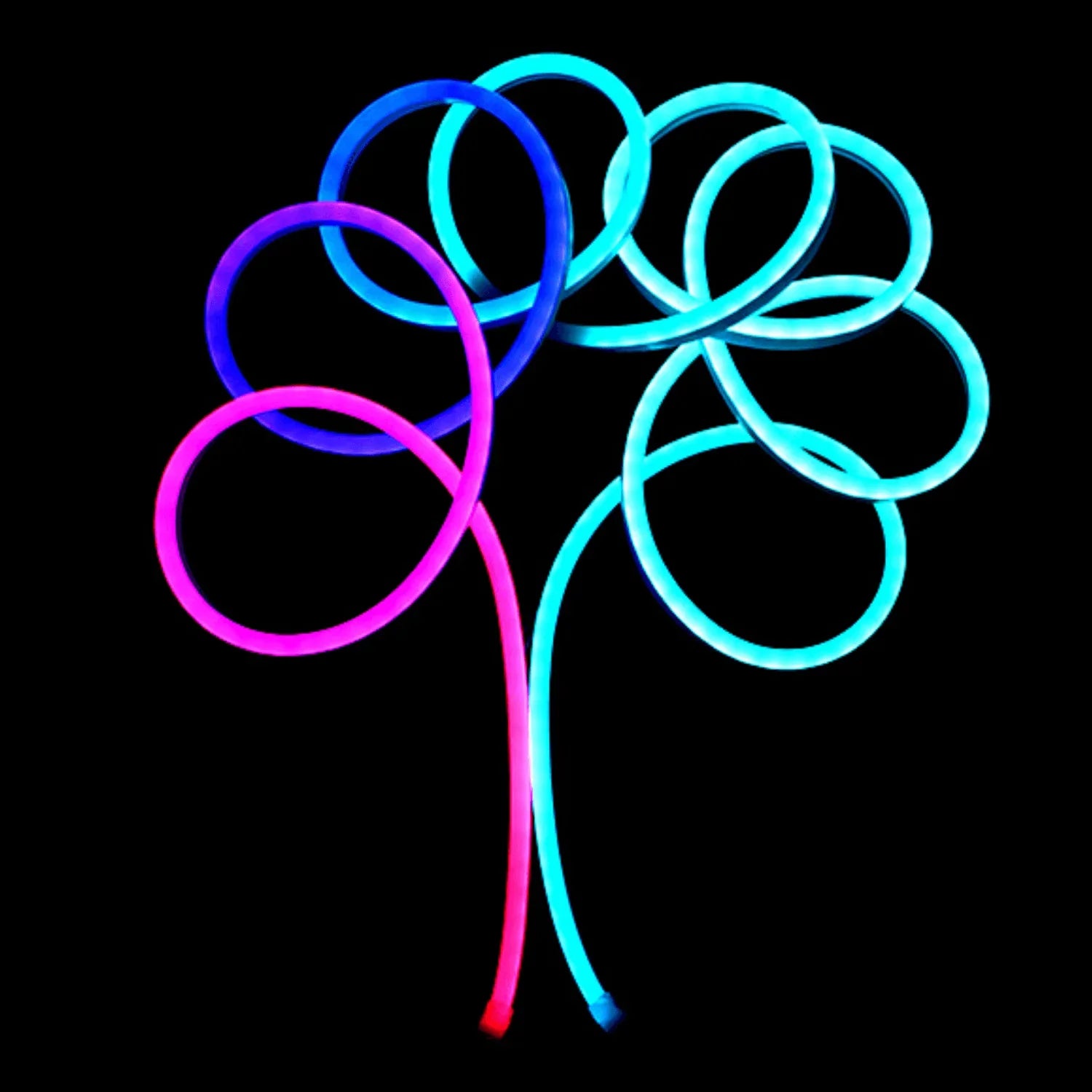

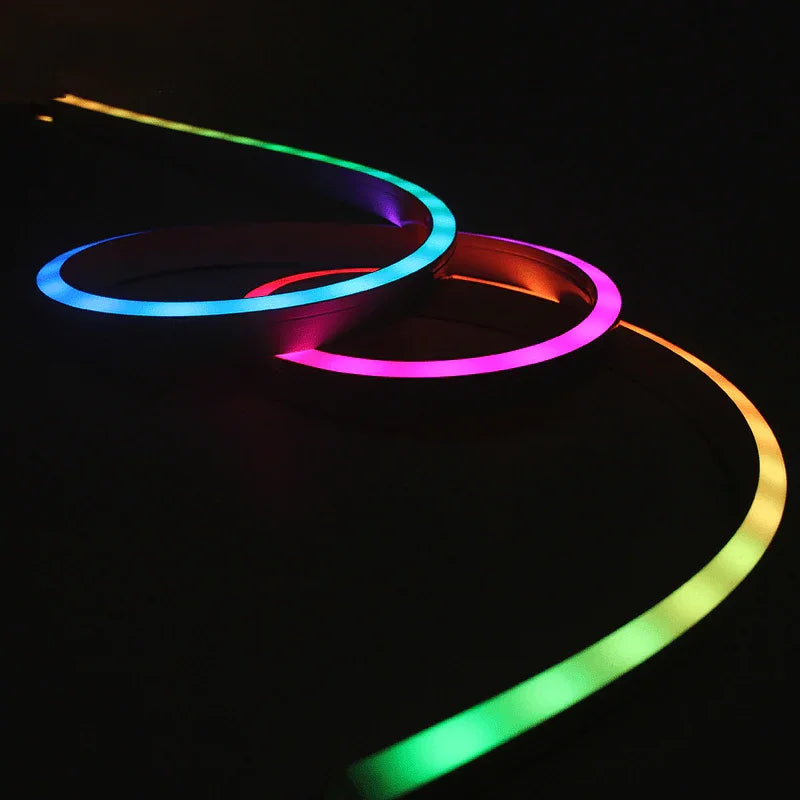

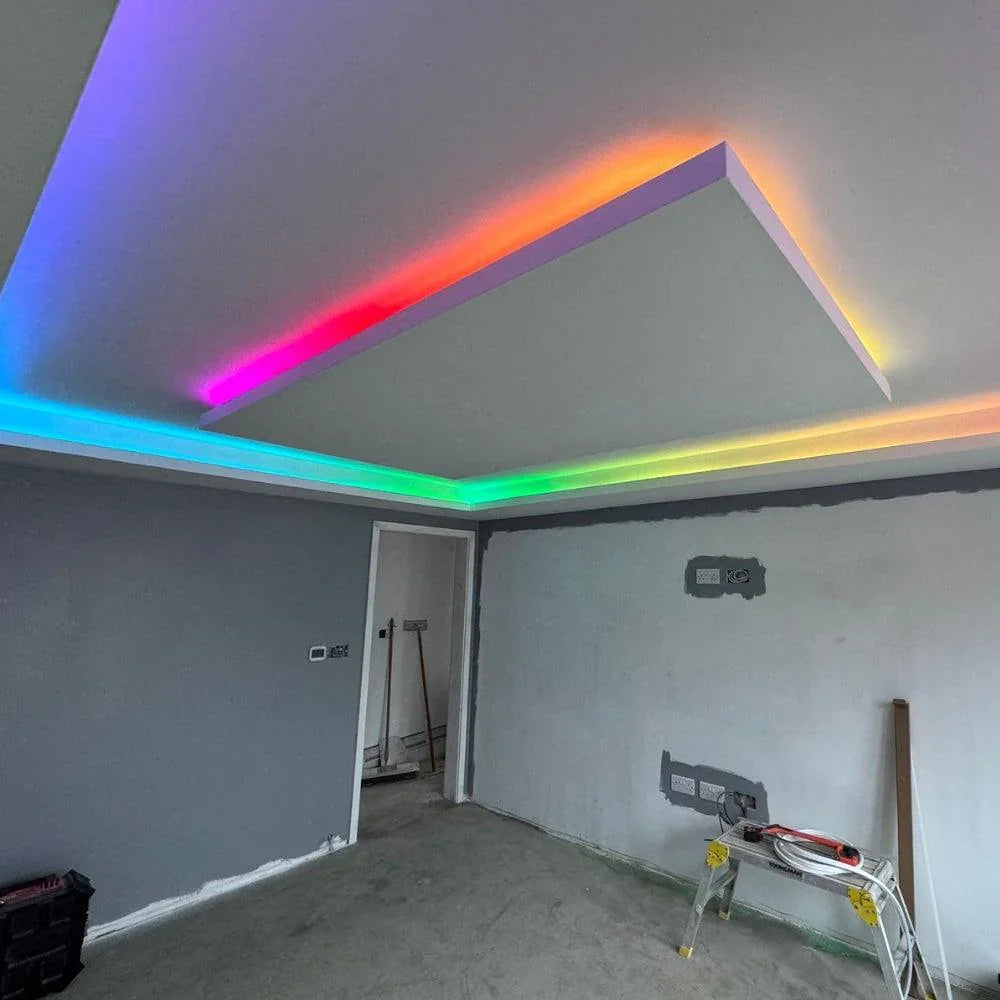

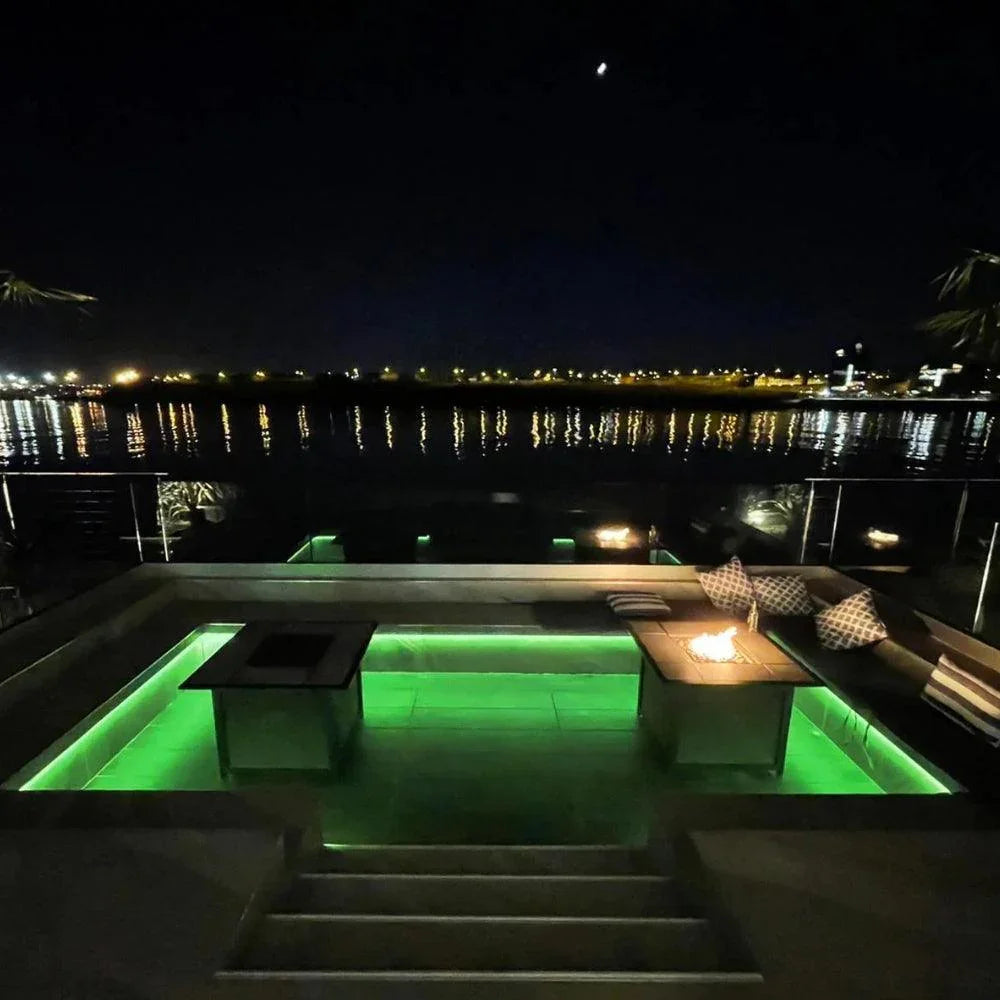

The light can produce a wide range of colour-chasing, flashing, fading, and smooth transition effects, creating true “dream colour” visuals. Ideal for homes, gardens, offices, retail displays, and creative design projects.
This addressable RGB Neon Flex contains 10 pixels per metre and 80 LEDs per metre, and can be cut every 10 cm for easy installation. Rated IP67 Waterproof, it is suitable for both indoor and outdoor use.
Comes with a 2-year indoor guarantee.
Package Contents:

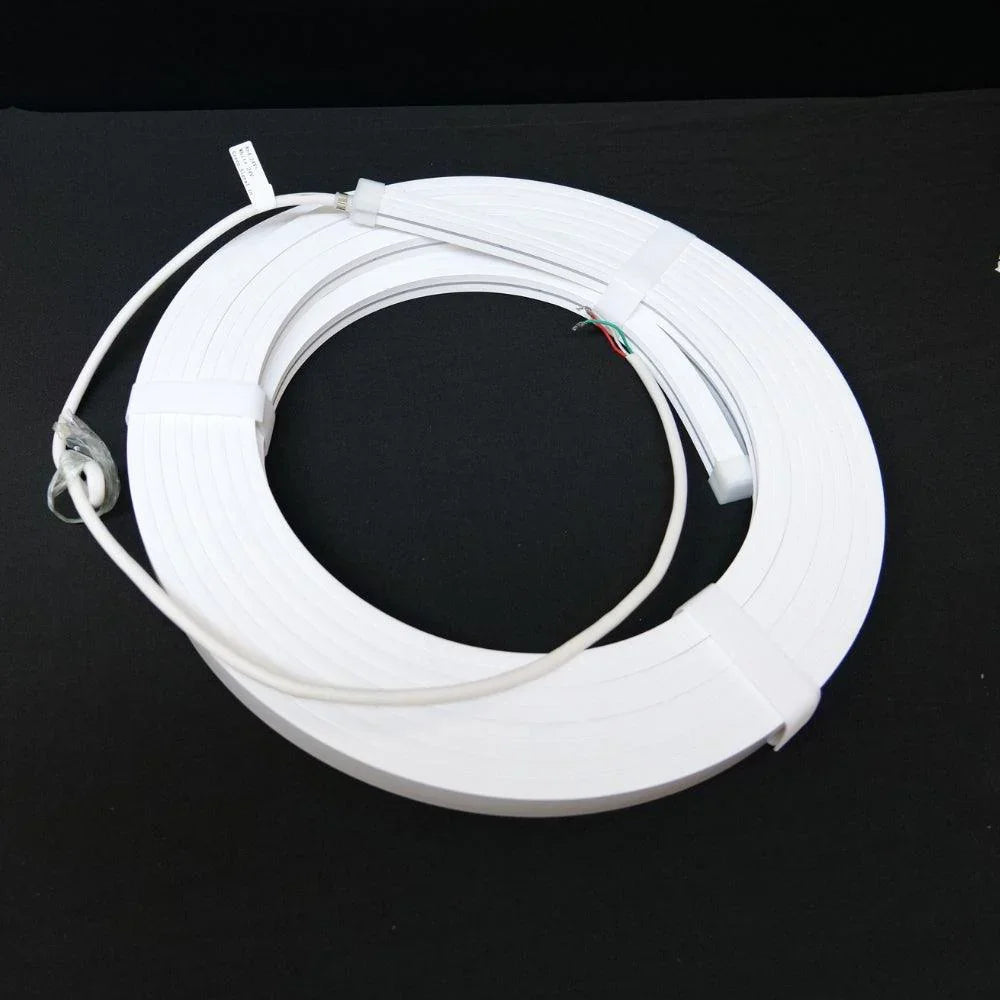

- 1 x Digital Pixel RGB Neon Flex 24V

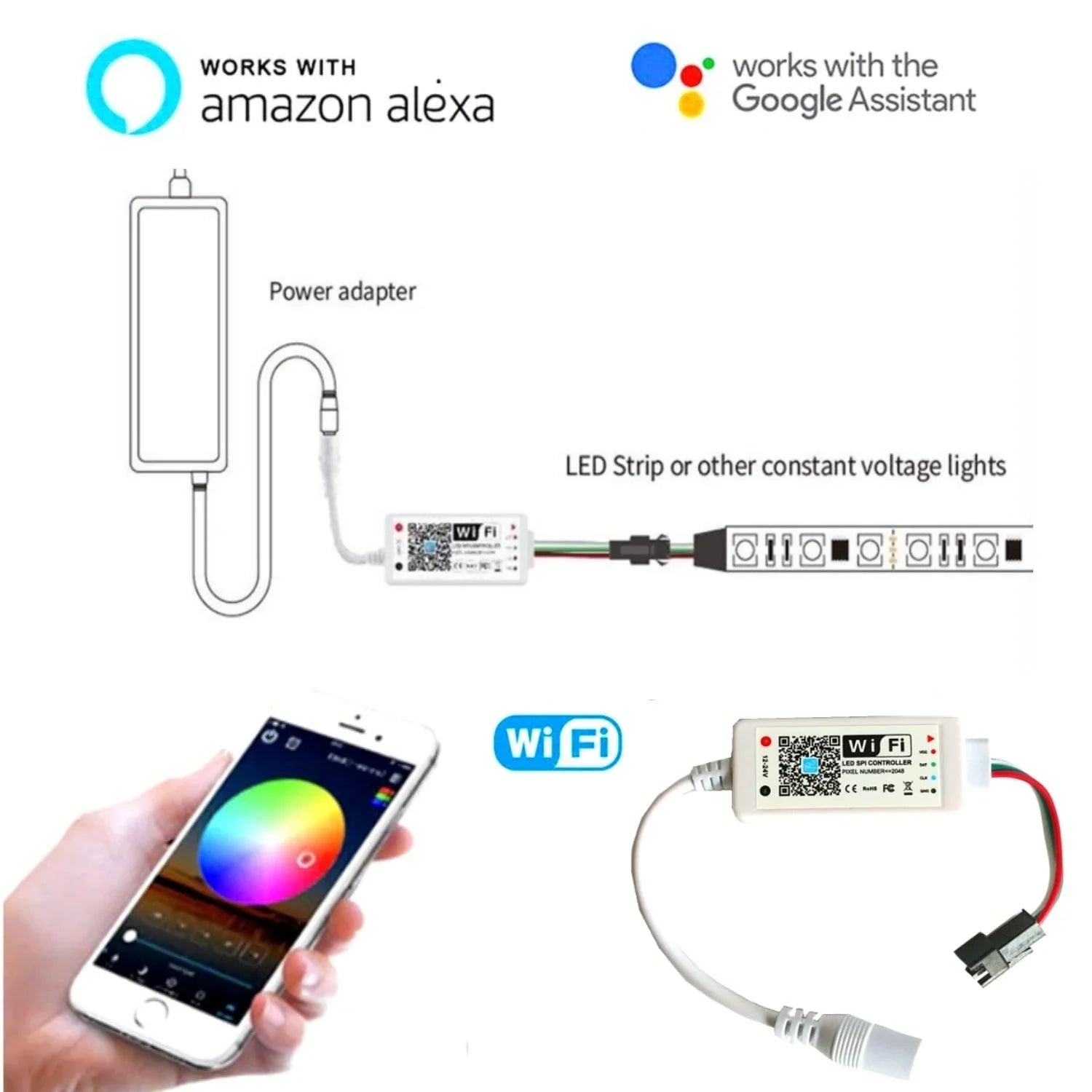

Digital Pixel Controller & Power Supply needs to be bought separately.
Specification:
- Working Voltage: DC 24V
- Light Colour: Pixel RGB
- Pixels: 10 Pixels Per Metre
- Different Changing Patterns and Changing Speeds
- LEDs: 80 LEDs/m
- Continuous: 10m
- Strip Backing: White
- Waterproof Rating: IP67
- Working Temperature: -30°C to 50°C
- Dimension: 12 x 20mm
- Bending: Horizontal
- Power: 14W/Meter
- Cuttable: Every 10cm
- Product Type
- LED Neon Flex
- Colour
- Multicolour RGB
- IP Rating
- IP67 Waterproof
- Voltage
- 24V
- Watts Per Metre
- 14 Watts
- LEDs Per Metre
- 80 LEDs
- Max Run Length
- 10m
- CRI
- >85
- Dimensions
- 12x20mm
- Warranty
- 4 Years
Specifications
- Product Type
- LED Neon Flex
- Colour
- Multicolour RGB
- IP Rating
- IP67 Waterproof
- LEDs Per Metre
- 80 LEDs
- Continuous Run
- 10m
- Voltage
- 24V
- Watts Per Metre
- 14 Watts
- Metres
- 10 Metre

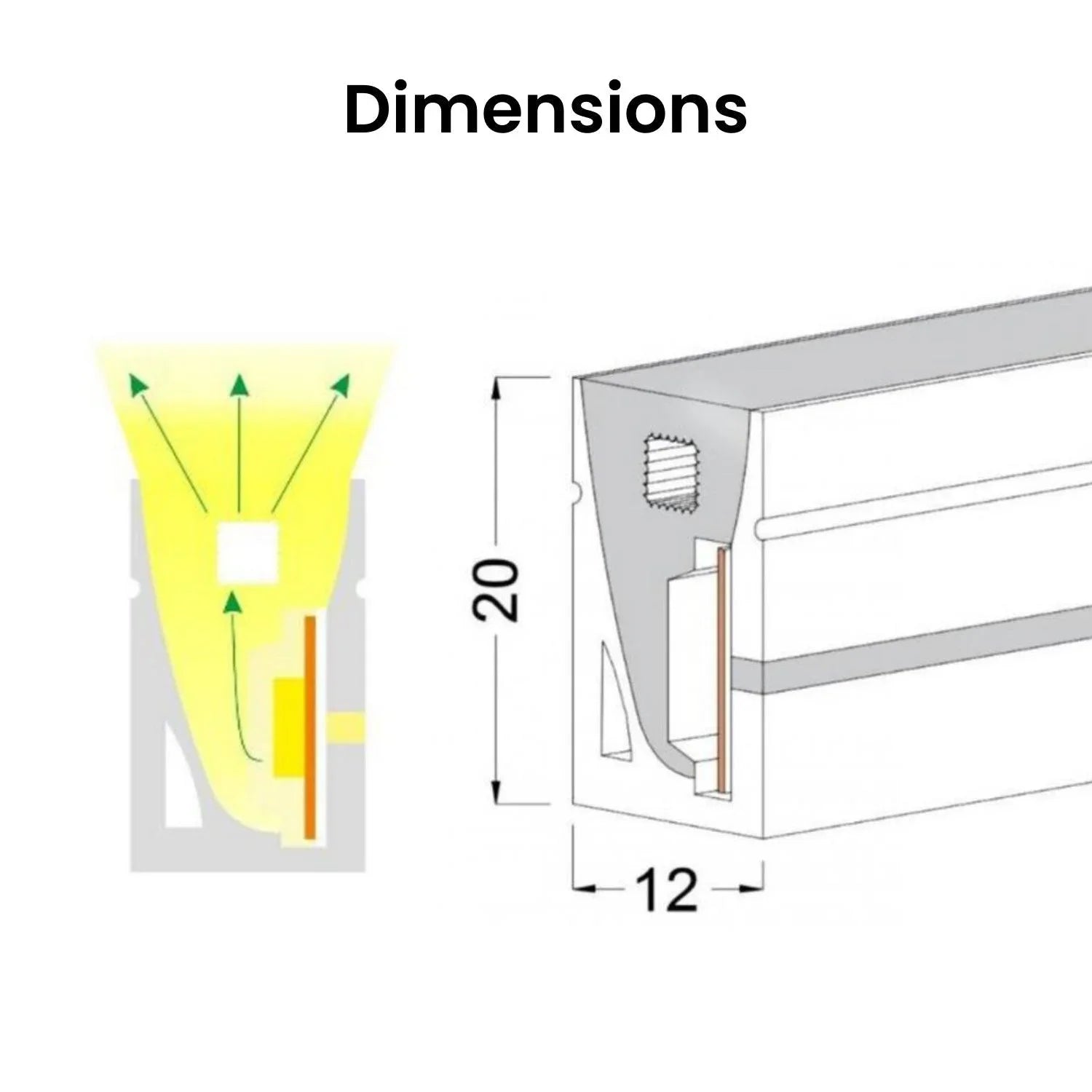

- Dimensions
- 12x20mm
- Width
- 12mm
- Depth
- 20mm
- Bending Angle
- Horizontal Bend
- Lumens Per Metre
- 750 Lumens
- Cut Points
- 10cm
- Operating Temperature
- -30°C to 50°C
- LED Type
- 5050 (WS2811)
- Average LED Life Hours
- 50,000
- Continuous Operating Hours
- 15 hours

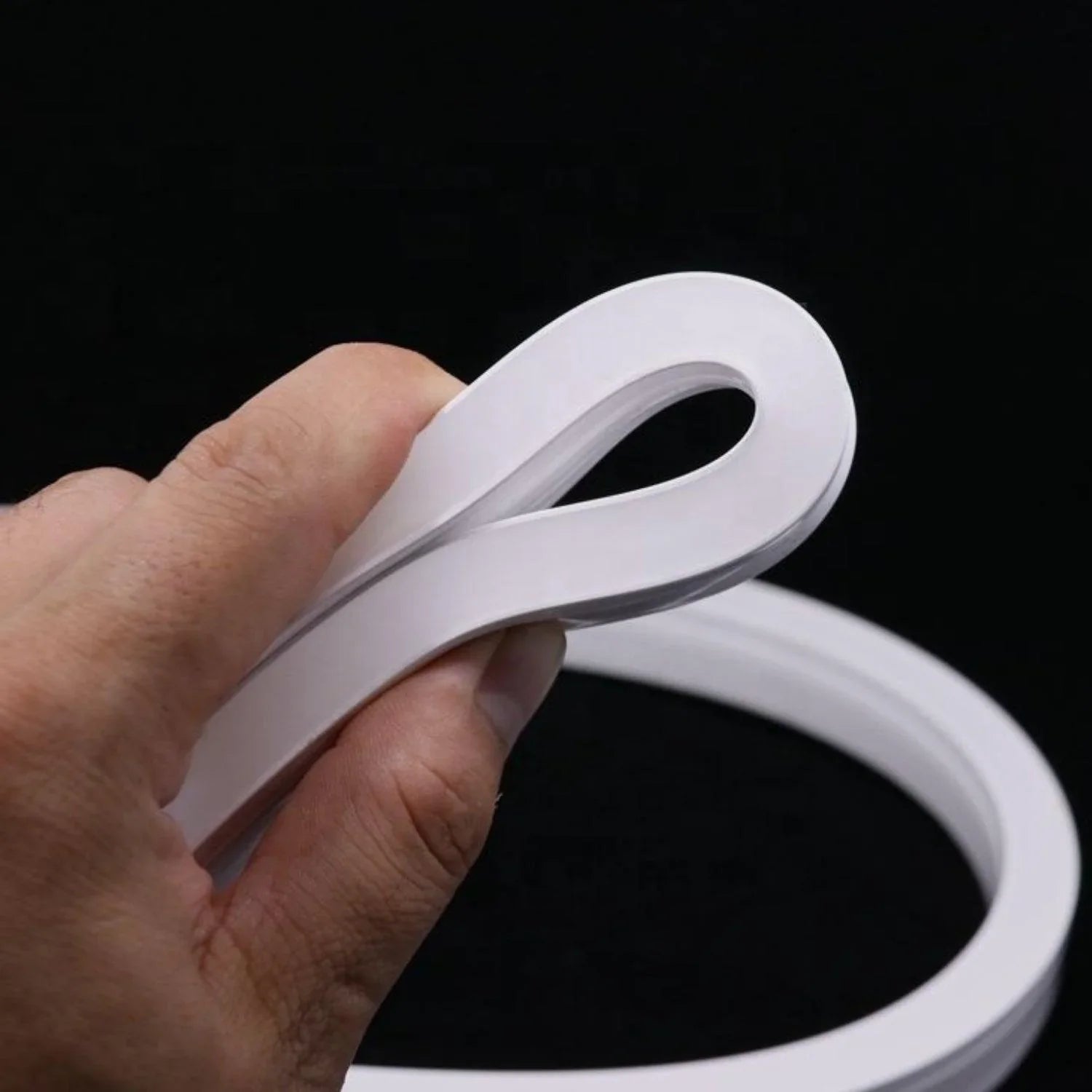

- Max Bending
- 3cm
- Shape
- Flat
- Certification
- UKCA, CE, RoHS
- Material
- Silicone

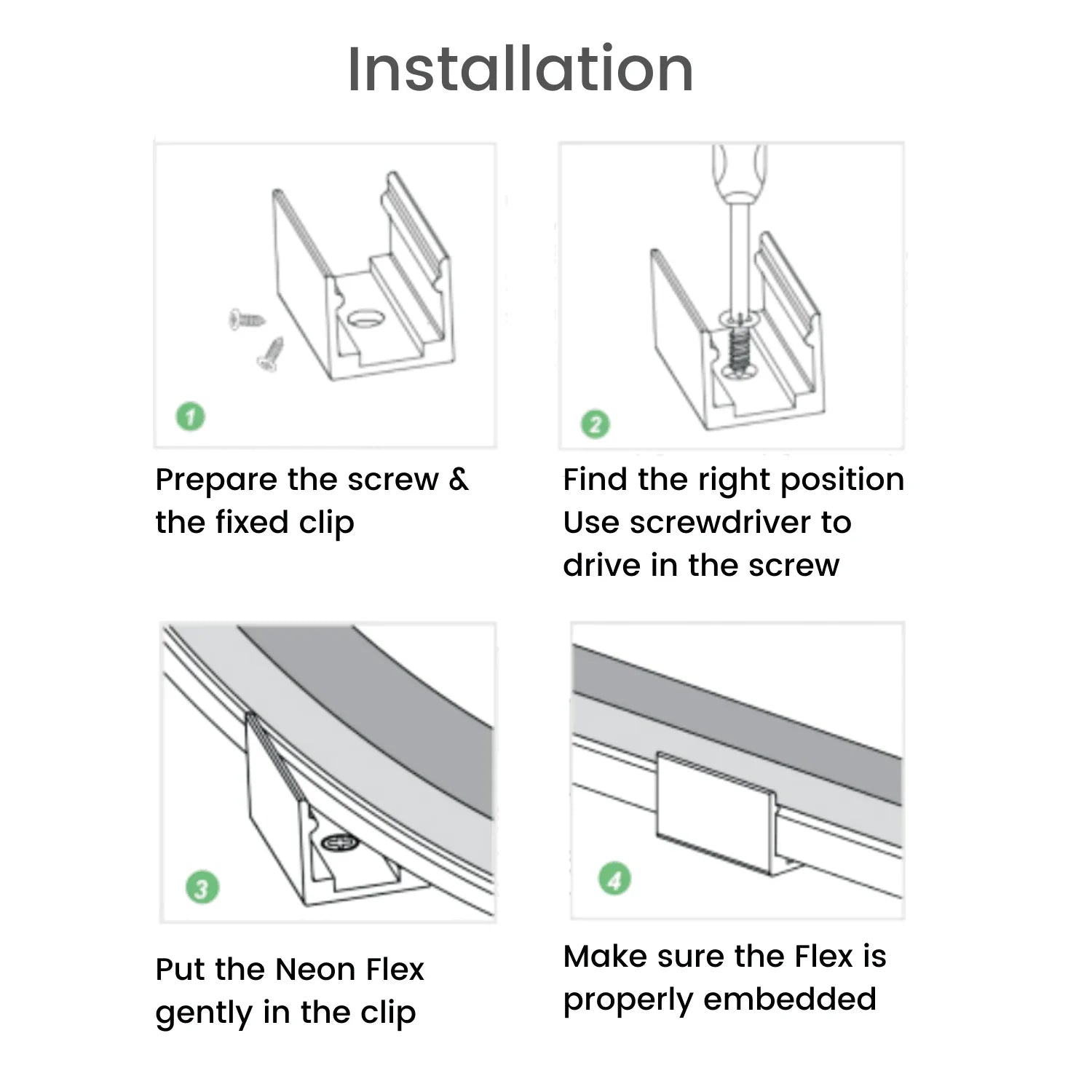

- Attachment
- Clips & Profile
- Beam Angle
- 120
- CRI
- >85
- Warranty
- 4 years
- Brand
- ATOM LED
Delivery & Returns
On 97% of products — Royal Mail 48-hour tracked
Mainland UK orders over £90 — order by 1pm, Mon–Fri
30-day returns window — free returns on faulty products
01952 370028 · Mon–Fri 9am–5pm
Shipping
Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.
Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.
Saturday Delivery is available as a paid option at checkout.
Large orders and pallet shipments: call 01952 370028 for a quote.
For more information see our detailed Shipping Page.
International Shipping
Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.
Returns & Refunds
The 30-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:
- Standard LED strip lights supplied as 5-metre rolls
- Straight aluminium profiles
- Power supplies and drivers
- Accessories (connectors, controllers, dimmers, end caps)
Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.
Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.
Refunds are processed within 5–10 working days of receiving the returned item.
For more details see our Returns & Refunds page.
Reviews
Frequently Asked Questions
What is the difference between IP65, IP67, and IP68?
IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.
Can I cut this product to a custom length?
Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.
What size driver do I need?
Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.
Should I choose 12V, 24V, or 48V?
Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
What is your warranty?
ATOM LED offers product-specific warranties: up to 7 years on single-colour COB strip, 5 years on RGB and RGBW COB strip, and 4 years on LED neon flex. The warranty covers manufacturing defects. Call 01952 370028 for warranty claims.
