Addressable Digital Pixel RGB Neon Flex 24V 10x20mm IP68 Waterproof WS2811
SKU: ALNFDRGB24V1020-IP68
-
IP68 Waterproof
-
24V DC
-
20m Run
-
Outdoor Use
Encrypted & secure checkout
Description

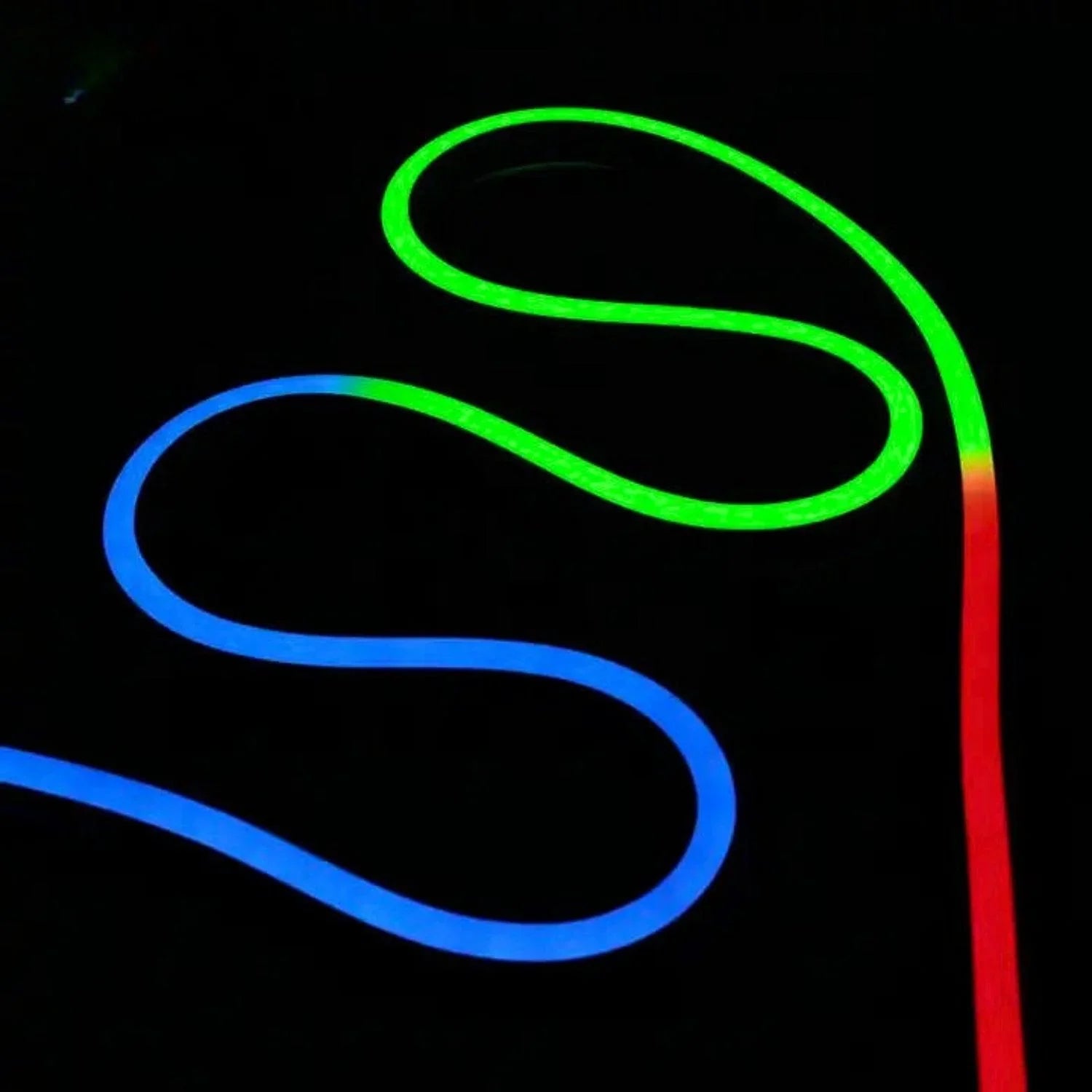

Introducing our Digitally Addressable Pixel Colour Chasing Horizontal Bending Neon Flexible Lighting, measuring 10mm x 20mm and utilizing the WS2811 Protocol. This professional-grade RGB Neon Flex comes with a 4-year warranty for outdoor use and a 4-year warranty for indoor use, ensuring long-lasting reliability. The strip is cuttable every 12.5cm, offering versatility for different project needs.

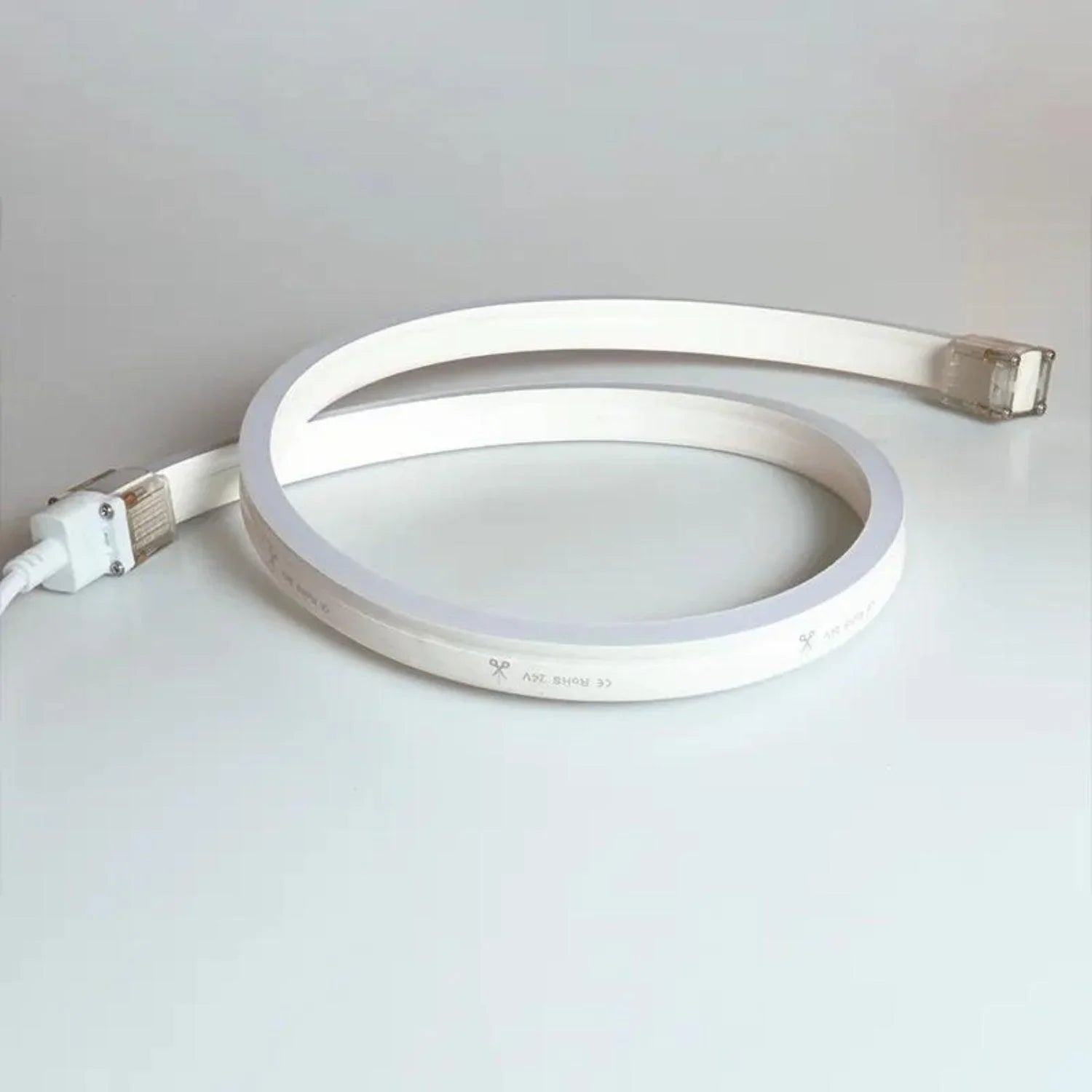

The neon flex comes with a 3-metre extension cable and has 10 pixels per metre, allowing for precise lighting control and effects.
Our professional-grade neon flex is built and tested to the highest standards, ensuring UKCA, CE & RoHS compliance and meeting rigorous mechanical and photometric quality benchmarks.

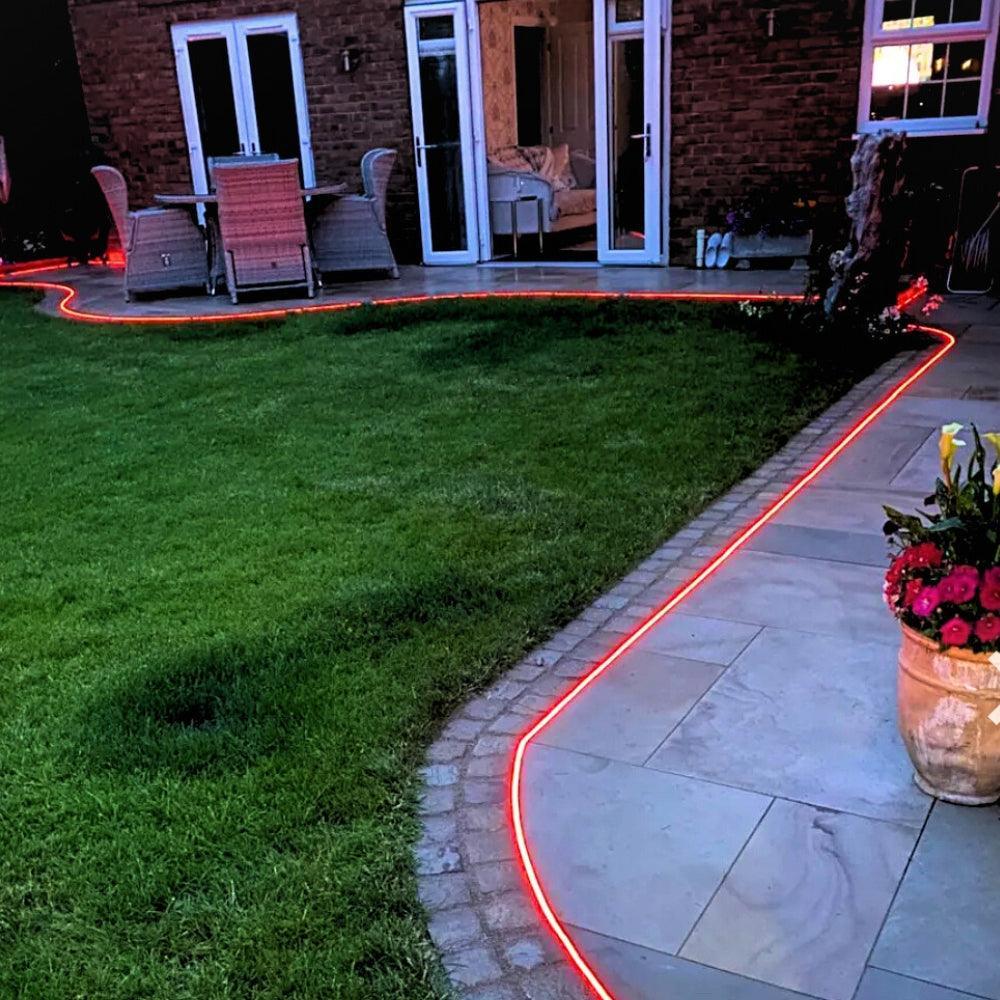

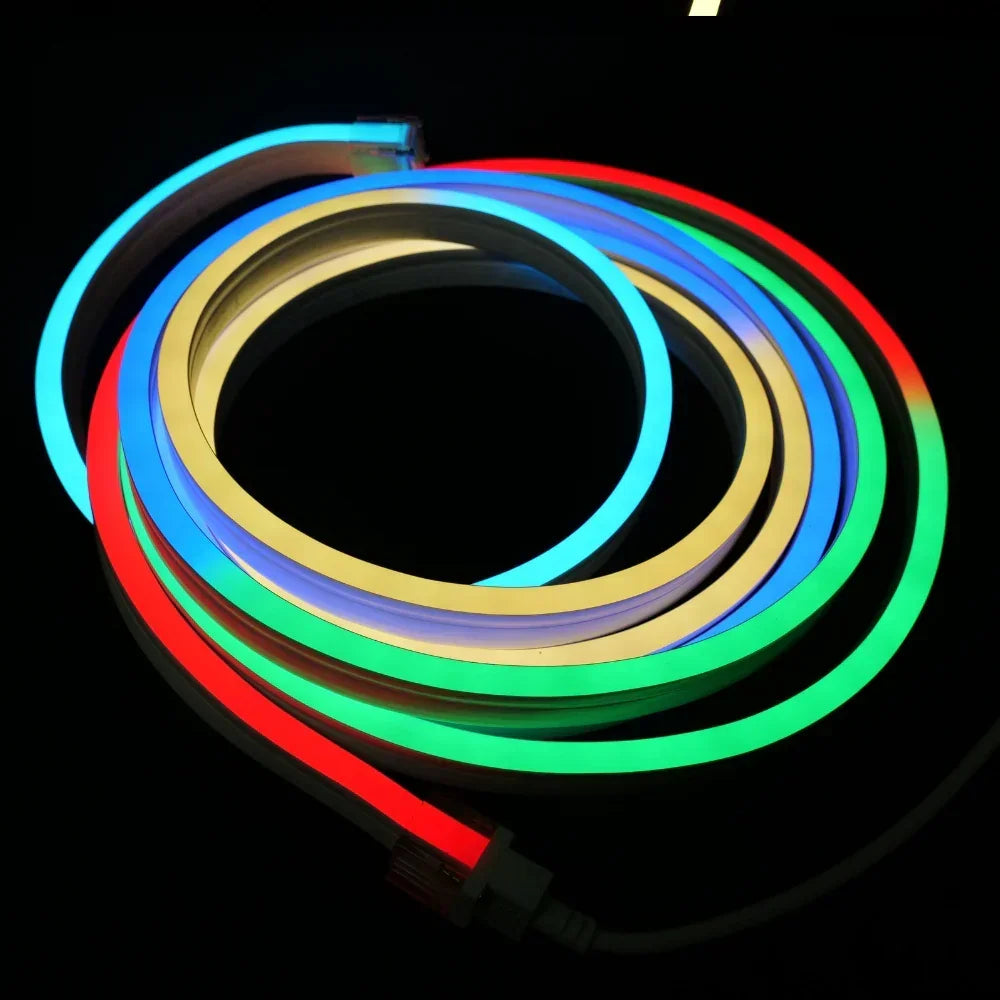

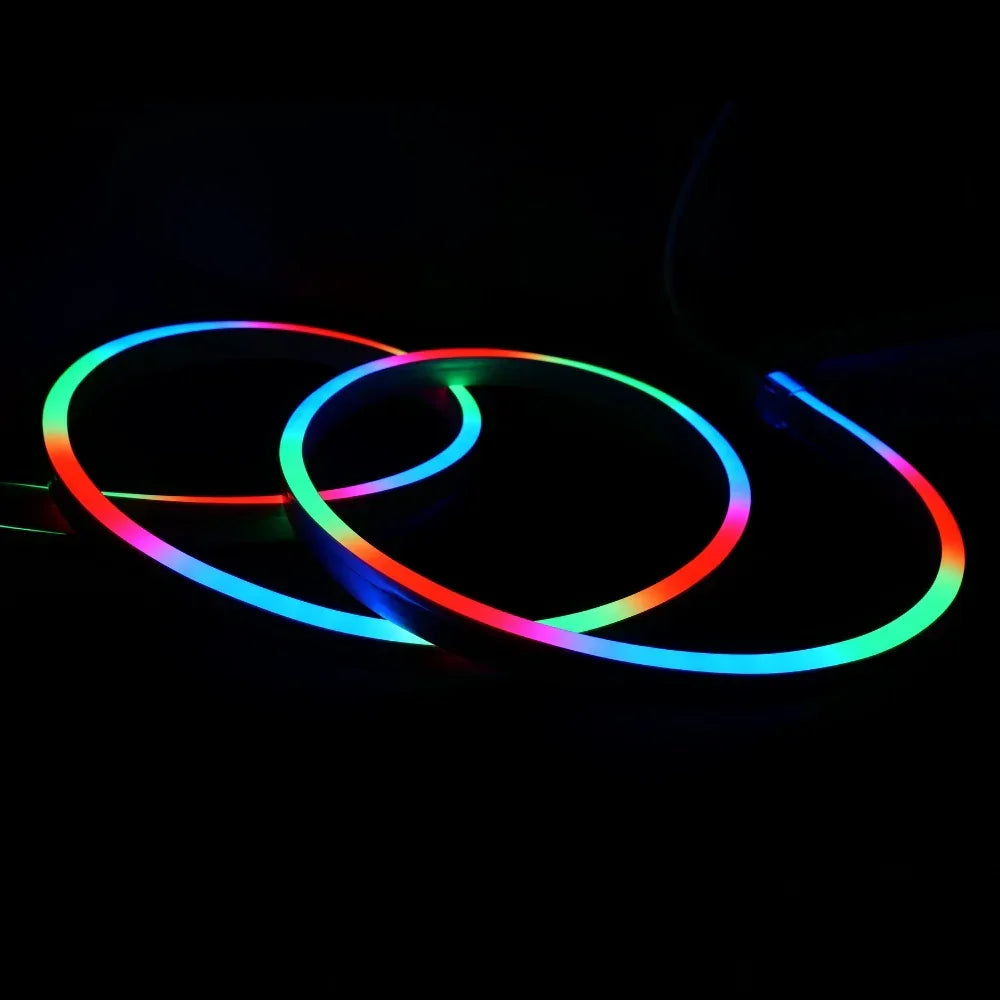

With numerous colour-changing patterns and adjustable speeds, this Digital Pixel RGB Neon Flex is perfect for decorating homes, gardens, offices, and shops. It offers a variety of effects, including flashing, fading, and chasing in red, blue, green, and more. You can create stunning dream color lighting effects to suit any environment.
For installations up to 20 metres, the neon flex can be powered from one end.
If your installation exceeds 20 metres, it’s important to power the neon flex from both ends to prevent voltage drop. In this case, you will need an additional End Cap with wire to connect and power both ends of the neon flex.
This product offers professional-grade lighting effects with ease of use for both residential and commercial applications.
Specification:
- Working Voltage: DC 24V
-
Light Colour: Digital Pixel RGB
- LEDs: 5050 WS281I
- Length: 20m (one-sided)

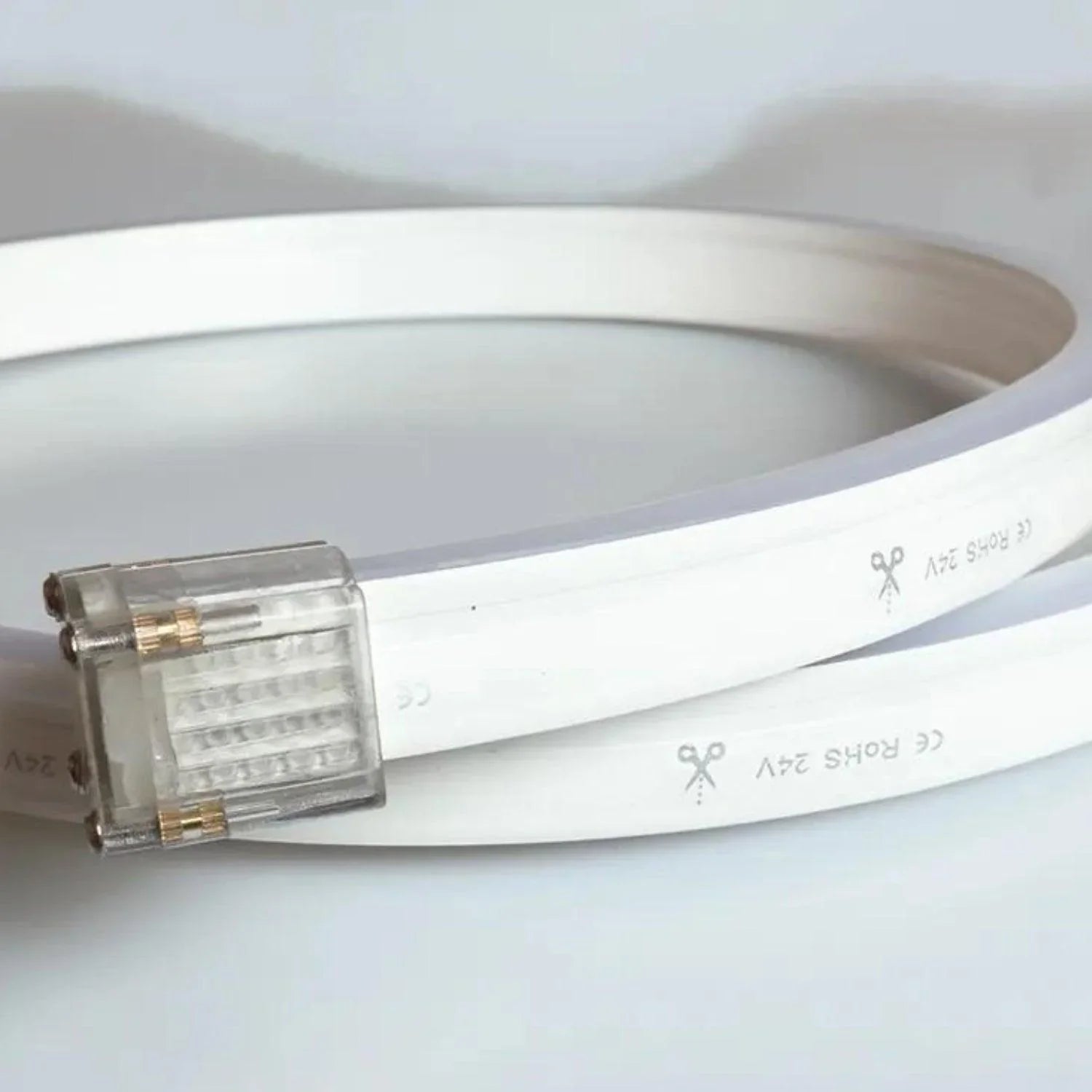

- Cuttable: Every 12.5cm
- Strip Backing: White
- IP Rating: IP68 Waterproof
- Working Temperature: -20 - 60 degree

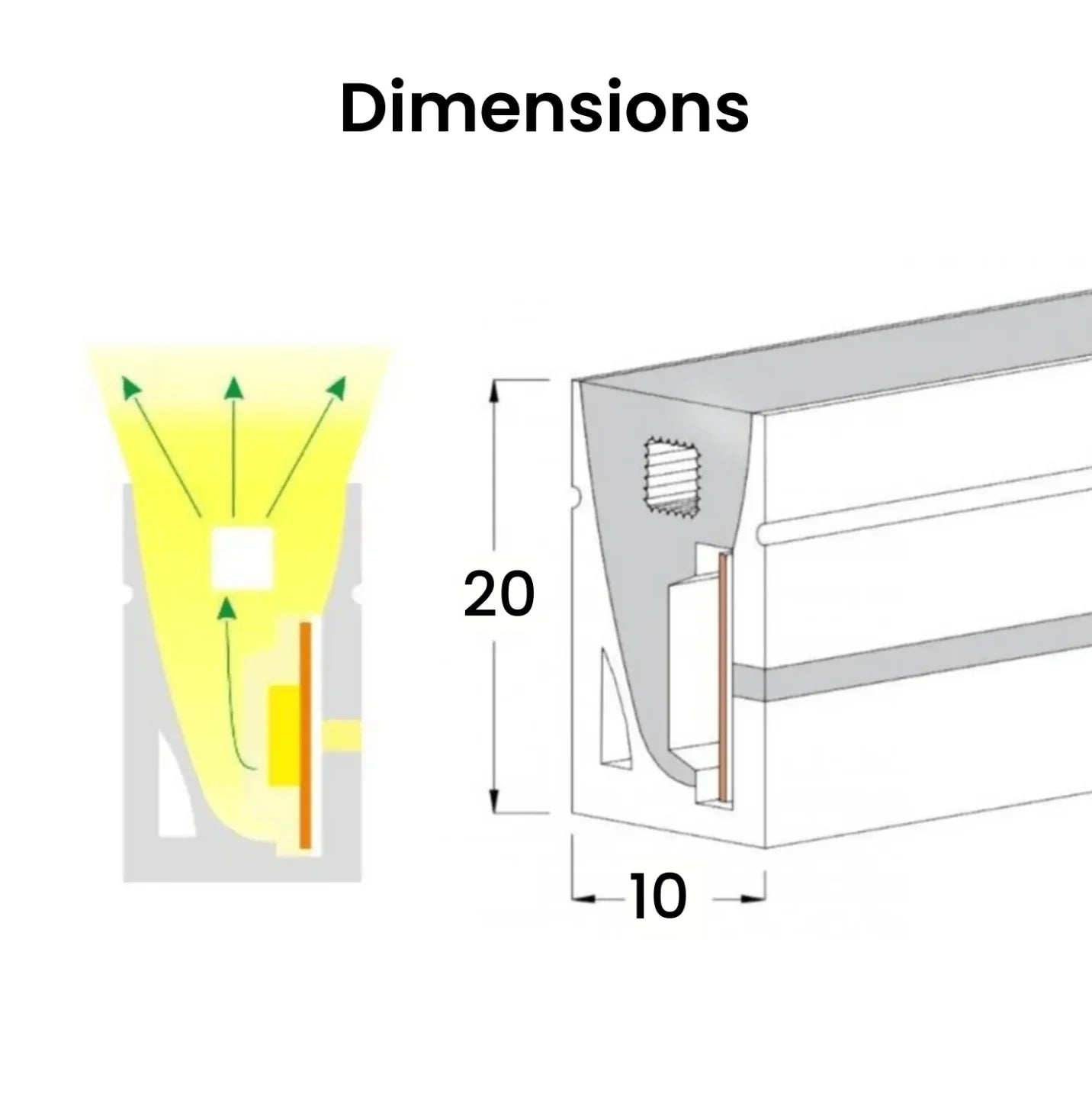

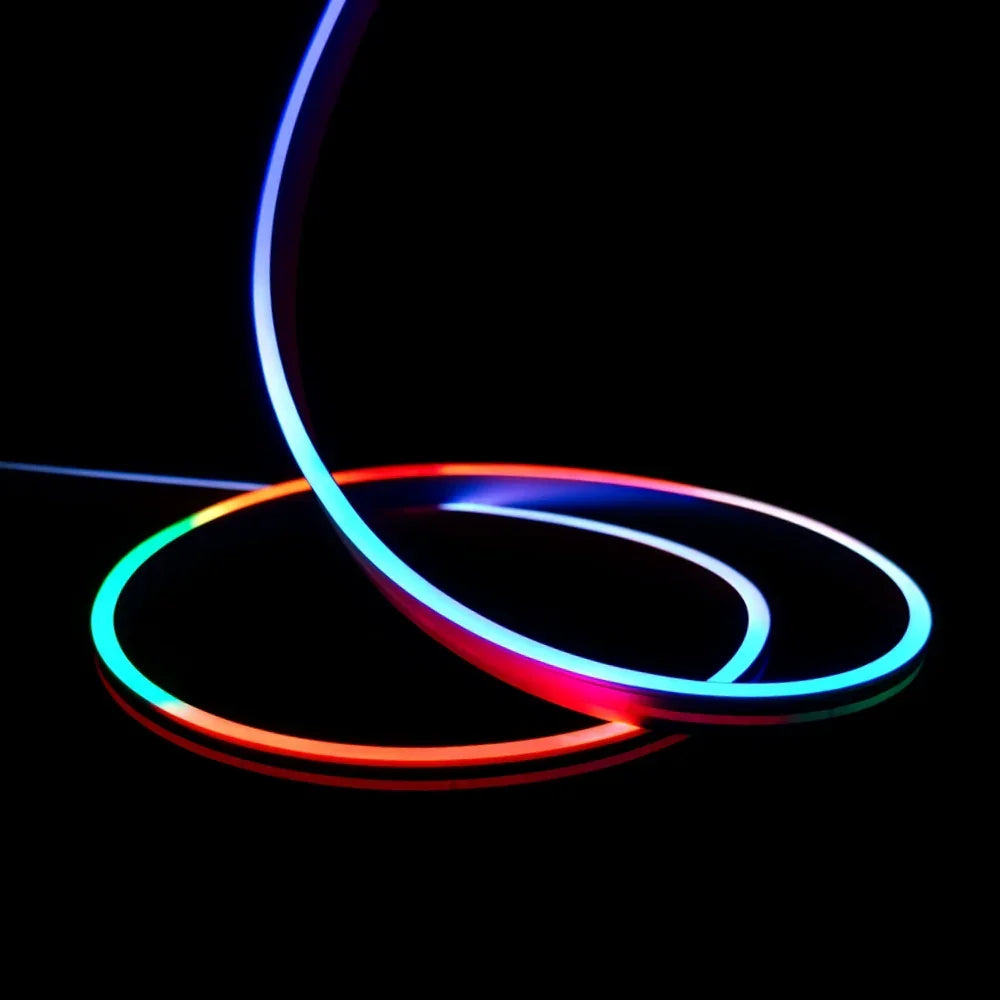

- Dimension: 10 x 20mm
- Power: 14W/Meter
- Pixels: 10 Pixels Per Metre
- Bending: Horizontal
Package Contents:
LED Neon Flex
Power Supply Needed: DC 24V Power Supply
Upto 5 Metre Length : DC 24V 100W
Upto 10 Metre Length: DC 24V 200W
Upto 15 Metre Length: DC 24V 300W
Upto 20 Metre Length: DC 24V 350W
The led neon flex is cut from a 50 metre roll so if you order more than 1 metre you will receive the lights in one continuous length.

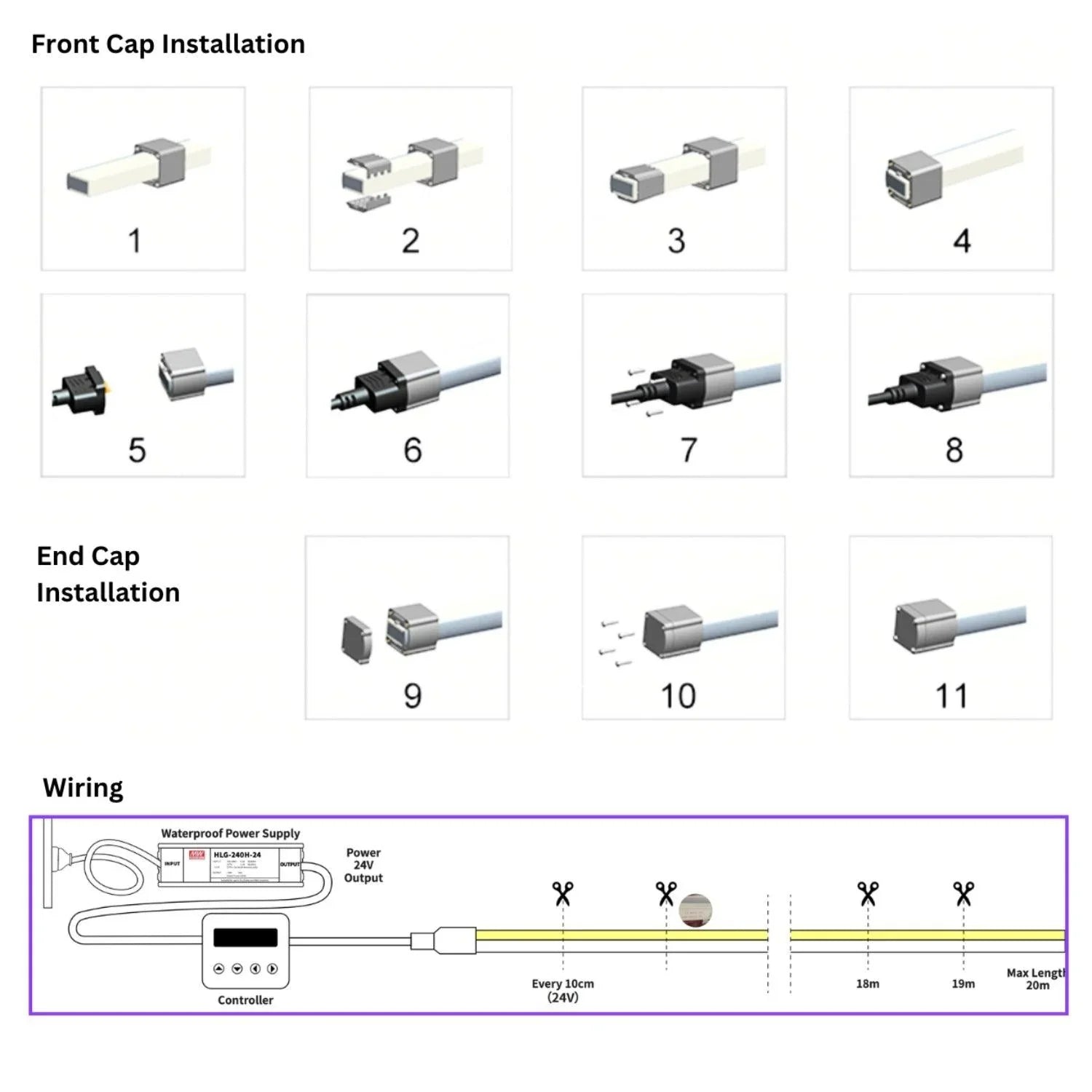

User Manual:
Technical Data:
The lights are custom cut as per your specific requirements.
- Product Type
- LED Neon Flex
- Colour
- RGB Multicolour
- IP Rating
- IP68 Waterproof
- Voltage
- 24V
- Watts Per Metre
- 14 Watts
- LEDs Per Metre
- 72
- Max Run Length
- 20m
- CRI
- >80
- Dimensions
- 10x20mm
- Warranty
- 4 Years
Specifications
- Product Type
- LED Neon Flex
- Colour
- RGB Multicolour
- IP Rating
- IP68 Waterproof
- LEDs Per Metre
- 72
- Continuous Run
- 20m
- Voltage
- 24V
- Watts Per Metre
- 14 Watts
- Metres
- 50m roll
- Dimensions
- 10x20mm
- Width
- 10mm
- Depth
- 20mm
- Bending Angle
- Horizontal Bend
- Lumens Per Metre
- 690 lm
- Cut Points
- 12.5cm
- Operating Temperature
- -40°C to 60°C
- LED Type
- 5050 IC WS2811
- Average LED Life Hours
- 50,000
- Continuous Operating Hours
- 15 hours
- Max Bending
- 3cm
- Shape
- Flat
- Certification
- UKCA, CE, RoHS, ETL
- Material
- PVC
- Attachment

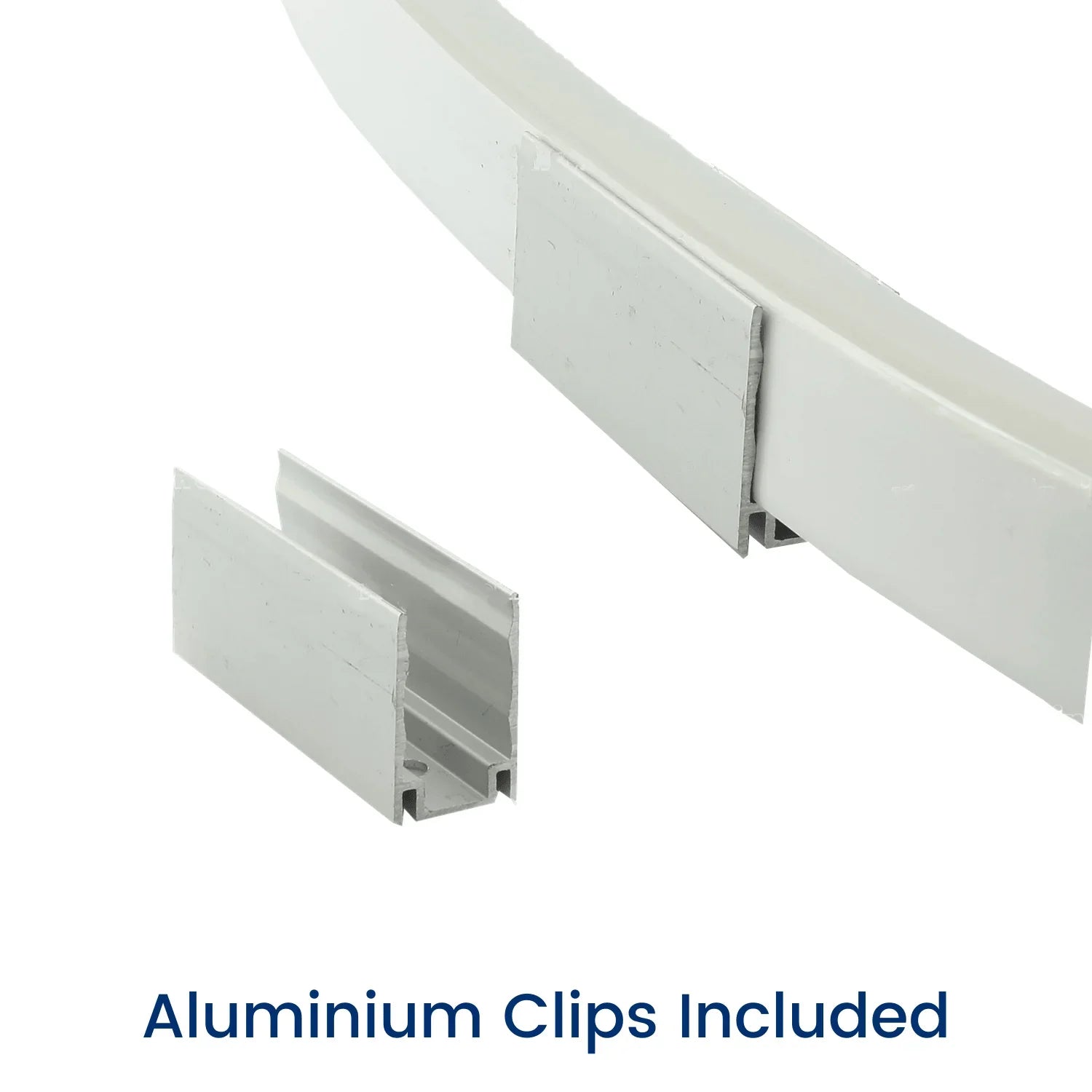

- Clips & Profile
- Beam Angle
- 120
- CRI
- >80
- Warranty
- 4 years
- Brand
- ATOM LED
Delivery & Returns
On 97% of products — Royal Mail 48-hour tracked
Mainland UK orders over £90 — order by 1pm, Mon–Fri
30-day returns window — free returns on faulty products
01952 370028 · Mon–Fri 9am–5pm
Shipping
Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.
Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.
Saturday Delivery is available as a paid option at checkout.
Large orders and pallet shipments: call 01952 370028 for a quote.
For more information see our detailed Shipping Page.
International Shipping
Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.
Returns & Refunds
The 30-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:
- Standard LED strip lights supplied as 5-metre rolls
- Straight aluminium profiles
- Power supplies and drivers
- Accessories (connectors, controllers, dimmers, end caps)
Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.
Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.
Refunds are processed within 5–10 working days of receiving the returned item.
For more details see our Returns & Refunds page.
Reviews
Frequently Asked Questions
What is the difference between IP65, IP67, and IP68?
IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.
Can I cut this product to a custom length?
Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.
What size driver do I need?
Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.
Should I choose 12V, 24V, or 48V?
Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
What is your warranty?
ATOM LED offers product-specific warranties: up to 7 years on single-colour COB strip, 5 years on RGB and RGBW COB strip, and 4 years on LED neon flex. The warranty covers manufacturing defects. Call 01952 370028 for warranty claims.
