- Voltage
- DC 48V
- IP Rating
- IP68
- Cut
- 12.5cm
- Max Run
- 30m
- Warranty
- 4 Year

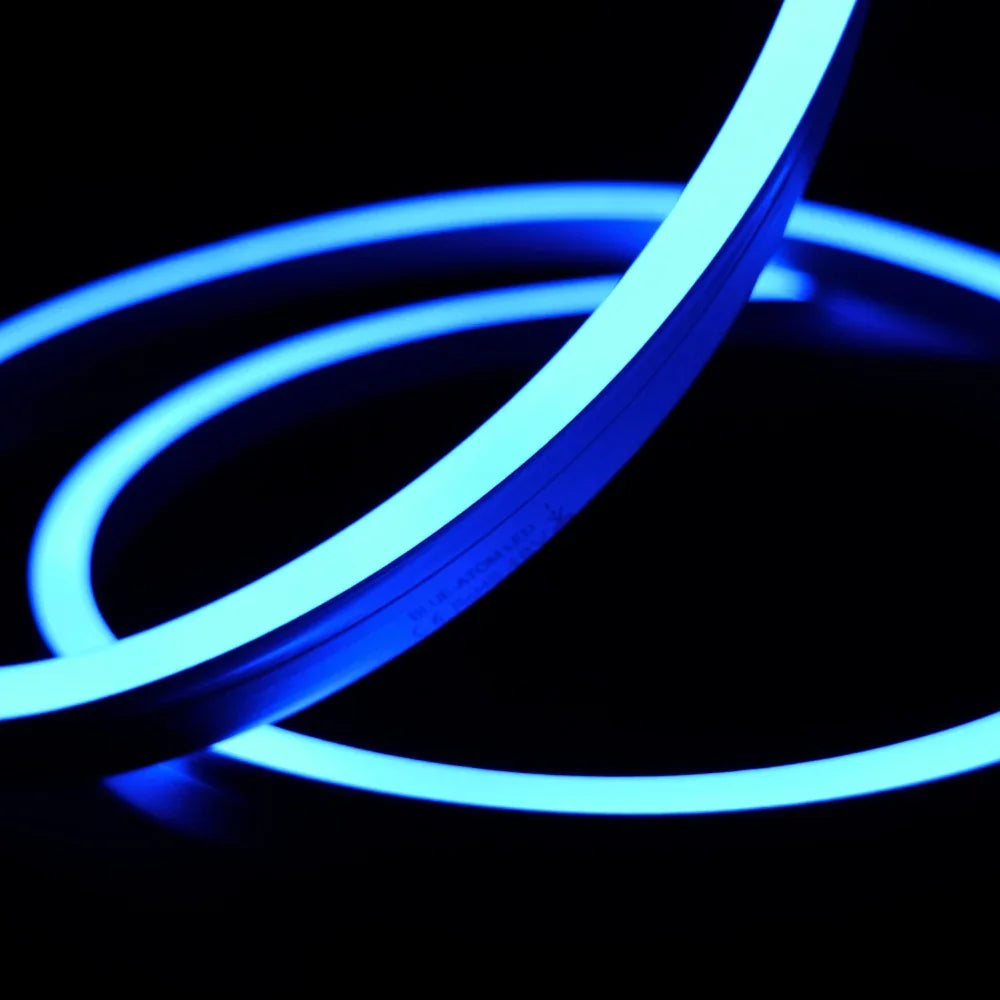

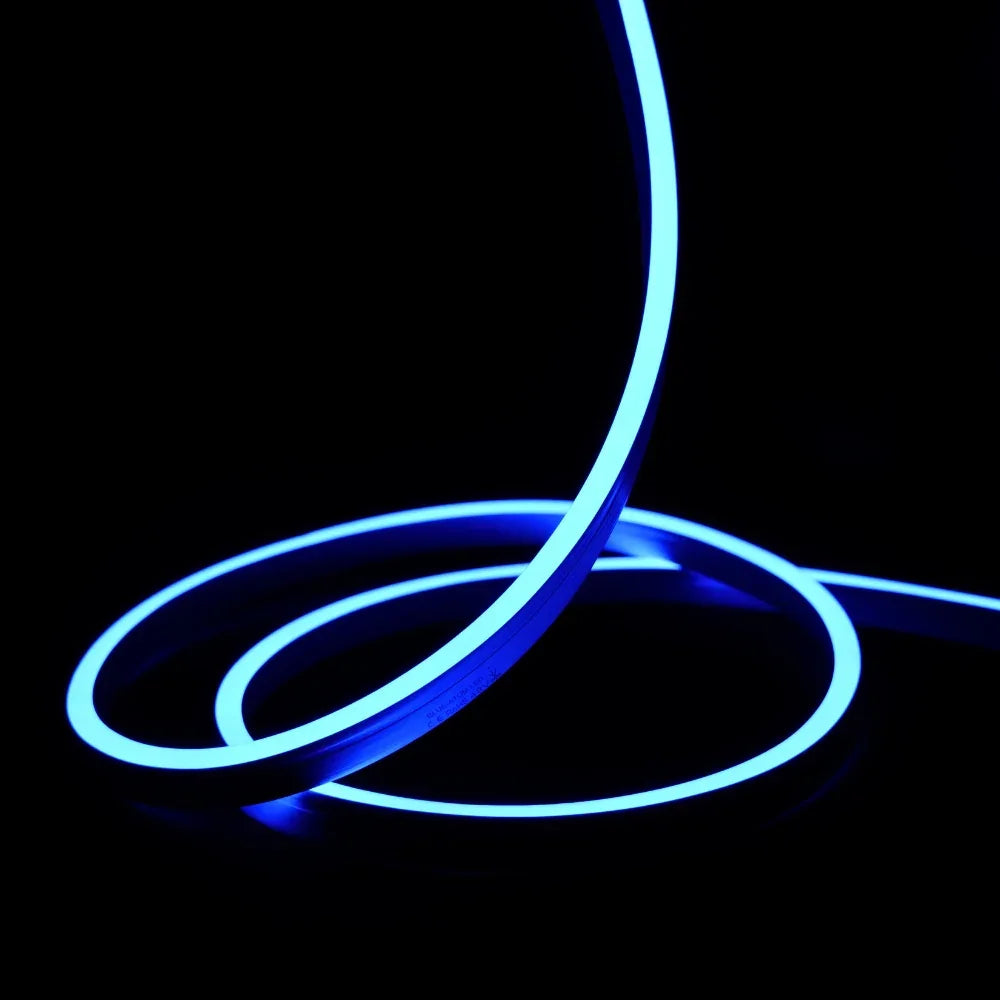

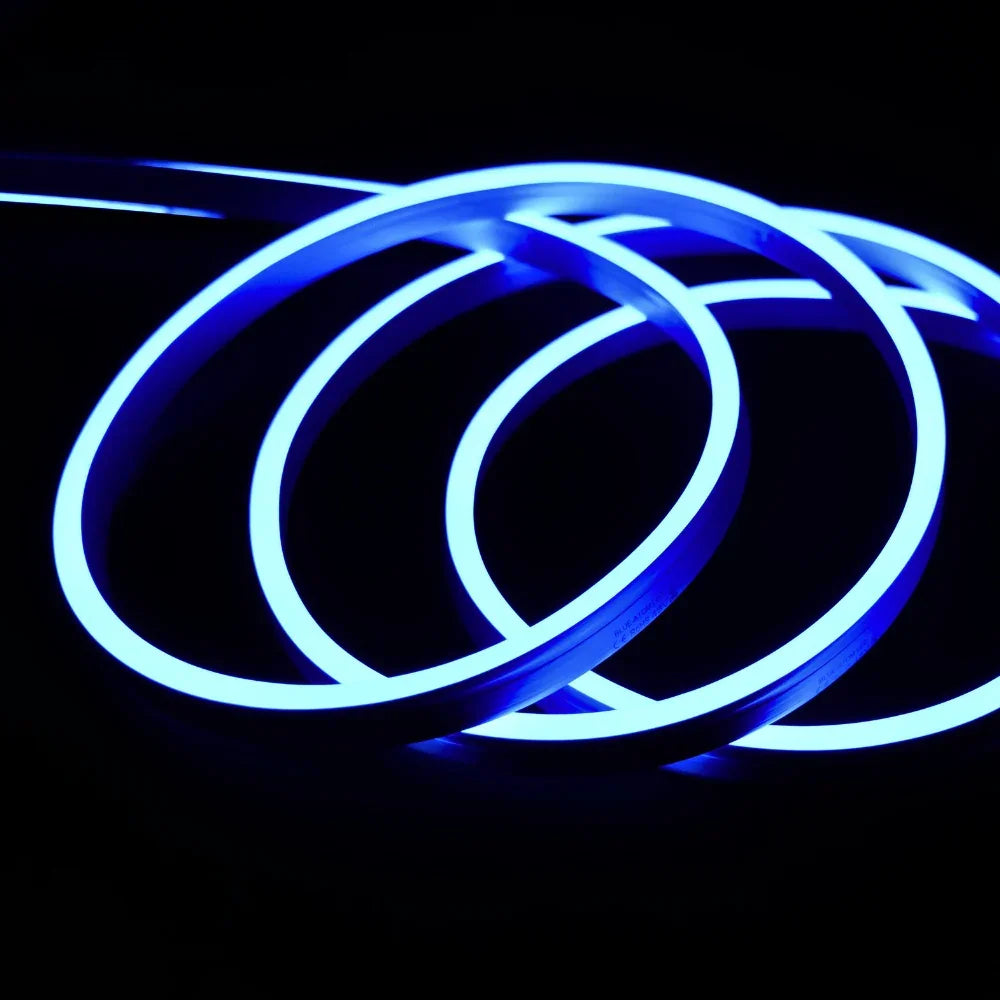

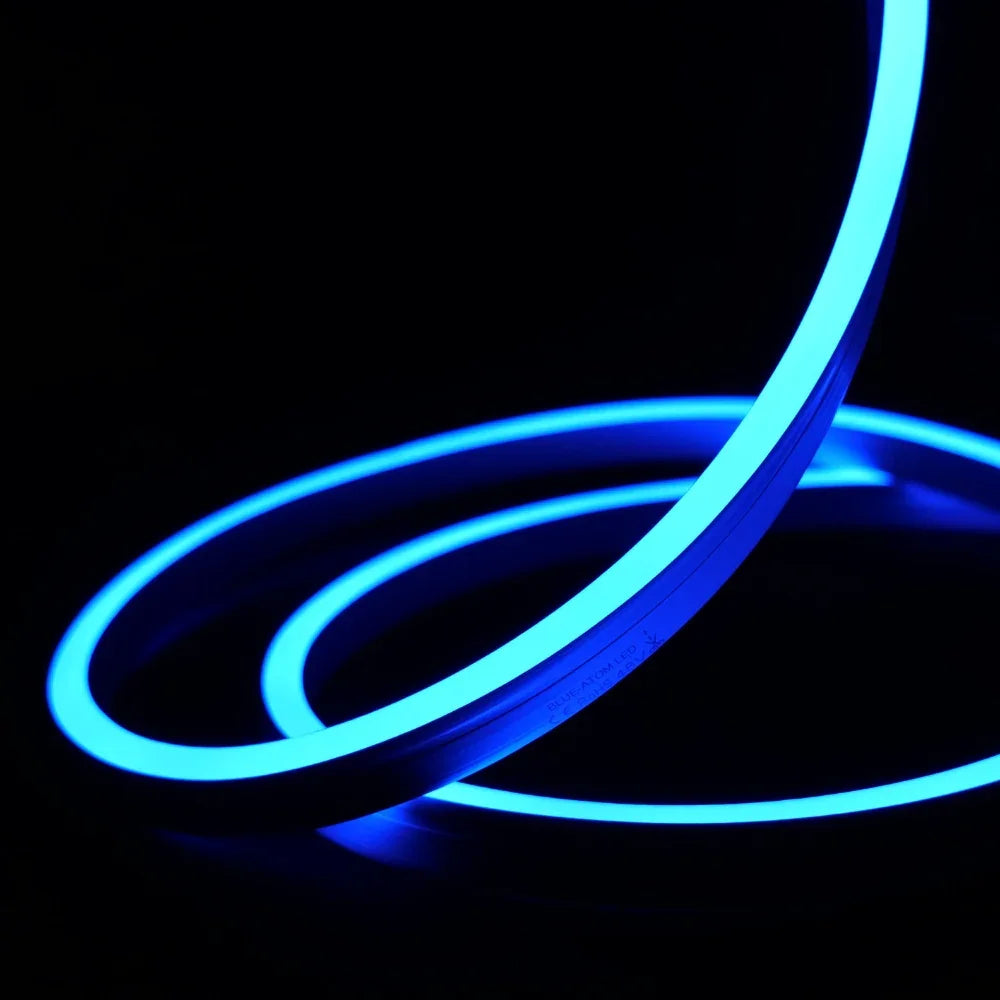

Extra Long Blue Neon Flex 48V 10x20mm IP68 Waterproof 30m
SKU: NFBLUIP6848V-1020
-
IP68 Waterproof
-
48V DC
-
30m Run
-
Outdoor Use
Encrypted & secure checkout
Description
Our high-quality Extra Long Blue is horizontal bending which emits a bright dotless LED light from the top of the flex. Our led neon flex is a low voltage, compact, highly flexible, dotless, Linear lighting solution.
Our LED flexible neon is designed for both outdoor and indoor architectural projects in commercial installations. These include settings such as shopping centres, hotels, restaurants and many other applications where a neon light would be required. It can light up to 30 metre continuous run with one side power without any voltage drop.
It comes with a 5 year Indoor Warranty & 3 year Outdoor Warranty.
The IP68 rating offers full protection against water, salt water, UV radiation and solvents making this product ideal for use in exposed locations and challenging environments such as coastal holiday resorts and theme parks.
Suitable for use with neon flex mounting channel. We recommend installing our LED neon flex within an LED Aluminium Profile. These offer protection for the neon flex and the aluminium material acts as a heat sink, reducing the chance of over-heating and prolonging the life of the product.
Important Note:
To power more than 30 metre you would have to feed both the ends of the neon flex. Up to 30 metre you can power it from one end. If the total length is more than 30 metre then you need to power the led neon flex from both the ends and you are going to need another End Cap with wire to power the neon flex from both ends to avoid voltage drop.
With a 50 metre roll you will get one Front wire IP68 connector with 3 Metre Extension Cable & End Cap attached to the NEON Flex.
Specification:
- Working Voltage: DC 48V
- Light Colour: Blue
- LEDs: 2835 SMD
- Cutting: 10cm (100mm)
- Standard Packing: 1m to 30m Continuous Length
- Strip Backing: White
- Waterproof Rating: IP68 Fully Waterproof
- Working Temperature: -20-60 degree
- LED Neon Flex Dimension: 10 x 20mm
- Power: 9 W/Meter
- Extension Lead: 3 Metre Extension Lead
Package Contents: LED Neon Flex
Power Supply Needed: DC 24V Power Supply
1 Metre Length : DC 9W
Upto 5 Metre Length : DC 48V 60W
Upto 10 Metre Length: DC 48V 120W
Upto 15 Metre Length: DC 48V 180W
Upto 20 Metre Length: DC 48V 250W
Upto 30 Metre Length: DC 48V 400W
Installation:
The lights are custom cut as per your specific requirements.
- Product Type
- LED Neon Flex
- Colour
- Blue
- IP Rating
- IP68
- Voltage
- DC 48V
- Watts Per Metre
- 9
- LEDs Per Metre
- 120
- Max Run Length
- 30m
- Dimensions
- 10x20mm
- Warranty
- 4 Years
Specifications
- Product Type
- LED Neon Flex
- Colour
- Blue
- IP Rating
- IP68
- LEDs Per Metre
- 120
- Continuous Run
- 30m
- Voltage
- DC 48V
- Watts Per Metre
- 9
- Metres
- 50 Metre Roll
- Dimensions
- 10x20mm
- Width
- 10mm
- Depth
- 20mm
- Bending Angle
- Horizontal Bending
- Lumens Per Metre
- 349 lm
- Cut Points
- 12.5cm
- Operating Temperature
- -40°C to 60°C
- LED Type
- Epistar 2835
- Average LED Life Hours
- 50,000
- Continuous Operating Hours
- 15 Hours
- Max Bending
- 3cm
- Shape
- Flat Top
- Certification
- CE, RoHS
- Material
- Silicone
- Attachment
- Clips or Profile (Not Self Adhesive)
- Beam Angle
- 120°
- Warranty
- 4 years
- Brand
- ATOM LED
Delivery & Returns
On 97% of products — Royal Mail 48-hour tracked
Mainland UK orders over £90 — order by 1pm, Mon–Fri
30-day returns window — free returns on faulty products
01952 370028 · Mon–Fri 9am–5pm
Shipping
Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.
Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.
Saturday Delivery is available as a paid option at checkout.
Large orders and pallet shipments: call 01952 370028 for a quote.
For more information see our detailed Shipping Page.
International Shipping
Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.
Returns & Refunds
The 30-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:
- Standard LED strip lights supplied as 5-metre rolls
- Straight aluminium profiles
- Power supplies and drivers
- Accessories (connectors, controllers, dimmers, end caps)
Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.
Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.
Refunds are processed within 5–10 working days of receiving the returned item.
For more details see our Returns & Refunds page.
Reviews
Frequently Asked Questions
What is the difference between IP65, IP67, and IP68?
IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.
Can I cut this product to a custom length?
Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.
What size driver do I need?
Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.
Should I choose 12V, 24V, or 48V?
Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
What is your warranty?
ATOM LED offers product-specific warranties: up to 7 years on single-colour COB strip, 5 years on RGB and RGBW COB strip, and 4 years on LED neon flex. The warranty covers manufacturing defects. Call 01952 370028 for warranty claims.
Do you offer free delivery?
Yes. Free UK delivery on 97% of products via Royal Mail 48-hour tracked. Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
