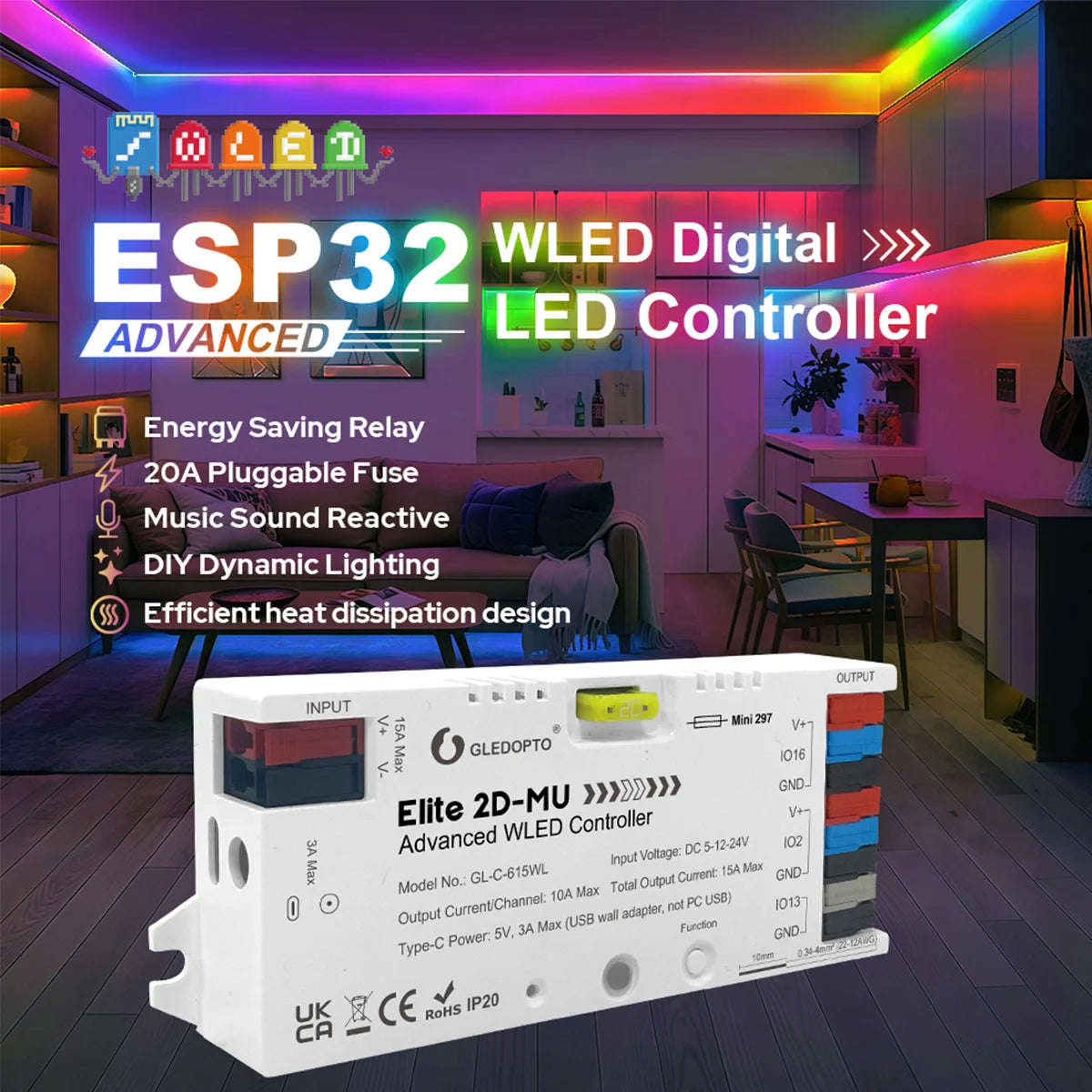

GLEDOPTO GL-C-615WL – Elite 2D-MU WLED Controller for Digital LED Strips
The GLEDOPTO GL-C-615WL is an advanced WLED controller based on the ESP32, designed for modern digital LED strip lighting. It supports a wide range of popular pixel LED chipsets including WS2812B, WS2815, SK6812, UCS2903B, and SM16703, offering flexibility for creative and smart lighting installations.
The controller supports control of up to two digital LED strips simultaneously and features a UART Type-C interface for flashing, configuration, and 5 V power supply. Built-in WiFi allows direct integration with the WLED ecosystem, enabling full control through the WLED Native App on both iOS and Android. An integrated microphone and relay enable audio-reactive lighting effects and improved energy efficiency.
Technical Specifications
Model: GL-C-615WL (Elite 2D-MU)
Input voltage: DC 5–12–24 V
Total output current: 15 A max
Output current per channel: 10 A max
Type-C input: 5 V / 3 A max
Operating temperature: -20 to +45 °C

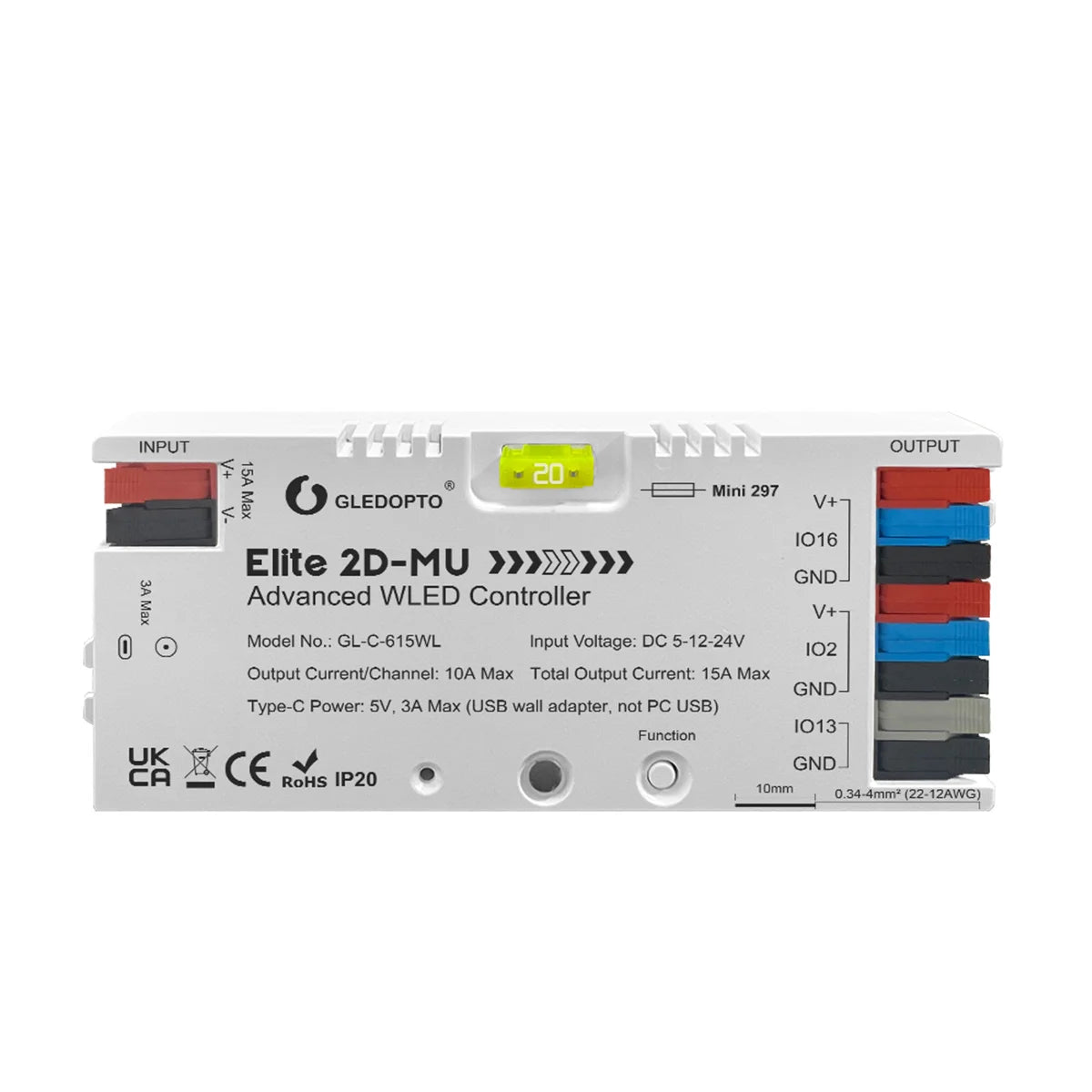

Interfaces: UART / Type-C, GPIO16, GPIO2, IO13 (DIY)
Supported LED types: WS2812B, WS2815, SK6812, UCS2903B, SM16703
Setup is quick and straightforward. Once powered on, the controller creates its own WiFi access point (“WLED-AP”) and can be configured directly via smartphone using the default password wled1234. All lighting effects, colours, and animations can be managed through the WLED app or via the built-in web interface for smart home integration.
The GL-C-615WL is ideal for Ambilight-style TV and monitor setups, digital LED strip lighting in living spaces, audio-reactive installations, smart home projects, and creative DIY applications using ESP32 and UART control.
The GLEDOPTO GL-C-615WL is a versatile and reliable WLED controller, offering strong performance, wide compatibility, and easy configuration for modern digital LED lighting projects.
