GLEDOPTO ESP32 WLED Digital LED Controller with 4 Channel With Mic/UART WIFI GL-C-017WL-D

SKU: GL-C-017WL-D

  • Non-Waterproof
  • LED Strip
  • Reduced Glare
  • CRI 90
£40.50 Inc. VAT
24 units available
1

Encrypted & secure checkout

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Visa
  • Clearpay
Speak to an expert 01952 370028
Description

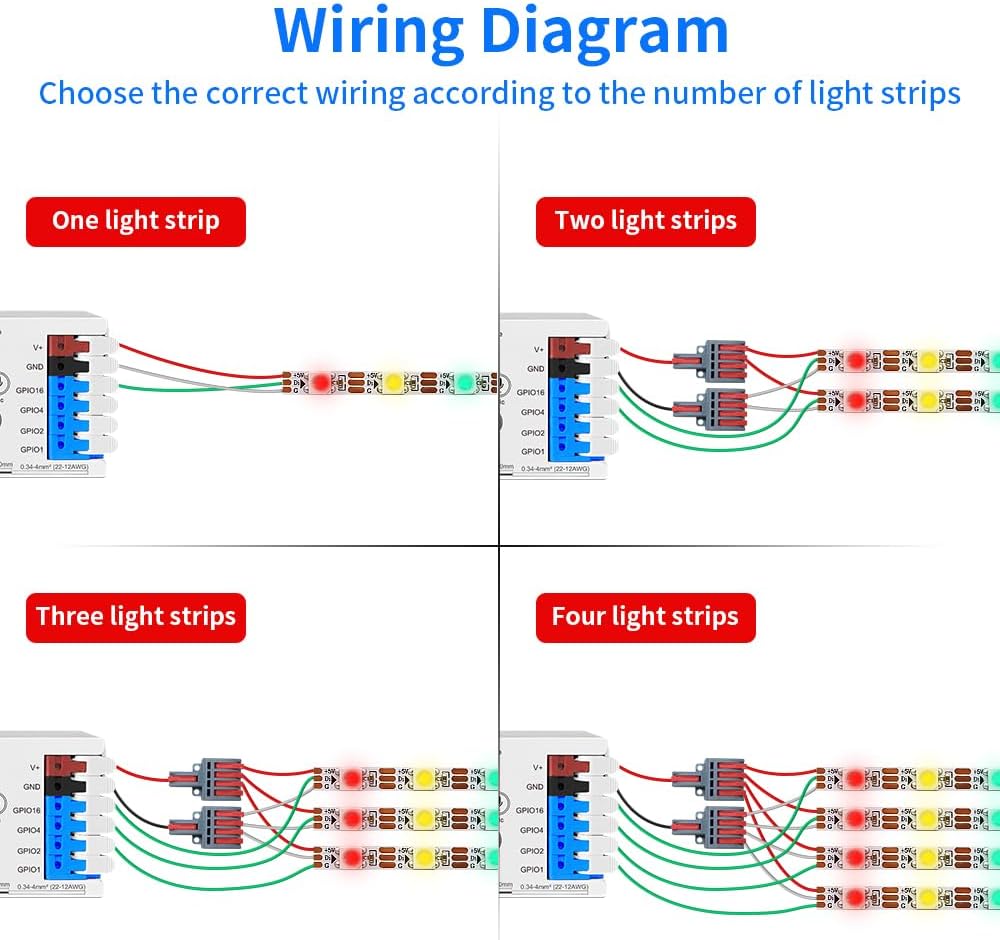

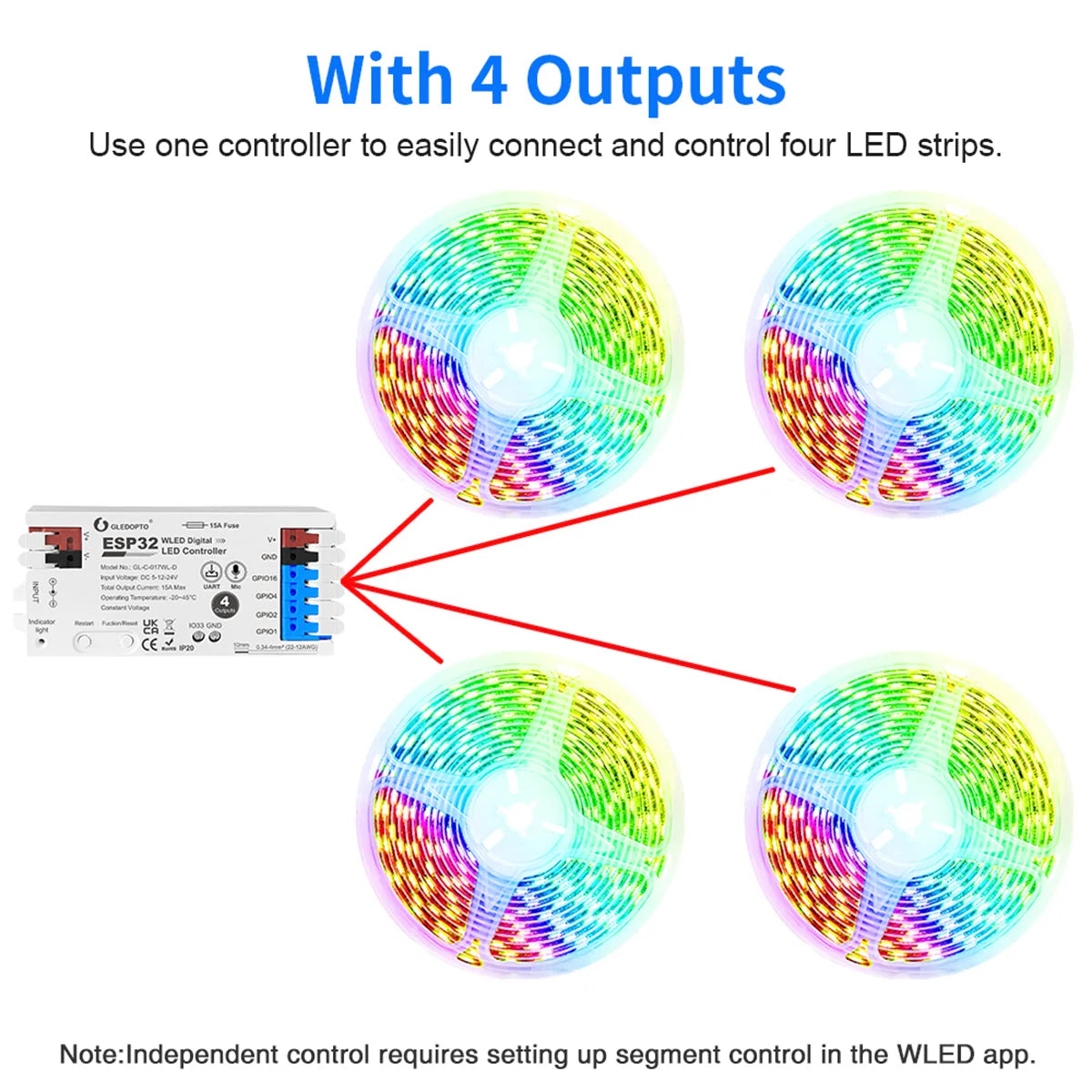

  • This controller offers four-channel independent control, allowing you to drive and individually manage up to four digital LED strips such as WS2811, WS2812, SK6812, and WS2815 for multi-zone lighting effects. Segmented control can be configured directly within the WLED app.

    A built-in microphone enables music-synchronised lighting, combined with over 100 dynamic effects including rainbow, fire, and meteor patterns, all accessible through the WLED app.

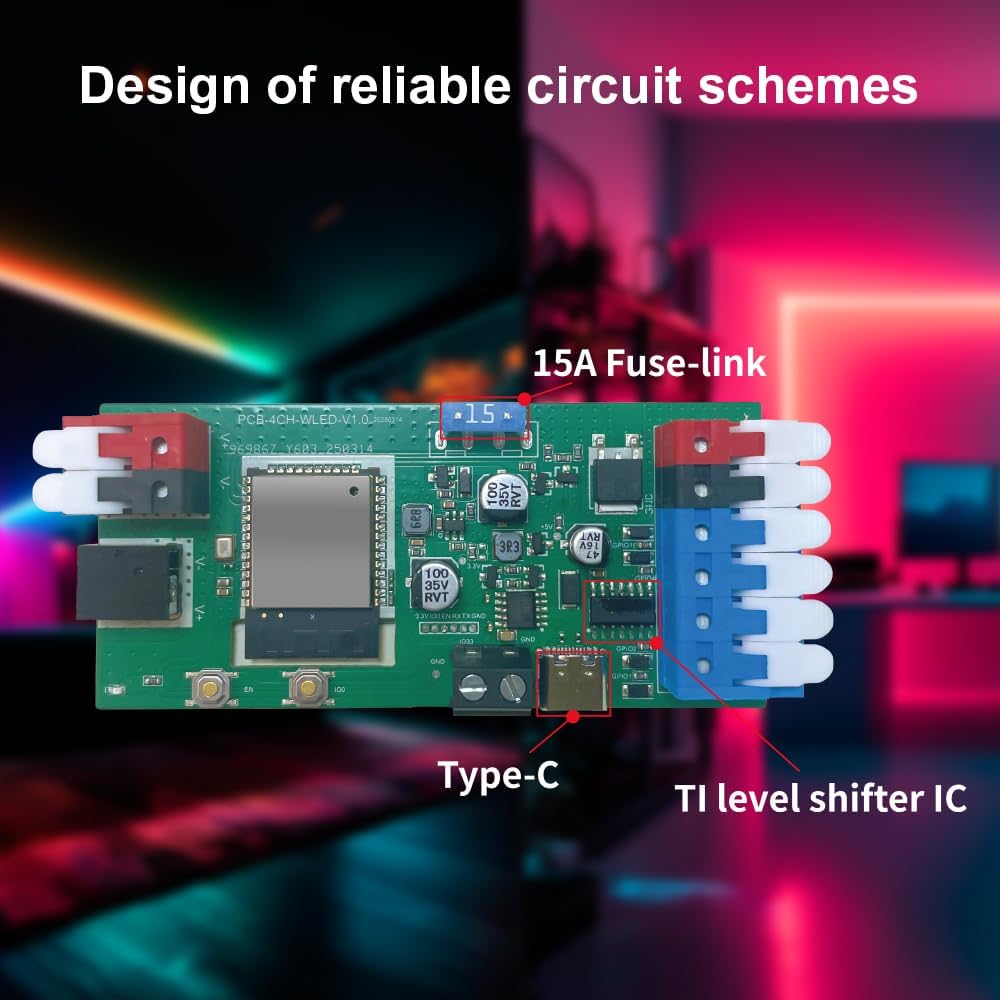

    Safety and efficiency are built in, with a 15 A fuse for overcurrent protection, an automatic power-off relay, and a level shifter IC to ensure stable signal transmission.

    Firmware updates can be completed wirelessly via the WLED app or through a wired UART connection, with wide compatibility across popular addressable LED protocols.

    The compact, user-friendly design features clear wiring terminals and ESP32-powered performance, making it suitable for home, commercial, and professional lighting projects.

Product Type
Digital Pixel Controller
Colour
White
IP Rating
IP20 Non-Waterproof
Voltage
DC 5V-24V
Dimensions
108x45x18mm
Warranty
7 Years
Specifications
Product Type
Digital Pixel Controller
Colour
White
IP Rating
IP20 Non-Waterproof
Voltage
DC 5V-24V
Dimensions
108x45x18mm
Operating Temperature
20 to +45 °C
Certification
CE, RoHS
Input
DC 5V – 12V – 24V
Output
Max Output Current 15A Max
Warranty
Up to 7 years
Application
Multi-zone home, commercial, and professional lighting installations
Brand
GLEODPTO
Channel Count
4 independent output channels
Controller Type
ESP32-based WLED controller
Control Method
WiFi via WLED app and wired UART
Firmware Updates
OTA (wireless) and UART
Lighting Effects
100+ dynamic effects via WLED
Music Sync
Built-in microphone for audio-reactive effects
Output Current
15 A total
Protection
Built-in 15 A fuse and automatic power-off relay
Signal Stability
Integrated level shifter IC
Supported Led Types
WS2811, WS2812 / WS2812B, SK6812, WS2815
