- Voltage
- DC 5V-12V-24V
- IP Rating
- IP20 Non-
- Warranty
- 5 Year

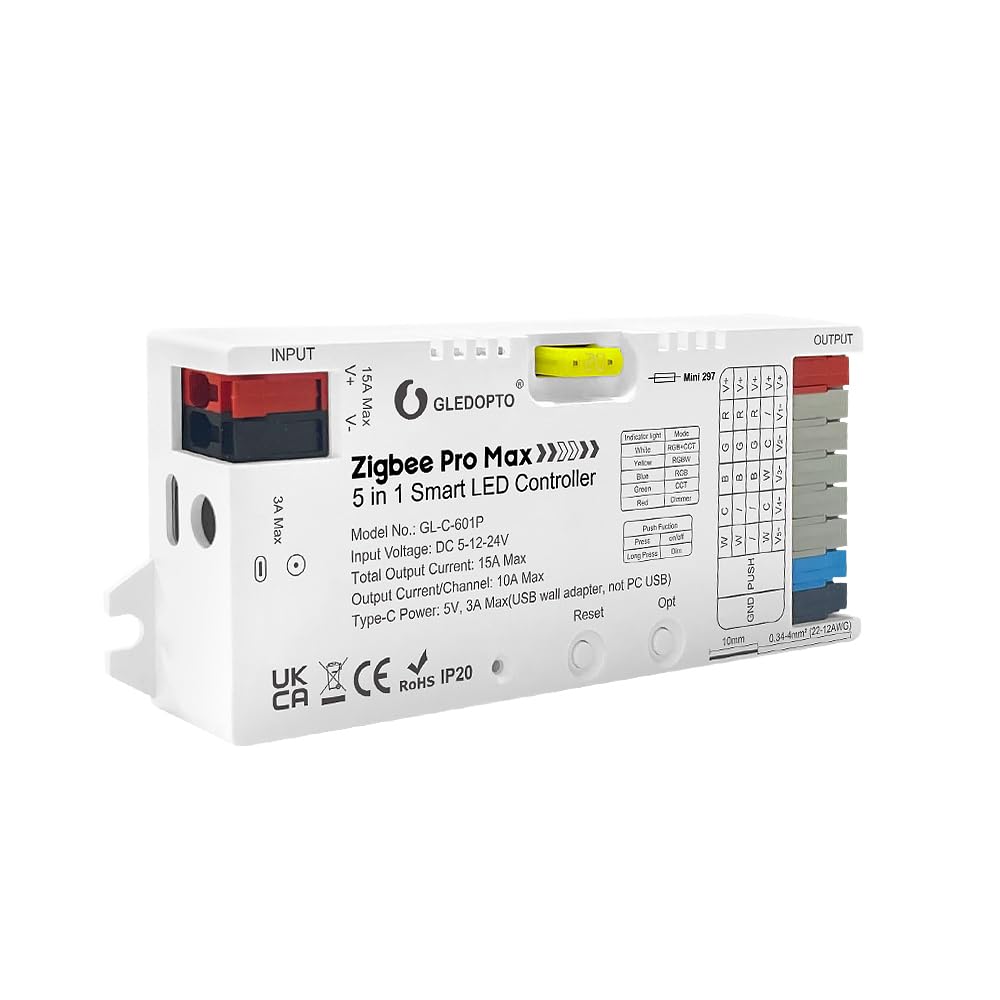

GLEDOPTO ZigBee 3.0 Pro Max 5 in 1 LED Strip Controller PWM Dimming RGBCCT RGBW CCT Monochrome APP Voice Control GL-C-601P
SKU: GL-C-601P
-
Non-Waterproof
-
LED Strip
-
Reduced Glare
-
CRI 90
Encrypted & secure checkout
Description
-

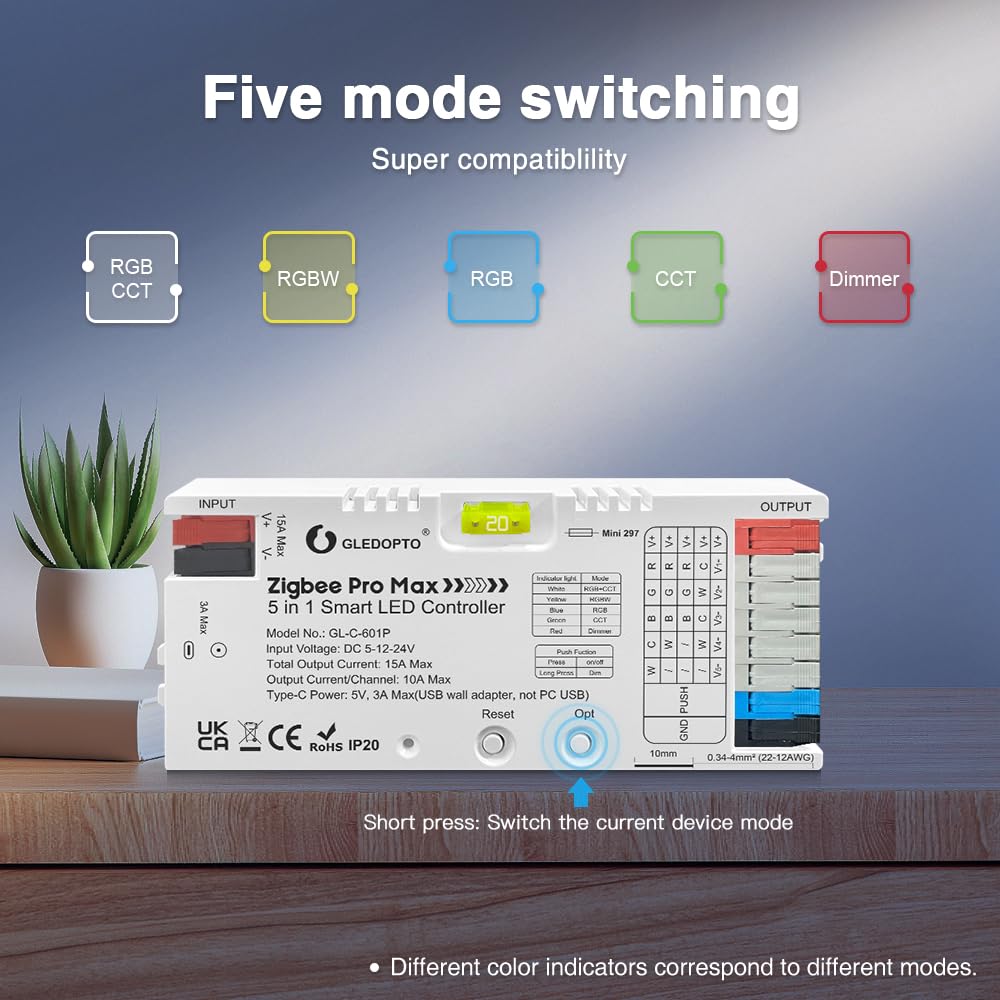

Zigbee 3.0 Universal Hub Controller: This 5-in-1 smart controller (RGBCCT/RGBW/RGB/CCT/Dimmer) is built on the universal Zigbee 3.0 standard, ensuring seamless and reliable integration with all major smart home ecosystems like Amazon Alexa, Google Assistant, and others through your preferred Zigbee hub.

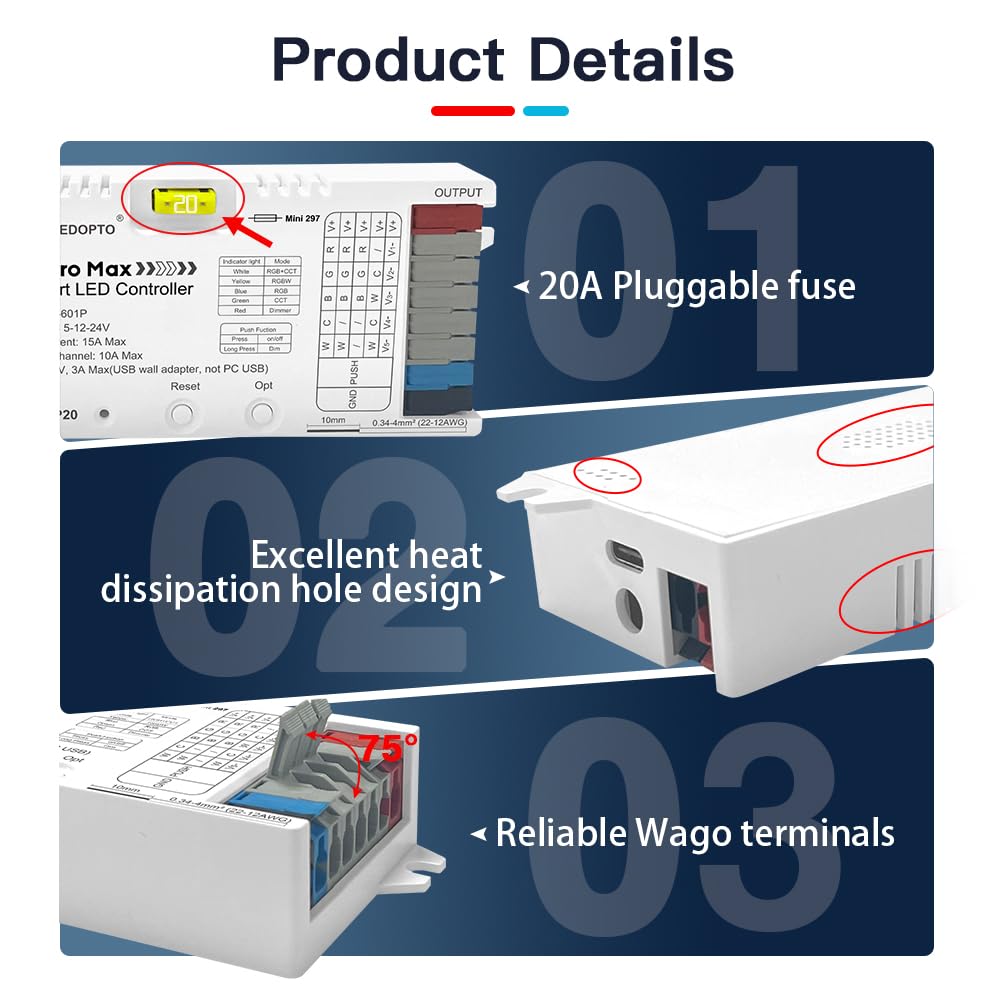

Broad Voltage Compatibility & Safety Protection: Supports 5-24V wide voltage input for most PWM-dimmable LED strips. Features a removable 20A fuse for superior overcurrent and electrical safety, guaranteeing enhanced durability and peace of mind.
Versatile Control via Zigbee & RF: Enjoy flexible control through your Zigbee hub via smartphone app or voice commands. It also supports standalone operation with an optional Gledopto 2.4G RF remote, offering convenience with or without a hub.

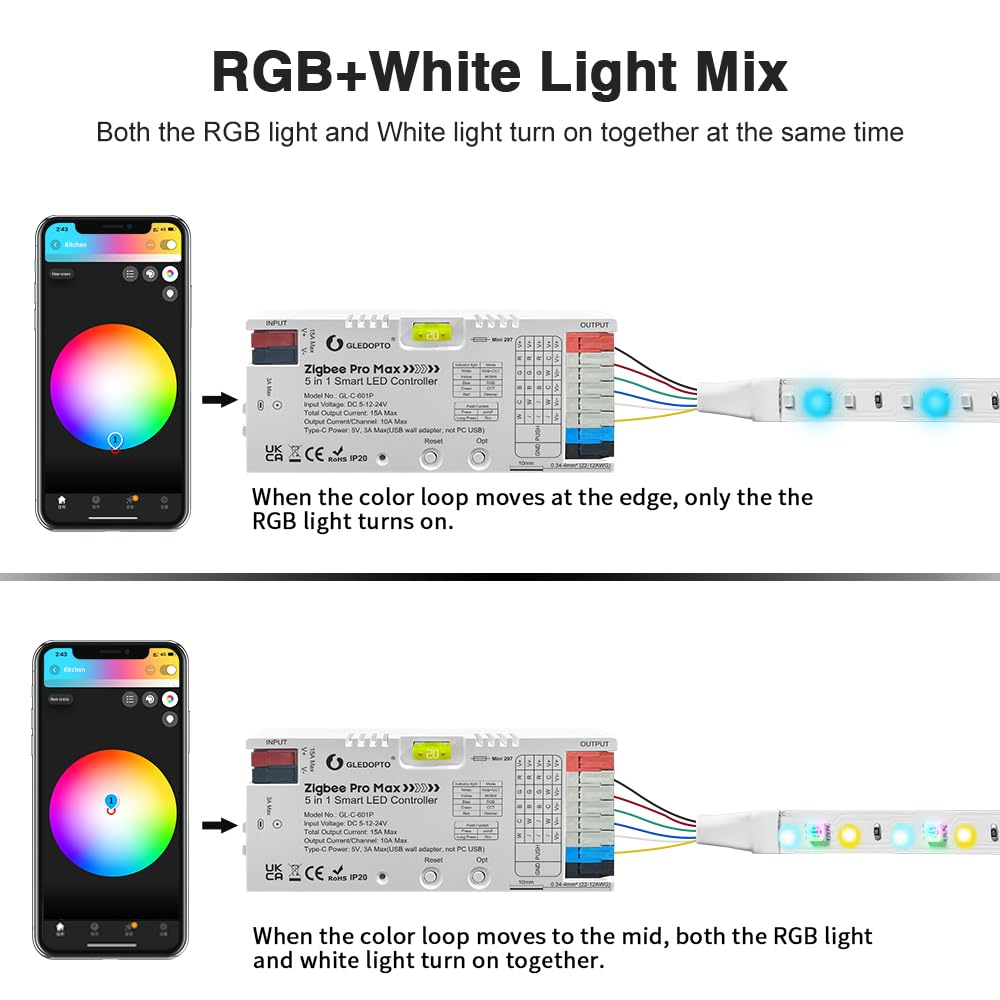

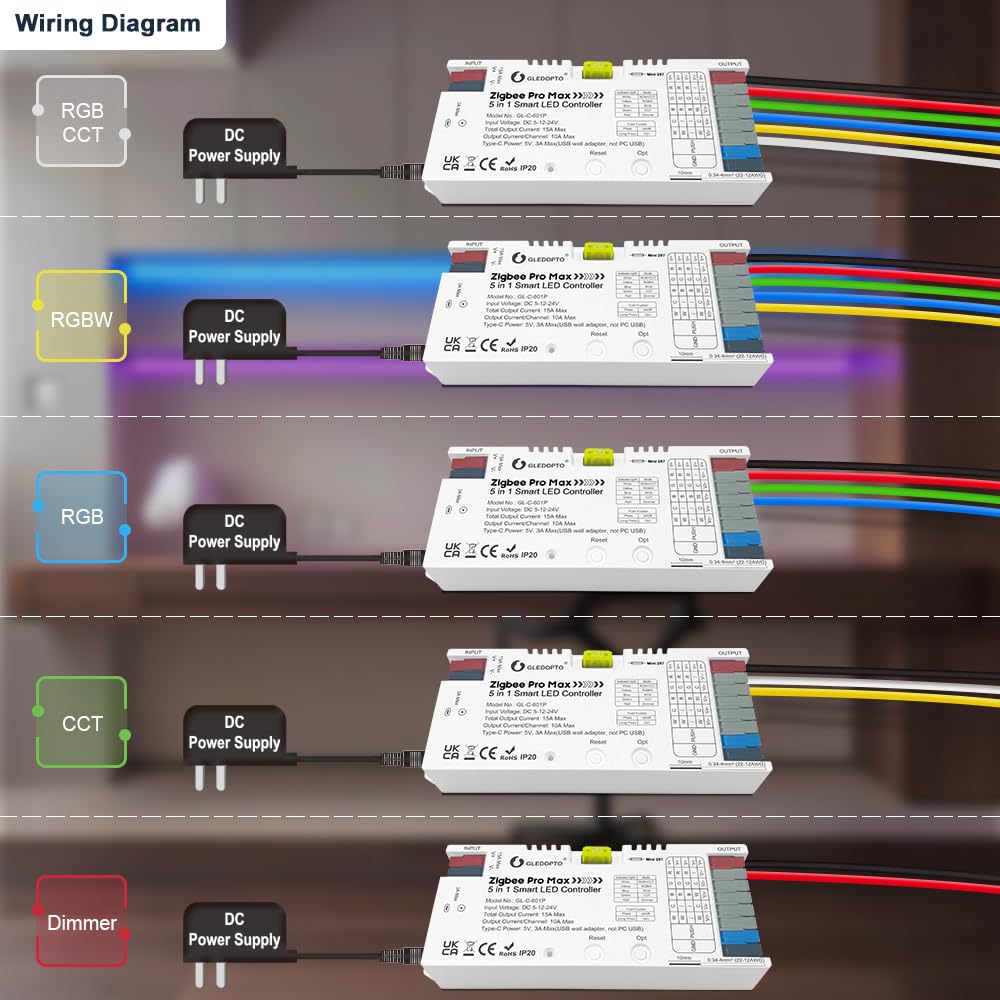

User-Friendly Installation & Wiring: Simplifies setup with upgraded quick-connect terminals for tool-free wiring. Three power input options (V+V-, DC5.5×2.1mm, Type-C) provide ultimate installation flexibility for various scenarios.Advanced Lighting Modes & Control: Unlock creative lighting with the unique color and color temperature Mix mode. Achieve precise control over 16 million colors and 2700K-6500K white tones, accessible via app, voice, RF remote, or the physical Push Switch.

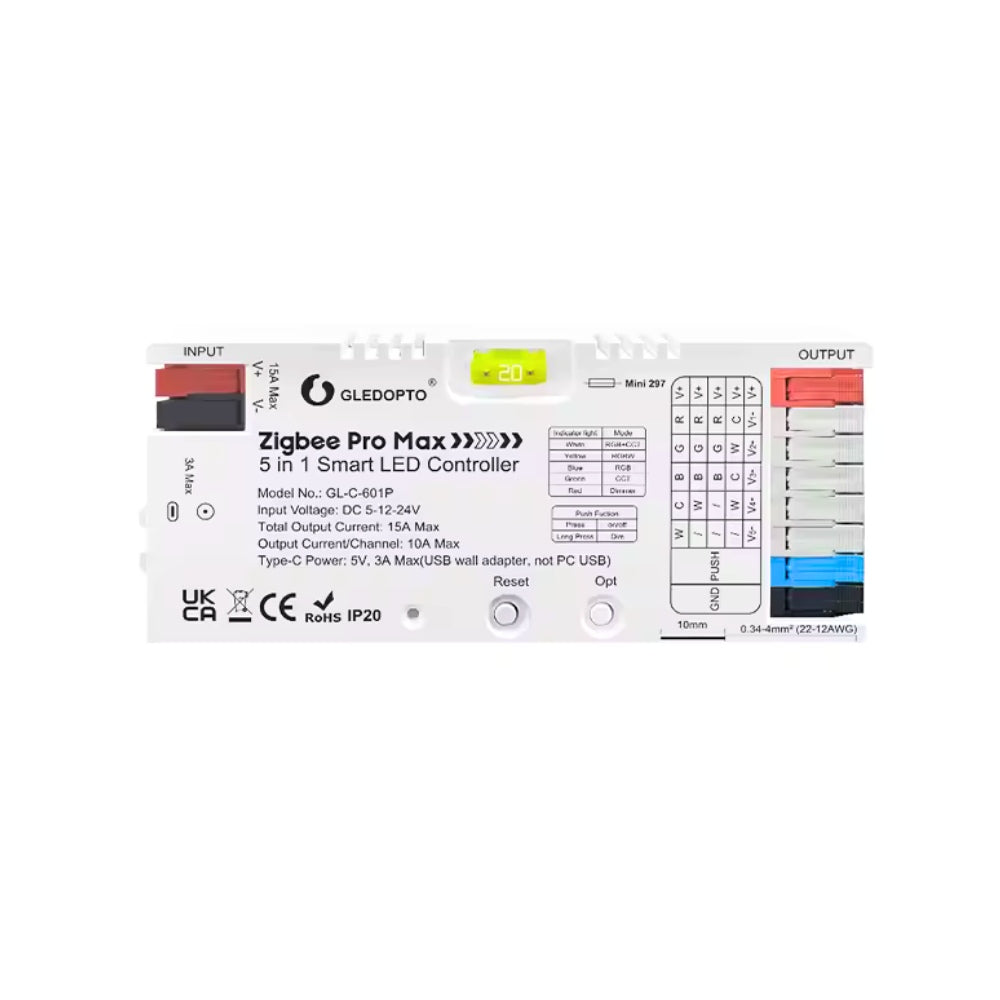

Model：GL-C-601PInput Voltage：DC 5-12-24VTotal Output Current：15A MaxOutput Current/Channel：10A MaxType-C Voltage：5VType-C Current：3A MaxColor：whiteProtocol：ZigbeeMaterial：Flame Retardant PCWeight：0.08kgIP Rate：IP20Size：129x50x23mm
- Product Type
- Zigbee
- Colour
- White
- IP Rating
- IP20 Non-Waterproof
- Voltage
- DC 5V-12V-24V
- Dimensions
- 129x50x23mm
- Warranty
- 5 Years
Specifications
- Product Type
- Zigbee
- Colour
- White
- IP Rating
- IP20 Non-Waterproof
- Voltage
- DC 5V-12V-24V
- Dimensions
- 129x50x23mm
- Operating Temperature
- -10~40°C
- Certification
- CE, RoHS
- Input
- DC 5V – 12V – 24V
- Output
- Max Output Current 15A Max
- Warranty
- 5 years
- Brand
- GLEDOPTO
Technical Documents
