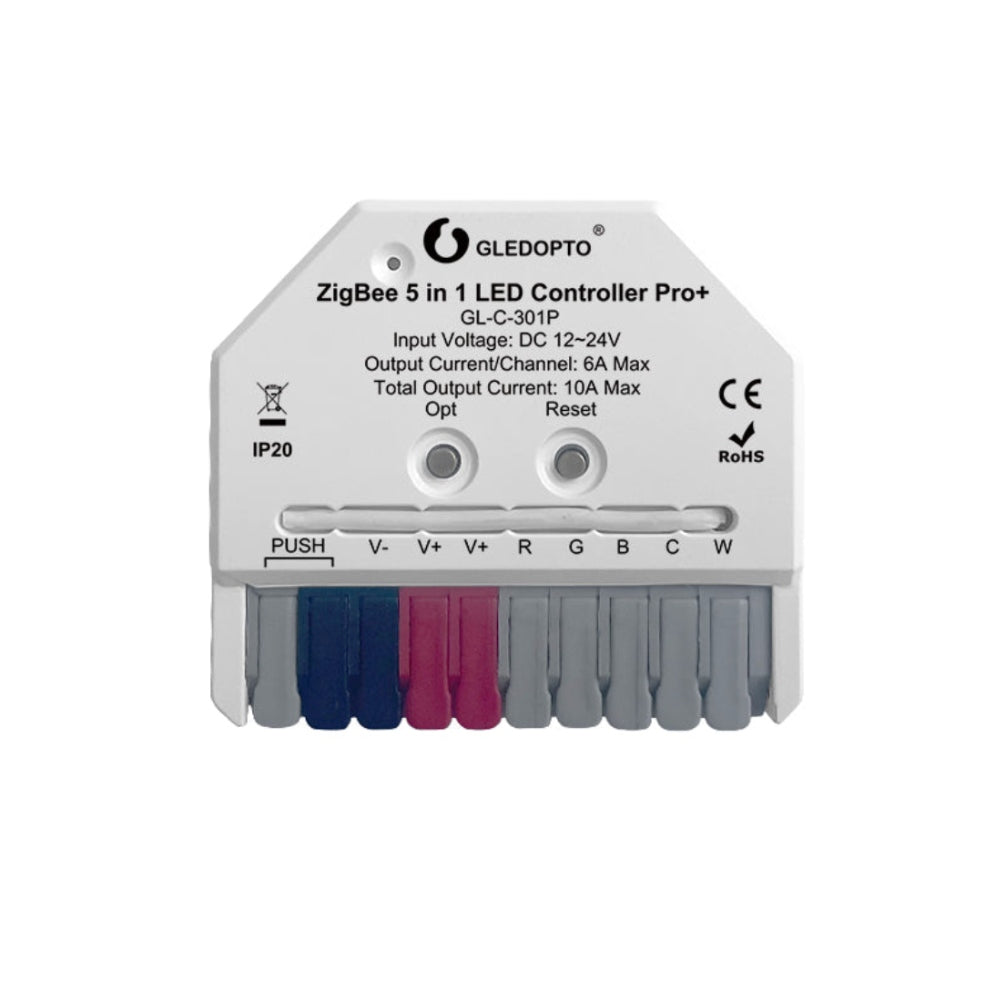

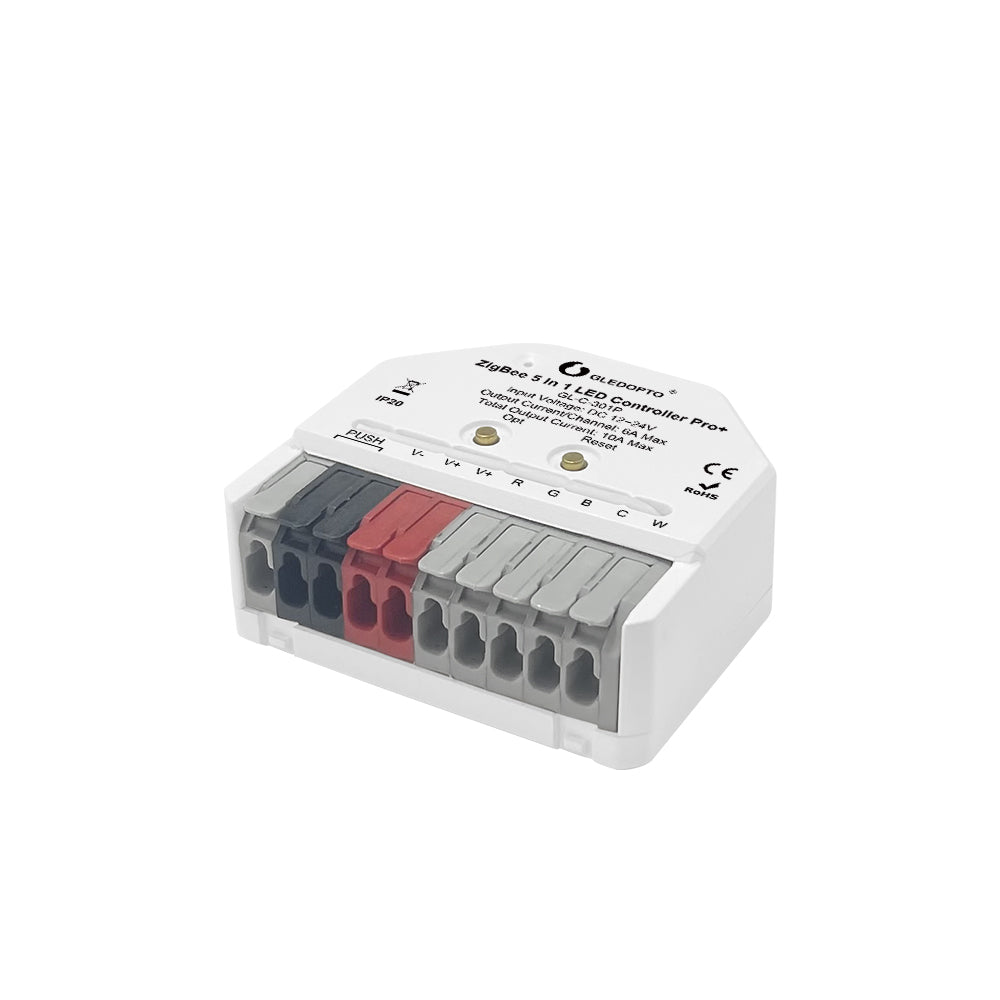

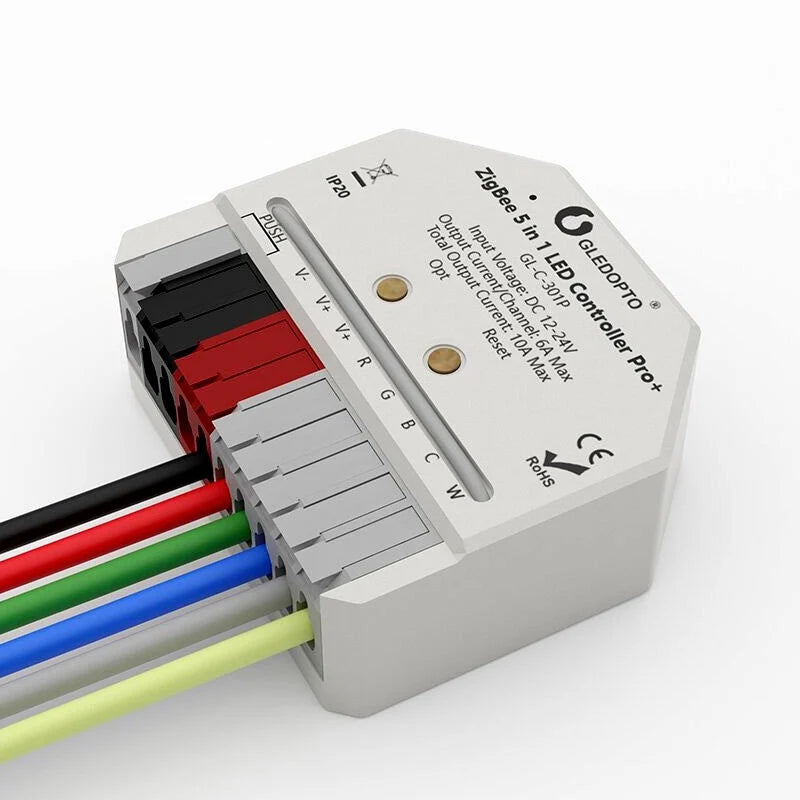

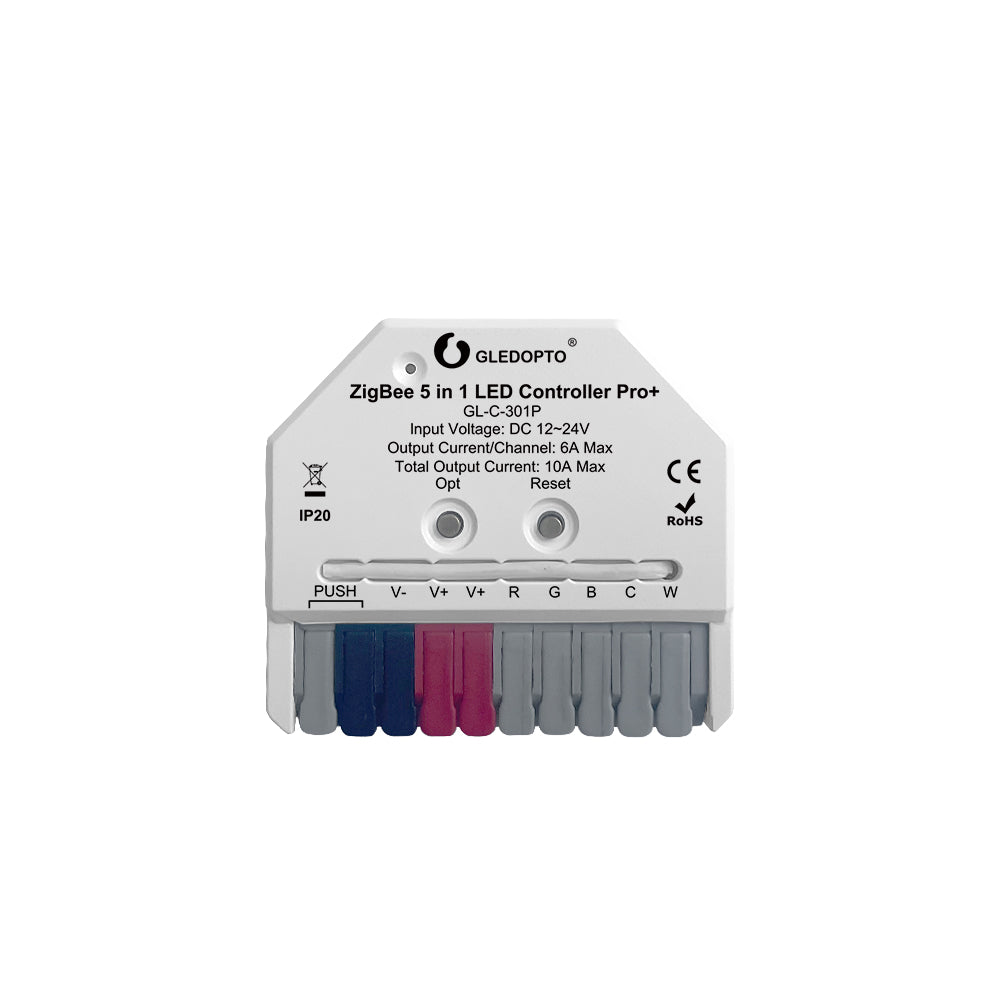

GLEDOPTO ZigBee Pro+ Ultra Mini Wi-Fi 5 in 1 LED Smart Controller GL-C-301P
GLEDOPTO ZigBee Pro+ Ultra Mini Wi-Fi 5 in 1 LED Smart Controller GL-C-301P
Available in stock (27)

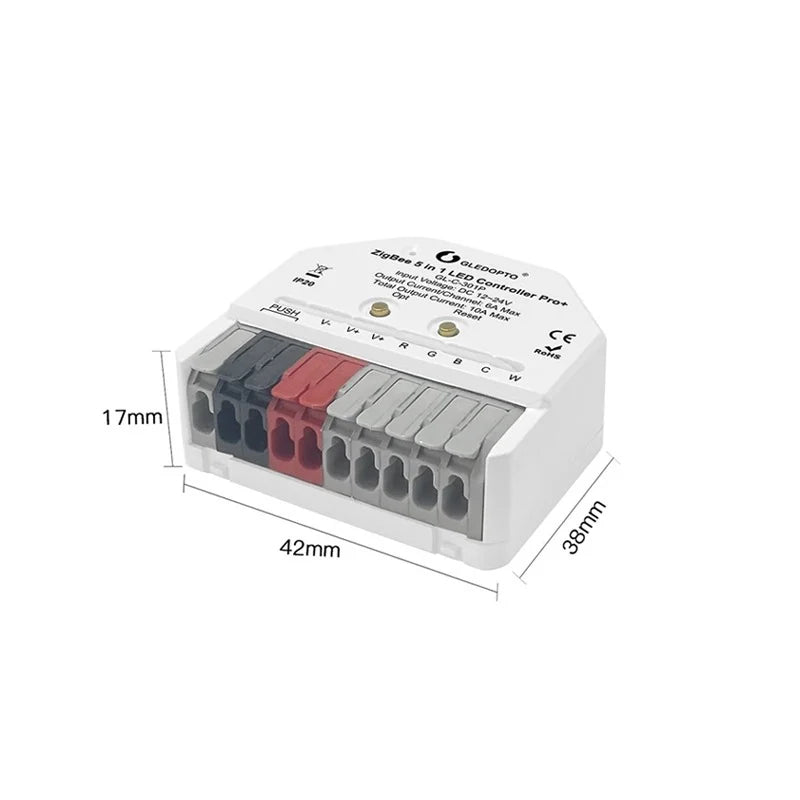

Gledopto Ultra Mini ZigBee Pro+ 5 in 1 Tuya LED Smart Controller. At just 42x38x17mm (WxLxD), these miniature LED controllers can be installed anywhere.
Capable of powering up to 10A of LED lighting load, they can be used with single and colour-changing LED lights.
Features
- Control unit for ZigBee 3.0 / GL-C-301P

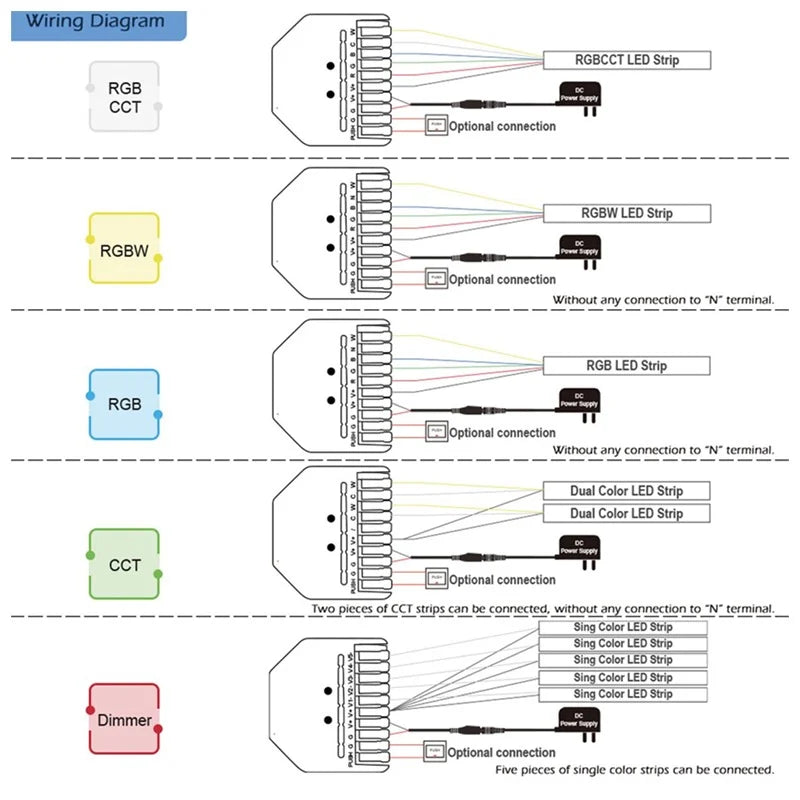

- 5 in 1 Single color, CCT, RGB, RGBW, RGBCCT lighting
- Voltages 12V DC / 24V DC
- Total 10A output power / 6A per channel
- wire typ 0.5-1.5mm² (24-16AWG)

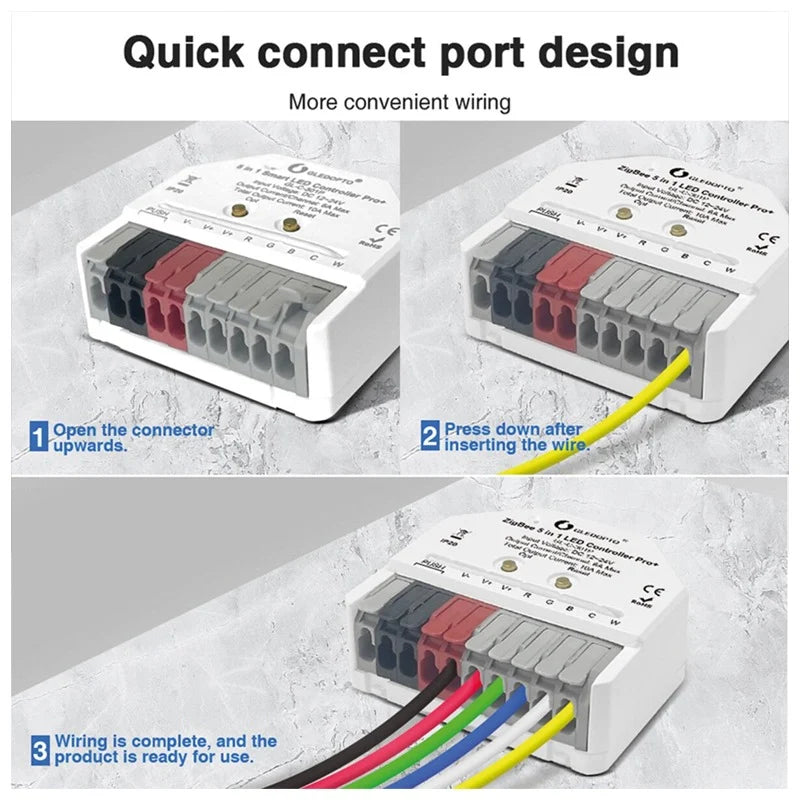

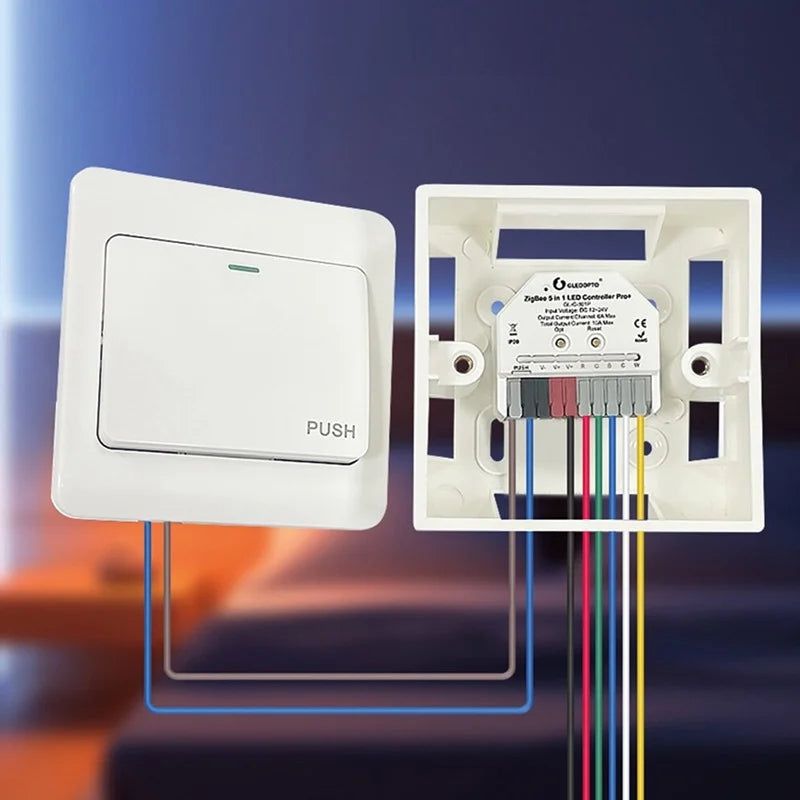

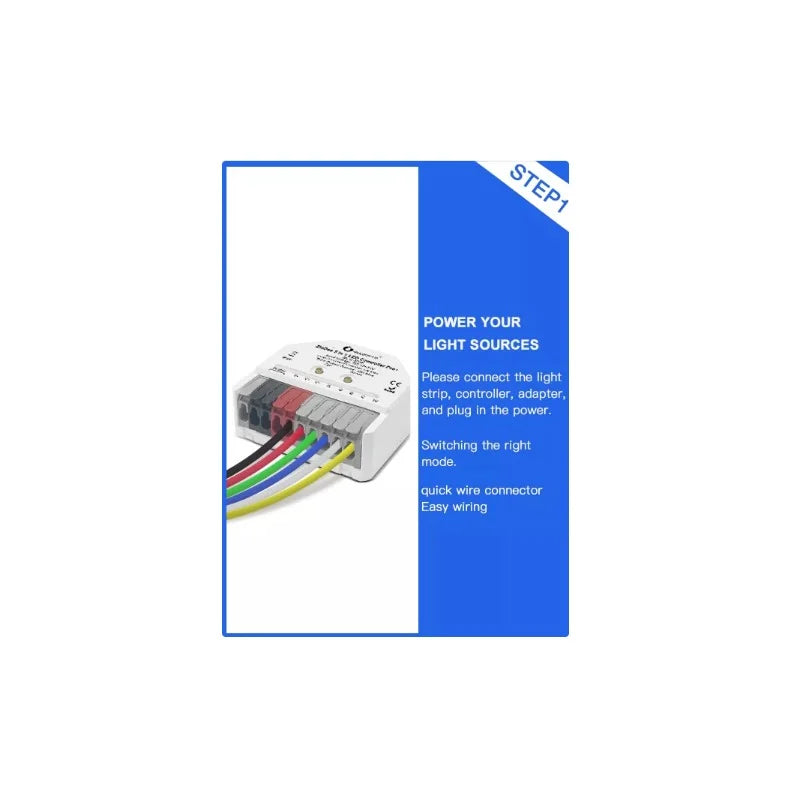

- Push button connection
Key Features
- Output current/channel: 6A Max
- Communication protocol: ZigBee 3.0 + 2.4G RF
- Suggested Wire Type: 0.5-1.5mm²(24-16AWG)
- Operating temperature: -20 degree C ~45 degree C
- Input voltage: 12-24V DC
- Total output current: 10A Max
- Material: Fireproof PC
- Stripping length: 8-9mm
- Function of button:
- Short press: Switch current device function (switching device function will automatically clear Zigbee and RF connections)

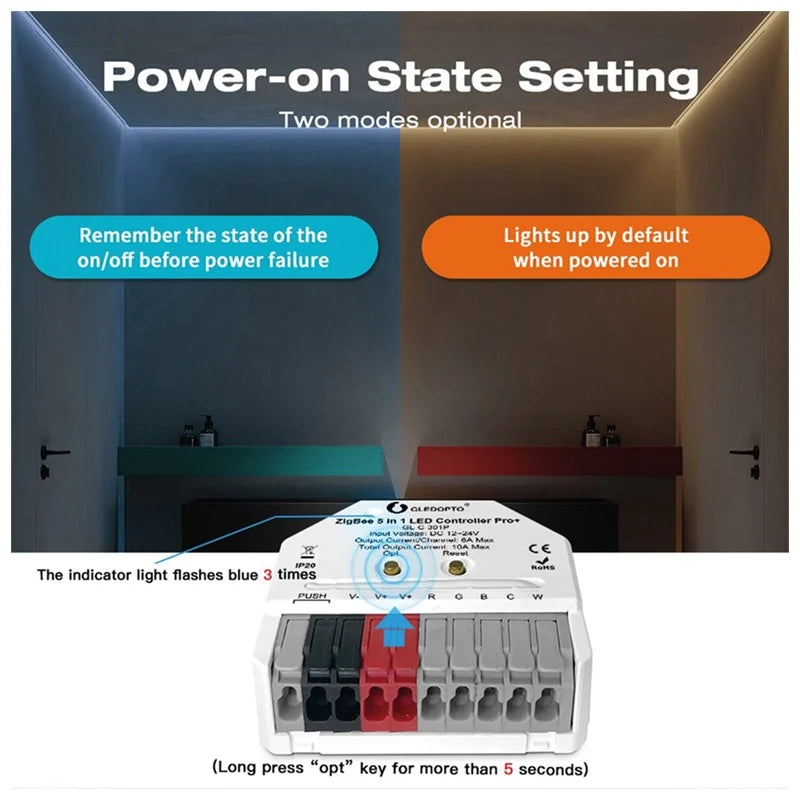

- Long press for 5 seconds: Enable/disable memory function (memory function is off by default, it determines whether to remember the power status before power off)

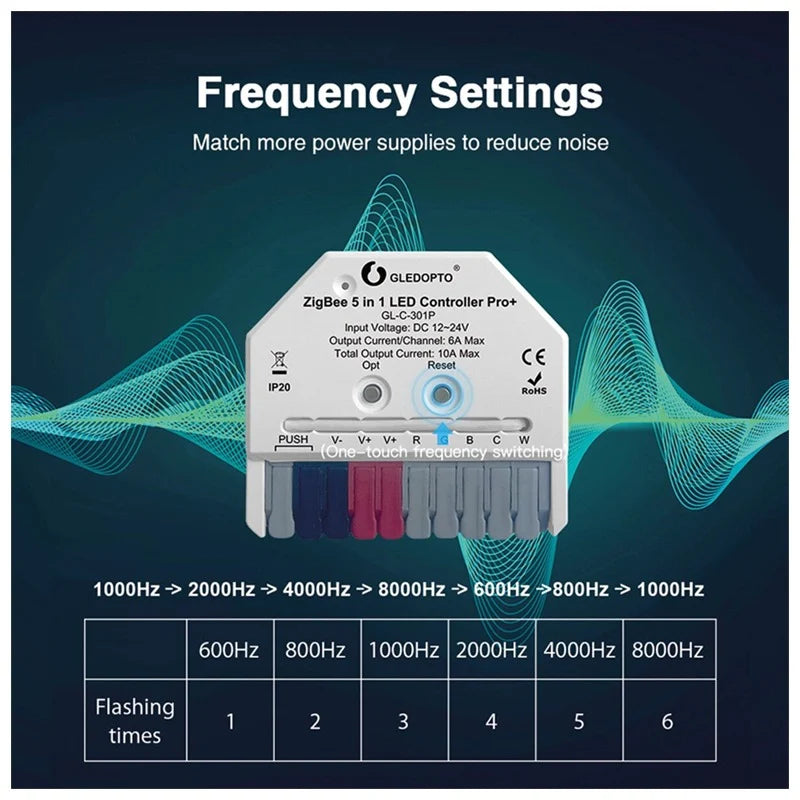

- Short press: Switch the frequency
- Long press for 5 seconds: Reset the controller. (After reset, it default back to RGBCCT)
- Short press: Power On/Off
- Long press: Adjust brightness (Assuming: Long press increases brightness, release and long press again decreases brightness) - Works with many ZigBee 3.0 Gatewayslike Philips Hue, Amazon, ECho Plus or Smart Things.
- Product code: GL-C-301P
Specifications
Specifications
| Brand | |
|---|---|
| Colour | White |
| IP Rating | |
| Voltage | Total 10A output power / 6A per channel |
| Dimensions | 42x38x17mm |
| Operating Temperature | 20 to +45 °C |
| Certification | CE, RoHS |
| Guarantee | 5 years |
