GLEDOPTO Elite 2D-EXMU ESP32 WLED Digital LED Controller with Ethernet Connection GL-C-616WL
Voltage
DC 5V-12V-24V
IP Rating
IP20 Non-
Warranty
5 Year
Speak to an expert 01952 370028

GLEDOPTO Elite 2D-EXMU ESP32 WLED Digital LED Controller with Ethernet Connection GL-C-616WL

SKU: GL-C-601P

  • Non-Waterproof
  • LED Strip
  • Reduced Glare
  • CRI 90
£49.85 Inc. VAT
27 units available
1

Encrypted & secure checkout

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Visa
  • Clearpay
Speak to an expert 01952 370028
Description

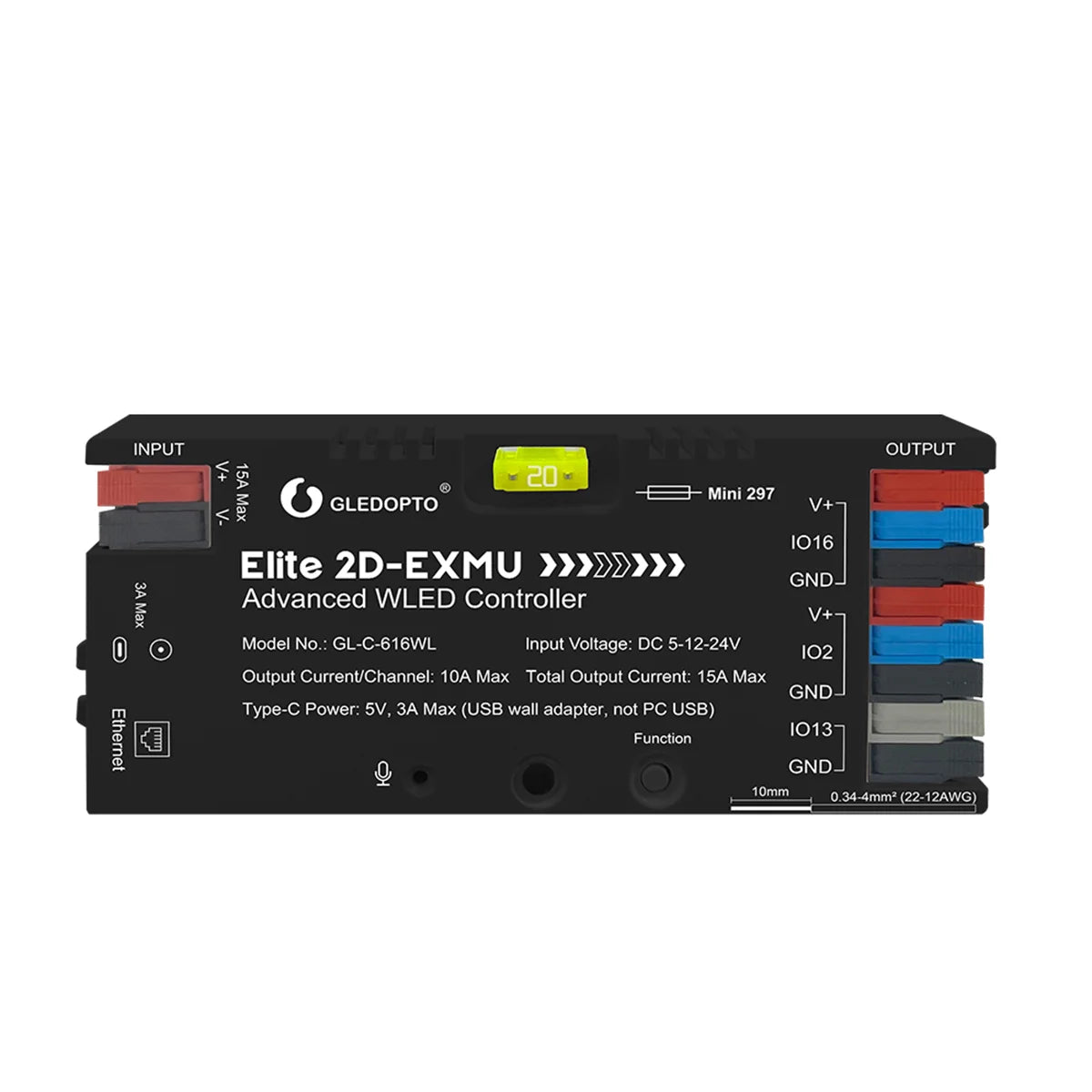

  • GLEDOPTO GL-C-616WL – WLED Controller with ESP32, UART and Ethernet

    The GLEDOPTO GL-C-616WL is a powerful WLED controller based on the ESP32, offering both WiFi and Ethernet connectivity for flexible and stable smart lighting integration. It supports control of up to two digital LED strips in parallel, making it suitable for advanced lighting projects and creative installations.

    The controller features a UART Type-C interface for flashing and configuration and is compatible with popular pixel LED chipsets including WS2812B, WS2815, SK6812, UCS2903B and SM16703. Control is handled via the WLED App on iOS and Android, with support for music-synchronised effects through the integrated AudioReactive microphone.

    It operates on a wide DC input voltage range of 5 to 24 V, delivers up to 15 A total output, and supports up to 10 A per channel. For safety and efficiency, it includes an integrated relay and fuse. Network setup can be completed via WiFi or a wired Ethernet connection, with full configuration available through the WLED web interface.

    The GL-C-616WL is ideal for digital LED strip lighting, Ambilight-style setups, smart home integrations, and ESP32-based DIY projects where reliability and performance are essential.

    Application Areas

    Living room lighting with digital strips and WLED effects

    Ambilight-like setups for TV and monitor

    Music-synchronised light shows thanks to microphone integration

    Stable smart home integration via network connection (Ethernet)Creative DIY projects with ESP32 & UART

    Technical Data

    Model: GL-C-616WL (Elite 2D-EXMU)
    Input voltage: DC 5–12–24 V
    Total output current: 15 A max
    Output current per channel: 10 A max
    Type-C input: 5 V / 3 A max
    Operating temperature: -20 to +45 °C
    Supported chips: WS2812B, WS2815, SK6812, UCS2903B, SM16703
    Interfaces: UART / Type-C, Ethernet, GPIO16, GPIO2, IO13 (DIY)

Product Type
WLED Controller with ESP32, UART & Ethernet
Colour
Black
IP Rating
IP20 Non-Waterproof
Voltage
DC 5V-12V-24V
Dimensions
129x50x23mm
Warranty
5 Years
Specifications
Product Type
WLED Controller with ESP32, UART & Ethernet
Colour
Black
IP Rating
IP20 Non-Waterproof
Voltage
DC 5V-12V-24V
Dimensions
129x50x23mm
Operating Temperature
-10~40°C
Certification
CE, RoHS
Input
DC 5V – 12V – 24V
Output
Max Output Current 15A Max
Warranty
5 years
Brand
GLEODPTO
