2.45 Metre Black Aluminium LED Surface Profile 12x10mm, Black Diffuser
SKU: PROF-1210B-2.45M
-
Non-Waterproof
-
LED Strip
-
Reduced Glare
-
CRI 90
Encrypted & secure checkout
Description
NO FREE DELIVERY ON LONG PROFILES (2 METRES AND OVER).
Delivery on this 2.45-metre profile is £19.85, on every order, at any order value. Free delivery never applies to long profiles — not even on orders over £90.
Long profiles are a rigid, oversized parcel and travel on a dedicated long-goods service. If your basket contains a 2.45-metre profile alongside 1-metre profiles, LED neon flex or any other product, the £19.85 charge applies to the whole order however much you spend. Next-day and timed services are not available on long profiles. Need a shorter length? Our 1-metre profiles ship at £6.95, free over £90.
Long profiles ship to UK mainland addresses only.

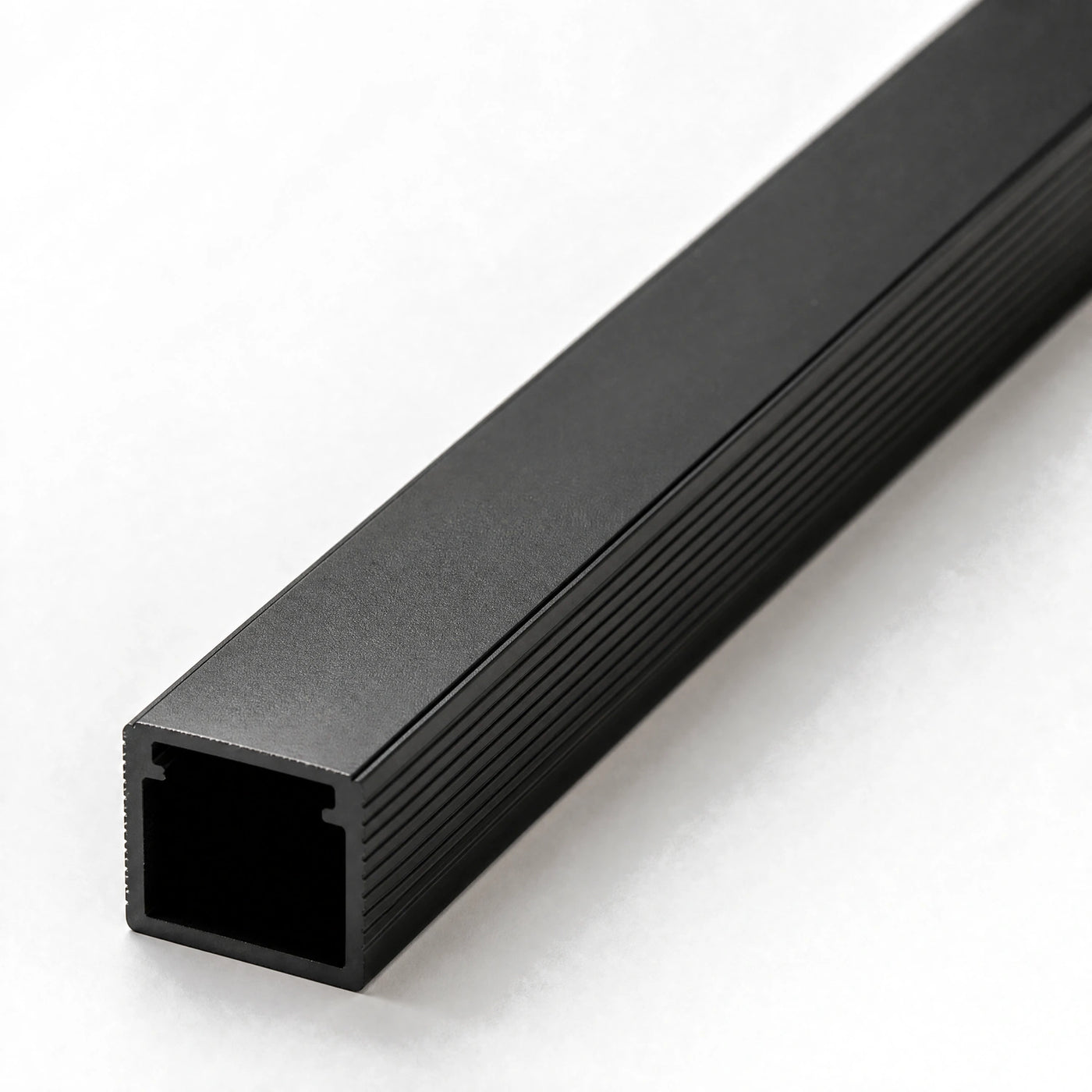

Black anodised aluminium surface profile, 11.9 x 10mm, supplied in a 2.45-metre length with a black push-in diffuser, two end caps, spring-steel clips and double-sided mounting tape. It screws flat to any surface and takes LED strip up to 10mm wide. The near-square section stays straight across a long span, and the black cover on a black body reads as a shadow gap unlit.
- Size: 11.9 x 10mm section, 2.45 metres long.
- Strip capacity: 10.2mm internal channel, accepts LED tape up to 10mm wide.
- Finish: anodised aluminium body in black, with a push-in black diffuser.
- Mounting: spring-steel clips with countersunk screw holes, or the supplied double-sided tape.
- IP rating: IP20 — an open channel for dry indoor rooms.
- In the box: black diffuser, two end caps (one drilled for the cable, one blank), clips and tape.
- Guarantee: 7 years.
Where does this profile get used?
Media walls and slat or acoustic panelling, under-cabinet runs in dark kitchens, shelf fronts, wardrobe interiors and coving. At 2.45 metres it covers most standard wall panel modules in one piece, and every join you avoid is a place the light line cannot break. Aluminium also pulls heat away from the tape, so strip run inside the channel holds its brightness longer than strip stuck to bare MDF or plasterboard.
Questions buyers ask
How much light does the black cover cost compared with an opal one?
- More than most people expect — a black diffuser is tuned to hide the fitting, not to pass light. Specify a higher-output COB tape than you would behind an opal cover, and treat the result as accent lighting.
What width of LED strip fits?
- Up to 10mm. The internal channel is 10.2mm, which gives a 10mm tape just enough clearance for its adhesive backing. Do not size the strip from the 11.9mm external width.
Can I cut the profile shorter?
- Yes. The aluminium cuts with a fine-tooth blade. Slide the diffuser out and cut it separately — sawing the cover while it sits in the channel is how diffusers crack.
Shorter run? The same channel comes as a 1-metre black 12x10mm profile. Dot-free tape to pair with it sits in COB LED strip.
Not sure your strip and connectors clear the 10.2mm channel? Call the ATOM LED technical team in Telford on 01952 370028, Monday to Friday 9am–5pm, or email operations@atomled.co.uk.
Part of the full aluminium LED profile range — every size and mounting style in UK stock.
- Product Type
- Aluminium Profile
- Colour
- Black
- IP Rating
- IP20
- Dimensions
- 11.9mm x 10mm
- Warranty
- 7 Years
Specifications
- Product Type
- Aluminium Profile
- Colour
- Black
- IP Rating
- IP20
- Metres
- 2.45 Metres
- Dimensions
- 11.9mm x 10mm
- Width
- 11.9mm
- Depth
- 10mm
- Shape
- Near-square surface channel
- Material
- Black anodised aluminium, black diffuser
- Attachment
- Surface mounted — clips, screws and adhesive tape included
- Warranty
- Up to 7 years
- Brand
- ATOM LED
- Led Strip Size
- Up to 10mm
- Weight
- 735g
