MaxiFlex Extra Long White 6x12mm IP67 24V 5cm cut 20m

MaxiFlex Extra Long. The standard mid-range driveway and landscape neon flex — 5cm (50mm) cut intervals, 20m of continuous single-feed run, 24V DC. This is the format installed most often on typical UK residential driveways, garden perimeters, and pergola lighting where the run sits between 10m and 20m.

6x12mm IP67 silicone construction, 120 LEDs per metre with 690 lumens output through a 120° beam. Built for direct exposure to UK weather — rain, frost, dew, and the full summer-to-winter temperature range. The Extra Long designation reflects 20m single-feed capacity vs the standard 1cm format's 15m.

Why 5cm Extra Long is the install default

Typical residential driveways: a UK detached driveway typically runs 8-15m from gate to garage. Add a small return at the gate end and you sit at 12-18m total. The 20m reel covers it from a single feed with headroom.

Garden perimeter borders: rear garden boundaries on a typical 10m × 15m back garden total around 50m. Two reels (front + back) cover it cleanly with one driver per side.

Pergola and outdoor structures: a 4m × 6m pergola has 20m of underside framework — exactly one reel.

Mid-size commercial outdoor: hospitality outdoor seating areas, retail forecourt edges, restaurant patio surrounds. The 20m single-feed simplicity meets specification cleanly without parallel-feed complexity.

5cm cut vs other intervals — when to pick this

You don't need 1cm precision: 5cm marks fall every two paving slabs (typical 60cm slab × 2 = 120cm = 24 cut points across a slab pair). Most landscape work doesn't need finer than 5cm.

Your run is under 20m: if the install fits inside 20m, the 24V format keeps driver compatibility simple. Step up to 48V only when you cross 20m.

You're cutting at structural breakpoints: patio slab gaps, paving stone joints, fence-post intervals — these structural breaks tend to fall at multiples of 5cm or 10cm, so the cut spec aligns naturally.

Install detail

Driver sizing for full 20m: 20 × 9 = 180W draw. With 1.2 safety multiplier = 220W minimum. Specify a 240W or 300W 24V driver — Mean Well HLG-240H-24A for outdoor IP67-rated install, or the 300W variant for additional headroom.

Cut points: 5cm (50mm) intervals are silicone-printed. Cut on the mark — between marks fails the seal. We pre-cut to spec before dispatch and reseal end-caps free.

Bend radius: 15mm horizontal minimum. Single-bend horizontal plane only.

Profile recommendation: 6x12mm aluminium driveway/landscape channels. Surface-mount or recess into the hardscape — clip-on style. Heat dissipation prevents premature LED degradation in the high-summer months.

BS7671 compliance: install by competent person. Use isolated DC driver. Never connect to mains.

For UK family alfresco zones and patio entertaining

For homeowners who use the garden as an extension of the home — outdoor dining, hot tubs, fire pits, and social spaces. The 20m reel is the right size for typical British family entertaining zones:

Alfresco dining patios: outdoor table-and-chair zones for family meals — perimeter lighting that lets you eat outside well into autumn evenings.

Hot tub and spa surrounds: ambient lighting around residential hot tubs, swim spas, and gazebo-housed wellness zones. IP67 silicone shrugs off chlorine vapour and steam.

Fire pit and social seating zones: circular fire pits, rectangular fire features, and bench-seating perimeters that frame social gatherings.

Play-area and lawn-zone delineation: safe boundaries between play areas, dining zones, and quiet corners — particularly useful in family gardens with children using the space at dusk.

Colour temperature for residential outdoor

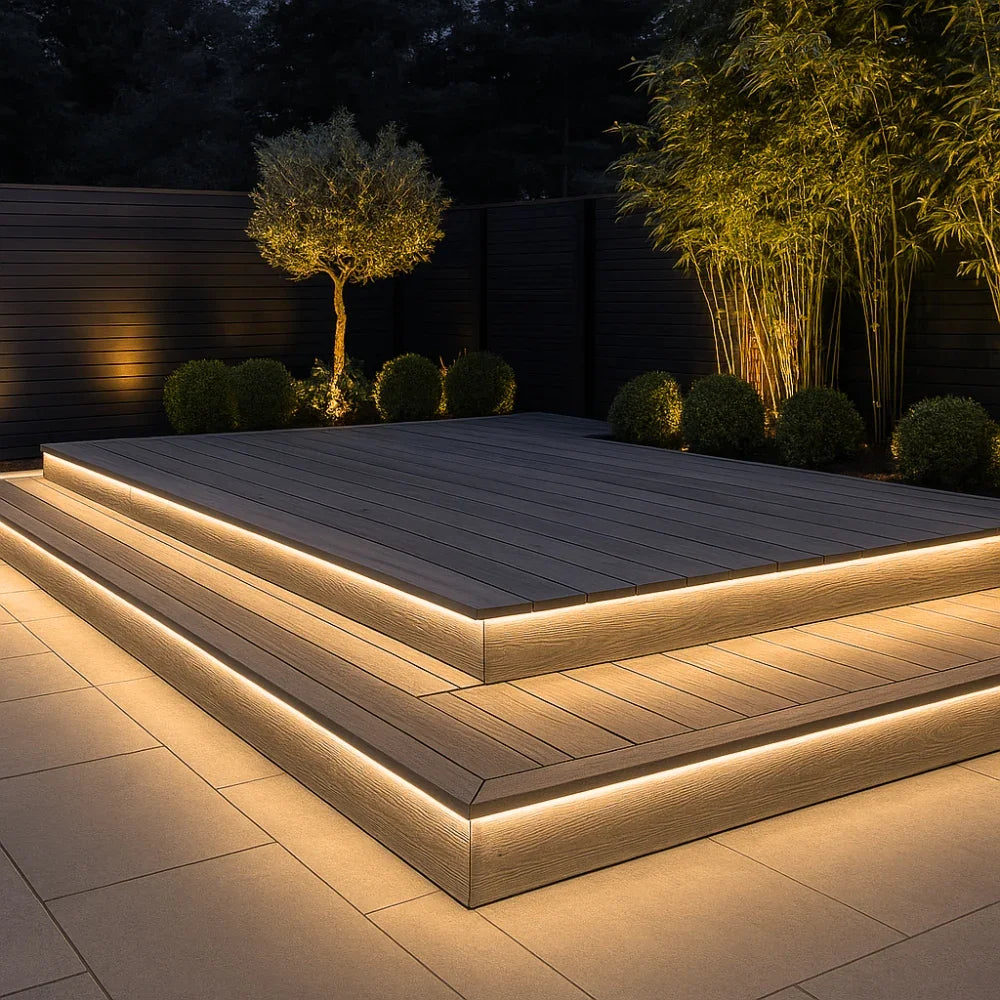

2700K — amber-warm. Hospitality, atmospheric residential, evening garden mood.

3000K — soft warm white. The most-installed option in this range. Pairs with most UK residential hardscaping.

4000K — neutral white. Modern composite, dark grey paving, contemporary architecture.

6000K — cool daylight. Commercial outdoor, security-led, premises requiring colour-accurate rendering.

Need a different MaxiFlex format?

MaxiFlex 24V — 1cm cut, 15m: precision-cut for landscape detail and driveway corners with frequent direction changes.

MaxiFlex Extra Long 48V — 10cm cut, 40m: doubles single-feed run for commercial and large-residential past 20m.

Custom-cut to your length specification, IP67 end-cap reseal, UK-wide dispatch.

4-year warranty. Free UK delivery on Mainland orders (2-3 working days). Designed in the UK.
