Mini Orange Neon Flex 24V 6x12mm IP65 Waterproof 15m
SKU: NFORNG24V612-5CM-IP65
-
IP65 Waterproof
-
Side Bend
-
Corner Bend
-
Flexible
Encrypted & secure checkout
Description

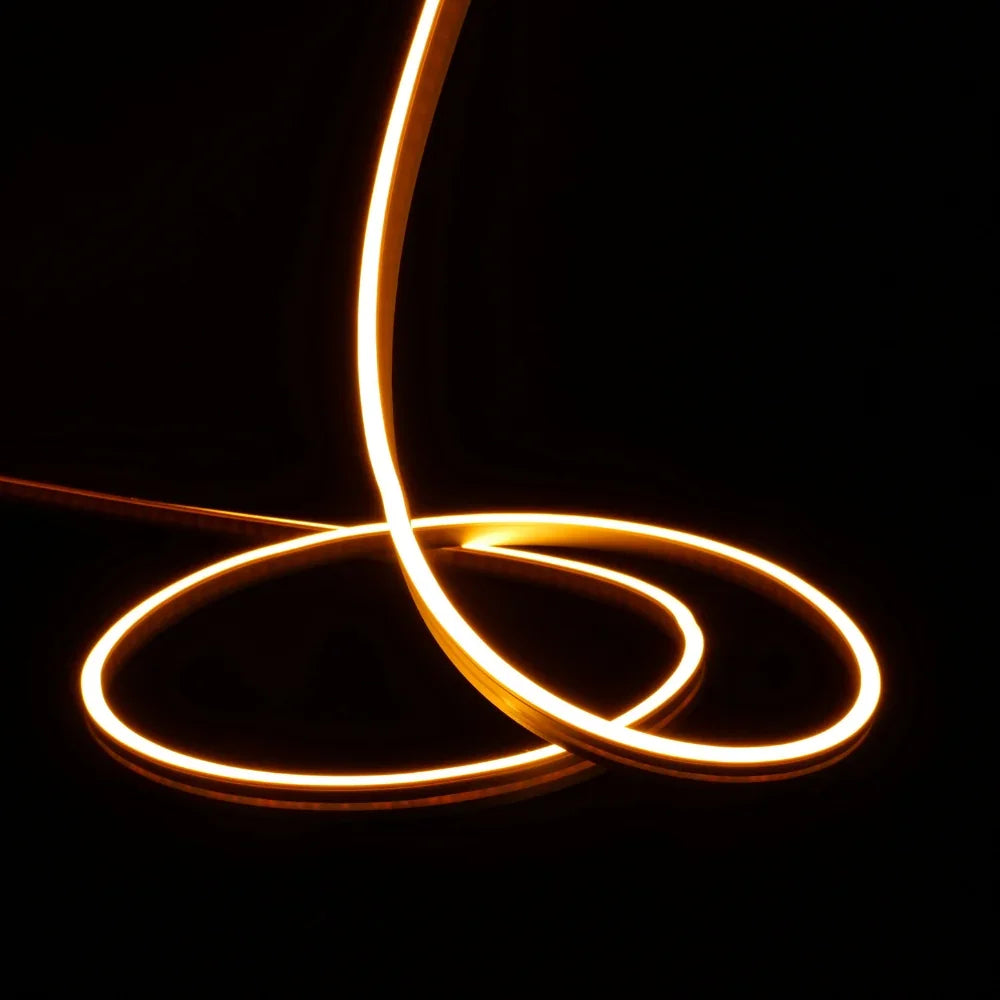

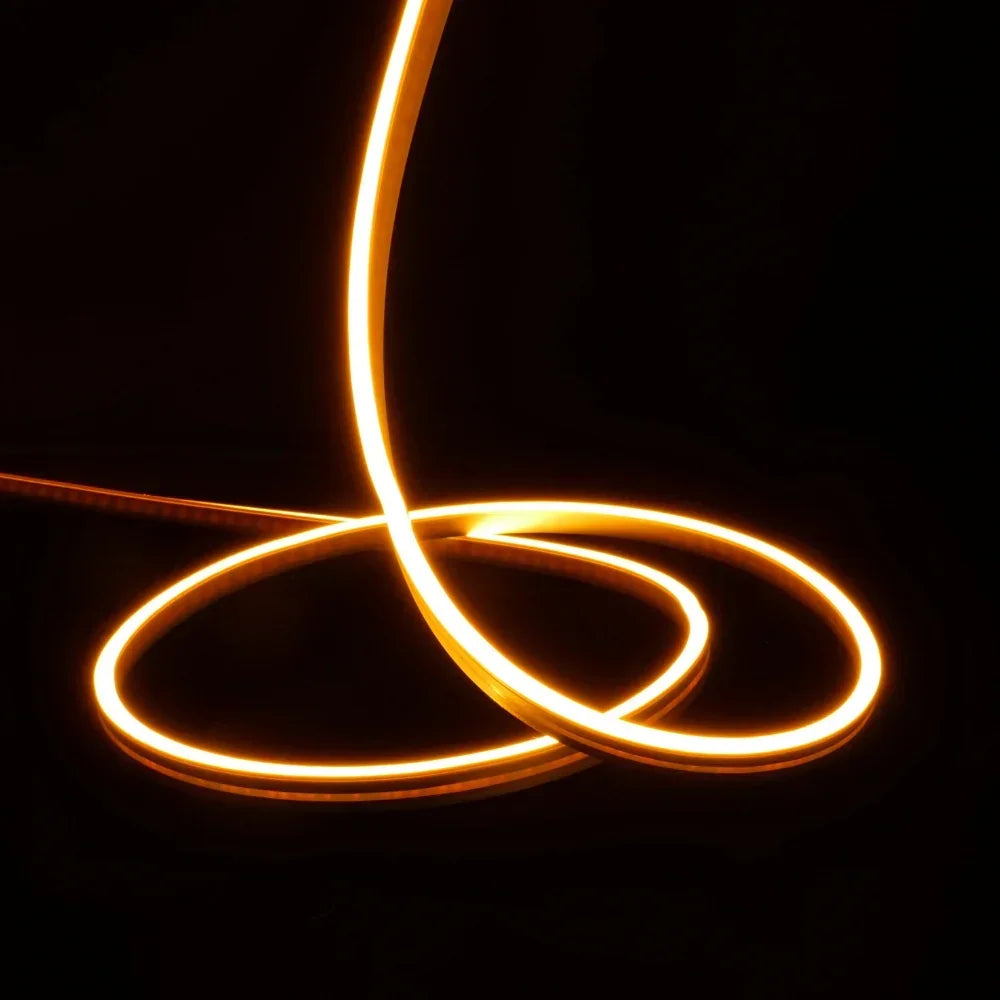

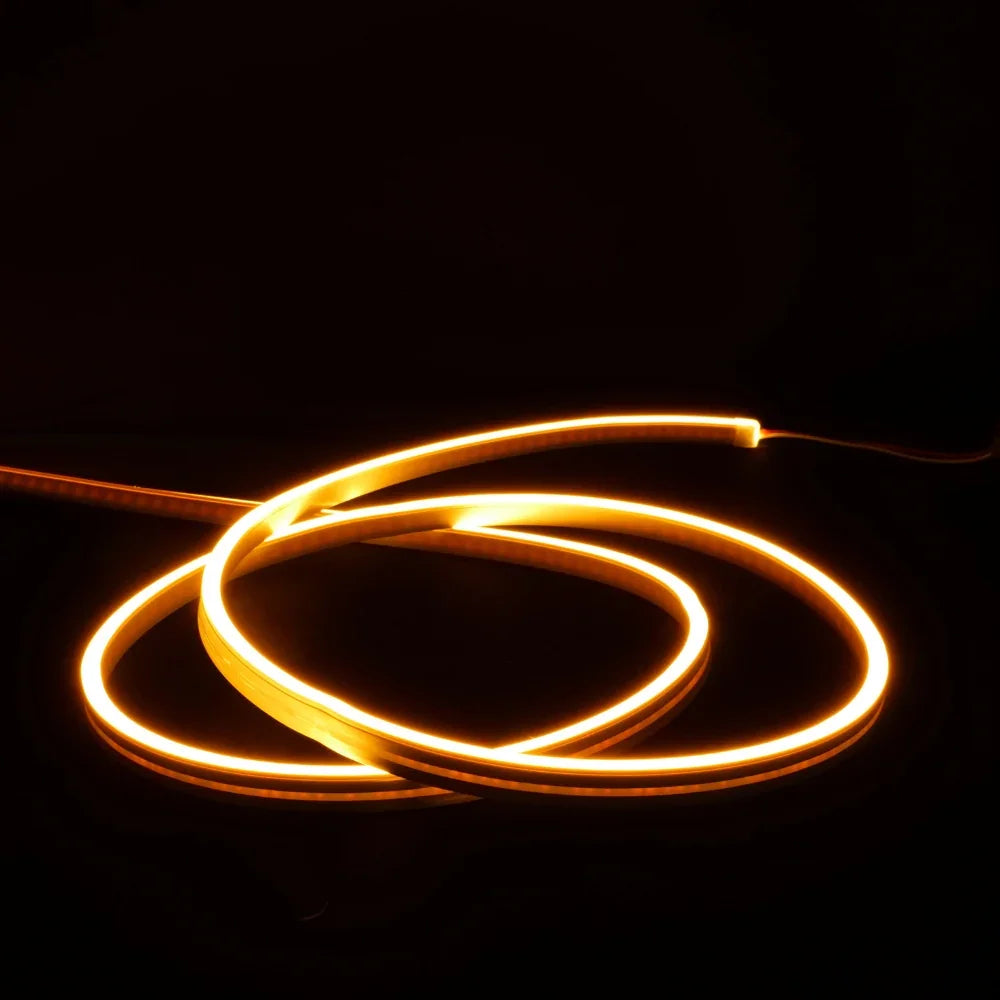

The Slim Mini LED Neon Flex 6x12mm gives you a fully diffused, dot-free line of light from a 24V flat-shape profile — cuttable every 5cm and rated IP65 for kitchens, bathrooms and covered outdoor areas. Orange neon flex suits signage, seasonal displays and warm accent lighting with a solid, even colour.
At 120 LEDs per metre using 2835 chips, it runs up to 15 metres from a single feed with no visible voltage drop, or 30 metres when powered from both ends. The slim silicone body measures 6mm wide by 12mm deep and bends horizontally to a 20mm radius, so it follows tight curves, sign lettering and furniture edges without kinking. Unlike PVC-covered flex, the silicone cover resists yellowing and keeps its finish for years.
Order any length from 1 to 30 metres and we supply it as one continuous run. Power draw is 6W per metre, so a 5m run draws 30W and needs a 40W driver with 20% headroom — see our 24V LED drivers. Covered by a 3-year guarantee (limited outdoor use — sheltered areas with light splashes only, not full weather exposure).
Not for you if: you need full weather exposure (choose our IP67 outdoor neon flex), vertical bending, or colour-changing control.
Frequently asked questions
Can I cut it? Yes — every 5cm at the marked cut points. Seal cut ends with an end cap and silicone glue.
Is it waterproof? IP65 — fine for splashes and covered outdoor spots. Not for rain-exposed or submerged runs.
What driver do I need? A 24V DC driver sized at 6W per metre plus 20% headroom — 40W for 5m, 75W for 10m, 120W for 15m.
Can I dim it? Yes — pair it with a dimmable 24V driver and a trailing-edge wall dimmer.
How long can one run be? 15m from one end. Up to 30m if you power the flex from both ends.
How tightly does it bend? Down to a 20mm radius, horizontal (side) bend only — tight enough for sign lettering and curved coving.
How do I mount it? Use the 6x12mm aluminium channel for straight runs or aluminium mounting clips for curves.
Can it go in a bathroom? Yes — IP65 covers splash zones. Keep it out of the shower enclosure itself and supply it from a suitably isolated driver.
Does it show dots? No — 120 LEDs/m behind a diffused silicone cover gives one continuous line of light.
Which colour should I pick? Orange is a fixed single colour. For colour changing, choose our RGB 6x12mm version instead.
What's included? The neon flex only. Clips, channel, end caps and drivers are sold separately.
Not sure which length or driver you need? Call us on 01952 370028 or email operations@atomled.co.uk and our technical team will size it for you before you order.
- Product Type
- LED Neon Flex
- Colour
- Orange
- IP Rating
- IP65 Waterproof
- Voltage
- 24V
- Watts Per Metre
- 6 Watts
- LEDs Per Metre
- 120
- Max Run Length
- 15m
- Dimensions
- 6x12mm
- Warranty
- 2 Years
Specifications
- Product Type
- LED Neon Flex
- Colour
- Orange
- IP Rating
- IP65 Waterproof
- LEDs Per Metre
- 120
- Continuous Run
- 15m
- Voltage
- 24V
- Watts Per Metre
- 6 Watts
- Metres
- 50m Roll
- Dimensions
- 6x12mm
- Width
- 6mm
- Depth
- 12mm
- Bending Angle
- Horizontal Bend
- Lumens Per Metre
- 495 lm
- Cut Points
- 5cm (50mm)
- Operating Temperature
- -20°C to 50°C
- LED Type
- 2835
- Average LED Life Hours
- 50,000
- Max Bending
- 2cm
- Warranty
- 2 years
- Brand
- ATOM LED
