- Voltage
- AC 220V 240V
- IP Rating
- IP65
- Cut
- 20cm
- Max Run
- 50m
- Warranty
- 1 Year
Orange LED Neon Flex 220V 240V Top Bend 20cm Cut IP65 with UK Plug
SKU: NFORNG220V1616-20C
-
IP65 Waterproof
-
Top Bend
-
Corner Bend
-
Flexible
Encrypted & secure checkout
Description

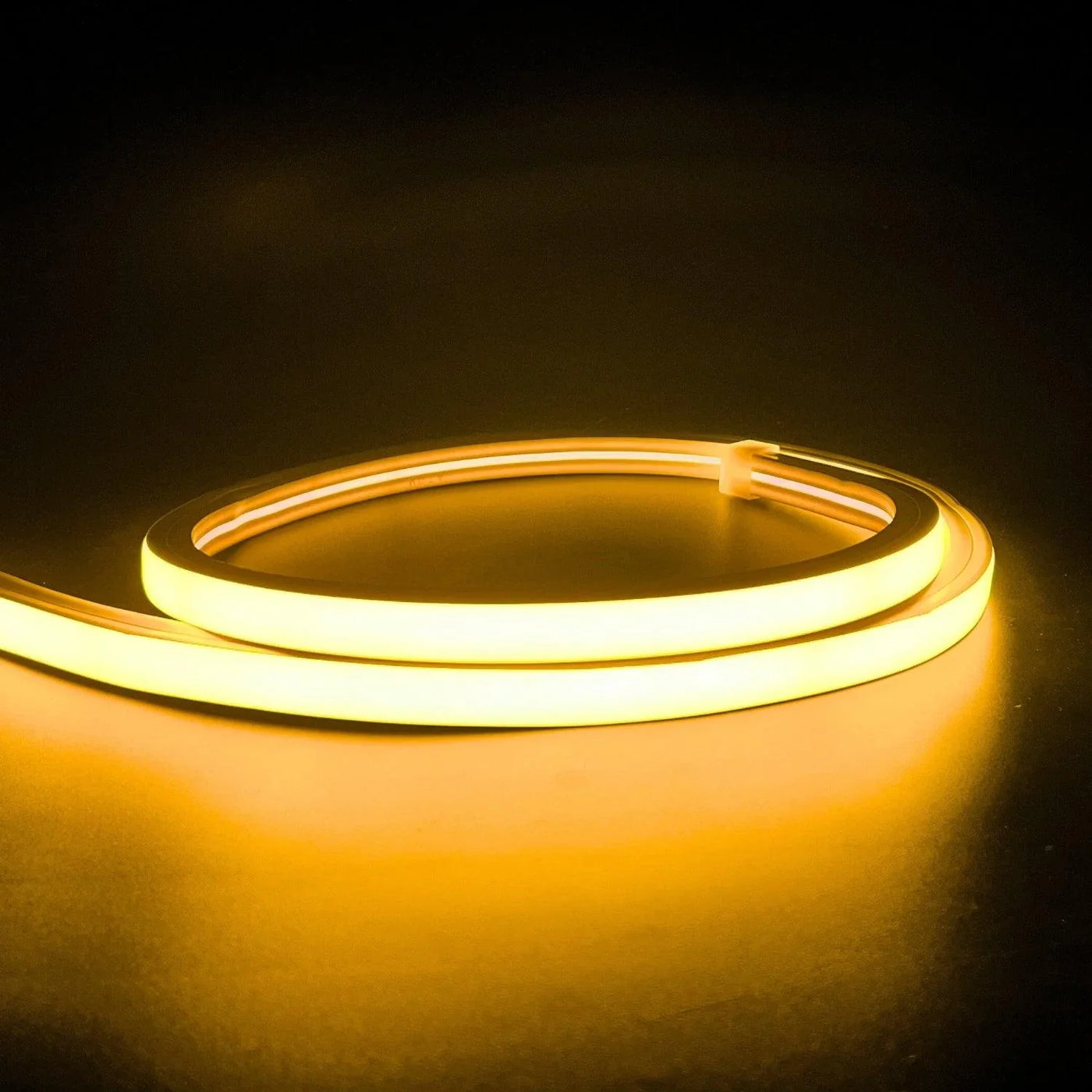

Orange Neon Flex – 16x16mm | 220V–240V | 120 LEDs/m
Our LED Neon Flex is designed to create a wide range of modern lighting effects with just one product. Delivering a bright, continuous glow with 120 LEDs per metre and a 120º beam angle, it ensures smooth, dot-free illumination ideal for accent lighting in homes, restaurants, bars, retail spaces, and architectural features.
Vertical Bend / Top Bend Neon Flex, cuttable every 20cm.
The 16x16mm Neon Flex is vertically bendable (top bend), making it the perfect choice for signage, lettering, and projects where the light needs to curve upwards or downwards. It can be cut every 10cm, offering flexibility for custom installations. Manufactured from durable, impact-resistant materials, it provides a long service life of around 30,000 hours. Compared with traditional glass neon, this LED version is safer, easier to install, and consumes up to 80–90% less energy. Each strip is supplied from a 50-metre master roll and prepared to the size you need.
Each neon flex includes a 1-year warranty for indoor and outdoor use when properly sealed. Please note the controller is not Waterproof and must be kept inside a dry, protective enclosure if used outdoors.
Rated IP65, this LED Neon Flex is suitable for indoor areas and light outdoor environments where there may be mild splashes or moisture, such as under covered patios or sheltered façades. It is not recommended for harsh conditions or constant exposure to water. Avoid using near pools, bathrooms, or saunas. For outdoor installations, always apply heat-shrink tubing and silicone sealant to the ends and connectors to ensure water resistance.
Package includes:
1 x LED Neon Flex
1 x Controller with UK Plug
1 x Pack of Mounting Clips (1 clip per metre)
Important Installation Guidance:
This product is not intended for recessed outdoor ground installations or any setting directly exposed to rain or heavy weather. For such applications, we recommend choosing IP67 or IP68-rated Neon Flex, which offers greater durability and protection.
Any modification or incorrect use will void the warranty. In particular, hardwiring is not permitted—the product must be used with the supplied UK plug. If you require a hardwired setup, please use one of our low-voltage DC Neon Flex options (12V, 24V, or 48V), which are specifically designed for that purpose.
If you need advice on selecting the best product for your project, contact our team at sales@atomled.co.uk. We’re always happy to help.
Specifications:
- Colour: Orange
- Voltage: 220V 240V AC
- Power: 9W/m
- LEDs per metre: 120 LEDs
- Cut Points: 20cm
- CRI: >80
- Beam Angle: 120°
- Dimensions: (W)16mm x (H)16mm
- Lumens per metre: Up to 590 lm
- Warranty: 1 Years
- IP Rating: IP65 (suitable for indoor and limited outdoor use)
-
Dimming: Yes (Need Dimmer)
- Shape: Flat Shape
The lights are custom cut as per your specific requirements.
- Product Type
- LED Neon Flex
- Colour
- Orange
- IP Rating
- IP65 Waterproof
- Voltage
- AC 220V 240V
- Watts Per Metre
- 9 Watts
- LEDs Per Metre
- 120
- Max Run Length
- 50m
- CRI
- >80
- Dimensions
- 16x16mm
- Warranty
- 1 Years
Specifications
- Product Type
- LED Neon Flex
- Colour
- Orange
- IP Rating
- IP65 Waterproof
- LEDs Per Metre
- 120
- Continuous Run
- 50m
- Voltage
- AC 220V 240V
- Watts Per Metre
- 9 Watts
- Metres
- 50m run
- Dimensions
- 16x16mm
- Width
- 16mm
- Depth
- 16mm
- Bending Angle
- Vertical / Top Bend
- Lumens Per Metre
- 590
- Cut Points
- 20cm
- Operating Temperature
- -30°C to 40°C
- LED Type
- 2835
- Average LED Life Hours
- 30,000
- Continuous Operating Hours
- 8 hours
- Max Bending
- 4cm
- Shape
- Flat
- Certification
- UKCA, CE, RoHS
- Material
- PVC
- Attachment
- Clips or Profile
- CRI
- >80
- Warranty
- 1 years
- Brand
- ATOM LED
Delivery & Returns
On 97% of products — Royal Mail 48-hour tracked
Mainland UK orders over £90 — order by 1pm, Mon–Fri
30-day returns window — free returns on faulty products
01952 370028 · Mon–Fri 9am–5pm
Shipping
Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.
Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.
Saturday Delivery is available as a paid option at checkout.
Large orders and pallet shipments: call 01952 370028 for a quote.
For more information see our detailed Shipping Page.
International Shipping
Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.
Returns & Refunds
The 30-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:
- Standard LED strip lights supplied as 5-metre rolls
- Straight aluminium profiles
- Power supplies and drivers
- Accessories (connectors, controllers, dimmers, end caps)
Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.
Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.
Refunds are processed within 5–10 working days of receiving the returned item.
For more details see our Returns & Refunds page.
Reviews
Frequently Asked Questions
What is the difference between IP65, IP67, and IP68?
IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.
Can I cut this product to a custom length?
Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.
What size driver do I need?
Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.
Should I choose 12V, 24V, or 48V?
Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
What is your warranty?
ATOM LED offers product-specific warranties: up to 7 years on single-colour COB strip, 5 years on RGB and RGBW COB strip, and 4 years on LED neon flex. The warranty covers manufacturing defects. Call 01952 370028 for warranty claims.
Do you offer free delivery?
Yes. Free UK delivery on 97% of products via Royal Mail 48-hour tracked. Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
